MZEA11L-CEXEBC (2021)

Toyota Levin/Hybrid

Production Jan 2021 - Sep 9999
Engine M15AFKS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(2101- )M15AFKS..CVT

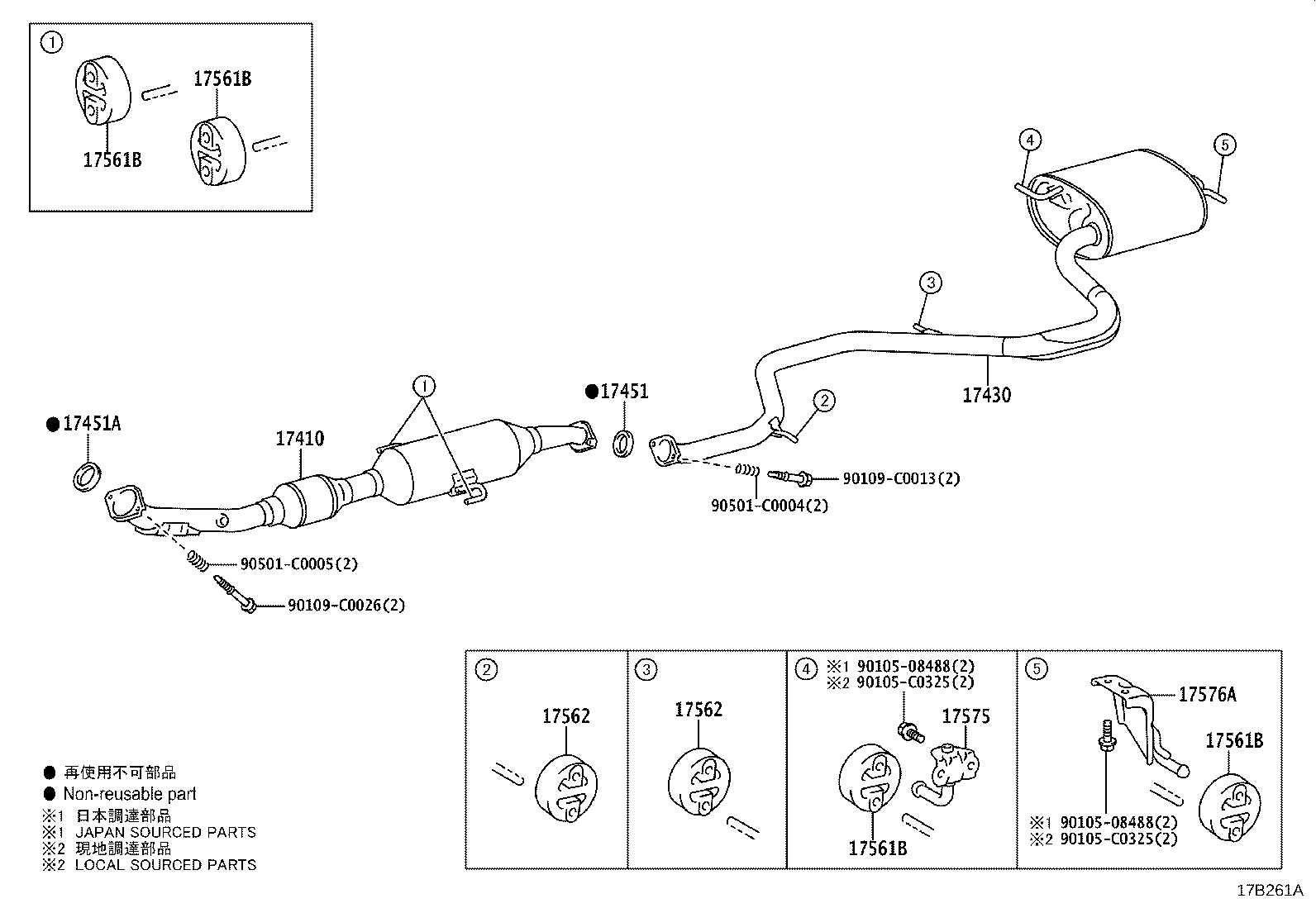

Click highlighted areas on diagram

diagram 17410 17430 17451 17451A 17561B 17561B 17561B 17561B 17562 17562 17575 17576A 9010508488 9010508488 90105C0325 90105C0325 90109C0013 90109C0026 90501C0004 90501C0005
Part # Description Qty Price
17410 - PIPE ASSY, EXHAUST, FRONT
17410-F3010

M15AFKS..MZEA11..CVT

*114=TOYOTA/F3010/Y

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-F3010

M15AFKS..MZEA11..CVT

 1
17451 - GASKET, EXHAUST PIPE
17451-0T080

M15AFKS..MZEA11..CVT

 1
17451A - GASKET, EXHAUST PIPE, NO.2
17451-F3010

M15AFKS..MZEA11..CVT

 1
17561B - SUPPORT, EXHAUST PIPE, NO.1
17565-0H080

M15AFKS,9NRFTS,8ZRFXE..MZEA11,NRE210,ZWE211..CVT

 4
17561B - SUPPORT, EXHAUST PIPE, NO.1
17565-0H080

M15AFKS,9NRFTS,8ZRFXE..MZEA11,NRE210,ZWE211..CVT

 4
17561B - SUPPORT, EXHAUST PIPE, NO.1
17565-0H080

M15AFKS,9NRFTS,8ZRFXE..MZEA11,NRE210,ZWE211..CVT

 4
17561B - SUPPORT, EXHAUST PIPE, NO.1
17565-0H080

M15AFKS,9NRFTS,8ZRFXE..MZEA11,NRE210,ZWE211..CVT

 4
17562 - SUPPORT, EXHAUST PIPE, NO.2
17565-0H090

M15AFKS,9NRFTS,8ZRFXE..MZEA11,NRE210,ZWE211..CVT

 2
17562 - SUPPORT, EXHAUST PIPE, NO.2
17565-0H090

M15AFKS,9NRFTS,8ZRFXE..MZEA11,NRE210,ZWE211..CVT

 2
17575 - BRACKET, EXHAUST PIPE SUPPORT, NO.5
17575-0T150

M15AFKS,9NRFTS,8ZRFXE..MZEA11,NRE210,ZWE211..CVT

 1
17576A - BRACKET, EXHAUST PIPE SUPPORT, NO.6
17576-0T100

M15AFKS,9NRFTS,8ZRFXE..MZEA11,NRE210,ZWE211..CVT

 1
Common parts
90105-08488
90105-C0325
90109-C0013
90109-C0026
90501-C0004
90501-C0005
