TRJ155L-GJTEKV (2017)

Toyota Land Cruiser Prado

Production Aug 2017 - Sep 9999
Engine 2TRFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0908- )TRJ155

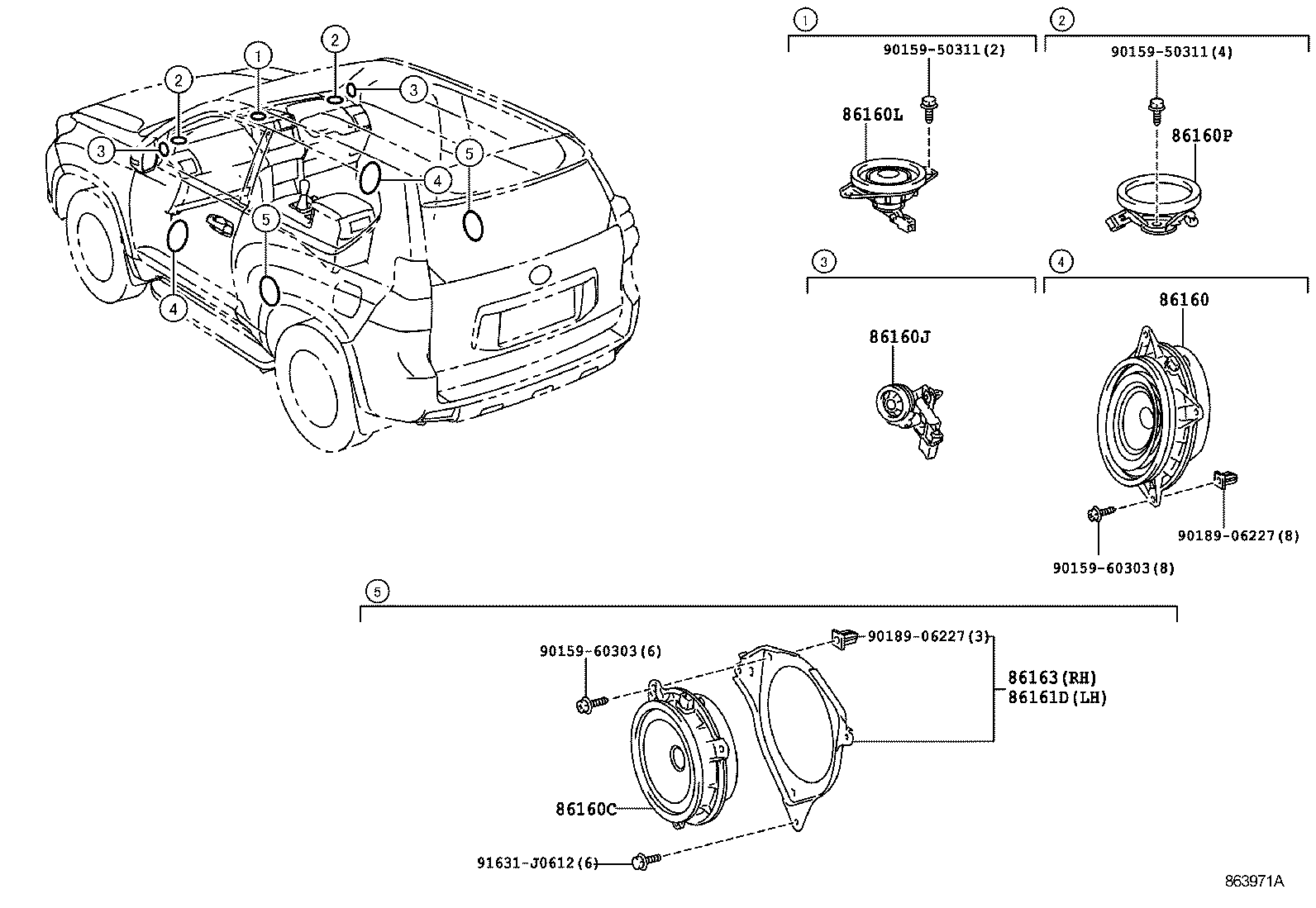

Click highlighted areas on diagram

diagram 86160 86160C 86160J 86160L 86160P 86161D 86163 9015950311 9015950311 9015960303 9015960303 9018906227 9018906227 91631J0612
Part # Description Qty Price
Common parts
90159-50311
90159-60303
90189-06227
91631-J0612

(1708- )TRJ155

Click highlighted areas on diagram

diagram 86160 86160C 86160J 86160L 86160P 86161D 86163 9015950311 9015950311 9015960303 9015960303 9018906227 9018906227 91631J0612
Part # Description Qty Price
86160 - SPEAKER ASSY, FRONT NO.1
86160-58240

GDJ150,GRJ150,KDJ150,LJ150,TRJ15#

 2
86160-60460

GRJ150..6F..GEN;GDJ150,TRJ150..GEN;KDJ150,TRJ155..GCC,GEN;GRJ150..6FC..(ARL,GCC,GEN)

AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER

 2
86160C - SPEAKER SET, REAR
86160-52300

GDJ150,GRJ150,KDJ150,LJ150,TRJ15#

 2
86160-60430

GRJ150..6F..GEN;GDJ150,TRJ150..GEN;KDJ150,TRJ155..GCC,GEN;GRJ150..6FC..(ARL,GCC,GEN)

AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER

 2
86160J - SPEAKER ASSY, FRONT NO.3
86160-60480

GRJ150..6F..GEN;GDJ150,TRJ150..GEN;KDJ150,TRJ155..GCC,GEN;GRJ150..6FC..(ARL,GCC,GEN)

AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER,RH

 1
86160-60490

GRJ150..6F..GEN;GDJ150,TRJ150..GEN;KDJ150,TRJ155..GCC,GEN;GRJ150..6FC..(ARL,GCC,GEN)

AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER,LH

 1
86160L - SPEAKER ASSY, FRONT NO.4
86160-60530

GRJ150..6F..GEN;GDJ150,TRJ150..GEN;KDJ150,TRJ155..GCC,GEN;GRJ150..6FC..(ARL,GCC,GEN)

AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER

 1
86160P - SPEAKER ASSY, FRONT NO.2
86160-60470

GRJ150..6F..GEN;GDJ150,TRJ150..GEN;KDJ150,TRJ155..GCC,GEN;GRJ150..6FC..(ARL,GCC,GEN)

AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER

 2
86160-60500

GDJ150,GRJ150,KDJ150,LJ150,TRJ15#

 2
86161D - BRACKET, SPEAKER MOUNTING, NO.1
86161-60050

TRJ155

 1
86163 - BRACKET, SPEAKER, NO.2
86163-60020

TRJ155

 1
Common parts
90159-50311
90159-60303
90189-06227
91631-J0612
