TRJ155L-GJTEKV (2017)

Toyota Land Cruiser Prado

Production Aug 2017 - Sep 9999
Engine 2TRFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0908- )

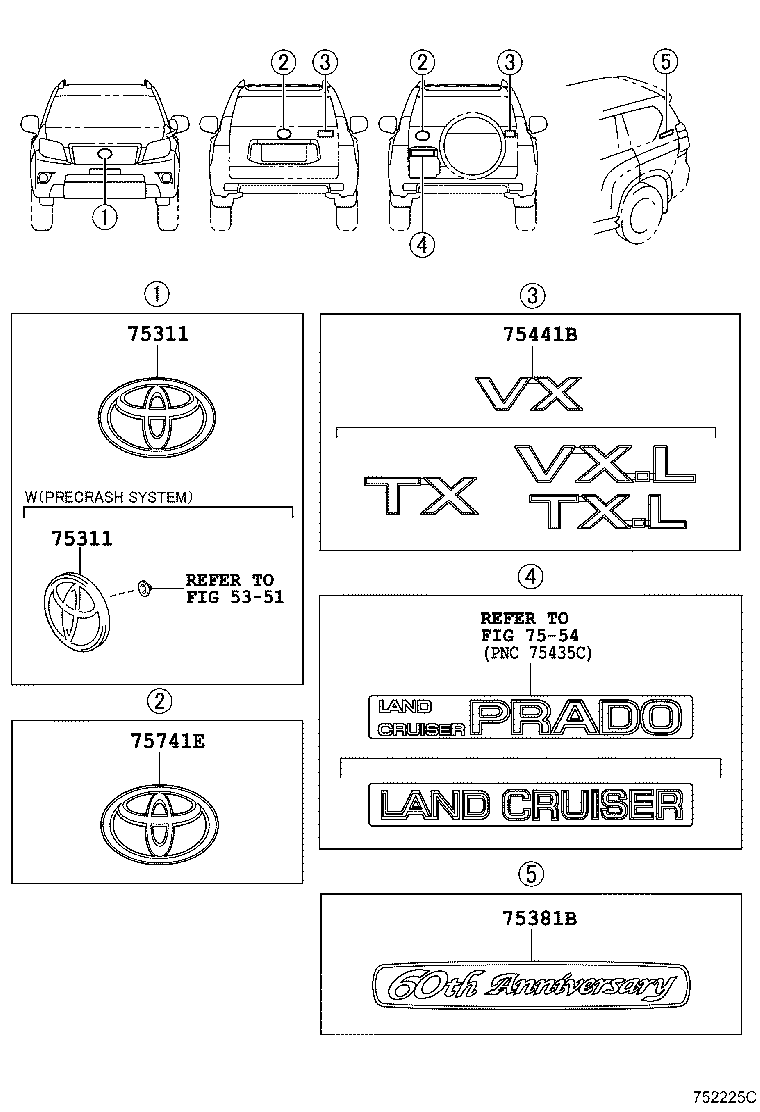

Click highlighted areas on diagram

diagram 5351 75311 75311 75381B 75441B 7554 75741E
Part # Description Qty Price
Linked diagrams
5351
7554

(1708- )

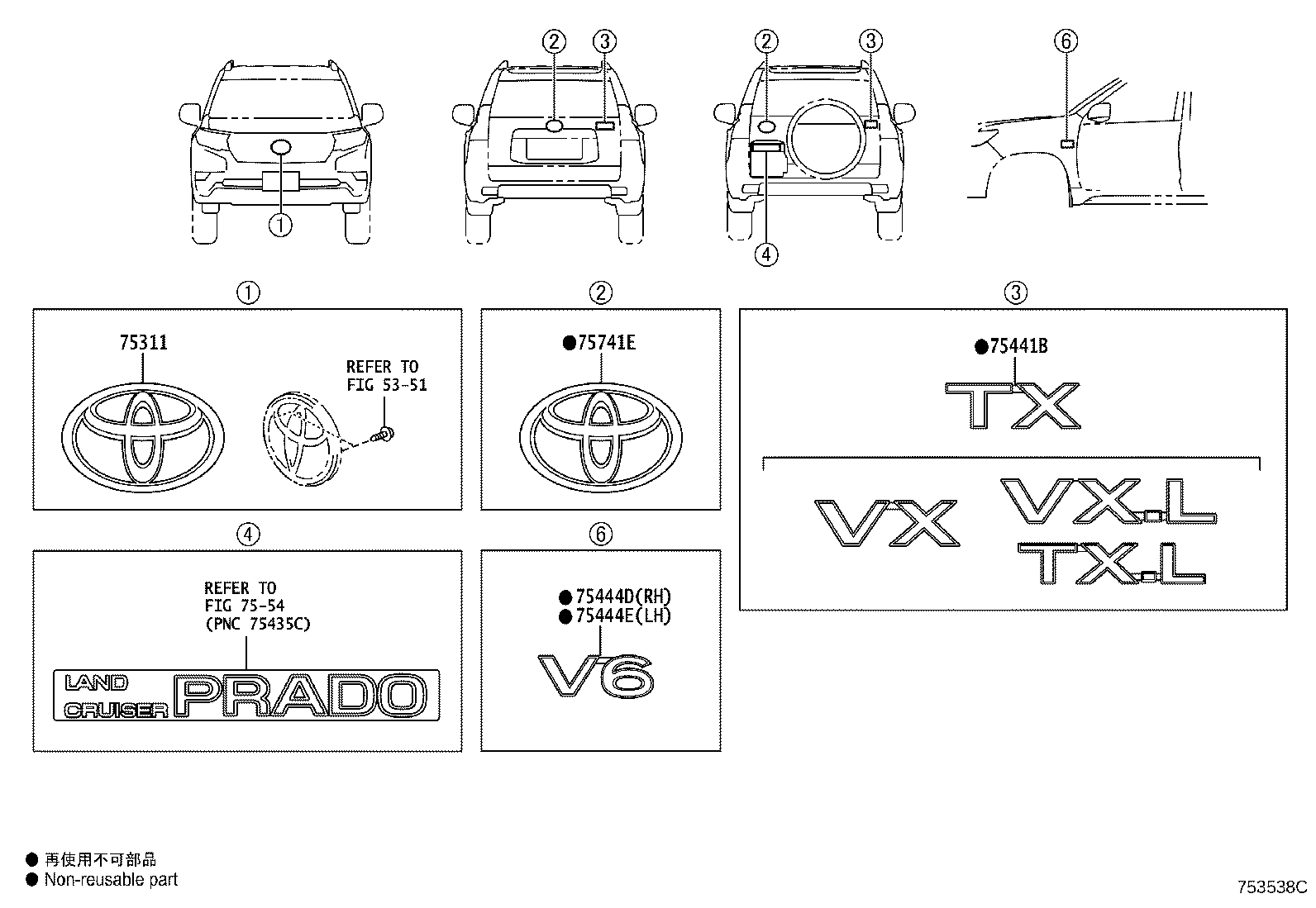

Click highlighted areas on diagram

diagram 5351 75311 75441B 75444D 75444E 7554 75741E
Part # Description Qty Price
75311 - EMBLEM, RADIATOR GRILLE (OR FRONT PANEL)
75301-60060

GDJ150..6F..ARL;GDJ150..GCC,GEN,SA;GRJ150,KDJ150,LJ150,TRJ15#

 1
90975-02159

GDJ150..GCC;GRJ150,TRJ15#..6FC;GDJ150..RHD..6FC..(GEN,SA)

TOYOTA SAFETY SENSE-TSS 2 / LSS +2

 1
90975-02159

TRJ15#..6FC

TX-L PACKAGE&RADIATOR GRILLE(CHROME PLATED)&*LES & *IP(ORNAMENT = BLACK PAINT)&TOYOTA SAFETY SENSE-TSS 2 / LSS +2

 1
90975-02159

TRJ155;TRJ150..6FC..GEN

TX-L PACKAGE&RADIATOR GRILLE(CHROME PLATED)&*FAS & *IP(ORNAMENT = BLACK PAINT)&TOYOTA SAFETY SENSE-TSS 2 / LSS +2

 1
75441B - PLATE, BACK DOOR NAME
75441-60600

TRJ155;GDJ150,GRJ150,KDJ150,LJ150,TRJ150..GEN

TX

 1
75441-60620

TRJ155

TX.L,TX-L PACKAGE

 1
75741E - EMBLEM, SYMBOL
75446-60010

TRJ155;GDJ150,GRJ150,KDJ150,LJ150,TRJ150..ARL,GEN,SA

 1
Linked diagrams
5351
7554
