TRJ155L-GJTEKV (2017)

Toyota Land Cruiser Prado

Production Aug 2017 - Sep 9999
Engine 2TRFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

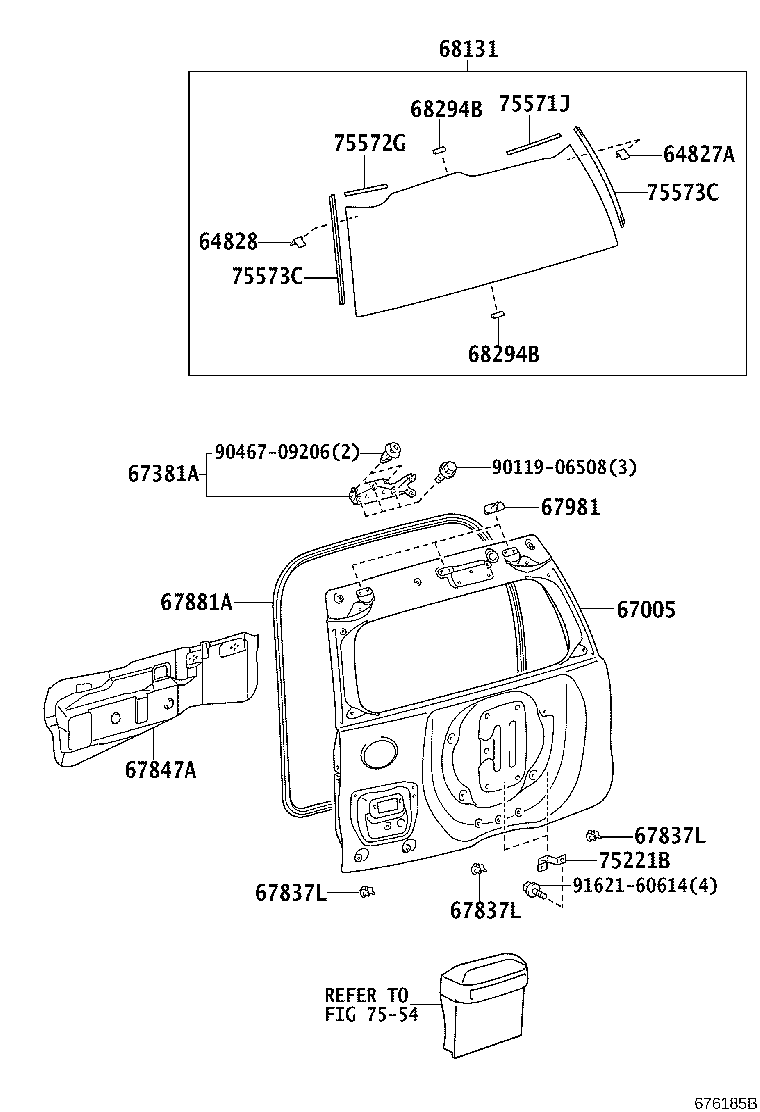

ILLUST NO. 1 OF 2(0908- )

Click highlighted areas on diagram

PANEL,W(SPARE TIRE = BACK DOOR)

diagram 64827A 64828 67005 67381A 67837L 67837L 67837L 67847A 67881A 67981 68131 68294B 68294B 75221B 7554 75571J 75572G 75573C 75573C 9011906508 9046709206 9162160614
Part # Description Qty Price
Common parts
90119-06508
90467-09206
91621-60614
Linked diagrams
7554

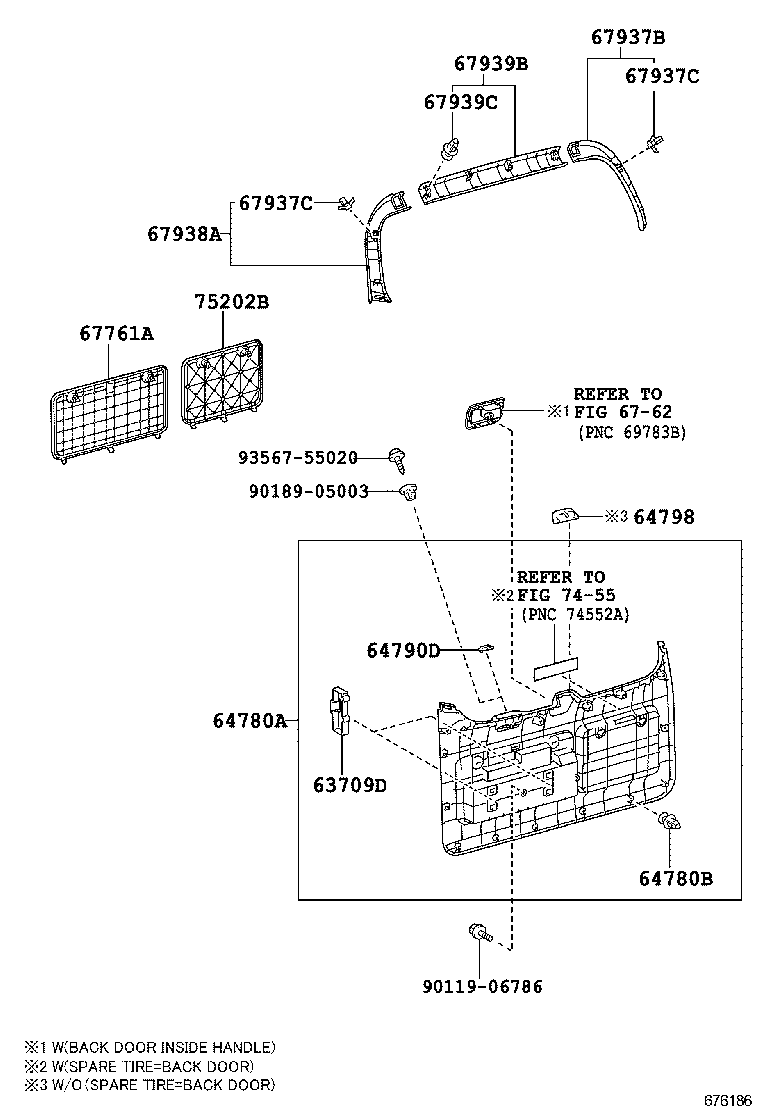

ILLUST NO. 2 OF 2(0908- )

Click highlighted areas on diagram

DOOR TRIM

diagram 63709D 64780A 64780B 64790D 64798 6762 67761A 67937B 67937C 67937C 67938A 67939B 67939C 7455 75202B 9011906786 9018905003 9356755020
Part # Description Qty Price
Common parts
90119-06786
90189-05003
93567-55020
Linked diagrams
6762
7455

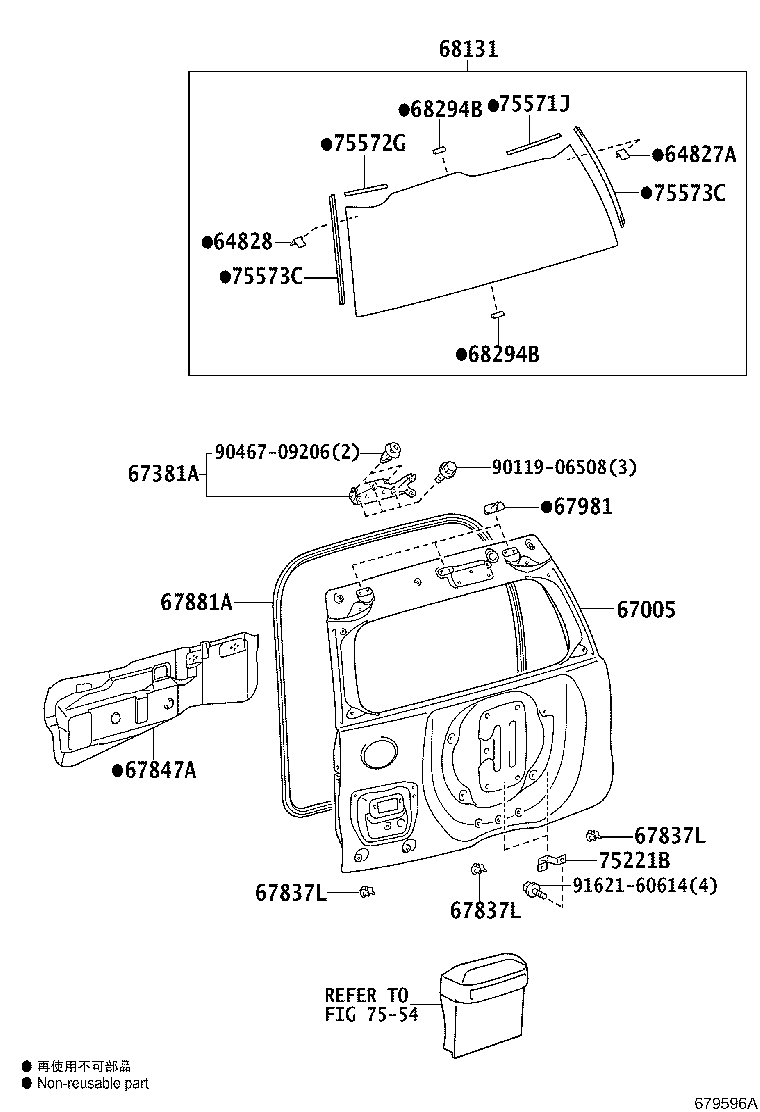

ILLUST NO. 1 OF 2(1708- )

Click highlighted areas on diagram

PANEL,W(SPARE TIRE=BACK DOOR)

diagram 64827A 64828 67005 67381A 67837L 67837L 67837L 67847A 67881A 67981 68131 68294B 68294B 75221B 7554 75571J 75572G 75573C 75573C 9011906508 9046709206 9162160614
Part # Description Qty Price
64827A - CLIP, BACK WINDOW GLASS, RH
64827-60060

TRJ155;GDJ150,GRJ150,KDJ150,LJ150,TRJ150..ARL,GEN,SA

 1
64828 - CLIP, BACK WINDOW GLASS, LH
64828-60060

TRJ155;GDJ150,GRJ150,KDJ150,LJ150,TRJ150..ARL,GEN,SA

 1
67005 - PANEL SUB-ASSY, BACK DOOR
67005-60F71

TRJ155;GDJ150,GRJ150,KDJ150,LJ150,TRJ150..GEN

 1
67381A - BRACKET, BACK WINDOW WIPER MOTOR, NO.1
67381-60080

TRJ155;GDJ150,GRJ150,KDJ150,LJ150,TRJ150..ARL,GEN,SA

 1
67837L - SEAL, DOOR DUST PROOF
67837-60070

GDJ150..6FC;GDJ150..6F..GEN;GRJ150,LJ150,TRJ15#

 3
67837L - SEAL, DOOR DUST PROOF
67837-60070

GDJ150..6FC;GDJ150..6F..GEN;GRJ150,LJ150,TRJ15#

 3
67837L - SEAL, DOOR DUST PROOF
67837-60070

GDJ150..6FC;GDJ150..6F..GEN;GRJ150,LJ150,TRJ15#

 3
67847A - COVER, BACK DOOR SERVICE HOLE
67847-60120

TRJ155;GDJ150,GRJ150,LJ150,TRJ150..GEN

 1
67881A - WEATHERSTRIP, BACK DOOR
67881-60141

GDJ150..6FC;GDJ150..6F..GEN;GRJ150,LJ150,TRJ15#

 1
67981 - STIFFENER, BACK DOOR, NO.2
67981-60010

TRJ155;GDJ150,GRJ150,KDJ150,LJ150,TRJ150..ARL,GEN,SA

 3
68131 - GLASS, BACK DOOR
68105-60200

TRJ155;GDJ150,GRJ150,KDJ150,LJ150,TRJ150..ARL,GEN,SA

 1
68294B - DAM, BACK DOOR GLASS ADHESIVE
68294-26030

TRJ155;GDJ150,GRJ150,KDJ150,LJ150,TRJ150..ARL,GEN,SA

 2
68294B - DAM, BACK DOOR GLASS ADHESIVE
68294-26030

TRJ155;GDJ150,GRJ150,KDJ150,LJ150,TRJ150..ARL,GEN,SA

 2
75221B - BRACKET, TOOL BOX
75221-60010

GDJ150..6FC;GDJ150..6F..GEN;GRJ150,LJ150,TRJ15#

 2
75571J - MOULDING, BACK WINDOW OUTSIDE, UPPER RH
75571-60020

TRJ155;GDJ150,GRJ150,KDJ150,LJ150,TRJ150..ARL,GEN,SA

 1
75572G - MOULDING, BACK WINDOW OUTSIDE, UPPER LH
75572-60020

TRJ155;GDJ150,GRJ150,KDJ150,LJ150,TRJ150..ARL,GEN,SA

 1
75573C - MOULDING, BACK WINDOW, OUTSIDE
75573-60100

TRJ155;GDJ150,GRJ150,KDJ150,LJ150,TRJ150..ARL,GEN,SA

 2
75573C - MOULDING, BACK WINDOW, OUTSIDE
75573-60100

TRJ155;GDJ150,GRJ150,KDJ150,LJ150,TRJ150..ARL,GEN,SA

 2
Common parts
90119-06508
90467-09206
91621-60614
Linked diagrams
7554

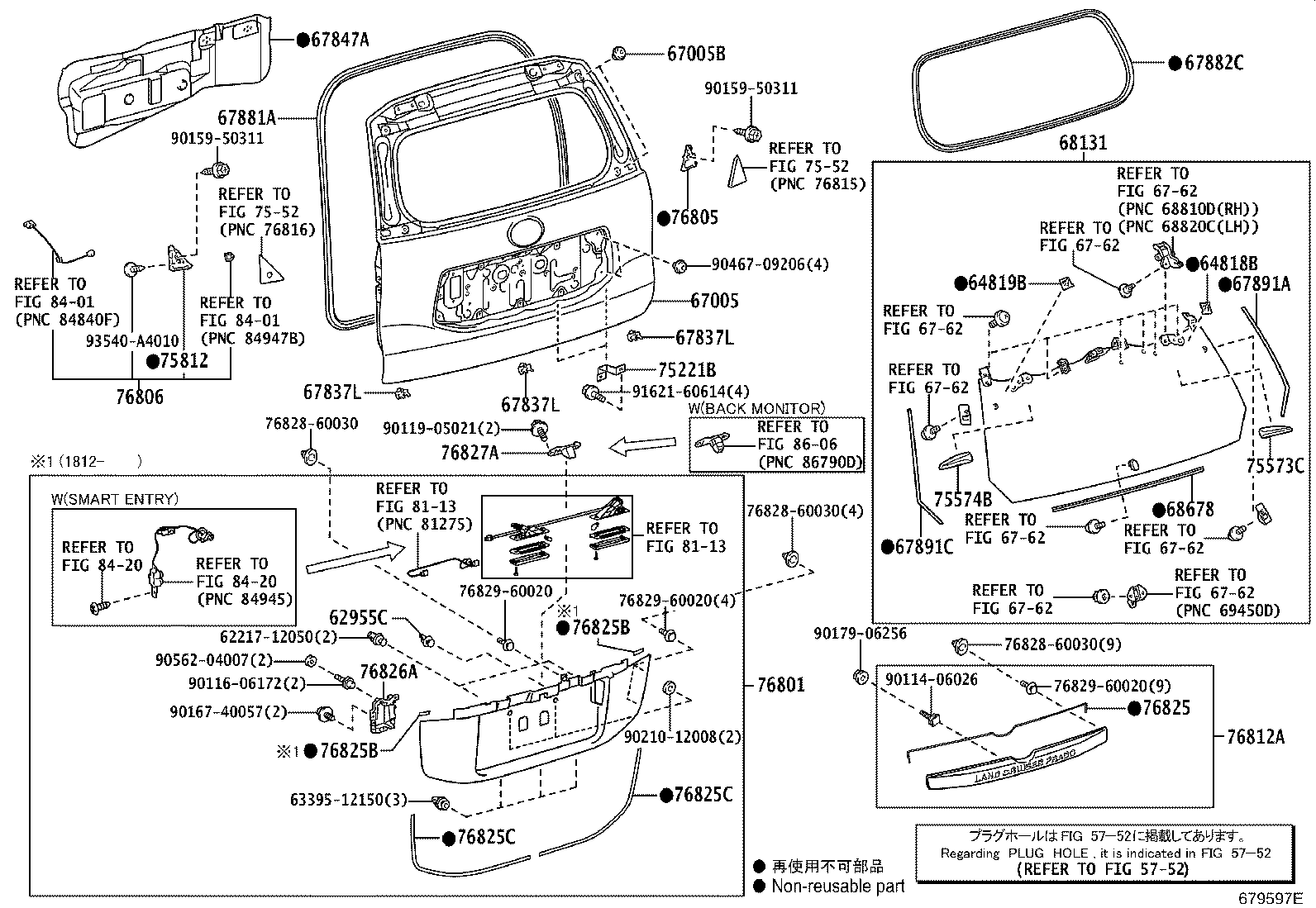

ILLUST NO. 1 OF 2(1708- )

Click highlighted areas on diagram

PANEL,W/O(SPARE TIRE=BACK DOOR)

diagram 5752 6221712050 62955C 6339512150 64818B 64819B 67005 67005B 6762 6762 6762 6762 6762 6762 6762 6762 67837L 67837L 67837L 67847A 67881A 67882C 67891A 67891C 68131 68678 75221B 7552 7552 75573C 75574B 75812 76801 76805 76806 76812A 76825 76825B 76825B 76825C 76825C 76826A 76827A 7682860030 7682860030 7682860030 7682960020 7682960020 7682960020 8113 8113 8401 8401 8420 8420 8606 9011406026 9011606172 9011905021 9015950311 9015950311 9016740057 9017906256 9021012008 9046709206 9056204007 9162160614 93540A4010
Part # Description Qty Price
67005 - PANEL SUB-ASSY, BACK DOOR
67005-60F71

TRJ155;GDJ150,GRJ150,KDJ150,LJ150,TRJ150..GEN

 1
67837L - SEAL, DOOR DUST PROOF
67837-60070

GDJ150..6FC;GDJ150..6F..GEN;GRJ150,LJ150,TRJ15#

 3
67837L - SEAL, DOOR DUST PROOF
67837-60070

GDJ150..6FC;GDJ150..6F..GEN;GRJ150,LJ150,TRJ15#

 3
67837L - SEAL, DOOR DUST PROOF
67837-60070

GDJ150..6FC;GDJ150..6F..GEN;GRJ150,LJ150,TRJ15#

 3
67847A - COVER, BACK DOOR SERVICE HOLE
67847-60120

TRJ155;GDJ150,GRJ150,LJ150,TRJ150..GEN

 1
67881A - WEATHERSTRIP, BACK DOOR
67881-60141

GDJ150..6FC;GDJ150..6F..GEN;GRJ150,LJ150,TRJ15#

 1
68131 - GLASS, BACK DOOR
68105-60200

TRJ155;GDJ150,GRJ150,KDJ150,LJ150,TRJ150..ARL,GEN,SA

 1
75221B - BRACKET, TOOL BOX
75221-60010

GDJ150..6FC;GDJ150..6F..GEN;GRJ150,LJ150,TRJ15#

 2
75573C - MOULDING, BACK WINDOW, OUTSIDE
75573-60100

TRJ155;GDJ150,GRJ150,KDJ150,LJ150,TRJ150..ARL,GEN,SA

 2
Common parts
62217-12050
63395-12150
76828-60030
76829-60020
90114-06026
90116-06172
90119-05021
90159-50311
90167-40057
90179-06256
90210-12008
90467-09206
90562-04007
91621-60614
93540-A4010
Linked diagrams
5752
6762
7552
8113
8401
8420
8606

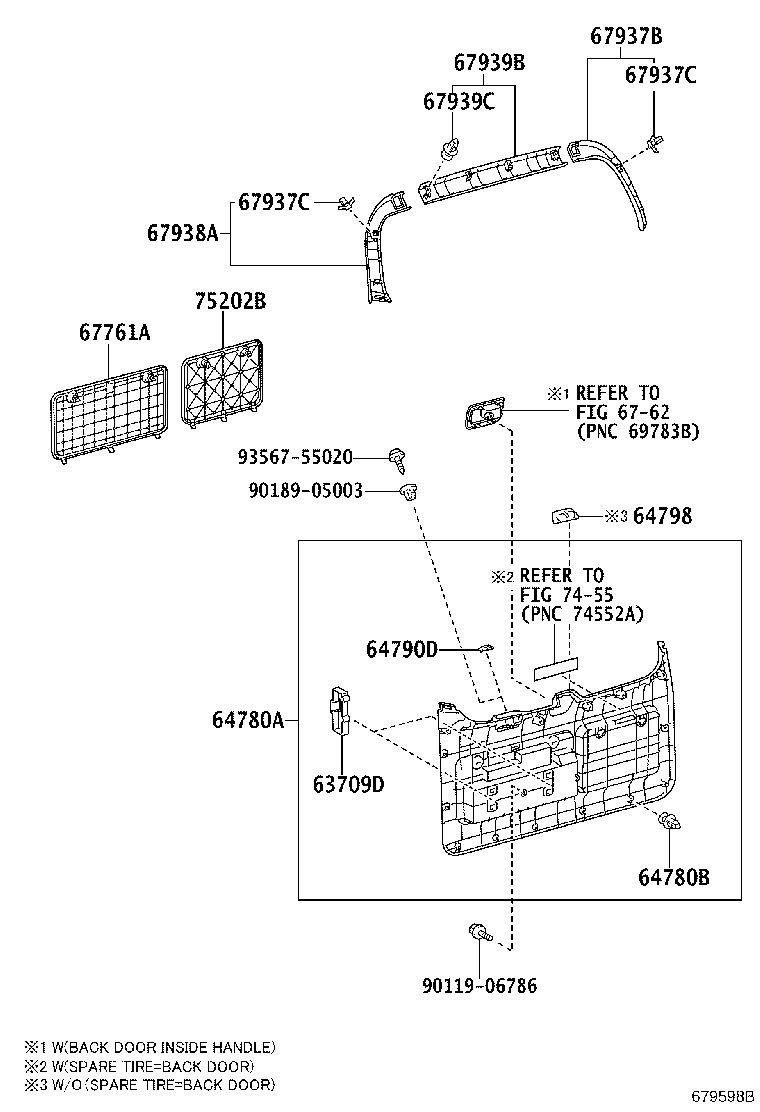

ILLUST NO. 2 OF 2(1708- )

Click highlighted areas on diagram

DOOR TRIM

diagram 63709D 64780A 64780B 64790D 64798 6762 67761A 67937B 67937C 67937C 67938A 67939B 67939C 7455 75202B 9011906786 9018905003 9356755020
Part # Description Qty Price
63709D - BAND SUB-ASSY, ROOM RACK
64279-60021

GDJ150,GRJ150,KDJ150,LJ150,TRJ15#

 2
64780A - PANEL ASSY, BACK DOOR TRIM
64780-60350C0

TRJ155;GDJ150,GRJ150,KDJ150,LJ150,TRJ150..(5F,5FC,6F)..GEN

BLACK,TRIM2#

 1
64780-60350E0

TRJ155;GDJ150,GRJ150,KDJ150,LJ150,TRJ150..(5F,5FC,6F)..GEN

NEUTRAL BEIGE,TRIM4#

 1
64780B - CLIP(FOR BACK DOOR TRIM PANEL)
90467-09206

TRJ155;GDJ150,GRJ150,KDJ150,LJ150,TRJ150..GEN

 16
64790D - CAP, BACK DOOR TRIM PANEL
74223-60050C0

TRJ155;GDJ150,GRJ150..ARL,SA;GDJ150,GRJ150,KDJ150,LJ150,TRJ150..(5F,5FC,6F)..(GCC,GEN,SA)

BLACK,TRIM2#

 1
74223-60050E1

TRJ155;GDJ150,GRJ150..ARL,SA;GDJ150,GRJ150,KDJ150,LJ150,TRJ150..(5F,5FC,6F)..(GCC,GEN,SA)

NEUTRAL BEIGE,TRIM4#

 1
67761A - COVER, BACK DOOR TRIM
67761-60060E1

GDJ150,GRJ150,KDJ150,LJ150,TRJ15#

NEUTRAL BEIGE,TRIM4#,*504

 1
67761-60060C0

GDJ150,GRJ150,KDJ150,LJ150,TRJ15#

BLACK,TRIM2#,*504

 1
67937B - GARNISH, BACK DOOR SIDE, RH
67937-60181C0

TRJ155;GDJ150,GRJ150..ARL,SA;GDJ150,GRJ150,KDJ150,LJ150,TRJ150..(5F,5FC,6F)..(GEN,SA)

BLACK,TRIM2#

 1
67937-60181E0

TRJ155;GDJ150,GRJ150..ARL,SA;GDJ150,GRJ150,KDJ150,LJ150,TRJ150..(5F,5FC,6F)..(GEN,SA)

NEUTRAL BEIGE,TRIM4#

 1
67937C - CLIP(FOR BACK DOOR SIDE GARNISH)
67771-58010

GDJ150,GRJ150,KDJ150,LJ150,TRJ15#

 4
67937C - CLIP(FOR BACK DOOR SIDE GARNISH)
67771-58010

GDJ150,GRJ150,KDJ150,LJ150,TRJ15#

 4
67938A - GARNISH, BACK DOOR SIDE, LH
67938-60131C0

TRJ155;GDJ150,GRJ150..ARL,SA;GDJ150,GRJ150,KDJ150,LJ150,TRJ150..(5F,5FC,6F)..(GEN,SA)

BLACK,TRIM2#

 1
67938-60131E0

TRJ155;GDJ150,GRJ150..ARL,SA;GDJ150,GRJ150,KDJ150,LJ150,TRJ150..(5F,5FC,6F)..(GEN,SA)

NEUTRAL BEIGE,TRIM4#

 1
67939B - GARNISH, BACK DOOR, CENTER
67939-60121E0

TRJ155;GDJ150,GRJ150..ARL,SA;GDJ150,GRJ150,KDJ150,LJ150,TRJ150..(5F,5FC,6F)..(GEN,SA)

NEUTRAL BEIGE,TRIM4#

 1
67939-60121C0

TRJ155;GDJ150,GRJ150..ARL,SA;GDJ150,GRJ150,KDJ150,LJ150,TRJ150..(5F,5FC,6F)..(GEN,SA)

BLACK,TRIM2#

 1
67939C - CLIP(FOR BACK DOOR CENTER GARNISH)
90467-09206

GDJ150,GRJ150,KDJ150,LJ150,TRJ15#

 4
75202B - PANEL SUB-ASSY, TOOL BOX, UPPER
75202-60100C0

TRJ155;GDJ150,GRJ150..ARL,SA;GDJ150,GRJ150,KDJ150,LJ150,TRJ150..(5F,5FC,6F)..(GCC,GEN,SA)

BLACK,TRIM2#

 1
75202-60100E1

TRJ155;GDJ150,GRJ150..ARL,SA;GDJ150,GRJ150,KDJ150,LJ150,TRJ150..(5F,5FC,6F)..(GCC,GEN,SA)

NEUTRAL BEIGE,TRIM4#

 1
Common parts
90119-06786
90189-05003
93567-55020
Linked diagrams
6762
7455
