TRJ155L-GJTEKV (2017)

Toyota Land Cruiser Prado

Production Aug 2017 - Sep 9999
Engine 2TRFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

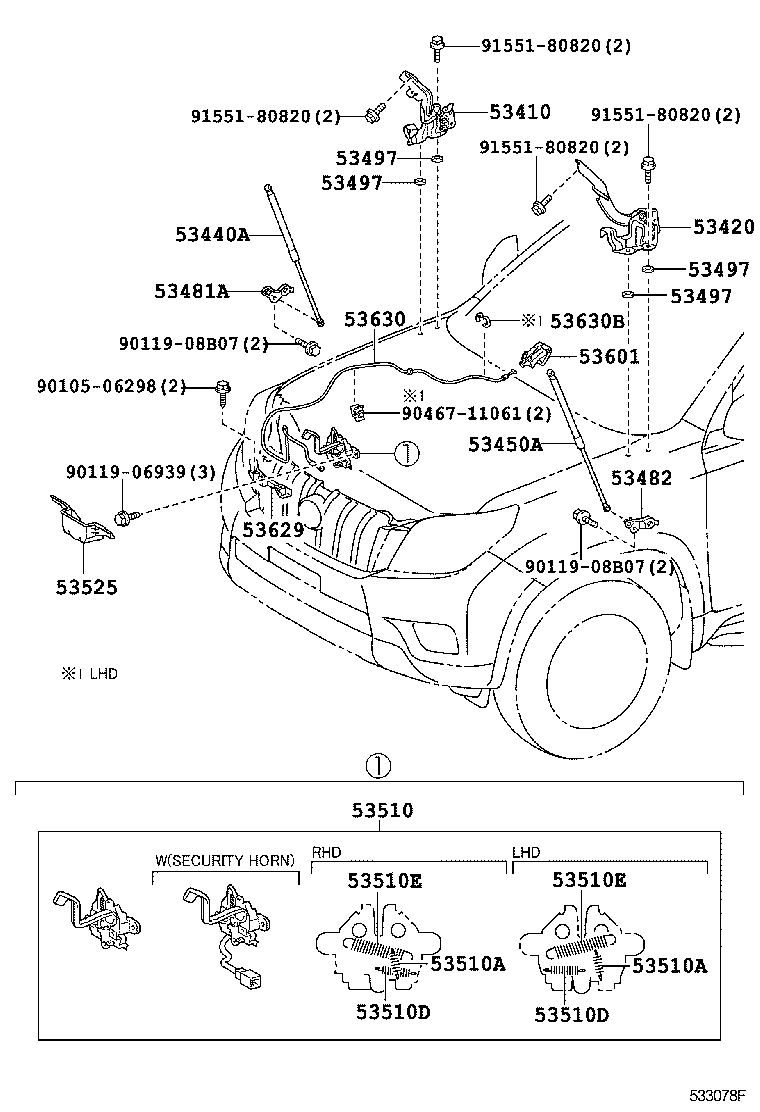

(0908- )

Click highlighted areas on diagram

diagram 53410 53420 53440A 53450A 53481A 53482 53497 53497 53497 53497 53510 53510A 53510A 53510D 53510D 53510E 53510E 53525 53601 53629 53630 53630B 9010506298 9011906939 9011908B07 9011908B07 9046711061 9155180820 9155180820 9155180820 9155180820
Part # Description Qty Price
Common parts
90105-06298
90119-06939
90119-08B07
90467-11061
91551-80820

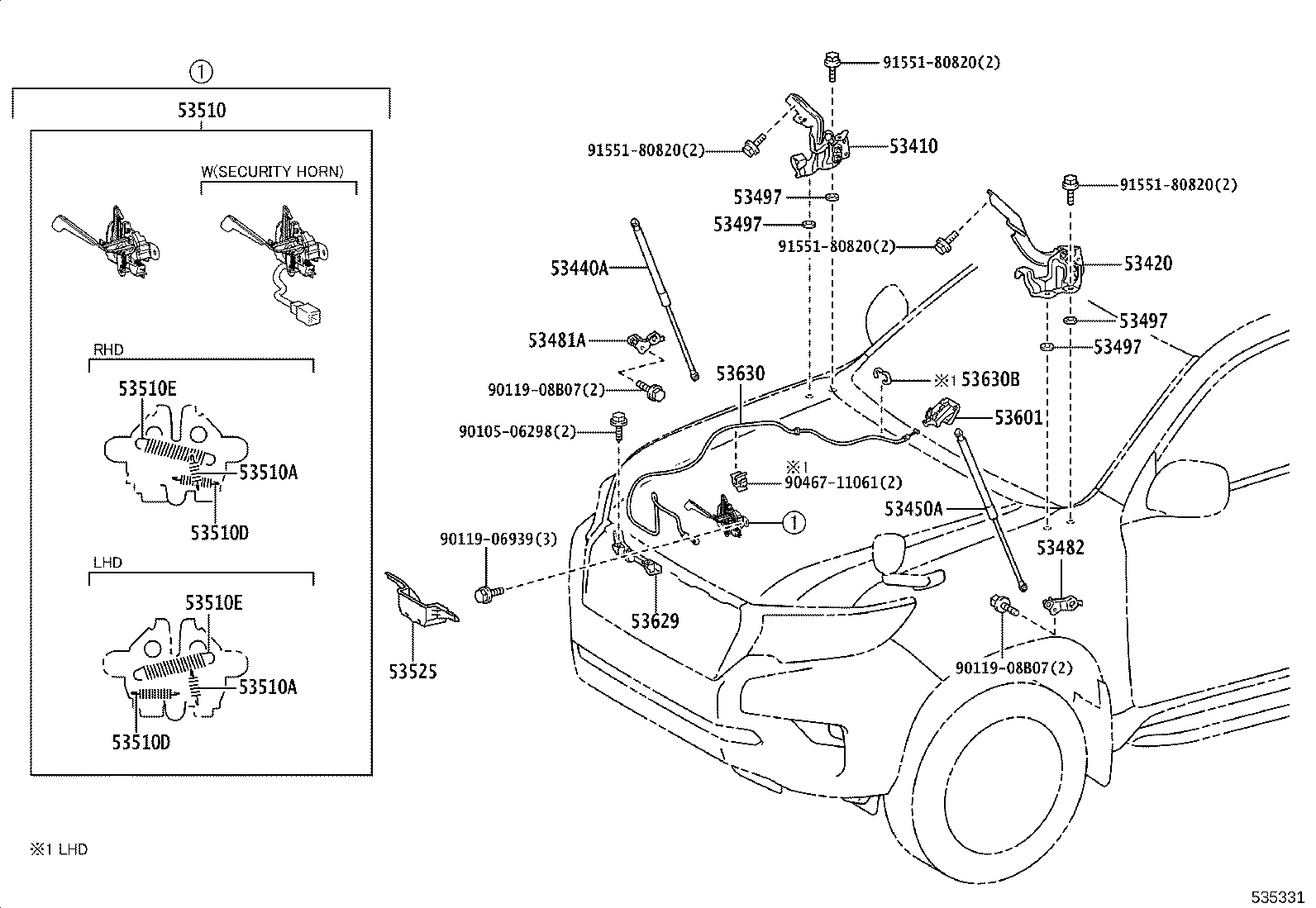

(1708- )

Click highlighted areas on diagram

diagram 53410 53420 53440A 53450A 53481A 53482 53497 53497 53497 53497 53510 53510A 53510A 53510D 53510D 53510E 53510E 53525 53601 53629 53630 53630B 9010506298 9011906939 9011908B07 9011908B07 9046711061 9155180820 9155180820 9155180820 9155180820
Part # Description Qty Price
53410 - HINGE ASSY, HOOD, RH
53410-60130

GDJ150..6FC;GDJ150..6F..GEN;GRJ150,LJ150,TRJ15#

 1
53420 - HINGE ASSY, HOOD, LH
53420-60120

GDJ150..6FC;GDJ150..6F..GEN;GRJ150,LJ150,TRJ15#

 1
53440A - SUPPORT ASSY, HOOD, RH
53440-0W470

GDJ150..6FC;GDJ150..6F..GEN;GRJ150,LJ150,TRJ15#

 1
53450A - SUPPORT ASSY, HOOD, LH
53450-0W420

GDJ150..6FC;GDJ150..6F..GEN;GRJ150,LJ150,TRJ15#

 1
53481A - BRACKET, HOOD SUPPORT, RH
53481-60010

GDJ150..6FC;GDJ150..6F..GEN;GRJ150,LJ150,TRJ15#

 1
53482 - BRACKET, HOOD SUPPORT, LH
53482-60010

GDJ150..6FC;GDJ150..6F..GEN;GRJ150,LJ150,TRJ15#

 1
53497 - PAD, HOOD HINGE, NO.1
53497-50020

GDJ150..6FC;GDJ150..6F..GEN;GRJ150,LJ150,TRJ15#

T=1.0

 1
53497 - PAD, HOOD HINGE, NO.1
53497-50020

GDJ150..6FC;GDJ150..6F..GEN;GRJ150,LJ150,TRJ15#

T=1.0

 1
53497 - PAD, HOOD HINGE, NO.1
53497-50020

GDJ150..6FC;GDJ150..6F..GEN;GRJ150,LJ150,TRJ15#

T=1.0

 1
53497 - PAD, HOOD HINGE, NO.1
53497-50020

GDJ150..6FC;GDJ150..6F..GEN;GRJ150,LJ150,TRJ15#

T=1.0

 1
53510 - LOCK ASSY, HOOD
53510-60500

GRJ150..6F..GEN;GRJ150..LHD..6FC;GDJ150..LHD..GEN;KDJ150,LJ150,TRJ15#..LHD

ANTI-THEFT SYSTEM-*IM & SECURITY HORN

 1
53510-60490

GDJ150,GRJ150,KDJ150,LJ150,TRJ15#..LHD

 1
53510A - SPRING, TENSION(FOR HOOD LOCK)
90506-09055

GDJ150,GRJ150,KDJ150,LJ150,TRJ15#

WD=0.9,CW=21

 1
53510A - SPRING, TENSION(FOR HOOD LOCK)
90506-09055

GDJ150,GRJ150,KDJ150,LJ150,TRJ15#

WD=0.9,CW=21

 1
53510D - SPRING, TENSION(FOR HOOD LOCK)
90506-12063

GDJ150,GRJ150,KDJ150,LJ150,TRJ15#

WD=1.2,CW=8.5

 1
53510D - SPRING, TENSION(FOR HOOD LOCK)
90506-12063

GDJ150,GRJ150,KDJ150,LJ150,TRJ15#

WD=1.2,CW=8.5

 1
53510E - SPRING, TENSION(FOR HOOD LOCK)
90506-16080

GDJ150,GRJ150,KDJ150,LJ150,TRJ15#

WD=1.6,CW=13

 1
53510E - SPRING, TENSION(FOR HOOD LOCK)
90506-16080

GDJ150,GRJ150,KDJ150,LJ150,TRJ15#

WD=1.6,CW=13

 1
53525 - PROTECTOR, HOOD LOCK RELEASE LEVER
53525-60050

GDJ150,GRJ150,KDJ150,LJ150,TRJ15#

 1
53601 - LEVER SUB-ASSY, HOOD LOCK CONTROL
53601-52010C1

GDJ150..6FC;GDJ150..6F..GEN;GRJ150,LJ150,TRJ15#

BLACK

 1
53629 - COVER, HOOD LOCK CONTROL CABLE
53629-60090

GDJ150,GRJ150,LJ150,TRJ15#..LHD

 1
53630 - CABLE ASSY, HOOD LOCK CONTROL
53630-60160

GDJ150,GRJ150,LJ150,TRJ15#..LHD

 1
53630B - CLAMP(FOR HOOD LOCK CONTROL CABLE)
82711-12120

GDJ150,GRJ150,LJ150,TRJ15#..LHD

 1
Common parts
90105-06298
90119-06939
90119-08B07
90467-11061
91551-80820
