TRJ155L-GJTEKV (2017)

Toyota Land Cruiser Prado

Production Aug 2017 - Sep 9999
Engine 2TRFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1708- )2TRFE..6FC

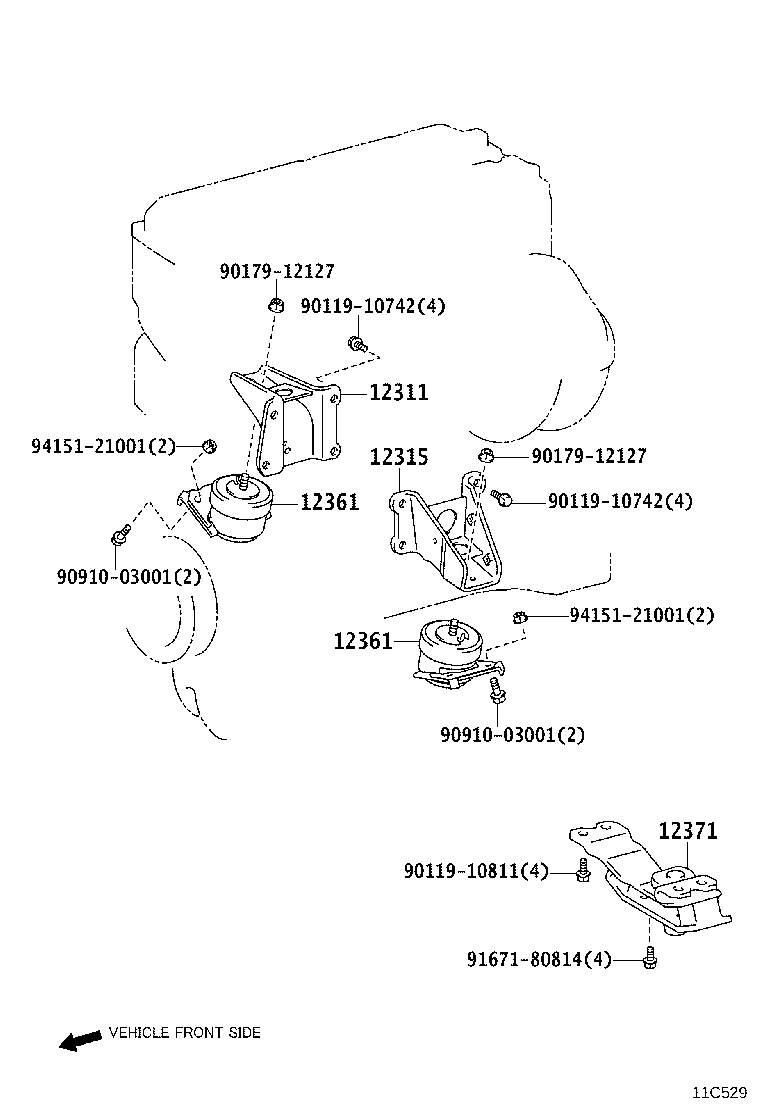

Click highlighted areas on diagram

diagram 12311 12315 12361 12361 12371 9011910742 9011910742 9011910811 9017912127 9017912127 9091003001 9091003001 9167180814 9415121001 9415121001
Part # Description Qty Price
12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH
12311-75090

2TRFE..TRJ15#

 1
12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH
12315-75090

2TRFE..TRJ15#

 1
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-75071

2TRFE..TRJ15#

 2
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-75071

2TRFE..TRJ15#

 2
12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1
12371-75190

2TRFE..TRJ15#..6FC

 1
Common parts
90119-10742
90119-10811
90179-12127
90910-03001
91671-80814
94151-21001
