TRJ150L-GKTEK (2015)

Toyota Land Cruiser Prado

Production Jun 2015 - Aug 2017
Engine 2TRFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1506- )2TRFE

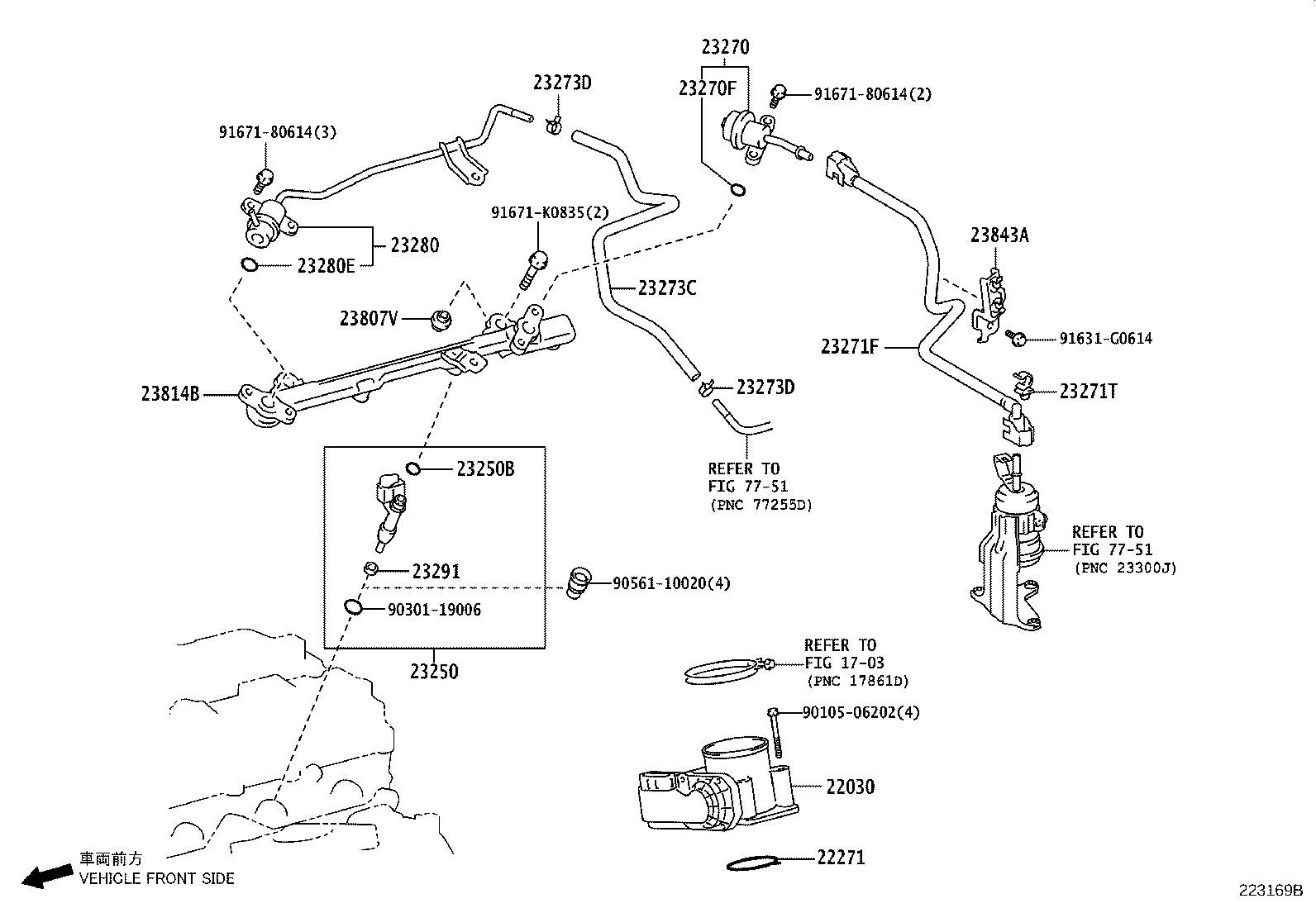

Click highlighted areas on diagram

diagram 1703 22030 22271 23250 23250B 23270 23270F 23271F 23271T 23273C 23273D 23273D 23280 23280E 23291 23807V 23814B 23843A 7751 7751 9010506202 9030119006 9056110020 91631G0614 9167180614 9167180614 91671K0835
Part # Description Qty Price
22030 - BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR
22030-75020

2TRFE..TRJ15#..LHD

 1
22030-75040

2TRFE..TRJ15#

 1
22271 - GASKET, THROTTLE BODY
22271-0C020

2TRFE..TRJ15#

 1
22271-75070

2TRFE..TRJ15#

 1
23250 - INJECTOR ASSY, FUEL
23209-79155

2TRFE..TRJ15#

 4
23209-79215

2TRFE..TRJ15#

 4
23250B - RING, O(FOR FUEL INJECTOR)
90301-07037

2TRFE..TRJ15#..LHD

 4
90301-07037

2TRFE..TRJ15#

 4
23270 - DAMPER ASSY, FUEL PRESSURE PULSATION
23270-75010

2TRFE..TRJ15#..LHD

 1
23270-75050

2TRFE..TRJ150..6FC..GEN

UKRAINE SPEC

 1
23270-75050

2TRFE..TRJ15#

 1
23270-75050

2TRFE..TRJ150..6FC..GEN

RUSSIA SPEC

 1
23270F - RING, O(FOR PULSATION DAMPER)
90301-07037

2TRFE..TRJ15#..LHD

 1
90301-07037

2TRFE..TRJ150..6FC..GEN

UKRAINE SPEC

 1
90301-07037

2TRFE..TRJ150..6FC..GEN

RUSSIA SPEC

 1
90301-07037

2TRFE..TRJ15#

 1
23271F - HOSE, FUEL
23271-75280

2TRFE..TRJ15#..LHD

 1
23271-75280

2TRFE..TRJ15#

 1
23271T - CLAMP OR CLIP(FOR FUEL HOSE)
90469-12012

2TRFE..TRJ15#

 1
90469-12012

2TRFE..TRJ15#..LHD

 1
23273C - HOSE, FUEL, NO.2
23273-75340

2TRFE..TRJ15#..LHD

 1
23273-75400

2TRFE..TRJ15#

 1
23273D - CLIP(FOR FUEL HOSE NO.2)
96135-51100

2TRFE..TRJ15#

 2
96135-51100

2TRFE..TRJ15#..LHD

 2
23273D - CLIP(FOR FUEL HOSE NO.2)
96135-51100

2TRFE..TRJ15#

 2
96135-51100

2TRFE..TRJ15#..LHD

 2
23280 - REGULATOR ASSY, FUEL PRESSURE
23280-75040

2TRFE..TRJ15#..LHD

 1
23280-75100

2TRFE..TRJ15#

 1
23280E - RING, O(FOR FUEL PRESSURE REGULATOR)
90301-07037

2TRFE..TRJ15#..LHD

 1
90301-07037

2TRFE..TRJ15#

 1
23291 - INSULATOR, INJECTOR VIBRATION
23291-73010

2TRFE..TRJ15#..LHD

 4
23291-73010

2TRFE..TRJ15#

 4
23807V - SPACER, NO.1(FOR DELIVERY PIPE)
90561-08036

2TRFE..TRJ15#..LHD

 2
23891-75020

2TRFE..TRJ150..6FC..GEN

UKRAINE SPEC

 2
23891-75020

2TRFE..TRJ15#

 2
23891-75020

2TRFE..TRJ150..6FC..GEN

RUSSIA SPEC

 2
23814B - PIPE, FUEL DELIVERY
23814-75110

2TRFE..TRJ15#

 1
23814-75110

2TRFE..TRJ150..6FC..GEN

UKRAINE SPEC

 1
23814-75110

2TRFE..TRJ150..6FC..GEN

RUSSIA SPEC

 1
23843A - CLAMP,FUEL PIPE, NO.3(FOR EFI)
23847-75010

2TRFE..TRJ15#

 1
23847-75010

2TRFE..TRJ15#..LHD

 1
Common parts
90105-06202
90301-19006
90561-10020
91631-G0614
91671-80614
91671-K0835
Linked diagrams
1703
7751
