TRJ150L-GKPEKV (2013)
Toyota Land Cruiser Prado

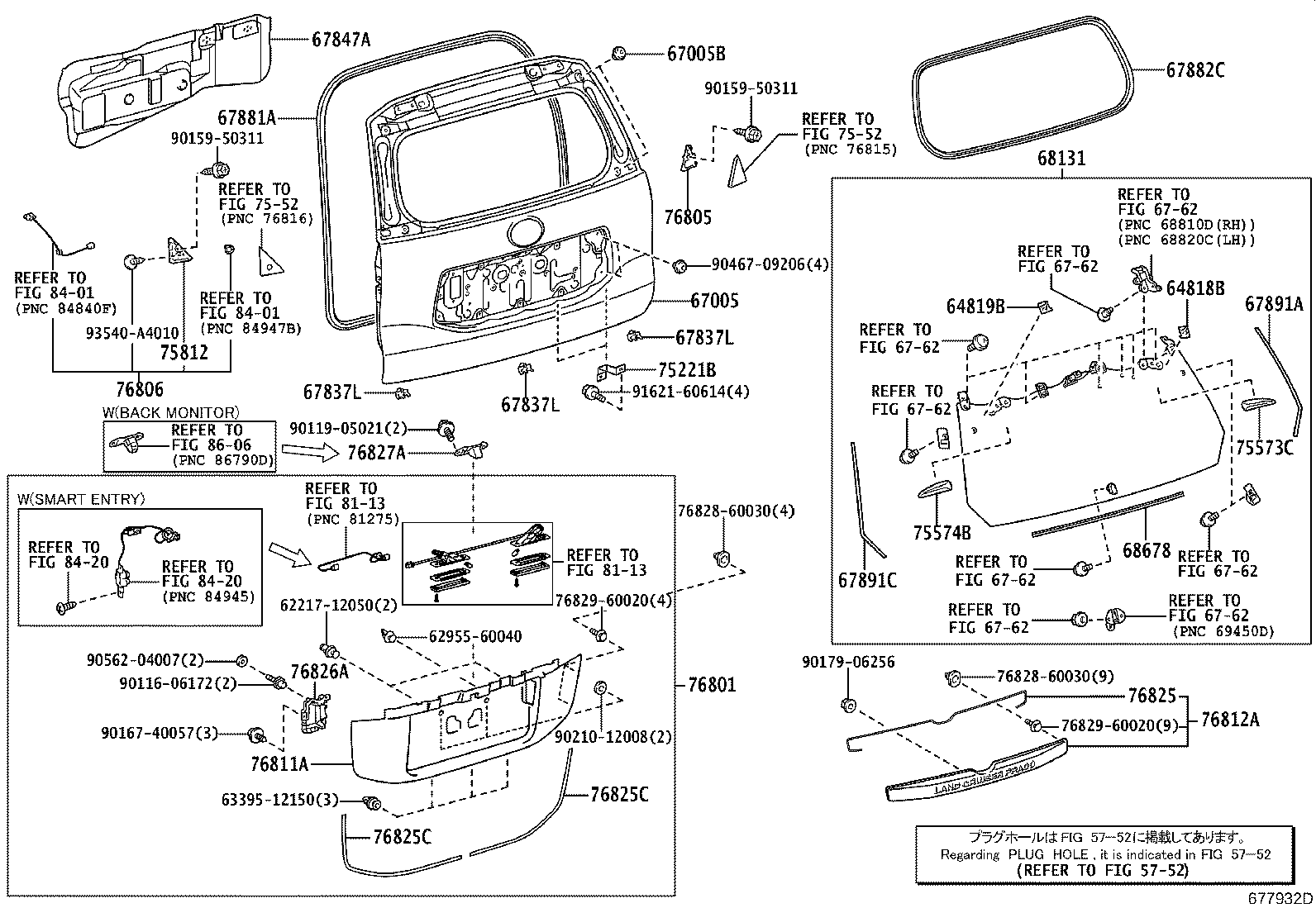

ILLUST NO. 1 OF 2(1308- )
PANEL,W/O(SPARE TIRE = BACK DOOR)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 64818B - SPACER, BACK DOOR GLASS, NO.1 | ||||
| 64818-60050 |
KDJ150..5FC..GCC;GRJ150,TRJ150..GCC |
1 | ||
| 64818-60050 |
GRJ150,KDJ150,TRJ150..GCC |
1 | ||
| 64819B - SPACER, BACK WINDOW GLASS, NO.2 | ||||
| 64819-60050 |
KDJ150..5FC..GCC;GRJ150,TRJ150..GCC |
1 | ||
| 64819-60050 |
GRJ150,KDJ150,TRJ150..GCC |
1 | ||
| 67005 - PANEL SUB-ASSY, BACK DOOR | ||||
| 67005-60F50 |
KDJ150..5FC..GCC;GRJ150,TRJ150..GCC |
1 | ||
| 67005-60F70 |
KDJ150..5FC..GCC;GRJ150,TRJ150..GCC SPARE TIRE-WITH(BACK DOOR) |
1 | ||
| 67005-60G50 |
KDJ150..5FC..GCC;GRJ150,TRJ150..GCC SPARE TIRE-WITH(BACK DOOR)&REAR SEAT-DOUBLE FOLD&PARALLEL SEAT,9 PERSONS SEAT |
1 | ||
| 67005-60F60 |
GRJ150,KDJ150,TRJ150..GCC SPARE TIRE-WITH(BACK DOOR)&AUDIO(FOR OVERSEAS MARKET)-*DA & 6SPEAKER&BACK MONITOR-WITH |
1 | ||
| 67005-60F60 |
TRJ150..GCC SPARE TIRE-WITH(BACK DOOR)&AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER&BACK MONITOR-WITH |
1 | ||
| 67005-60F90 |
GRJ150,KDJ150,TRJ150..GCC |
1 | ||
| 67005-60F70 |
GRJ150,KDJ150,TRJ150..GCC SPARE TIRE-WITH(BACK DOOR) |
1 | ||
| 67005-60G40 |
TRJ150..GCC SPARE TIRE-WITH(BACK DOOR)&REAR SEAT-DOUBLE FOLD&PARALLEL SEAT,9 PERSONS SEAT&AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER&BACK MONITOR-WITH |
1 | ||
| 67005-60G40 |
GRJ150,KDJ150,TRJ150..GCC SPARE TIRE-WITH(BACK DOOR)&REAR SEAT-DOUBLE FOLD&PARALLEL SEAT,9 PERSONS SEAT&AUDIO(FOR OVERSEAS MARKET)-*DA & 6SPEAKER&BACK MONITOR-WITH |
1 | ||
| 67005-60G50 |
GRJ150,KDJ150,TRJ150..GCC SPARE TIRE-WITH(BACK DOOR)&REAR SEAT-DOUBLE FOLD&PARALLEL SEAT,9 PERSONS SEAT |
1 | ||
| 67005B - CUSHION(FOR BACK DOOR PANEL) | ||||
| 90541-11004 |
GRJ150,KDJ150,TRJ150..GCC |
4 | ||
| 90541-12012 |
GRJ150,KDJ150,TRJ150..GCC |
4 | ||
| 67837L - SEAL, DOOR DUST PROOF | ||||
| 67837-60070 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 |
3 | ||
| 67837-60070 |
GRJ150,KDJ150,LJ150,TRJ15# |
3 | ||
| 67837L - SEAL, DOOR DUST PROOF | ||||
| 67837-60070 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 |
3 | ||
| 67837-60070 |
GRJ150,KDJ150,LJ150,TRJ15# |
3 | ||
| 67837L - SEAL, DOOR DUST PROOF | ||||
| 67837-60070 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 |
3 | ||
| 67837-60070 |
GRJ150,KDJ150,LJ150,TRJ15# |
3 | ||
| 67847A - COVER, BACK DOOR SERVICE HOLE | ||||
| 67847-60100 |
KDJ150..5FC..GCC;GRJ150,TRJ150..GCC SPARE TIRE-WITH(BACK DOOR) |
1 | ||
| 67847-60090 |
KDJ150..5FC..GCC;GRJ150,TRJ150..GCC |
1 | ||
| 67847-60090 |
GRJ150,KDJ150,TRJ150..GCC |
1 | ||
| 67847-60120 |
GRJ150,KDJ150,TRJ150..GCC SPARE TIRE-WITH(BACK DOOR) |
1 | ||
| 67847-60100 |
GRJ150,KDJ150,TRJ150..GCC SPARE TIRE-WITH(BACK DOOR)&REAR SEAT-DOUBLE FOLD&PARALLEL SEAT,9 PERSONS SEAT |
1 | ||
| 67881A - WEATHERSTRIP, BACK DOOR | ||||
| 67881-60140 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 |
1 | ||
| 67881-60141 |
GRJ150,KDJ150,LJ150,TRJ15# |
1 | ||
| 67882C - WEATHERSTRIP, BACK DOOR, NO.2 | ||||
| 67882-60090 |
KDJ150..5FC..GCC;GRJ150,TRJ150..GCC |
1 | ||
| 67882-60090 |
GRJ150,KDJ150,TRJ150..GCC |
1 | ||
| 67891A - SEAL, BACK DOOR | ||||
| 67891-60020 |
KDJ150..5FC..GCC;GRJ150,TRJ150..GCC |
1 | ||
| 67891-60020 |
GRJ150,KDJ150,TRJ150..GCC |
1 | ||
| 67891C - SEAL, BACK DOOR | ||||
| 67892-60020 |
KDJ150..5FC..GCC;GRJ150,TRJ150..GCC |
1 | ||
| 67892-60020 |
GRJ150,KDJ150,TRJ150..GCC |
1 | ||
| 68131 - GLASS, BACK DOOR | ||||
| 68105-60190 |
KDJ150..5FC..GCC;GRJ150,TRJ150..GCC |
1 | ||
| 68105-60200 |
KDJ150..5FC..GCC;GRJ150,TRJ150..GCC SPARE TIRE-WITH(BACK DOOR) |
1 | ||
| 68105-60190 |
GRJ150,KDJ150,TRJ150..GCC |
1 | ||
| 68105-60200 |
GRJ150,KDJ150,TRJ150..GCC SPARE TIRE-WITH(BACK DOOR) |
1 | ||
| 68678 - PROTECTOR, BACK DOOR WINDOW | ||||
| 68678-60010 |
KDJ150..5FC..GCC;GRJ150,TRJ150..GCC |
1 | ||
| 68678-60010 |
GRJ150,KDJ150,TRJ150..GCC |
1 | ||
| 75221B - BRACKET, TOOL BOX | ||||
| 75221-60010 |
GRJ150,KDJ150,LJ150,TRJ15# |
2 | ||
| 75221-60010 |
GRJ150,KDJ150,LJ150,TRJ15# |
2 | ||
| 75573C - MOULDING, BACK WINDOW, OUTSIDE | ||||
| 75573-60100 |
GRJ150,KDJ150,TRJ150..GCC SPARE TIRE-WITH(BACK DOOR) |
2 | ||
| 75573-60110 |
GRJ150,KDJ150,TRJ150..GCC |
1 | ||
| 75573-60110 |
GRJ150,KDJ150,TRJ150..GCC |
1 | ||
| 75573-60100 |
GRJ150,KDJ150,TRJ150..GCC SPARE TIRE-WITH(BACK DOOR) |
2 | ||
| 75574B - MOULDING, BACK WINDOW, OUTSIDE LH | ||||
| 75574-60040 |
GRJ150,KDJ150,TRJ150..GCC |
1 | ||
| 75574-60040 |
GRJ150,KDJ150,TRJ150..GCC |
1 | ||
| 75812 - MOULDING, BACK DOOR, OUTSIDE UPPER RH | ||||
| 76816-60010 |
GRJ150,KDJ150,TRJ150..GCC |
1 | ||
| 76816-60011 |
GRJ150,KDJ150,TRJ150..GCC |
1 | ||
| 76801 - GARNISH SUB-ASSY, BACK DOOR, OUTSIDE | ||||
| 76801-60200A0 |
TRJ150..GCC SUPER WHITE 2,040 |
1 | ||
| 76801-60200A1 |
TRJ150..GCC WHITE PEARL CS.,070 |
1 | ||
| 76801-60200A0 |
TRJ150..GCC SPARE TIRE-WITH(BACK DOOR),SUPER WHITE 2,040 |
1 | ||
| 76801-60200B0 |
TRJ150..GCC SILVER ME.,1F7 |
1 | ||
| 76801-60200B0 |
TRJ150..GCC SPARE TIRE-WITH(BACK DOOR),SILVER ME.,1F7 |
1 | ||
| 76801-60200A1 |
TRJ150..GCC SPARE TIRE-WITH(BACK DOOR),WHITE PEARL CS.,070 |
1 | ||
| 76801-60200C0 |
TRJ150..GCC SPARE TIRE-WITH(BACK DOOR),BLACK,202 |
1 | ||
| 76801-60200D0 |
TRJ150..GCC SPARE TIRE-WITH(BACK DOOR),BLACKISH RED MC.,3R0 |
1 | ||
| 76801-60200B1 |
TRJ150..GCC SPARE TIRE-WITH(BACK DOOR),GRAY ME.,1G3 |
1 | ||
| 76801-60200G0 |
TRJ150..GCC GREEN M.M.,6V2 |
1 | ||
| 76801-60200B2 |
TRJ150..GCC SPARE TIRE-WITH(BACK DOOR),DK. STEEL MC.,1H2 |
1 | ||
| 76801-60200C0 |
TRJ150..GCC BLACK,202 |
1 | ||
| 76801-60200E0 |
TRJ150..GCC BEIGE ME.,4T8 |
1 | ||
| 76801-60200B2 |
TRJ150..GCC DK. STEEL MC.,1H2 |
1 | ||
| 76801-60200D0 |
TRJ150..GCC BLACKISH RED MC.,3R0 |
1 | ||
| 76801-60200E0 |
TRJ150..GCC SPARE TIRE-WITH(BACK DOOR),BEIGE ME.,4T8 |
1 | ||
| 76801-60200J0 |
TRJ150..GCC SPARE TIRE-WITH(BACK DOOR),GRAYISH BLUE ME.,8R3 |
1 | ||
| 76801-60200B1 |
TRJ150..GCC GRAY ME.,1G3 |
1 | ||
| 76801-60200G0 |
TRJ150..GCC SPARE TIRE-WITH(BACK DOOR),GREEN M.M.,6V2 |
1 | ||
| 76801-60200J0 |
TRJ150..GCC GRAYISH BLUE ME.,8R3 |
1 | ||
| 76801-60310A0 |
KDJ150,TRJ150..GCC SPARE TIRE-WITH(BACK DOOR),SUPER WHITE 2,040 |
1 | ||
| 76801-60310A0 |
KDJ150,TRJ150..GCC SUPER WHITE 2,040 |
1 | ||
| 76801-60310A1 |
KDJ150,TRJ150..GCC WHITE PEARL CS.,070 |
1 | ||
| 76801-60310B0 |
KDJ150,TRJ150..GCC SILVER ME.,1F7 |
1 | ||
| 76801-60310A1 |
KDJ150,TRJ150..GCC SPARE TIRE-WITH(BACK DOOR),WHITE PEARL CS.,070 |
1 | ||
| 76801-60310B2 |
KDJ150,TRJ150..GCC DK. STEEL MC.,1H2 |
1 | ||
| 76801-60310B1 |
KDJ150,TRJ150..GCC GRAY ME.,1G3 |
1 | ||
| 76801-60310B1 |
KDJ150,TRJ150..GCC SPARE TIRE-WITH(BACK DOOR),GRAY ME.,1G3 |
1 | ||
| 76801-60310C0 |
KDJ150,TRJ150..GCC BLACK,202 |
1 | ||
| 76801-60310B0 |
KDJ150,TRJ150..GCC SPARE TIRE-WITH(BACK DOOR),SILVER ME.,1F7 |
1 | ||
| 76801-60310B2 |
KDJ150,TRJ150..GCC SPARE TIRE-WITH(BACK DOOR),DK. STEEL MC.,1H2 |
1 | ||
| 76801-60310C1 |
KDJ150,TRJ150..GCC ATTITUDE BLACK MC.,218 |
1 | ||
| 76801-60310C1 |
KDJ150,TRJ150..GCC SPARE TIRE-WITH(BACK DOOR),ATTITUDE BLACK MC.,218 |
1 | ||
| 76801-60310C0 |
KDJ150,TRJ150..GCC SPARE TIRE-WITH(BACK DOOR),BLACK,202 |
1 | ||
| 76801-60310E0 |
KDJ150,TRJ150..GCC BRONZE M.M.,4T3 |
1 | ||
| 76801-60310E0 |
KDJ150,TRJ150..GCC SPARE TIRE-WITH(BACK DOOR),BRONZE M.M.,4T3 |
1 | ||
| 76801-60310G0 |
KDJ150,TRJ150..GCC SPARE TIRE-WITH(BACK DOOR),DK.GREEN MC.,6V4 |
1 | ||
| 76801-60310G0 |
KDJ150,TRJ150..GCC DK.GREEN MC.,6V4 |
1 | ||
| 76801-60320A0 |
TRJ150..GCC CHINA SPEC,SUPER WHITE 2,040 |
1 | ||
| 76801-60310J0 |
KDJ150,TRJ150..GCC SPARE TIRE-WITH(BACK DOOR),DK.BLUE MC.,8S6 |
1 | ||
| 76801-60310J0 |
KDJ150,TRJ150..GCC DK.BLUE MC.,8S6 |
1 | ||
| 76801-60320A1 |
TRJ150..GCC CHINA SPEC,WHITE PEARL CS.,070 |
1 | ||
| 76801-60320B1 |
TRJ150..GCC CHINA SPEC,GRAY ME.,1G3 |
1 | ||
| 76801-60320B0 |
TRJ150..GCC CHINA SPEC,SILVER ME.,1F7 |
1 | ||
| 76801-60320B2 |
TRJ150..GCC CHINA SPEC,DK. STEEL MC.,1H2 |
1 | ||
| 76801-60320C0 |
TRJ150..GCC CHINA SPEC,BLACK,202 |
1 | ||
| 76801-60320C1 |
TRJ150..GCC CHINA SPEC,ATTITUDE BLACK MC.,218 |
1 | ||
| 76801-60320E0 |
TRJ150..GCC CHINA SPEC,BRONZE M.M.,4T3 |
1 | ||
| 76801-60320G0 |
TRJ150..GCC CHINA SPEC,DK.GREEN MC.,6V4 |
1 | ||
| 76801-60320J0 |
TRJ150..GCC CHINA SPEC,DK.BLUE MC.,8S6 |
1 | ||
| 76805 - GARNISH SUB-ASSY, BACK DOOR, OUTSIDE LOWER RH | ||||
| 76815-60010 |
GRJ150,KDJ150,TRJ150..GCC |
1 | ||
| 76815-60011 |
GRJ150,KDJ150,TRJ150..GCC |
1 | ||
| 76806 - GARNISH SUB-ASSY, BACK DOOR, OUTSIDE LOWER LH | ||||
| 76806-60010 |
GRJ150,KDJ150,TRJ150..GCC |
1 | ||
| 76806-60011 |
GRJ150,KDJ150,TRJ150..GCC |
1 | ||
| 76811A - GARNISH, BACK DOOR, OUTSIDE | ||||
| 76811-60190A1 |
TRJ150..GCC SPARE TIRE-WITH(BACK DOOR),WHITE PEARL CS.,070 |
1 | ||
| 76811-60190A1 |
TRJ150..GCC WHITE PEARL CS.,070 |
1 | ||
| 76811-60190B0 |
TRJ150..GCC SILVER ME.,1F7 |
1 | ||
| 76811-60190B1 |
TRJ150..GCC SPARE TIRE-WITH(BACK DOOR),GRAY ME.,1G3 |
1 | ||
| 76811-60190A0 |
TRJ150..GCC SPARE TIRE-WITH(BACK DOOR),SUPER WHITE 2,040 |
1 | ||
| 76811-60190B2 |
TRJ150..GCC SPARE TIRE-WITH(BACK DOOR),DK. STEEL MC.,1H2 |
1 | ||
| 76811-60190B1 |
TRJ150..GCC GRAY ME.,1G3 |
1 | ||
| 76811-60190B2 |
TRJ150..GCC DK. STEEL MC.,1H2 |
1 | ||
| 76811-60190C0 |
TRJ150..GCC SPARE TIRE-WITH(BACK DOOR),BLACK,202 |
1 | ||
| 76811-60190C0 |
TRJ150..GCC BLACK,202 |
1 | ||
| 76811-60190D0 |
TRJ150..GCC BLACKISH RED MC.,3R0 |
1 | ||
| 76811-60190B0 |
TRJ150..GCC SPARE TIRE-WITH(BACK DOOR),SILVER ME.,1F7 |
1 | ||
| 76811-60190A0 |
TRJ150..GCC SUPER WHITE 2,040 |
1 | ||
| 76811-60190G0 |
TRJ150..GCC GREEN M.M.,6V2 |
1 | ||
| 76811-60190J0 |
TRJ150..GCC GRAYISH BLUE ME.,8R3 |
1 | ||
| 76811-60190E0 |
TRJ150..GCC BEIGE ME.,4T8 |
1 | ||
| 76811-60190D0 |
TRJ150..GCC SPARE TIRE-WITH(BACK DOOR),BLACKISH RED MC.,3R0 |
1 | ||
| 76811-60190G0 |
TRJ150..GCC SPARE TIRE-WITH(BACK DOOR),GREEN M.M.,6V2 |
1 | ||
| 76811-60190E0 |
TRJ150..GCC SPARE TIRE-WITH(BACK DOOR),BEIGE ME.,4T8 |
1 | ||
| 76811-60190J0 |
TRJ150..GCC SPARE TIRE-WITH(BACK DOOR),GRAYISH BLUE ME.,8R3 |
1 | ||
| 76811-60903A1 |
KDJ150,TRJ150..GCC SUPER WHITE 2,040 |
1 | ||
| 76811-60903B2 |
KDJ150,TRJ150..GCC SILVER ME.,1F7 |
1 | ||
| 76811-60903A2 |
KDJ150,TRJ150..GCC WHITE PEARL CS.,070 |
1 | ||
| 76811-60903B4 |
KDJ150,TRJ150..GCC DK. STEEL MC.,1H2 |
1 | ||
| 76811-60903B3 |
KDJ150,TRJ150..GCC GRAY ME.,1G3 |
1 | ||
| 76811-60903C0 |
KDJ150,TRJ150..GCC BLACK,202 |
1 | ||
| 76811-60903C2 |
KDJ150,TRJ150..GCC ATTITUDE BLACK MC.,218 |
1 | ||
| 76811-60903J1 |
KDJ150,TRJ150..GCC DK.BLUE MC.,8S6 |
1 | ||
| 76811-60903G2 |
KDJ150,TRJ150..GCC DK.GREEN MC.,6V4 |
1 | ||
| 76811-60903E3 |
KDJ150,TRJ150..GCC BRONZE M.M.,4T3 |
1 | ||
| 76811-60904A1 |
TRJ150..GCC CHINA SPEC,SUPER WHITE 2,040 |
1 | ||
| 76811-60904B2 |
TRJ150..GCC CHINA SPEC,SILVER ME.,1F7 |
1 | ||
| 76811-60904A2 |
TRJ150..GCC CHINA SPEC,WHITE PEARL CS.,070 |
1 | ||
| 76811-60904B3 |
TRJ150..GCC CHINA SPEC,GRAY ME.,1G3 |
1 | ||
| 76811-60904B4 |
TRJ150..GCC CHINA SPEC,DK. STEEL MC.,1H2 |
1 | ||
| 76811-60904C0 |
TRJ150..GCC CHINA SPEC,BLACK,202 |
1 | ||
| 76811-60904C2 |
TRJ150..GCC CHINA SPEC,ATTITUDE BLACK MC.,218 |
1 | ||
| 76811-60904E3 |
TRJ150..GCC CHINA SPEC,BRONZE M.M.,4T3 |
1 | ||
| 76811-60904G2 |
TRJ150..GCC CHINA SPEC,DK.GREEN MC.,6V4 |
1 | ||
| 76811-60904J1 |
TRJ150..GCC CHINA SPEC,DK.BLUE ME.,8S6 |
1 | ||
| 76812A - GARNISH, BACK DOOR, OUTSIDE NO.2 | ||||
| 76812-60070 |
KDJ150..5FC..GCC;GRJ150,TRJ150..GCC |
1 | ||
| 76810-60020 |
GRJ150,KDJ150,TRJ150..(4FC,5F,5FC)..GCC VX PACKAGE&SPARE TIRE-WITH(BACK DOOR) |
1 | ||
| 76810-60020 |
GRJ150,KDJ150,TRJ150..GCC SPARE TIRE-WITH(BACK DOOR) |
1 | ||
| 76810-60020 |
GRJ150,KDJ150,TRJ150..GCC |
1 | ||
| 76810-60040 |
GRJ150,KDJ150,TRJ150..(4FC,5F,5FC)..GCC VX PACKAGE |
1 | ||
| 76825 - PROTECTOR, BACK DOOR OUTSIDE GARNISH | ||||
| 76825-60070 |
KDJ150..5FC..GCC;GRJ150,TRJ150..GCC |
1 | ||
| 76825-60200 |
GRJ150,KDJ150,TRJ150..GCC |
1 | ||
| 76825-60200 |
GRJ150,KDJ150,TRJ150..(4FC,5F,5FC)..GCC VX PACKAGE&SPARE TIRE-WITH(BACK DOOR) |
1 | ||
| 76825-60200 |
GRJ150,KDJ150,TRJ150..GCC SPARE TIRE-WITH(BACK DOOR) |
1 | ||
| 76825C - PROTECTOR, BACK DOOR OUTSIDE GARNISH | ||||
| 76825-60190 |
GRJ150,KDJ150,TRJ150..GCC |
2 | ||
| 76825-60080 |
KDJ150..5FC..GCC;GRJ150,TRJ150..GCC |
2 | ||
| 76825C - PROTECTOR, BACK DOOR OUTSIDE GARNISH | ||||
| 76825-60190 |
GRJ150,KDJ150,TRJ150..GCC |
2 | ||
| 76825-60080 |
KDJ150..5FC..GCC;GRJ150,TRJ150..GCC |
2 | ||
| 76826A - RETAINER, BACK DOOR GARNISH, NO.1 | ||||
| 76826-60090 |
GRJ150,KDJ150,TRJ150..GCC |
1 | ||
| 76827A - RETAINER, BACK DOOR GARNISH, NO.2 | ||||
| 76827-60040 |
KDJ150..5FC..GCC;GRJ150,TRJ150..GCC |
1 | ||
| 76827-60040 |
GRJ150,KDJ150,TRJ150..GCC |
1 | ||
| Common parts | ||||
| 62217-12050 | ||||
| 62955-60040 | ||||
| 63395-12150 | ||||
| 76828-60030 | ||||
| 76829-60020 | ||||
| 90116-06172 | ||||
| 90119-05021 | ||||
| 90159-50311 | ||||
| 90167-40057 | ||||
| 90179-06256 | ||||
| 90210-12008 | ||||
| 90467-09206 | ||||
| 90562-04007 | ||||
| 91621-60614 | ||||
| 93540-A4010 | ||||
| Linked diagrams | ||||
| 5752 | ||||
| 6762 | ||||
| 7552 | ||||
| 8113 | ||||
| 8401 | ||||
| 8420 | ||||
| 8606 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
