TRJ150L-GKPEKV (2013)

Toyota Land Cruiser Prado

Production Aug 2013 - Jun 2015
Engine 2TRFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1308- )

Click highlighted areas on diagram

W/O(PRE-COLLISION SYSTEM)

diagram 53111 53115A 53116A 53145B 53145B 53395H 53395H 7551 8101 9015950388 9015950388 9018305050 9018305050 9018905027 93568A5012 93568A5012
Part # Description Qty Price
53111 - GRILLE, RADIATOR
53101-60660

TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155

NO PAINT REQ.

 1
53101-60670

TRJ150..GCC

PLATED,CHROME & COLORED&AUDIO(FOR OVERSEAS MARKET)-NAVIGATION+DVD CHANGER+BLUETOOTH+14SP

 1
53101-60670

TRJ150..GCC

PLATED,CHROME & COLORED&AUDIO(FOR OVERSEAS MARKET)-CD CHANGER+BLUETOOTH+MULTI+9SPEAKER

 1
53101-60670

TRJ150..GCC

PLATED,CHROME & COLORED&AUDIO(FOR OVERSEAS MARKET)-CD+BLUETOOTH+MULTI+6SPEAKER

 1
53101-60B90

LJ150,TRJ15#

PLATED,TX-L PACKAGE&CHROME & COLORED

 1
53101-60C00

TRJ150

PLATED,VX PACKAGE&CHROME & COLORED

 1
53101-60B80

KDJ150,TRJ15#;GRJ150,LJ150..GEN

NO PAINT REQ.

 1
53101-60B81

KDJ150,TRJ15#;GRJ150,LJ150..GEN

NO PAINT REQ.

 1
53101-60C01

TRJ150

PLATED,VX PACKAGE&CHROME & COLORED

 1
53101-60B91

LJ150,TRJ15#

PLATED,TX-L PACKAGE&CHROME & COLORED

 1
53115A - BRACKET, RADIATOR GRILLE, RH
53115-60020

TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155

 1
53115-60050

GRJ150,KDJ150,LJ150,TRJ15#

 1
53116A - BRACKET, RADIATOR GRILLE, LH
53116-60020

TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155

 1
53116-60030

GRJ150,KDJ150,LJ150,TRJ15#

 1
53145B - CLIP, RADIATOR GRILLE GARNISH
53145-60030

GRJ150,KDJ150,LJ150,TRJ15#

 8
53145B - CLIP, RADIATOR GRILLE GARNISH
53145-60030

GRJ150,KDJ150,LJ150,TRJ15#

 8
53395H - SEAL, HOOD TO RADIATOR GRILLE
53395-60070

GRJ150,KDJ150,LJ150,TRJ15#

RH

 1
53396-60050

GRJ150,KDJ150,LJ150,TRJ15#

LH

 1
53395H - SEAL, HOOD TO RADIATOR GRILLE
53395-60070

GRJ150,KDJ150,LJ150,TRJ15#

RH

 1
53396-60050

GRJ150,KDJ150,LJ150,TRJ15#

LH

 1
Common parts
90159-50388
90183-05050
90189-05027
93568-A5012
Linked diagrams
7551
8101

(1308- )

Click highlighted areas on diagram

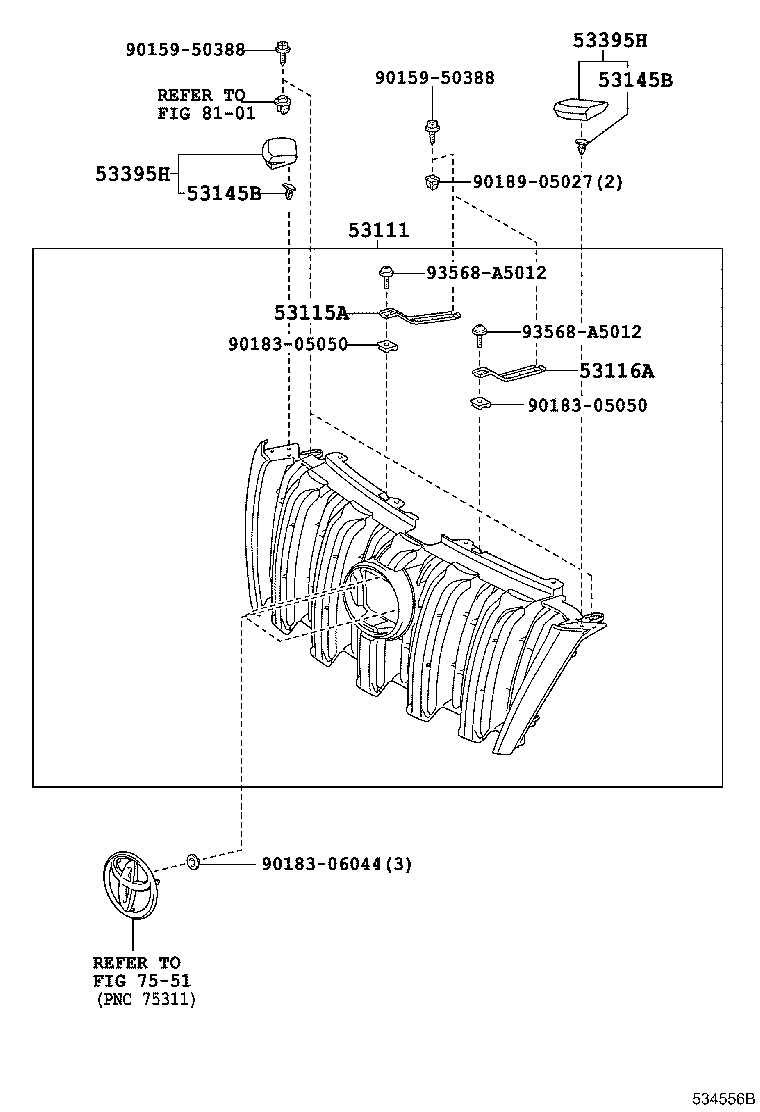

W(PRE-COLLISION SYSTEM)

diagram 53111 53115A 53116A 53145B 53145B 53395H 53395H 7551 8101 9015950388 9015950388 9018305050 9018305050 9018306044 9018905027 93568A5012 93568A5012
Part # Description Qty Price
53111 - GRILLE, RADIATOR
53101-60660

TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155

NO PAINT REQ.

 1
53101-60670

TRJ150..GCC

PLATED,CHROME & COLORED&AUDIO(FOR OVERSEAS MARKET)-NAVIGATION+DVD CHANGER+BLUETOOTH+14SP

 1
53101-60670

TRJ150..GCC

PLATED,CHROME & COLORED&AUDIO(FOR OVERSEAS MARKET)-CD CHANGER+BLUETOOTH+MULTI+9SPEAKER

 1
53101-60670

TRJ150..GCC

PLATED,CHROME & COLORED&AUDIO(FOR OVERSEAS MARKET)-CD+BLUETOOTH+MULTI+6SPEAKER

 1
53101-60B90

LJ150,TRJ15#

PLATED,TX-L PACKAGE&CHROME & COLORED

 1
53101-60C00

TRJ150

PLATED,VX PACKAGE&CHROME & COLORED

 1
53101-60B80

KDJ150,TRJ15#;GRJ150,LJ150..GEN

NO PAINT REQ.

 1
53101-60B81

KDJ150,TRJ15#;GRJ150,LJ150..GEN

NO PAINT REQ.

 1
53101-60C01

TRJ150

PLATED,VX PACKAGE&CHROME & COLORED

 1
53101-60B91

LJ150,TRJ15#

PLATED,TX-L PACKAGE&CHROME & COLORED

 1
53115A - BRACKET, RADIATOR GRILLE, RH
53115-60020

TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155

 1
53115-60050

GRJ150,KDJ150,LJ150,TRJ15#

 1
53116A - BRACKET, RADIATOR GRILLE, LH
53116-60020

TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155

 1
53116-60030

GRJ150,KDJ150,LJ150,TRJ15#

 1
53145B - CLIP, RADIATOR GRILLE GARNISH
53145-60030

GRJ150,KDJ150,LJ150,TRJ15#

 8
53145B - CLIP, RADIATOR GRILLE GARNISH
53145-60030

GRJ150,KDJ150,LJ150,TRJ15#

 8
53395H - SEAL, HOOD TO RADIATOR GRILLE
53395-60070

GRJ150,KDJ150,LJ150,TRJ15#

RH

 1
53396-60050

GRJ150,KDJ150,LJ150,TRJ15#

LH

 1
53395H - SEAL, HOOD TO RADIATOR GRILLE
53395-60070

GRJ150,KDJ150,LJ150,TRJ15#

RH

 1
53396-60050

GRJ150,KDJ150,LJ150,TRJ15#

LH

 1
Common parts
90159-50388
90183-05050
90183-06044
90189-05027
93568-A5012
Linked diagrams
7551
8101
