TRJ150L-GKPEKV (2013)

Toyota Land Cruiser Prado

Production Aug 2013 - Jun 2015
Engine 2TRFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1406-1506)2TRFE..4FC

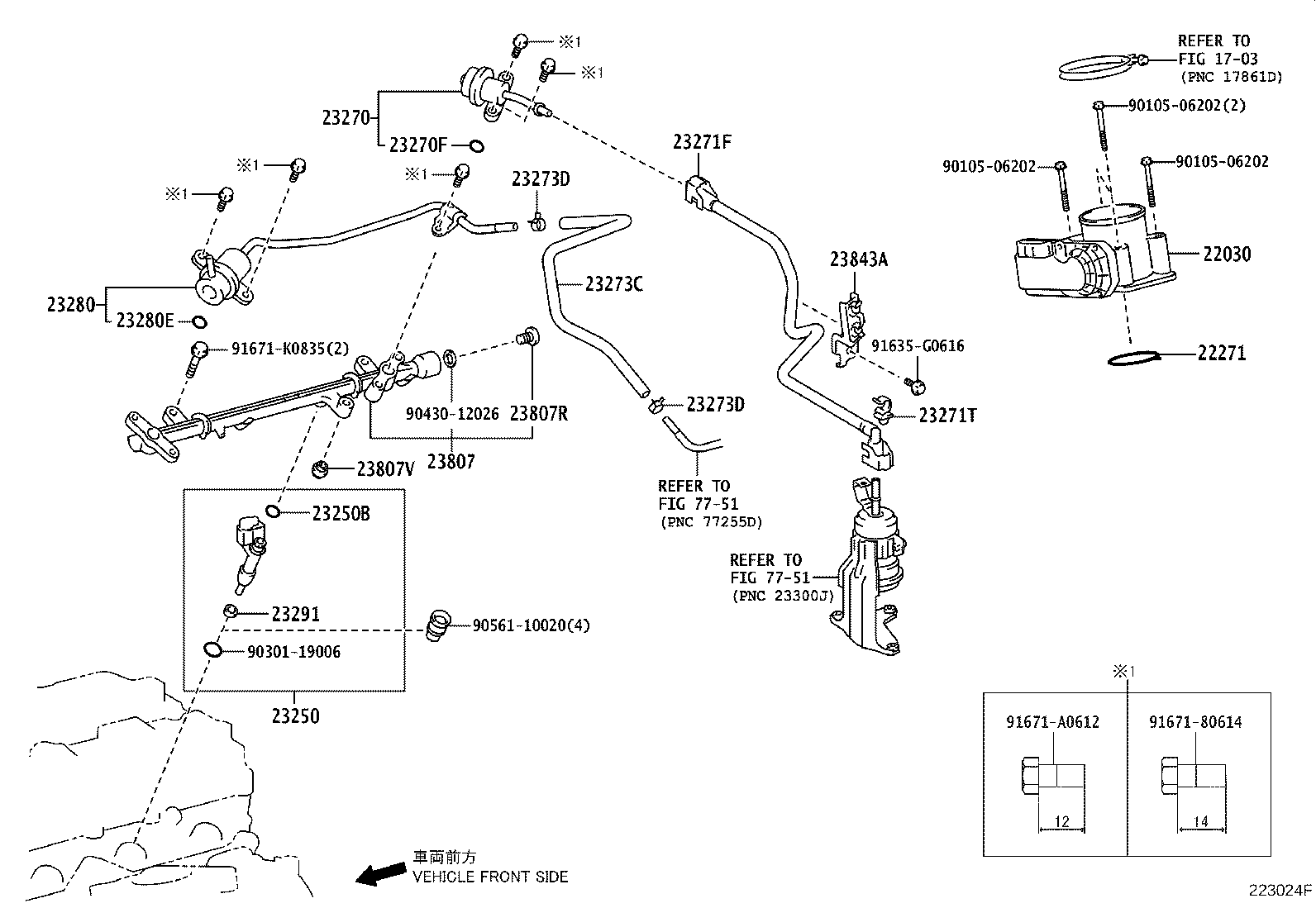

Click highlighted areas on diagram

diagram 1703 22030 22271 23250 23250B 23270 23270F 23271F 23271T 23273C 23273D 23273D 23280 23280E 23291 23807 23807R 23807V 23843A 7751 7751 9010506202 9010506202 9010506202 9030119006 9043012026 9056110020 91635G0616 9167180614 91671A0612 91671K0835
Part # Description Qty Price
22030 - BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR
22030-75020

2TRFE..TRJ15#..LHD

 1
22030-75020

2TRFE..TRJ15#

 1
22271 - GASKET, THROTTLE BODY
22271-0C020

2TRFE..TRJ15#

 1
22271-0C021

2TRFE..TRJ15#

 1
23250 - INJECTOR ASSY, FUEL
23209-79186

2TRFE..TRJ15#

 4
23209-79155

2TRFE..TRJ15#

 4
23250B - RING, O(FOR FUEL INJECTOR)
90301-07037

2TRFE..TRJ15#..LHD

 4
90301-07037

2TRFE..TRJ15#

 4
23270 - DAMPER ASSY, FUEL PRESSURE PULSATION
23270-75010

2TRFE..TRJ15#..LHD

 1
23270-75010

2TRFE..TRJ15#..4FC

 1
23270-75050

2TRFE..TRJ15#..4FC

 1
23270F - RING, O(FOR PULSATION DAMPER)
90301-07037

2TRFE..TRJ15#..LHD

 1
90301-07037

2TRFE..TRJ15#

 1
23271F - HOSE, FUEL
23271-75280

2TRFE..TRJ15#..LHD

 1
23271-75280

2TRFE..TRJ15#

 1
23271T - CLAMP OR CLIP(FOR FUEL HOSE)
90469-12012

2TRFE..TRJ15#..LHD

 1
90469-12012

2TRFE..TRJ15#

 1
23273C - HOSE, FUEL, NO.2
23273-75340

2TRFE..TRJ15#..LHD

 1
23273-75340

2TRFE..TRJ15#

 1
23273D - CLIP(FOR FUEL HOSE NO.2)
96135-51100

2TRFE..TRJ15#

 2
96135-51100

2TRFE..TRJ15#..LHD

 2
23273D - CLIP(FOR FUEL HOSE NO.2)
96135-51100

2TRFE..TRJ15#

 2
96135-51100

2TRFE..TRJ15#..LHD

 2
23280 - REGULATOR ASSY, FUEL PRESSURE
23280-75040

2TRFE..TRJ15#..LHD

 1
23280-75040

2TRFE..TRJ15#

 1
23280E - RING, O(FOR FUEL PRESSURE REGULATOR)
90301-07037

2TRFE..TRJ15#..LHD

 1
90301-07037

2TRFE..TRJ15#

 1
23291 - INSULATOR, INJECTOR VIBRATION
23291-73010

2TRFE..TRJ15#

 4
23291-73010

2TRFE..TRJ15#..LHD

 4
23807 - PIPE SUB-ASSY, FUEL DELIVERY
23807-75052

2TRFE..TRJ15#

 1
23807-75050

2TRFE..TRJ15#..LHD

 1
23807-75050

2TRFE..TRJ15#

 1
23807R - PLUG, FUEL DELIVARY PIPE
90341-12030

2TRFE..TRJ15#..LHD

 1
90341-12030

2TRFE..TRJ15#

 1
23807V - SPACER, NO.1(FOR DELIVERY PIPE)
90561-08036

2TRFE..TRJ15#

 2
90561-08036

2TRFE..TRJ15#..LHD

 2
23843A - CLAMP,FUEL PIPE, NO.3(FOR EFI)
23847-75010

2TRFE..TRJ15#

 1
23847-75010

2TRFE..TRJ15#..LHD

 1
Common parts
90105-06202
90301-19006
90430-12026
90561-10020
91635-G0616
91671-80614
91671-A0612
91671-K0835
Linked diagrams
1703
7751
