TRJ150L-GKPEKV (2009)
Toyota Land Cruiser Prado
(0908-1506)TRJ15#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

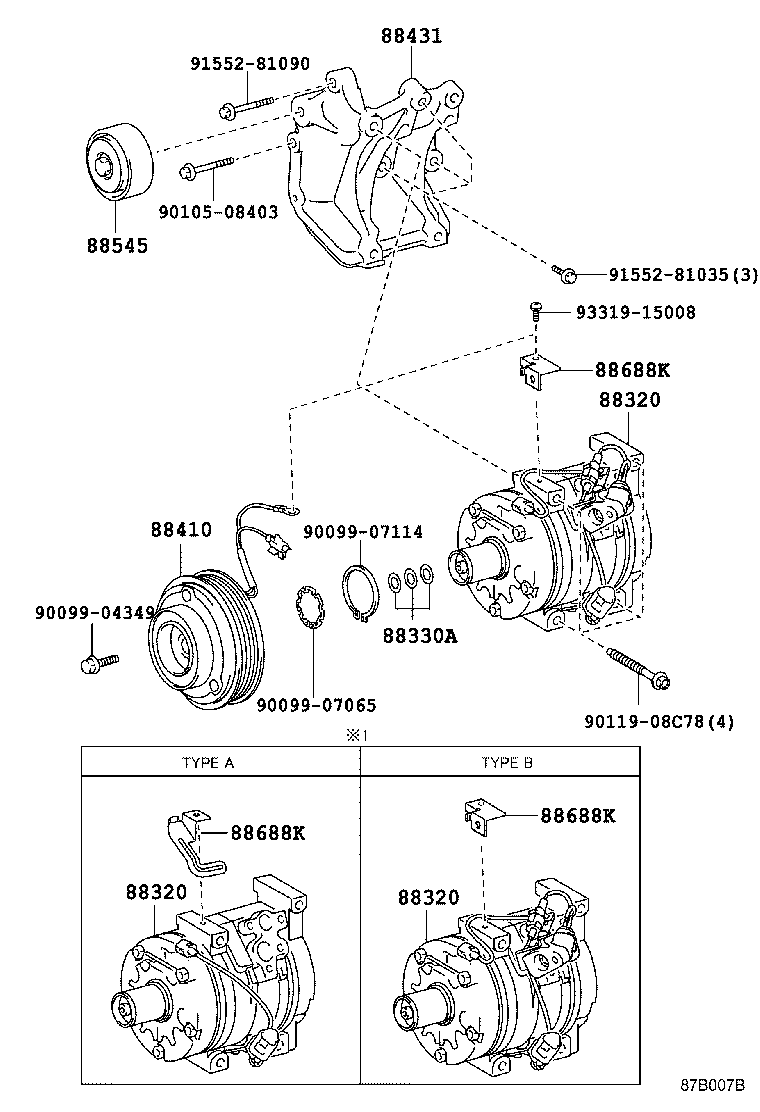

| 88320 - COMPRESSOR ASSY, COOLER | ||||
| 88320-6A400 |
GRJ150,TRJ150..GCC AIR CONDITIONER-DUAL(AUTO),TYPE B:REFER ILLUST. |
1 | ||
| 88320-6A400 |
GRJ150,TRJ150..GCC AIR CONDITIONER-DUAL(MANUAL),TYPE B:REFER ILLUST. |
1 | ||
| 88320-6A410 |
TRJ150..GCC CHINA SPEC&AIR CONDITIONER-DUAL(AUTO),TYPE A:REFER ILLUST. |
1 | ||
| 88320-6A410 |
TRJ150..GCC CHINA SPEC&AIR CONDITIONER-DUAL(MANUAL),TYPE A:REFER ILLUST. |
1 | ||
| 88320-6A390 |
TRJ15#..GCC TYPE B:REFER ILLUST. |
1 | ||
| 88320-6A540 |
TRJ150..GCC CHINA SPEC,TYPE A:REFER ILLUST. |
1 | ||
| 88320 - COMPRESSOR ASSY, COOLER | ||||
| 88320-6A400 |
GRJ150,TRJ150..GCC AIR CONDITIONER-DUAL(AUTO),TYPE B:REFER ILLUST. |
1 | ||
| 88320-6A400 |
GRJ150,TRJ150..GCC AIR CONDITIONER-DUAL(MANUAL),TYPE B:REFER ILLUST. |
1 | ||
| 88320-6A410 |
TRJ150..GCC CHINA SPEC&AIR CONDITIONER-DUAL(AUTO),TYPE A:REFER ILLUST. |
1 | ||
| 88320-6A410 |
TRJ150..GCC CHINA SPEC&AIR CONDITIONER-DUAL(MANUAL),TYPE A:REFER ILLUST. |
1 | ||
| 88320-6A390 |
TRJ15#..GCC TYPE B:REFER ILLUST. |
1 | ||
| 88320-6A540 |
TRJ150..GCC CHINA SPEC,TYPE A:REFER ILLUST. |
1 | ||
| 88320 - COMPRESSOR ASSY, COOLER | ||||
| 88320-6A400 |
GRJ150,TRJ150..GCC AIR CONDITIONER-DUAL(AUTO),TYPE B:REFER ILLUST. |
1 | ||
| 88320-6A400 |
GRJ150,TRJ150..GCC AIR CONDITIONER-DUAL(MANUAL),TYPE B:REFER ILLUST. |
1 | ||
| 88320-6A410 |
TRJ150..GCC CHINA SPEC&AIR CONDITIONER-DUAL(AUTO),TYPE A:REFER ILLUST. |
1 | ||
| 88320-6A410 |
TRJ150..GCC CHINA SPEC&AIR CONDITIONER-DUAL(MANUAL),TYPE A:REFER ILLUST. |
1 | ||
| 88320-6A390 |
TRJ15#..GCC TYPE B:REFER ILLUST. |
1 | ||
| 88320-6A540 |
TRJ150..GCC CHINA SPEC,TYPE A:REFER ILLUST. |
1 | ||
| 88330A - WASHER (FOR MAGNET CLUTCH) | ||||
| 88335-14020 |
TRJ15#..LHD;KDJ150..5FC..GCC;GRJ150,KDJ150,LJ150..ARL,GEN |
1 | ||
| 88410 - CLUTCH ASSY, MAGNET | ||||
| 88410-6A140 |
TRJ15#..LHD |
1 | ||
| 88431 - BRACKET, COMPRESSOR MOUNTING, NO.1 | ||||
| 88431-25290 |
TRJ15#..LHD |
1 | ||
| 88431-60310 |
TRJ15# |
1 | ||
| 88545 - PULLEY ASSY, IDLE | ||||
| 88440-25070 |
TRJ15#..LHD |
1 | ||
| 88688K - BRACKET, COOLER COMPRESSOR | ||||
| 88688-32670 |
TRJ15#..GCC TYPE B:REFER ILLUST. |
1 | ||
| 88688-6B260 |
TRJ150..GCC CHINA SPEC&AIR CONDITIONER-DUAL(MANUAL),TYPE A:REFER ILLUST. |
1 | ||
| 88688-6B260 |
TRJ150..GCC CHINA SPEC&AIR CONDITIONER-DUAL(AUTO),TYPE A:REFER ILLUST. |
1 | ||
| 88688-6B260 |
TRJ150..GCC CHINA SPEC,TYPE A:REFER ILLUST. |
1 | ||
| 88688K - BRACKET, COOLER COMPRESSOR | ||||
| 88688-32670 |
TRJ15#..GCC TYPE B:REFER ILLUST. |
1 | ||
| 88688-6B260 |
TRJ150..GCC CHINA SPEC&AIR CONDITIONER-DUAL(MANUAL),TYPE A:REFER ILLUST. |
1 | ||
| 88688-6B260 |
TRJ150..GCC CHINA SPEC&AIR CONDITIONER-DUAL(AUTO),TYPE A:REFER ILLUST. |
1 | ||
| 88688-6B260 |
TRJ150..GCC CHINA SPEC,TYPE A:REFER ILLUST. |
1 | ||
| 88688K - BRACKET, COOLER COMPRESSOR | ||||
| 88688-32670 |
TRJ15#..GCC TYPE B:REFER ILLUST. |
1 | ||
| 88688-6B260 |
TRJ150..GCC CHINA SPEC&AIR CONDITIONER-DUAL(MANUAL),TYPE A:REFER ILLUST. |
1 | ||
| 88688-6B260 |
TRJ150..GCC CHINA SPEC&AIR CONDITIONER-DUAL(AUTO),TYPE A:REFER ILLUST. |
1 | ||
| 88688-6B260 |
TRJ150..GCC CHINA SPEC,TYPE A:REFER ILLUST. |
1 | ||
| Common parts | ||||
| 90099-04349 | ||||
| 90099-07065 | ||||
| 90099-07114 | ||||
| 90105-08403 | ||||
| 90119-08C78 | ||||
| 91552-81035 | ||||
| 91552-81090 | ||||
| 93319-15008 | ||||
(1708- )TRJ15#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90099-04349 | ||||
| 90099-07065 | ||||
| 90099-07114 | ||||
| 90105-08403 | ||||
| 90119-08C78 | ||||
| 91552-81025 | ||||
| 91552-81090 | ||||
| 93319-15008 | ||||
