TRJ150L-GKPEKV (2009)

Toyota Land Cruiser Prado

Production Aug 2009 - Aug 2013
Engine 2TRFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 3(0908- )GRJ150,TRJ150

Click highlighted areas on diagram

FUEL TUBE

diagram 1708 1708 2211 2211 2211 2211 2211 23211F 23300J 7722933090 77229C 77249B 77251B 77255D 77261D 77266A 77281G 77285B 77285D 77285E 77285F 77285G 77285H 77285J 77704 77707 77751 77754B 77779 9017906161 9017906161 9046611003 9046712056 9155180610 9155380816 9155380816 9163160622
Part # Description Qty Price
23211F - BRACKET
23264-31011

2TRFE..TRJ150..LHD;1GRFE,2TRFE..GRJ150,TRJ155

 1
23264-31010

1GRFE,2TRFE..GRJ150,TRJ15#

 1
23300J - FILTER ASSY, FUEL
23300-31160

2TRFE..TRJ150..LHD;1GRFE,2TRFE..GRJ150,TRJ155

 1
77229C - CLAMP, BREATHER TUBE
77229-33090

TRJ150..LHD;GRJ150,TRJ155

 1
77249B - HOSE, FUEL
95333-06040

TRJ150..LHD;GRJ150,TRJ155

 1
77251B - TUBE, FUEL MAIN
77205-6A340

GRJ150;TRJ150..LHD

 1
77255D - TUBE, FUEL RETURN
77255-60C00

TRJ150..LHD

 1
77261D - TUBE, FUEL TANK TO CANISTER
77261-60460

TRJ150..LHD

 1
77266A - PROTECTOR, FUEL TUBE, NO.1
77266-60160

TRJ150..LHD;GRJ150,TRJ155

 1
77281G - CLAMP, FUEL HOSE
77281-60430

TRJ150..LHD;GRJ150,TRJ155

 1
77285B - CLAMP, FUEL TUBE W/GROMMET, NO.1
77285-35631

TRJ150..LHD;GRJ150,TRJ155

 1
77285D - CLAMP, FUEL TUBE, NO.1
77285-35670

TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155

 1
77285E - CLAMP, FUEL TUBE W/GROMMET, NO.1
77285-35641

TRJ150..LHD;GRJ150,TRJ155

 1
77285F - CLAMP, FUEL TUBE, NO.1
77285-35680

TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155

 1
77285G - CLAMP, FUEL TUBE, NO.1
77285-35690

TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155

 1
77285H - CLAMP, FUEL TUBE, NO.1
77285-35700

GRJ150;TRJ150..LHD

 1
77285J - CLAMP, FUEL TUBE, NO.1
77285-35710

GRJ150;TRJ150..LHD

 1
77704 - CANISTER SUB-ASSY, CHARCOAL
77704-63010

TRJ150..LHD;GRJ150,TRJ155

 1
77707 - TUBE SUB-ASSY, CHARCOAL CANISTER OUTLET
77707-60051

TRJ150..LHD;GRJ150,TRJ155

 1
77707-60050

GRJ150,TRJ15#

 1
77751 - BRACKET, CHARCOAL CANISTER BASE
77751-60290

TRJ150..LHD;GRJ150,TRJ155

 1
77754B - HOSE, CHARCOAL CANISTER OUTLET
77754-60380

TRJ150..LHD;GRJ150,TRJ155

 1
77779 - TUBE, CHARCOAL CANISTER OUTLET
77779-60070

GRJ150,TRJ15#

 1
77779-60071

TRJ150..LHD;GRJ150,TRJ155

 1
Common parts
77229-33090
90179-06161
90466-11003
90467-12056
91551-80610
91553-80816
91631-60622
Linked diagrams
1708
2211

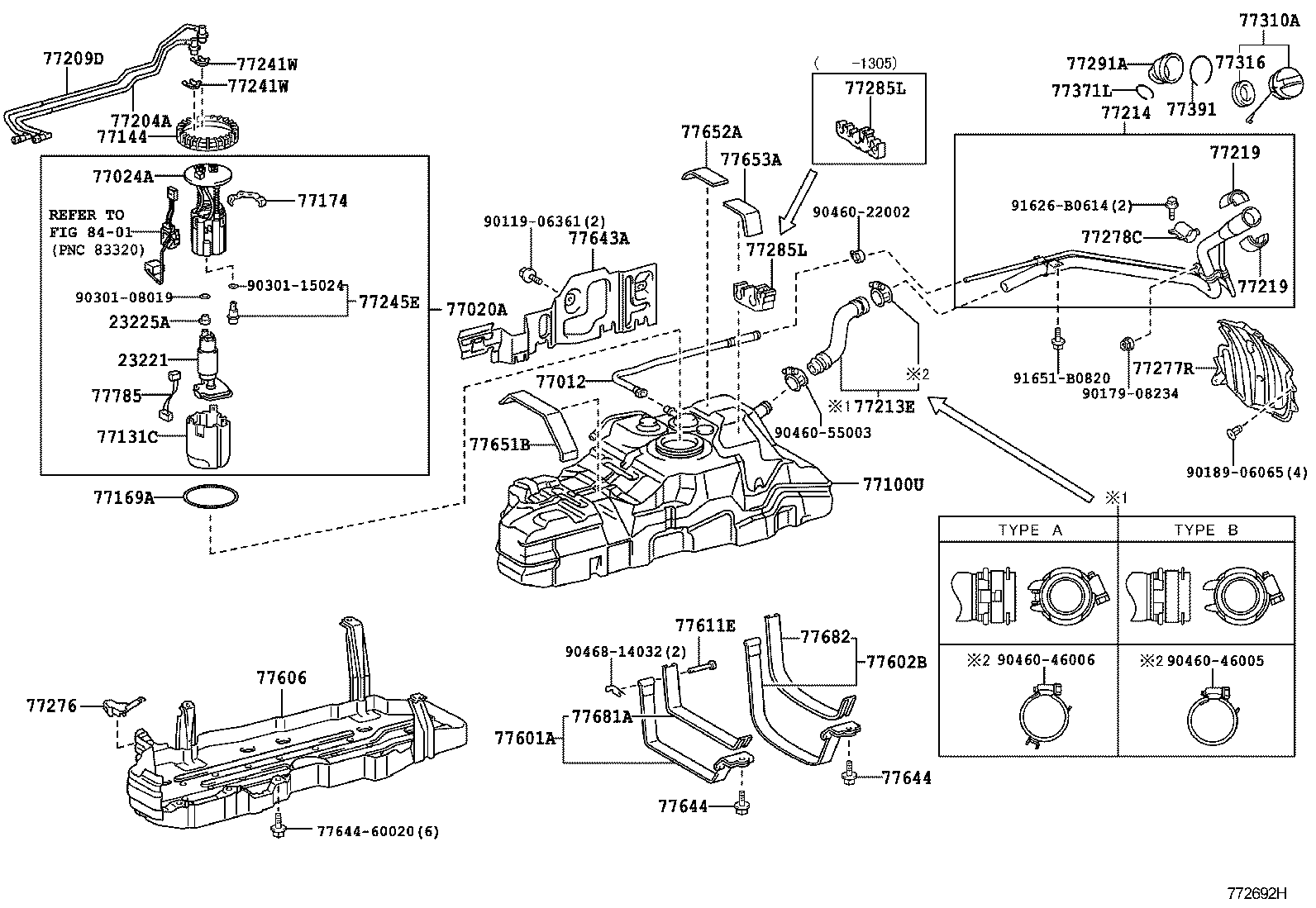

ILLUST NO. 1 OF 3(0908-1506)TRJ150

Click highlighted areas on diagram

FUEL TANK

diagram 23221 23225A 77012 77020A 77024A 77100U 77131C 77144 77169A 77174 77204A 77209D 77213E 77214 77219 77219 77241W 77241W 77245E 77276 77277R 77278C 77285L 77285L 77291A 77310A 77316 77371L 77391 77601A 77602B 77606 77611E 77643A 77644 77644 7764460020 77651B 77652A 77653A 77681A 77682 77785 8401 9011906361 9017908234 9018906065 9030108019 9030115024 9046022002 9046046005 9046046006 9046055003 9046814032 91626B0614 91651B0820
Part # Description Qty Price
23221 - PUMP, FUEL
23220-75091

2TRFE..TRJ150..LHD

 1
23225A - SPACER, FUEL PUMP
23225-23010

1GRFE..GRJ150;2TRFE..TRJ150..LHD

 1
77012 - TUBE SUB-ASSY, FUEL TANK BREATHER
77012-60200

TRJ150..LHD;GRJ150,LJ150;KDJ150..ARL,GEN;KDJ150..5FC..GCC

 1
77020A - TUBE ASSY, FUEL SUCTION W/PUMP & GAGE
77020-60440

TRJ150..LHD

 1
77024A - PLATE SUB-ASSY, FUEL SUCTION
77024-60280

TRJ150..LHD

 1
77100U - TANK SUB-ASSY, FUEL
77001-35A30

GRJ150;TRJ150..LHD

 1
77131C - SUB-TANK, FUEL, NO.1
77131-60090

GRJ150;TRJ150..LHD

 1
77144 - RETAINER, FUEL PUMP GAUGE
77144-35010

TRJ150..LHD;GRJ150,LJ150;KDJ150..ARL,GEN;KDJ150..5FC..GCC

 1
77169A - GASKET, FUEL SUCTION TUBE SET
77169-47030

GRJ150;TRJ150..LHD

 1
77169-35010

GRJ150,TRJ150

 1
77174 - SUPPORT, FUEL SUCTION, NO.1
77174-60020

GRJ150;TRJ150..LHD

 1
77204A - TUBE, FUEL TANK RETURN
77204-60100

TRJ150..LHD

 1
77209D - TUBE SUB-ASSY, FUEL TANK MAIN
77209-60530

GRJ150;TRJ150..LHD

 1
77213E - HOSE, FUEL TANK TO FILLER PIPE
77213-60360

GRJ150,KDJ150,LJ150,TRJ150

 1
77213-60390

TRJ150..LHD;GRJ150,LJ150;KDJ150..ARL,GEN;KDJ150..5FC..GCC

TYPE B:REFER ILLUST.

 1
77213-60360

TRJ150..LHD;GRJ150,LJ150;KDJ150..ARL,GEN;KDJ150..5FC..GCC

TYPE A:REFER ILLUST.

 1
77214 - PIPE, FUEL TANK FILLER
77210-60140

GRJ150;TRJ150..LHD

 1
77219 - COVER, FUEL TANK FILLER PIPE
77219-52040

TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155

 2
77219 - COVER, FUEL TANK FILLER PIPE
77219-52040

TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155

 2
77241W - CLIP, TUBE JOINT
77241-60320

GRJ150,TRJ150

 2
77241-33011

GRJ150;TRJ150..LHD

 2
77241W - CLIP, TUBE JOINT
77241-60320

GRJ150,TRJ150

 2
77241-33011

GRJ150;TRJ150..LHD

 2
77245E - CAP, FUEL SUCTION
77245-35310

TRJ150..LHD

 1
77276 - PROTECTOR, FUEL HOSE
77276-35040

TRJ150..LHD;GRJ150,LJ150;KDJ150..ARL,GEN;KDJ150..5FC..GCC

 1
77277R - PROTECTOR, FUEL TANK FILLER PIPE
77277-60150

TRJ150..LHD;GRJ150,LJ150;KDJ150..ARL,GEN;KDJ150..5FC..GCC

 1
77278C - PROTECTOR, FUEL TANK FILLER PIPE, NO.2
77277-52020

GRJ150,KDJ150,LJ150,TRJ150

 1
77277-60190

TRJ150..LHD;GRJ150,LJ150;KDJ150..ARL,GEN;KDJ150..5FC..GCC

 1
77285L - CLAMP, FUEL TUBE, NO.1
77285-35620

TRJ150..LHD;GRJ150,LJ150;KDJ150..ARL,GEN;KDJ150..5FC..GCC

 1
77285-35770

GRJ150,KDJ150,LJ150,TRJ150

 1
77285L - CLAMP, FUEL TUBE, NO.1
77285-35620

TRJ150..LHD;GRJ150,LJ150;KDJ150..ARL,GEN;KDJ150..5FC..GCC

 1
77285-35770

GRJ150,KDJ150,LJ150,TRJ150

 1
77291A - SHIELD, FUEL TANK FILLER PIPE
77291-60130

TRJ150..LHD;GRJ150,LJ150;KDJ150..ARL,GEN;KDJ150..5FC..GCC

 1
77310A - CAP ASSY, FUEL TANK
77300-52030

TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155

 1
77316 - GASKET, FUEL TANK CAP
77316-52040

TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155

 1
77371L - RING, FUEL TANK FILLER PIPE SHIELD
77371-35010

TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155

 1
77391 - RING, FUEL INLET BOX
77391-12060

TRJ150..LHD;GRJ150,LJ150;KDJ150..ARL,GEN;KDJ150..5FC..GCC

 1
77601A - BAND SUB-ASSY, FUEL TANK, NO.1
77601-60340

TRJ150..LHD;GRJ150,LJ150;KDJ150..ARL,GEN;KDJ150..5FC..GCC

 1
77602B - BAND SUB-ASSY, FUEL TANK, NO.1 LH
77602-60120

TRJ150..LHD;GRJ150,LJ150;KDJ150..ARL,GEN;KDJ150..5FC..GCC

 1
77606 - PROTECTOR SUB-ASSY, FUEL TANK, NO.1
77606-60190

TRJ150..LHD;GRJ150,LJ150;KDJ150..ARL,GEN;KDJ150..5FC..GCC

 1
77611E - PIN, FUEL TANK BAND
77653-35040

TRJ150..LHD;GRJ150,LJ150;KDJ150..ARL,GEN;KDJ150..5FC..GCC

 2
77643A - PROTECTOR, FUEL TANK, NO.3
77643-35040

TRJ150..LHD

 1
77644 - BOLT, FUEL TANK
77644-35030

TRJ150..LHD;GRJ150,LJ150;KDJ150..ARL,GEN;KDJ150..5FC..GCC

 2
77644 - BOLT, FUEL TANK
77644-35030

TRJ150..LHD;GRJ150,LJ150;KDJ150..ARL,GEN;KDJ150..5FC..GCC

 2
77651B - CUSHION, FUEL TANK
77651-35070

TRJ150..LHD;GRJ150,LJ150;KDJ150..ARL,GEN;KDJ150..5FC..GCC

 1
77652A - CUSHION, FUEL TANK, NO.2
77652-35060

TRJ150..LHD;GRJ150,LJ150;KDJ150..ARL,GEN;KDJ150..5FC..GCC

 1
77653A - CUSHION, FUEL TANK, NO.3
77653-35050

TRJ150..LHD;GRJ150,LJ150;KDJ150..ARL,GEN;KDJ150..5FC..GCC

 1
77681A - SEAT, FUEL TANK BAND
77681-60210

TRJ150..LHD;GRJ150,LJ150;KDJ150..ARL,GEN;KDJ150..5FC..GCC

 1
77682 - SEAT, FUEL TANK BAND, LH
77681-35041

TRJ150..LHD;GRJ150,LJ150;KDJ150..ARL,GEN;KDJ150..5FC..GCC

 1
77785 - HARNESS, FUEL PUMP
77785-60020

GRJ150;TRJ150..LHD

 1
Common parts
77644-60020
90119-06361
90179-08234
90189-06065
90301-08019
90301-15024
90460-22002
90460-46005
90460-46006
90460-55003
90468-14032
91626-B0614
91651-B0820
Linked diagrams
8401

ILLUST NO. 3 OF 3(0908- )

Click highlighted areas on diagram

FUEL LID OPENER

diagram 77035 77035 77306 77350 77366 77377 8271116830 8271116830 827113F290 827113F400 827113F400 827113F400 827113F400 9026906017 9046400042 9046400042 9046906005 9046906005
Part # Description Qty Price
77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL
77035-60171

KDJ150..LHD..5FC;KDJ150..LHD..6F..GEN;GRJ150,LJ150,TRJ150..LHD

 1
77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL
77035-60171

KDJ150..LHD..5FC;KDJ150..LHD..6F..GEN;GRJ150,LJ150,TRJ150..LHD

 1
77306 - LEVER SUB-ASSY, FUEL LID LOCK OPEN
77306-28060C0

TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155

BLACK

 1
77350 - LID ASSY, FUEL FILLER OPENING
77350-60100

TRJ150..LHD;GRJ150,LJ150;KDJ150..ARL,GEN;KDJ150..5FC..GCC

 1
77366 - SPRING, FUEL FILLER OPENING LID HINGE
77360-30070

TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155

 1
77377 - RETAINER, FUEL FILLER OPENING LID LOCK
77377-12050

TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155

 1
Common parts
82711-16830
82711-3F290
82711-3F400
90269-06017
90464-00042
90469-06005

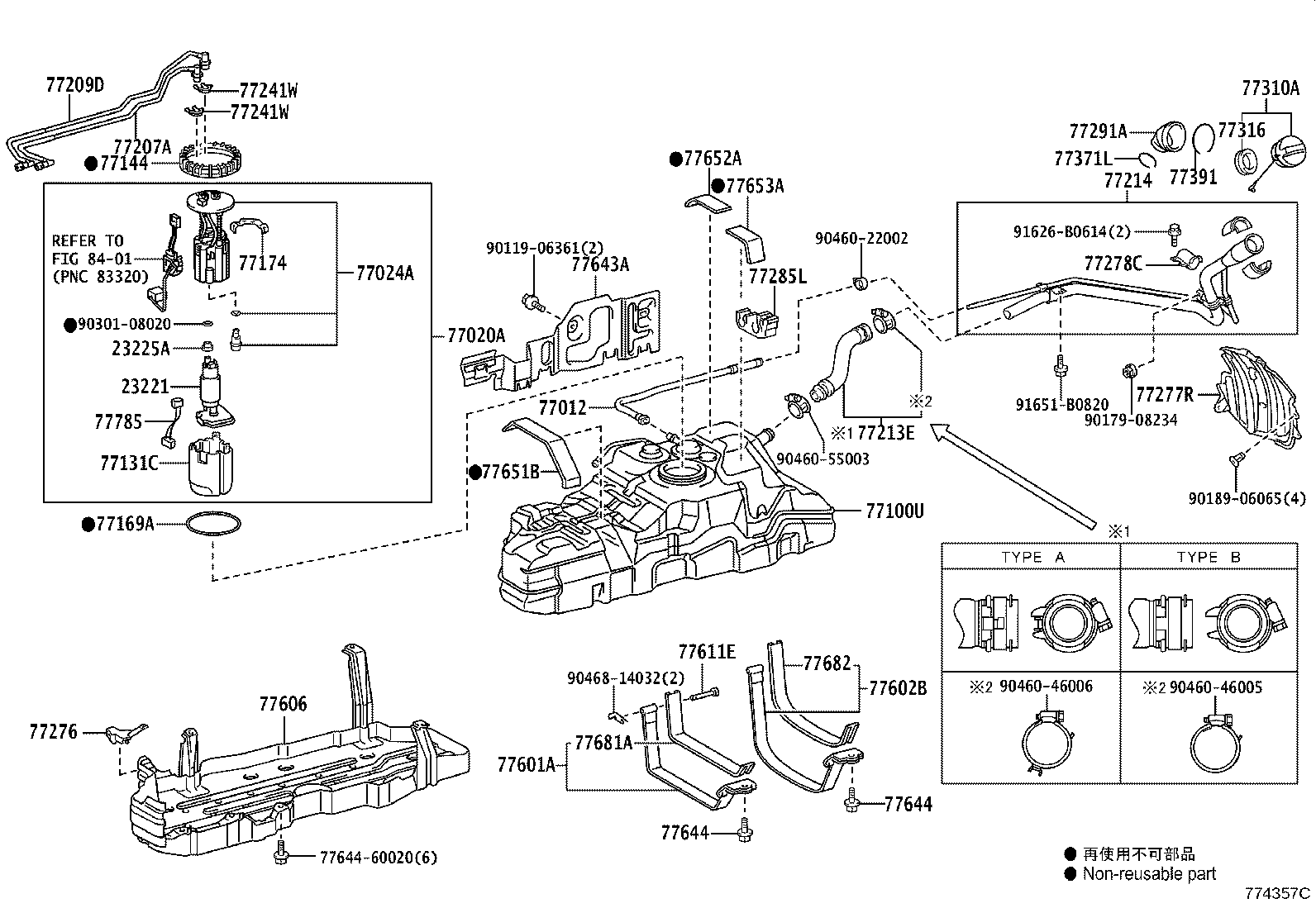

ILLUST NO. 1 OF 3(1708- )TRJ150

Click highlighted areas on diagram

FUEL TANK

diagram 23221 23225A 77012 77020A 77024A 77100U 77131C 77144 77169A 77174 77207A 77209D 77213E 77214 77241W 77241W 77276 77277R 77278C 77285L 77291A 77310A 77316 77371L 77391 77601A 77602B 77606 77611E 77643A 77644 77644 7764460020 77651B 77652A 77653A 77681A 77682 77785 8401 9011906361 9017908234 9018906065 9030108020 9046022002 9046046005 9046046006 9046055003 9046814032 91626B0614 91651B0820
Part # Description Qty Price
Common parts
77644-60020
90119-06361
90179-08234
90189-06065
90301-08020
90460-22002
90460-46005
90460-46006
90460-55003
90468-14032
91626-B0614
91651-B0820
Linked diagrams
8401

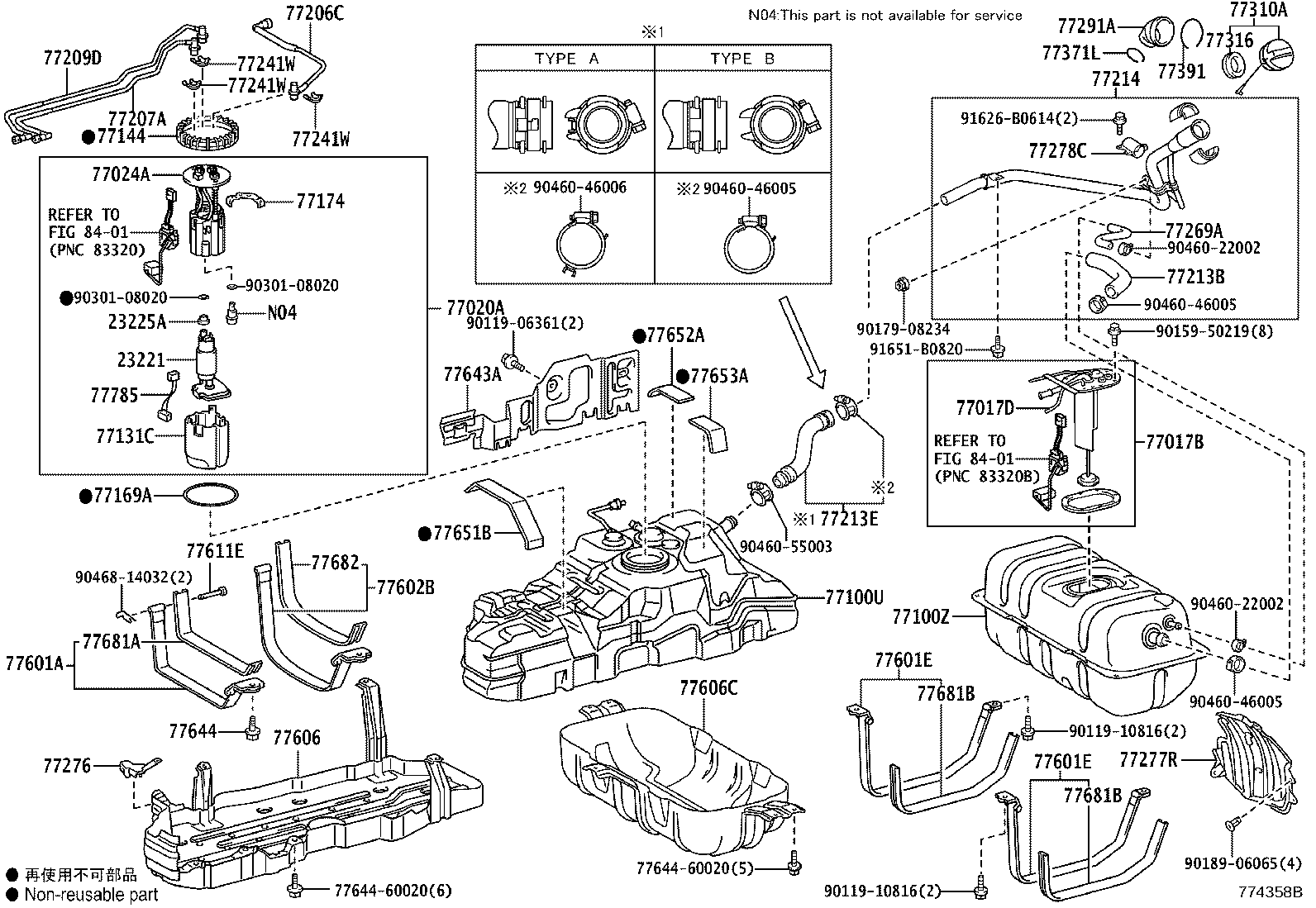

ILLUST NO. 1 OF 3(1708- )TRJ150

Click highlighted areas on diagram

FUEL TANK,W(SUB TANK)

diagram 23221 23225A 77017B 77017D 77020A 77024A 77100U 77100Z 77131C 77144 77169A 77174 77206C 77207A 77209D 77213B 77213E 77214 77241W 77241W 77241W 77269A 77276 77277R 77278C 77291A 77310A 77316 77371L 77391 77601A 77601E 77601E 77602B 77606 77606C 77611E 77643A 77644 7764460020 7764460020 77651B 77652A 77653A 77681A 77681B 77681B 77682 77785 8401 8401 9011906361 9011910816 9011910816 9015950219 9017908234 9018906065 9030108020 9030108020 9046022002 9046022002 9046046005 9046046005 9046046005 9046046006 9046055003 9046814032 91626B0614 91651B0820
Part # Description Qty Price
Common parts
77644-60020
90119-06361
90119-10816
90159-50219
90179-08234
90189-06065
90301-08020
90460-22002
90460-46005
90460-46006
90460-55003
90468-14032
91626-B0614
91651-B0820
Linked diagrams
8401

ILLUST NO. 2 OF 3(1708- )GRJ150,TRJ150

Click highlighted areas on diagram

FUEL TUBE

diagram 1708 1708 2211 2211 2211 2211 2211 23211F 23300J 77229C 77249B 77251B 77255D 77261D 77266A 77281G 77285B 77285D 77285E 77285F 77285G 77285H 77285J 77704 77707 77751 77754B 77779 9017906161 9017906161 9046611003 9046712056 9155180610 9155380816 9155380816 9163160622
Part # Description Qty Price
Common parts
90179-06161
90466-11003
90467-12056
91551-80610
91553-80816
91631-60622
Linked diagrams
1708
2211

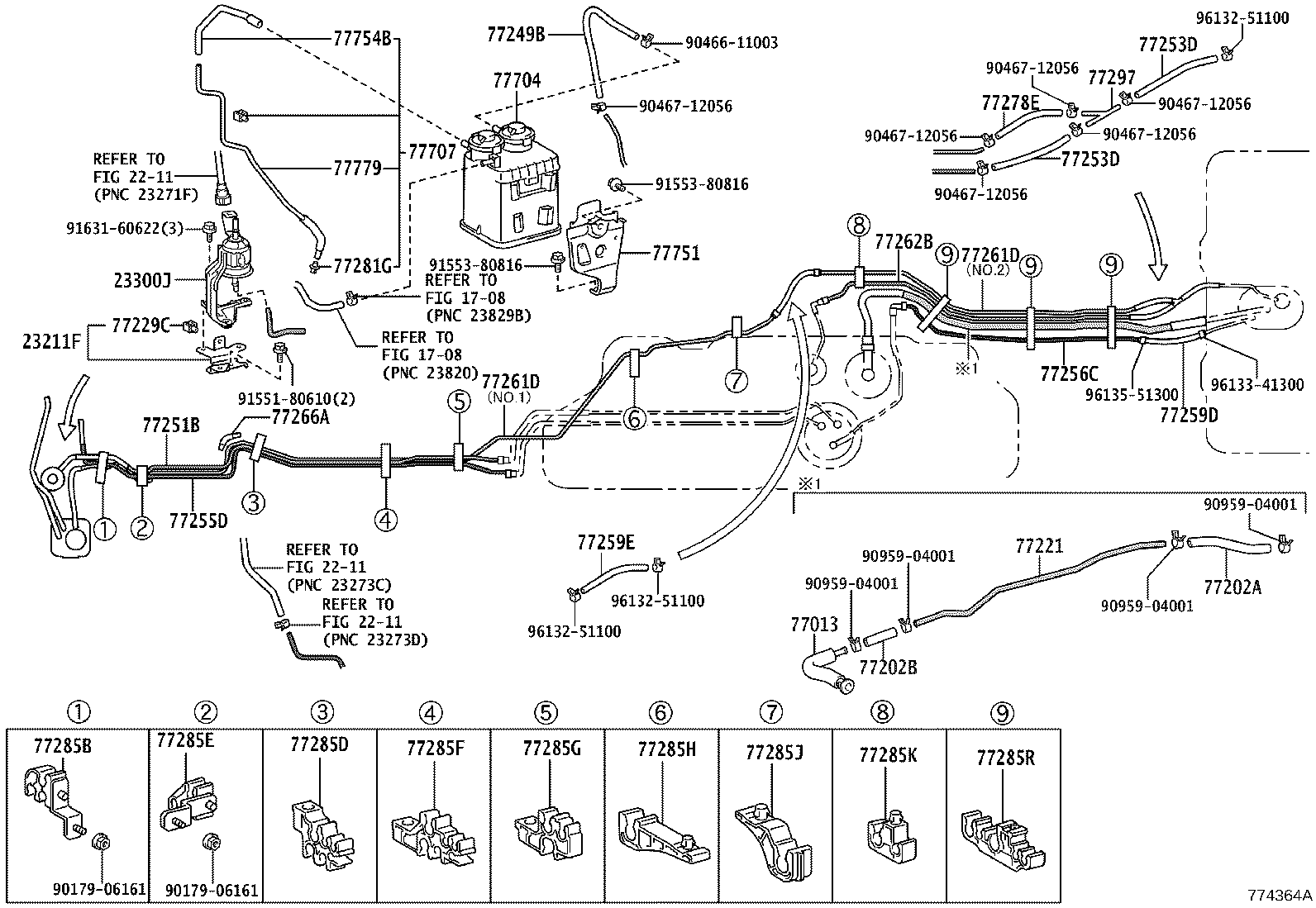

ILLUST NO. 2 OF 3(1708- )TRJ150

Click highlighted areas on diagram

FUEL TUBE,W(SUB TANK)

diagram 1708 1708 2211 2211 2211 23211F 23300J 77013 77202A 77202B 77221 77229C 77249B 77251B 77253D 77253D 77255D 77256C 77259D 77259E 77261D 77261D 77262B 77266A 77278E 77281G 77285B 77285D 77285E 77285F 77285G 77285H 77285J 77285K 77285R 77297 77704 77707 77751 77754B 77779 9017906161 9017906161 9046611003 9046712056 9046712056 9046712056 9046712056 9046712056 9046712056 9095904001 9095904001 9095904001 9095904001 9155180610 9155380816 9155380816 9163160622 9613251100 9613251100 9613251100 9613341300 9613551300
Part # Description Qty Price
Common parts
90179-06161
90466-11003
90467-12056
90959-04001
91551-80610
91553-80816
91631-60622
96132-51100
96133-41300
96135-51300
Linked diagrams
1708
2211

ILLUST NO. 3 OF 3(1708- )

Click highlighted areas on diagram

FUEL LID OPENER

diagram 77035 77035 77306 77350 77366 77377 8271116830 8271116830 827113F290 827113F400 827113F400 827113F400 9026906017 9046400042 9046400042 9046906005 9046906005
Part # Description Qty Price
Common parts
82711-16830
82711-3F290
82711-3F400
90269-06017
90464-00042
90469-06005
