TRJ150L-GKMEKV (2015)

Toyota Land Cruiser Prado

Production Jun 2015 - Aug 2017
Engine 2TRFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

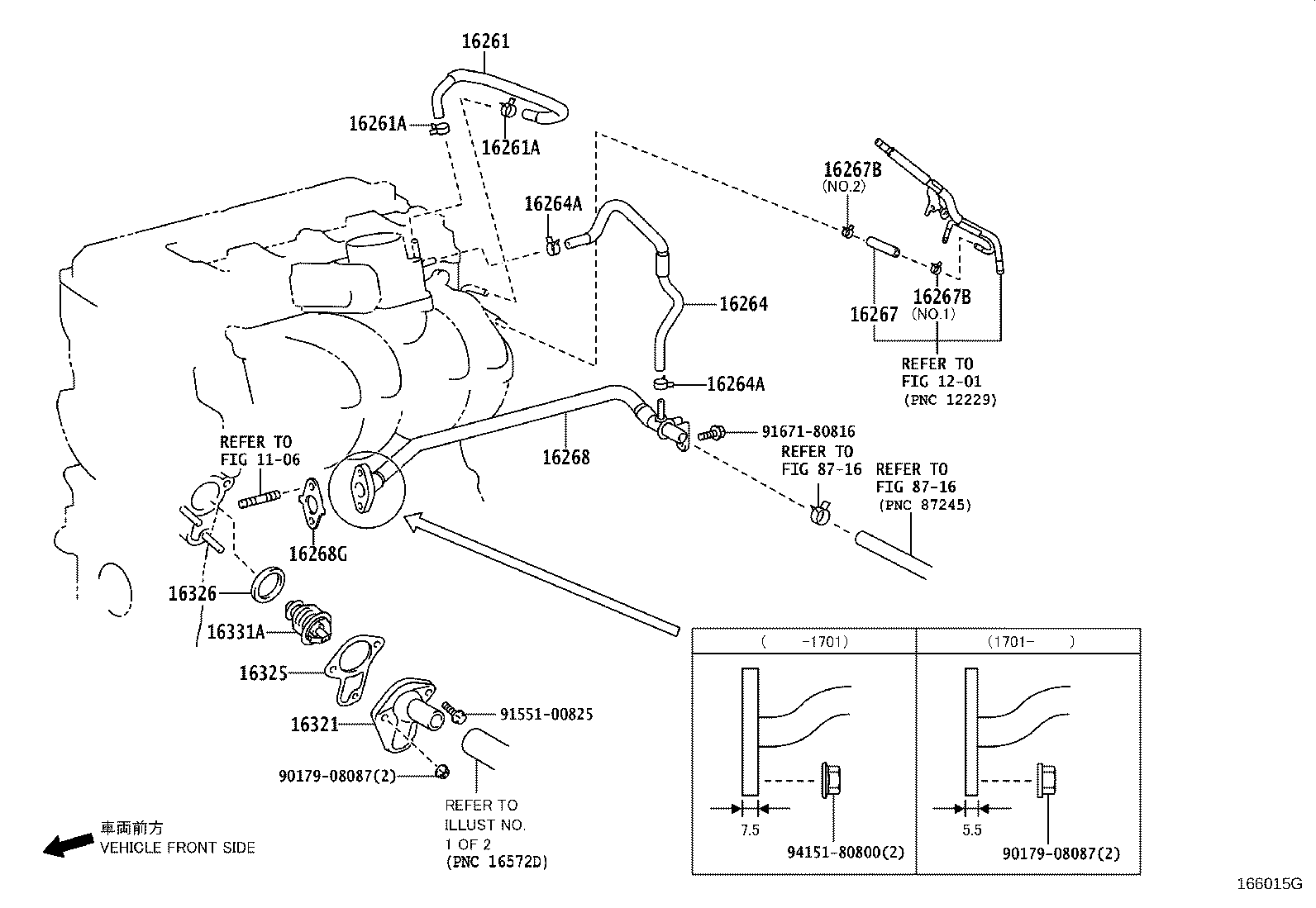

ILLUST NO. 2 OF 2(1506- )2TRFE..TRJ150..5F

Click highlighted areas on diagram

diagram 1106 1201 16261 16261A 16261A 16264 16264A 16264A 16267 16267B 16267B 16268 16268G 16321 16325 16326 16331A 8716 8716 9017908087 9017908087 9155100825 9167180816 9415180800
Part # Description Qty Price
16261 - HOSE, WATER BY-PASS
16261-75270

2TRFE..TRJ15#

 1
16261-75191

2TRFE..TRJ15#..LHD

 1
16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)
96137-41501

2TRFE..TRJ15#..LHD

 2
96136-41501

2TRFE..TRJ15#

 2
96137-41501

2TRFE..TRJ15#

 2
16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)
96137-41501

2TRFE..TRJ15#..LHD

 2
96136-41501

2TRFE..TRJ15#

 2
96137-41501

2TRFE..TRJ15#

 2
16264 - HOSE, WATER BY-PASS, NO.2
16264-75220

2TRFE..TRJ15#

 1
16264-75131

2TRFE..TRJ15#..LHD

 1
16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)
96137-41501

2TRFE..TRJ15#

 2
96137-41501

2TRFE..TRJ15#..LHD

 2
96136-41501

2TRFE..TRJ15#

 2
16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)
96137-41501

2TRFE..TRJ15#

 2
96137-41501

2TRFE..TRJ15#..LHD

 2
96136-41501

2TRFE..TRJ15#

 2
16267 - HOSE, WATER BY-PASS, NO.3
16267-75070

2TRFE..TRJ15#

 1
16267-75070

2TRFE..TRJ15#..LHD

 1
16267B - CLIP(FOR WATER BY-PASS HOSE)
96137-41501

2TRFE..TRJ15#

NO.1

 1
96136-41501

2TRFE..TRJ15#

NO.1

 1
96137-41501

2TRFE..TRJ15#

NO.1,NO.2

 1
96136-41501

2TRFE..TRJ15#

NO.2

 1
96137-41501

2TRFE..TRJ15#

NO.2

 1
16267B - CLIP(FOR WATER BY-PASS HOSE)
96137-41501

2TRFE..TRJ15#

NO.1

 1
96136-41501

2TRFE..TRJ15#

NO.1

 1
96137-41501

2TRFE..TRJ15#

NO.1,NO.2

 1
96136-41501

2TRFE..TRJ15#

NO.2

 1
96137-41501

2TRFE..TRJ15#

NO.2

 1
16268 - PIPE, WATER BY-PASS, NO.1
16268-75091

2TRFE..TRJ15#

 1
16268-75130

2TRFE..TRJ150..5F

 1
16268-75131

2TRFE..TRJ150..5F

 1
16268G - GASKET(FOR WATER BY-PASS PIPE)
16258-75010

2TRFE..TRJ15#

 1
16258-75021

2TRFE..TRJ15#

 1
16321 - INLET, WATER
16321-75020

2TRFE..TRJ15#..LHD

 1
16321-75020

2TRFE..TRJ15#

 1
16325 - GASKET, WATER INLET HOUSING, NO.1
16325-75010

2TRFE..TRJ15#

 1
16325-75011

2TRFE..TRJ15#

 1
16326 - GASKET, WATER INLET HOUSING, NO.2
16325-76010

2TRFE..TRJ15#..LHD

 1
16325-76010

2TRFE..TRJ15#

 1
16331A - THERMOSTAT
90916-03093

2TRFE..TRJ15#..LHD

*WAX 82-95

 1
90916-03129

2TRFE..TRJ15#

*WAX 82-95

 1
Common parts
90179-08087
91551-00825
91671-80816
94151-80800
