TRJ150L-GKMEK (2017)

Toyota Land Cruiser Prado

Production Aug 2017 - Sep 9999
Engine 2TRFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0908- )GDJ150,GRJ150,KDJ150,LJ150,TRJ150

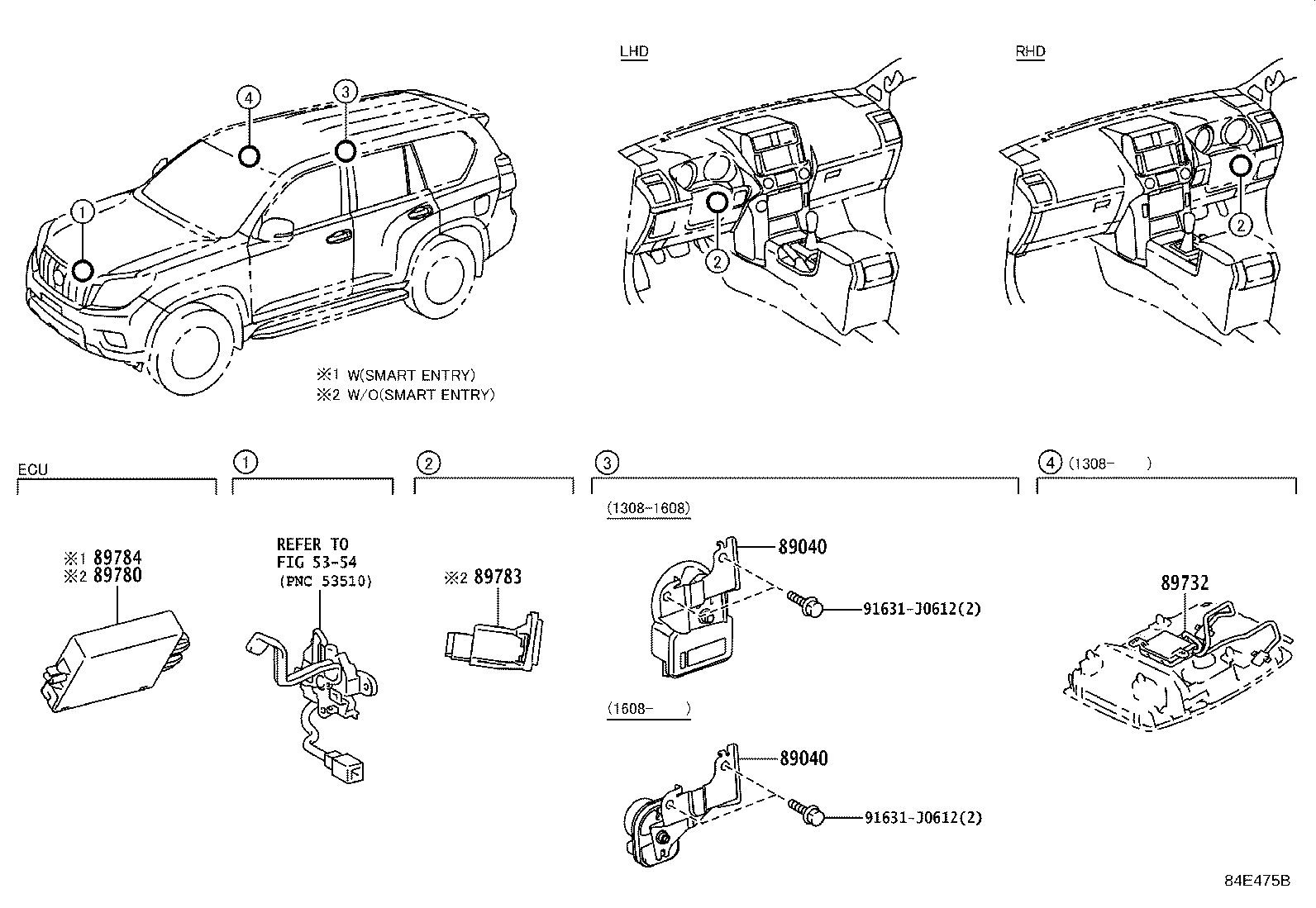

Click highlighted areas on diagram

diagram 5354 89040 89040 89732 89780 89783 89784 91631J0612 91631J0612
Part # Description Qty Price
Common parts
91631-J0612
Linked diagrams
5354

(1708- )

Click highlighted areas on diagram

diagram 81850Z 89040 8973B 89780 89782 89784 91631J0612
Part # Description Qty Price
81850Z - LAMP ASSY, THEFT WARNING INDICATOR
81850-60580

GDJ150,GRJ150,KDJ150,LJ150,TRJ15#

 1
89780 - COMPUTER ASSY, TRANSPONDER KEY
89780-60461

KDJ150..GCC;LJ150,TRJ150

 1
89780-60462

LJ150,TRJ150;GDJ150,KDJ150..GCC

 1
89782 - COIL, TRANSPONDER KEY
89782-60050

LJ150,TRJ150;GDJ150,KDJ150..GCC

 1
Common parts
91631-J0612
