TRJ150L-GKMEK (2017)

Toyota Land Cruiser Prado

Production Aug 2017 - Sep 9999
Engine 2TRFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0908- )LHD

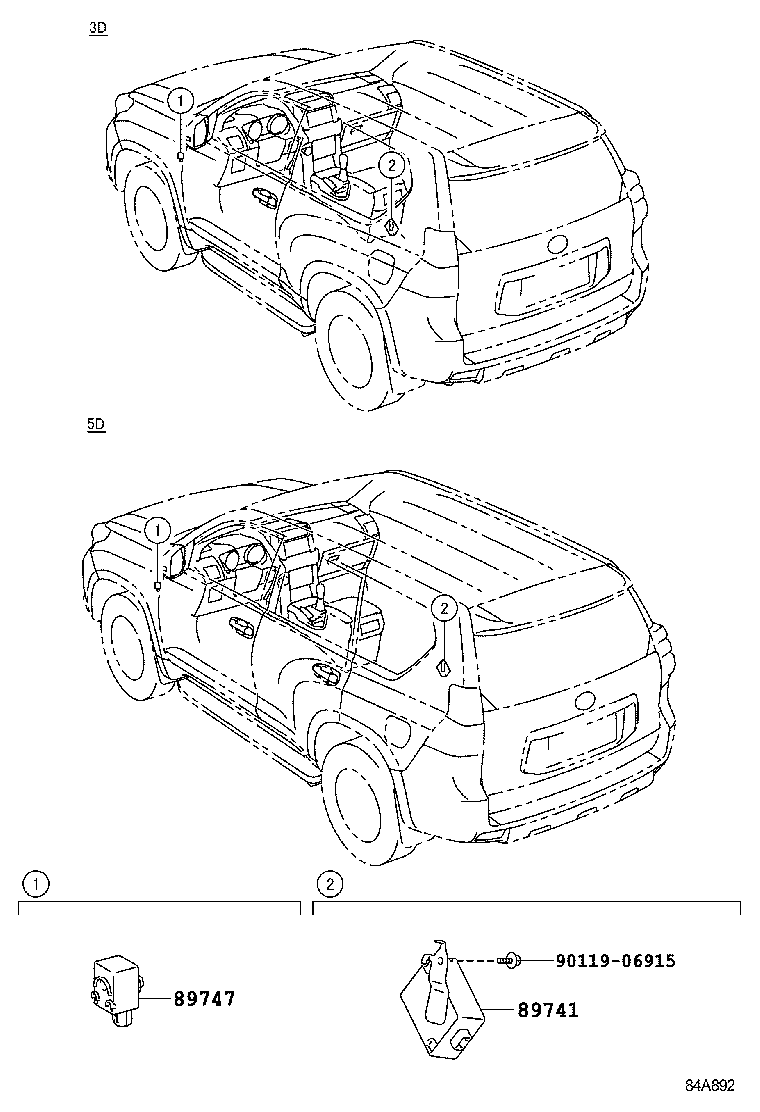

Click highlighted areas on diagram

W/O(SMART ENTRY)

diagram 89741 89747 9011906915
Part # Description Qty Price
Common parts
90119-06915

(0908- )LHD

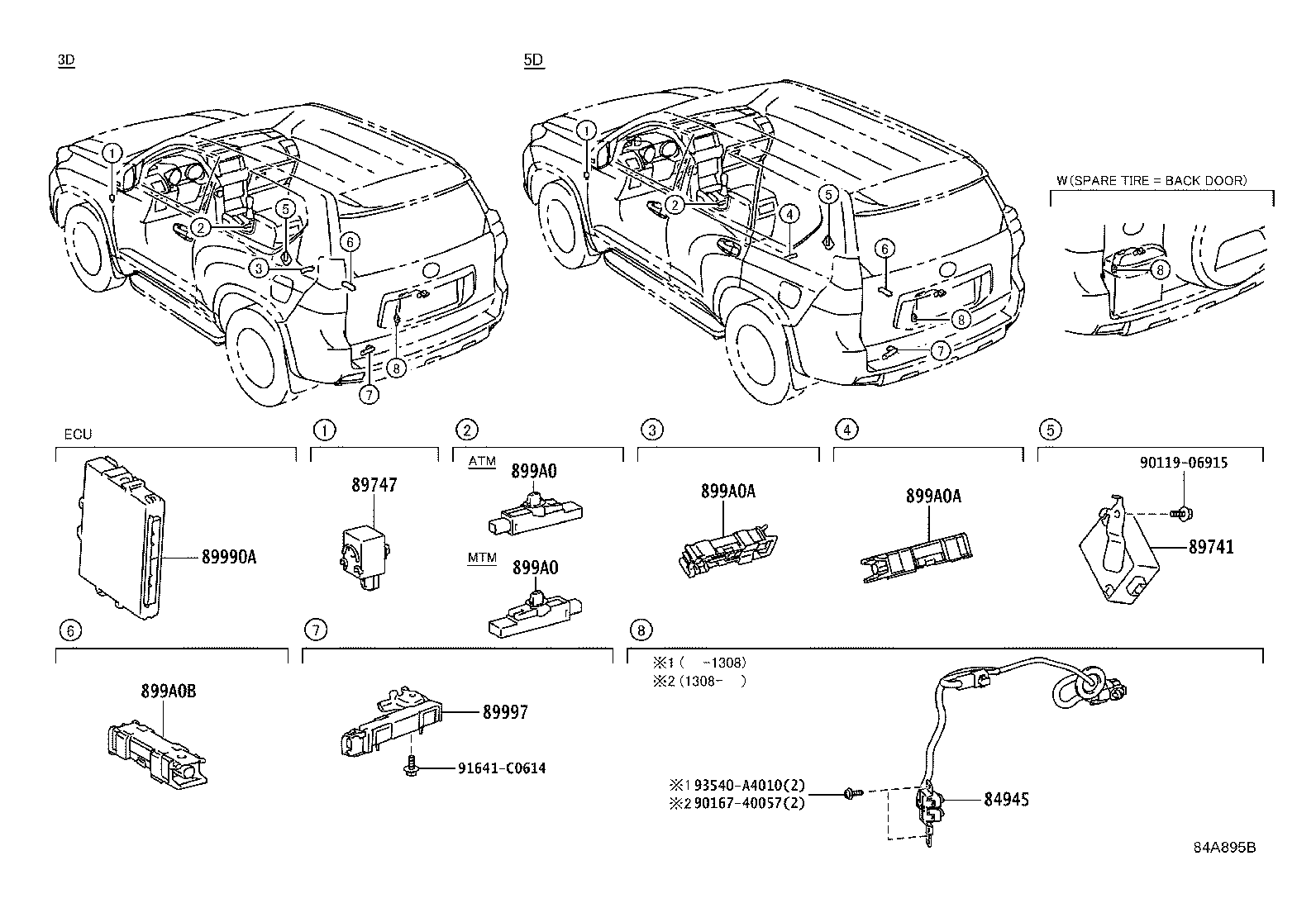

Click highlighted areas on diagram

W(SMART ENTRY)

diagram 84945 89741 89747 89990A 89997 899A0 899A0 899A0A 899A0A 899A0B 9011906915 9016740057 91641C0614 93540A4010
Part # Description Qty Price
Common parts
90119-06915
90167-40057
91641-C0614
93540-A4010

(1708- )LHD

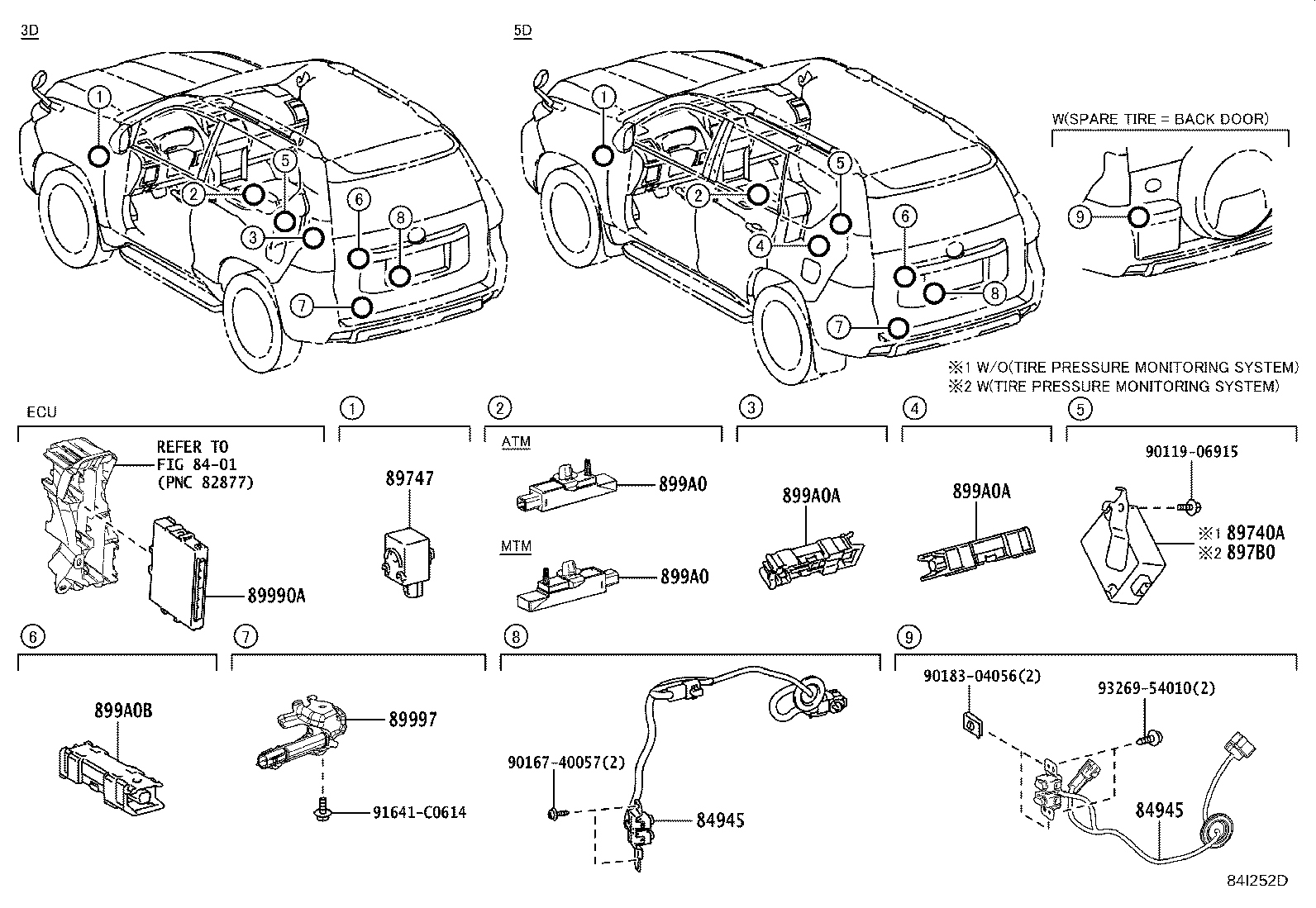

Click highlighted areas on diagram

W(SMART ENTRY)

diagram 8401 84945 84945 89740A 89747 897B0 89990A 89997 899A0 899A0 899A0A 899A0A 899A0B 9011906915 9016740057 9018304056 91641C0614 9326954010
Part # Description Qty Price
89747 - BUZZER, WIRELESS DOOR LOCK
89747-30040

GDJ150,GRJ150,KDJ150,LJ150,TRJ15#

 1
Common parts
90119-06915
90167-40057
90183-04056
91641-C0614
93269-54010
Linked diagrams
8401

(1708- )

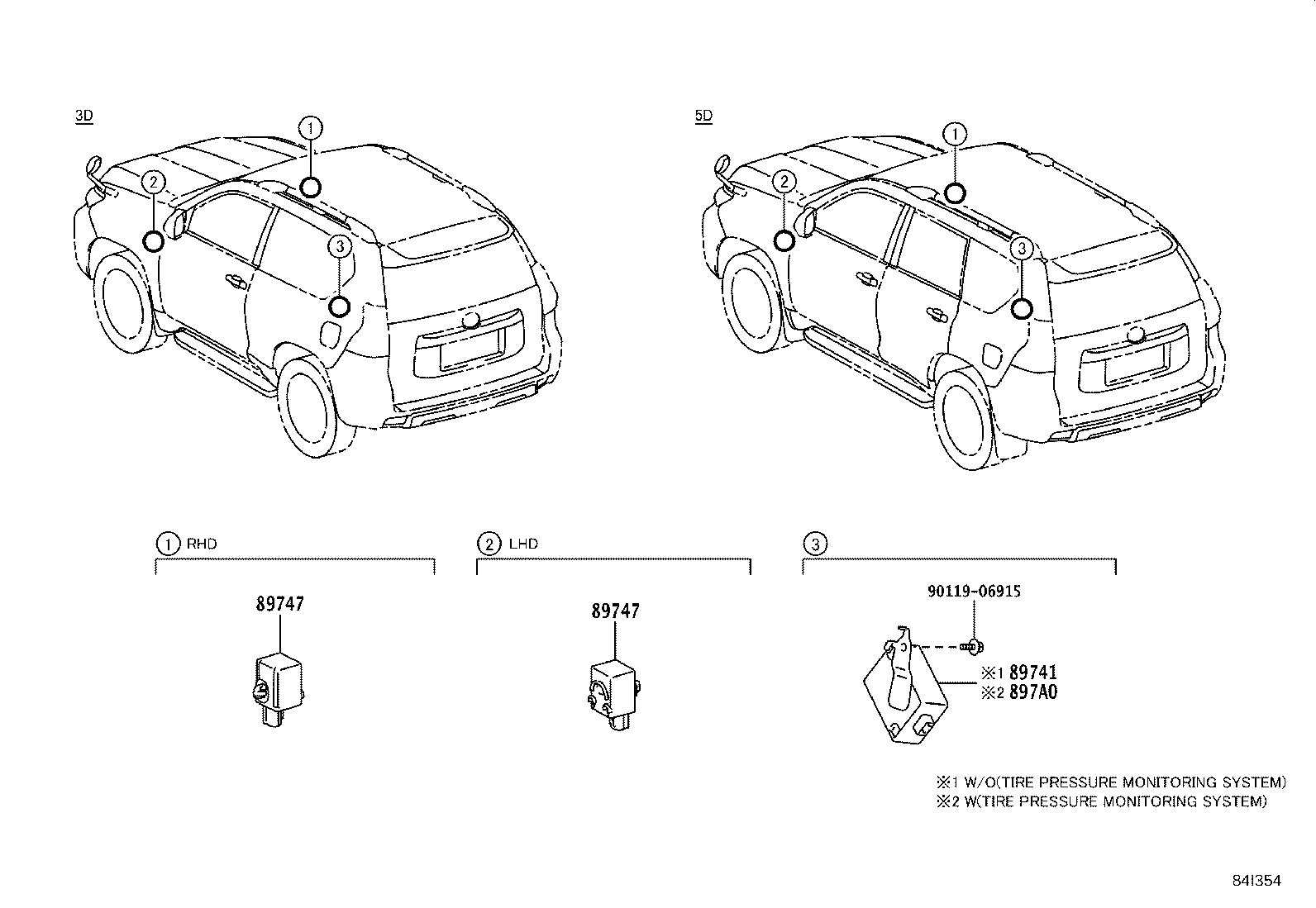

Click highlighted areas on diagram

W/O(SMART ENTRY)

diagram 89741 89747 89747 897A0 9011906915
Part # Description Qty Price
89741 - RECEIVER, DOOR CONTROL
89741-60600

LJ150,TRJ150;GDJ150,KDJ150..GCC

 1
89741-60620

LJ150,TRJ150..LHD..GEN

BELIZE SPEC

 1
89741-60620

LJ150,TRJ150..LHD..GEN

BELIZE SPEC&SPARE TIRE-WITH(UNDER FRAME)

 1
89747 - BUZZER, WIRELESS DOOR LOCK
89747-30040

GDJ150,GRJ150,KDJ150,LJ150,TRJ15#

 1
89747 - BUZZER, WIRELESS DOOR LOCK
89747-30040

GDJ150,GRJ150,KDJ150,LJ150,TRJ15#

 1
897A0 - RECEIVER ASSY,DOOR CONTROL & TIRE PRESSURE MONITORING S
897A0-60020

TRJ150..5F..GEN

GEORGIA,AZORES,TAJIKISTAN,ARMENIA SPEC&SPARE TIRE-WITH(UNDER FRAME)&TIRE INFLATION PRESSURE WARNING-WITH(433HZ)

 1
897A0-60010

TRJ150..5F..GEN

NIGERIA SPEC&TIRE INFLATION PRESSURE WARNING-WITH(433HZ)

 1
897A0-60010

TRJ150..5F..GEN

NIGERIA SPEC&SPARE TIRE-WITH(UNDER FRAME)&TIRE INFLATION PRESSURE WARNING-WITH(433HZ)

 1
897A0-60020

TRJ150..5F..GEN

GEORGIA,AZORES,TAJIKISTAN,ARMENIA SPEC&TIRE INFLATION PRESSURE WARNING-WITH(433HZ)

 1
Common parts
90119-06915
