RZJ125L-GJPEKV (2002)
Toyota Land Cruiser Prado

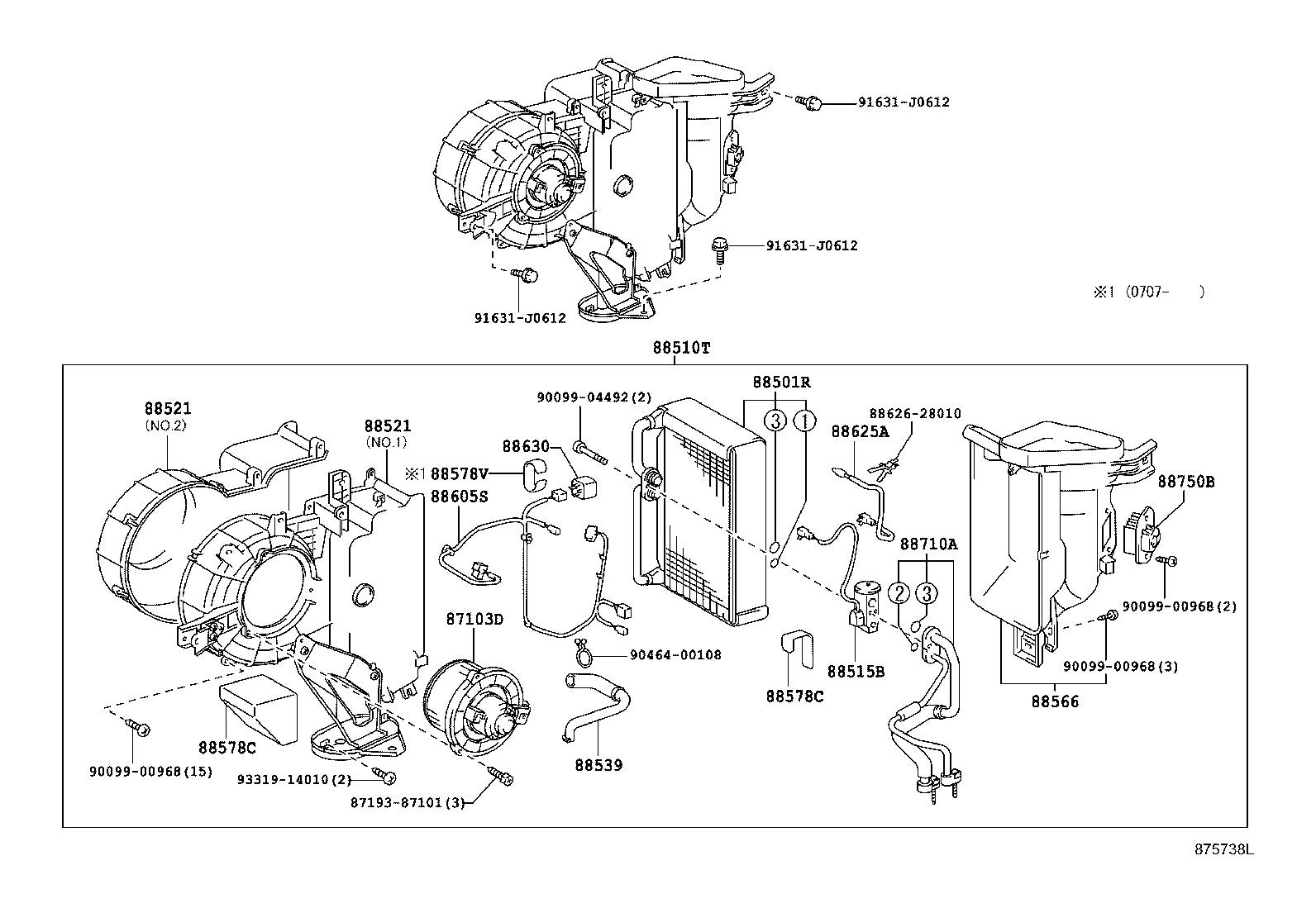

ILLUST NO. 4 OF 4(0209- )
O-RING
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 90099-14122 | ||||

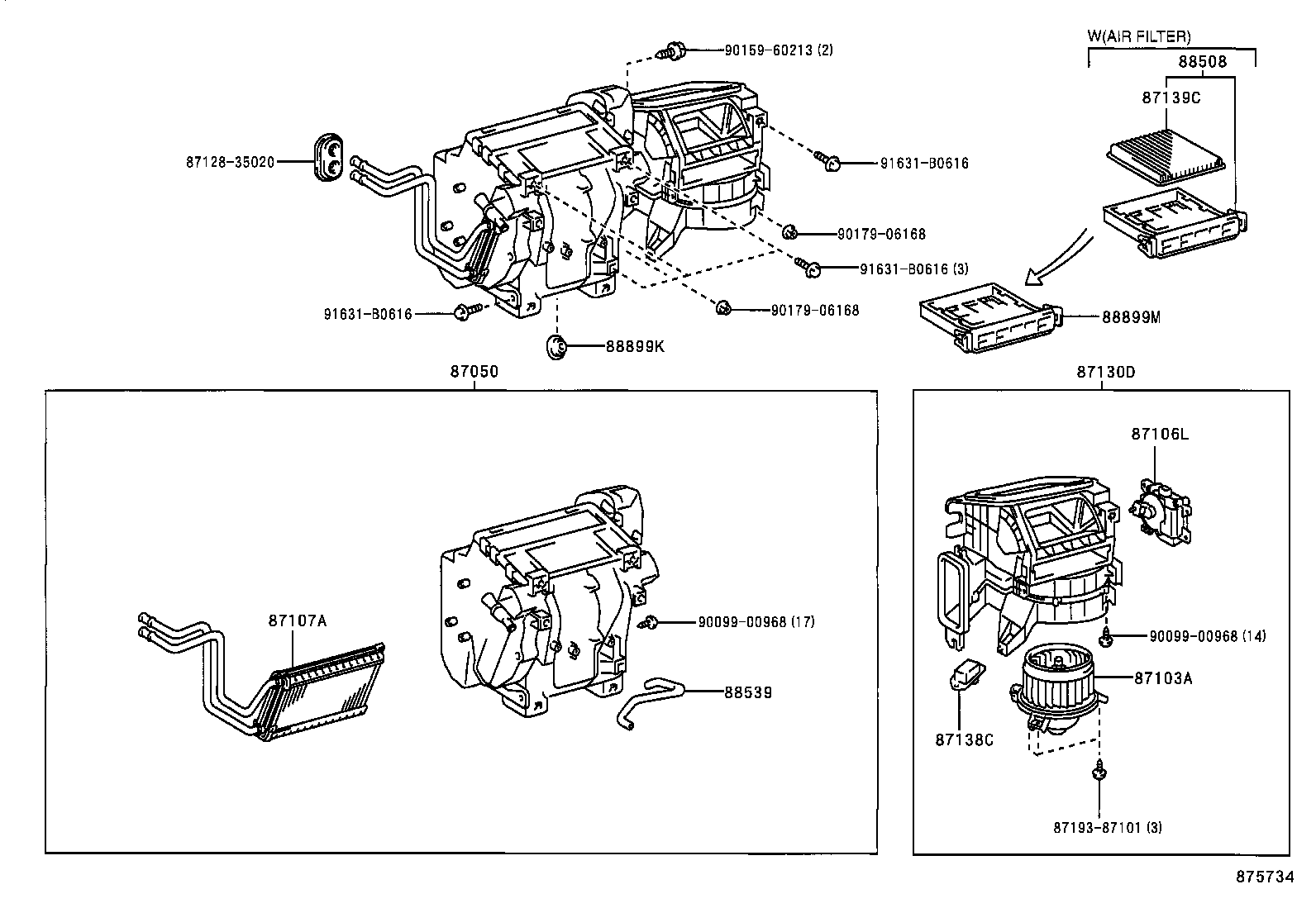

ILLUST NO. 1 OF 4(0209- )LHD
FRONT-W/O(AIR CONDITIONER)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87050 - RADIATOR ASSY, AIR CONDITIONER | ||||
| 87050-60030 |
RZJ12#..LHD AIR CONDITIONER-SINGLE MANUAL |
1 | ||
| 87050-60010 |
RZJ12#..LHD AIR CONDITIONER-SINGLE AUTO |
1 | ||
| 87050-60011 |
RZJ12#..LHD AIR CONDITIONER-SINGLE AUTO |
1 | ||
| 87050-60050 |
RZJ12#,TRJ12#..LHD |
1 | ||
| 87050-60170 |
RZJ12#..LHD AIR CONDITIONER-SINGLE AUTO |
1 | ||
| 87103A - MOTOR SUB-ASSY, COOLING UNIT, W/FAN | ||||
| 87103-35040 |
GRJ12#..GCC;KZJ120,LJ12#,RZJ12#..LHD |
1 | ||
| 87103-35040 |
RZJ12#..LHD AIR CONDITIONER-SINGLE AUTO |
1 | ||
| 87106L - SERVO SUB-ASSY, DAMPER | ||||
| 87106-35150 |
RZJ12#..LHD AIR CONDITIONER-SINGLE AUTO |
1 | ||
| 87106-35150 |
RZJ12#..LHD AIR CONDITIONER-SINGLE AUTO |
2 | ||
| 87106-60170 |
LJ120..LHD;GRJ120,KDJ120,KZJ120,LJ125,RZJ12#,TRJ12#..GX..(ARL,GCC,GEN) |
1 | ||
| 87107A - UNIT SUB-ASSY, HEATER RADIATOR | ||||
| 87107-35100 |
GRJ12#..GCC;GRJ120..(5FC,6F)..GEN;KZJ120,LJ12#,RZJ12#,TRJ12#..LHD |
1 | ||
| 87107-35100 |
RZJ12#..LHD AIR CONDITIONER-SINGLE AUTO |
2 | ||
| 87130D - BLOWER ASSY | ||||
| 87130-60490 |
LJ12#,RZJ12#,TRJ12#..LHD |
1 | ||
| 87130-35150 |
RZJ12#,TRJ12#..LHD AIR CONDITIONER-SINGLE AUTO |
1 | ||
| 87138C - RESISTOR, BLOWER | ||||
| 87138-60280 |
LJ12#,RZJ12#,TRJ12#..LHD |
1 | ||
| 87139C - FILTER, CLEAN AIR | ||||
| 87139-47010 |
GRJ120,KZJ120..ARL;GRJ125,RZJ12#..4FC,5F;GRJ120..LHD..VX..(4FC,5F) WITH(CLEAN AIR FILTER) |
1 | ||
| 88508 - FILTER SUB-ASSY, CLEAN AIR | ||||
| 88508-20120 |
GRJ125,RZJ12#..4FC,5F;GRJ120,KDJ120,KZJ120..ARL;GRJ120..LHD..VX..(4FC,5F) WITH(CLEAN AIR FILTER) |
1 | ||
| 88539 - HOSE, COOLER UNIT DRAIN, NO.1 | ||||
| 88539-60240 |
RZJ120..ARL,GEN;RZJ120..5F..GCC;GRJ12#,KZJ120,RZJ125 WITH/COOL BOX |
1 | ||
| 88539-35030 |
RZJ12#..LHD AIR CONDITIONER-SINGLE AUTO |
1 | ||
| 88539-35030 |
RZJ12#..LHD;GRJ125,LJ12#..LHD..(5F,5FC);GRJ120..(5FC,6F)..(GCC,GEN) FRONT |
1 | ||
| 88899K - PLATE, COVER | ||||
| 88899-60250 |
RZJ12#..LHD AIR CONDITIONER-SINGLE AUTO,NO.2 |
1 | ||
| 88899-60260 |
RZJ12#..LHD AIR CONDITIONER-SINGLE AUTO,NO.3 |
1 | ||
| 88899-60250 |
TRJ12#..GEN;RZJ12#..GCC,GEN AIR CONDITIONER-SINGLE MANUAL,NO.2 |
1 | ||
| 88899-60260 |
TRJ12#..GEN;RZJ12#..GCC,GEN AIR CONDITIONER-SINGLE MANUAL,NO.3 |
1 | ||
| 88899-3A010 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN NO.1 |
1 | ||
| 88899M - PLATE, COVER(FOR AIR FILTER) | ||||
| 88899-41010 |
GRJ125,RZJ12#..4FC,5F;GRJ120,KDJ120,KZJ120..ARL;GRJ120..LHD..VX..(4FC,5F) |
1 | ||
| Common parts | ||||
| 87128-35020 | ||||
| 87193-87101 | ||||
| 90099-00968 | ||||
| 90159-60213 | ||||
| 90179-06168 | ||||
| 91631-B0616 | ||||
ILLUST NO. 1 OF 4(0209- )LHD..GCC,GEN
FRONT-W(MANUAL AIR CONDITIONER)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87050 - RADIATOR ASSY, AIR CONDITIONER | ||||
| 87050-60030 |
RZJ12#..LHD AIR CONDITIONER-SINGLE MANUAL |
1 | ||
| 87050-60010 |
RZJ12#..LHD AIR CONDITIONER-SINGLE AUTO |
1 | ||
| 87050-60011 |
RZJ12#..LHD AIR CONDITIONER-SINGLE AUTO |
1 | ||
| 87050-60050 |
RZJ12#,TRJ12#..LHD |
1 | ||
| 87050-60170 |
RZJ12#..LHD AIR CONDITIONER-SINGLE AUTO |
1 | ||
| 87103A - MOTOR SUB-ASSY, COOLING UNIT, W/FAN | ||||
| 87103-35040 |
GRJ12#..GCC;KZJ120,LJ12#,RZJ12#..LHD |
1 | ||
| 87103-35040 |
RZJ12#..LHD AIR CONDITIONER-SINGLE AUTO |
1 | ||
| 87106L - SERVO SUB-ASSY, DAMPER | ||||
| 87106-35150 |
RZJ12#..LHD AIR CONDITIONER-SINGLE AUTO |
1 | ||
| 87106-35150 |
RZJ12#..LHD AIR CONDITIONER-SINGLE AUTO |
2 | ||
| 87106-60170 |
LJ120..LHD;GRJ120,KDJ120,KZJ120,LJ125,RZJ12#,TRJ12#..GX..(ARL,GCC,GEN) |
1 | ||
| 87107A - UNIT SUB-ASSY, HEATER RADIATOR | ||||
| 87107-35100 |
GRJ12#..GCC;GRJ120..(5FC,6F)..GEN;KZJ120,LJ12#,RZJ12#,TRJ12#..LHD |
1 | ||
| 87107-35100 |
RZJ12#..LHD AIR CONDITIONER-SINGLE AUTO |
2 | ||
| 87130D - BLOWER ASSY | ||||
| 87130-60490 |
LJ12#,RZJ12#,TRJ12#..LHD |
1 | ||
| 87130-35150 |
RZJ12#,TRJ12#..LHD AIR CONDITIONER-SINGLE AUTO |
1 | ||
| 87138C - RESISTOR, BLOWER | ||||
| 87138-60280 |
LJ12#,RZJ12#,TRJ12#..LHD |
1 | ||
| 87139C - FILTER, CLEAN AIR | ||||
| 87139-47010 |
GRJ120,KZJ120..ARL;GRJ125,RZJ12#..4FC,5F;GRJ120..LHD..VX..(4FC,5F) WITH(CLEAN AIR FILTER) |
1 | ||
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-35100 |
RZJ12#..LHD AIR CONDITIONER-SINGLE AUTO |
2 | ||
| 88501-35100 |
RZJ12#..GCC,GEN AIR CONDITIONER-SINGLE MANUAL |
1 | ||
| 88501-35100 |
RZJ12#..LHD AIR CONDITIONER-SINGLE AUTO |
1 | ||
| 88501-35100 |
RZJ12#..LHD AIR CONDITIONER-SINGLE AUTO |
1 | ||
| 88508 - FILTER SUB-ASSY, CLEAN AIR | ||||
| 88508-20120 |
GRJ125,RZJ12#..4FC,5F;GRJ120,KDJ120,KZJ120..ARL;GRJ120..LHD..VX..(4FC,5F) WITH(CLEAN AIR FILTER) |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-60150 |
RZJ12#..LHD AIR CONDITIONER-SINGLE AUTO |
1 | ||
| 88515-60120 |
RZJ12#..LHD AIR CONDITIONER-SINGLE AUTO |
2 | ||
| 88515-60150 |
TRJ120..RHD;RZJ12#..GCC,GEN AIR CONDITIONER-SINGLE MANUAL |
1 | ||
| 88539 - HOSE, COOLER UNIT DRAIN, NO.1 | ||||
| 88539-60240 |
RZJ120..ARL,GEN;RZJ120..5F..GCC;GRJ12#,KZJ120,RZJ125 WITH/COOL BOX |
1 | ||
| 88539-35030 |
RZJ12#..LHD AIR CONDITIONER-SINGLE AUTO |
1 | ||
| 88539-35030 |
RZJ12#..LHD;GRJ125,LJ12#..LHD..(5F,5FC);GRJ120..(5FC,6F)..(GCC,GEN) FRONT |
1 | ||
| 88578B - PACKING, COOLING UNIT, NO.1 | ||||
| 88578-35170 |
RZJ12#..LHD AIR CONDITIONER-SINGLE AUTO |
1 | ||
| 88578-35170 |
RZJ12#,TRJ12#..GCC,GEN AIR CONDITIONER-SINGLE MANUAL |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88625-35050 |
RZJ12#..LHD AIR CONDITIONER-SINGLE AUTO |
1 | ||
| 88625-35050 |
RZJ12#..LHD AIR CONDITIONER-SINGLE AUTO |
2 | ||
| 88625-35050 |
RZJ12#..LHD AIR CONDITIONER-SINGLE AUTO |
1 | ||
| 88625-35050 |
RZJ12#..LHD AIR CONDITIONER-SINGLE MANUAL |
1 | ||
| 88710H - TUBE & ACCESSORY ASSY, AIR CONDITIONER | ||||
| 88710-35520 |
RZJ12#,TRJ12#..LHD AIR CONDITIONER-SINGLE MANUAL |
1 | ||
| 88710-35520 |
RZJ12#,TRJ12#..LHD AIR CONDITIONER-SINGLE AUTO |
1 | ||
| 88891S - COVER, COOLER, NO.1 | ||||
| 88891-35020 |
RZJ12#..LHD AIR CONDITIONER-SINGLE AUTO |
1 | ||
| 88891-35020 |
RZJ12#..LHD AIR CONDITIONER-SINGLE MANUAL |
1 | ||
| 88899K - PLATE, COVER | ||||
| 88899-60250 |
RZJ12#..LHD AIR CONDITIONER-SINGLE AUTO,NO.2 |
1 | ||
| 88899-60260 |
RZJ12#..LHD AIR CONDITIONER-SINGLE AUTO,NO.3 |
1 | ||
| 88899-60250 |
TRJ12#..GEN;RZJ12#..GCC,GEN AIR CONDITIONER-SINGLE MANUAL,NO.2 |
1 | ||
| 88899-60260 |
TRJ12#..GEN;RZJ12#..GCC,GEN AIR CONDITIONER-SINGLE MANUAL,NO.3 |
1 | ||
| 88899-3A010 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN NO.1 |
1 | ||
| 88899K - PLATE, COVER | ||||
| 88899-60250 |
RZJ12#..LHD AIR CONDITIONER-SINGLE AUTO,NO.2 |
1 | ||
| 88899-60260 |
RZJ12#..LHD AIR CONDITIONER-SINGLE AUTO,NO.3 |
1 | ||
| 88899-60250 |
TRJ12#..GEN;RZJ12#..GCC,GEN AIR CONDITIONER-SINGLE MANUAL,NO.2 |
1 | ||
| 88899-60260 |
TRJ12#..GEN;RZJ12#..GCC,GEN AIR CONDITIONER-SINGLE MANUAL,NO.3 |
1 | ||
| 88899-3A010 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN NO.1 |
1 | ||
| 88899K - PLATE, COVER | ||||
| 88899-60250 |
RZJ12#..LHD AIR CONDITIONER-SINGLE AUTO,NO.2 |
1 | ||
| 88899-60260 |
RZJ12#..LHD AIR CONDITIONER-SINGLE AUTO,NO.3 |
1 | ||
| 88899-60250 |
TRJ12#..GEN;RZJ12#..GCC,GEN AIR CONDITIONER-SINGLE MANUAL,NO.2 |
1 | ||
| 88899-60260 |
TRJ12#..GEN;RZJ12#..GCC,GEN AIR CONDITIONER-SINGLE MANUAL,NO.3 |
1 | ||
| 88899-3A010 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN NO.1 |
1 | ||
| 88899M - PLATE, COVER(FOR AIR FILTER) | ||||
| 88899-41010 |
GRJ125,RZJ12#..4FC,5F;GRJ120,KDJ120,KZJ120..ARL;GRJ120..LHD..VX..(4FC,5F) |
1 | ||
| Common parts | ||||
| 87128-35020 | ||||
| 87193-87101 | ||||
| 88569-21010 | ||||
| 88897-35020 | ||||
| 88899-35060 | ||||
| 90099-00968 | ||||
| 90159-60213 | ||||
| 90179-06168 | ||||
| 91631-B0616 | ||||
ILLUST NO. 1 OF 4(0209- )LHD
FRONT-W(AUTO AIR CONDITIONER)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87050 - RADIATOR ASSY, AIR CONDITIONER | ||||
| 87050-60030 |
RZJ12#..LHD AIR CONDITIONER-SINGLE MANUAL |
1 | ||
| 87050-60010 |
RZJ12#..LHD AIR CONDITIONER-SINGLE AUTO |
1 | ||
| 87050-60011 |
RZJ12#..LHD AIR CONDITIONER-SINGLE AUTO |
1 | ||
| 87050-60050 |
RZJ12#,TRJ12#..LHD |
1 | ||
| 87050-60170 |
RZJ12#..LHD AIR CONDITIONER-SINGLE AUTO |
1 | ||
| 87103A - MOTOR SUB-ASSY, COOLING UNIT, W/FAN | ||||
| 87103-35040 |
GRJ12#..GCC;KZJ120,LJ12#,RZJ12#..LHD |
1 | ||
| 87103-35040 |
RZJ12#..LHD AIR CONDITIONER-SINGLE AUTO |
1 | ||
| 87106G - SERVO SUB-ASSY, DAMPER(FOR BLOWER) | ||||
| 87106-35130 |
RZJ12#..LHD AIR CONDITIONER-SINGLE AUTO |
1 | ||
| 87106-35130 |
RZJ12#..LHD AIR CONDITIONER-SINGLE AUTO |
2 | ||
| 87106-35130 |
RZJ12#..LHD AIR CONDITIONER-SINGLE AUTO |
1 | ||
| 87106H - SERVO SUB-ASSY, DAMPER(FOR AIRMIX) | ||||
| 87106-35140 |
RZJ12#..LHD AIR CONDITIONER-SINGLE AUTO |
2 | ||
| 87106-35140 |
RZJ12#..LHD AIR CONDITIONER-SINGLE AUTO |
1 | ||
| 87106-35140 |
RZJ12#..LHD AIR CONDITIONER-SINGLE AUTO |
1 | ||
| 87106J - SERVO SUB-ASSY, DAMPER(FOR MODE) | ||||
| 87106-35120 |
RZJ12#..LHD AIR CONDITIONER-SINGLE AUTO |
1 | ||
| 87106-35120 |
RZJ12#..LHD AIR CONDITIONER-SINGLE AUTO |
2 | ||
| 87106L - SERVO SUB-ASSY, DAMPER | ||||
| 87106-35150 |
RZJ12#..LHD AIR CONDITIONER-SINGLE AUTO |
1 | ||
| 87106-35150 |
RZJ12#..LHD AIR CONDITIONER-SINGLE AUTO |
2 | ||
| 87106-60170 |
LJ120..LHD;GRJ120,KDJ120,KZJ120,LJ125,RZJ12#,TRJ12#..GX..(ARL,GCC,GEN) |
1 | ||
| 87107A - UNIT SUB-ASSY, HEATER RADIATOR | ||||
| 87107-35100 |
GRJ12#..GCC;GRJ120..(5FC,6F)..GEN;KZJ120,LJ12#,RZJ12#,TRJ12#..LHD |
1 | ||
| 87107-35100 |
RZJ12#..LHD AIR CONDITIONER-SINGLE AUTO |
2 | ||
| 87130D - BLOWER ASSY | ||||
| 87130-60490 |
LJ12#,RZJ12#,TRJ12#..LHD |
1 | ||
| 87130-35150 |
RZJ12#,TRJ12#..LHD AIR CONDITIONER-SINGLE AUTO |
1 | ||
| 87139C - FILTER, CLEAN AIR | ||||
| 87139-47010 |
GRJ120,KZJ120..ARL;GRJ125,RZJ12#..4FC,5F;GRJ120..LHD..VX..(4FC,5F) WITH(CLEAN AIR FILTER) |
1 | ||
| 87165C - CONTROL, BLOWER MOTOR | ||||
| 87165-13010 |
RZJ12#..LHD AIR CONDITIONER-SINGLE AUTO |
1 | ||
| 87165-13010 |
RZJ12#..LHD AIR CONDITIONER-SINGLE AUTO |
2 | ||
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-35100 |
RZJ12#..LHD AIR CONDITIONER-SINGLE AUTO |
2 | ||
| 88501-35100 |
RZJ12#..GCC,GEN AIR CONDITIONER-SINGLE MANUAL |
1 | ||
| 88501-35100 |
RZJ12#..LHD AIR CONDITIONER-SINGLE AUTO |
1 | ||
| 88501-35100 |
RZJ12#..LHD AIR CONDITIONER-SINGLE AUTO |
1 | ||
| 88508 - FILTER SUB-ASSY, CLEAN AIR | ||||
| 88508-20120 |
GRJ125,RZJ12#..4FC,5F;GRJ120,KDJ120,KZJ120..ARL;GRJ120..LHD..VX..(4FC,5F) WITH(CLEAN AIR FILTER) |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-60150 |
RZJ12#..LHD AIR CONDITIONER-SINGLE AUTO |
1 | ||
| 88515-60120 |
RZJ12#..LHD AIR CONDITIONER-SINGLE AUTO |
2 | ||
| 88515-60150 |
TRJ120..RHD;RZJ12#..GCC,GEN AIR CONDITIONER-SINGLE MANUAL |
1 | ||
| 88539 - HOSE, COOLER UNIT DRAIN, NO.1 | ||||
| 88539-60240 |
RZJ120..ARL,GEN;RZJ120..5F..GCC;GRJ12#,KZJ120,RZJ125 WITH/COOL BOX |
1 | ||
| 88539-35030 |
RZJ12#..LHD AIR CONDITIONER-SINGLE AUTO |
1 | ||
| 88539-35030 |
RZJ12#..LHD;GRJ125,LJ12#..LHD..(5F,5FC);GRJ120..(5FC,6F)..(GCC,GEN) FRONT |
1 | ||
| 88578B - PACKING, COOLING UNIT, NO.1 | ||||
| 88578-35170 |
RZJ12#..LHD AIR CONDITIONER-SINGLE AUTO |
1 | ||
| 88578-35170 |
RZJ12#,TRJ12#..GCC,GEN AIR CONDITIONER-SINGLE MANUAL |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88625-35050 |
RZJ12#..LHD AIR CONDITIONER-SINGLE AUTO |
1 | ||
| 88625-35050 |
RZJ12#..LHD AIR CONDITIONER-SINGLE AUTO |
2 | ||
| 88625-35050 |
RZJ12#..LHD AIR CONDITIONER-SINGLE AUTO |
1 | ||
| 88625-35050 |
RZJ12#..LHD AIR CONDITIONER-SINGLE MANUAL |
1 | ||
| 88710H - TUBE & ACCESSORY ASSY, AIR CONDITIONER | ||||
| 88710-35520 |
RZJ12#,TRJ12#..LHD AIR CONDITIONER-SINGLE MANUAL |
1 | ||
| 88710-35520 |
RZJ12#,TRJ12#..LHD AIR CONDITIONER-SINGLE AUTO |
1 | ||
| 88891S - COVER, COOLER, NO.1 | ||||
| 88891-35020 |
RZJ12#..LHD AIR CONDITIONER-SINGLE AUTO |
1 | ||
| 88891-35020 |
RZJ12#..LHD AIR CONDITIONER-SINGLE MANUAL |
1 | ||
| 88899K - PLATE, COVER | ||||
| 88899-60250 |
RZJ12#..LHD AIR CONDITIONER-SINGLE AUTO,NO.2 |
1 | ||
| 88899-60260 |
RZJ12#..LHD AIR CONDITIONER-SINGLE AUTO,NO.3 |
1 | ||
| 88899-60250 |
TRJ12#..GEN;RZJ12#..GCC,GEN AIR CONDITIONER-SINGLE MANUAL,NO.2 |
1 | ||
| 88899-60260 |
TRJ12#..GEN;RZJ12#..GCC,GEN AIR CONDITIONER-SINGLE MANUAL,NO.3 |
1 | ||
| 88899-3A010 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN NO.1 |
1 | ||
| 88899K - PLATE, COVER | ||||
| 88899-60250 |
RZJ12#..LHD AIR CONDITIONER-SINGLE AUTO,NO.2 |
1 | ||
| 88899-60260 |
RZJ12#..LHD AIR CONDITIONER-SINGLE AUTO,NO.3 |
1 | ||
| 88899-60250 |
TRJ12#..GEN;RZJ12#..GCC,GEN AIR CONDITIONER-SINGLE MANUAL,NO.2 |
1 | ||
| 88899-60260 |
TRJ12#..GEN;RZJ12#..GCC,GEN AIR CONDITIONER-SINGLE MANUAL,NO.3 |
1 | ||
| 88899-3A010 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN NO.1 |
1 | ||
| 88899K - PLATE, COVER | ||||
| 88899-60250 |
RZJ12#..LHD AIR CONDITIONER-SINGLE AUTO,NO.2 |
1 | ||
| 88899-60260 |
RZJ12#..LHD AIR CONDITIONER-SINGLE AUTO,NO.3 |
1 | ||
| 88899-60250 |
TRJ12#..GEN;RZJ12#..GCC,GEN AIR CONDITIONER-SINGLE MANUAL,NO.2 |
1 | ||
| 88899-60260 |
TRJ12#..GEN;RZJ12#..GCC,GEN AIR CONDITIONER-SINGLE MANUAL,NO.3 |
1 | ||
| 88899-3A010 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN NO.1 |
1 | ||
| 88899M - PLATE, COVER(FOR AIR FILTER) | ||||
| 88899-41010 |
GRJ125,RZJ12#..4FC,5F;GRJ120,KDJ120,KZJ120..ARL;GRJ120..LHD..VX..(4FC,5F) |
1 | ||
| Common parts | ||||
| 87128-35020 | ||||
| 87193-87101 | ||||
| 88569-21010 | ||||
| 88897-35020 | ||||
| 88899-35060 | ||||
| 88899-44050 | ||||
| 90099-00968 | ||||
| 90159-60213 | ||||
| 90179-06168 | ||||
| 91631-B0614 | ||||
| 91631-B0616 | ||||
ILLUST NO. 2 OF 4(0209- )
REAR-W(MANUAL AIR CONDITIONER)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88539 - HOSE, COOLER UNIT DRAIN, NO.1 | ||||
| 88539-60240 |
RZJ120..ARL,GEN;RZJ120..5F..GCC;GRJ12#,KZJ120,RZJ125 WITH/COOL BOX |
1 | ||
| 88539-35030 |
RZJ12#..LHD AIR CONDITIONER-SINGLE AUTO |
1 | ||
| 88539-35030 |
RZJ12#..LHD;GRJ125,LJ12#..LHD..(5F,5FC);GRJ120..(5FC,6F)..(GCC,GEN) FRONT |
1 | ||
| 88578B - PACKING, COOLING UNIT, NO.1 | ||||
| 88578-35170 |
RZJ12#..LHD AIR CONDITIONER-SINGLE AUTO |
1 | ||
| 88578-35170 |
RZJ12#,TRJ12#..GCC,GEN AIR CONDITIONER-SINGLE MANUAL |
1 | ||
| Common parts | ||||
| 87193-87101 | ||||
| 88626-28010 | ||||
| 90099-00968 | ||||
| 90099-04376 | ||||
| 90099-04492 | ||||
| 90464-00108 | ||||
| 91631-J0612 | ||||
| 93319-14010 | ||||
ILLUST NO. 2 OF 4(0209- )
REAR-W(AUTO AIR CONDITIONER)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88539 - HOSE, COOLER UNIT DRAIN, NO.1 | ||||
| 88539-60240 |
RZJ120..ARL,GEN;RZJ120..5F..GCC;GRJ12#,KZJ120,RZJ125 WITH/COOL BOX |
1 | ||
| 88539-35030 |
RZJ12#..LHD AIR CONDITIONER-SINGLE AUTO |
1 | ||
| 88539-35030 |
RZJ12#..LHD;GRJ125,LJ12#..LHD..(5F,5FC);GRJ120..(5FC,6F)..(GCC,GEN) FRONT |
1 | ||
| Common parts | ||||
| 87193-87101 | ||||
| 88626-28010 | ||||
| 90099-00968 | ||||
| 90099-04492 | ||||
| 90464-00108 | ||||
| 91631-J0612 | ||||
| 93319-14010 | ||||

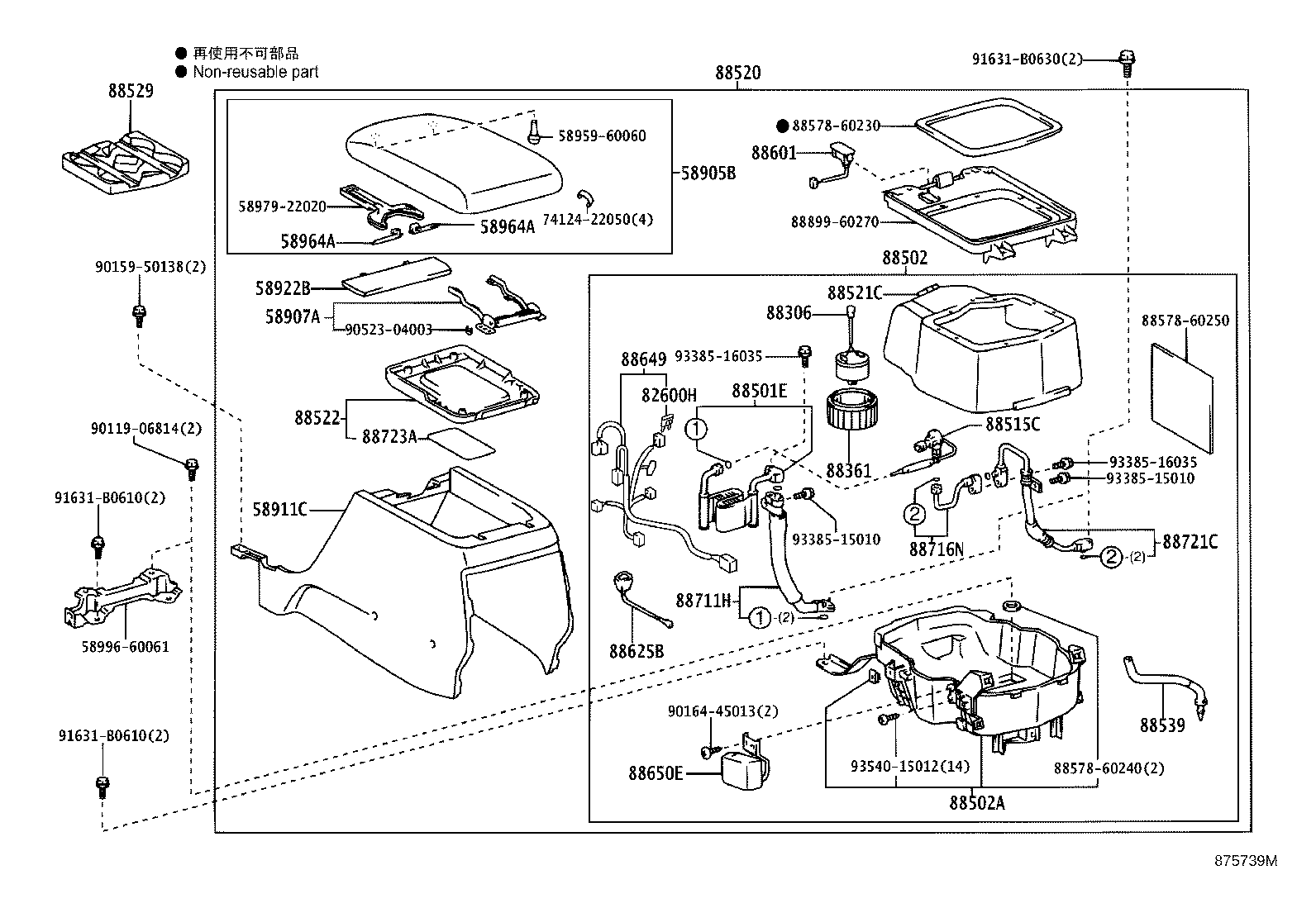

ILLUST NO. 3 OF 4(0209-0311)GCC ; (0209-0508)ARL,GEN
COOL BOX
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58905B - DOOR SUB-ASSY, CONSOLE COMPARTMENT(FOR COOL BOX) | ||||
| 58905-60170C0 |
RZJ120..5F..GCC;GRJ120..(4FC,5F,6F)..GCC;GRJ125,KZJ120,RZJ125,TRJ125;GRJ120,RZJ120,TRJ120..ARL,GEN WITH/COOL BOX,BLACK,TRIM1# |
1 | ||
| 58905-60170E0 |
RZJ120..5F..GCC;GRJ120..(4FC,5F,6F)..GCC;GRJ125,KZJ120,RZJ125,TRJ125;GRJ120,RZJ120,TRJ120..ARL,GEN WITH/COOL BOX,SANDAL WOOD,TRIM0# |
1 | ||
| 58907A - HINGE SUB-ASSY, COOLING BOX DOOR | ||||
| 58907-60070 |
RZJ120..ARL,GEN;RZJ120..5F..GCC;GRJ12#,KZJ120,RZJ125 WITH/COOL BOX |
1 | ||
| 58911C - PANEL, BOX, NO.1(FOR COOL BOX) | ||||
| 58911-60170E0 |
RZJ120,TRJ120..5F..GCC;GRJ120..(4FC,5F,6F)..GCC;GRJ125,KZJ120,RZJ125,TRJ125;GRJ120,RZJ120,TRJ120..ARL,GEN WITH/COOL BOX,SANDAL WOOD,TRIM0# |
1 | ||
| 58911-60170C0 |
RZJ120,TRJ120..5F..GCC;GRJ120..(4FC,5F,6F)..GCC;GRJ125,KZJ120,RZJ125,TRJ125;GRJ120,RZJ120,TRJ120..ARL,GEN WITH/COOL BOX,BLACK,TRIM1# |
1 | ||
| 58922B - PLATE, BOX, UPPER NO.2 | ||||
| 58922-60020 |
RZJ120..ARL,GEN;RZJ120..5F..GCC;GRJ12#,KZJ120,RZJ125 WITH/COOL BOX |
1 | ||
| 58964A - STOPPER, COOLING BOX DOOR, NO.1 | ||||
| 58964-22090 |
RZJ120..5F..GCC;GRJ120..(4FC,5F,6F)..GCC;GRJ125,KZJ120,RZJ125,TRJ125;GRJ120,RZJ120,TRJ120..ARL,GEN WITH/COOL BOX |
2 | ||
| 58964A - STOPPER, COOLING BOX DOOR, NO.1 | ||||
| 58964-22090 |
RZJ120..5F..GCC;GRJ120..(4FC,5F,6F)..GCC;GRJ125,KZJ120,RZJ125,TRJ125;GRJ120,RZJ120,TRJ120..ARL,GEN WITH/COOL BOX |
2 | ||
| 88306 - MOTOR SUB-ASSY, COOLER BLOWER, NO.1 | ||||
| 88550-60080 |
RZJ120..ARL,GEN;RZJ120..5F..GCC;GRJ12#,KZJ120,RZJ125 WITH/COOL BOX |
1 | ||
| 88361 - FAN, COOLER BLOWER, NO.1 | ||||
| 87105-60140 |
RZJ120..ARL,GEN;RZJ120..5F..GCC;GRJ12#,KZJ120,RZJ125 WITH/COOL BOX |
1 | ||
| 88501E - EVAPOLATOR SUB-ASSY, COOLER (COOL BOX) | ||||
| 88501-60270 |
RZJ120..ARL,GEN;RZJ120..5F..GCC;GRJ12#,KZJ120,RZJ125 WITH/COOL BOX |
1 | ||
| 88501-60270 |
RZJ120..5F..GCC;GRJ12#,RZJ125..GCC WITH/COOL BOX |
1 | ||
| 88502 - CASE SUB-ASSY, COOLING UNIT | ||||
| 88502-60141 |
RZJ120..ARL,GEN;RZJ120..5F..GCC;GRJ12#,KZJ120,RZJ125 WITH/COOL BOX |
1 | ||
| 88502-60140 |
RZJ120..ARL,GEN;RZJ120..5F..GCC;GRJ12#,KZJ120,RZJ125 WITH/COOL BOX |
1 | ||
| 88502-60180 |
RZJ120..5F..GCC;GRJ12#,RZJ125..GCC WITH/COOL BOX |
1 | ||
| 88502A - CASE SUB-ASSY, COOLING UNIT | ||||
| 88502-60170 |
RZJ120..ARL,GEN;RZJ120..5F..GCC;GRJ12#,KZJ120,RZJ125 WITH/COOL BOX |
1 | ||
| 88502-60170 |
RZJ120..5F..GCC;GRJ12#,RZJ125..GCC WITH/COOL BOX |
1 | ||
| 88515C - VALVE, COOLING BOX EXPANSION | ||||
| 88515-60090 |
RZJ120..ARL,GEN;RZJ120..5F..GCC;GRJ12#,KZJ120,RZJ125 WITH/COOL BOX |
1 | ||
| 88515-60170 |
RZJ120..ARL,GEN;RZJ120..5F..GCC;GRJ12#,KZJ120,RZJ125 WITH/COOL BOX |
1 | ||
| 88515-60170 |
RZJ120..5F..GCC;GRJ12#,RZJ125..GCC WITH/COOL BOX |
1 | ||
| 88520 - BOX ASSY, COOLING | ||||
| 88520-60250C1 |
RZJ120..ARL,GEN;RZJ120..5F..GCC;GRJ12#,KZJ120,RZJ125 WITH/COOL BOX,BLACK,TRIM1# |
1 | ||
| 88520-60280E0 |
RZJ120..5F..GCC;GRJ12#,RZJ125..GCC WITH/COOL BOX,SANDAL WOOD,TRIM0# |
1 | ||
| 88520-60250E1 |
RZJ120..ARL,GEN;RZJ120..5F..GCC;GRJ12#,KZJ120,RZJ125 WITH/COOL BOX,SANDAL WOOD,TRIM0# |
1 | ||
| 88520-60251E1 |
RZJ120..ARL,GEN;RZJ120..5F..GCC;GRJ12#,KZJ120,RZJ125 WITH/COOL BOX,SANDAL WOOD,TRIM0# |
1 | ||
| 88520-60251C1 |
RZJ120..ARL,GEN;RZJ120..5F..GCC;GRJ12#,KZJ120,RZJ125 WITH/COOL BOX,BLACK,TRIM1# |
1 | ||
| 88520-60280 |
RZJ120..ARL,GEN;RZJ120..5F..GCC;GRJ12#,KZJ120,RZJ125 WITH/COOL BOX |
1 | ||
| 88520-60280C0 |
RZJ120..5F..GCC;GRJ12#,RZJ125..GCC WITH/COOL BOX,BLACK,TRIM1# |
1 | ||
| 88521C - CASE, COOLING UNIT | ||||
| 88521-60130 |
RZJ120..ARL,GEN;RZJ120..5F..GCC;GRJ12#,KZJ120,RZJ125 WITH/COOL BOX |
1 | ||
| 88521-60130 |
RZJ120..5F..GCC;GRJ12#,RZJ125..GCC WITH/COOL BOX |
1 | ||
| 88522 - DOOR, COOLING UNIT | ||||
| 88522-60080 |
RZJ120..ARL,GEN;RZJ120..5F..GCC;GRJ12#,KZJ120,RZJ125 WITH/COOL BOX |
1 | ||
| 88529 - TRAY, COOLING BOX | ||||
| 88529-60040 |
RZJ120..5F..GCC;GRJ120..(4FC,5F,6F)..GCC;GRJ125,KZJ120,RZJ125,TRJ125;GRJ120,RZJ120,TRJ120..ARL,GEN WITH/COOL BOX |
1 | ||
| 88539 - HOSE, COOLER UNIT DRAIN, NO.1 | ||||
| 88539-60240 |
RZJ120..ARL,GEN;RZJ120..5F..GCC;GRJ12#,KZJ120,RZJ125 WITH/COOL BOX |
1 | ||
| 88539-35030 |
RZJ12#..LHD AIR CONDITIONER-SINGLE AUTO |
1 | ||
| 88539-35030 |
RZJ12#..LHD;GRJ125,LJ12#..LHD..(5F,5FC);GRJ120..(5FC,6F)..(GCC,GEN) FRONT |
1 | ||
| 88601 - SWITCH SUB-ASSY, COOLER CONTROL | ||||
| 88601-60050 |
RZJ120..ARL,GEN;RZJ120..5F..GCC;GRJ12#,KZJ120,RZJ125 WITH/COOL BOX |
1 | ||
| 88625B - THERMISTOR, COOLER NO.3 | ||||
| 88625-60070 |
RZJ120..5F..GCC;GRJ12#,RZJ125..GCC WITH/COOL BOX |
1 | ||
| 88649 - WIRING, COOLER, NO.2 | ||||
| 88605-6A090 |
RZJ120..ARL,GEN;RZJ120..5F..GCC;GRJ12#,KZJ120,RZJ125 WITH/COOL BOX |
1 | ||
| 88605-6A090 |
RZJ120..5F..GCC;GRJ12#,RZJ125..GCC WITH/COOL BOX |
2 | ||
| 88605-6A090 |
RZJ120..ARL,GEN;RZJ120..5F..GCC;GRJ12#,KZJ120,RZJ125 WITH/COOL BOX |
2 | ||
| 88650E - AMPLIFIER ASSY, AIR CONDITIONER, NO.1 | ||||
| 88650-6A010 |
RZJ120..ARL,GEN;RZJ120..5F..GCC;GRJ12#,KZJ120,RZJ125 WITH/COOL BOX |
1 | ||
| 88711H - HOSE, DISCHARGE | ||||
| 88711-60620 |
RZJ120..ARL,GEN;RZJ120..5F..GCC;GRJ12#,KZJ120,RZJ125 WITH/COOL BOX |
1 | ||
| 88716N - PIPE, COOLER REFRIGERANT LIQUID, N | ||||
| 88716-6B360 |
RZJ120..5F..GCC;GRJ12#,RZJ125..GCC WITH/COOL BOX |
1 | ||
| 88716-6B360 |
RZJ120..ARL,GEN;RZJ120..5F..GCC;GRJ12#,KZJ120,RZJ125 WITH/COOL BOX |
1 | ||
| 88721C - HOSE, LIQUID | ||||
| 88721-60130 |
RZJ120..ARL,GEN;RZJ120..5F..GCC;GRJ12#,KZJ120,RZJ125 WITH/COOL BOX |
1 | ||
| 88721-60130 |
RZJ120..5F..GCC;GRJ12#,RZJ125..GCC WITH/COOL BOX |
1 | ||
| 88723A - LABEL, COOLER SERVICE CAUTION | ||||
| 88723-28150 |
RZJ120..5F..GCC;GRJ12#,RZJ125..GCC WITH/COOL BOX |
1 | ||
| 88723-28150 |
RZJ120..ARL,GEN;RZJ120..5F..GCC;GRJ12#,KZJ120,RZJ125 WITH/COOL BOX |
1 | ||
| Common parts | ||||
| 58959-60060 | ||||
| 58979-22020 | ||||
| 58996-60061 | ||||
| 74124-22050 | ||||
| 88578-60230 | ||||
| 88578-60240 | ||||
| 88578-60250 | ||||
| 88899-60270 | ||||
| 90119-06814 | ||||
| 90159-50138 | ||||
| 90164-45013 | ||||
| 90523-04003 | ||||
| 91631-B0610 | ||||
| 91631-B0630 | ||||
| 93385-15010 | ||||
| 93385-16035 | ||||
| 93540-15012 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
