Toyota Land cruiser prado RZJ125 RADIO RECEIVER & AMPLIFIER & CONDENSER

Manufacturers Home
Toyota
GR
LAND CRUISER PRADO
RZJ125L-GJPEKV (2002)
8601 - RADIO RECEIVER & AMPLIFIER & CONDENSER

RZJ125L-GJPEKV (2002)

Toyota Land Cruiser Prado

Production Sep 2002 - Aug 2004

Engine 3RZFE

Transmission 4FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

ILLUST NO. 1 OF 3(0209- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
86120 - RECEIVER ASSY, RADIO
86120-60530	GRJ12#,KZJ120,LJ12#,RZJ12#..LHD..(GCC,GEN) PIONEER,ID=P7809,AUDIO(FOR OVERSEAS MARKET)-AM/FM/SW1/SW2/CDCHANGER 6SP	09/2002 - 08/2004	1
86120-60530	GRJ12#,KZJ120,LJ12#,RZJ12#..LHD..(GCC,GEN) PIONEER,ID=P7809,TYPE F:REFER TO ILLUSTRATION	09/2002 - 08/2004	1
86120 - RECEIVER ASSY, RADIO
86120-60530	GRJ12#,KZJ120,LJ12#,RZJ12#..LHD..(GCC,GEN) PIONEER,ID=P7809,AUDIO(FOR OVERSEAS MARKET)-AM/FM/SW1/SW2/CDCHANGER 6SP	09/2002 - 08/2004	1
86120-60530	GRJ12#,KZJ120,LJ12#,RZJ12#..LHD..(GCC,GEN) PIONEER,ID=P7809,TYPE F:REFER TO ILLUSTRATION	09/2002 - 08/2004	1
86211 - BRACKET, RADIO, NO.1
86211-60110	GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN	09/2002 - 12/2999	1
86211-60170	GRJ12#,KZJ120,LJ12#,RZJ12#,TRJ12#..LHD..(GCC,GEN) AUDIO(FOR OVERSEAS MARKET)-AM/FM/SW1/SW2/CDCHANGER 6SP	08/2003 - 12/2999	1
86211 - BRACKET, RADIO, NO.1
86211-60110	GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN	09/2002 - 12/2999	1
86211-60170	GRJ12#,KZJ120,LJ12#,RZJ12#,TRJ12#..LHD..(GCC,GEN) AUDIO(FOR OVERSEAS MARKET)-AM/FM/SW1/SW2/CDCHANGER 6SP	08/2003 - 12/2999	1
86212 - BRACKET, RADIO, NO.2
86212-60170	GRJ12#,KZJ120,LJ12#,RZJ12#,TRJ12#..LHD..(GCC,GEN) AUDIO(FOR OVERSEAS MARKET)-AM/FM/SW1/SW2/CDCHANGER 6SP	08/2003 - 12/2999	1
86212-60110	GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN	09/2002 - 12/2999	1
86212 - BRACKET, RADIO, NO.2
86212-60170	GRJ12#,KZJ120,LJ12#,RZJ12#,TRJ12#..LHD..(GCC,GEN) AUDIO(FOR OVERSEAS MARKET)-AM/FM/SW1/SW2/CDCHANGER 6SP	08/2003 - 12/2999	1
86212-60110	GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN	09/2002 - 12/2999	1
Common parts
90153-50010
91631-B0616
93568-55014
Linked diagrams
8301
8603

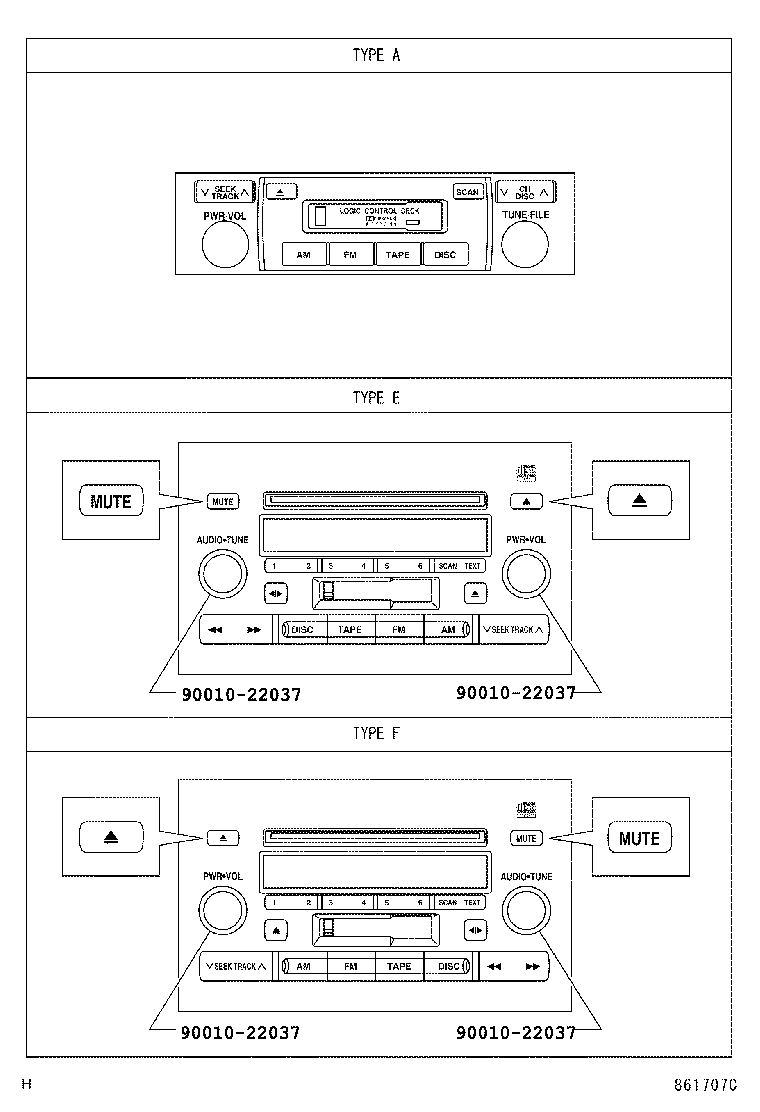

ILLUST NO. 3 OF 3(0209- )

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
90010-22037

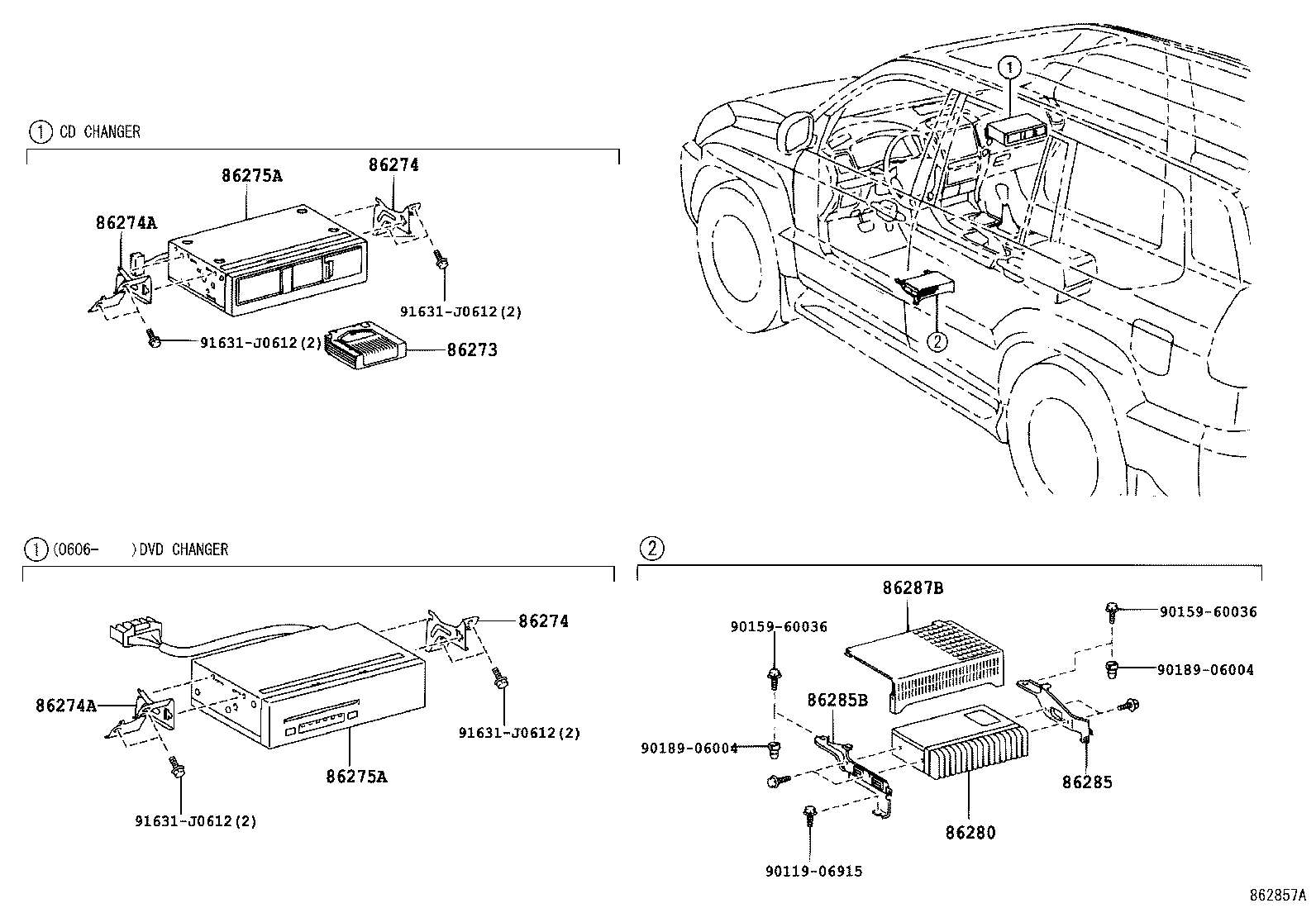

ILLUST NO. 2 OF 3(0209- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
86273 - MAGAZINE, DISC PLAYER
86273-50070	RZJ120,TRJ120..GEN;GRJ120..(4FC,5F)..(ARL,GCC,GEN);GRJ125,KDJ120,KZJ120,LJ12#,RZJ125,TRJ125 CD PLAYER-W/6CD CHANGER	09/2002 - 12/2999	1
86274 - BRACKET, DISC PLAYER
86274-60120	RZJ120,TRJ120..GEN;GRJ120..(4FC,5F)..(ARL,GCC,GEN);GRJ125,KDJ120,KZJ120,LJ12#,RZJ125,TRJ125 CD PLAYER-W/6CD CHANGER	09/2002 - 12/2999	1
86274 - BRACKET, DISC PLAYER
86274-60120	RZJ120,TRJ120..GEN;GRJ120..(4FC,5F)..(ARL,GCC,GEN);GRJ125,KDJ120,KZJ120,LJ12#,RZJ125,TRJ125 CD PLAYER-W/6CD CHANGER	09/2002 - 12/2999	1
86274A - BRACKET, DISC PLAYER
86274-60130	RZJ120,TRJ120..GEN;GRJ120..(4FC,5F)..(ARL,GCC,GEN);GRJ125,KDJ120,KZJ120,LJ12#,RZJ125,TRJ125 CD PLAYER-W/6CD CHANGER	09/2002 - 12/2999	1
86274A - BRACKET, DISC PLAYER
86274-60130	RZJ120,TRJ120..GEN;GRJ120..(4FC,5F)..(ARL,GCC,GEN);GRJ125,KDJ120,KZJ120,LJ12#,RZJ125,TRJ125 CD PLAYER-W/6CD CHANGER	09/2002 - 12/2999	1
86275A - CHANGER, DISC PLAYER
86275-60020	RZJ120,TRJ120..LHD..GEN;GRJ120..LHD..VX..(4FC,5F);GRJ125,KZJ120,LJ12#,RZJ125,TRJ125..LHD CD PLAYER-W/6CD CHANGER	09/2002 - 12/2999	1
86275A - CHANGER, DISC PLAYER
86275-60020	RZJ120,TRJ120..LHD..GEN;GRJ120..LHD..VX..(4FC,5F);GRJ125,KZJ120,LJ12#,RZJ125,TRJ125..LHD CD PLAYER-W/6CD CHANGER	09/2002 - 12/2999	1
Common parts
90119-06915
90159-60036
90189-06004
91631-J0612

RZJ125L-GJPEKV (2002)

ILLUST NO. 1 OF 3(0209- )

ILLUST NO. 3 OF 3(0209- )

ILLUST NO. 2 OF 3(0209- )
