RZJ125L-GJPEKV (2002)

Toyota Land Cruiser Prado

Production Sep 2002 - Aug 2004
Engine 3RZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0209- )

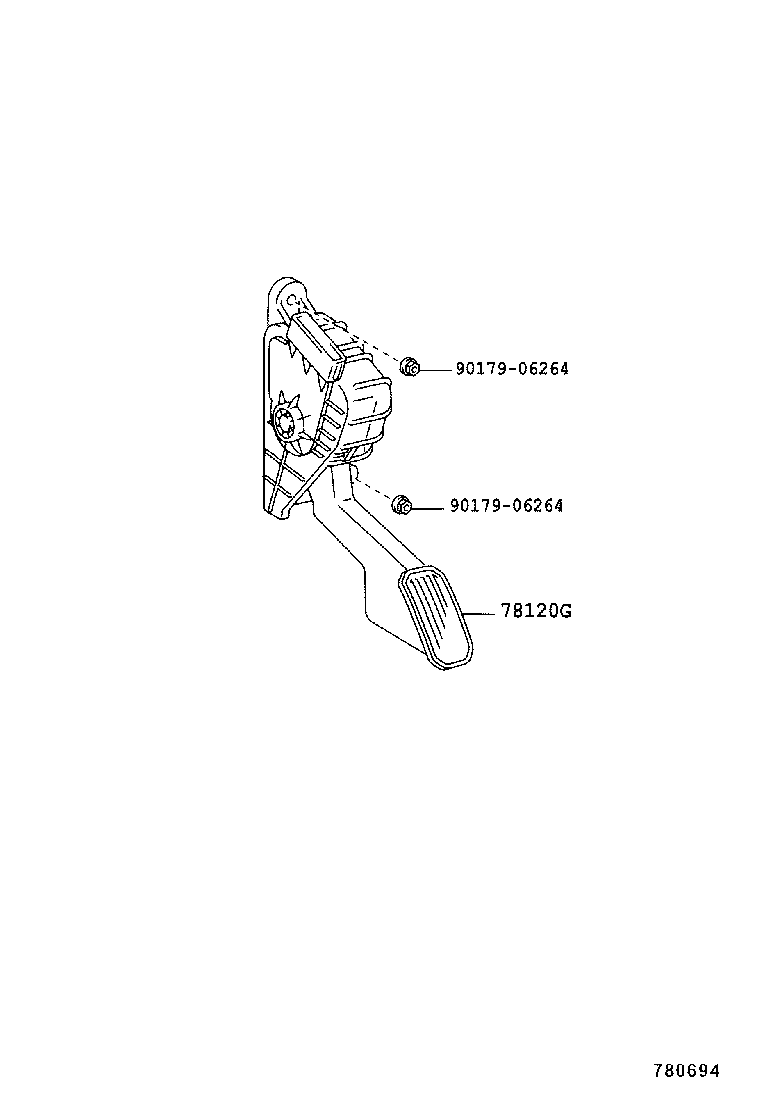

Click highlighted areas on diagram

diagram 78120G 9017906264 9017906264
Part # Description Qty Price
78120G - ROD ASSY, ACCELERATOR PEDAL
78120-60360

RZJ12#..LHD

 1
Common parts
90179-06264

(0209-0408)RZJ12#..LHD

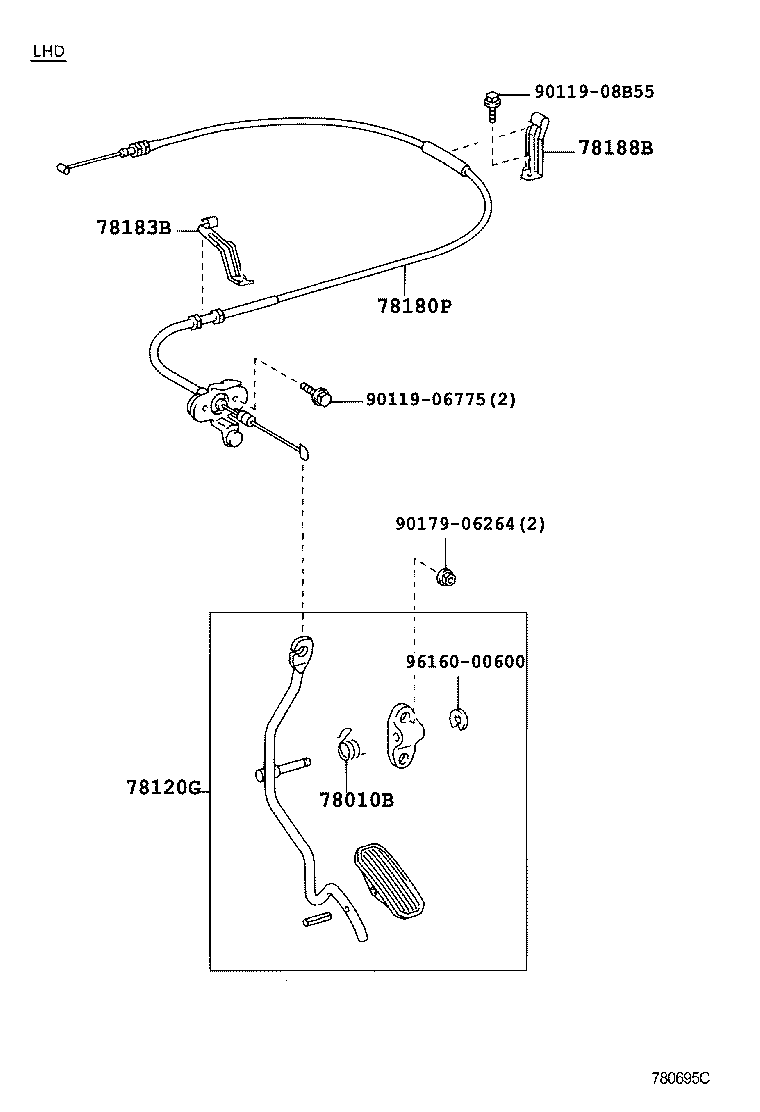

Click highlighted areas on diagram

diagram 78010B 78120G 78180P 78183B 78188B 9011906775 9011908B55 9017906264 9616000600
Part # Description Qty Price
78010B - SPRING, TORSION (FOR ACCELERATOR LINK)
90959-03366

RZJ12#

 1
78120G - ROD ASSY, ACCELERATOR PEDAL
78120-60360

RZJ12#..LHD

 1
78180P - CABLE ASSY, ACCELERATOR CONTROL
78180-60700

RZJ12#..LHD

 1
78183B - CLAMP, ACCELERATOR CONTROL CABLE
78183-60190

RZJ12#..LHD

 1
78188B - SUPPORT, ACCELERATOR AUTO-DRIVE CABLE
78188-35010

RZJ12#..LHD

 1
Common parts
90119-06775
90119-08B55
90179-06264
96160-00600
