RZJ125L-GJPEKV (2002)
Toyota Land Cruiser Prado

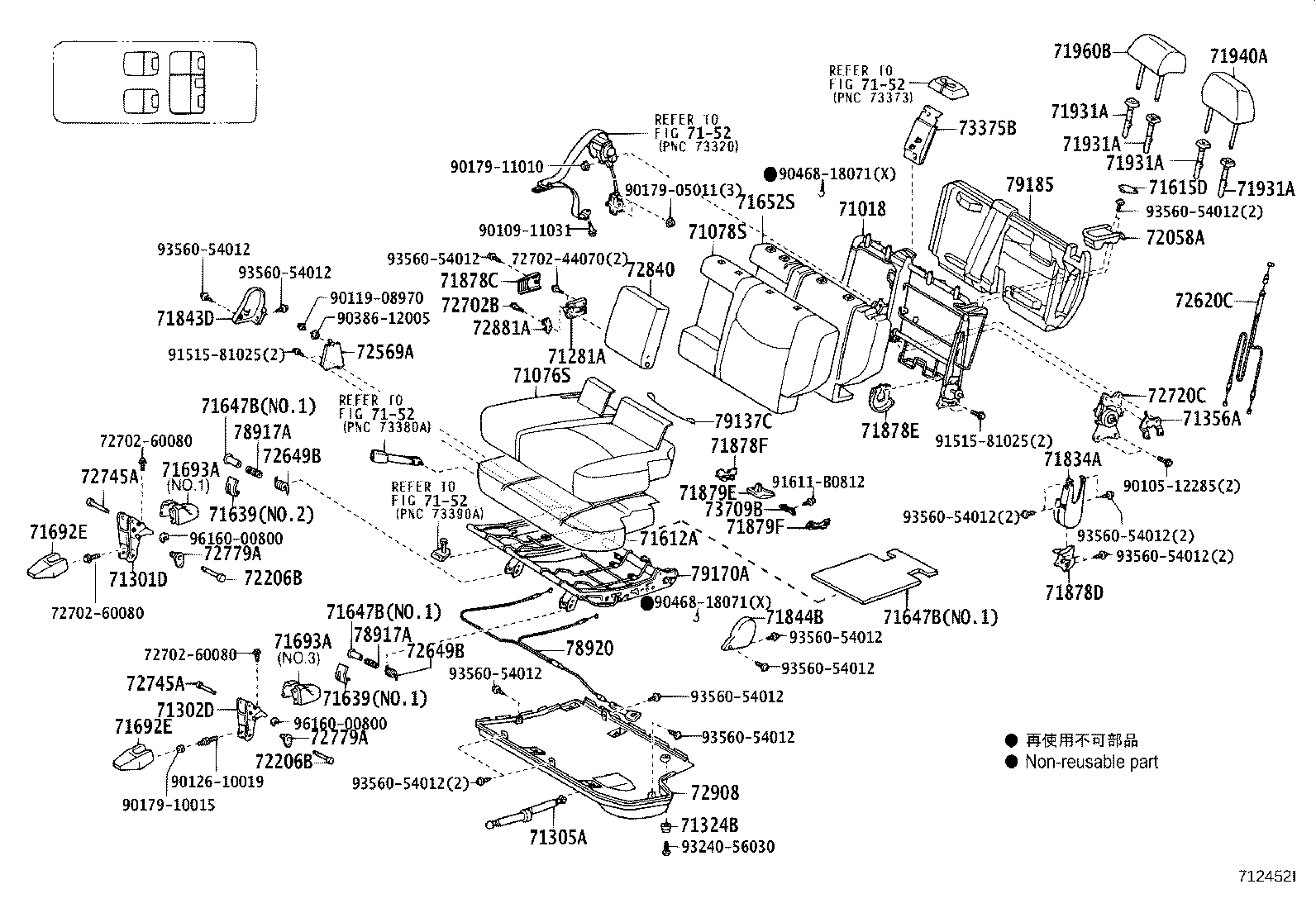

ILLUST NO. 2 OF 3(0209- )GRJ125,LJ125,RZJ125,TRJ125
REAR SEAT LH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71018 - FRAME SUB-ASSY, REAR SEAT BACK, LH | ||||
| 71018-60330 |
GRJ125,LJ125,RZJ125,TRJ125 |
1 | ||
| 71076S - COVER, REAR SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71076-60740A1 |
LJ125,RZJ125,TRJ125 IVORY,TRIM0# |
1 | ||
| 71076-60740B1 |
LJ125,RZJ125,TRJ125 MEDIUM GRAY,TRIM1# |
1 | ||
| 71078S - COVER, REAR SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71078-6A070B1 |
LJ125,RZJ125,TRJ125 MEDIUM GRAY,TRIM1# |
1 | ||
| 71078-6A070A1 |
LJ125,RZJ125,TRJ125 IVORY,TRIM0# |
1 | ||
| 71281A - HINGE, REAR SEAT CENTER ARMREST | ||||
| 71330-60010 |
GRJ12#,KZJ120,LJ12#,RZJ12#,TRJ12#..LHD..(GCC,GEN) |
1 | ||
| 71301D - HINGE SUB-ASSY, REAR SEAT, RH | ||||
| 71301-60060 |
GRJ12#,KZJ120,LJ12#,RZJ12#..LHD |
1 | ||
| 71301-60061 |
GRJ12#,KZJ120,LJ12#,RZJ12#,TRJ12#..LHD..(GCC,GEN) |
1 | ||
| 71302D - HINGE SUB-ASSY, REAR SEAT, LH | ||||
| 71302-60070 |
GRJ12#,KZJ120,LJ12#,RZJ12# |
1 | ||
| 71302-60071 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN |
1 | ||
| 71305A - HINGE SUB-ASSY, REAR SEAT BACK, CENTER | ||||
| 71305-60090 |
GRJ12#,KZJ120,LJ12#,RZJ12#,TRJ12#..LHD..(GCC,GEN) |
1 | ||
| 71324B - CUSHION, REAR SEAT | ||||
| 71324-60200 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN |
1 | ||
| 71356A - PLATE, REAR SEAT BACK HINGE, INNER LH | ||||
| 71356-60050 |
GRJ12#,KZJ120,LJ12#,RZJ12#,TRJ12#..LHD..(GCC,GEN) |
1 | ||
| 71612A - PAD, REAR SEAT CUSHION, LH | ||||
| 71612-60240 |
GRJ125,LJ125,RZJ125,TRJ125 |
1 | ||
| 71615D - COVER, REAR SEAT LOCK STRIKER | ||||
| 72615-48010B8 |
GRJ125,LJ125,RZJ125,TRJ125 MD.GRAY,TRIM1# |
1 | ||
| 72615-48010A0 |
GRJ125,LJ125,RZJ125,TRJ125 IVORY,TRIM0# |
1 | ||
| 71639 - COVER, REAR SEAT CUSHION HINGE, LH | ||||
| 71629-60340A0 |
GRJ120..(5FC,6F)..(ARL,GCC,GEN);GRJ125,KDJ120,LJ125,RZJ125,TRJ12#;GRJ120,KZJ120,LJ120,RZJ120..LHD..(4FC,5F)..(GCC,GEN) IVORY,TRIM0#,NO.1 |
2 | ||
| 71629-60340B0 |
GRJ120..(5FC,6F)..(ARL,GCC,GEN);GRJ125,KDJ120,LJ125,RZJ125,TRJ12#;GRJ120,KZJ120,LJ120,RZJ120..LHD..(4FC,5F)..(GCC,GEN) MD. GRAY,TRIM1#,NO.1 |
2 | ||
| 71639 - COVER, REAR SEAT CUSHION HINGE, LH | ||||
| 71629-60340A0 |
GRJ120..(5FC,6F)..(ARL,GCC,GEN);GRJ125,KDJ120,LJ125,RZJ125,TRJ12#;GRJ120,KZJ120,LJ120,RZJ120..LHD..(4FC,5F)..(GCC,GEN) IVORY,TRIM0#,NO.1 |
2 | ||
| 71629-60340B0 |
GRJ120..(5FC,6F)..(ARL,GCC,GEN);GRJ125,KDJ120,LJ125,RZJ125,TRJ12#;GRJ120,KZJ120,LJ120,RZJ120..LHD..(4FC,5F)..(GCC,GEN) MD. GRAY,TRIM1#,NO.1 |
2 | ||
| 71647B - PROTECTOR, REAR SEAT CUSHION EDGE | ||||
| 71647-60260 |
GRJ12#,KZJ120,LJ12#,RZJ12#,TRJ12#..LHD..(GCC,GEN) NO.2 |
1 | ||
| 71647-60230 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN NO.1 |
2 | ||
| 71647B - PROTECTOR, REAR SEAT CUSHION EDGE | ||||
| 71647-60260 |
GRJ12#,KZJ120,LJ12#,RZJ12#,TRJ12#..LHD..(GCC,GEN) NO.2 |
1 | ||
| 71647-60230 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN NO.1 |
2 | ||
| 71647B - PROTECTOR, REAR SEAT CUSHION EDGE | ||||
| 71647-60260 |
GRJ12#,KZJ120,LJ12#,RZJ12#,TRJ12#..LHD..(GCC,GEN) NO.2 |
1 | ||
| 71647-60230 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN NO.1 |
2 | ||
| 71652S - PAD, REAR SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71652-60230 |
GRJ125,LJ125,RZJ125,TRJ125 |
1 | ||
| 71692E - COVER, REAR SEAT CUSHION HINGE, NO.2 | ||||
| 71692-60040B0 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN MD.GRAY,TRIM1# |
4 | ||
| 71692-60040A0 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN IVORY,TRIM0# |
4 | ||
| 71692E - COVER, REAR SEAT CUSHION HINGE, NO.2 | ||||
| 71692-60040B0 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN MD.GRAY,TRIM1# |
4 | ||
| 71692-60040A0 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN IVORY,TRIM0# |
4 | ||
| 71693A - COVER, REAR SEAT CUSHION HINGE, NO.3 | ||||
| 71693-60060B0 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN MD.GRAY,TRIM1#,NO.1 |
2 | ||
| 71693-60070A0 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN IVORY,TRIM0#,NO.2 |
1 | ||
| 71693-60060A0 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN IVORY,TRIM0#,NO.1 |
2 | ||
| 71693-60080A0 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN IVORY,TRIM0#,NO.3 |
1 | ||
| 71693-60080B0 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN MD.GRAY,TRIM1#,NO.3 |
1 | ||
| 71693-60070B0 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN MD.GRAY,TRIM1#,NO.2 |
1 | ||
| 71693A - COVER, REAR SEAT CUSHION HINGE, NO.3 | ||||
| 71693-60060B0 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN MD.GRAY,TRIM1#,NO.1 |
2 | ||
| 71693-60070A0 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN IVORY,TRIM0#,NO.2 |
1 | ||
| 71693-60060A0 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN IVORY,TRIM0#,NO.1 |
2 | ||
| 71693-60080A0 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN IVORY,TRIM0#,NO.3 |
1 | ||
| 71693-60080B0 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN MD.GRAY,TRIM1#,NO.3 |
1 | ||
| 71693-60070B0 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN MD.GRAY,TRIM1#,NO.2 |
1 | ||
| 71834A - COVER, REAR SEAT RECLINING, NO.1 LH | ||||
| 71802-60010A0 |
GRJ12#,KZJ120,LJ12#,RZJ12#,TRJ12#..LHD..(GCC,GEN) IVORY,TRIM0# |
1 | ||
| 71802-60010B0 |
GRJ12#,KZJ120,LJ12#,RZJ12#,TRJ12#..LHD..(GCC,GEN) MD. GRAY,TRIM1# |
1 | ||
| 71843D - COVER, REAR SEAT RECLINING, NO.2 RH | ||||
| 71843-60050B0 |
GRJ12#,KZJ120,LJ12#,RZJ12#,TRJ12#..LHD..(GCC,GEN) MD. GRAY,TRIM1# |
1 | ||
| 71843-60050A0 |
GRJ12#,KZJ120,LJ12#,RZJ12#,TRJ12#..LHD..(GCC,GEN) IVORY,TRIM0# |
1 | ||
| 71844B - COVER, RECLINING ADJUSTER, LH | ||||
| 71844-60050A0 |
GRJ125,LJ125,RZJ125,TRJ125 IVORY,TRIM0# |
1 | ||
| 71844-60050B0 |
GRJ125,LJ125,RZJ125,TRJ125 MD. GRAY,TRIM1# |
1 | ||
| 71878C - COVER, REAR SEAT RECLINING, INNER RH | ||||
| 71878-60100B0 |
GRJ12#,KZJ120,LJ12#,RZJ12#,TRJ12#..LHD..(GCC,GEN) MD. GRAY,TRIM1# |
1 | ||
| 71878-60100A0 |
GRJ12#,KZJ120,LJ12#,RZJ12#,TRJ12#..LHD..(GCC,GEN) IVORY,TRIM0# |
1 | ||
| 71878D - COVER, REAR SEAT RECLINING, INNER RH | ||||
| 71878-60110A0 |
GRJ12#,KZJ120,LJ12#,RZJ12#,TRJ12#..LHD..(GCC,GEN) IVORY,TRIM0# |
1 | ||
| 71878-60110B0 |
GRJ12#,KZJ120,LJ12#,RZJ12#,TRJ12#..LHD..(GCC,GEN) MD. GRAY,TRIM1# |
1 | ||
| 71878E - COVER, REAR SEAT RECLINING, INNER RH | ||||
| 71878-60130 |
GRJ12#,KZJ120,LJ12#,RZJ12#,TRJ12#..LHD..(GCC,GEN) |
1 | ||
| 71878F - COVER, REAR SEAT RECLINING, INNER RH | ||||
| 71878-60120A0 |
GRJ12#,KZJ120,LJ12#,RZJ12#,TRJ12#..LHD..(GCC,GEN) IVORY,TRIM0# |
1 | ||
| 71878-60120B0 |
GRJ12#,KZJ120,LJ12#,RZJ12#,TRJ12#..LHD..(GCC,GEN) MD. GRAY,TRIM1# |
1 | ||
| 71879E - COVER, REAR SEAT RECLINING, INNER LH | ||||
| 71879-60100A0 |
GRJ12#,KZJ120,LJ12#,RZJ12#,TRJ12#..LHD..(GCC,GEN) IVORY,TRIM0# |
1 | ||
| 71879-60100B0 |
GRJ12#,KZJ120,LJ12#,RZJ12#,TRJ12#..LHD..(GCC,GEN) MD. GRAY,TRIM1# |
1 | ||
| 71879F - COVER, REAR SEAT RECLINING, INNER LH | ||||
| 71879-60120A0 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN IVORY,TRIM0# |
1 | ||
| 71879-60120B0 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN MD. GRAY,TRIM1# |
1 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-42020A0 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN W(LOCK)&W(BUTTON),IVORY,TRIM0# |
3 | ||
| 71930-42020B6 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN W(LOCK)&W(BUTTON),MD.GRAY,TRIM1# |
3 | ||
| 71931-42020A0 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN W(LOCK)&W/O(BUTTON),IVORY,TRIM0# |
3 | ||
| 71931-42020B6 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN W(LOCK)&W/O(BUTTON),MD.GRAY,TRIM1# |
3 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-42020A0 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN W(LOCK)&W(BUTTON),IVORY,TRIM0# |
3 | ||
| 71930-42020B6 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN W(LOCK)&W(BUTTON),MD.GRAY,TRIM1# |
3 | ||
| 71931-42020A0 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN W(LOCK)&W/O(BUTTON),IVORY,TRIM0# |
3 | ||
| 71931-42020B6 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN W(LOCK)&W/O(BUTTON),MD.GRAY,TRIM1# |
3 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-42020A0 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN W(LOCK)&W(BUTTON),IVORY,TRIM0# |
3 | ||
| 71930-42020B6 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN W(LOCK)&W(BUTTON),MD.GRAY,TRIM1# |
3 | ||
| 71931-42020A0 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN W(LOCK)&W/O(BUTTON),IVORY,TRIM0# |
3 | ||
| 71931-42020B6 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN W(LOCK)&W/O(BUTTON),MD.GRAY,TRIM1# |
3 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-42020A0 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN W(LOCK)&W(BUTTON),IVORY,TRIM0# |
3 | ||
| 71930-42020B6 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN W(LOCK)&W(BUTTON),MD.GRAY,TRIM1# |
3 | ||
| 71931-42020A0 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN W(LOCK)&W/O(BUTTON),IVORY,TRIM0# |
3 | ||
| 71931-42020B6 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN W(LOCK)&W/O(BUTTON),MD.GRAY,TRIM1# |
3 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-60340B0 |
GRJ120,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..GX..(ARL,GCC,GEN) MEDIUM GRAY,TRIM1# |
2 | ||
| 71940-60340A0 |
GRJ120,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..GX..(ARL,GCC,GEN) IVORY,TRIM0# |
2 | ||
| 71960B - HEADREST ASSY, REAR SEAT, CENTER | ||||
| 71960-60160B0 |
GRJ120,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..GX..(ARL,GCC,GEN) MEDIUM GRAY,TRIM1# |
1 | ||
| 71960-60160A0 |
GRJ120,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..GX..(ARL,GCC,GEN) IVORY,TRIM0# |
1 | ||
| 72058A - LEVER SUB-ASSY, REAR SEAT LOCK CONTROL, LH | ||||
| 72057-60080A0 |
GRJ125,LJ125,RZJ125,TRJ125 IVORY,TRIM0# |
1 | ||
| 72057-60080B0 |
GRJ125,LJ125,RZJ125,TRJ125 MD.GRAY,TRIM1# |
1 | ||
| 72206B - PIN SUB-ASSY, SEAT TRACK OPEN LEVER, LH | ||||
| 72205-60070 |
GRJ120..(5FC,6F)..(ARL,GCC,GEN);GRJ125,KDJ120,LJ125,RZJ125,TRJ12#;GRJ120,KZJ120,LJ120,RZJ120..LHD..(4FC,5F)..(GCC,GEN) |
2 | ||
| 72206B - PIN SUB-ASSY, SEAT TRACK OPEN LEVER, LH | ||||
| 72205-60070 |
GRJ120..(5FC,6F)..(ARL,GCC,GEN);GRJ125,KDJ120,LJ125,RZJ125,TRJ12#;GRJ120,KZJ120,LJ120,RZJ120..LHD..(4FC,5F)..(GCC,GEN) |
2 | ||
| 72569A - PLATE, SEAT BACK STOPPER | ||||
| 72569-60020 |
GRJ125,LJ125,RZJ125,TRJ125 |
1 | ||
| 72620C - CABLE ASSY, REAR NO.1 SEAT LOCK | ||||
| 72620-60040 |
GRJ125,LJ125,RZJ125,TRJ125 |
1 | ||
| 72649B - SPRING, REAR SEAT CUSHION SUPPORT | ||||
| 72649-60040 |
GRJ12#,KZJ120,LJ12#,RZJ12#,TRJ12#..LHD..(GCC,GEN) |
2 | ||
| 72649B - SPRING, REAR SEAT CUSHION SUPPORT | ||||
| 72649-60040 |
GRJ12#,KZJ120,LJ12#,RZJ12#,TRJ12#..LHD..(GCC,GEN) |
2 | ||
| 72702B - WIRE SUB-ASSY, REAR SEAT RECLINING CONTROL | ||||
| 72702-60060 |
GRJ12#,KZJ120,LJ12#,RZJ12#,TRJ12#..LHD..(GCC,GEN) |
1 | ||
| 72720C - ADJUSTER ASSY, NO.1 SEAT RECLINING, LH | ||||
| 72720-60190 |
GRJ125,LJ125,RZJ125,TRJ125 |
1 | ||
| 72745A - PIN, REAR SEAT RECLINING HINGE | ||||
| 72745-60070 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN |
2 | ||
| 72745A - PIN, REAR SEAT RECLINING HINGE | ||||
| 72745-60070 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN |
2 | ||
| 72779A - GUIDE, REAR SEAT HINGE PAWL | ||||
| 72779-60020 |
GRJ120..(5FC,6F)..(ARL,GCC,GEN);GRJ125,KDJ120,LJ125,RZJ125,TRJ12#;GRJ120,KZJ120,LJ120,RZJ120..LHD..(4FC,5F)..(GCC,GEN) |
2 | ||
| 72779A - GUIDE, REAR SEAT HINGE PAWL | ||||
| 72779-60020 |
GRJ120..(5FC,6F)..(ARL,GCC,GEN);GRJ125,KDJ120,LJ125,RZJ125,TRJ12#;GRJ120,KZJ120,LJ120,RZJ120..LHD..(4FC,5F)..(GCC,GEN) |
2 | ||
| 72840 - ARMREST ASSY, REAR NO.1 SEAT, LH | ||||
| 72830-60180A0 |
LJ12#,RZJ12#,TRJ12#..LHD IVORY,TRIM0# |
1 | ||
| 72830-60180B0 |
LJ12#,RZJ12#,TRJ12#..LHD MD.GRAY,TRIM1# |
1 | ||
| 72881A - SUPPORT, REAR SEAT CENTER ARMREST, LH | ||||
| 72881-60010 |
GRJ12#,KZJ120,LJ12#,RZJ12#,TRJ12#..LHD..(GCC,GEN) |
1 | ||
| 72908 - COVER SUB-ASSY, REAR SEAT TURN, LH | ||||
| 72908-60040A0 |
GRJ125,LJ125,RZJ125,TRJ125 IVORY,TRIM0# |
1 | ||
| 72908-60040B0 |
GRJ125,LJ125,RZJ125,TRJ125 MD. GRAY,TRIM1# |
1 | ||
| 73375B - COVER, REAR SEAT SHOULDER BELT HOLE, LH | ||||
| 73375-60050 |
GRJ125..4FC;GRJ120,KZJ120,LJ120,RZJ12#,TRJ120..LHD..(GCC,GEN) |
1 | ||
| 73709B - BRACKET SUB-ASSY, TETHER ANCHOR | ||||
| 73709-60010 |
GRJ12#,KZJ120,LJ12#,RZJ12#,TRJ12#..LHD..(GCC,GEN) |
1 | ||
| 78917A - CUSHION, FOLD SEAT LEG LOCK | ||||
| 78917-60010 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN |
2 | ||
| 78917A - CUSHION, FOLD SEAT LEG LOCK | ||||
| 78917-60010 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN |
2 | ||
| 78920 - CABLE ASSY, FOLD SEAT LOCK CONTROL, NO.2 | ||||
| 78920-60090B0 |
GRJ125,LJ125,RZJ125,TRJ125 MD. GRAY,TRIM1#,LH SEAT |
1 | ||
| 78920-60100A0 |
GRJ125,LJ125,RZJ125,TRJ125 IVORY,TRIM0#,RH SEAT |
1 | ||
| 78920-60100B0 |
GRJ125,LJ125,RZJ125,TRJ125 MD. GRAY,TRIM1#,RH SEAT |
1 | ||
| 78920-60090A0 |
GRJ125,LJ125,RZJ125,TRJ125 IVORY,TRIM0#,LH SEAT |
1 | ||
| 79170A - SPRING ASSY, NO.1 SEAT CUSUION, LH | ||||
| 79202-60041 |
GRJ125,LJ125,RZJ125,TRJ125 |
1 | ||
| 79202-60040 |
GRJ125,LJ125,RZJ125 |
1 | ||
| 79185 - PAD, NO.1 SEAT BACK, LH | ||||
| 79185-60010 |
GRJ125,LJ125,RZJ125,TRJ125 |
1 | ||
| Common parts | ||||
| 72702-44070 | ||||
| 72702-60080 | ||||
| 90105-12285 | ||||
| 90109-11031 | ||||
| 90119-08970 | ||||
| 90126-10019 | ||||
| 90179-05011 | ||||
| 90179-10015 | ||||
| 90179-11010 | ||||
| 90386-12005 | ||||
| 90468-18071 | ||||
| 91515-81025 | ||||
| 91611-B0812 | ||||
| 93240-56030 | ||||
| 93560-54012 | ||||
| 96160-00800 | ||||
| Linked diagrams | ||||
| 7152 | ||||
ILLUST NO. 1 OF 3(0209- )ARL,GCC,GEN
FRONT SEAT RH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-6A350B0 |
GRJ120,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..GX..(ARL,GCC,GEN) MEDIUM GRAY,TRIM1# |
1 | ||
| 71071-6A350A0 |
GRJ120,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..GX..(ARL,GCC,GEN) IVORY,TRIM0# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-6A540A0 |
RZJ125,TRJ125;KDJ120,KZJ120,LJ12#,RZJ120,TRJ120..GX..(ARL,GEN) SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN,IVORY,TRIM0# |
1 | ||
| 71073-6A540B0 |
RZJ125,TRJ125;KDJ120,KZJ120,LJ12#,RZJ120,TRJ120..GX..(ARL,GEN) SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN,MEDIUM GRAY,TRIM1# |
1 | ||
| 71073-6A610A0 |
GRJ120,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..GX..(ARL,GCC,GEN) IVORY,TRIM0# |
1 | ||
| 71073-6A610B0 |
GRJ120,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..GX..(ARL,GCC,GEN) MEDIUM GRAY,TRIM1# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71501-60210 |
GRJ12#,KZJ120,LJ12#,RZJ12#,TRJ12#..LHD..(GCC,GEN) |
1 | ||
| 71537A - PROTECTOR, FRONT SEAT CUSHION | ||||
| 71537-26010 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN |
4 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-60400 |
GRJ120,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..GX..(ARL,GCC,GEN) |
1 | ||
| 71551-60410 |
RZJ125,TRJ125;KDJ120,KZJ120,LJ12#,RZJ120,TRJ120..GX..(ARL,GEN) SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN |
1 | ||
| 71765B - PROTECTOR, FRONT SEAT BACK, RH | ||||
| 71765-60060 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN |
1 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-60250B1 |
GRJ125,LJ125,RZJ125,TRJ125 MD.GRAY,TRIM1# |
1 | ||
| 71811-60250A0 |
GRJ125,LJ125,RZJ125,TRJ125 IVORY,TRIM0# |
1 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-60250B1 |
GRJ125,LJ125,RZJ125,TRJ125 MD.GRAY,TRIM1# |
1 | ||
| 71811-60250A0 |
GRJ125,LJ125,RZJ125,TRJ125 IVORY,TRIM0# |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-60130B1 |
GRJ125,LJ125,RZJ125,TRJ125 MD.GRAY,TRIM1# |
1 | ||
| 71861-60130A0 |
GRJ125,LJ125,RZJ125,TRJ125 IVORY,TRIM0# |
1 | ||
| 71875A - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-60160A0 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN IVORY,TRIM0# |
1 | ||
| 71875-60160B1 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN MD.GRAY,TRIM1# |
1 | ||
| 71875B - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-58060 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN |
1 | ||
| 71876 - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-60160B1 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN MD.GRAY,TRIM1# |
1 | ||
| 71876-60160A0 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN IVORY,TRIM0# |
1 | ||
| 71876A - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-58060 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-60590A0 |
GRJ120,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..GX..(ARL,GCC,GEN) IVORY,TRIM0# |
2 | ||
| 71910-60590B0 |
GRJ120,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..GX..(ARL,GCC,GEN) MEDIUM GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-42020A0 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN W(LOCK)&W(BUTTON),IVORY,TRIM0# |
2 | ||
| 71931-42020A0 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN W(LOCK)&W/O(BUTTON),IVORY,TRIM0# |
2 | ||
| 71930-42020B6 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN W(LOCK)&W(BUTTON),MD.GRAY,TRIM1# |
2 | ||
| 71931-42020B6 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN W(LOCK)&W/O(BUTTON),MD.GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-42020A0 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN W(LOCK)&W(BUTTON),IVORY,TRIM0# |
2 | ||
| 71931-42020A0 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN W(LOCK)&W/O(BUTTON),IVORY,TRIM0# |
2 | ||
| 71930-42020B6 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN W(LOCK)&W(BUTTON),MD.GRAY,TRIM1# |
2 | ||
| 71931-42020B6 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN W(LOCK)&W/O(BUTTON),MD.GRAY,TRIM1# |
2 | ||
| 72011C - ADJUSTER SUB-ASSY, FRONT SEAT, RH | ||||
| 71110-60060 |
LJ125,RZJ125,TRJ125 |
1 | ||
| 71110-60190 |
LJ125,RZJ125,TRJ125 SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN |
1 | ||
| 72123A - COVER, SEAT TRACK BRACKET, OUTER FRONT RH | ||||
| 72123-60090A0 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN IVORY,TRIM0# |
1 | ||
| 72123-60090B0 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN MD.GRAY,TRIM1# |
1 | ||
| 72127A - COVER, SEAT TRACK BRACKET, INNER FRONT RH | ||||
| 72127-60050A0 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN IVORY,TRIM0# |
1 | ||
| 72127-60050B0 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN MD.GRAY,TRIM1# |
1 | ||
| 72137B - COVER, SEAT TRACK, RH | ||||
| 72137-60100A0 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN IVORY,TRIM0# |
2 | ||
| 72137-60100B0 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN MD.GRAY,TRIM1# |
2 | ||
| 72157 - COVER, SEAT TRACK BRACKET, INNER | ||||
| 72157-60120A0 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN IVORY,TRIM0# |
2 | ||
| 72157-60120B0 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN MD.GRAY,TRIM1# |
2 | ||
| 72211 - HANDLE, SEAT TRACK ADJUSTING | ||||
| 72211-60200 |
GRJ125,LJ125,RZJ125,TRJ125 |
1 | ||
| 72525B - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-60100A0 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN IVORY,TRIM0# |
1 | ||
| 72525-60100B1 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN MD.GRAY,TRIM1# |
1 | ||
| 76519B - CLIP, FRONT SEAT CUSHION COVER | ||||
| 76519-42010 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN |
4 | ||
| 76519B - CLIP, FRONT SEAT CUSHION COVER | ||||
| 76519-42010 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN |
4 | ||
| Common parts | ||||
| 72702-0K100 | ||||
| 90119-10921 | ||||
| 90167-40044 | ||||
| 90179-11010 | ||||
| 90389-10041 | ||||
| 90467-09118 | ||||
| 90468-16019 | ||||
| 90468-18071 | ||||
| 93269-55008 | ||||
| 93560-54012 | ||||
| 93568-55016 | ||||
| Linked diagrams | ||||
| 7152 | ||||
| 8202 | ||||
| 8401 | ||||
| 8421 | ||||
| 8513 | ||||
ILLUST NO. 1 OF 3(0209- )ARL,GCC,GEN
FRONT SEAT RH-W(SRS SIDE AIR BAG)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-6A350B0 |
GRJ120,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..GX..(ARL,GCC,GEN) MEDIUM GRAY,TRIM1# |
1 | ||
| 71071-6A350A0 |
GRJ120,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..GX..(ARL,GCC,GEN) IVORY,TRIM0# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-6A540A0 |
RZJ125,TRJ125;KDJ120,KZJ120,LJ12#,RZJ120,TRJ120..GX..(ARL,GEN) SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN,IVORY,TRIM0# |
1 | ||
| 71073-6A540B0 |
RZJ125,TRJ125;KDJ120,KZJ120,LJ12#,RZJ120,TRJ120..GX..(ARL,GEN) SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN,MEDIUM GRAY,TRIM1# |
1 | ||
| 71073-6A610A0 |
GRJ120,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..GX..(ARL,GCC,GEN) IVORY,TRIM0# |
1 | ||
| 71073-6A610B0 |
GRJ120,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..GX..(ARL,GCC,GEN) MEDIUM GRAY,TRIM1# |
1 | ||
| 71100S - SEAT ASSY, FRONT RH | ||||
| 71100-6B730B4 |
LJ125,RZJ125,TRJ125 SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN,GRAY,TRIM1# |
1 | ||
| 71100-6B730A4 |
LJ125,RZJ125,TRJ125 SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN,IVORY,TRIM0# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71501-60210 |
GRJ12#,KZJ120,LJ12#,RZJ12#,TRJ12#..LHD..(GCC,GEN) |
1 | ||
| 71537A - PROTECTOR, FRONT SEAT CUSHION | ||||
| 71537-26010 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN |
4 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-60400 |
GRJ120,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..GX..(ARL,GCC,GEN) |
1 | ||
| 71551-60410 |
RZJ125,TRJ125;KDJ120,KZJ120,LJ12#,RZJ120,TRJ120..GX..(ARL,GEN) SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN |
1 | ||
| 71765B - PROTECTOR, FRONT SEAT BACK, RH | ||||
| 71765-60060 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN |
1 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-60250B1 |
GRJ125,LJ125,RZJ125,TRJ125 MD.GRAY,TRIM1# |
1 | ||
| 71811-60250A0 |
GRJ125,LJ125,RZJ125,TRJ125 IVORY,TRIM0# |
1 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-60250B1 |
GRJ125,LJ125,RZJ125,TRJ125 MD.GRAY,TRIM1# |
1 | ||
| 71811-60250A0 |
GRJ125,LJ125,RZJ125,TRJ125 IVORY,TRIM0# |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-60130B1 |
GRJ125,LJ125,RZJ125,TRJ125 MD.GRAY,TRIM1# |
1 | ||
| 71861-60130A0 |
GRJ125,LJ125,RZJ125,TRJ125 IVORY,TRIM0# |
1 | ||
| 71875A - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-60160A0 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN IVORY,TRIM0# |
1 | ||
| 71875-60160B1 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN MD.GRAY,TRIM1# |
1 | ||
| 71875B - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-58060 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN |
1 | ||
| 71876 - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-60160B1 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN MD.GRAY,TRIM1# |
1 | ||
| 71876-60160A0 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN IVORY,TRIM0# |
1 | ||
| 71876A - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-58060 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-60590A0 |
GRJ120,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..GX..(ARL,GCC,GEN) IVORY,TRIM0# |
2 | ||
| 71910-60590B0 |
GRJ120,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..GX..(ARL,GCC,GEN) MEDIUM GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-42020A0 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN W(LOCK)&W(BUTTON),IVORY,TRIM0# |
2 | ||
| 71931-42020A0 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN W(LOCK)&W/O(BUTTON),IVORY,TRIM0# |
2 | ||
| 71930-42020B6 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN W(LOCK)&W(BUTTON),MD.GRAY,TRIM1# |
2 | ||
| 71931-42020B6 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN W(LOCK)&W/O(BUTTON),MD.GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-42020A0 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN W(LOCK)&W(BUTTON),IVORY,TRIM0# |
2 | ||
| 71931-42020A0 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN W(LOCK)&W/O(BUTTON),IVORY,TRIM0# |
2 | ||
| 71930-42020B6 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN W(LOCK)&W(BUTTON),MD.GRAY,TRIM1# |
2 | ||
| 71931-42020B6 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN W(LOCK)&W/O(BUTTON),MD.GRAY,TRIM1# |
2 | ||
| 72011C - ADJUSTER SUB-ASSY, FRONT SEAT, RH | ||||
| 71110-60060 |
LJ125,RZJ125,TRJ125 |
1 | ||
| 71110-60190 |
LJ125,RZJ125,TRJ125 SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN |
1 | ||
| 72123A - COVER, SEAT TRACK BRACKET, OUTER FRONT RH | ||||
| 72123-60090A0 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN IVORY,TRIM0# |
1 | ||
| 72123-60090B0 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN MD.GRAY,TRIM1# |
1 | ||
| 72127A - COVER, SEAT TRACK BRACKET, INNER FRONT RH | ||||
| 72127-60050A0 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN IVORY,TRIM0# |
1 | ||
| 72127-60050B0 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN MD.GRAY,TRIM1# |
1 | ||
| 72137B - COVER, SEAT TRACK, RH | ||||
| 72137-60100A0 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN IVORY,TRIM0# |
2 | ||
| 72137-60100B0 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN MD.GRAY,TRIM1# |
2 | ||
| 72157 - COVER, SEAT TRACK BRACKET, INNER | ||||
| 72157-60120A0 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN IVORY,TRIM0# |
2 | ||
| 72157-60120B0 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN MD.GRAY,TRIM1# |
2 | ||
| 72211 - HANDLE, SEAT TRACK ADJUSTING | ||||
| 72211-60200 |
GRJ125,LJ125,RZJ125,TRJ125 |
1 | ||
| 72525B - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-60100A0 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN IVORY,TRIM0# |
1 | ||
| 72525-60100B1 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN MD.GRAY,TRIM1# |
1 | ||
| 73910A - AIR BAG ASSY, FRONT SEAT, RH | ||||
| 73910-58010 |
GRJ12#,LJ12#,RZJ125,TRJ125..GCC,GEN;KDJ120,KZJ120,RZJ120,TRJ120..ARL,GEN SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN |
1 | ||
| 76519B - CLIP, FRONT SEAT CUSHION COVER | ||||
| 76519-42010 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN |
4 | ||
| 76519B - CLIP, FRONT SEAT CUSHION COVER | ||||
| 76519-42010 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN |
4 | ||
| Common parts | ||||
| 90119-10921 | ||||
| 90167-40044 | ||||
| 90179-11010 | ||||
| 90389-10041 | ||||
| 90467-09118 | ||||
| 90468-16019 | ||||
| 90468-18071 | ||||
| 93269-55008 | ||||
| 93560-54012 | ||||
| 93568-55016 | ||||
| 94170-60600 | ||||
| 94185-60600 | ||||
| Linked diagrams | ||||
| 7152 | ||||
| 8202 | ||||
| 8401 | ||||
| 8421 | ||||
| 8513 | ||||
ILLUST NO. 1 OF 3(0209- )ARL,GCC,GEN
FRONT SEAT LH-W(SRS SIDE AIR BAG)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-60870B0 |
GRJ120,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..GX..(ARL,GCC,GEN) MEDIUM GRAY,TRIM1# |
1 | ||
| 71072-60870A0 |
GRJ120,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..GX..(ARL,GCC,GEN) IVORY,TRIM0# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71073-6A610B0 |
GRJ120,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..GX..(ARL,GCC,GEN) MEDIUM GRAY,TRIM1# |
1 | ||
| 71074-6A060A0 |
RZJ125,TRJ125;KDJ120,KZJ120,LJ12#,RZJ120,TRJ120..GX..(ARL,GEN) SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN,IVORY,TRIM0# |
1 | ||
| 71073-6A610A0 |
GRJ120,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..GX..(ARL,GCC,GEN) IVORY,TRIM0# |
1 | ||
| 71074-6A060B0 |
RZJ125,TRJ125;KDJ120,KZJ120,LJ12#,RZJ120,TRJ120..GX..(ARL,GEN) SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN,MEDIUM GRAY,TRIM1# |
1 | ||
| 71200S - SEAT ASSY, FRONT LH | ||||
| 71200-6C080A4 |
RZJ120,TRJ120..LHD..GEN;LJ12#,RZJ125,TRJ125..LHD SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN,IVORY,TRIM0# |
1 | ||
| 71200-6C080B4 |
RZJ120,TRJ120..LHD..GEN;LJ12#,RZJ125,TRJ125..LHD SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN,GRAY,TRIM1# |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71501-60200 |
GRJ12#,KZJ120,LJ12#,RZJ12#,TRJ12#..LHD..(GCC,GEN) |
1 | ||
| 71537A - PROTECTOR, FRONT SEAT CUSHION | ||||
| 71537-26010 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN |
4 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71551-60400 |
GRJ120,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..GX..(ARL,GCC,GEN) |
1 | ||
| 71552-60290 |
RZJ125,TRJ125;KDJ120,KZJ120,LJ12#,RZJ120,TRJ120..GX..(ARL,GEN) SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN |
1 | ||
| 71766B - PROTECTOR, FRONT SEAT BACK, LH | ||||
| 71765-60060 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-60200B1 |
LJ12#,RZJ12#,TRJ12#;GRJ120,KDJ120,KZJ120..ARL MD.GRAY,TRIM1# |
1 | ||
| 71812-60200A0 |
LJ12#,RZJ12#,TRJ12#;GRJ120,KDJ120,KZJ120..ARL IVORY,TRIM0# |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-60200B1 |
LJ12#,RZJ12#,TRJ12#;GRJ120,KDJ120,KZJ120..ARL MD.GRAY,TRIM1# |
1 | ||
| 71812-60200A0 |
LJ12#,RZJ12#,TRJ12#;GRJ120,KDJ120,KZJ120..ARL IVORY,TRIM0# |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-60110A0 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN IVORY,TRIM0# |
1 | ||
| 71862-60110B1 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN MD.GRAY,TRIM1# |
1 | ||
| 71875C - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-60160B1 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN MD.GRAY,TRIM1# |
1 | ||
| 71875-60160A0 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN IVORY,TRIM0# |
1 | ||
| 71875D - COVER, RECLINING ADJUSTER OUTSIDE, RH | ||||
| 71875-58060 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN |
1 | ||
| 71876B - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-60160A0 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN IVORY,TRIM0# |
1 | ||
| 71876-60160B1 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN MD.GRAY,TRIM1# |
1 | ||
| 71876C - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-58060 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-60590A0 |
GRJ120,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..GX..(ARL,GCC,GEN) IVORY,TRIM0# |
2 | ||
| 71910-60590B0 |
GRJ120,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..GX..(ARL,GCC,GEN) MEDIUM GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-42020A0 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN W(LOCK)&W(BUTTON),IVORY,TRIM0# |
2 | ||
| 71931-42020A0 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN W(LOCK)&W/O(BUTTON),IVORY,TRIM0# |
2 | ||
| 71930-42020B6 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN W(LOCK)&W(BUTTON),MD.GRAY,TRIM1# |
2 | ||
| 71931-42020B6 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN W(LOCK)&W/O(BUTTON),MD.GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-42020A0 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN W(LOCK)&W(BUTTON),IVORY,TRIM0# |
2 | ||
| 71931-42020A0 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN W(LOCK)&W/O(BUTTON),IVORY,TRIM0# |
2 | ||
| 71930-42020B6 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN W(LOCK)&W(BUTTON),MD.GRAY,TRIM1# |
2 | ||
| 71931-42020B6 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN W(LOCK)&W/O(BUTTON),MD.GRAY,TRIM1# |
2 | ||
| 72012C - ADJUSTER SUB-ASSY, FRONT SEAT, LH | ||||
| 71120-60140 |
LJ12#,RZJ12#,TRJ12#..LHD SRS AIR BAG-DRIVER & PASSENGER |
1 | ||
| 71120-60240 |
RZJ120,TRJ120..LHD..GEN;LJ12#,RZJ125,TRJ125..LHD SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN |
1 | ||
| 71120-60300 |
GRJ120,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..GX..(ARL,GCC,GEN) |
1 | ||
| 72124 - COVER, SEAT TRACK BRACKET, OUTER FRONT LH | ||||
| 72124-60060A0 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN IVORY,TRIM0# |
1 | ||
| 72124-60060B0 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN MD.GRAY,TRIM1# |
1 | ||
| 72128A - COVER, SEAT TRACK BRACKET, INNER FRONT LH | ||||
| 72128-60040A0 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN IVORY,TRIM0# |
1 | ||
| 72128-60040B0 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN MD.GRAY,TRIM1# |
1 | ||
| 72137B - COVER, SEAT TRACK, RH | ||||
| 72137-60100A0 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN IVORY,TRIM0# |
2 | ||
| 72137-60100B0 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN MD.GRAY,TRIM1# |
2 | ||
| 72157 - COVER, SEAT TRACK BRACKET, INNER | ||||
| 72157-60120A0 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN IVORY,TRIM0# |
2 | ||
| 72157-60120B0 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN MD.GRAY,TRIM1# |
2 | ||
| 72211B - HANDLE, SEAT TRACK ADJUSTING | ||||
| 72212-60120 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN |
1 | ||
| 72498 - COVER, VERTICAL ADJUSTER BRACKET | ||||
| 72498-60020 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN |
1 | ||
| 72526A - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-60070B1 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN MD.GRAY,TRIM1# |
1 | ||
| 72526-60070A0 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN IVORY,TRIM0# |
1 | ||
| 73920A - AIR BAG ASSY, FRONT SEAT, LH | ||||
| 73920-58010 |
GRJ12#,LJ12#,RZJ125,TRJ125..GCC,GEN;KDJ120,KZJ120,RZJ120,TRJ120..ARL,GEN SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN |
1 | ||
| 76519B - CLIP, FRONT SEAT CUSHION COVER | ||||
| 76519-42010 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN |
4 | ||
| 76519B - CLIP, FRONT SEAT CUSHION COVER | ||||
| 76519-42010 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN |
4 | ||
| Common parts | ||||
| 90119-10921 | ||||
| 90167-40044 | ||||
| 90179-11010 | ||||
| 90389-10041 | ||||
| 90467-09118 | ||||
| 90468-16019 | ||||
| 90468-18071 | ||||
| 93269-55008 | ||||
| 93560-54012 | ||||
| 93568-55016 | ||||
| 94170-60600 | ||||
| 94185-60600 | ||||
| Linked diagrams | ||||
| 7152 | ||||
| 8202 | ||||
| 8401 | ||||
| 8421 | ||||
| 8513 | ||||

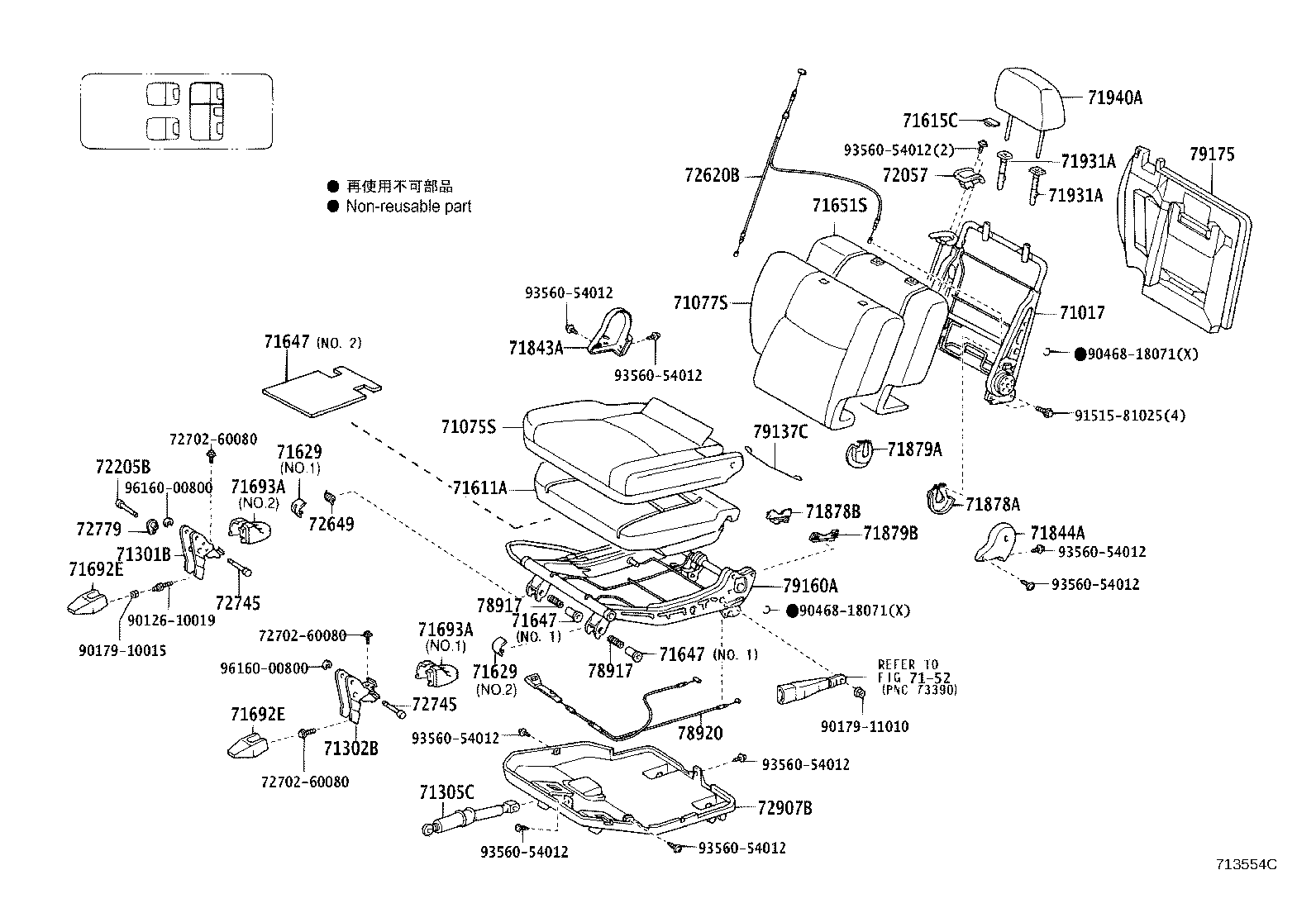

ILLUST NO. 2 OF 3(0209- )GRJ125,LJ125,RZJ125,TRJ125
REAR SEAT RH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71017 - FRAME SUB-ASSY, REAR SEAT BACK, RH | ||||
| 71017-60540 |
GRJ125,LJ125,RZJ125,TRJ125 |
1 | ||
| 71075S - COVER, REAR SEAT CUSHION, RH (FOR SEPARATE TYPE) | ||||
| 71075-6A150B1 |
LJ125,RZJ125,TRJ125 MEDIUM GRAY,TRIM1# |
1 | ||
| 71075-6A150A1 |
LJ125,RZJ125,TRJ125 IVORY,TRIM0# |
1 | ||
| 71077S - COVER, REAR SEAT BACK, RH (FOR SEPARATE TYPE) | ||||
| 71077-6A520B1 |
LJ125,RZJ125,TRJ125 MEDIUM GRAY,TRIM1# |
1 | ||
| 71077-6A520A1 |
LJ125,RZJ125,TRJ125 IVORY,TRIM0# |
1 | ||
| 71301B - HINGE SUB-ASSY, REAR NO.1 SEAT, RH | ||||
| 71302-60060 |
GRJ12#,KZJ120,LJ12#,RZJ12# |
1 | ||
| 71302B - HINGE SUB-ASSY, REAR NO.1 SEAT, LH | ||||
| 71301-60070 |
GRJ12#,KZJ120,LJ12#,RZJ12#..LHD |
1 | ||
| 71305C - STAY SUB-ASSY, REAR SEAT | ||||
| 71305-60060 |
GRJ12#,KZJ120,LJ12#,RZJ12#,TRJ12#..LHD..(GCC,GEN) |
1 | ||
| 71611A - PAD, REAR SEAT CUSHION, RH | ||||
| 71611-60370 |
GRJ125,LJ125,RZJ125,TRJ125 |
1 | ||
| 71615C - COVER, REAR SEAT LOCK STRIKER | ||||
| 72615-48010B8 |
GRJ125,LJ125,RZJ125,TRJ125 MD.GRAY,TRIM1# |
1 | ||
| 72615-48010A0 |
GRJ125,LJ125,RZJ125,TRJ125 IVORY,TRIM0# |
1 | ||
| 71629 - COVER, REAR SEAT CUSHION HINGE | ||||
| 71629-60350B0 |
GRJ12#,KZJ120,LJ12#,RZJ12#..LHD MD. GRAY,TRIM1#,NO.1 |
1 | ||
| 71629-60350A0 |
GRJ12#,KZJ120,LJ12#,RZJ12#..LHD IVORY,TRIM0#,NO.1 |
1 | ||
| 71629-60360A0 |
GRJ12#,KZJ120,LJ12#,RZJ12#..LHD IVORY,TRIM0#,NO.2 |
1 | ||
| 71629-60360B0 |
GRJ12#,KZJ120,LJ12#,RZJ12#..LHD MD. GRAY,TRIM1#,NO.2 |
1 | ||
| 71629 - COVER, REAR SEAT CUSHION HINGE | ||||
| 71629-60350B0 |
GRJ12#,KZJ120,LJ12#,RZJ12#..LHD MD. GRAY,TRIM1#,NO.1 |
1 | ||
| 71629-60350A0 |
GRJ12#,KZJ120,LJ12#,RZJ12#..LHD IVORY,TRIM0#,NO.1 |
1 | ||
| 71629-60360A0 |
GRJ12#,KZJ120,LJ12#,RZJ12#..LHD IVORY,TRIM0#,NO.2 |
1 | ||
| 71629-60360B0 |
GRJ12#,KZJ120,LJ12#,RZJ12#..LHD MD. GRAY,TRIM1#,NO.2 |
1 | ||
| 71647 - PROTECTOR, REAR SEAT CUSHION EDGE | ||||
| 71647-60230 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN NO.1 |
2 | ||
| 71647-60240 |
GRJ12#,KZJ120,LJ12#,RZJ12#,TRJ12#..LHD..(GCC,GEN) NO.2 |
1 | ||
| 71647 - PROTECTOR, REAR SEAT CUSHION EDGE | ||||
| 71647-60230 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN NO.1 |
2 | ||
| 71647-60240 |
GRJ12#,KZJ120,LJ12#,RZJ12#,TRJ12#..LHD..(GCC,GEN) NO.2 |
1 | ||
| 71647 - PROTECTOR, REAR SEAT CUSHION EDGE | ||||
| 71647-60230 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN NO.1 |
2 | ||
| 71647-60240 |
GRJ12#,KZJ120,LJ12#,RZJ12#,TRJ12#..LHD..(GCC,GEN) NO.2 |
1 | ||
| 71651S - PAD, REAR SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71651-60330 |
GRJ125,LJ125,RZJ125,TRJ125 |
1 | ||
| 71692E - COVER, REAR SEAT CUSHION HINGE, NO.2 | ||||
| 71692-60040B0 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN MD.GRAY,TRIM1# |
4 | ||
| 71692-60040A0 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN IVORY,TRIM0# |
4 | ||
| 71692E - COVER, REAR SEAT CUSHION HINGE, NO.2 | ||||
| 71692-60040B0 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN MD.GRAY,TRIM1# |
4 | ||
| 71692-60040A0 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN IVORY,TRIM0# |
4 | ||
| 71693A - COVER, REAR SEAT CUSHION HINGE, NO.3 | ||||
| 71693-60060B0 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN MD.GRAY,TRIM1#,NO.1 |
2 | ||
| 71693-60070A0 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN IVORY,TRIM0#,NO.2 |
1 | ||
| 71693-60060A0 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN IVORY,TRIM0#,NO.1 |
2 | ||
| 71693-60080A0 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN IVORY,TRIM0#,NO.3 |
1 | ||
| 71693-60080B0 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN MD.GRAY,TRIM1#,NO.3 |
1 | ||
| 71693-60070B0 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN MD.GRAY,TRIM1#,NO.2 |
1 | ||
| 71693A - COVER, REAR SEAT CUSHION HINGE, NO.3 | ||||
| 71693-60060B0 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN MD.GRAY,TRIM1#,NO.1 |
2 | ||
| 71693-60070A0 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN IVORY,TRIM0#,NO.2 |
1 | ||
| 71693-60060A0 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN IVORY,TRIM0#,NO.1 |
2 | ||
| 71693-60080A0 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN IVORY,TRIM0#,NO.3 |
1 | ||
| 71693-60080B0 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN MD.GRAY,TRIM1#,NO.3 |
1 | ||
| 71693-60070B0 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN MD.GRAY,TRIM1#,NO.2 |
1 | ||
| 71843A - COVER, REAR SEAT RECLINING, NO.2 RH | ||||
| 71843-60040B0 |
GRJ125,LJ125,RZJ125,TRJ125 MD. GRAY,TRIM1# |
1 | ||
| 71843-60040A0 |
GRJ125,LJ125,RZJ125,TRJ125 IVORY,TRIM0# |
1 | ||
| 71844A - COVER, REAR SEAT RECLINING, NO.2 LH | ||||
| 71834-60130A0 |
GRJ12#,KZJ120,LJ12#,RZJ12#,TRJ12#..LHD..(GCC,GEN) IVORY,TRIM0# |
1 | ||
| 71834-60130B0 |
GRJ12#,KZJ120,LJ12#,RZJ12#,TRJ12#..LHD..(GCC,GEN) MD. GRAY,TRIM1# |
1 | ||
| 71878A - COVER, REAR SEAT RECLINING, INNER RH | ||||
| 71878-60130 |
GRJ12#,KZJ120,LJ12#,RZJ12#,TRJ12#..LHD..(GCC,GEN) |
1 | ||
| 71878B - COVER, REAR SEAT RECLINING, INNER RH | ||||
| 71878-60140A0 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN IVORY,TRIM0# |
1 | ||
| 71878-60140B0 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN MD. GRAY,TRIM1# |
1 | ||
| 71879A - COVER, REAR SEAT RECLINING, INNER LH | ||||
| 71879-60110C0 |
GRJ12#,KZJ120,LJ12#,RZJ12#..LHD BLACK,TRIM0#,1# |
1 | ||
| 71879B - COVER, REAR SEAT RECLINING, INNER LH | ||||
| 71879-60120A0 |
GRJ12#,KZJ120,LJ12#,RZJ12#,TRJ12#..LHD..(GCC,GEN) IVORY,TRIM0# |
1 | ||
| 71879-60120B0 |
GRJ12#,KZJ120,LJ12#,RZJ12#,TRJ12#..LHD..(GCC,GEN) MD. GRAY,TRIM1# |
1 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-42020A0 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN W(LOCK)&W(BUTTON),IVORY,TRIM0# |
3 | ||
| 71930-42020B6 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN W(LOCK)&W(BUTTON),MD.GRAY,TRIM1# |
3 | ||
| 71931-42020A0 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN W(LOCK)&W/O(BUTTON),IVORY,TRIM0# |
3 | ||
| 71931-42020B6 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN W(LOCK)&W/O(BUTTON),MD.GRAY,TRIM1# |
3 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-42020A0 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN W(LOCK)&W(BUTTON),IVORY,TRIM0# |
3 | ||
| 71930-42020B6 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN W(LOCK)&W(BUTTON),MD.GRAY,TRIM1# |
3 | ||
| 71931-42020A0 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN W(LOCK)&W/O(BUTTON),IVORY,TRIM0# |
3 | ||
| 71931-42020B6 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN W(LOCK)&W/O(BUTTON),MD.GRAY,TRIM1# |
3 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-60340B0 |
GRJ120,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..GX..(ARL,GCC,GEN) MEDIUM GRAY,TRIM1# |
2 | ||
| 71940-60340A0 |
GRJ120,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..GX..(ARL,GCC,GEN) IVORY,TRIM0# |
2 | ||
| 72057 - LEVER SUB-ASSY, REAR SEAT LOCK CONTROL, RH | ||||
| 72057-60080B0 |
GRJ125,LJ125,RZJ125,TRJ125 MD.GRAY,TRIM1# |
1 | ||
| 72057-60080A0 |
GRJ125,LJ125,RZJ125,TRJ125 IVORY,TRIM0# |
1 | ||
| 72205B - PIN SUB-ASSY, SEAT TRACK OPEN LEVER | ||||
| 72205-60070 |
GRJ12#,KZJ120,LJ12#,RZJ12#..LHD |
1 | ||
| 72205-60070 |
GRJ12#,KZJ120,LJ12#,RZJ12#..LHD..(4FC,5F)..(GCC,GEN) |
2 | ||
| 72620B - CABLE ASSY, REAR NO.1 SEAT LOCK | ||||
| 72620-60020 |
GRJ125,LJ125,RZJ125,TRJ125 |
1 | ||
| 72649 - SPRING, REAR SEAT CUSHION SUPPORT | ||||
| 72649-60100 |
GRJ12#,KZJ120,LJ12#,RZJ12#..LHD |
1 | ||
| 72649-35010 |
GRJ12#,KZJ120,LJ12#,RZJ12#,TRJ12#..LHD..(GCC,GEN) |
2 | ||
| 72745 - PIN, REAR SEAT RECLINING HINGE | ||||
| 72745-60070 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN |
2 | ||
| 72745 - PIN, REAR SEAT RECLINING HINGE | ||||
| 72745-60070 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN |
2 | ||
| 72779 - GUIDE, REAR SEAT HINGE PAWL | ||||
| 72779-60020 |
GRJ12#,KZJ120,LJ12#,RZJ12#..LHD |
1 | ||
| 72779-60020 |
GRJ12#,KZJ120,LJ12#,RZJ12#..LHD..(4FC,5F)..(GCC,GEN) |
2 | ||
| 72907B - COVER SUB-ASSY, REAR SEAT CUSHION UNDER, RH | ||||
| 72907-60100A0 |
GRJ125,LJ125,RZJ125,TRJ125 IVORY,TRIM0# |
1 | ||
| 72907-60100B0 |
GRJ125,LJ125,RZJ125,TRJ125 MD. GRAY,TRIM1# |
1 | ||
| 78917 - CUSHION, FOLD SEAT LEG LOCK | ||||
| 78917-60010 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN |
2 | ||
| 78917 - CUSHION, FOLD SEAT LEG LOCK | ||||
| 78917-60010 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN |
2 | ||
| 78920 - CABLE ASSY, FOLD SEAT LOCK CONTROL, NO.2 | ||||
| 78920-60090B0 |
GRJ125,LJ125,RZJ125,TRJ125 MD. GRAY,TRIM1#,LH SEAT |
1 | ||
| 78920-60100A0 |
GRJ125,LJ125,RZJ125,TRJ125 IVORY,TRIM0#,RH SEAT |
1 | ||
| 78920-60100B0 |
GRJ125,LJ125,RZJ125,TRJ125 MD. GRAY,TRIM1#,RH SEAT |
1 | ||
| 78920-60090A0 |
GRJ125,LJ125,RZJ125,TRJ125 IVORY,TRIM0#,LH SEAT |
1 | ||
| 79160A - SPRING ASSY, NO.1 SEAT CUSHION, RH | ||||
| 79201-60040 |
GRJ125,LJ125,RZJ125 |
1 | ||
| 79201-60041 |
GRJ125,LJ125,RZJ125,TRJ125 |
1 | ||
| 79175 - PAD, NO.1 SEAT BACK | ||||
| 79175-60010 |
GRJ125,LJ125,RZJ125,TRJ125 |
1 | ||
| Common parts | ||||
| 72702-60080 | ||||
| 90126-10019 | ||||
| 90179-10015 | ||||
| 90179-11010 | ||||
| 90468-18071 | ||||
| 91515-81025 | ||||
| 93560-54012 | ||||
| 96160-00800 | ||||
| Linked diagrams | ||||
| 7152 | ||||
ILLUST NO. 1 OF 3(0209- )ARL,GCC,GEN
FRONT SEAT LH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-60870B0 |
GRJ120,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..GX..(ARL,GCC,GEN) MEDIUM GRAY,TRIM1# |
1 | ||
| 71072-60870A0 |
GRJ120,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..GX..(ARL,GCC,GEN) IVORY,TRIM0# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71073-6A610B0 |
GRJ120,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..GX..(ARL,GCC,GEN) MEDIUM GRAY,TRIM1# |
1 | ||
| 71074-6A060A0 |
RZJ125,TRJ125;KDJ120,KZJ120,LJ12#,RZJ120,TRJ120..GX..(ARL,GEN) SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN,IVORY,TRIM0# |
1 | ||
| 71073-6A610A0 |
GRJ120,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..GX..(ARL,GCC,GEN) IVORY,TRIM0# |
1 | ||
| 71074-6A060B0 |
RZJ125,TRJ125;KDJ120,KZJ120,LJ12#,RZJ120,TRJ120..GX..(ARL,GEN) SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN,MEDIUM GRAY,TRIM1# |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71501-60200 |
GRJ12#,KZJ120,LJ12#,RZJ12#,TRJ12#..LHD..(GCC,GEN) |
1 | ||
| 71537A - PROTECTOR, FRONT SEAT CUSHION | ||||
| 71537-26010 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN |
4 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71551-60400 |
GRJ120,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..GX..(ARL,GCC,GEN) |
1 | ||
| 71552-60290 |
RZJ125,TRJ125;KDJ120,KZJ120,LJ12#,RZJ120,TRJ120..GX..(ARL,GEN) SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN |
1 | ||
| 71766B - PROTECTOR, FRONT SEAT BACK, LH | ||||
| 71765-60060 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-60200B1 |
LJ12#,RZJ12#,TRJ12#;GRJ120,KDJ120,KZJ120..ARL MD.GRAY,TRIM1# |
1 | ||
| 71812-60200A0 |
LJ12#,RZJ12#,TRJ12#;GRJ120,KDJ120,KZJ120..ARL IVORY,TRIM0# |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-60200B1 |
LJ12#,RZJ12#,TRJ12#;GRJ120,KDJ120,KZJ120..ARL MD.GRAY,TRIM1# |
1 | ||
| 71812-60200A0 |
LJ12#,RZJ12#,TRJ12#;GRJ120,KDJ120,KZJ120..ARL IVORY,TRIM0# |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-60110A0 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN IVORY,TRIM0# |
1 | ||
| 71862-60110B1 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN MD.GRAY,TRIM1# |
1 | ||
| 71875C - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-60160B1 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN MD.GRAY,TRIM1# |
1 | ||
| 71875-60160A0 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN IVORY,TRIM0# |
1 | ||
| 71875D - COVER, RECLINING ADJUSTER OUTSIDE, RH | ||||
| 71875-58060 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN |
1 | ||
| 71876B - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-60160A0 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN IVORY,TRIM0# |
1 | ||
| 71876-60160B1 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN MD.GRAY,TRIM1# |
1 | ||
| 71876C - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-58060 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-60590A0 |
GRJ120,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..GX..(ARL,GCC,GEN) IVORY,TRIM0# |
2 | ||
| 71910-60590B0 |
GRJ120,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..GX..(ARL,GCC,GEN) MEDIUM GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-42020A0 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN W(LOCK)&W(BUTTON),IVORY,TRIM0# |
2 | ||
| 71931-42020A0 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN W(LOCK)&W/O(BUTTON),IVORY,TRIM0# |
2 | ||
| 71930-42020B6 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN W(LOCK)&W(BUTTON),MD.GRAY,TRIM1# |
2 | ||
| 71931-42020B6 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN W(LOCK)&W/O(BUTTON),MD.GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-42020A0 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN W(LOCK)&W(BUTTON),IVORY,TRIM0# |
2 | ||
| 71931-42020A0 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN W(LOCK)&W/O(BUTTON),IVORY,TRIM0# |
2 | ||
| 71930-42020B6 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN W(LOCK)&W(BUTTON),MD.GRAY,TRIM1# |
2 | ||
| 71931-42020B6 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN W(LOCK)&W/O(BUTTON),MD.GRAY,TRIM1# |
2 | ||
| 72012C - ADJUSTER SUB-ASSY, FRONT SEAT, LH | ||||
| 71120-60140 |
LJ12#,RZJ12#,TRJ12#..LHD SRS AIR BAG-DRIVER & PASSENGER |
1 | ||
| 71120-60240 |
RZJ120,TRJ120..LHD..GEN;LJ12#,RZJ125,TRJ125..LHD SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN |
1 | ||
| 71120-60300 |
GRJ120,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..GX..(ARL,GCC,GEN) |
1 | ||
| 72124 - COVER, SEAT TRACK BRACKET, OUTER FRONT LH | ||||
| 72124-60060A0 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN IVORY,TRIM0# |
1 | ||
| 72124-60060B0 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN MD.GRAY,TRIM1# |
1 | ||
| 72128A - COVER, SEAT TRACK BRACKET, INNER FRONT LH | ||||
| 72128-60040A0 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN IVORY,TRIM0# |
1 | ||
| 72128-60040B0 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN MD.GRAY,TRIM1# |
1 | ||
| 72137B - COVER, SEAT TRACK, RH | ||||
| 72137-60100A0 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN IVORY,TRIM0# |
2 | ||
| 72137-60100B0 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN MD.GRAY,TRIM1# |
2 | ||
| 72157 - COVER, SEAT TRACK BRACKET, INNER | ||||
| 72157-60120A0 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN IVORY,TRIM0# |
2 | ||
| 72157-60120B0 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN MD.GRAY,TRIM1# |
2 | ||
| 72211B - HANDLE, SEAT TRACK ADJUSTING | ||||
| 72212-60120 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN |
1 | ||
| 72498 - COVER, VERTICAL ADJUSTER BRACKET | ||||
| 72498-60020 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN |
1 | ||
| 72526A - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-60070B1 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN MD.GRAY,TRIM1# |
1 | ||
| 72526-60070A0 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN IVORY,TRIM0# |
1 | ||
| 76519B - CLIP, FRONT SEAT CUSHION COVER | ||||
| 76519-42010 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN |
4 | ||
| 76519B - CLIP, FRONT SEAT CUSHION COVER | ||||
| 76519-42010 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN |
4 | ||
| Common parts | ||||
| 90119-10921 | ||||
| 90167-40044 | ||||
| 90179-11010 | ||||
| 90389-10041 | ||||
| 90467-09118 | ||||
| 90468-16019 | ||||
| 90468-18071 | ||||
| 93269-55008 | ||||
| 93560-54012 | ||||
| 93568-55016 | ||||
| Linked diagrams | ||||
| 7152 | ||||
| 8202 | ||||
| 8401 | ||||
| 8421 | ||||
| 8513 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
