RZJ125L-GJPEKV (2002)
Toyota Land Cruiser Prado

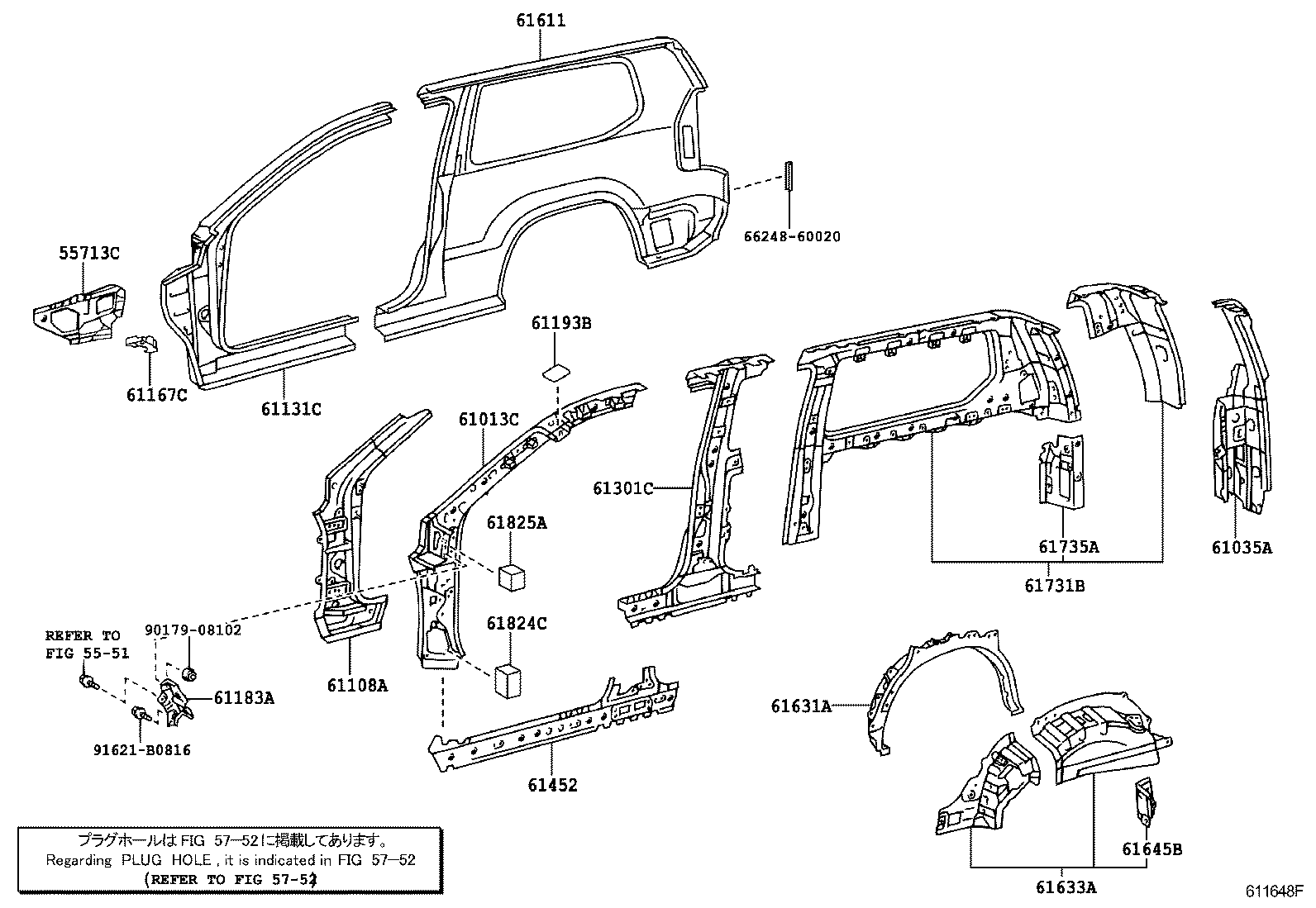

(0209- )GRJ125,LJ125,RZJ125,TRJ125
RH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55713C - PANEL, COWL TOP SIDE, RH | ||||
| 55713-60060 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN |
1 | ||
| 61013C - PANEL SUB-ASSY, SIDE, INNER RH | ||||
| 61013-60020 |
GRJ125,LJ125,RZJ125,TRJ125 |
1 | ||
| 61035A - REINFORCEMENT SUB-ASSY, BACK DOOR OPENING, RH | ||||
| 61033-60120 |
GRJ125,LJ125,RZJ125,TRJ125 |
1 | ||
| 61108A - REINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH | ||||
| 61108-60060 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN |
1 | ||
| 61131C - PILLAR, FRONT BODY, OUTER RH | ||||
| 61027-60450 |
GRJ125,LJ125,RZJ125 OVER FENDER & CHROME PLATED SPEC |
1 | ||
| 61027-60460 |
GRJ125,LJ125,RZJ125 |
1 | ||
| 61027-60451 |
GRJ125,LJ125,RZJ125,TRJ125 OVER FENDER & CHROME PLATED SPEC |
1 | ||
| 61027-60461 |
GRJ125,LJ125,RZJ125,TRJ125 |
1 | ||
| 61167C - BRACKET, FRONT BODY PILLAR TO COWL TOP, RH | ||||
| 61167-60060 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN |
1 | ||
| 61183A - BRACKET, INSTRUMENT PANEL SIDE, NO.2 RH | ||||
| 61183-35040 |
GRJ12#,KZJ120,LJ12#,RZJ12#,TRJ12#..LHD..(GCC,GEN) |
1 | ||
| 61193B - COVER, FRONT PILLAR SERVICE HOLE | ||||
| 61193-60030 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN |
2 | ||
| 61301C - PILLAR SUB-ASSY, CENTER BODY, OUTER RH | ||||
| 61301-60901 |
GRJ125,LJ125,RZJ125,TRJ125 |
1 | ||
| 61452 - PANEL, ROCKER INNER, FRONT RH | ||||
| 61452-60020 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN |
1 | ||
| 61611 - PANEL, QUARTER, RH | ||||
| 60161-60820 |
GRJ125,LJ125,RZJ125,TRJ125 |
1 | ||
| 60161-60810 |
GRJ125,LJ125,RZJ125,TRJ125 OVER FENDER & CHROME PLATED SPEC |
1 | ||
| 61631A - PANEL, QUARTER WHEEL HOUSE, OUTER RH | ||||
| 61631-60060 |
GRJ125,LJ125,RZJ125,TRJ125 |
1 | ||
| 61631-60910 |
GRJ125,LJ125,RZJ125,TRJ125 SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN |
1 | ||
| 61633A - PANEL, QUARTER WHEEL HOUSE, INNER RH | ||||
| 61633-60903 |
GRJ125,LJ125,RZJ125,TRJ125 |
1 | ||
| 61645B - GUSSET, QUARTER WHEEL HOUSE, REAR RH | ||||
| 61645-60050 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN |
1 | ||
| 61731B - PANEL, ROOF SIDE, INNER RH | ||||
| 61705-60790 |
GRJ125,LJ125,RZJ125,TRJ125 SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN |
1 | ||
| 61705-60780 |
GRJ125,LJ125,RZJ125,TRJ125 |
1 | ||
| 61735A - PANEL, ROOF SIDE, INNER REAR RH | ||||
| 61735-60050 |
GRJ12#,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN |
1 | ||
| 61824C - PAD, NOISE SHUTTER, NO.1 | ||||
| 61824-35020 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN |
2 | ||
| 61825A - PLATE, NOISE CONTROL, NO.2 | ||||
| 61825-35010 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN |
2 | ||
| Common parts | ||||
| 66248-60020 | ||||
| 90179-08102 | ||||
| 91621-B0816 | ||||
| Linked diagrams | ||||
| 5551 | ||||
| 5752 | ||||

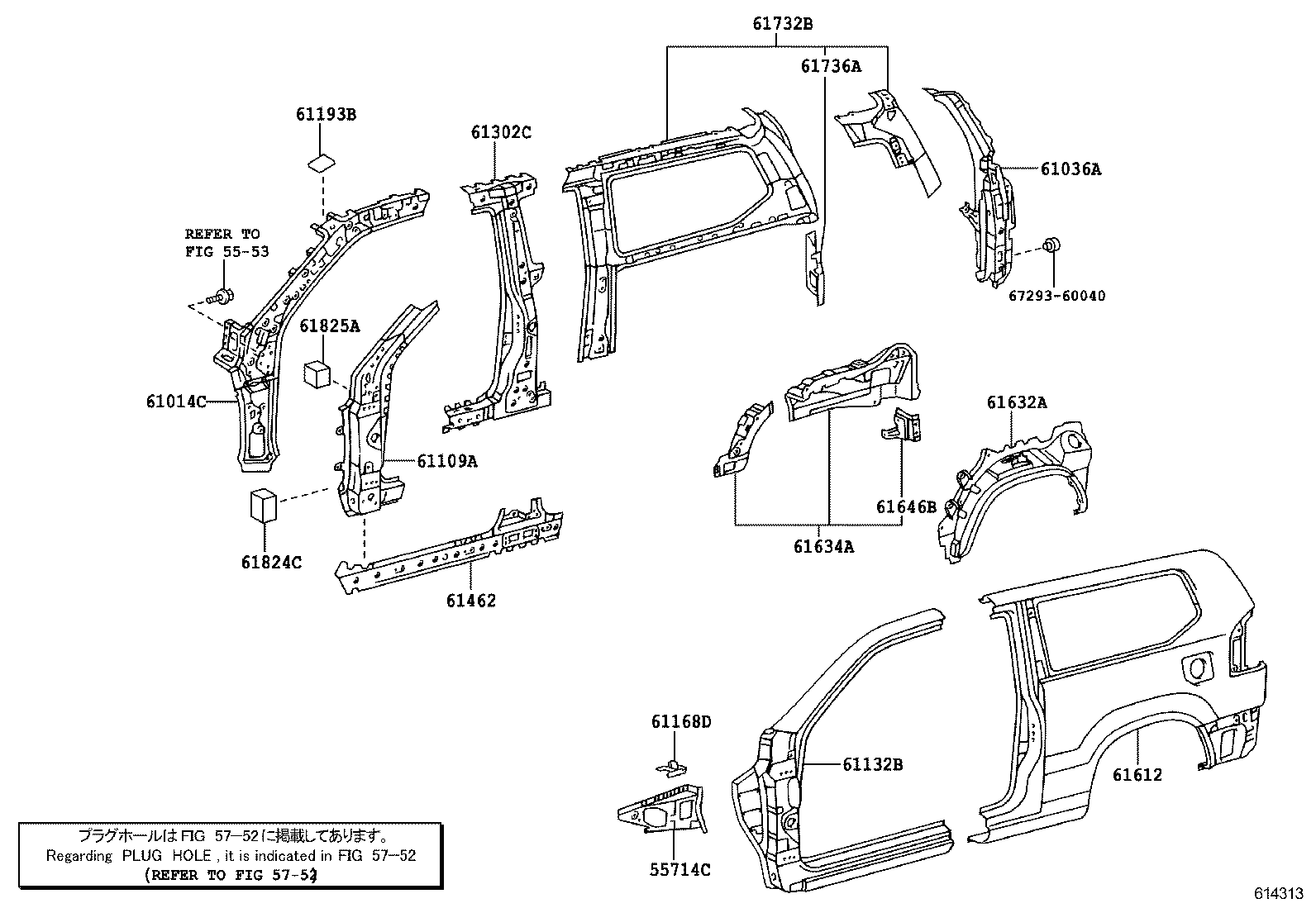

(0209- )GRJ125,LJ125,RZJ125,TRJ125
LH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55714C - PANEL, COWL TOP SIDE, LH | ||||
| 55714-60060 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN |
1 | ||
| 61014C - PANEL SUB-ASSY, SIDE, INNER LH | ||||
| 61014-60020 |
GRJ125,LJ125,RZJ125,TRJ125 |
1 | ||
| 61036A - REINFORCEMENT SUB-ASSY, BACK DOOR OPENING, LH | ||||
| 61034-60040 |
GRJ125,LJ125,RZJ125,TRJ125 |
1 | ||
| 61109A - REINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER LH | ||||
| 61109-60060 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN |
1 | ||
| 61132B - PILLAR, FRONT BODY, OUTER LH | ||||
| 61028-60370 |
GRJ125,LJ125,RZJ125 |
1 | ||
| 61028-60371 |
GRJ125,LJ125,RZJ125,TRJ125 |
1 | ||
| 61028-60360 |
GRJ125,LJ125,RZJ125 OVER FENDER & CHROME PLATED SPEC |
1 | ||
| 61028-60361 |
GRJ125,LJ125,RZJ125,TRJ125 OVER FENDER & CHROME PLATED SPEC |
1 | ||
| 61168D - BRACKET, FRONT BODY PILLAR TO COWL TOP, LH | ||||
| 61168-60010 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN |
1 | ||
| 61193B - COVER, FRONT PILLAR SERVICE HOLE | ||||
| 61193-60030 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN |
2 | ||
| 61302C - PILLAR SUB-ASSY, CENTER BODY, OUTER LH | ||||
| 61302-60901 |
GRJ125,LJ125,RZJ125,TRJ125 |
1 | ||
| 61462 - PANEL, ROCKER, INNER FRONT LH | ||||
| 61462-60020 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN |
1 | ||
| 61612 - PANEL, QUARTER, LH | ||||
| 60162-60760 |
GRJ125,LJ125,RZJ125,TRJ125 OVER FENDER & CHROME PLATED SPEC |
1 | ||
| 60162-60770 |
GRJ125,LJ125,RZJ125,TRJ125 |
1 | ||
| 61632A - PANEL, QUARTER WHEEL HOUSE, OUTER LH | ||||
| 61632-60909 |
GRJ125,LJ125,RZJ125,TRJ125 |
1 | ||
| 61632-60910 |
GRJ125,LJ125,RZJ125,TRJ125 SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN |
1 | ||
| 61634A - PANEL, QUARTER WHEEL HOUSE, INNER LH | ||||
| 61634-60903 |
GRJ125,LJ125,RZJ125,TRJ125 |
1 | ||
| 61646B - GUSSET, QUARTER WHEEL HOUSE, REAR LH | ||||
| 61646-60070 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN |
1 | ||
| 61732B - PANEL, ROOF SIDE, INNER LH | ||||
| 61706-60700 |
GRJ125,LJ125,RZJ125,TRJ125 |
1 | ||
| 61706-60710 |
GRJ125,LJ125,RZJ125,TRJ125 SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN |
1 | ||
| 61736A - PANEL, ROOF SIDE, INNER REAR LH | ||||
| 61736-60050 |
GRJ12#,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN |
1 | ||
| 61824C - PAD, NOISE SHUTTER, NO.1 | ||||
| 61824-35020 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN |
2 | ||
| 61825A - PLATE, NOISE CONTROL, NO.2 | ||||
| 61825-35010 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN |
2 | ||
| Common parts | ||||
| 67293-60040 | ||||
| Linked diagrams | ||||
| 5553 | ||||
| 5752 | ||||
