RZJ125L-GJPEKV (2002)
Toyota Land Cruiser Prado

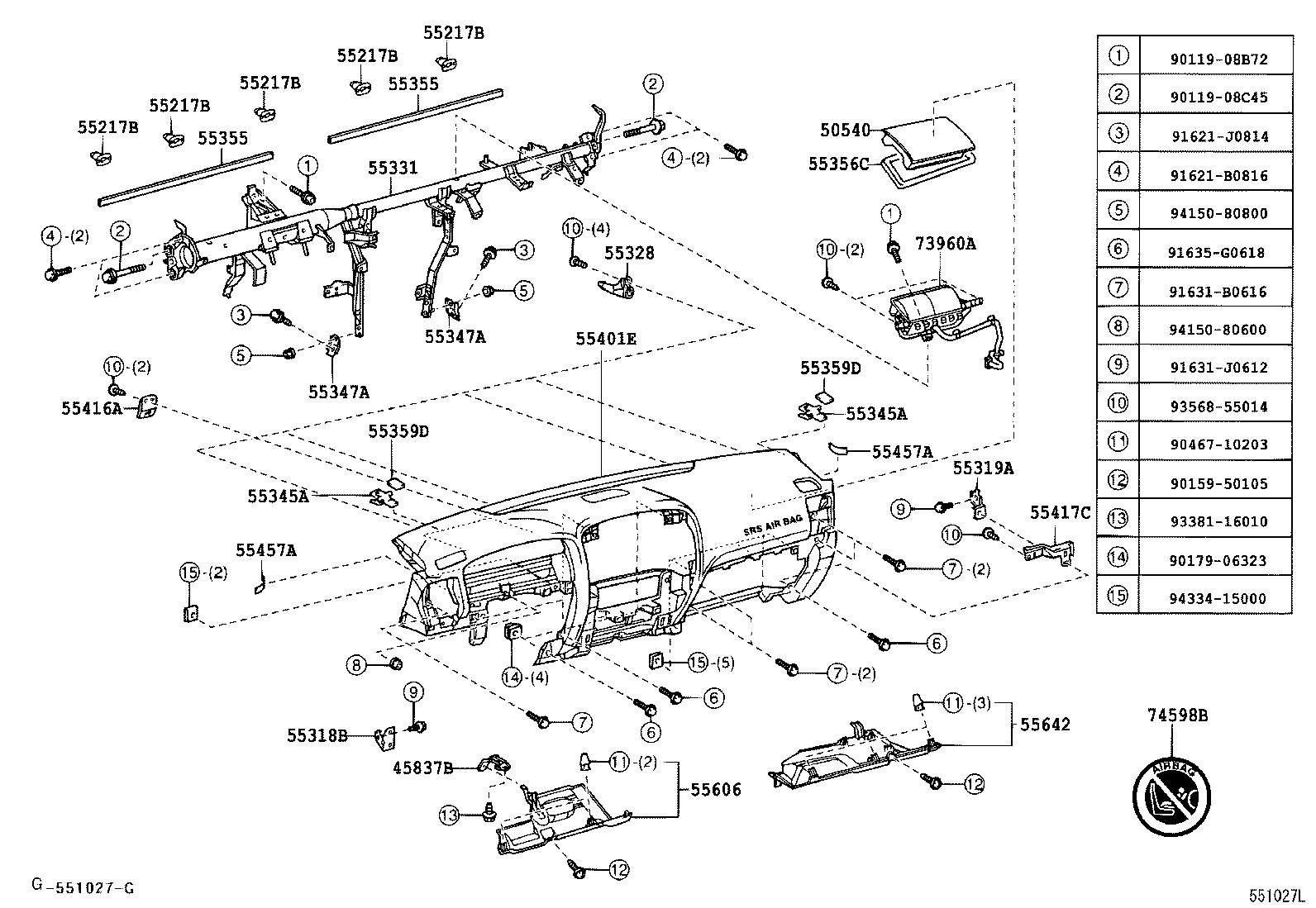

ILLUST NO. 1 OF 2(0209- )LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 50540 - DO0R ASSY, AIR BAG PASSENGER | ||||
| 50540-60030 |
GRJ12#,KZJ120,LJ12#,RZJ12#,TRJ12#..LHD..(GCC,GEN) |
1 | ||
| 55217B - RETAINER, DASH PANEL SILENCER | ||||
| 55217-35020 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN |
5 | ||
| 55217B - RETAINER, DASH PANEL SILENCER | ||||
| 55217-35020 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN |
5 | ||
| 55217B - RETAINER, DASH PANEL SILENCER | ||||
| 55217-35020 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN |
5 | ||
| 55217B - RETAINER, DASH PANEL SILENCER | ||||
| 55217-35020 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN |
5 | ||
| 55217B - RETAINER, DASH PANEL SILENCER | ||||
| 55217-35020 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN |
5 | ||
| 55318B - EXTENSION, INSTRUMENT PANEL | ||||
| 55318-60060 |
GRJ12#,KZJ120,LJ12#,RZJ12#,TRJ12#..LHD..(GCC,GEN) |
1 | ||
| 55319A - EXTENSION, INSTRUMENT PANEL, NO.2 | ||||
| 55319-60040 |
GRJ12#,KZJ120,LJ12#,RZJ12#,TRJ12#..LHD..(GCC,GEN) |
1 | ||
| 55328 - PIN, INSTRUMENT PANEL, NO.1 | ||||
| 55328-60070 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN |
4 | ||
| 55331 - REINFORCEMENT, INSTRUMENT PANEL | ||||
| 55330-60180 |
GRJ12#,KZJ120,LJ12#,RZJ12#,TRJ12#..LHD..(GCC,GEN) |
1 | ||
| 55345A - CLIP, INSTRUMENT PANEL, NO.1 | ||||
| 55345-35020 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN |
2 | ||
| 55345A - CLIP, INSTRUMENT PANEL, NO.1 | ||||
| 55345-35020 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN |
2 | ||
| 55347A - BRACKET, INSTRUMENT PANEL BRACE MOUNTING, NO.1 | ||||
| 55347-35050 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN |
2 | ||
| 55347A - BRACKET, INSTRUMENT PANEL BRACE MOUNTING, NO.1 | ||||
| 55347-35050 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN |
2 | ||
| 55355 - CUSHION, INSTRUMENT PANEL, NO.1 | ||||
| 55355-60160 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN L=780 |
1 | ||
| 55355-60150 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN L=620 |
1 | ||
| 55355-60150 |
GRJ12#,KZJ120,LJ12#,RZJ12#..ARL,GCC,GEN |
2 | ||
| 55355 - CUSHION, INSTRUMENT PANEL, NO.1 | ||||
| 55355-60160 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN L=780 |
1 | ||
| 55355-60150 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN L=620 |
1 | ||
| 55355-60150 |
GRJ12#,KZJ120,LJ12#,RZJ12#..ARL,GCC,GEN |
2 | ||
| 55356C - CUSHION, INSTRUMENT PANEL, NO.2 | ||||
| 55356-35040 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN |
1 | ||
| 55359D - CUSHION, INSTRUMENT PANEL, NO.5 | ||||
| 55359-35020 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN |
2 | ||
| 55359D - CUSHION, INSTRUMENT PANEL, NO.5 | ||||
| 55359-35020 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN |
2 | ||
| 55401E - PAD SUB-ASSY, INSTRUMENT PANEL SAFETY | ||||
| 55401-60900E0 |
GRJ12#,KZJ120,LJ12#,RZJ12#,TRJ12#..LHD..(GCC,GEN) SRS AIR BAG-DRIVER & PASSENGER,SANDAL WOOD,TRIM0# |
1 | ||
| 55401-60900E0 |
RZJ120,TRJ120..LHD..GEN;GRJ12#,KZJ120,LJ12#,RZJ125,TRJ125..LHD..(GCC,GEN) SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN,SANDAL WOOD,TRIM0# |
1 | ||
| 55401-60900C0 |
GRJ12#,KZJ120,LJ12#,RZJ12#,TRJ12#..LHD..(GCC,GEN) SRS AIR BAG-DRIVER & PASSENGER,BLACK,TRIM1# |
1 | ||
| 55401-60902C0 |
GRJ12#,KZJ120,LJ12#,RZJ12#,TRJ12#..LHD..(GCC,GEN) BLACK,TRIM1# |
1 | ||
| 55401-60901C0 |
RZJ120,TRJ120..LHD..GEN;GRJ12#,KZJ120,RZJ125,TRJ125..GCC,GEN SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN&ACCESSORY METER-FIELDMONITOR,BLACK,TRIM1# |
1 | ||
| 55401-60900C0 |
RZJ120,TRJ120..LHD..GEN;GRJ12#,KZJ120,LJ12#,RZJ125,TRJ125..LHD..(GCC,GEN) SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN,BLACK,TRIM1# |
1 | ||
| 55401-60903E0 |
RZJ120,TRJ120..LHD..GEN;GRJ12#,KZJ120,RZJ125,TRJ125..GCC,GEN ACCESSORY METER-FIELDMONITOR,SANDAL WOOD,TRIM0# |
1 | ||
| 55401-60901E0 |
RZJ120,TRJ120..LHD..GEN;GRJ12#,KZJ120,RZJ125,TRJ125..GCC,GEN SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN&ACCESSORY METER-FIELDMONITOR,SANDAL WOOD,TRIM0# |
1 | ||
| 55401-60901E0 |
RZJ120,TRJ120..LHD..GEN;GRJ12#,KZJ120,RZJ125,TRJ125..GCC,GEN SRS AIR BAG-DRIVER & PASSENGER&ACCESSORY METER-FIELDMONITOR,SANDAL WOOD,TRIM0# |
1 | ||
| 55401-60902E0 |
GRJ12#,KZJ120,LJ12#,RZJ12#,TRJ12#..LHD..(GCC,GEN) SANDAL WOOD,TRIM0# |
1 | ||
| 55401-60901C0 |
RZJ120,TRJ120..LHD..GEN;GRJ12#,KZJ120,RZJ125,TRJ125..GCC,GEN SRS AIR BAG-DRIVER & PASSENGER&ACCESSORY METER-FIELDMONITOR,BLACK,TRIM1# |
1 | ||
| 55401-60903C0 |
RZJ120,TRJ120..LHD..GEN;GRJ12#,KZJ120,RZJ125,TRJ125..GCC,GEN ACCESSORY METER-FIELDMONITOR,BLACK,TRIM1# |
1 | ||
| 55416A - RETAINER, METER HOOD, NO.1 | ||||
| 55416-30140 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN |
2 | ||
| 55417C - BRACKET, INSTRUMENT PAD, NO.3 | ||||
| 55417-60020 |
GRJ12#,KZJ120,LJ12#,RZJ12#,TRJ12#..LHD..(GCC,GEN) |
1 | ||
| 55457A - SPACER, INSTRUMENT PANEL SAFETY PAD | ||||
| 55457-35010 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN |
2 | ||
| 55457A - SPACER, INSTRUMENT PANEL SAFETY PAD | ||||
| 55457-35010 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN |
2 | ||
| 55642 - COVER, INSTRUMENT PANEL UNDER, NO.2 | ||||
| 55607-35050 |
RZJ12#..LHD;GRJ12#,KZJ120,LJ12#,TRJ12#..LHD..GEN |
1 | ||
| 73960A - AIR BAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR | ||||
| 73960-60090 |
GRJ12#,KZJ120,LJ12#,RZJ12#,TRJ12#..LHD..(GCC,GEN) SRS AIR BAG-DRIVER & PASSENGER |
1 | ||
| 73960-60090 |
RZJ120,TRJ120..LHD..GEN;GRJ12#,KZJ120,LJ12#,RZJ125,TRJ125..LHD..(GCC,GEN) SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN |
1 | ||
| 74598B - LABEL, PASSENGER AIR BAG CAUTION | ||||
| 74598-20010 |
RZJ120,TRJ120..GEN;GRJ12#,KZJ120,LJ12#,RZJ125,TRJ125..GCC,GEN SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN |
1 | ||
| 74598-20010 |
GRJ12#,KZJ120,LJ12#,RZJ12#,TRJ12#..GCC,GEN SRS AIR BAG-DRIVER & PASSENGER |
1 | ||
| Common parts | ||||
| 90119-08B72 | ||||
| 90119-08C45 | ||||
| 90159-50105 | ||||
| 90179-06323 | ||||
| 90467-10203 | ||||
| 91621-B0816 | ||||
| 91621-J0814 | ||||
| 91631-B0616 | ||||
| 91631-J0612 | ||||
| 91635-G0618 | ||||
| 93381-16010 | ||||
| 93568-55014 | ||||
| 94150-80600 | ||||
| 94150-80800 | ||||
| 94334-15000 | ||||
ILLUST NO. 2 OF 2(0209- )LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55308C - BRACKET SUB-ASSY, INSTRUMENT PANEL, CENTER | ||||
| 55308-60060 |
GRJ12#,KZJ120,LJ12#,RZJ12#,TRJ12#..LHD..(GCC,GEN) |
1 | ||
| 55404D - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH | ||||
| 55404-60170 |
GRJ12#,KZJ120,LJ12#,RZJ12#,TRJ12#..LHD..(GCC,GEN) |
1 | ||
| 55413D - PANEL, INSTRUMENT CLUSTER FINISH, CENTER LOWER | ||||
| 55413-60100 |
GRJ12#,KZJ120,LJ12#,RZJ12#,TRJ12#..LHD..(GCC,GEN) |
1 | ||
| 55421B - PANEL, INSTRUMENT CLUSTER FINISH, UPPER | ||||
| 55421-60040 |
GRJ12#,KDJ120,KZJ120,RZJ12#,TRJ12#..ARL,GCC,GEN ACCESSORY METER-MULTI INFORMATION |
1 | ||
| 55421-60060 |
RZJ120,TRJ120..GEN;GRJ12#,KZJ120,RZJ125,TRJ125..GCC,GEN ACCESSORY METER-FIELDMONITOR |
1 | ||
| 55421-60070 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN |
1 | ||
| 55423B - COVER, INSTRUMENT CLUSTER FINISH PANEL | ||||
| 55423-60050E0 |
RZJ120,TRJ120..GEN;GRJ12#,KZJ120,RZJ125,TRJ125..GCC,GEN ACCESSORY METER-FIELDMONITOR,SANDAL WOOD,TRIM0# |
1 | ||
| 55423-60050C0 |
RZJ120,TRJ120..GEN;GRJ12#,KZJ120,RZJ125,TRJ125..GCC,GEN ACCESSORY METER-FIELDMONITOR,BLACK,TRIM1# |
1 | ||
| 55432B - PANEL, INSTRUMENT PANEL FINISH, LOWER | ||||
| 55432-60410A0 |
GRJ12#,KZJ120,LJ12#,RZJ12#..LHD..(GCC,GEN) IVORY,TRIM0# |
1 | ||
| 55432-60410B0 |
GRJ12#,KZJ120,LJ12#,RZJ12#..LHD..(GCC,GEN) MD.GRAY,TRIM1# |
1 | ||
| 55433B - PANEL, INSTRUMENT PANEL FINISH, LOWER NO.2 | ||||
| 55433-60070 |
GRJ12#,KZJ120,LJ12#,RZJ12#,TRJ12#..LHD..(GCC,GEN) |
1 | ||
| 55445B - PLATE, INSTRUMENT PANEL FINISH | ||||
| 55445-60100A0 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN IVORY,TRIM0# |
1 | ||
| 55445-60100B1 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN MD.GRAY,TRIM1# |
1 | ||
| 55446A - BASE, SWITCH HOLE, NO.1 | ||||
| 55446-60020 |
GRJ12#,KZJ120,LJ12#,RZJ12#,TRJ12#..LHD..(GCC,GEN) |
1 | ||
| 55461A - ORNAMENT, INSTRUMENT PANEL | ||||
| 55461-60050 |
LJ12#,RZJ12#,TRJ12#..LHD |
1 | ||
| 55461-60080 |
LJ12#,RZJ12#,TRJ12#..LHD W(*LEP1) |
1 | ||
| 55471A - ORNAMENT, INSTRUMENT CLUSTER FINISH PANEL | ||||
| 55471-60020 |
LJ12#,RZJ12#,TRJ12#..LHD W(*LEP1) |
1 | ||
| 55471-60010 |
LJ12#,RZJ12#,TRJ12#..LHD |
1 | ||
| 55474B - GARNISH, INSTRUMENT CLUSTER FINISH PANEL | ||||
| 55474-60040 |
GRJ120,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..GX..(ARL,GCC,GEN) W(*LEP1) |
1 | ||
| 55474-60030 |
GRJ120,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..GX..(ARL,GCC,GEN) |
1 | ||
| 55475A - GARNISH, INSTRUMENT CLUSTER FINISH PANEL, NO.2 | ||||
| 55475-60040 |
GRJ120,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..GX..(ARL,GCC,GEN) W(*LEP1) |
1 | ||
| 55475-60030 |
GRJ120,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..GX..(ARL,GCC,GEN) |
1 | ||
| 55501A - DOOR SUB-ASSY, GLOVE COMPARTMENT | ||||
| 55501-60180B0 |
GRJ12#,KZJ120,LJ12#,RZJ12#,TRJ12#..LHD..(GCC,GEN) MD.GRAY,TRIM1# |
1 | ||
| 55501-60180A0 |
GRJ12#,KZJ120,LJ12#,RZJ12#,TRJ12#..LHD..(GCC,GEN) IVORY,TRIM0# |
1 | ||
| 55503B - CUSHION(FOR GLOVE COMPARTMENT) | ||||
| 90541-05020 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN |
2 | ||
| 55509C - PANEL SUB-ASSY, GLOVE COMPARTMENT | ||||
| 55509-60010 |
GRJ12#,KZJ120,LJ12#,RZJ12#,TRJ12#..LHD..(GCC,GEN) |
1 | ||
| 55509-60040 |
RZJ120,TRJ120..LHD..GEN;GRJ12#,KZJ120,LJ12#,RZJ125,TRJ125..LHD..(GCC,GEN) CD PLAYER-W/6CD CHANGER |
1 | ||
| 55522B - COVER, RADIO TUNER OPENING | ||||
| 55522-52020 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN |
1 | ||
| 55522-52020 |
GRJ12#,KZJ120,LJ12#,RZJ12#,TRJ12#..LHD..(GCC,GEN) AUDIO(FOR OVERSEAS MARKET)-AM/FM/SW1/SW2/CDCHANGER 6SP |
1 | ||
| 55524 - COVER, SWITCH BACE HOLE | ||||
| 55524-30030 |
GRJ12#,KZJ120,LJ12#,RZJ12#,TRJ12#..LHD..(GCC,GEN) |
1 | ||
| 55524 - COVER, SWITCH BACE HOLE | ||||
| 55524-30030 |
GRJ12#,KZJ120,LJ12#,RZJ12#,TRJ12#..LHD..(GCC,GEN) |
1 | ||
| 55536B - COVER, LIGHT CONTROL SWITCH HOLE | ||||
| 55536-60020E0 |
GRJ120,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..GX..(ARL,GCC,GEN) SANDAL WOOD,TRIM0# |
1 | ||
| 55536-60020C0 |
GRJ120,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..GX..(ARL,GCC,GEN) BLACK,TRIM1# |
1 | ||
| 55536-60020E0 |
GRJ120,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..GX..(ARL,GCC,GEN) AIR CONDITIONER-SINGLE AUTO,SANDAL WOOD,TRIM0# |
1 | ||
| 55536-60020C0 |
GRJ120,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..GX..(ARL,GCC,GEN) AIR CONDITIONER-SINGLE AUTO,BLACK,TRIM1# |
1 | ||
| 55539C - COVER, SPARE SWITCH HOLE | ||||
| 55539-51020C0 |
LJ120..LHD;GRJ12#,RZJ12#,TRJ12#..GCC SAUDI ARABIA SPEC,BLACK,TRIM0#,1#,NO.1 |
1 | ||
| 55539-51020C0 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN BLACK,TRIM0#,1#,NO.1 |
1 | ||
| 55548-60040C0 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN BLACK,TRIM0#,1#,NO.2 |
1 | ||
| 55539C - COVER, SPARE SWITCH HOLE | ||||
| 55539-51020C0 |
LJ120..LHD;GRJ12#,RZJ12#,TRJ12#..GCC SAUDI ARABIA SPEC,BLACK,TRIM0#,1#,NO.1 |
1 | ||
| 55539-51020C0 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN BLACK,TRIM0#,1#,NO.1 |
1 | ||
| 55548-60040C0 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN BLACK,TRIM0#,1#,NO.2 |
1 | ||
| 55539C - COVER, SPARE SWITCH HOLE | ||||
| 55539-51020C0 |
LJ120..LHD;GRJ12#,RZJ12#,TRJ12#..GCC SAUDI ARABIA SPEC,BLACK,TRIM0#,1#,NO.1 |
1 | ||
| 55539-51020C0 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN BLACK,TRIM0#,1#,NO.1 |
1 | ||
| 55548-60040C0 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN BLACK,TRIM0#,1#,NO.2 |
1 | ||
| 55545 - COVER, FUSE BOX OPENING | ||||
| 55545-60060B0 |
GRJ12#,KZJ120,LJ12#,RZJ12#,TRJ12#..LHD..(GCC,GEN) MD.GRAY,TRIM1# |
1 | ||
| 55545-60060A0 |
GRJ12#,KZJ120,LJ12#,RZJ12#,TRJ12#..LHD..(GCC,GEN) IVORY,TRIM0# |
1 | ||
| 55560A - LOCK ASSY, GLOVE COMPARTMENT DOOR | ||||
| 55506-60010B0 |
GRJ12#,KDJ120,KZJ120,RZJ12#,TRJ12#..ARL,GCC MD.GRAY,TRIM1# |
1 | ||
| 55506-60010A0 |
GRJ12#,KDJ120,KZJ120,RZJ12#,TRJ12#..ARL,GCC IVORY,TRIM0# |
1 | ||
| 55568 - PLATE, GLOVE COMPARTMENT DOOR PAD | ||||
| 55568-35030 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN |
1 | ||
| 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55650-60110C0 |
GRJ120,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..GX..(ARL,GCC,GEN) W(*LEP1),BLACK,TRIM1# |
1 | ||
| 55650-60100C0 |
GRJ120,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..GX..(ARL,GCC,GEN) BLACK,TRIM1# |
1 | ||
| 55650-60110E0 |
GRJ120,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..GX..(ARL,GCC,GEN) W(*LEP1),SANDAL WOOD,TRIM0# |
1 | ||
| 55650-60100E0 |
GRJ120,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..GX..(ARL,GCC,GEN) SANDAL WOOD,TRIM0# |
1 | ||
| 55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55660-60140C0 |
GRJ120,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..GX..(ARL,GCC,GEN) BLACK,TRIM1# |
1 | ||
| 55660-60140E0 |
GRJ120,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..GX..(ARL,GCC,GEN) SANDAL WOOD,TRIM0# |
1 | ||
| 55660-60150C0 |
GRJ120,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..GX..(ARL,GCC,GEN) W(*LEP1),BLACK,TRIM1# |
1 | ||
| 55660-60150E0 |
GRJ120,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..GX..(ARL,GCC,GEN) W(*LEP1),SANDAL WOOD,TRIM0# |
1 | ||
| 55670A - REGISTER ASSY, INSTRUMENT PANEL, CENTER | ||||
| 55670-60080 |
GRJ120,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..GX..(ARL,GCC,GEN) |
1 | ||
| 55670-60090 |
GRJ120,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..GX..(ARL,GCC,GEN) W(*LEP1) |
1 | ||
| 55680 - REGISTER ASSY, INSTRUMENT PANEL, LOWER NO.1 | ||||
| 55680-60040 |
GRJ120,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..GX..(ARL,GCC,GEN) W(*LEP1) |
1 | ||
| 55680-60030 |
GRJ120,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..GX..(ARL,GCC,GEN) |
1 | ||
| Common parts | ||||
| 90159-50105 | ||||
| 90159-50138 | ||||
| 90159-50311 | ||||
| 90467-05134 | ||||
| 90467-10201 | ||||
| 90467-10203 | ||||
| 90467-12080 | ||||
| 90468-04191 | ||||
| 90468-05135 | ||||
| 91631-B0616 | ||||
| 91635-G0618 | ||||
| 93560-14008 | ||||
| 93560-15010 | ||||
| 93568-54512 | ||||
| 93568-55014 | ||||
| Linked diagrams | ||||
| 7455 | ||||
| 8715 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
