RZJ125L-GJPEKV (2002)

Toyota Land Cruiser Prado

Production Sep 2002 - Aug 2004
Engine 3RZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0209- )GRJ12#,RZJ12#,TRJ12#..4FC

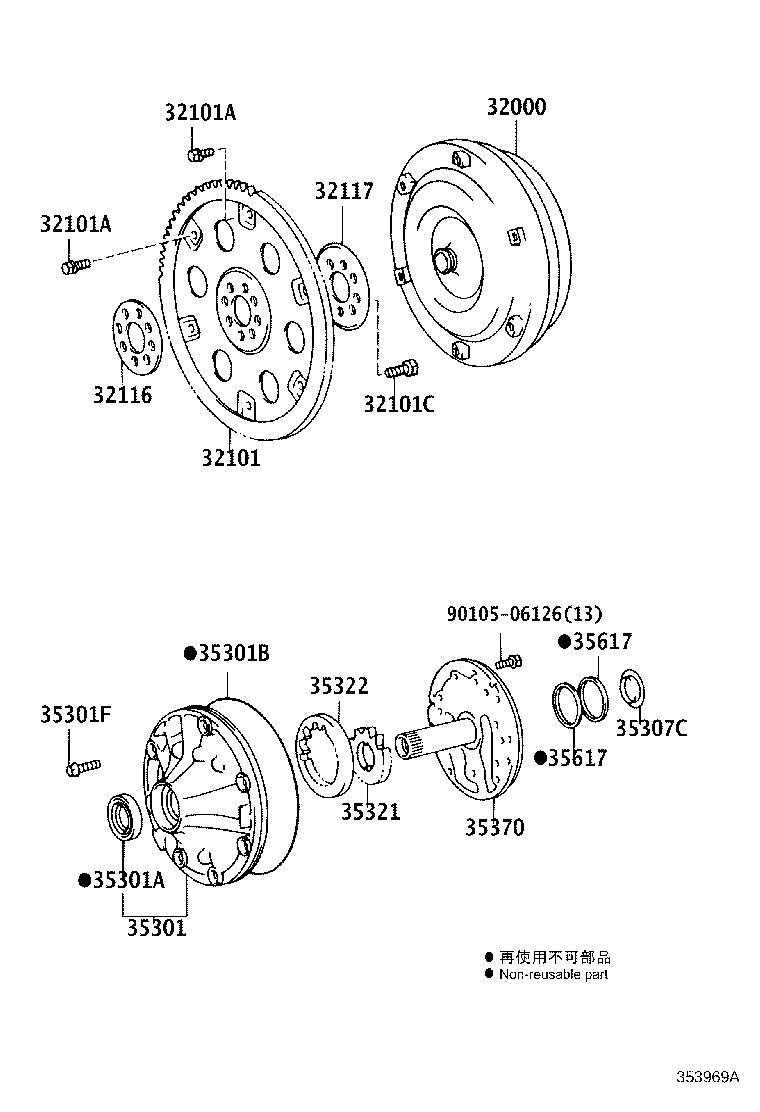

Click highlighted areas on diagram

A340F,A343F

diagram 32000 32101 32101A 32101A 32101C 32116 32117 35301 35301A 35301B 35301F 35307C 35321 35322 35370 35617 35617 9010506126
Part # Description Qty Price
32000 - CONVERTER ASSY, TORQUE
32000-60240

RZJ12#,TRJ12#..4FC

 1
32101 - GEAR SUB-ASSY, DRIVE PLATE & RING
32101-26010

RZJ12#..4FC

 1
32101A - BOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)
90119-09027

GRJ12#,RZJ12#,TRJ12#..ATM..(ARL,GCC,GEN)

*9-1.25PX12.8-8.8,YELLOW

 5
90119-09026

GRJ12#,RZJ12#,TRJ12#..ATM..(ARL,GCC,GEN)

*9-1.25PX12.8-9,GREEN

 1
32101A - BOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)
90119-09027

GRJ12#,RZJ12#,TRJ12#..ATM..(ARL,GCC,GEN)

*9-1.25PX12.8-8.8,YELLOW

 5
90119-09026

GRJ12#,RZJ12#,TRJ12#..ATM..(ARL,GCC,GEN)

*9-1.25PX12.8-9,GREEN

 1
32101C - BOLT, HEXAGON(FOR DRIVE PLATE SETTING)
90105-10276

RZJ12#,TRJ12#..4FC

*10-1.25PX30-17.5

 10
32116 - SPACER, DRIVE PLATE, FRONT
32116-26010

RZJ12#..4FC

 1
32117 - SPACER, DRIVE PLATE, REAR
32117-26010

RZJ12#,TRJ12#..4FC

 1
35301 - BODY SUB-ASSY, FRONT OIL PUMP
35301-35010

KZJ120,RZJ12#..4FC

 1
35301A - SEAL, OIL (FOR FRONT OIL PUMP)
90311-38029

KZJ120,RZJ12#..4FC

 1
35301B - RING, O (FOR FRONT OIL PUMP BODY)
90301-99033

GRJ12#,KZJ120,RZJ12#,TRJ12#..4FC..(ARL,GCC,GEN)

 1
35301F - BOLT (FOR FRONT OIL PUMP SETTING)
90105-08091

GRJ12#,KZJ120,RZJ12#,TRJ12#..4FC..(ARL,GCC,GEN)

*8-1.25PX35-35

 7
35307C - RACE, THRUST BEARING (FOR STATOR SHAFT)
35789-30340

GRJ12#,KZJ120,RZJ12#,TRJ12#..4FC..(ARL,GCC,GEN)

T=3.7

 1
35321 - GEAR, FRONT OIL PUMP DRIVE
35321-12050

KZJ120,RZJ12#..4FC

T=10.721-10.730

 1
35321-12020

KZJ120,RZJ12#..4FC

T=10.690-10.699

 1
35321-12040

KZJ120,RZJ12#..4FC

T=10.710-10.720

 1
35321-12030

KZJ120,RZJ12#..4FC

T=10.700-10.709

 1
35321-12060

KZJ120,RZJ12#..4FC

T=10.731-10.740

 1
35322 - GEAR, FRONT OIL PUMP DRIVEN
35322-12020

KZJ120,RZJ12#..4FC

T=10.700-10.709

 1
35322-12010

KZJ120,RZJ12#..4FC

T=10.690-10.699

 1
35322-12030

KZJ120,RZJ12#..4FC

T=10.710-10.720

 1
35322-12040

KZJ120,RZJ12#..4FC

T=10.721-10.730

 1
35322-12050

KZJ120,RZJ12#..4FC

T=10.731-10.740

 1
35370 - SHAFT ASSY, STATOR
35370-30031

KZJ120,RZJ12#..4FC

 1
35617 - RING, CLUTCH DRUM OIL SEAL
35617-30020

GRJ12#,KZJ120,RZJ12#,TRJ12#..4FC..(ARL,GCC,GEN)

 2
35617 - RING, CLUTCH DRUM OIL SEAL
35617-30020

GRJ12#,KZJ120,RZJ12#,TRJ12#..4FC..(ARL,GCC,GEN)

 2
Common parts
90105-06126
