RZJ125L-GJPEKV (2002)

Toyota Land Cruiser Prado

Production Sep 2002 - Aug 2004
Engine 3RZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0209-0408)3RZFE..GCC,GEN

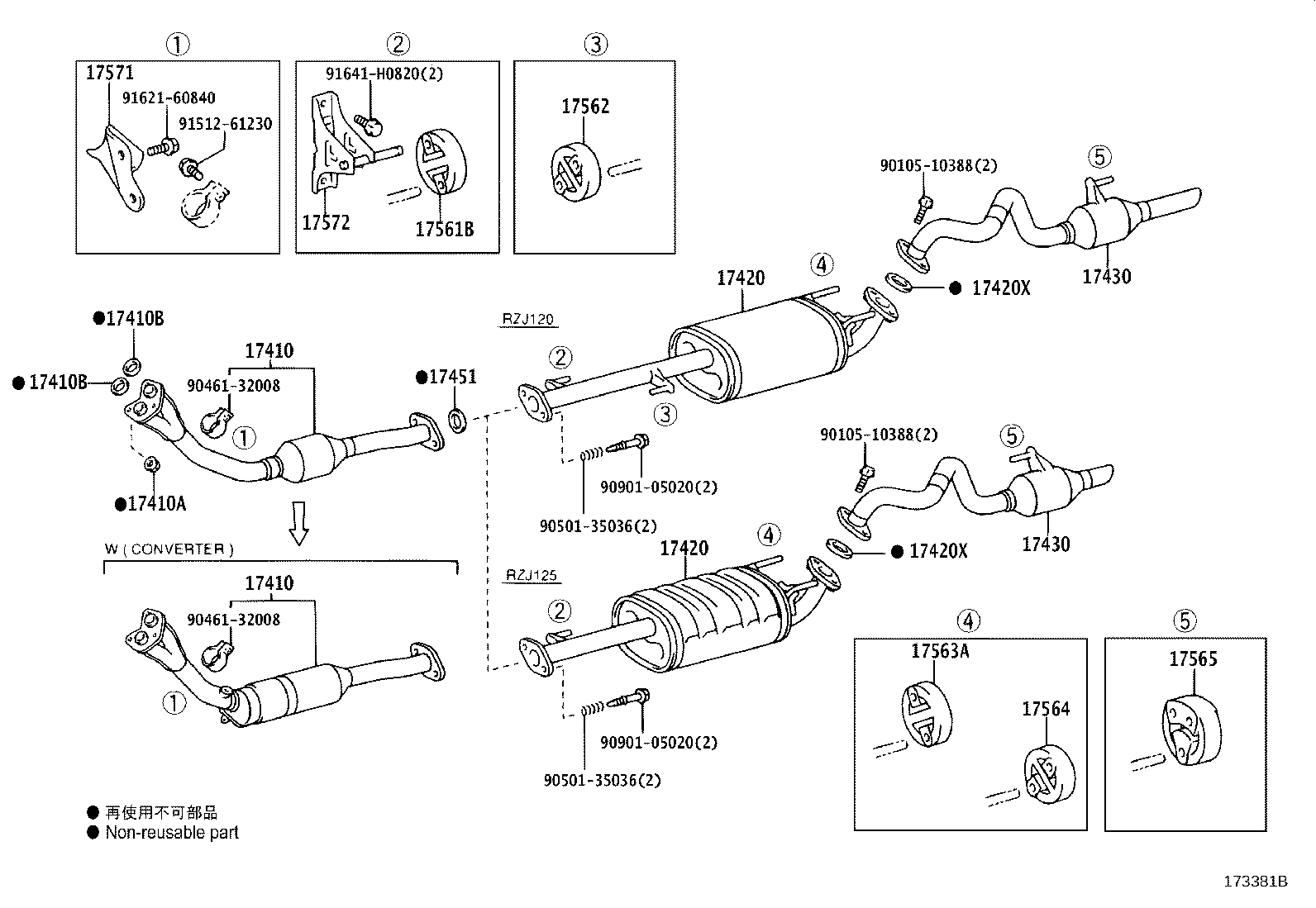

Click highlighted areas on diagram

diagram 17410 17410 17410A 17410B 17410B 17420 17420 17420X 17420X 17430 17430 17451 17561B 17562 17563A 17564 17565 17571 17572 9010510388 9010510388 9046132008 9046132008 9050135036 9050135036 9090105020 9090105020 9151261230 9162160840 91641H0820
Part # Description Qty Price
17410 - PIPE ASSY, EXHAUST, FRONT
17410-75360

3RZFE..RZJ12#..GCC

 1
17410 - PIPE ASSY, EXHAUST, FRONT
17410-75360

3RZFE..RZJ12#..GCC

 1
17410A - NUT, EXHAUST PIPE SET STUD BOLT
90179-10070

1K#,5LE,3RZFE..KDJ120,KZJ120,LJ12#,RZJ12#

 3
17410B - GASKET, EXHAUST PIPE
90917-06061

3RZFE..RZJ12#

 2
17410B - GASKET, EXHAUST PIPE
90917-06061

3RZFE..RZJ12#

 2
17420 - PIPE ASSY, EXHAUST, CENTER
17420-62320

3RZFE..RZJ125

 1
17420 - PIPE ASSY, EXHAUST, CENTER
17420-62320

3RZFE..RZJ125

 1
17420X - GASKET, EXHAUST PIPE, CENTER
90917-06072

1GRFE,1K#,5LE,3RZFE..GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#..ARL,GCC,GEN

 1
17420X - GASKET, EXHAUST PIPE, CENTER
90917-06072

1GRFE,1K#,5LE,3RZFE..GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#..ARL,GCC,GEN

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-31390

3RZFE..RZJ125

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-31390

3RZFE..RZJ125

 1
17451 - GASKET, EXHAUST PIPE
17451-74051

1GRFE,1K#,5LE,3RZFE..GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#..ARL,GCC,GEN

 1
17561B - SUPPORT, EXHAUST PIPE, NO.1
17565-46040

1KZTE,5LE,3RZFE,2TRFE..KZJ120,LJ12#,RZJ12#,TRJ12#

 1
17562 - SUPPORT, EXHAUST PIPE, NO.2
17565-46040

1GRFE,1KZTE,5LE,3RZFE,2TRFE..GRJ12#,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN

 1
17563A - SUPPORT, EXHAUST PIPE, NO.3
17565-46040

1GRFE,1KZTE,5LE,3RZFE,2TRFE..GRJ12#,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN

 1
17565 - SUPPORT, EXHAUST PIPE, NO.5
17561-73020

1GRFE,3RZFE..GRJ12#,RZJ12#..(4FC,5F)..(ARL,GCC,GEN)

 1
17571 - BRACKET, EXHAUST PIPE SUPPORT, NO.1
17571-75260

3RZFE..RZJ12#

 1
17572 - BRACKET, EXHAUST PIPE NO.1 SUPPORT
17571-50140

1KDFTV..KDJ120;1GRFE,1KZTE,5LE,3RZFE..GRJ12#,KZJ120,LJ12#,RZJ12#..(4FC,5F)..(ARL,GCC,GEN)

 1
Common parts
90105-10388
90461-32008
90501-35036
90901-05020
91512-61230
91621-60840
91641-H0820
