RZJ120R-GKMEK (2002)
Toyota Land Cruiser Prado

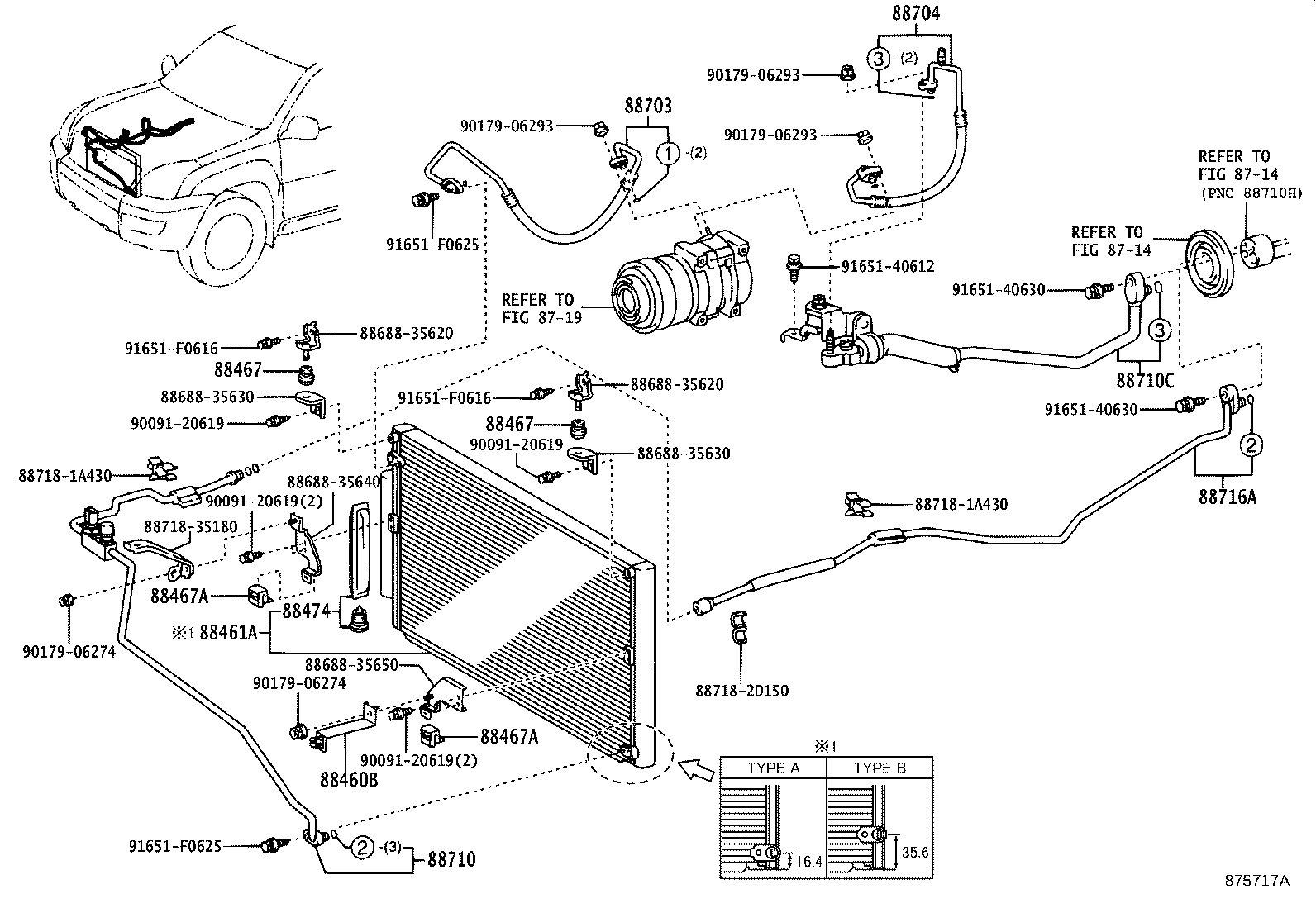

ILLUST NO. 1 OF 3(0209- )RZJ120..RHD..5F
FRONT-SINGLE AIR CONDITIONER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88460B - BRACKET, COOLER CONDENSER, NO.1 | ||||
| 88688-35570 |
GRJ120..ATM..GX..ARL;KDJ120,KZJ120,RZJ120,TRJ120..GX..(4FC,5F,5FC) AIR CONDITIONER-DUAL AUTO |
1 | ||
| 88688-35570 |
RZJ120,TRJ120..GCC,GEN AIR CONDITIONER-DUAL MANUAL |
1 | ||
| 88688-35570 |
RZJ12#,TRJ12#..GCC,GEN AIR CONDITIONER-SINGLE MANUAL |
1 | ||
| 88688-35570 |
GRJ120,KDJ120,KZJ120,RZJ12#,TRJ12#..GX..(ARL,GCC,GEN) AIR CONDITIONER-SINGLE AUTO |
1 | ||
| 88461A - CORE, COOLER CONDENSER | ||||
| 88461-35160 |
KZJ120,RZJ12#..GX AIR CONDITIONER-SINGLE AUTO,TYPE A:REFER ILLUST. |
1 | ||
| 88461-35160 |
RZJ12#..GCC,GEN AIR CONDITIONER-SINGLE MANUAL,TYPE A:REFER ILLUST. |
1 | ||
| 88461-60100 |
RZJ12#..GCC,GEN AIR CONDITIONER-SINGLE MANUAL,TYPE B:REFER ILLUST. |
1 | ||
| 88461-60100 |
RZJ120..GCC,GEN AIR CONDITIONER-DUAL MANUAL |
1 | ||
| 88461-60100 |
KDJ120,KZJ120,RZJ120..GX..(4FC,5F,5FC) AIR CONDITIONER-DUAL AUTO |
1 | ||
| 88467 - CUSHION, COOLER CONDENSER, NO.1 | ||||
| 88467-28050 |
GRJ120..GX..5FC..ARL;KDJ120,KZJ120,RZJ120,TRJ120..GX..(4FC,5F,5FC) AIR CONDITIONER-DUAL AUTO |
2 | ||
| 88467-28050 |
RZJ120,TRJ120..GCC,GEN AIR CONDITIONER-DUAL MANUAL |
2 | ||
| 88467-28050 |
GRJ120..GX..(5FC,6F)..ARL;KDJ120,KZJ120,RZJ12#,TRJ12#..GX AIR CONDITIONER-SINGLE AUTO |
2 | ||
| 88467-28050 |
RZJ12#,TRJ12#..GCC,GEN AIR CONDITIONER-SINGLE MANUAL |
2 | ||
| 88467 - CUSHION, COOLER CONDENSER, NO.1 | ||||
| 88467-28050 |
GRJ120..GX..5FC..ARL;KDJ120,KZJ120,RZJ120,TRJ120..GX..(4FC,5F,5FC) AIR CONDITIONER-DUAL AUTO |
2 | ||
| 88467-28050 |
RZJ120,TRJ120..GCC,GEN AIR CONDITIONER-DUAL MANUAL |
2 | ||
| 88467-28050 |
GRJ120..GX..(5FC,6F)..ARL;KDJ120,KZJ120,RZJ12#,TRJ12#..GX AIR CONDITIONER-SINGLE AUTO |
2 | ||
| 88467-28050 |
RZJ12#,TRJ12#..GCC,GEN AIR CONDITIONER-SINGLE MANUAL |
2 | ||
| 88467A - CUSHION, COOLER CONDENSER, NO.2 | ||||
| 88467-35080 |
RZJ12#,TRJ12#..GCC,GEN AIR CONDITIONER-SINGLE MANUAL |
2 | ||
| 88467-35080 |
GRJ120..GX..(5FC,6F)..ARL;KDJ120,KZJ120,RZJ12#,TRJ12#..GX AIR CONDITIONER-SINGLE AUTO |
2 | ||
| 88467-35080 |
RZJ120,TRJ120..GCC,GEN AIR CONDITIONER-DUAL MANUAL |
2 | ||
| 88467-35080 |
GRJ120..GX..5FC..ARL;KDJ120,KZJ120,RZJ120,TRJ120..GX..(4FC,5F,5FC) AIR CONDITIONER-DUAL AUTO |
2 | ||
| 88467A - CUSHION, COOLER CONDENSER, NO.2 | ||||
| 88467-35080 |
RZJ12#,TRJ12#..GCC,GEN AIR CONDITIONER-SINGLE MANUAL |
2 | ||
| 88467-35080 |
GRJ120..GX..(5FC,6F)..ARL;KDJ120,KZJ120,RZJ12#,TRJ12#..GX AIR CONDITIONER-SINGLE AUTO |
2 | ||
| 88467-35080 |
RZJ120,TRJ120..GCC,GEN AIR CONDITIONER-DUAL MANUAL |
2 | ||
| 88467-35080 |
GRJ120..GX..5FC..ARL;KDJ120,KZJ120,RZJ120,TRJ120..GX..(4FC,5F,5FC) AIR CONDITIONER-DUAL AUTO |
2 | ||
| 88474 - DRYER, COOLER | ||||
| 88474-17010 |
RZJ12#,TRJ12#..GCC,GEN AIR CONDITIONER-SINGLE MANUAL |
1 | ||
| 88474-17010 |
RZJ120,TRJ120..GCC,GEN AIR CONDITIONER-DUAL MANUAL |
1 | ||
| 88474-17010 |
GRJ120..GX..5FC..ARL;KDJ120,KZJ120,RZJ120,TRJ120..GX..(4FC,5F,5FC) AIR CONDITIONER-DUAL AUTO |
1 | ||
| 88474-17010 |
GRJ120..GX..(5FC,6F)..ARL;KDJ120,KZJ120,RZJ12#,TRJ12#..GX AIR CONDITIONER-SINGLE AUTO |
1 | ||
| 88703 - HOSE SUB-ASSY, DISCHARGE | ||||
| 88711-35670 |
RZJ12#..ARL,GEN AIR CONDITIONER-SINGLE AUTO |
1 | ||
| 88711-35670 |
RZJ120..GEN AIR CONDITIONER-DUAL MANUAL&WITH/COOL BOX |
1 | ||
| 88711-35670 |
RZJ12#..ARL,GEN AIR CONDITIONER-SINGLE AUTO&WITH/COOL BOX |
1 | ||
| 88711-35670 |
RZJ120..ARL,GEN AIR CONDITIONER-DUAL AUTO |
1 | ||
| 88711-35670 |
RZJ120..ARL,GEN AIR CONDITIONER-DUAL AUTO&WITH/COOL BOX |
1 | ||
| 88711-35670 |
RZJ120..GEN AIR CONDITIONER-DUAL MANUAL |
1 | ||
| 88711-35670 |
RZJ12#..GEN AIR CONDITIONER-SINGLE MANUAL&WITH/COOL BOX |
1 | ||
| 88711-35670 |
RZJ12#..GEN AIR CONDITIONER-SINGLE MANUAL |
1 | ||
| 88704 - HOSE SUB-ASSY, SUCTION | ||||
| 88712-35610 |
RZJ125;RZJ120..ARL,GEN;RZJ120..5F..GCC AIR CONDITIONER-SINGLE AUTO&WITH/COOL BOX |
1 | ||
| 88712-35610 |
RZJ120..GEN AIR CONDITIONER-DUAL MANUAL&WITH/COOL BOX |
1 | ||
| 88712-35610 |
RZJ120..ARL,GEN AIR CONDITIONER-DUAL AUTO&WITH/COOL BOX |
1 | ||
| 88712-35610 |
RZJ120 AIR CONDITIONER-DUAL AUTO |
1 | ||
| 88712-35610 |
RZJ125;RZJ120..4FC..GEN;RZJ120..5F..(GCC,GEN) AIR CONDITIONER-SINGLE MANUAL&WITH/COOL BOX |
1 | ||
| 88712-35610 |
RZJ120..RHD..GEN AIR CONDITIONER-SINGLE MANUAL |
1 | ||
| 88712-35610 |
RZJ120..GCC,GEN AIR CONDITIONER-DUAL MANUAL |
1 | ||
| 88712-35610 |
RZJ120..RHD..5F AIR CONDITIONER-SINGLE AUTO |
1 | ||
| 88710 - TUBE ASSY, AIR CONDITIONER | ||||
| 88710-6A770 |
KZJ120,RZJ120;GRJ120,TRJ120..GEN;GRJ120..ATM..GX..ARL AIR CONDITIONER-DUAL AUTO,MARK : GREEN TAPE |
1 | ||
| 88710-35540 |
TRJ12#..GEN;RZJ12#..GCC,GEN AIR CONDITIONER-SINGLE MANUAL |
1 | ||
| 88710-35540 |
TRJ12#..GEN;GRJ120,KDJ120,KZJ120,RZJ12#..GX..(ARL,GCC,GEN) AIR CONDITIONER-SINGLE AUTO |
1 | ||
| 88710-6A770 |
TRJ120..GEN;LJ120,RZJ120..GCC,GEN AIR CONDITIONER-DUAL MANUAL,MARK : GREEN TAPE |
1 | ||
| 88710C - TUBE ASSY, AIR CONDITIONER | ||||
| 88707-35020 |
RZJ120..RHD..GEN AIR CONDITIONER-SINGLE MANUAL |
1 | ||
| 88707-35020 |
KDJ120,KZJ120,RZJ120..RHD..MTM AIR CONDITIONER-SINGLE AUTO |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-6B510 |
GRJ120..GX;GRJ120..LHD;KZJ120,RZJ120..ARL,GEN AIR CONDITIONER-DUAL AUTO&WITH/COOL BOX |
1 | ||
| 88716-6B510 |
RZJ120..GEN AIR CONDITIONER-DUAL MANUAL&WITH/COOL BOX |
1 | ||
| 88716-6B510 |
RZJ125;RZJ120..4FC..GEN;RZJ120..5F..(GCC,GEN) AIR CONDITIONER-SINGLE MANUAL&WITH/COOL BOX |
1 | ||
| 88716-6B510 |
RZJ120..ARL,GEN;RZJ120..5F..GCC;GRJ120,KZJ120,RZJ125..GX AIR CONDITIONER-SINGLE AUTO&WITH/COOL BOX |
1 | ||
| 88716-35630 |
GRJ120..5F..ARL;KDJ120,KZJ120,RZJ120..RHD..MTM AIR CONDITIONER-SINGLE AUTO |
1 | ||
| 88716-35630 |
RZJ120..RHD..GEN AIR CONDITIONER-SINGLE MANUAL |
1 | ||
| Common parts | ||||
| 88688-35620 | ||||
| 88688-35630 | ||||
| 88688-35640 | ||||
| 88688-35650 | ||||
| 88718-1A430 | ||||
| 88718-2D150 | ||||
| 88718-35180 | ||||
| 90091-20619 | ||||
| 90179-06274 | ||||
| 90179-06293 | ||||
| 91651-40612 | ||||
| 91651-40630 | ||||
| 91651-F0616 | ||||
| 91651-F0625 | ||||
| Linked diagrams | ||||
| 8714 | ||||
| 8719 | ||||
