Toyota Land cruiser prado RZJ120 ELECTRONIC FUEL INJECTION SYSTEM

Part #	Description	Period	Qty
85910A - RELAY ASSY, CIRCUIT OPENING (FOR EFI)
90987-02022	GRJ12#,RZJ12#..ARL,GCC,GEN	09/2002 - 08/2004	1
85915A - RELAY, MAIN
90987-02022	GRJ12#,RZJ12#..ARL,GCC,GEN	09/2002 - 08/2004	1
89420 - SENSOR ASSY, VACUUM
89420-60040	RZJ12#..GEN	09/2002 - 08/2004	1
89422 - SENSOR, WATER TEMPERATURE (FOR E.F.I.)
89422-35010	RZJ12#	09/2002 - 08/2004	1
89424 - SENSOR, INLET AIR TEMPERATURE (FOR E.F.I.)
89424-12010	RZJ12#..GEN	09/2002 - 08/2004	1
89438A - SWITCH, POWER STEERING OIL PRESSURE
89438-33010	GRJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN	09/2002 - 08/2009	1
89661 - COMPUTER, ENGINE CONTROL
89661-6A100	RZJ12#..5F..GEN ANTI-THEFT SYSTEM-IMMOBILIZER	09/2002 - 08/2004	1
89661-6A080	RZJ12#..5F..GEN	09/2002 - 08/2004	1
89661-6A100	RZJ12#..5F..GEN ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM	09/2002 - 08/2004	1
89661-6A100	RZJ12#..5F..GEN ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM&TRANSFER-PART TIME	09/2002 - 08/2004	1
89661-6A100	RZJ12#..5F..GEN ANTI-THEFT SYSTEM-IMMOBILIZER&TRANSFER-PART TIME	09/2002 - 08/2004	1
89667 - BRACKET, ENGINE CONTROL COMPUTER
89667-60240	GRJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN	09/2002 - 08/2009	1
89668 - BRACKET, ENGINE CONTROL COMPUTER, NO.2
89668-60240	GRJ12#,RZJ12#..ARL,GCC,GEN	09/2002 - 08/2009	1
Common parts
90179-06168
90430-12005
93319-15010
94150-80600

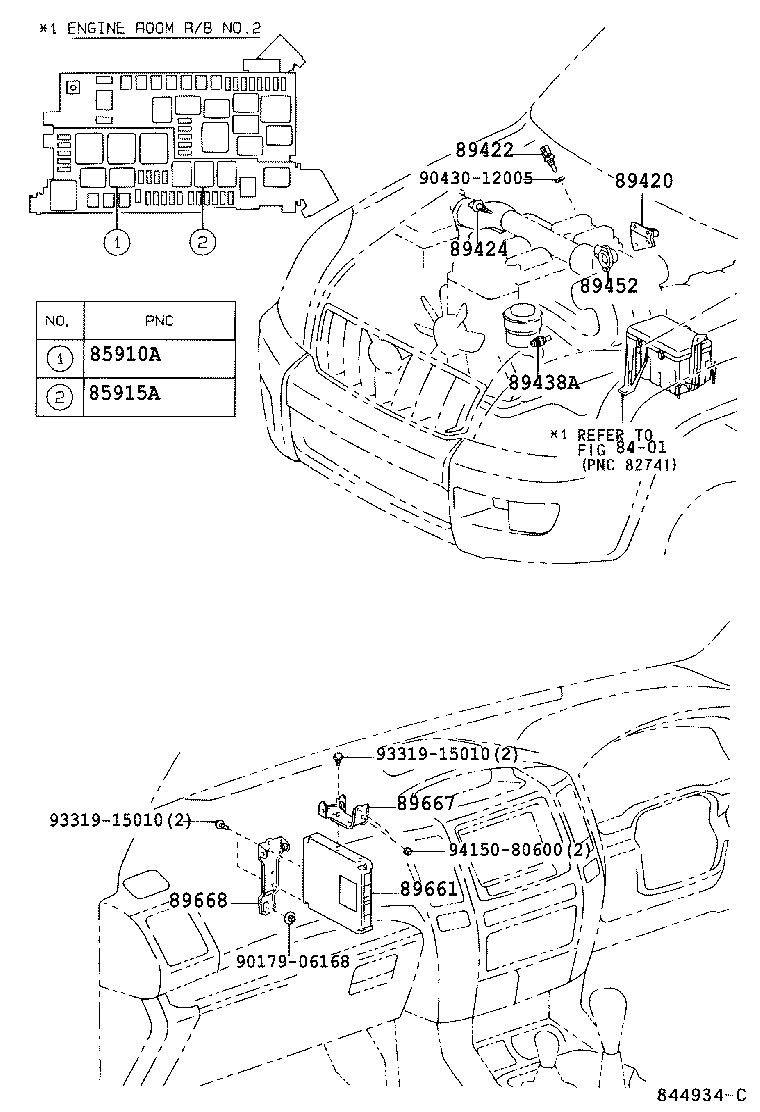

Linked diagrams
8401

RZJ120R-GKMEK (2002)
