Toyota Land cruiser prado RZJ120 FUEL TANK & TUBE

RZJ120R-GKMEK (2002)

Toyota Land Cruiser Prado

Production Sep 2002 - Aug 2004

Engine 3RZFE

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

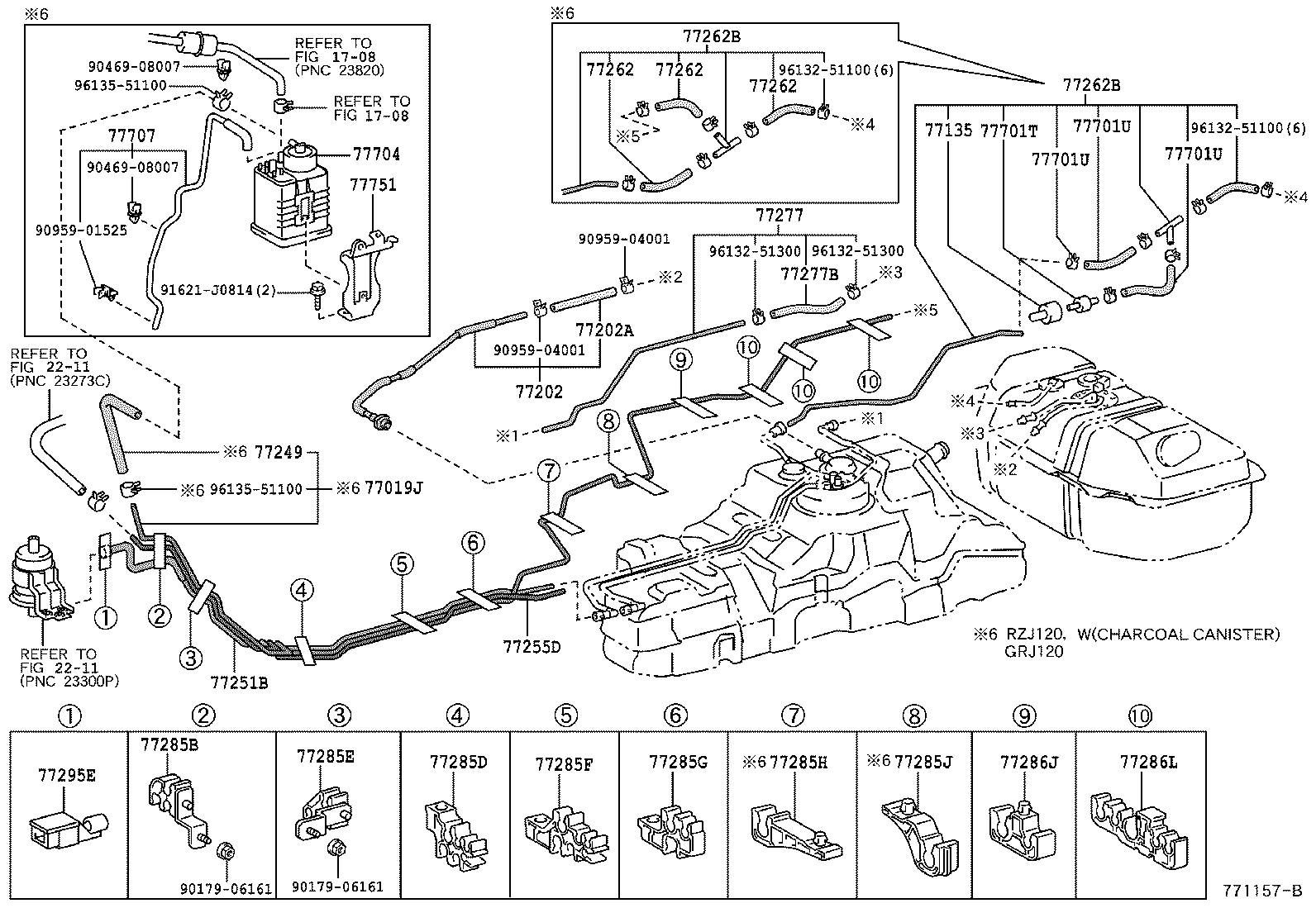

ILLUST NO. 2 OF 2(0209- )GRJ120,RZJ120,TRJ120

Click highlighted areas on diagram

FUEL TUBE

Part #	Description	Period	Qty
77251B - TUBE, FUEL MAIN
77205-35300	GRJ120,RZJ120,TRJ120..ARL,GCC,GEN	09/2002 - 08/2009	1
77255D - TUBE, FUEL RETURN
77255-3D070	GRJ120,RZJ120,TRJ120..ARL,GCC,GEN	09/2002 - 08/2009	1
77285B - CLAMP, FUEL TUBE W/GROMMET, NO.1
77285-35630	GRJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN	09/2002 - 07/2005	1
77285D - CLAMP, FUEL TUBE, NO.1
77285-35670	GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN	09/2002 - 08/2009	1
77285E - CLAMP, FUEL TUBE W/GROMMET, NO.1
77285-35640	GRJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN	09/2002 - 07/2005	1
77285F - CLAMP, FUEL TUBE, NO.1
77285-35680	GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN	09/2002 - 08/2009	1
77285G - CLAMP, FUEL TUBE, NO.1
77285-35690	GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN	09/2002 - 08/2009	1
77295E - GROMMET, FUEL TUBE
77295-35320	GRJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN	09/2002 - 08/2009	1
Common parts
90179-06161
90469-08007
90959-01525
91621-J0814
96135-51100
Linked diagrams
1708
2211

ILLUST NO. 2 OF 2(0209- )RZJ120,TRJ120..GEN ; (0301- )GRJ120..ARL,GCC,GEN

Click highlighted areas on diagram

FUEL TUBE, W(FUEL SUB TANK)

Part #	Description	Period	Qty
77135 - BRACKET, CHECK VALVE
77135-42010	RZJ120..GEN;KDJ120,KZJ120,LJ120,TRJ120..ARL,GEN FUEL TANK-W(FUEL SUB TANK) 180L	09/2002 - 12/2999	1
77202 - TUBE SUB-ASSY, BREATHER
77012-60120	RZJ120..GEN;GRJ120..(5FC,6F)..(GCC,GEN);GRJ120..(4FC,5F)..(ARL,GCC,GEN);KDJ120,KZJ120,LJ120,TRJ120..ARL,GEN FUEL TANK-W(FUEL SUB TANK) 180L	09/2002 - 08/2009	1
77202A - HOSE, FUEL, NO.1 (FOR BREATHER TUBE)
95313-13020	RZJ120..GEN;GRJ120..(5FC,6F)..(GCC,GEN);GRJ120..(4FC,5F)..(ARL,GCC,GEN);KDJ120,KZJ120,LJ120,TRJ120..ARL,GEN L=200,FUEL TANK-W(FUEL SUB TANK) 180L	09/2002 - 08/2009	1
77251B - TUBE, FUEL MAIN
77205-35300	GRJ120,RZJ120,TRJ120..ARL,GCC,GEN	09/2002 - 08/2009	1
77255D - TUBE, FUEL RETURN
77255-3D070	GRJ120,RZJ120,TRJ120..ARL,GCC,GEN	09/2002 - 08/2009	1
77262B - TUBE, FUEL TANK TO CANISTER, NO.2
77019-60050	RZJ120..GEN;KZJ120,LJ120,TRJ120..ARL,GEN FUEL TANK-W(FUEL SUB TANK) 180L	09/2002 - 08/2009	1
77262B - TUBE, FUEL TANK TO CANISTER, NO.2
77019-60050	RZJ120..GEN;KZJ120,LJ120,TRJ120..ARL,GEN FUEL TANK-W(FUEL SUB TANK) 180L	09/2002 - 08/2009	1
77277 - TUBE, FUEL RETURN, NO.1
77208-60140	RZJ120..GEN;GRJ120..(5FC,6F)..(GCC,GEN);GRJ120..(4FC,5F)..(ARL,GCC,GEN);KDJ120,KZJ120,LJ120,TRJ120..ARL,GEN FUEL TANK-W(FUEL SUB TANK) 180L	09/2002 - 08/2009	1
77277B - HOSE, FUEL, NO.2(FOR RETURN TUBE, NO.1)
95334-08020	RZJ120..GEN;GRJ120..(5FC,6F)..(GCC,GEN);GRJ120..(4FC,5F)..(ARL,GCC,GEN);KDJ120,KZJ120,LJ120,TRJ120..ARL,GEN *H,L=200,FUEL TANK-W(FUEL SUB TANK) 180L	09/2002 - 08/2009	1
77285B - CLAMP, FUEL TUBE W/GROMMET, NO.1
77285-35630	GRJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN	09/2002 - 07/2005	1
77285D - CLAMP, FUEL TUBE, NO.1
77285-35670	GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN	09/2002 - 08/2009	1
77285E - CLAMP, FUEL TUBE W/GROMMET, NO.1
77285-35640	GRJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN	09/2002 - 07/2005	1
77285F - CLAMP, FUEL TUBE, NO.1
77285-35680	GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN	09/2002 - 08/2009	1
77285G - CLAMP, FUEL TUBE, NO.1
77285-35690	GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN	09/2002 - 08/2009	1
77286J - CLAMP, FUEL TUBE, NO.4
77285-35610	RZJ120,TRJ120..GEN;GRJ120,KDJ120,KZJ120,LJ120..ARL,GCC,GEN FUEL TANK-W(FUEL SUB TANK) 180L	09/2002 - 08/2009	1
77286L - CLAMP, FUEL TUBE, NO.5
77285-35620	RZJ120,TRJ120..GEN;GRJ120,KDJ120,KZJ120,LJ120..ARL,GCC,GEN FUEL TANK-W(FUEL SUB TANK) 180L	09/2002 - 08/2009	3
77295E - GROMMET, FUEL TUBE
77295-35320	GRJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN	09/2002 - 08/2009	1
77701T - VALVE, CHECK (FOR MAIN FUEL TANK)
90917-10092	RZJ120..GEN;KDJ120,KZJ120,LJ120,TRJ120..ARL,GEN FUEL TANK-W(FUEL SUB TANK) 180L	09/2002 - 12/2999	1
77701U - HOSE, FUEL (FOR CHECK VALVE)
95333-06010	RZJ120..GEN;KDJ120,KZJ120,LJ120,TRJ120..ARL,GEN *H,L=100,FUEL TANK-W(FUEL SUB TANK) 180L	09/2002 - 12/2999	2
95333-06020	RZJ120..GEN;KZJ120,LJ120,TRJ120..ARL,GEN *H,L=160,FUEL TANK-W(FUEL SUB TANK) 180L	09/2002 - 12/2999	1
77701U - HOSE, FUEL (FOR CHECK VALVE)
95333-06010	RZJ120..GEN;KDJ120,KZJ120,LJ120,TRJ120..ARL,GEN *H,L=100,FUEL TANK-W(FUEL SUB TANK) 180L	09/2002 - 12/2999	2
95333-06020	RZJ120..GEN;KZJ120,LJ120,TRJ120..ARL,GEN *H,L=160,FUEL TANK-W(FUEL SUB TANK) 180L	09/2002 - 12/2999	1
77701U - HOSE, FUEL (FOR CHECK VALVE)
95333-06010	RZJ120..GEN;KDJ120,KZJ120,LJ120,TRJ120..ARL,GEN *H,L=100,FUEL TANK-W(FUEL SUB TANK) 180L	09/2002 - 12/2999	2
95333-06020	RZJ120..GEN;KZJ120,LJ120,TRJ120..ARL,GEN *H,L=160,FUEL TANK-W(FUEL SUB TANK) 180L	09/2002 - 12/2999	1
Common parts
90179-06161
90469-08007
90959-01525
90959-04001
91621-J0814
96132-51100
96132-51300
96135-51100
Linked diagrams
1708
2211

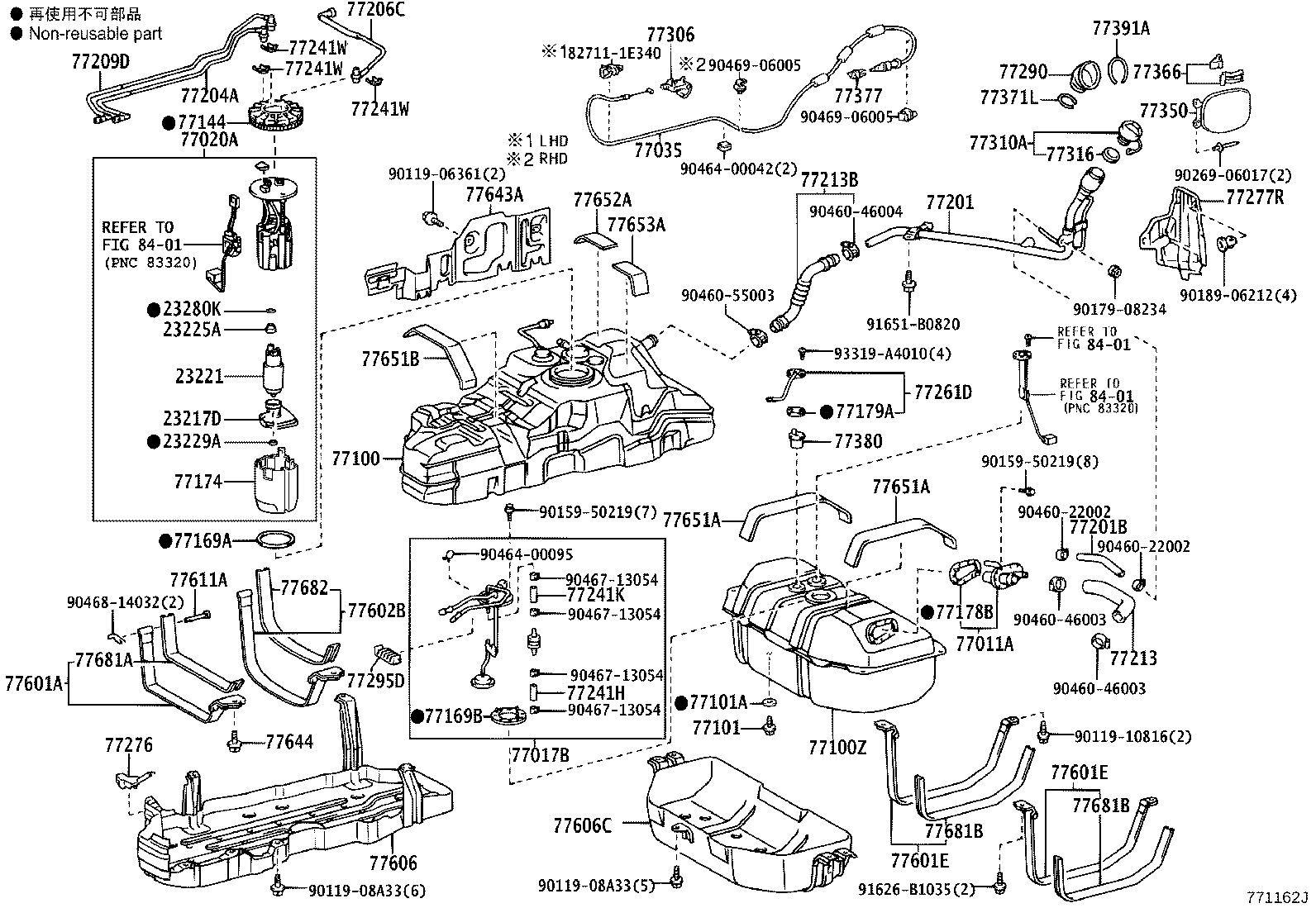

ILLUST NO. 1 OF 2(0209- )GRJ120,RZJ120,TRJ120

Click highlighted areas on diagram

FUEL TANK

Part #	Description	Period	Qty
23217D - FILTER, FUEL PUMP
23217-50100	1GRFE,3RZFE,2TRFE..GRJ120,RZJ120,TRJ120..ARL,GCC,GEN	09/2002 - 08/2009	1
23221 - PUMP, FUEL
23221-75020	3RZFE,2TRFE..RZJ120,TRJ120	09/2002 - 08/2009	1
23225A - SPACER, FUEL PUMP
23225-50010	3RZFE,2TRFE..RZJ120,TRJ120	09/2002 - 08/2009	1
23229A - CLIP(FOR FUEL PUMP FILTER)
23229-16010	1GRFE,3RZFE,2TRFE..GRJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN	09/2002 - 08/2009	1
23280K - RING, O(FOR FUEL PRESSURE REGULATOR)
90301-08019	3RZFE,2TRFE..RZJ120,TRJ120	09/2002 - 08/2009	1
77012 - TUBE SUB-ASSY, FUEL TANK BREATHER
77012-35060	TRJ120..GEN;KDJ120,KZJ120,LJ120,RZJ120;GRJ120..(4FC,5F)..(ARL,GCC,GEN)	09/2002 - 08/2009	1
77020A - TUBE ASSY, FUEL SUCTION W/PUMP & GAGE
77020-60200	RZJ120,TRJ120..GEN FUEL TANK-W(FUEL SUB TANK) 180L	09/2002 - 04/2005	1
77020-35090	RZJ120;TRJ120..GEN	09/2002 - 03/2005	1
77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL
77035-60090	GRJ120,KDJ120,KZJ120,LJ120,RZJ120,TRJ120..RHD	09/2002 - 08/2009	1
77100 - TANK ASSY, FUEL
77001-3D530	RZJ120..GEN;KZJ120,LJ120	09/2002 - 05/2004	1
77001-60620	RZJ120..GEN;GRJ120,KZJ120,LJ120..ARL,GCC,GEN FUEL TANK-W(FUEL SUB TANK) 180L	09/2002 - 05/2004	1
77100 - TANK ASSY, FUEL
77001-3D530	RZJ120..GEN;KZJ120,LJ120	09/2002 - 05/2004	1
77001-60620	RZJ120..GEN;GRJ120,KZJ120,LJ120..ARL,GCC,GEN FUEL TANK-W(FUEL SUB TANK) 180L	09/2002 - 05/2004	1
77144 - RETAINER, FUEL PUMP GAUGE
77144-35010	GRJ120,KDJ120,KZJ120,LJ120,RZJ120,TRJ120..ARL,GCC,GEN	09/2002 - 08/2009	1
77169A - GASKET, FUEL SUCTION TUBE SET
77169-35010	GRJ120,KDJ120,KZJ120,LJ120,RZJ120,TRJ120..ARL,GCC,GEN	09/2002 - 08/2009	1
77174 - SUPPORT, FUEL SUCTION, NO.1
77174-35030	RZJ120;TRJ120..GEN	09/2002 - 03/2005	1
77201 - PIPE SUB-ASSY, FUEL TANK INLET
77201-60850	RZJ120..GEN;KDJ120,KZJ120,LJ120,TRJ120..ARL,GEN FUEL TANK-W(FUEL SUB TANK) 180L	09/2002 - 08/2009	1
77201-60820	RZJ120..GEN;KDJ120,KZJ120,LJ120,TRJ120..ARL,GEN	09/2002 - 08/2009	1
77204A - TUBE, FUEL TANK RETURN
77204-35040	GRJ120,RZJ120,TRJ120..ARL,GCC,GEN	09/2002 - 08/2009	1
77209D - TUBE SUB-ASSY, FUEL TANK MAIN
77209-35420	GRJ120,RZJ120,TRJ120..ARL,GCC,GEN	09/2002 - 08/2009	1
77213B - HOSE, FUEL TANK TO FILLER PIPE
77213-35390	RZJ120..GEN;GRJ120..(4FC,5F)..(ARL,GCC,GEN);KDJ120,KZJ120,LJ120,TRJ120..ARL,GEN FUEL TANK-W(FUEL SUB TANK) 180L	09/2002 - 08/2009	1
77213-35390	TRJ120..GEN;KDJ120,KZJ120,LJ120,RZJ120;GRJ120..(4FC,5F)..(ARL,GCC,GEN)	09/2002 - 08/2009	1
77241W - CLIP, TUBE JOINT
77241-60320	GRJ120,RZJ120,TRJ120..ARL,GCC,GEN	09/2002 - 08/2009	2
77241-60320	RZJ120,TRJ120..GEN;GRJ120..ARL,GCC,GEN FUEL TANK-W(FUEL SUB TANK) 180L	09/2002 - 08/2009	3
77241W - CLIP, TUBE JOINT
77241-60320	GRJ120,RZJ120,TRJ120..ARL,GCC,GEN	09/2002 - 08/2009	2
77241-60320	RZJ120,TRJ120..GEN;GRJ120..ARL,GCC,GEN FUEL TANK-W(FUEL SUB TANK) 180L	09/2002 - 08/2009	3
77276 - PROTECTOR, FUEL HOSE
77276-35040	GRJ120,KDJ120,KZJ120,LJ120,RZJ120,TRJ120..ARL,GCC,GEN	09/2002 - 08/2009	1
77277R - PROTECTOR, FUEL TANK FILLER PIPE
77277-60080	GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN	09/2002 - 08/2009	1
77286P - CLAMP, FUEL TUBE, NO.8
77285-35620	GRJ120,KDJ120,KZJ120,LJ120,RZJ120,TRJ120..ARL,GCC,GEN	09/2002 - 08/2009	1
77290 - SHIELD ASSY, FUEL TANK FILLER PIPE
77291-60100	GRJ120,KDJ120,KZJ120,LJ120,RZJ120,TRJ120..ARL,GCC,GEN	09/2002 - 08/2009	1
77306 - LEVER SUB-ASSY, FUEL LID LOCK OPEN
77306-28050C0	GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN BLACK,TRIM1#	09/2002 - 09/2007	1
77306-28050A0	GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN IVORY,TRIM0#	09/2002 - 09/2007	1
77310A - CAP ASSY, FUEL TANK
77300-33062	GRJ12#,RZJ12#	09/2002 - 08/2003	1
77316 - GASKET, FUEL TANK CAP
77316-33042	GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN	09/2002 - 08/2009	1
77350 - LID ASSY, FUEL FILLER OPENING
77350-60070	GRJ120,KDJ120,KZJ120,LJ120,RZJ120,TRJ120..ARL,GCC,GEN	09/2002 - 08/2009	1
77366 - SPRING, FUEL FILLER OPENING LID HINGE
77360-30080	GRJ12#,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN	09/2002 - 09/2004	1
77371L - RING, FUEL TANK FILLER PIPE SHIELD
77371-35010	GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN	09/2002 - 08/2009	1
77377 - RETAINER, FUEL FILLER OPENING LID LOCK
77377-35010	GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN	09/2002 - 08/2009	1
77391A - RING, FUEL INLET BOX
77391-60050	GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN	09/2002 - 08/2009	1
77601A - BAND SUB-ASSY, FUEL TANK, NO.1
77601-35090	GRJ120,KDJ120,KZJ120,LJ120,RZJ120,TRJ120..ARL,GCC,GEN	09/2002 - 08/2009	1
77602B - BAND SUB-ASSY, FUEL TANK, NO.1 LH
77602-35030	GRJ120,KDJ120,KZJ120,LJ120,RZJ120,TRJ120..ARL,GCC,GEN	09/2002 - 08/2009	1
77606 - PROTECTOR SUB-ASSY, FUEL TANK, NO.1
77606-35060	GRJ120,KDJ120,KZJ120,LJ120,RZJ120,TRJ120..ARL,GCC,GEN	09/2002 - 08/2009	1
77611A - PIN (FOR FUEL TANK BAND)
77653-35040	GRJ120,KDJ120,KZJ120,LJ120,RZJ120,TRJ120..ARL,GCC,GEN	09/2002 - 08/2009	2
77643A - PROTECTOR, FUEL TANK, NO.3
77643-35020	GRJ120,KDJ120,KZJ120,LJ120,RZJ120..ARL,GCC,GEN	09/2002 - 08/2009	1
77644 - BOLT, FUEL TANK
77644-35030	GRJ120,KDJ120,KZJ120,LJ120,RZJ120,TRJ120..ARL,GCC,GEN	09/2002 - 08/2009	2
77651B - CUSHION, FUEL TANK
77651-35070	GRJ120,KDJ120,KZJ120,LJ120,RZJ120,TRJ120..ARL,GCC,GEN	09/2002 - 08/2009	1
77652A - CUSHION, FUEL TANK, NO.2
77652-35060	GRJ120,KDJ120,KZJ120,LJ120,RZJ120,TRJ120..ARL,GCC,GEN	09/2002 - 08/2009	1
77653A - CUSHION, FUEL TANK, NO.3
77653-35050	GRJ120,KDJ120,KZJ120,LJ120,RZJ120,TRJ120..ARL,GCC,GEN	09/2002 - 08/2009	1
77681A - SEAT, FUEL TANK BAND
77681-35030	GRJ120,KDJ120,KZJ120,LJ120,RZJ120,TRJ120..ARL,GCC,GEN	09/2002 - 04/2007	1
77682 - SEAT, FUEL TANK BAND, LH
77681-35040	GRJ120,KDJ120,KZJ120,LJ120,RZJ120,TRJ120..ARL,GCC,GEN	09/2002 - 04/2007	1
Common parts
82711-1E340
90119-06361
90119-08A33
90179-08234
90189-06212
90269-06017
90460-22002
90460-46004
90460-55003
90464-00042
90468-14032
90469-06005
90959-04001
91651-B0820
Linked diagrams
8401

ILLUST NO. 1 OF 2(0209- )RZJ120,TRJ12#..GEN ; (0301- )GRJ120

Click highlighted areas on diagram

FUEL TANK, W(FUEL SUB TANK)

Part #	Description	Period	Qty
23217D - FILTER, FUEL PUMP
23217-50100	1GRFE,3RZFE,2TRFE..GRJ120,RZJ120,TRJ120..ARL,GCC,GEN	09/2002 - 08/2009	1
23221 - PUMP, FUEL
23221-75020	3RZFE,2TRFE..RZJ120,TRJ120	09/2002 - 08/2009	1
23225A - SPACER, FUEL PUMP
23225-50010	3RZFE,2TRFE..RZJ120,TRJ120	09/2002 - 08/2009	1
23229A - CLIP(FOR FUEL PUMP FILTER)
23229-16010	1GRFE,3RZFE,2TRFE..GRJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN	09/2002 - 08/2009	1
23280K - RING, O(FOR FUEL PRESSURE REGULATOR)
90301-08019	3RZFE,2TRFE..RZJ120,TRJ120	09/2002 - 08/2009	1
77011A - PIPE SUB-ASSY, FUEL TANK FILLER, LOWER
77011-60130	RZJ120..GEN;GRJ120,KZJ120,LJ120 FUEL TANK-W(FUEL SUB TANK) 180L	10/2002 - 07/2003	1
77020A - TUBE ASSY, FUEL SUCTION W/PUMP & GAGE
77020-60200	RZJ120,TRJ120..GEN FUEL TANK-W(FUEL SUB TANK) 180L	09/2002 - 04/2005	1
77020-35090	RZJ120;TRJ120..GEN	09/2002 - 03/2005	1
77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL
77035-60090	GRJ120,KDJ120,KZJ120,LJ120,RZJ120,TRJ120..RHD	09/2002 - 08/2009	1
77100 - TANK ASSY, FUEL
77001-3D530	RZJ120..GEN;KZJ120,LJ120	09/2002 - 05/2004	1
77001-60620	RZJ120..GEN;GRJ120,KZJ120,LJ120..ARL,GCC,GEN FUEL TANK-W(FUEL SUB TANK) 180L	09/2002 - 05/2004	1
77144 - RETAINER, FUEL PUMP GAUGE
77144-35010	GRJ120,KDJ120,KZJ120,LJ120,RZJ120,TRJ120..ARL,GCC,GEN	09/2002 - 08/2009	1
77169A - GASKET, FUEL SUCTION TUBE SET
77169-35010	GRJ120,KDJ120,KZJ120,LJ120,RZJ120,TRJ120..ARL,GCC,GEN	09/2002 - 08/2009	1
77174 - SUPPORT, FUEL SUCTION, NO.1
77174-35030	RZJ120;TRJ120..GEN	09/2002 - 03/2005	1
77178B - GASKET, FUEL TANK FILLER PIPE, LOWER (FOR SUB-TANK)
77178-34010	RZJ120..GEN;GRJ120,KZJ120,LJ120 FUEL TANK-W(FUEL SUB TANK) 180L	10/2002 - 07/2003	1
77179A - GASKET, FUEL TANK BREATHER TUBE
77179-26010	RZJ120..GEN;GRJ120,KZJ120,LJ120 FUEL TANK-W(FUEL SUB TANK) 180L	10/2002 - 07/2003	1
77201 - PIPE SUB-ASSY, FUEL TANK INLET
77201-60850	RZJ120..GEN;KDJ120,KZJ120,LJ120,TRJ120..ARL,GEN FUEL TANK-W(FUEL SUB TANK) 180L	09/2002 - 08/2009	1
77201-60820	RZJ120..GEN;KDJ120,KZJ120,LJ120,TRJ120..ARL,GEN	09/2002 - 08/2009	1
77201B - HOSE, FUEL, NO.2(FOR FUEL TANK INLET PIPE)
95313-13020	RZJ120..GEN;GRJ120..(4FC,5F)..(ARL,GCC,GEN);KDJ120,KZJ120,LJ120,TRJ120..ARL,GEN L=200,FUEL TANK-W(FUEL SUB TANK) 180L	09/2002 - 12/2999	1
77204A - TUBE, FUEL TANK RETURN
77204-35040	GRJ120,RZJ120,TRJ120..ARL,GCC,GEN	09/2002 - 08/2009	1
77206C - TUBE SUB-ASSY, FUEL MAIN, NO.2
77206-60290	RZJ120..GEN;GRJ120,KZJ120..(4FC,5F)..(ARL,GCC,GEN) FUEL TANK-W(FUEL SUB TANK) 180L	09/2002 - 12/2999	1
77209D - TUBE SUB-ASSY, FUEL TANK MAIN
77209-35420	GRJ120,RZJ120,TRJ120..ARL,GCC,GEN	09/2002 - 08/2009	1
77213 - HOSE, FUEL TANK SUB INLET
77213-60240	RZJ120..GEN;GRJ120..(4FC,5F)..(ARL,GCC,GEN);KDJ120,KZJ120,LJ120,TRJ120..ARL,GEN FUEL TANK-W(FUEL SUB TANK) 180L	09/2002 - 12/2999	1
77213B - HOSE, FUEL TANK TO FILLER PIPE
77213-35390	RZJ120..GEN;GRJ120..(4FC,5F)..(ARL,GCC,GEN);KDJ120,KZJ120,LJ120,TRJ120..ARL,GEN FUEL TANK-W(FUEL SUB TANK) 180L	09/2002 - 08/2009	1
77213-35390	TRJ120..GEN;KDJ120,KZJ120,LJ120,RZJ120;GRJ120..(4FC,5F)..(ARL,GCC,GEN)	09/2002 - 08/2009	1
77241W - CLIP, TUBE JOINT
77241-60320	GRJ120,RZJ120,TRJ120..ARL,GCC,GEN	09/2002 - 08/2009	2
77241-60320	RZJ120,TRJ120..GEN;GRJ120..ARL,GCC,GEN FUEL TANK-W(FUEL SUB TANK) 180L	09/2002 - 08/2009	3
77241W - CLIP, TUBE JOINT
77241-60320	GRJ120,RZJ120,TRJ120..ARL,GCC,GEN	09/2002 - 08/2009	2
77241-60320	RZJ120,TRJ120..GEN;GRJ120..ARL,GCC,GEN FUEL TANK-W(FUEL SUB TANK) 180L	09/2002 - 08/2009	3
77241W - CLIP, TUBE JOINT
77241-60320	GRJ120,RZJ120,TRJ120..ARL,GCC,GEN	09/2002 - 08/2009	2
77241-60320	RZJ120,TRJ120..GEN;GRJ120..ARL,GCC,GEN FUEL TANK-W(FUEL SUB TANK) 180L	09/2002 - 08/2009	3
77261D - TUBE, FUEL TANK TO CANISTER
77026-60140	RZJ120..GEN;GRJ120,KZJ120,LJ120 FUEL TANK-W(FUEL SUB TANK) 180L	10/2002 - 07/2003	1
77276 - PROTECTOR, FUEL HOSE
77276-35040	GRJ120,KDJ120,KZJ120,LJ120,RZJ120,TRJ120..ARL,GCC,GEN	09/2002 - 08/2009	1
77277R - PROTECTOR, FUEL TANK FILLER PIPE
77277-60080	GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN	09/2002 - 08/2009	1
77290 - SHIELD ASSY, FUEL TANK FILLER PIPE
77291-60100	GRJ120,KDJ120,KZJ120,LJ120,RZJ120,TRJ120..ARL,GCC,GEN	09/2002 - 08/2009	1
77306 - LEVER SUB-ASSY, FUEL LID LOCK OPEN
77306-28050C0	GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN BLACK,TRIM1#	09/2002 - 09/2007	1
77306-28050A0	GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN IVORY,TRIM0#	09/2002 - 09/2007	1
77310A - CAP ASSY, FUEL TANK
77300-33062	GRJ12#,RZJ12#	09/2002 - 08/2003	1
77316 - GASKET, FUEL TANK CAP
77316-33042	GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN	09/2002 - 08/2009	1
77350 - LID ASSY, FUEL FILLER OPENING
77350-60070	GRJ120,KDJ120,KZJ120,LJ120,RZJ120,TRJ120..ARL,GCC,GEN	09/2002 - 08/2009	1
77366 - SPRING, FUEL FILLER OPENING LID HINGE
77360-30080	GRJ12#,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN	09/2002 - 09/2004	1
77371L - RING, FUEL TANK FILLER PIPE SHIELD
77371-35010	GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN	09/2002 - 08/2009	1
77377 - RETAINER, FUEL FILLER OPENING LID LOCK
77377-35010	GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN	09/2002 - 08/2009	1
77380 - VALVE ASSY, FUEL CUT OFF
77380-26010	RZJ120..GEN;GRJ120,KZJ120,LJ120 FUEL TANK-W(FUEL SUB TANK) 180L	10/2002 - 07/2003	1
77391A - RING, FUEL INLET BOX
77391-60050	GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN	09/2002 - 08/2009	1
77601A - BAND SUB-ASSY, FUEL TANK, NO.1
77601-35090	GRJ120,KDJ120,KZJ120,LJ120,RZJ120,TRJ120..ARL,GCC,GEN	09/2002 - 08/2009	1
77601E - BAND SUB-ASSY, FUEL TANK
77601-60270	RZJ120,TRJ120..GEN;GRJ120,KDJ120,KZJ120,LJ120..ARL,GCC,GEN FUEL TANK-W(FUEL SUB TANK) 180L	09/2002 - 12/2999	2
77601E - BAND SUB-ASSY, FUEL TANK
77601-60270	RZJ120,TRJ120..GEN;GRJ120,KDJ120,KZJ120,LJ120..ARL,GCC,GEN FUEL TANK-W(FUEL SUB TANK) 180L	09/2002 - 12/2999	2
77602B - BAND SUB-ASSY, FUEL TANK, NO.1 LH
77602-35030	GRJ120,KDJ120,KZJ120,LJ120,RZJ120,TRJ120..ARL,GCC,GEN	09/2002 - 08/2009	1
77606 - PROTECTOR SUB-ASSY, FUEL TANK, NO.1
77606-35060	GRJ120,KDJ120,KZJ120,LJ120,RZJ120,TRJ120..ARL,GCC,GEN	09/2002 - 08/2009	1
77606C - PROTECTOR, FUEL TANK, NO.2
77606-60140	RZJ120,TRJ120..GEN;GRJ120,KDJ120,KZJ120,LJ120..ARL,GCC,GEN FUEL TANK-W(FUEL SUB TANK) 180L	09/2002 - 08/2009	1
77611A - PIN (FOR FUEL TANK BAND)
77653-35040	GRJ120,KDJ120,KZJ120,LJ120,RZJ120,TRJ120..ARL,GCC,GEN	09/2002 - 08/2009	2
77643A - PROTECTOR, FUEL TANK, NO.3
77643-35020	GRJ120,KDJ120,KZJ120,LJ120,RZJ120..ARL,GCC,GEN	09/2002 - 08/2009	1
77644 - BOLT, FUEL TANK
77644-35030	GRJ120,KDJ120,KZJ120,LJ120,RZJ120,TRJ120..ARL,GCC,GEN	09/2002 - 08/2009	2
77651B - CUSHION, FUEL TANK
77651-35070	GRJ120,KDJ120,KZJ120,LJ120,RZJ120,TRJ120..ARL,GCC,GEN	09/2002 - 08/2009	1
77652A - CUSHION, FUEL TANK, NO.2
77652-35060	GRJ120,KDJ120,KZJ120,LJ120,RZJ120,TRJ120..ARL,GCC,GEN	09/2002 - 08/2009	1
77653A - CUSHION, FUEL TANK, NO.3
77653-35050	GRJ120,KDJ120,KZJ120,LJ120,RZJ120,TRJ120..ARL,GCC,GEN	09/2002 - 08/2009	1
77681A - SEAT, FUEL TANK BAND
77681-35030	GRJ120,KDJ120,KZJ120,LJ120,RZJ120,TRJ120..ARL,GCC,GEN	09/2002 - 04/2007	1
77681B - SEAT, FUEL TANK BAND
77681-32060	RZJ120,TRJ120..GEN;GRJ120,KDJ120,KZJ120,LJ120..ARL,GCC,GEN FUEL TANK-W(FUEL SUB TANK) 180L	09/2002 - 12/2999	2
77681B - SEAT, FUEL TANK BAND
77681-32060	RZJ120,TRJ120..GEN;GRJ120,KDJ120,KZJ120,LJ120..ARL,GCC,GEN FUEL TANK-W(FUEL SUB TANK) 180L	09/2002 - 12/2999	2
77682 - SEAT, FUEL TANK BAND, LH
77681-35040	GRJ120,KDJ120,KZJ120,LJ120,RZJ120,TRJ120..ARL,GCC,GEN	09/2002 - 04/2007	1
Common parts
82711-1E340
90119-06361
90119-08A33
90119-10816
90159-50219
90179-08234
90189-06212
90269-06017
90460-22002
90460-46003
90460-46004
90460-55003
90464-00042
90464-00095
90467-13054
90468-14032
90469-06005
91626-B1035
91651-B0820
93319-A4010
Linked diagrams
8401

RZJ120R-GKMEK (2002)

ILLUST NO. 2 OF 2(0209- )GRJ120,RZJ120,TRJ120

ILLUST NO. 2 OF 2(0209- )RZJ120,TRJ120..GEN ; (0301- )GRJ120..ARL,GCC,GEN

ILLUST NO. 1 OF 2(0209- )GRJ120,RZJ120,TRJ120

ILLUST NO. 1 OF 2(0209- )RZJ120,TRJ12#..GEN ; (0301- )GRJ120

Part Price Details
