RZJ120R-GKMEK (2002)
Toyota Land Cruiser Prado

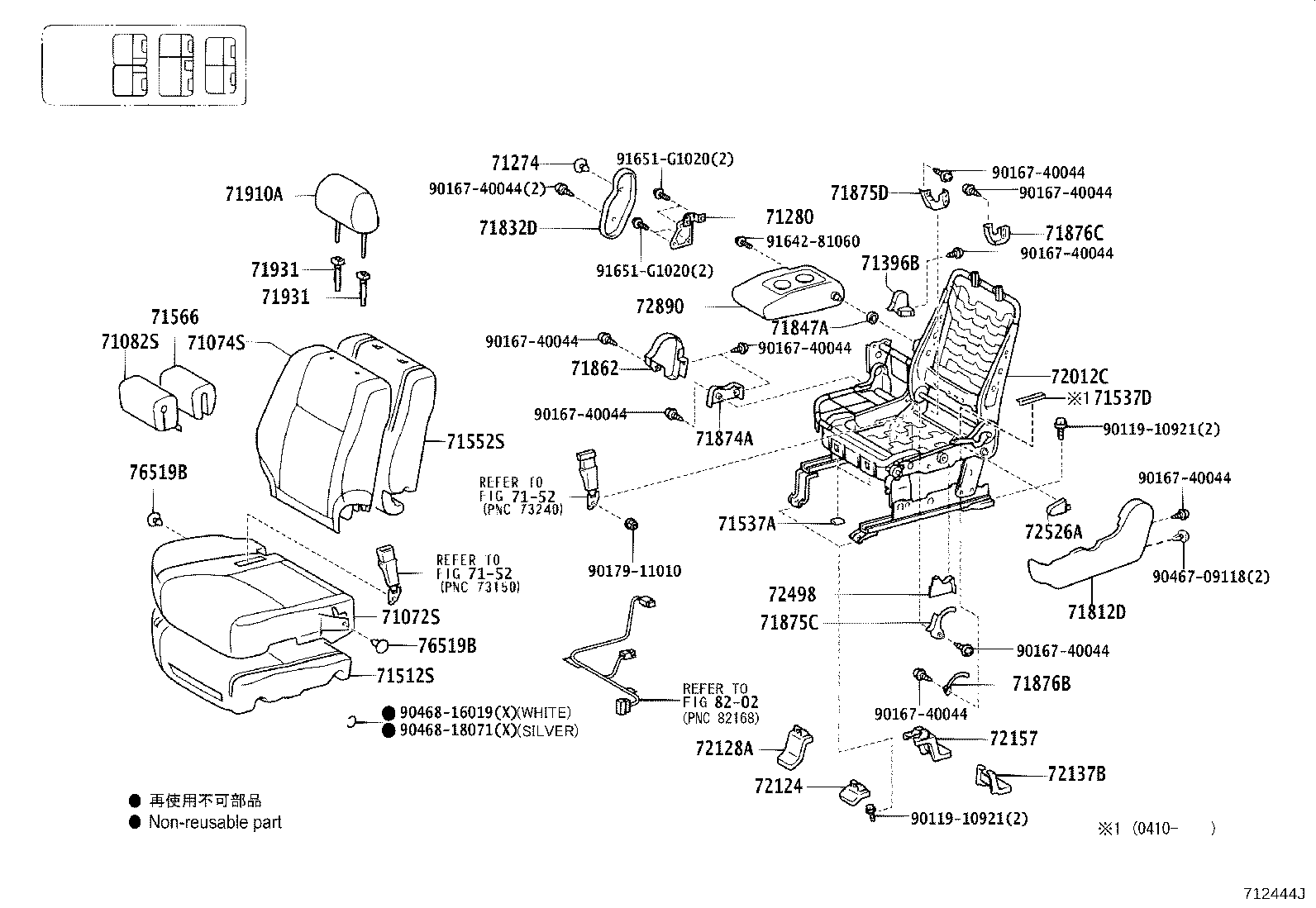

ILLUST NO. 1 OF 3(0209- )LJ120,RZJ120..RHD..GEN
FRONT SEAT LH-BENCH TYPE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-6A040A0 |
RZJ120..RHD..GEN REAR SEAT-PARALLEL,IVORY,TRIM0# |
1 | ||
| 71072-6A040B0 |
RZJ120..RHD..GEN REAR SEAT-PARALLEL&SRS AIR BAG-DRIVER & PASSENGER,MEDIUM GRAY,TRIM1# |
1 | ||
| 71072-6A040A0 |
RZJ120..RHD..GEN REAR SEAT-PARALLEL&SRS AIR BAG-DRIVER & PASSENGER,IVORY,TRIM0# |
1 | ||
| 71072-6A040B0 |
RZJ120..RHD..GEN REAR SEAT-PARALLEL,MEDIUM GRAY,TRIM1# |
1 | ||
| 71072-6A030B0 |
RZJ120..RHD..GEN WORKHORTH PACKAGE&REAR SEAT-PARALLEL,MD GRAY,TRIM1# |
1 | ||
| 71072-60870B0 |
GRJ120,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..GX..(ARL,GCC,GEN) MEDIUM GRAY,TRIM1# |
1 | ||
| 71072-60870A0 |
GRJ120,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..GX..(ARL,GCC,GEN) IVORY,TRIM0# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-6A120B0 |
RZJ120..RHD..GEN REAR SEAT-PARALLEL&SRS AIR BAG-DRIVER & PASSENGER,MEDIUM GRAY,TRIM1# |
1 | ||
| 71074-6A110B0 |
RZJ120..RHD..GEN WORKHORTH PACKAGE&REAR SEAT-PARALLEL,MD GRAY,TRIM1# |
1 | ||
| 71074-6A120A0 |
RZJ120..RHD..GEN REAR SEAT-PARALLEL&SRS AIR BAG-DRIVER & PASSENGER,IVORY,TRIM0# |
1 | ||
| 71074-6A120B0 |
RZJ120..RHD..GEN REAR SEAT-PARALLEL,MEDIUM GRAY,TRIM1# |
1 | ||
| 71074-6A120A0 |
RZJ120..RHD..GEN REAR SEAT-PARALLEL,IVORY,TRIM0# |
1 | ||
| 71073-6A610B0 |
GRJ120,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..GX..(ARL,GCC,GEN) MEDIUM GRAY,TRIM1# |
1 | ||
| 71074-6A060A0 |
RZJ125,TRJ125;KDJ120,KZJ120,LJ12#,RZJ120,TRJ120..GX..(ARL,GEN) SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN,IVORY,TRIM0# |
1 | ||
| 71073-6A610A0 |
GRJ120,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..GX..(ARL,GCC,GEN) IVORY,TRIM0# |
1 | ||
| 71074-6A060B0 |
RZJ125,TRJ125;KDJ120,KZJ120,LJ12#,RZJ120,TRJ120..GX..(ARL,GEN) SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN,MEDIUM GRAY,TRIM1# |
1 | ||
| 71082S - COVER SUB-ASSY, FRONT SEAT BACK SIDE, LH | ||||
| 71082-60020B0 |
RZJ120..RHD..GEN REAR SEAT-PARALLEL,MEDIUM GRAY,TRIM1# |
1 | ||
| 71082-60020A0 |
RZJ120..RHD..GEN REAR SEAT-PARALLEL,IVORY,TRIM0# |
1 | ||
| 71082-60010B0 |
RZJ120..RHD..GEN WORKHORTH PACKAGE&REAR SEAT-PARALLEL,MD GRAY,TRIM1# |
1 | ||
| 71082-60020A0 |
RZJ120..RHD..GEN REAR SEAT-PARALLEL&SRS AIR BAG-DRIVER & PASSENGER,IVORY,TRIM0# |
1 | ||
| 71082-60020B0 |
RZJ120..RHD..GEN REAR SEAT-PARALLEL&SRS AIR BAG-DRIVER & PASSENGER,MEDIUM GRAY,TRIM1# |
1 | ||
| 71274 - KNOB, FRONT SEAT HINGE | ||||
| 71274-60050E0 |
RZJ120..RHD..GEN REAR SEAT-PARALLEL,OAK,TRIM0#,1# |
1 | ||
| 71274-60050E0 |
RZJ120..RHD..GEN WORKHORTH PACKAGE&REAR SEAT-PARALLEL,OAK,TRIM0#,1# |
1 | ||
| 71274-60050E0 |
RZJ120..RHD..GEN REAR SEAT-PARALLEL&SRS AIR BAG-DRIVER & PASSENGER,OAK,TRIM0#,1# |
1 | ||
| 71280 - BRACKET ASSY, SEAT, INNER LH | ||||
| 71280-60020 |
RZJ120..RHD..GEN WORKHORTH PACKAGE&REAR SEAT-PARALLEL |
1 | ||
| 71280-60020 |
RZJ120..RHD..GEN REAR SEAT-PARALLEL&SRS AIR BAG-DRIVER & PASSENGER |
1 | ||
| 71280-60020 |
RZJ120..RHD..GEN REAR SEAT-PARALLEL |
1 | ||
| 71396B - COVER, CENTER SEAT HINGE, LH | ||||
| 71396-60050B1 |
RZJ120..RHD..GEN REAR SEAT-PARALLEL&SRS AIR BAG-DRIVER & PASSENGER,MD.GRAY,TRIM1# |
1 | ||
| 71396-60050B1 |
RZJ120..RHD..GEN WORKHORTH PACKAGE&REAR SEAT-PARALLEL,MD.GRAY,TRIM1# |
1 | ||
| 71396-60050B1 |
RZJ120..RHD..GEN REAR SEAT-PARALLEL,MD.GRAY,TRIM1# |
1 | ||
| 71396-60050A0 |
RZJ120..RHD..GEN WORKHORTH PACKAGE&REAR SEAT-PARALLEL,IVORY,TRIM0# |
1 | ||
| 71396-60050A0 |
RZJ120..RHD..GEN REAR SEAT-PARALLEL&SRS AIR BAG-DRIVER & PASSENGER,IVORY,TRIM0# |
1 | ||
| 71396-60050A0 |
RZJ120..RHD..GEN REAR SEAT-PARALLEL,IVORY,TRIM0# |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71502-60140 |
RZJ120..RHD..GEN REAR SEAT-PARALLEL&SRS AIR BAG-DRIVER & PASSENGER |
1 | ||
| 71502-60140 |
RZJ120..RHD..GEN REAR SEAT-PARALLEL |
1 | ||
| 71502-60140 |
RZJ120..RHD..GEN WORKHORTH PACKAGE&REAR SEAT-PARALLEL |
1 | ||
| 71501-60210 |
GRJ120,KDJ120,KZJ120,LJ120,RZJ120,TRJ120..RHD |
1 | ||
| 71537A - PROTECTOR, FRONT SEAT CUSHION | ||||
| 71537-26010 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN |
4 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71552-60260 |
RZJ120..RHD..GEN REAR SEAT-PARALLEL&SRS AIR BAG-DRIVER & PASSENGER |
1 | ||
| 71552-60260 |
RZJ120..RHD..GEN REAR SEAT-PARALLEL |
1 | ||
| 71552-60260 |
RZJ120..RHD..GEN WORKHORTH PACKAGE&REAR SEAT-PARALLEL |
1 | ||
| 71551-60400 |
GRJ120,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..GX..(ARL,GCC,GEN) |
1 | ||
| 71552-60290 |
RZJ125,TRJ125;KDJ120,KZJ120,LJ12#,RZJ120,TRJ120..GX..(ARL,GEN) SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN |
1 | ||
| 71566 - PAD, FRONT SEAT BACK, INSIDE LH | ||||
| 71566-60020 |
RZJ120..RHD..GEN WORKHORTH PACKAGE&REAR SEAT-PARALLEL |
1 | ||
| 71566-60020 |
RZJ120..RHD..GEN REAR SEAT-PARALLEL&SRS AIR BAG-DRIVER & PASSENGER |
1 | ||
| 71566-60020 |
RZJ120..RHD..GEN REAR SEAT-PARALLEL |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-60200B1 |
LJ12#,RZJ12#,TRJ12#;GRJ120,KDJ120,KZJ120..ARL MD.GRAY,TRIM1# |
1 | ||
| 71812-60200A0 |
LJ12#,RZJ12#,TRJ12#;GRJ120,KDJ120,KZJ120..ARL IVORY,TRIM0# |
1 | ||
| 71832D - COVER, FRONT SEAT HINGE, LH | ||||
| 71832-60050A0 |
RZJ120..RHD..GEN WORKHORTH PACKAGE&REAR SEAT-PARALLEL,IVORY,TRIM0# |
1 | ||
| 71832-60050A0 |
RZJ120..RHD..GEN REAR SEAT-PARALLEL&SRS AIR BAG-DRIVER & PASSENGER,IVORY,TRIM0# |
1 | ||
| 71832-60050B1 |
RZJ120..RHD..GEN REAR SEAT-PARALLEL,MD.GRAY,TRIM1# |
1 | ||
| 71832-60050B1 |
RZJ120..RHD..GEN REAR SEAT-PARALLEL&SRS AIR BAG-DRIVER & PASSENGER,MD.GRAY,TRIM1# |
1 | ||
| 71832-60050A0 |
RZJ120..RHD..GEN REAR SEAT-PARALLEL,IVORY,TRIM0# |
1 | ||
| 71832-60050B1 |
RZJ120..RHD..GEN WORKHORTH PACKAGE&REAR SEAT-PARALLEL,MD.GRAY,TRIM1# |
1 | ||
| 71847A - COVER, FRONT SEAT ARMREST HOLE BOARD | ||||
| 71847-60010 |
RZJ120..RHD..GEN WORKHORTH PACKAGE&REAR SEAT-PARALLEL |
1 | ||
| 71847-60010 |
RZJ120..RHD..GEN REAR SEAT-PARALLEL&SRS AIR BAG-DRIVER & PASSENGER |
1 | ||
| 71847-60010 |
RZJ120..RHD..GEN REAR SEAT-PARALLEL |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-60120B1 |
RZJ120..RHD..GEN REAR SEAT-PARALLEL,MD.GRAY,TRIM1# |
1 | ||
| 71862-60120A0 |
RZJ120..RHD..GEN REAR SEAT-PARALLEL&SRS AIR BAG-DRIVER & PASSENGER,IVORY,TRIM0# |
1 | ||
| 71862-60120B1 |
RZJ120..RHD..GEN REAR SEAT-PARALLEL&SRS AIR BAG-DRIVER & PASSENGER,MD.GRAY,TRIM1# |
1 | ||
| 71862-60120A0 |
RZJ120..RHD..GEN REAR SEAT-PARALLEL,IVORY,TRIM0# |
1 | ||
| 71862-60120A0 |
RZJ120..RHD..GEN WORKHORTH PACKAGE&REAR SEAT-PARALLEL,IVORY,TRIM0# |
1 | ||
| 71862-60110A0 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN IVORY,TRIM0# |
1 | ||
| 71862-60120B1 |
RZJ120..RHD..GEN WORKHORTH PACKAGE&REAR SEAT-PARALLEL,MD.GRAY,TRIM1# |
1 | ||
| 71862-60110B1 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN MD.GRAY,TRIM1# |
1 | ||
| 71874A - SHIELD, FRONT SEAT CUSHION, LOWER LH | ||||
| 71874-60010A0 |
RZJ120..RHD..GEN REAR SEAT-PARALLEL,IVORY,TRIM0# |
1 | ||
| 71874-60010B1 |
RZJ120..RHD..GEN REAR SEAT-PARALLEL,MD.GRAY,TRIM1# |
1 | ||
| 71874-60010A0 |
RZJ120..RHD..GEN WORKHORTH PACKAGE&REAR SEAT-PARALLEL,IVORY,TRIM0# |
1 | ||
| 71874-60010B1 |
RZJ120..RHD..GEN WORKHORTH PACKAGE&REAR SEAT-PARALLEL,MD.GRAY,TRIM1# |
1 | ||
| 71874-60010B1 |
RZJ120..RHD..GEN REAR SEAT-PARALLEL&SRS AIR BAG-DRIVER & PASSENGER,MD.GRAY,TRIM1# |
1 | ||
| 71874-60010A0 |
RZJ120..RHD..GEN REAR SEAT-PARALLEL&SRS AIR BAG-DRIVER & PASSENGER,IVORY,TRIM0# |
1 | ||
| 71875C - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-60160B1 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN MD.GRAY,TRIM1# |
1 | ||
| 71875-60160A0 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN IVORY,TRIM0# |
1 | ||
| 71875D - COVER, RECLINING ADJUSTER OUTSIDE, RH | ||||
| 71875-58060C0 |
KZJ120;GRJ12#..LHD..VX;LJ120,RZJ120..RHD SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN,BLACK |
1 | ||
| 71875-58060 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN |
1 | ||
| 71876B - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-60160A0 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN IVORY,TRIM0# |
1 | ||
| 71876-60160B1 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN MD.GRAY,TRIM1# |
1 | ||
| 71876C - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-58060C0 |
KZJ120;GRJ12#..LHD..VX;LJ120,RZJ120..RHD SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN,BLACK |
1 | ||
| 71876-58060 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-60580B0 |
RZJ120..RHD..GEN WORKHORTH PACKAGE&REAR SEAT-PARALLEL,MD.GRAY,TRIM1# |
2 | ||
| 71910-60590A0 |
GRJ120,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..GX..(ARL,GCC,GEN) IVORY,TRIM0# |
2 | ||
| 71910-60590B0 |
GRJ120,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..GX..(ARL,GCC,GEN) MEDIUM GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-42020A0 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN W(LOCK)&W(BUTTON),IVORY,TRIM0# |
2 | ||
| 71931-42020A0 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN W(LOCK)&W/O(BUTTON),IVORY,TRIM0# |
2 | ||
| 71930-42020B6 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN W(LOCK)&W(BUTTON),MD.GRAY,TRIM1# |
2 | ||
| 71931-42020B6 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN W(LOCK)&W/O(BUTTON),MD.GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-42020A0 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN W(LOCK)&W(BUTTON),IVORY,TRIM0# |
2 | ||
| 71931-42020A0 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN W(LOCK)&W/O(BUTTON),IVORY,TRIM0# |
2 | ||
| 71930-42020B6 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN W(LOCK)&W(BUTTON),MD.GRAY,TRIM1# |
2 | ||
| 71931-42020B6 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN W(LOCK)&W/O(BUTTON),MD.GRAY,TRIM1# |
2 | ||
| 72012C - ADJUSTER SUB-ASSY, FRONT SEAT, LH | ||||
| 71120-60110 |
RZJ120..RHD..GEN REAR SEAT-PARALLEL |
1 | ||
| 71120-60110 |
RZJ120..RHD..GEN WORKHORTH PACKAGE&REAR SEAT-PARALLEL |
1 | ||
| 71120-60110 |
RZJ120..RHD..GEN REAR SEAT-PARALLEL&SRS AIR BAG-DRIVER & PASSENGER |
1 | ||
| 71120-60300 |
GRJ120,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..GX..(ARL,GCC,GEN) |
1 | ||
| 71120-60320 |
KDJ120,KZJ120,LJ120,RZJ120,TRJ120..RHD..GX SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN |
1 | ||
| 72124 - COVER, SEAT TRACK BRACKET, OUTER FRONT LH | ||||
| 72124-60060A0 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN IVORY,TRIM0# |
1 | ||
| 72124-60060B0 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN MD.GRAY,TRIM1# |
1 | ||
| 72128A - COVER, SEAT TRACK BRACKET, INNER FRONT LH | ||||
| 72128-60040A0 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN IVORY,TRIM0# |
1 | ||
| 72128-60040B0 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN MD.GRAY,TRIM1# |
1 | ||
| 72137B - COVER, SEAT TRACK, RH | ||||
| 72137-60100A0 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN IVORY,TRIM0# |
2 | ||
| 72137-60100B0 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN MD.GRAY,TRIM1# |
2 | ||
| 72157 - COVER, SEAT TRACK BRACKET, INNER | ||||
| 72157-60120A0 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN IVORY,TRIM0# |
2 | ||
| 72157-60120B0 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN MD.GRAY,TRIM1# |
2 | ||
| 72498 - COVER, VERTICAL ADJUSTER BRACKET | ||||
| 72498-60020 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN |
1 | ||
| 72526A - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-60070B1 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN MD.GRAY,TRIM1# |
1 | ||
| 72526-60070A0 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN IVORY,TRIM0# |
1 | ||
| 72890 - ARMREST ASSY, SEAT, C LH | ||||
| 72890-60070B0 |
RZJ120..RHD..GEN WORKHORTH PACKAGE&REAR SEAT-PARALLEL,MD.GRAY,TRIM1# |
1 | ||
| 72890-60080A0 |
RZJ120..RHD..GEN REAR SEAT-PARALLEL,IVORY,TRIM0# |
1 | ||
| 72890-60080A0 |
RZJ120..RHD..GEN REAR SEAT-PARALLEL&SRS AIR BAG-DRIVER & PASSENGER,IVORY,TRIM0# |
1 | ||
| 72890-60080B0 |
RZJ120..RHD..GEN REAR SEAT-PARALLEL,MEDIUM GRAY,TRIM1# |
1 | ||
| 72890-60080B0 |
RZJ120..RHD..GEN REAR SEAT-PARALLEL&SRS AIR BAG-DRIVER & PASSENGER,MEDIUM GRAY,TRIM1# |
1 | ||
| 76519B - CLIP, FRONT SEAT CUSHION COVER | ||||
| 76519-42010 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN |
4 | ||
| 76519-42010 |
RZJ120..RHD..GEN WORKHORTH PACKAGE&REAR SEAT-PARALLEL |
3 | ||
| 76519-42010 |
RZJ120..RHD..GEN REAR SEAT-PARALLEL&SRS AIR BAG-DRIVER & PASSENGER |
3 | ||
| 76519-42010 |
RZJ120..RHD..GEN REAR SEAT-PARALLEL |
3 | ||
| 76519B - CLIP, FRONT SEAT CUSHION COVER | ||||
| 76519-42010 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN |
4 | ||
| 76519-42010 |
RZJ120..RHD..GEN WORKHORTH PACKAGE&REAR SEAT-PARALLEL |
3 | ||
| 76519-42010 |
RZJ120..RHD..GEN REAR SEAT-PARALLEL&SRS AIR BAG-DRIVER & PASSENGER |
3 | ||
| 76519-42010 |
RZJ120..RHD..GEN REAR SEAT-PARALLEL |
3 | ||
| Common parts | ||||
| 90119-10921 | ||||
| 90167-40044 | ||||
| 90179-11010 | ||||
| 90467-09118 | ||||
| 90468-16019 | ||||
| 90468-18071 | ||||
| 91642-81060 | ||||
| 91651-G1020 | ||||
| Linked diagrams | ||||
| 7152 | ||||
| 8202 | ||||

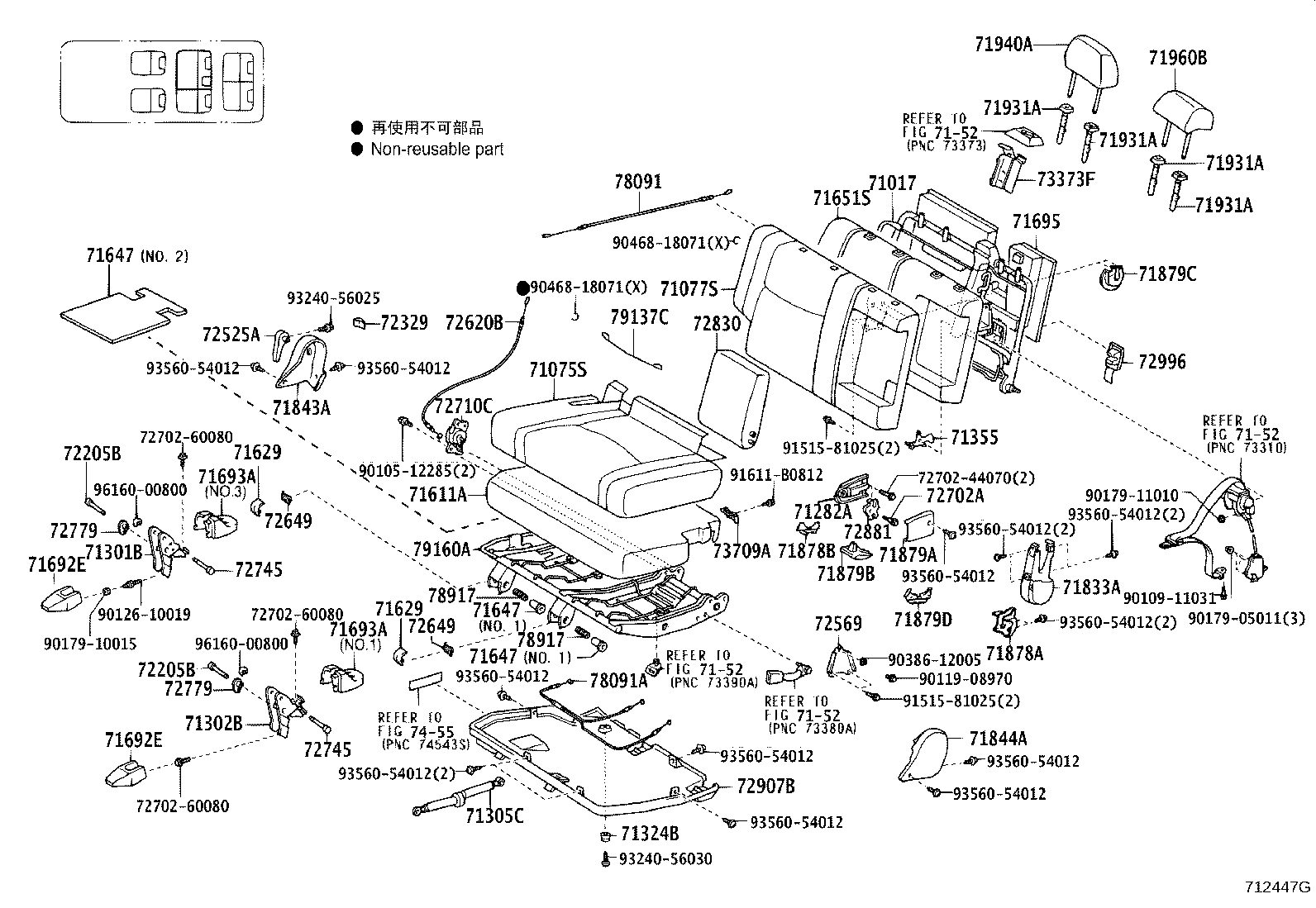

ILLUST NO. 2 OF 3(0209- )RHD
REAR NO.1 SEAT RH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71017 - FRAME SUB-ASSY, REAR SEAT BACK, RH | ||||
| 71017-60490 |
LJ120,RZJ120,TRJ120..RHD..GEN |
1 | ||
| 71075S - COVER, REAR SEAT CUSHION, RH (FOR SEPARATE TYPE) | ||||
| 71075-6A110B0 |
RZJ120..RHD..GEN WORKHORTH PACKAGE&REAR SEAT-PARALLEL,MD GRAY,TRIM1# |
1 | ||
| 71075-6A120A1 |
GRJ120,KDJ120,KZJ120,LJ120,RZJ120,TRJ120..RHD..GX IVORY,TRIM0# |
1 | ||
| 71075-6A120B1 |
GRJ120,KDJ120,KZJ120,LJ120,RZJ120,TRJ120..RHD..GX MEDIUM GRAY,TRIM1# |
1 | ||
| 71077S - COVER, REAR SEAT BACK, RH (FOR SEPARATE TYPE) | ||||
| 71077-6A490A1 |
LJ120,RZJ120,TRJ120..RHD..GEN IVORY,TRIM0# |
1 | ||
| 71077-6A480B0 |
RZJ120..RHD..GEN WORKHORTH PACKAGE&REAR SEAT-PARALLEL,MD.GRAY,TRIM1# |
1 | ||
| 71077-6A490B1 |
LJ120,RZJ120,TRJ120..RHD..GEN MEDIUM GRAY,TRIM1# |
1 | ||
| 71282A - HINGE, REAR SEAT CENTER ARMREST, LH | ||||
| 71340-60010 |
GRJ120,KDJ120,KZJ120,LJ120,RZJ120,TRJ120..RHD |
1 | ||
| 71301B - HINGE SUB-ASSY, REAR NO.1 SEAT, RH | ||||
| 71302-60060 |
GRJ12#,KZJ120,LJ12#,RZJ12# |
1 | ||
| 71302B - HINGE SUB-ASSY, REAR NO.1 SEAT, LH | ||||
| 71301-60100 |
GRJ120,KZJ120,LJ120,RZJ120..RHD |
1 | ||
| 71305C - STAY SUB-ASSY, REAR SEAT | ||||
| 71305-60050 |
GRJ120,KDJ120,KZJ120,LJ120,RZJ120,TRJ120..RHD |
1 | ||
| 71324B - CUSHION, REAR SEAT | ||||
| 71324-60200 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN |
1 | ||
| 71355 - PLATE, REAR SEAT BACK HINGE, OUTER RH | ||||
| 71355-60010 |
GRJ120,KDJ120,KZJ120,LJ120,RZJ120,TRJ120..RHD |
1 | ||
| 71611A - PAD, REAR SEAT CUSHION, RH | ||||
| 71611-60360 |
GRJ120,KDJ120,KZJ120,LJ120,RZJ120,TRJ120..RHD |
1 | ||
| 71629 - COVER, REAR SEAT CUSHION HINGE | ||||
| 71629-60350A0 |
TRJ12#;GRJ125,KDJ120..5FC,6F;GRJ120..(5FC,6F)..(GCC,GEN);GRJ120,KZJ120,LJ120,RZJ120..RHD IVORY,TRIM0#,NO.1 |
2 | ||
| 71629-60350B0 |
TRJ12#;GRJ125,KDJ120..5FC,6F;GRJ120..(5FC,6F)..(GCC,GEN);GRJ120,KZJ120,LJ120,RZJ120..RHD MD. GRAY,TRIM1#,NO.1 |
2 | ||
| 71629 - COVER, REAR SEAT CUSHION HINGE | ||||
| 71629-60350A0 |
TRJ12#;GRJ125,KDJ120..5FC,6F;GRJ120..(5FC,6F)..(GCC,GEN);GRJ120,KZJ120,LJ120,RZJ120..RHD IVORY,TRIM0#,NO.1 |
2 | ||
| 71629-60350B0 |
TRJ12#;GRJ125,KDJ120..5FC,6F;GRJ120..(5FC,6F)..(GCC,GEN);GRJ120,KZJ120,LJ120,RZJ120..RHD MD. GRAY,TRIM1#,NO.1 |
2 | ||
| 71647 - PROTECTOR, REAR SEAT CUSHION EDGE | ||||
| 71647-60230 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN NO.1 |
2 | ||
| 71647-60260 |
GRJ120,KDJ120,KZJ120,LJ120,RZJ120,TRJ120..RHD NO.2 |
1 | ||
| 71647 - PROTECTOR, REAR SEAT CUSHION EDGE | ||||
| 71647-60230 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN NO.1 |
2 | ||
| 71647-60260 |
GRJ120,KDJ120,KZJ120,LJ120,RZJ120,TRJ120..RHD NO.2 |
1 | ||
| 71647 - PROTECTOR, REAR SEAT CUSHION EDGE | ||||
| 71647-60230 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN NO.1 |
2 | ||
| 71647-60260 |
GRJ120,KDJ120,KZJ120,LJ120,RZJ120,TRJ120..RHD NO.2 |
1 | ||
| 71651S - PAD, REAR SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71651-60320 |
GRJ120,KDJ120,KZJ120,LJ120,RZJ120,TRJ120..RHD |
1 | ||
| 71692E - COVER, REAR SEAT CUSHION HINGE, NO.2 | ||||
| 71692-60040B0 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN MD.GRAY,TRIM1# |
4 | ||
| 71692-60040A0 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN IVORY,TRIM0# |
4 | ||
| 71692E - COVER, REAR SEAT CUSHION HINGE, NO.2 | ||||
| 71692-60040B0 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN MD.GRAY,TRIM1# |
4 | ||
| 71692-60040A0 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN IVORY,TRIM0# |
4 | ||
| 71693A - COVER, REAR SEAT CUSHION HINGE, NO.3 | ||||
| 71693-60060B0 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN MD.GRAY,TRIM1#,NO.1 |
2 | ||
| 71693-60070A0 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN IVORY,TRIM0#,NO.2 |
1 | ||
| 71693-60060A0 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN IVORY,TRIM0#,NO.1 |
2 | ||
| 71693-60080A0 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN IVORY,TRIM0#,NO.3 |
1 | ||
| 71693-60080B0 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN MD.GRAY,TRIM1#,NO.3 |
1 | ||
| 71693-60070B0 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN MD.GRAY,TRIM1#,NO.2 |
1 | ||
| 71693A - COVER, REAR SEAT CUSHION HINGE, NO.3 | ||||
| 71693-60060B0 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN MD.GRAY,TRIM1#,NO.1 |
2 | ||
| 71693-60070A0 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN IVORY,TRIM0#,NO.2 |
1 | ||
| 71693-60060A0 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN IVORY,TRIM0#,NO.1 |
2 | ||
| 71693-60080A0 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN IVORY,TRIM0#,NO.3 |
1 | ||
| 71693-60080B0 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN MD.GRAY,TRIM1#,NO.3 |
1 | ||
| 71693-60070B0 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN MD.GRAY,TRIM1#,NO.2 |
1 | ||
| 71695 - PROTECTOR, REAR SEAT BACK | ||||
| 71695-60220 |
LJ120,RZJ120,TRJ120..RHD..GEN |
1 | ||
| 71833A - COVER, REAR SEAT RECLINING, NO.1 RH | ||||
| 71801-60010A0 |
GRJ120,KDJ120,KZJ120,LJ120,RZJ120,TRJ120..RHD IVORY,TRIM0# |
1 | ||
| 71801-60010B0 |
GRJ120,KDJ120,KZJ120,LJ120,RZJ120,TRJ120..RHD MD. GRAY,TRIM1# |
1 | ||
| 71843A - COVER, REAR SEAT RECLINING, NO.2 RH | ||||
| 71843-60030A0 |
GRJ120,KDJ120,KZJ120,LJ120,RZJ120,TRJ120..ARL,GCC,GEN IVORY,TRIM0# |
1 | ||
| 71843-60030B0 |
GRJ120,KDJ120,KZJ120,LJ120,RZJ120,TRJ120..ARL,GCC,GEN MD. GRAY,TRIM1# |
1 | ||
| 71844A - COVER, REAR SEAT RECLINING, NO.2 LH | ||||
| 71844-60030B0 |
GRJ120,KDJ120,KZJ120,LJ120,RZJ120,TRJ120..RHD MD. GRAY,TRIM1# |
1 | ||
| 71844-60030A0 |
GRJ120,KDJ120,KZJ120,LJ120,RZJ120,TRJ120..RHD IVORY,TRIM0# |
1 | ||
| 71878A - COVER, REAR SEAT RECLINING, INNER RH | ||||
| 71878-60090B0 |
GRJ120,KDJ120,KZJ120,LJ120,RZJ120,TRJ120..RHD MD. GRAY,TRIM1# |
1 | ||
| 71878-60090A0 |
GRJ120,KDJ120,KZJ120,LJ120,RZJ120,TRJ120..RHD IVORY,TRIM0# |
1 | ||
| 71878B - COVER, REAR SEAT RECLINING, INNER RH | ||||
| 71878-60140A0 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN IVORY,TRIM0# |
1 | ||
| 71878-60140B0 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN MD. GRAY,TRIM1# |
1 | ||
| 71879A - COVER, REAR SEAT RECLINING, INNER LH | ||||
| 71879-60080B0 |
GRJ120,KDJ120,KZJ120,LJ120,RZJ120,TRJ120..RHD MD. GRAY,TRIM1# |
1 | ||
| 71879-60080A0 |
GRJ120,KDJ120,KZJ120,LJ120,RZJ120,TRJ120..RHD IVORY,TRIM0# |
1 | ||
| 71879B - COVER, REAR SEAT RECLINING, INNER LH | ||||
| 71879-60090A0 |
GRJ120,KDJ120,KZJ120,LJ120,RZJ120,TRJ120..RHD IVORY,TRIM0# |
1 | ||
| 71879-60090B0 |
GRJ120,KDJ120,KZJ120,LJ120,RZJ120,TRJ120..RHD MD. GRAY,TRIM1# |
1 | ||
| 71879C - COVER, REAR SEAT RECLINING, INNER LH | ||||
| 71879-60110 |
GRJ120,KDJ120,KZJ120,LJ120,RZJ120,TRJ120..RHD |
1 | ||
| 71879-60110C0 |
GRJ120,KZJ120,LJ120,RZJ120..RHD BLACK,TRIM0#,1# |
1 | ||
| 71879D - COVER, REAR SEAT RECLINING, INNER LH | ||||
| 71879-60130A0 |
GRJ120,KDJ120,KZJ120,LJ120,RZJ120,TRJ120..RHD IVORY,TRIM0# |
1 | ||
| 71879-60130B0 |
GRJ120,KDJ120,KZJ120,LJ120,RZJ120,TRJ120..RHD MD. GRAY,TRIM1# |
1 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-42020A0 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN W(LOCK)&W(BUTTON),IVORY,TRIM0# |
3 | ||
| 71930-42020B6 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN W(LOCK)&W(BUTTON),MD.GRAY,TRIM1# |
3 | ||
| 71931-42020A0 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN W(LOCK)&W/O(BUTTON),IVORY,TRIM0# |
3 | ||
| 71931-42020B6 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN W(LOCK)&W/O(BUTTON),MD.GRAY,TRIM1# |
3 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-42020A0 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN W(LOCK)&W(BUTTON),IVORY,TRIM0# |
3 | ||
| 71930-42020B6 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN W(LOCK)&W(BUTTON),MD.GRAY,TRIM1# |
3 | ||
| 71931-42020A0 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN W(LOCK)&W/O(BUTTON),IVORY,TRIM0# |
3 | ||
| 71931-42020B6 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN W(LOCK)&W/O(BUTTON),MD.GRAY,TRIM1# |
3 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-42020A0 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN W(LOCK)&W(BUTTON),IVORY,TRIM0# |
3 | ||
| 71930-42020B6 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN W(LOCK)&W(BUTTON),MD.GRAY,TRIM1# |
3 | ||
| 71931-42020A0 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN W(LOCK)&W/O(BUTTON),IVORY,TRIM0# |
3 | ||
| 71931-42020B6 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN W(LOCK)&W/O(BUTTON),MD.GRAY,TRIM1# |
3 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-42020A0 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN W(LOCK)&W(BUTTON),IVORY,TRIM0# |
3 | ||
| 71930-42020B6 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN W(LOCK)&W(BUTTON),MD.GRAY,TRIM1# |
3 | ||
| 71931-42020A0 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN W(LOCK)&W/O(BUTTON),IVORY,TRIM0# |
3 | ||
| 71931-42020B6 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN W(LOCK)&W/O(BUTTON),MD.GRAY,TRIM1# |
3 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-60330B0 |
RZJ120..RHD..GEN WORKHORTH PACKAGE&REAR SEAT-PARALLEL,MD.GRAY,TRIM1# |
2 | ||
| 71940-60340B0 |
GRJ120,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..GX..(ARL,GCC,GEN) MEDIUM GRAY,TRIM1# |
2 | ||
| 71940-60340A0 |
GRJ120,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..GX..(ARL,GCC,GEN) IVORY,TRIM0# |
2 | ||
| 71960B - HEADREST ASSY, REAR SEAT, CENTER | ||||
| 71960-60150B0 |
RZJ120..RHD..GEN WORKHORTH PACKAGE&REAR SEAT-PARALLEL,MD.GRAY,TRIM1# |
1 | ||
| 71960-60160B0 |
GRJ120,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..GX..(ARL,GCC,GEN) MEDIUM GRAY,TRIM1# |
1 | ||
| 71960-60160A0 |
GRJ120,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..GX..(ARL,GCC,GEN) IVORY,TRIM0# |
1 | ||
| 72205B - PIN SUB-ASSY, SEAT TRACK OPEN LEVER | ||||
| 72205-60070 |
TRJ12#;GRJ125,KDJ120..5FC,6F;GRJ120..(5FC,6F)..(GCC,GEN);GRJ120,KZJ120,LJ120,RZJ120..RHD |
2 | ||
| 72205B - PIN SUB-ASSY, SEAT TRACK OPEN LEVER | ||||
| 72205-60070 |
TRJ12#;GRJ125,KDJ120..5FC,6F;GRJ120..(5FC,6F)..(GCC,GEN);GRJ120,KZJ120,LJ120,RZJ120..RHD |
2 | ||
| 72329 - COVER, SEAT ADJUSTER BOLT | ||||
| 72329-60030A0 |
GRJ120,KDJ120,KZJ120,LJ120,RZJ120,TRJ120..ARL,GCC,GEN IVORY,TRIM0# |
2 | ||
| 72329-60030B1 |
GRJ120,KDJ120,KZJ120,LJ120,RZJ120,TRJ120..ARL,GCC,GEN MD.GRAY,TRIM1# |
2 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-60090A0 |
GRJ120,KDJ120,KZJ120,LJ120,RZJ120,TRJ120..ARL,GCC,GEN IVORY,TRIM0# |
1 | ||
| 72525-60090B0 |
GRJ120,KDJ120,KZJ120,LJ120,RZJ120,TRJ120..ARL,GCC,GEN MD.GRAY,TRIM1# |
1 | ||
| 72569 - PLATE, SEAT BACK STOPPER | ||||
| 72569-60010 |
GRJ120,KDJ120,KZJ120,LJ120,RZJ120,TRJ120..RHD |
1 | ||
| 72620B - CABLE ASSY, REAR NO.1 SEAT LOCK | ||||
| 72620-60010 |
GRJ120,KDJ120,KZJ120,LJ120,RZJ120,TRJ120..RHD |
1 | ||
| 72649 - SPRING, REAR SEAT CUSHION SUPPORT | ||||
| 72649-60090 |
GRJ120,KDJ120,KZJ120,LJ120,RZJ120,TRJ120..RHD |
2 | ||
| 72649 - SPRING, REAR SEAT CUSHION SUPPORT | ||||
| 72649-60090 |
GRJ120,KDJ120,KZJ120,LJ120,RZJ120,TRJ120..RHD |
2 | ||
| 72702A - CABLE SUB-ASSY, REVERSIBLE REAR SEAT LOCKING LEVER CONT | ||||
| 72702-60060 |
GRJ120,KDJ120,KZJ120,LJ120,RZJ120,TRJ120..RHD |
1 | ||
| 72710C - ADJUSTER ASSY, NO.1 SEAT RECLINING, RH | ||||
| 72710-60170 |
GRJ120,KDJ120,KZJ120,LJ120,RZJ120,TRJ120..RHD |
1 | ||
| 72745 - PIN, REAR SEAT RECLINING HINGE | ||||
| 72745-60070 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN |
2 | ||
| 72745 - PIN, REAR SEAT RECLINING HINGE | ||||
| 72745-60070 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN |
2 | ||
| 72779 - GUIDE, REAR SEAT HINGE PAWL | ||||
| 72779-60020 |
TRJ12#;GRJ125,KDJ120..5FC,6F;GRJ120..(5FC,6F)..(GCC,GEN);GRJ120,KZJ120,LJ120,RZJ120..RHD |
2 | ||
| 72779 - GUIDE, REAR SEAT HINGE PAWL | ||||
| 72779-60020 |
TRJ12#;GRJ125,KDJ120..5FC,6F;GRJ120..(5FC,6F)..(GCC,GEN);GRJ120,KZJ120,LJ120,RZJ120..RHD |
2 | ||
| 72830 - ARMREST ASSY, REAR SEAT, CENTER | ||||
| 72830-60170B0 |
GRJ120,KDJ120,KZJ120,LJ120,RZJ120,TRJ120..RHD..GX MD.GRAY,TRIM1# |
1 | ||
| 72830-60170A0 |
GRJ120,KDJ120,KZJ120,LJ120,RZJ120,TRJ120..RHD..GX IVORY,TRIM0# |
1 | ||
| 72830-60150B0 |
RZJ120..RHD..GEN WORKHORTH PACKAGE&REAR SEAT-PARALLEL,MD.GRAY,TRIM1# |
1 | ||
| 72881 - SUPPORT, REAR SEAT CENTER ARMREST, RH | ||||
| 72881-60010 |
GRJ120,KDJ120,KZJ120,LJ120,RZJ120,TRJ120..RHD |
1 | ||
| 72907B - COVER SUB-ASSY, REAR SEAT CUSHION UNDER, RH | ||||
| 72907-60070B0 |
GRJ120,KDJ120,KZJ120,LJ120,RZJ120,TRJ120..RHD MD. GRAY,TRIM1# |
1 | ||
| 72907-60070A0 |
GRJ120,KDJ120,KZJ120,LJ120,RZJ120,TRJ120..RHD IVORY,TRIM0# |
1 | ||
| 73373F - COVER, REAR SEAT SHOULDER BELT HOLE | ||||
| 73373-60060 |
GRJ120,KZJ120,LJ120,RZJ120..RHD |
1 | ||
| 73709A - BRACKET SUB-ASSY, TETHER ANCHOR | ||||
| 73709-60010 |
GRJ120,KDJ120,KZJ120,LJ120,RZJ120,TRJ120..RHD |
1 | ||
| 78091 - CABLE SUB-ASSY, FOLD SEAT LOCK CONTROL | ||||
| 78091-60010 |
GRJ120,KDJ120,KZJ120,LJ120,RZJ120,TRJ120..ARL,GCC,GEN |
1 | ||
| 78091A - CABLE SUB-ASSY, FOLD SEAT LOCK CONTROL | ||||
| 78091-60020 |
GRJ120,KDJ120,KZJ120,LJ120,RZJ120,TRJ120..RHD |
1 | ||
| 78917 - CUSHION, FOLD SEAT LEG LOCK | ||||
| 78917-60010 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN |
2 | ||
| 78917 - CUSHION, FOLD SEAT LEG LOCK | ||||
| 78917-60010 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN |
2 | ||
| 79160A - SPRING ASSY, NO.1 SEAT CUSHION, RH | ||||
| 79201-60031 |
GRJ120,KDJ120,KZJ120,LJ120,RZJ120,TRJ120..RHD |
1 | ||
| 79201-60030 |
GRJ120,KZJ120,LJ120,RZJ120..RHD |
1 | ||
| Common parts | ||||
| 72702-44070 | ||||
| 72702-60080 | ||||
| 90105-12285 | ||||
| 90109-11031 | ||||
| 90119-08970 | ||||
| 90126-10019 | ||||
| 90179-05011 | ||||
| 90179-10015 | ||||
| 90179-11010 | ||||
| 90386-12005 | ||||
| 90468-18071 | ||||
| 91515-81025 | ||||
| 91611-B0812 | ||||
| 93240-56025 | ||||
| 93240-56030 | ||||
| 93560-54012 | ||||
| 96160-00800 | ||||
| Linked diagrams | ||||
| 7152 | ||||
| 7455 | ||||
ILLUST NO. 2 OF 3(0209- )RHD
REAR NO.1 SEAT LH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71018 - FRAME SUB-ASSY, REAR SEAT BACK, LH | ||||
| 71018-60350 |
LJ120,RZJ120,TRJ120..RHD..GEN |
1 | ||
| 71018-60290 |
RZJ120..RHD..GEN WORKHORTH PACKAGE&REAR SEAT-PARALLEL |
1 | ||
| 71076S - COVER, REAR SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71076-60700B0 |
RZJ120..RHD..GEN WORKHORTH PACKAGE&REAR SEAT-PARALLEL,MD GRAY,TRIM1# |
1 | ||
| 71076-60710B1 |
GRJ120,KDJ120,KZJ120,LJ120,RZJ120,TRJ120..RHD..GX MEDIUM GRAY,TRIM1# |
1 | ||
| 71076-60710A1 |
GRJ120,KDJ120,KZJ120,LJ120,RZJ120,TRJ120..RHD..GX IVORY,TRIM0# |
1 | ||
| 71078S - COVER, REAR SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71078-6A040A1 |
LJ120,RZJ120,TRJ120..RHD..GEN IVORY,TRIM0# |
1 | ||
| 71078-6A040B1 |
LJ120,RZJ120,TRJ120..RHD..GEN MEDIUM GRAY,TRIM1# |
1 | ||
| 71078-6A030B0 |
RZJ120..RHD..GEN WORKHORTH PACKAGE&REAR SEAT-PARALLEL,MD.GRAY,TRIM1# |
1 | ||
| 71301D - HINGE SUB-ASSY, REAR SEAT, RH | ||||
| 71301-60110 |
GRJ120,KZJ120,LJ120,RZJ120..RHD |
1 | ||
| 71301-60111 |
GRJ120,KDJ120,KZJ120,LJ120,RZJ120,TRJ120..RHD |
1 | ||
| 71302D - HINGE SUB-ASSY, REAR SEAT, LH | ||||
| 71302-60070 |
GRJ12#,KZJ120,LJ12#,RZJ12# |
1 | ||
| 71302-60071 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN |
1 | ||
| 71305A - HINGE SUB-ASSY, REAR SEAT BACK, CENTER | ||||
| 71305-60100 |
GRJ120,KDJ120,KZJ120,LJ120,RZJ120,TRJ120..RHD |
1 | ||
| 71612A - PAD, REAR SEAT CUSHION, LH | ||||
| 71612-60230 |
GRJ120,KDJ120,KZJ120,LJ120,RZJ120,TRJ120..RHD |
1 | ||
| 71639 - COVER, REAR SEAT CUSHION HINGE, LH | ||||
| 71629-60370A0 |
GRJ120,KZJ120,LJ120,RZJ120..RHD IVORY,TRIM0#,NO.2 |
1 | ||
| 71629-60340A0 |
GRJ120,KZJ120,LJ120,RZJ120..RHD IVORY,TRIM0#,NO.1 |
1 | ||
| 71629-60370B0 |
GRJ120,KZJ120,LJ120,RZJ120..RHD MD. GRAY,TRIM1#,NO.2 |
1 | ||
| 71629-60340B0 |
GRJ120,KZJ120,LJ120,RZJ120..RHD MD. GRAY,TRIM1#,NO.1 |
1 | ||
| 71639 - COVER, REAR SEAT CUSHION HINGE, LH | ||||
| 71629-60370A0 |
GRJ120,KZJ120,LJ120,RZJ120..RHD IVORY,TRIM0#,NO.2 |
1 | ||
| 71629-60340A0 |
GRJ120,KZJ120,LJ120,RZJ120..RHD IVORY,TRIM0#,NO.1 |
1 | ||
| 71629-60370B0 |
GRJ120,KZJ120,LJ120,RZJ120..RHD MD. GRAY,TRIM1#,NO.2 |
1 | ||
| 71629-60340B0 |
GRJ120,KZJ120,LJ120,RZJ120..RHD MD. GRAY,TRIM1#,NO.1 |
1 | ||
| 71647B - PROTECTOR, REAR SEAT CUSHION EDGE | ||||
| 71647-60240 |
GRJ120,KDJ120,KZJ120,LJ120,RZJ120,TRJ120..RHD NO.2 |
1 | ||
| 71647-60230 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN NO.1 |
2 | ||
| 71647B - PROTECTOR, REAR SEAT CUSHION EDGE | ||||
| 71647-60240 |
GRJ120,KDJ120,KZJ120,LJ120,RZJ120,TRJ120..RHD NO.2 |
1 | ||
| 71647-60230 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN NO.1 |
2 | ||
| 71647B - PROTECTOR, REAR SEAT CUSHION EDGE | ||||
| 71647-60240 |
GRJ120,KDJ120,KZJ120,LJ120,RZJ120,TRJ120..RHD NO.2 |
1 | ||
| 71647-60230 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN NO.1 |
2 | ||
| 71652S - PAD, REAR SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71652-60220 |
GRJ120,KDJ120,KZJ120,LJ120,RZJ120,TRJ120..RHD |
1 | ||
| 71692E - COVER, REAR SEAT CUSHION HINGE, NO.2 | ||||
| 71692-60040B0 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN MD.GRAY,TRIM1# |
4 | ||
| 71692-60040A0 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN IVORY,TRIM0# |
4 | ||
| 71692E - COVER, REAR SEAT CUSHION HINGE, NO.2 | ||||
| 71692-60040B0 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN MD.GRAY,TRIM1# |
4 | ||
| 71692-60040A0 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN IVORY,TRIM0# |
4 | ||
| 71693A - COVER, REAR SEAT CUSHION HINGE, NO.3 | ||||
| 71693-60060B0 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN MD.GRAY,TRIM1#,NO.1 |
2 | ||
| 71693-60070A0 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN IVORY,TRIM0#,NO.2 |
1 | ||
| 71693-60060A0 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN IVORY,TRIM0#,NO.1 |
2 | ||
| 71693-60080A0 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN IVORY,TRIM0#,NO.3 |
1 | ||
| 71693-60080B0 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN MD.GRAY,TRIM1#,NO.3 |
1 | ||
| 71693-60070B0 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN MD.GRAY,TRIM1#,NO.2 |
1 | ||
| 71693A - COVER, REAR SEAT CUSHION HINGE, NO.3 | ||||
| 71693-60060B0 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN MD.GRAY,TRIM1#,NO.1 |
2 | ||
| 71693-60070A0 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN IVORY,TRIM0#,NO.2 |
1 | ||
| 71693-60060A0 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN IVORY,TRIM0#,NO.1 |
2 | ||
| 71693-60080A0 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN IVORY,TRIM0#,NO.3 |
1 | ||
| 71693-60080B0 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN MD.GRAY,TRIM1#,NO.3 |
1 | ||
| 71693-60070B0 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN MD.GRAY,TRIM1#,NO.2 |
1 | ||
| 71695B - PROTECTOR, REAR SEAT, NO.1 LH | ||||
| 71696-60090 |
LJ120,RZJ120,TRJ120..RHD..GEN |
1 | ||
| 71843D - COVER, REAR SEAT RECLINING, NO.2 RH | ||||
| 71843-60060A0 |
GRJ120,KDJ120,KZJ120,LJ120,RZJ120,TRJ120..RHD IVORY,TRIM0# |
1 | ||
| 71843-60060B0 |
GRJ120,KDJ120,KZJ120,LJ120,RZJ120,TRJ120..RHD MD. GRAY,TRIM1# |
1 | ||
| 71844B - COVER, RECLINING ADJUSTER, LH | ||||
| 71844-60040B0 |
GRJ120,KDJ120,KZJ120,LJ120,RZJ120,TRJ120..ARL,GCC,GEN MD. GRAY,TRIM1# |
1 | ||
| 71844-60040A0 |
GRJ120,KDJ120,KZJ120,LJ120,RZJ120,TRJ120..ARL,GCC,GEN IVORY,TRIM0# |
1 | ||
| 71878C - COVER, REAR SEAT RECLINING, INNER RH | ||||
| 71878-60130 |
GRJ120,KDJ120,KZJ120,LJ120,RZJ120,TRJ120..RHD |
1 | ||
| 71878D - COVER, REAR SEAT RECLINING, INNER RH | ||||
| 71878-60140A0 |
GRJ120,KDJ120,KZJ120,LJ120,RZJ120,TRJ120..RHD IVORY,TRIM0# |
1 | ||
| 71878-60140B0 |
GRJ120,KDJ120,KZJ120,LJ120,RZJ120,TRJ120..RHD MD. GRAY,TRIM1# |
1 | ||
| 71879E - COVER, REAR SEAT RECLINING, INNER LH | ||||
| 71879-60110C0 |
GRJ120,KZJ120,LJ120,RZJ120..RHD BLACK,TRIM0#,1# |
1 | ||
| 71879F - COVER, REAR SEAT RECLINING, INNER LH | ||||
| 71879-60120A0 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN IVORY,TRIM0# |
1 | ||
| 71879-60120B0 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN MD. GRAY,TRIM1# |
1 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-42020A0 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN W(LOCK)&W(BUTTON),IVORY,TRIM0# |
3 | ||
| 71930-42020B6 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN W(LOCK)&W(BUTTON),MD.GRAY,TRIM1# |
3 | ||
| 71931-42020A0 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN W(LOCK)&W/O(BUTTON),IVORY,TRIM0# |
3 | ||
| 71931-42020B6 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN W(LOCK)&W/O(BUTTON),MD.GRAY,TRIM1# |
3 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-42020A0 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN W(LOCK)&W(BUTTON),IVORY,TRIM0# |
3 | ||
| 71930-42020B6 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN W(LOCK)&W(BUTTON),MD.GRAY,TRIM1# |
3 | ||
| 71931-42020A0 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN W(LOCK)&W/O(BUTTON),IVORY,TRIM0# |
3 | ||
| 71931-42020B6 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN W(LOCK)&W/O(BUTTON),MD.GRAY,TRIM1# |
3 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-60330B0 |
RZJ120..RHD..GEN WORKHORTH PACKAGE&REAR SEAT-PARALLEL,MD.GRAY,TRIM1# |
2 | ||
| 71940-60340B0 |
GRJ120,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..GX..(ARL,GCC,GEN) MEDIUM GRAY,TRIM1# |
2 | ||
| 71940-60340A0 |
GRJ120,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..GX..(ARL,GCC,GEN) IVORY,TRIM0# |
2 | ||
| 72206B - PIN SUB-ASSY, SEAT TRACK OPEN LEVER, LH | ||||
| 72205-60070 |
GRJ120,KZJ120,LJ120,RZJ120..RHD..(4FC,5F) |
2 | ||
| 72205-60070 |
GRJ120,KZJ120,LJ120,RZJ120..RHD |
1 | ||
| 72329 - COVER, SEAT ADJUSTER BOLT | ||||
| 72329-60030A0 |
GRJ120,KDJ120,KZJ120,LJ120,RZJ120,TRJ120..ARL,GCC,GEN IVORY,TRIM0# |
2 | ||
| 72329-60030B1 |
GRJ120,KDJ120,KZJ120,LJ120,RZJ120,TRJ120..ARL,GCC,GEN MD.GRAY,TRIM1# |
2 | ||
| 72526 - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-60060A0 |
GRJ120,KDJ120,KZJ120,LJ120,RZJ120,TRJ120..ARL,GCC,GEN IVORY,TRIM0# |
1 | ||
| 72526-60060B0 |
GRJ120,KDJ120,KZJ120,LJ120,RZJ120,TRJ120..ARL,GCC,GEN MD.GRAY,TRIM1# |
1 | ||
| 72620C - CABLE ASSY, REAR NO.1 SEAT LOCK | ||||
| 72620-60030 |
GRJ120,KDJ120,KZJ120,LJ120,RZJ120,TRJ120..RHD |
1 | ||
| 72649B - SPRING, REAR SEAT CUSHION SUPPORT | ||||
| 72649-60110 |
GRJ120,KDJ120,KZJ120,LJ120,RZJ120,TRJ120..RHD |
2 | ||
| 72649-60080 |
GRJ120,KZJ120,LJ120,RZJ120..RHD |
1 | ||
| 72745A - PIN, REAR SEAT RECLINING HINGE | ||||
| 72745-60070 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN |
2 | ||
| 72745A - PIN, REAR SEAT RECLINING HINGE | ||||
| 72745-60070 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN |
2 | ||
| 72779A - GUIDE, REAR SEAT HINGE PAWL | ||||
| 72779-60020 |
GRJ120,KZJ120,LJ120,RZJ120..RHD..(4FC,5F) |
2 | ||
| 72779-60020 |
GRJ120,KZJ120,LJ120,RZJ120..RHD |
1 | ||
| 72908B - COVER SUB-ASSY, REAR SEAT CUSH UNDER, LH | ||||
| 72908-60070B0 |
GRJ120,KDJ120,KZJ120,LJ120,RZJ120,TRJ120..RHD MD. GRAY,TRIM1# |
1 | ||
| 72908-60070A0 |
GRJ120,KDJ120,KZJ120,LJ120,RZJ120,TRJ120..RHD IVORY,TRIM0# |
1 | ||
| 78091B - CABLE SUB-ASSY, FOLD SEAT LOCK CONTROL | ||||
| 78091-60010 |
GRJ120,KDJ120,KZJ120,LJ120,RZJ120,TRJ120..ARL,GCC,GEN |
1 | ||
| 78091C - CABLE SUB-ASSY, FOLD SEAT LOCK CONTROL | ||||
| 78091-60030 |
GRJ120,KDJ120,KZJ120,LJ120,RZJ120,TRJ120..RHD |
1 | ||
| 78917A - CUSHION, FOLD SEAT LEG LOCK | ||||
| 78917-60010 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN |
2 | ||
| 78917A - CUSHION, FOLD SEAT LEG LOCK | ||||
| 78917-60010 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN |
2 | ||
| 79170A - SPRING ASSY, NO.1 SEAT CUSUION, LH | ||||
| 79202-60031 |
GRJ120,KDJ120,KZJ120,LJ120,RZJ120,TRJ120..RHD |
1 | ||
| 79202-60030 |
GRJ120,KZJ120,LJ120,RZJ120..RHD |
1 | ||
| Common parts | ||||
| 72702-60080 | ||||
| 90126-10019 | ||||
| 90179-10015 | ||||
| 90179-11010 | ||||
| 90468-18071 | ||||
| 91515-81025 | ||||
| 93240-56025 | ||||
| 93560-54012 | ||||
| 96160-00800 | ||||
| Linked diagrams | ||||
| 7152 | ||||
| 7455 | ||||
ILLUST NO. 3 OF 3(0209- )GRJ120,KDJ120,KZJ120,LJ120,RZJ120,TRJ120
REAR NO.2 SEAT RH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71206A - BRACKET SUB-ASSY, REAR SEAT STOPPER, RH | ||||
| 71206-60020 |
GRJ120,KZJ120,LJ120,RZJ120,TRJ120..GCC,GEN REAR SEAT-REMOVABLE |
1 | ||
| 71647G - PROTECTOR, REAR SEAT CUSHION EDGE | ||||
| 71647-60250 |
GRJ120,KZJ120,LJ120,RZJ120,TRJ120..GCC,GEN REAR SEAT-REMOVABLE |
2 | ||
| 71696 - PROTECTOR, REAR SEAT, NO.2 | ||||
| 71696-60110 |
GRJ120,KZJ120,LJ120,RZJ120,TRJ120..GCC,GEN REAR SEAT-REMOVABLE |
1 | ||
| 71710A - FRAME ASSY, REAR SIDE SEAT, RH | ||||
| 71710-60160 |
GRJ120,KZJ120,LJ120,RZJ120,TRJ120..GCC,GEN REAR SEAT-REMOVABLE |
1 | ||
| 71843E - COVER, REAR SEAT RECLINING, RH (FOR RH SEAT) | ||||
| 71843-60070A0 |
GRJ120,KZJ120,LJ120,RZJ120,TRJ120..GCC,GEN REAR SEAT-REMOVABLE,IVORY,TRIM0# |
1 | ||
| 71843-60070B0 |
GRJ120,KZJ120,LJ120,RZJ120,TRJ120..GCC,GEN REAR SEAT-REMOVABLE,MD.GRAY,TRIM1# |
1 | ||
| 71843F - COVER, REAR SEAT RECLINING, LH (FOR RH SEAT) | ||||
| 71844-60060A0 |
GRJ120,KZJ120,LJ120,RZJ120,TRJ120..GCC,GEN REAR SEAT-REMOVABLE,IVORY,TRIM0# |
1 | ||
| 71844-60060B0 |
GRJ120,KZJ120,LJ120,RZJ120,TRJ120..GCC,GEN REAR SEAT-REMOVABLE,MD.GRAY,TRIM1# |
1 | ||
| 71931B - SUPPORT ASSY, REAR NO.1 SEAT HEADREST | ||||
| 71930-42020A0 |
GRJ120,KZJ120,LJ120,RZJ120,TRJ120..GCC,GEN W(LOCK)&W(BUTTON),REAR SEAT-REMOVABLE,IVORY,TRIM0# |
3 | ||
| 71930-42020B6 |
GRJ120,KZJ120,LJ120,RZJ120,TRJ120..GCC,GEN W(LOCK)&W(BUTTON),REAR SEAT-REMOVABLE,MD.GRAY,TRIM1# |
3 | ||
| 71931-42020B6 |
GRJ120,KZJ120,LJ120,RZJ120,TRJ120..GCC,GEN W(LOCK)&W/O(BUTTON),REAR SEAT-REMOVABLE,MD.GRAY,TRIM1# |
3 | ||
| 71931-42020A0 |
GRJ120,KZJ120,LJ120,RZJ120,TRJ120..GCC,GEN W(LOCK)&W/O(BUTTON),REAR SEAT-REMOVABLE,IVORY,TRIM0# |
3 | ||
| 71931B - SUPPORT ASSY, REAR NO.1 SEAT HEADREST | ||||
| 71930-42020A0 |
GRJ120,KZJ120,LJ120,RZJ120,TRJ120..GCC,GEN W(LOCK)&W(BUTTON),REAR SEAT-REMOVABLE,IVORY,TRIM0# |
3 | ||
| 71930-42020B6 |
GRJ120,KZJ120,LJ120,RZJ120,TRJ120..GCC,GEN W(LOCK)&W(BUTTON),REAR SEAT-REMOVABLE,MD.GRAY,TRIM1# |
3 | ||
| 71931-42020B6 |
GRJ120,KZJ120,LJ120,RZJ120,TRJ120..GCC,GEN W(LOCK)&W/O(BUTTON),REAR SEAT-REMOVABLE,MD.GRAY,TRIM1# |
3 | ||
| 71931-42020A0 |
GRJ120,KZJ120,LJ120,RZJ120,TRJ120..GCC,GEN W(LOCK)&W/O(BUTTON),REAR SEAT-REMOVABLE,IVORY,TRIM0# |
3 | ||
| 71940E - HEADREST ASSY, NO.2 SEAT | ||||
| 71970-60430B0 |
LJ120,RZJ120,TRJ120..GCC,GEN REAR SEAT-REMOVABLE,MEDIUM GRAY,TRIM1# |
2 | ||
| 71970-60430A0 |
LJ120,RZJ120,TRJ120..GCC,GEN REAR SEAT-REMOVABLE,IVORY,TRIM0# |
2 | ||
| 72329B - COVER, SEAT ADJUSTER BOLT, NO.1 | ||||
| 72329-60030A0 |
GRJ120,KZJ120,LJ120,RZJ120,TRJ120..GCC,GEN REAR SEAT-REMOVABLE,IVORY,TRIM0# |
2 | ||
| 72329-60030B1 |
GRJ120,KZJ120,LJ120,RZJ120,TRJ120..GCC,GEN REAR SEAT-REMOVABLE,MD.GRAY,TRIM1# |
2 | ||
| 72525D - HANDLE, RECLINING ADJUSTER RELEASE, NO.2 RH | ||||
| 72526-60060A0 |
GRJ120,KZJ120,LJ120,RZJ120,TRJ120..GCC,GEN REAR SEAT-REMOVABLE,IVORY,TRIM0# |
1 | ||
| 72526-60060B0 |
GRJ120,KZJ120,LJ120,RZJ120,TRJ120..GCC,GEN REAR SEAT-REMOVABLE,MD.GRAY,TRIM1# |
1 | ||
| 72650G - LOCK ASSY, REAR NO.2 SEAT, RH | ||||
| 72650-60160 |
GRJ120,KZJ120,LJ120,RZJ120..GCC,GEN REAR SEAT-REMOVABLE |
1 | ||
| 72691B - STRIKER, REAR SEAT CUSHION LOCK | ||||
| 72691-60070 |
GRJ120,KZJ120,LJ120,RZJ120,TRJ120..GCC,GEN REAR SEAT-REMOVABLE |
4 | ||
| 72691B - STRIKER, REAR SEAT CUSHION LOCK | ||||
| 72691-60070 |
GRJ120,KZJ120,LJ120,RZJ120,TRJ120..GCC,GEN REAR SEAT-REMOVABLE |
4 | ||
| 78950A - BAND ASSY, NO.2 FOLD SEAT STOPPER, NO.1 | ||||
| 78960-60060B0 |
GRJ120,KZJ120,LJ120,RZJ120,TRJ120..GCC,GEN REAR SEAT-REMOVABLE,BLUISH GRAY,TRIM1# |
1 | ||
| 78960-60060A0 |
GRJ120,KZJ120,LJ120,RZJ120,TRJ120..GCC,GEN REAR SEAT-REMOVABLE,IVORY,TRIM0# |
1 | ||
| 79021 - COVER SUB-ASSY, NO.2 SEAT CUSHION, RH | ||||
| 79031-60610A1 |
LJ120,RZJ120,TRJ120..GCC,GEN REAR SEAT-REMOVABLE,IVORY,TRIM0# |
1 | ||
| 79031-60610B1 |
LJ120,RZJ120,TRJ120..GCC,GEN REAR SEAT-REMOVABLE,MEDIUM GRAY,TRIM1# |
1 | ||
| 79023 - COVER SUB-ASSY, NO.2 SEAT BACK, RH | ||||
| 79033-60640B1 |
LJ120,RZJ120,TRJ120..GCC,GEN REAR SEAT-REMOVABLE,MEDIUM GRAY,TRIM1# |
1 | ||
| 79033-60640A1 |
LJ120,RZJ120,TRJ120..GCC,GEN REAR SEAT-REMOVABLE,IVORY,TRIM0# |
1 | ||
| 79027A - PAD SUB-ASSY, NO.2 SEAT BACK, RH | ||||
| 79375-60120 |
GRJ120,KZJ120,LJ120,RZJ120,TRJ120..GCC,GEN REAR SEAT-REMOVABLE |
1 | ||
| 79101B - FRAME SUB-ASSY, NO.1 SEAT CUSHION, RH | ||||
| 71033-60290 |
RZJ120..RHD..GEN WORKHORTH PACKAGE&REAR SEAT-PARALLEL |
2 | ||
| 71033-60290 |
RZJ120..RHD..GEN REAR SEAT-PARALLEL |
2 | ||
| 71130-60020A0 |
GRJ120,KZJ120,LJ120,RZJ120,TRJ120..GCC,GEN REAR SEAT-REMOVABLE,IVORY,TRIM0# |
1 | ||
| 71130-60020B0 |
GRJ120,KZJ120,LJ120,RZJ120,TRJ120..GCC,GEN REAR SEAT-REMOVABLE,BLUISH GRAY,TRIM1# |
1 | ||
| 79117B - COVER, NO.1 SEAT CUSHION, RH | ||||
| 79117-60050 |
GRJ120,KZJ120,LJ120,RZJ120,TRJ120..GCC,GEN REAR SEAT-REMOVABLE |
1 | ||
| 79235 - PAD, NO.2 SEAT CUSHION | ||||
| 79335-60090 |
GRJ120,KZJ120,LJ120,RZJ120,TRJ120..GCC,GEN REAR SEAT-REMOVABLE |
1 | ||
| 79236A - COVER, NO.2 SEAT LEG | ||||
| 79236-60070B0 |
GRJ120,KZJ120,LJ120,RZJ120,TRJ120..GCC,GEN REAR SEAT-REMOVABLE,MD.GRAY,TRIM1#,NO.2 |
1 | ||
| 79236-60070A0 |
GRJ120,KZJ120,LJ120,RZJ120,TRJ120..GCC,GEN REAR SEAT-REMOVABLE,IVORY,TRIM0#,NO.2 |
1 | ||
| 79236-60040A0 |
GRJ120,KZJ120,LJ120,RZJ120,TRJ120..GCC,GEN REAR SEAT-REMOVABLE,IVORY,TRIM0#,NO.1 |
1 | ||
| 79236-60040B0 |
GRJ120,KZJ120,LJ120,RZJ120,TRJ120..GCC,GEN REAR SEAT-REMOVABLE,MD.GRAY,TRIM1#,NO.1 |
1 | ||
| 79236A - COVER, NO.2 SEAT LEG | ||||
| 79236-60070B0 |
GRJ120,KZJ120,LJ120,RZJ120,TRJ120..GCC,GEN REAR SEAT-REMOVABLE,MD.GRAY,TRIM1#,NO.2 |
1 | ||
| 79236-60070A0 |
GRJ120,KZJ120,LJ120,RZJ120,TRJ120..GCC,GEN REAR SEAT-REMOVABLE,IVORY,TRIM0#,NO.2 |
1 | ||
| 79236-60040A0 |
GRJ120,KZJ120,LJ120,RZJ120,TRJ120..GCC,GEN REAR SEAT-REMOVABLE,IVORY,TRIM0#,NO.1 |
1 | ||
| 79236-60040B0 |
GRJ120,KZJ120,LJ120,RZJ120,TRJ120..GCC,GEN REAR SEAT-REMOVABLE,MD.GRAY,TRIM1#,NO.1 |
1 | ||
| 79337 - CARPET, NO.2 SEAT CUSHION UNDER, RH | ||||
| 79337-60080A0 |
GRJ120,KZJ120,LJ120,RZJ120,TRJ120..GCC,GEN REAR SEAT-REMOVABLE,IVORY,TRIM0# |
1 | ||
| 79337-60080B0 |
GRJ120,KZJ120,LJ120,RZJ120,TRJ120..GCC,GEN REAR SEAT-REMOVABLE,MD.GRAY,TRIM1# |
1 | ||
| 79357 - COVER, NO.3 SEAT BACK BOARD | ||||
| 79357-60020 |
GRJ120,KZJ120,LJ120,RZJ120,TRJ120..GCC,GEN REAR SEAT-REMOVABLE |
1 | ||
| 79367 - COVER, NO.3 SEAT LEG, NO.2 | ||||
| 79367-60060A0 |
GRJ120,KZJ120,LJ120,RZJ120..GCC,GEN REAR SEAT-REMOVABLE,IVORY,TRIM0#,LH |
1 | ||
| 79367-60050B0 |
GRJ120,KZJ120,LJ120,RZJ120..GCC,GEN REAR SEAT-REMOVABLE,MD.GRAY,TRIM1#,RH |
1 | ||
| 79367-60050A0 |
GRJ120,KZJ120,LJ120,RZJ120..GCC,GEN REAR SEAT-REMOVABLE,IVORY,TRIM0#,RH |
1 | ||
| 79367-60060B0 |
GRJ120,KZJ120,LJ120,RZJ120..GCC,GEN REAR SEAT-REMOVABLE,MD.GRAY,TRIM1#,LH |
1 | ||
| 79382 - COVER, NO.3 SEAT FRONT BRACKET, LH | ||||
| 79382-60100 |
RZJ120..RHD..GEN REAR SEAT-PARALLEL |
1 | ||
| 79382-60100 |
RZJ120..RHD..GEN WORKHORTH PACKAGE&REAR SEAT-PARALLEL |
1 | ||
| 79382-60080B0 |
GRJ120,KZJ120,LJ120,RZJ120,TRJ120..GCC,GEN REAR SEAT-REMOVABLE,MD.GRAY,TRIM1# |
1 | ||
| 79382-60080A0 |
GRJ120,KZJ120,LJ120,RZJ120,TRJ120..GCC,GEN REAR SEAT-REMOVABLE,IVORY,TRIM0# |
1 | ||
| Common parts | ||||
| 71769-60010A0 | ||||
| 71769-60010B3 | ||||
| 72702-60050 | ||||
| 90105-10523 | ||||
| 90179-11015 | ||||
| 91615-61050 | ||||
| 93240-56025 | ||||
| 93560-54012 | ||||
| 93560-54014 | ||||
| 94150-80640 | ||||
| Linked diagrams | ||||
| 7152 | ||||
ILLUST NO. 3 OF 3(0209- )GRJ120,KDJ120,KZJ120,LJ120,RZJ120,TRJ120
REAR NO.2 SEAT LH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71647G - PROTECTOR, REAR SEAT CUSHION EDGE | ||||
| 71647-60250 |
GRJ120,KZJ120,LJ120,RZJ120,TRJ120..GCC,GEN REAR SEAT-REMOVABLE |
2 | ||
| 71696A - PROTECTOR, REAR SEAT, NO.2 LH | ||||
| 71696-60120 |
GRJ120,KZJ120,LJ120,RZJ120,TRJ120..GCC,GEN REAR SEAT-REMOVABLE |
1 | ||
| 71720A - FRAME ASSY, REAR SIDE SEAT, LH | ||||
| 71720-60130 |
GRJ120,KZJ120,LJ120,RZJ120,TRJ120..GCC,GEN REAR SEAT-REMOVABLE |
1 | ||
| 71844C - COVER, REAR SEAT RECLINING, NO.2 LH | ||||
| 71844-60070A0 |
GRJ120,KZJ120,LJ120,RZJ120,TRJ120..GCC,GEN REAR SEAT-REMOVABLE,IVORY,TRIM0# |
1 | ||
| 71844-60070B0 |
GRJ120,KZJ120,LJ120,RZJ120,TRJ120..GCC,GEN REAR SEAT-REMOVABLE,MD.GRAY,TRIM1# |
1 | ||
| 71844E - COVER, REAR SEAT RECLINING, RH (FOR LH SEAT) | ||||
| 71843-60080A0 |
GRJ120,KZJ120,LJ120,RZJ120,TRJ120..GCC,GEN REAR SEAT-REMOVABLE,IVORY,TRIM0# |
1 | ||
| 71843-60080B0 |
GRJ120,KZJ120,LJ120,RZJ120,TRJ120..GCC,GEN REAR SEAT-REMOVABLE,MD.GRAY,TRIM1# |
1 | ||
| 71931B - SUPPORT ASSY, REAR NO.1 SEAT HEADREST | ||||
| 71930-42020A0 |
GRJ120,KZJ120,LJ120,RZJ120,TRJ120..GCC,GEN W(LOCK)&W(BUTTON),REAR SEAT-REMOVABLE,IVORY,TRIM0# |
3 | ||
| 71930-42020B6 |
GRJ120,KZJ120,LJ120,RZJ120,TRJ120..GCC,GEN W(LOCK)&W(BUTTON),REAR SEAT-REMOVABLE,MD.GRAY,TRIM1# |
3 | ||
| 71931-42020B6 |
GRJ120,KZJ120,LJ120,RZJ120,TRJ120..GCC,GEN W(LOCK)&W/O(BUTTON),REAR SEAT-REMOVABLE,MD.GRAY,TRIM1# |
3 | ||
| 71931-42020A0 |
GRJ120,KZJ120,LJ120,RZJ120,TRJ120..GCC,GEN W(LOCK)&W/O(BUTTON),REAR SEAT-REMOVABLE,IVORY,TRIM0# |
3 | ||
| 71931B - SUPPORT ASSY, REAR NO.1 SEAT HEADREST | ||||
| 71930-42020A0 |
GRJ120,KZJ120,LJ120,RZJ120,TRJ120..GCC,GEN W(LOCK)&W(BUTTON),REAR SEAT-REMOVABLE,IVORY,TRIM0# |
3 | ||
| 71930-42020B6 |
GRJ120,KZJ120,LJ120,RZJ120,TRJ120..GCC,GEN W(LOCK)&W(BUTTON),REAR SEAT-REMOVABLE,MD.GRAY,TRIM1# |
3 | ||
| 71931-42020B6 |
GRJ120,KZJ120,LJ120,RZJ120,TRJ120..GCC,GEN W(LOCK)&W/O(BUTTON),REAR SEAT-REMOVABLE,MD.GRAY,TRIM1# |
3 | ||
| 71931-42020A0 |
GRJ120,KZJ120,LJ120,RZJ120,TRJ120..GCC,GEN W(LOCK)&W/O(BUTTON),REAR SEAT-REMOVABLE,IVORY,TRIM0# |
3 | ||
| 71931B - SUPPORT ASSY, REAR NO.1 SEAT HEADREST | ||||
| 71930-42020A0 |
GRJ120,KZJ120,LJ120,RZJ120,TRJ120..GCC,GEN W(LOCK)&W(BUTTON),REAR SEAT-REMOVABLE,IVORY,TRIM0# |
3 | ||
| 71930-42020B6 |
GRJ120,KZJ120,LJ120,RZJ120,TRJ120..GCC,GEN W(LOCK)&W(BUTTON),REAR SEAT-REMOVABLE,MD.GRAY,TRIM1# |
3 | ||
| 71931-42020B6 |
GRJ120,KZJ120,LJ120,RZJ120,TRJ120..GCC,GEN W(LOCK)&W/O(BUTTON),REAR SEAT-REMOVABLE,MD.GRAY,TRIM1# |
3 | ||
| 71931-42020A0 |
GRJ120,KZJ120,LJ120,RZJ120,TRJ120..GCC,GEN W(LOCK)&W/O(BUTTON),REAR SEAT-REMOVABLE,IVORY,TRIM0# |
3 | ||
| 71931B - SUPPORT ASSY, REAR NO.1 SEAT HEADREST | ||||
| 71930-42020A0 |
GRJ120,KZJ120,LJ120,RZJ120,TRJ120..GCC,GEN W(LOCK)&W(BUTTON),REAR SEAT-REMOVABLE,IVORY,TRIM0# |
3 | ||
| 71930-42020B6 |
GRJ120,KZJ120,LJ120,RZJ120,TRJ120..GCC,GEN W(LOCK)&W(BUTTON),REAR SEAT-REMOVABLE,MD.GRAY,TRIM1# |
3 | ||
| 71931-42020B6 |
GRJ120,KZJ120,LJ120,RZJ120,TRJ120..GCC,GEN W(LOCK)&W/O(BUTTON),REAR SEAT-REMOVABLE,MD.GRAY,TRIM1# |
3 | ||
| 71931-42020A0 |
GRJ120,KZJ120,LJ120,RZJ120,TRJ120..GCC,GEN W(LOCK)&W/O(BUTTON),REAR SEAT-REMOVABLE,IVORY,TRIM0# |
3 | ||
| 71940E - HEADREST ASSY, NO.2 SEAT | ||||
| 71970-60430B0 |
LJ120,RZJ120,TRJ120..GCC,GEN REAR SEAT-REMOVABLE,MEDIUM GRAY,TRIM1# |
2 | ||
| 71970-60430A0 |
LJ120,RZJ120,TRJ120..GCC,GEN REAR SEAT-REMOVABLE,IVORY,TRIM0# |
2 | ||
| 71970 - HEADREST ASSY, REAR SEAT | ||||
| 71960-60200A0 |
LJ120,RZJ120,TRJ120..GCC,GEN REAR SEAT-REMOVABLE,IVORY,TRIM0# |
1 | ||
| 71960-60200B0 |
LJ120,RZJ120,TRJ120..GCC,GEN REAR SEAT-REMOVABLE,MEDIUM GRAY,TRIM1# |
1 | ||
| 72329B - COVER, SEAT ADJUSTER BOLT, NO.1 | ||||
| 72329-60030A0 |
GRJ120,KZJ120,LJ120,RZJ120,TRJ120..GCC,GEN REAR SEAT-REMOVABLE,IVORY,TRIM0# |
2 | ||
| 72329-60030B1 |
GRJ120,KZJ120,LJ120,RZJ120,TRJ120..GCC,GEN REAR SEAT-REMOVABLE,MD.GRAY,TRIM1# |
2 | ||
| 72526C - HANDLE, RECLINING ADJUSTER RELEASE, NO.2 LH | ||||
| 72525-60090A0 |
GRJ120,KZJ120,LJ120,RZJ120,TRJ120..GCC,GEN REAR SEAT-REMOVABLE,IVORY,TRIM0# |
1 | ||
| 72525-60090B0 |
GRJ120,KZJ120,LJ120,RZJ120,TRJ120..GCC,GEN REAR SEAT-REMOVABLE,MD.GRAY,TRIM1# |
1 | ||
| 72660H - LOCK ASSY, REAR NO.2 SEAT, LH | ||||
| 72660-60160 |
GRJ120,KZJ120,LJ120,RZJ120..GCC,GEN REAR SEAT-REMOVABLE |
1 | ||
| 72691B - STRIKER, REAR SEAT CUSHION LOCK | ||||
| 72691-60070 |
GRJ120,KZJ120,LJ120,RZJ120,TRJ120..GCC,GEN REAR SEAT-REMOVABLE |
4 | ||
| 72691B - STRIKER, REAR SEAT CUSHION LOCK | ||||
| 72691-60070 |
GRJ120,KZJ120,LJ120,RZJ120,TRJ120..GCC,GEN REAR SEAT-REMOVABLE |
4 | ||
| 78960A - BAND ASSY, NO.2 FOLD SEAT STOPPER, NO.2 | ||||
| 78960-60060B0 |
GRJ120,KZJ120,LJ120,RZJ120,TRJ120..GCC,GEN REAR SEAT-REMOVABLE,BLUISH GRAY,TRIM1# |
1 | ||
| 78960-60060A0 |
GRJ120,KZJ120,LJ120,RZJ120,TRJ120..GCC,GEN REAR SEAT-REMOVABLE,IVORY,TRIM0# |
1 | ||
| 79022 - COVER SUB-ASSY, NO.2 SEAT CUSHION, LH | ||||
| 79032-60610B1 |
LJ120,RZJ120,TRJ120..GCC,GEN REAR SEAT-REMOVABLE,MEDIUM GRAY,TRIM1# |
1 | ||
| 79032-60610A1 |
LJ120,RZJ120,TRJ120..GCC,GEN REAR SEAT-REMOVABLE,IVORY,TRIM0# |
1 | ||
| 79024 - COVER SUB-ASSY, NO.2 SEAT BACK, LH | ||||
| 79034-60640A1 |
LJ120,RZJ120,TRJ120..GCC,GEN REAR SEAT-REMOVABLE,IVORY,TRIM0# |
1 | ||
| 79034-60640B1 |
LJ120,RZJ120,TRJ120..GCC,GEN REAR SEAT-REMOVABLE,MEDIUM GRAY,TRIM1# |
1 | ||
| 79025A - PAD SUB-ASSY, NO.2 SEAT CUSHION, RH | ||||
| 79345-60090 |
GRJ120,KZJ120,LJ120,RZJ120,TRJ120..GCC,GEN REAR SEAT-REMOVABLE |
1 | ||
| 79028A - PAD SUB-ASSY, NO.2 SEAT BACK, LH | ||||
| 79385-60120 |
GRJ120,KZJ120,LJ120,RZJ120,TRJ120..GCC,GEN REAR SEAT-REMOVABLE |
1 | ||
| 79102 - FRAME SUB-ASSY, NO.1 SEAT CUSHION, LH | ||||
| 71140-60010A0 |
GRJ120,KZJ120,LJ120,RZJ120,TRJ120..GCC,GEN REAR SEAT-REMOVABLE,IVORY,TRIM0# |
1 | ||
| 71140-60010B0 |
GRJ120,KZJ120,LJ120,RZJ120,TRJ120..GCC,GEN REAR SEAT-REMOVABLE,BLUISH GRAY,TRIM1# |
1 | ||
| 79117C - COVER, NO.1 SEAT CUSHION, LH | ||||
| 79117-60050 |
GRJ120,KZJ120,LJ120,RZJ120,TRJ120..GCC,GEN REAR SEAT-REMOVABLE |
1 | ||
| 79236B - COVER, NO.2 SEAT LEG, LH | ||||
| 79236-60090A0 |
GRJ120,KZJ120,LJ120,RZJ120,TRJ120..GCC,GEN REAR SEAT-REMOVABLE,IVORY,TRIM0#,NO.2 |
1 | ||
| 79236-60090B0 |
GRJ120,KZJ120,LJ120,RZJ120,TRJ120..GCC,GEN REAR SEAT-REMOVABLE,MD.GRAY,TRIM1#,NO.2 |
1 | ||
| 79236-60080A0 |
GRJ120,KZJ120,LJ120,RZJ120,TRJ120..GCC,GEN REAR SEAT-REMOVABLE,IVORY,TRIM0#,NO.1 |
1 | ||
| 79236-60080B0 |
GRJ120,KZJ120,LJ120,RZJ120,TRJ120..GCC,GEN REAR SEAT-REMOVABLE,MD.GRAY,TRIM1#,NO.1 |
1 | ||
| 79236B - COVER, NO.2 SEAT LEG, LH | ||||
| 79236-60090A0 |
GRJ120,KZJ120,LJ120,RZJ120,TRJ120..GCC,GEN REAR SEAT-REMOVABLE,IVORY,TRIM0#,NO.2 |
1 | ||
| 79236-60090B0 |
GRJ120,KZJ120,LJ120,RZJ120,TRJ120..GCC,GEN REAR SEAT-REMOVABLE,MD.GRAY,TRIM1#,NO.2 |
1 | ||
| 79236-60080A0 |
GRJ120,KZJ120,LJ120,RZJ120,TRJ120..GCC,GEN REAR SEAT-REMOVABLE,IVORY,TRIM0#,NO.1 |
1 | ||
| 79236-60080B0 |
GRJ120,KZJ120,LJ120,RZJ120,TRJ120..GCC,GEN REAR SEAT-REMOVABLE,MD.GRAY,TRIM1#,NO.1 |
1 | ||
| 79347 - CARPET, NO.2 SEAT CUSHION UNDER, LH | ||||
| 79347-60080A0 |
GRJ120,KZJ120,LJ120,RZJ120,TRJ120..GCC,GEN REAR SEAT-REMOVABLE,IVORY,TRIM0# |
1 | ||
| 79347-60080B0 |
GRJ120,KZJ120,LJ120,RZJ120,TRJ120..GCC,GEN REAR SEAT-REMOVABLE,MD.GRAY,TRIM1# |
1 | ||
| 79367 - COVER, NO.3 SEAT LEG, NO.2 | ||||
| 79367-60060A0 |
GRJ120,KZJ120,LJ120,RZJ120..GCC,GEN REAR SEAT-REMOVABLE,IVORY,TRIM0#,LH |
1 | ||
| 79367-60050B0 |
GRJ120,KZJ120,LJ120,RZJ120..GCC,GEN REAR SEAT-REMOVABLE,MD.GRAY,TRIM1#,RH |
1 | ||
| 79367-60050A0 |
GRJ120,KZJ120,LJ120,RZJ120..GCC,GEN REAR SEAT-REMOVABLE,IVORY,TRIM0#,RH |
1 | ||
| 79367-60060B0 |
GRJ120,KZJ120,LJ120,RZJ120..GCC,GEN REAR SEAT-REMOVABLE,MD.GRAY,TRIM1#,LH |
1 | ||
| 79382A - COVER, NO.3 SEAT FRONT BRACKET, LH | ||||
| 79382-60100 |
RZJ120..RHD..GEN WORKHORTH PACKAGE&REAR SEAT-PARALLEL |
1 | ||
| 79382-60090A0 |
GRJ120,KZJ120,LJ120,RZJ120,TRJ120..GCC,GEN REAR SEAT-REMOVABLE,IVORY,TRIM0# |
1 | ||
| 79382-60100 |
RZJ120..RHD..GEN REAR SEAT-PARALLEL |
1 | ||
| 79382-60090B0 |
GRJ120,KZJ120,LJ120,RZJ120,TRJ120..GCC,GEN REAR SEAT-REMOVABLE,MD.GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 71769-60010A0 | ||||
| 71769-60010B3 | ||||
| 72702-60050 | ||||
| 90105-10523 | ||||
| 90179-11015 | ||||
| 91615-61050 | ||||
| 93240-56025 | ||||
| 93560-54012 | ||||
| 93560-54014 | ||||
| 94150-80640 | ||||
| Linked diagrams | ||||
| 7152 | ||||
ILLUST NO. 1 OF 3(0209- )ARL,GCC,GEN
FRONT SEAT RH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-6A340B0 |
RZJ120..RHD..GEN WORKHORTH PACKAGE&REAR SEAT-PARALLEL,MD GRAY,TRIM1# |
1 | ||
| 71071-6A350B0 |
GRJ120,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..GX..(ARL,GCC,GEN) MEDIUM GRAY,TRIM1# |
1 | ||
| 71071-6A350A0 |
GRJ120,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..GX..(ARL,GCC,GEN) IVORY,TRIM0# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-6A530B0 |
RZJ120..RHD..GEN WORKHORTH PACKAGE&REAR SEAT-PARALLEL,MD GRAY,TRIM1# |
1 | ||
| 71073-6A540A0 |
RZJ125,TRJ125;KDJ120,KZJ120,LJ12#,RZJ120,TRJ120..GX..(ARL,GEN) SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN,IVORY,TRIM0# |
1 | ||
| 71073-6A540B0 |
RZJ125,TRJ125;KDJ120,KZJ120,LJ12#,RZJ120,TRJ120..GX..(ARL,GEN) SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN,MEDIUM GRAY,TRIM1# |
1 | ||
| 71073-6A610A0 |
GRJ120,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..GX..(ARL,GCC,GEN) IVORY,TRIM0# |
1 | ||
| 71073-6A610B0 |
GRJ120,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..GX..(ARL,GCC,GEN) MEDIUM GRAY,TRIM1# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71501-60200 |
GRJ120,KDJ120,KZJ120,LJ120,RZJ120,TRJ120..RHD |
1 | ||
| 71537A - PROTECTOR, FRONT SEAT CUSHION | ||||
| 71537-26010 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN |
4 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-60400 |
GRJ120,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..GX..(ARL,GCC,GEN) |
1 | ||
| 71551-60410 |
RZJ125,TRJ125;KDJ120,KZJ120,LJ12#,RZJ120,TRJ120..GX..(ARL,GEN) SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN |
1 | ||
| 71765B - PROTECTOR, FRONT SEAT BACK, RH | ||||
| 71765-60060 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN |
1 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-60200B1 |
KZJ120;GRJ120..GCC,GEN;GRJ120,KDJ120,LJ120,RZJ120,TRJ120..GX..(ARL,GCC,GEN) MD.GRAY,TRIM1# |
1 | ||
| 71811-60200A0 |
KZJ120;GRJ120..GCC,GEN;GRJ120,KDJ120,LJ120,RZJ120,TRJ120..GX..(ARL,GCC,GEN) IVORY,TRIM0# |
1 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-60200B1 |
KZJ120;GRJ120..GCC,GEN;GRJ120,KDJ120,LJ120,RZJ120,TRJ120..GX..(ARL,GCC,GEN) MD.GRAY,TRIM1# |
1 | ||
| 71811-60200A0 |
KZJ120;GRJ120..GCC,GEN;GRJ120,KDJ120,LJ120,RZJ120,TRJ120..GX..(ARL,GCC,GEN) IVORY,TRIM0# |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-60100A0 |
GRJ120,KDJ120,KZJ120,LJ120,RZJ120,TRJ120..ARL,GCC,GEN IVORY,TRIM0# |
1 | ||
| 71861-60100B1 |
GRJ120,KDJ120,KZJ120,LJ120,RZJ120,TRJ120..ARL,GCC,GEN MD.GRAY,TRIM1# |
1 | ||
| 71875A - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-60160A0 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN IVORY,TRIM0# |
1 | ||
| 71875-60160B1 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN MD.GRAY,TRIM1# |
1 | ||
| 71875B - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-58060C0 |
KZJ120;GRJ12#..LHD..VX;LJ120,RZJ120..RHD SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN,BLACK |
1 | ||
| 71875-58060 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN |
1 | ||
| 71876 - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-60160B1 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN MD.GRAY,TRIM1# |
1 | ||
| 71876-60160A0 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN IVORY,TRIM0# |
1 | ||
| 71876A - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-58060C0 |
KZJ120;GRJ12#..LHD..VX;LJ120,RZJ120..RHD SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN,BLACK |
1 | ||
| 71876-58060 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-60580B0 |
RZJ120..RHD..GEN WORKHORTH PACKAGE&REAR SEAT-PARALLEL,MD.GRAY,TRIM1# |
2 | ||
| 71910-60590A0 |
GRJ120,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..GX..(ARL,GCC,GEN) IVORY,TRIM0# |
2 | ||
| 71910-60590B0 |
GRJ120,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..GX..(ARL,GCC,GEN) MEDIUM GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-42020A0 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN W(LOCK)&W(BUTTON),IVORY,TRIM0# |
2 | ||
| 71931-42020A0 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN W(LOCK)&W/O(BUTTON),IVORY,TRIM0# |
2 | ||
| 71930-42020B6 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN W(LOCK)&W(BUTTON),MD.GRAY,TRIM1# |
2 | ||
| 71931-42020B6 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN W(LOCK)&W/O(BUTTON),MD.GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-42020A0 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN W(LOCK)&W(BUTTON),IVORY,TRIM0# |
2 | ||
| 71931-42020A0 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN W(LOCK)&W/O(BUTTON),IVORY,TRIM0# |
2 | ||
| 71930-42020B6 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN W(LOCK)&W(BUTTON),MD.GRAY,TRIM1# |
2 | ||
| 71931-42020B6 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN W(LOCK)&W/O(BUTTON),MD.GRAY,TRIM1# |
2 | ||
| 72011C - ADJUSTER SUB-ASSY, FRONT SEAT, RH | ||||
| 71110-60110 |
RZJ120..RHD..GEN REAR SEAT-PARALLEL&SRS AIR BAG-DRIVER & PASSENGER |
1 | ||
| 71110-60270 |
RZJ120..RHD..GEN WORKHORTH PACKAGE&REAR SEAT-PARALLEL |
1 | ||
| 71110-60110 |
LJ120,RZJ120,TRJ120..RHD..GEN SRS AIR BAG-DRIVER & PASSENGER |
1 | ||
| 71110-60050 |
LJ120,RZJ120,TRJ120..GCC,GEN |
1 | ||
| 71110-60170 |
KDJ120,KZJ120,LJ120,RZJ120,TRJ120..RHD..GX SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN |
1 | ||
| 72123A - COVER, SEAT TRACK BRACKET, OUTER FRONT RH | ||||
| 72123-60090A0 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN IVORY,TRIM0# |
1 | ||
| 72123-60090B0 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN MD.GRAY,TRIM1# |
1 | ||
| 72127A - COVER, SEAT TRACK BRACKET, INNER FRONT RH | ||||
| 72127-60050A0 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN IVORY,TRIM0# |
1 | ||
| 72127-60050B0 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN MD.GRAY,TRIM1# |
1 | ||
| 72137B - COVER, SEAT TRACK, RH | ||||
| 72137-60100A0 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN IVORY,TRIM0# |
2 | ||
| 72137-60100B0 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN MD.GRAY,TRIM1# |
2 | ||
| 72157 - COVER, SEAT TRACK BRACKET, INNER | ||||
| 72157-60120A0 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN IVORY,TRIM0# |
2 | ||
| 72157-60120B0 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN MD.GRAY,TRIM1# |
2 | ||
| 72211 - HANDLE, SEAT TRACK ADJUSTING | ||||
| 72211-60190 |
GRJ120,KDJ120,KZJ120,LJ120,RZJ120,TRJ120..ARL,GCC,GEN |
1 | ||
| 72497 - COVER, VERTICAL ADJUSTER BRACKET, OUTER | ||||
| 72497-60020 |
GRJ120,KDJ120,KZJ120,LJ120,RZJ120,TRJ120..ARL,GCC,GEN |
1 | ||
| 72525B - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-60100A0 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN IVORY,TRIM0# |
1 | ||
| 72525-60100B1 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN MD.GRAY,TRIM1# |
1 | ||
| 76519B - CLIP, FRONT SEAT CUSHION COVER | ||||
| 76519-42010 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN |
4 | ||
| 76519-42010 |
RZJ120..RHD..GEN WORKHORTH PACKAGE&REAR SEAT-PARALLEL |
3 | ||
| 76519-42010 |
RZJ120..RHD..GEN REAR SEAT-PARALLEL&SRS AIR BAG-DRIVER & PASSENGER |
3 | ||
| 76519-42010 |
RZJ120..RHD..GEN REAR SEAT-PARALLEL |
3 | ||
| 76519B - CLIP, FRONT SEAT CUSHION COVER | ||||
| 76519-42010 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN |
4 | ||
| 76519-42010 |
RZJ120..RHD..GEN WORKHORTH PACKAGE&REAR SEAT-PARALLEL |
3 | ||
| 76519-42010 |
RZJ120..RHD..GEN REAR SEAT-PARALLEL&SRS AIR BAG-DRIVER & PASSENGER |
3 | ||
| 76519-42010 |
RZJ120..RHD..GEN REAR SEAT-PARALLEL |
3 | ||
| Common parts | ||||
| 72702-0K100 | ||||
| 90119-10921 | ||||
| 90167-40044 | ||||
| 90179-11010 | ||||
| 90389-10041 | ||||
| 90467-09118 | ||||
| 90468-16019 | ||||
| 90468-18071 | ||||
| 93269-55008 | ||||
| 93560-54012 | ||||
| 93568-55016 | ||||
| Linked diagrams | ||||
| 7152 | ||||
| 8202 | ||||
| 8401 | ||||
| 8421 | ||||
| 8513 | ||||
ILLUST NO. 1 OF 3(0209- )ARL,GCC,GEN
FRONT SEAT RH-W(SRS SIDE AIR BAG)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-6A340B0 |
RZJ120..RHD..GEN WORKHORTH PACKAGE&REAR SEAT-PARALLEL,MD GRAY,TRIM1# |
1 | ||
| 71071-6A350B0 |
GRJ120,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..GX..(ARL,GCC,GEN) MEDIUM GRAY,TRIM1# |
1 | ||
| 71071-6A350A0 |
GRJ120,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..GX..(ARL,GCC,GEN) IVORY,TRIM0# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-6A530B0 |
RZJ120..RHD..GEN WORKHORTH PACKAGE&REAR SEAT-PARALLEL,MD GRAY,TRIM1# |
1 | ||
| 71073-6A540A0 |
RZJ125,TRJ125;KDJ120,KZJ120,LJ12#,RZJ120,TRJ120..GX..(ARL,GEN) SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN,IVORY,TRIM0# |
1 | ||
| 71073-6A540B0 |
RZJ125,TRJ125;KDJ120,KZJ120,LJ12#,RZJ120,TRJ120..GX..(ARL,GEN) SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN,MEDIUM GRAY,TRIM1# |
1 | ||
| 71073-6A610A0 |
GRJ120,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..GX..(ARL,GCC,GEN) IVORY,TRIM0# |
1 | ||
| 71073-6A610B0 |
GRJ120,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..GX..(ARL,GCC,GEN) MEDIUM GRAY,TRIM1# |
1 | ||
| 71100S - SEAT ASSY, FRONT RH | ||||
| 71100-6B620A3 |
KDJ120,KZJ120,LJ120,RZJ120,TRJ120..RHD..GX SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN,XXXX,TRIM0# |
1 | ||
| 71100-6B620B3 |
KDJ120,KZJ120,LJ120,RZJ120,TRJ120..RHD..GX SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN,GRAY,TRIM1# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71501-60200 |
GRJ120,KDJ120,KZJ120,LJ120,RZJ120,TRJ120..RHD |
1 | ||
| 71537A - PROTECTOR, FRONT SEAT CUSHION | ||||
| 71537-26010 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN |
4 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-60400 |
GRJ120,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..GX..(ARL,GCC,GEN) |
1 | ||
| 71551-60410 |
RZJ125,TRJ125;KDJ120,KZJ120,LJ12#,RZJ120,TRJ120..GX..(ARL,GEN) SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN |
1 | ||
| 71765B - PROTECTOR, FRONT SEAT BACK, RH | ||||
| 71765-60060 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN |
1 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-60200B1 |
KZJ120;GRJ120..GCC,GEN;GRJ120,KDJ120,LJ120,RZJ120,TRJ120..GX..(ARL,GCC,GEN) MD.GRAY,TRIM1# |
1 | ||
| 71811-60200A0 |
KZJ120;GRJ120..GCC,GEN;GRJ120,KDJ120,LJ120,RZJ120,TRJ120..GX..(ARL,GCC,GEN) IVORY,TRIM0# |
1 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-60200B1 |
KZJ120;GRJ120..GCC,GEN;GRJ120,KDJ120,LJ120,RZJ120,TRJ120..GX..(ARL,GCC,GEN) MD.GRAY,TRIM1# |
1 | ||
| 71811-60200A0 |
KZJ120;GRJ120..GCC,GEN;GRJ120,KDJ120,LJ120,RZJ120,TRJ120..GX..(ARL,GCC,GEN) IVORY,TRIM0# |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-60100A0 |
GRJ120,KDJ120,KZJ120,LJ120,RZJ120,TRJ120..ARL,GCC,GEN IVORY,TRIM0# |
1 | ||
| 71861-60100B1 |
GRJ120,KDJ120,KZJ120,LJ120,RZJ120,TRJ120..ARL,GCC,GEN MD.GRAY,TRIM1# |
1 | ||
| 71875A - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-60160A0 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN IVORY,TRIM0# |
1 | ||
| 71875-60160B1 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN MD.GRAY,TRIM1# |
1 | ||
| 71875B - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-58060C0 |
KZJ120;GRJ12#..LHD..VX;LJ120,RZJ120..RHD SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN,BLACK |
1 | ||
| 71875-58060 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN |
1 | ||
| 71876 - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-60160B1 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN MD.GRAY,TRIM1# |
1 | ||
| 71876-60160A0 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN IVORY,TRIM0# |
1 | ||
| 71876A - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-58060C0 |
KZJ120;GRJ12#..LHD..VX;LJ120,RZJ120..RHD SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN,BLACK |
1 | ||
| 71876-58060 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-60580B0 |
RZJ120..RHD..GEN WORKHORTH PACKAGE&REAR SEAT-PARALLEL,MD.GRAY,TRIM1# |
2 | ||
| 71910-60590A0 |
GRJ120,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..GX..(ARL,GCC,GEN) IVORY,TRIM0# |
2 | ||
| 71910-60590B0 |
GRJ120,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..GX..(ARL,GCC,GEN) MEDIUM GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-42020A0 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN W(LOCK)&W(BUTTON),IVORY,TRIM0# |
2 | ||
| 71931-42020A0 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN W(LOCK)&W/O(BUTTON),IVORY,TRIM0# |
2 | ||
| 71930-42020B6 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN W(LOCK)&W(BUTTON),MD.GRAY,TRIM1# |
2 | ||
| 71931-42020B6 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN W(LOCK)&W/O(BUTTON),MD.GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-42020A0 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN W(LOCK)&W(BUTTON),IVORY,TRIM0# |
2 | ||
| 71931-42020A0 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN W(LOCK)&W/O(BUTTON),IVORY,TRIM0# |
2 | ||
| 71930-42020B6 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN W(LOCK)&W(BUTTON),MD.GRAY,TRIM1# |
2 | ||
| 71931-42020B6 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN W(LOCK)&W/O(BUTTON),MD.GRAY,TRIM1# |
2 | ||
| 72011C - ADJUSTER SUB-ASSY, FRONT SEAT, RH | ||||
| 71110-60110 |
RZJ120..RHD..GEN REAR SEAT-PARALLEL&SRS AIR BAG-DRIVER & PASSENGER |
1 | ||
| 71110-60270 |
RZJ120..RHD..GEN WORKHORTH PACKAGE&REAR SEAT-PARALLEL |
1 | ||
| 71110-60110 |
LJ120,RZJ120,TRJ120..RHD..GEN SRS AIR BAG-DRIVER & PASSENGER |
1 | ||
| 71110-60050 |
LJ120,RZJ120,TRJ120..GCC,GEN |
1 | ||
| 71110-60170 |
KDJ120,KZJ120,LJ120,RZJ120,TRJ120..RHD..GX SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN |
1 | ||
| 72123A - COVER, SEAT TRACK BRACKET, OUTER FRONT RH | ||||
| 72123-60090A0 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN IVORY,TRIM0# |
1 | ||
| 72123-60090B0 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN MD.GRAY,TRIM1# |
1 | ||
| 72127A - COVER, SEAT TRACK BRACKET, INNER FRONT RH | ||||
| 72127-60050A0 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN IVORY,TRIM0# |
1 | ||
| 72127-60050B0 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN MD.GRAY,TRIM1# |
1 | ||
| 72137B - COVER, SEAT TRACK, RH | ||||
| 72137-60100A0 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN IVORY,TRIM0# |
2 | ||
| 72137-60100B0 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN MD.GRAY,TRIM1# |
2 | ||
| 72157 - COVER, SEAT TRACK BRACKET, INNER | ||||
| 72157-60120A0 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN IVORY,TRIM0# |
2 | ||
| 72157-60120B0 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN MD.GRAY,TRIM1# |
2 | ||
| 72211 - HANDLE, SEAT TRACK ADJUSTING | ||||
| 72211-60190 |
GRJ120,KDJ120,KZJ120,LJ120,RZJ120,TRJ120..ARL,GCC,GEN |
1 | ||
| 72497 - COVER, VERTICAL ADJUSTER BRACKET, OUTER | ||||
| 72497-60020 |
GRJ120,KDJ120,KZJ120,LJ120,RZJ120,TRJ120..ARL,GCC,GEN |
1 | ||
| 72525B - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-60100A0 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN IVORY,TRIM0# |
1 | ||
| 72525-60100B1 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN MD.GRAY,TRIM1# |
1 | ||
| 73910A - AIR BAG ASSY, FRONT SEAT, RH | ||||
| 73910-58010 |
GRJ12#,LJ12#,RZJ125,TRJ125..GCC,GEN;KDJ120,KZJ120,RZJ120,TRJ120..ARL,GEN SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN |
1 | ||
| 76519B - CLIP, FRONT SEAT CUSHION COVER | ||||
| 76519-42010 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN |
4 | ||
| 76519-42010 |
RZJ120..RHD..GEN WORKHORTH PACKAGE&REAR SEAT-PARALLEL |
3 | ||
| 76519-42010 |
RZJ120..RHD..GEN REAR SEAT-PARALLEL&SRS AIR BAG-DRIVER & PASSENGER |
3 | ||
| 76519-42010 |
RZJ120..RHD..GEN REAR SEAT-PARALLEL |
3 | ||
| 76519B - CLIP, FRONT SEAT CUSHION COVER | ||||
| 76519-42010 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN |
4 | ||
| 76519-42010 |
RZJ120..RHD..GEN WORKHORTH PACKAGE&REAR SEAT-PARALLEL |
3 | ||
| 76519-42010 |
RZJ120..RHD..GEN REAR SEAT-PARALLEL&SRS AIR BAG-DRIVER & PASSENGER |
3 | ||
| 76519-42010 |
RZJ120..RHD..GEN REAR SEAT-PARALLEL |
3 | ||
| Common parts | ||||
| 90119-10921 | ||||
| 90167-40044 | ||||
| 90179-11010 | ||||
| 90389-10041 | ||||
| 90467-09118 | ||||
| 90468-16019 | ||||
| 90468-18071 | ||||
| 93269-55008 | ||||
| 93560-54012 | ||||
| 93568-55016 | ||||
| 94170-60600 | ||||
| 94185-60600 | ||||
| Linked diagrams | ||||
| 7152 | ||||
| 8202 | ||||
| 8401 | ||||
| 8421 | ||||
| 8513 | ||||
ILLUST NO. 1 OF 3(0209- )ARL,GCC,GEN
FRONT SEAT LH-W(SRS SIDE AIR BAG)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-6A040A0 |
RZJ120..RHD..GEN REAR SEAT-PARALLEL,IVORY,TRIM0# |
1 | ||
| 71072-6A040B0 |
RZJ120..RHD..GEN REAR SEAT-PARALLEL&SRS AIR BAG-DRIVER & PASSENGER,MEDIUM GRAY,TRIM1# |
1 | ||
| 71072-6A040A0 |
RZJ120..RHD..GEN REAR SEAT-PARALLEL&SRS AIR BAG-DRIVER & PASSENGER,IVORY,TRIM0# |
1 | ||
| 71072-6A040B0 |
RZJ120..RHD..GEN REAR SEAT-PARALLEL,MEDIUM GRAY,TRIM1# |
1 | ||
| 71072-6A030B0 |
RZJ120..RHD..GEN WORKHORTH PACKAGE&REAR SEAT-PARALLEL,MD GRAY,TRIM1# |
1 | ||
| 71072-60870B0 |
GRJ120,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..GX..(ARL,GCC,GEN) MEDIUM GRAY,TRIM1# |
1 | ||
| 71072-60870A0 |
GRJ120,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..GX..(ARL,GCC,GEN) IVORY,TRIM0# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-6A120B0 |
RZJ120..RHD..GEN REAR SEAT-PARALLEL&SRS AIR BAG-DRIVER & PASSENGER,MEDIUM GRAY,TRIM1# |
1 | ||
| 71074-6A110B0 |
RZJ120..RHD..GEN WORKHORTH PACKAGE&REAR SEAT-PARALLEL,MD GRAY,TRIM1# |
1 | ||
| 71074-6A120A0 |
RZJ120..RHD..GEN REAR SEAT-PARALLEL&SRS AIR BAG-DRIVER & PASSENGER,IVORY,TRIM0# |
1 | ||
| 71074-6A120B0 |
RZJ120..RHD..GEN REAR SEAT-PARALLEL,MEDIUM GRAY,TRIM1# |
1 | ||
| 71074-6A120A0 |
RZJ120..RHD..GEN REAR SEAT-PARALLEL,IVORY,TRIM0# |
1 | ||
| 71073-6A610B0 |
GRJ120,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..GX..(ARL,GCC,GEN) MEDIUM GRAY,TRIM1# |
1 | ||
| 71074-6A060A0 |
RZJ125,TRJ125;KDJ120,KZJ120,LJ12#,RZJ120,TRJ120..GX..(ARL,GEN) SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN,IVORY,TRIM0# |
1 | ||
| 71073-6A610A0 |
GRJ120,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..GX..(ARL,GCC,GEN) IVORY,TRIM0# |
1 | ||
| 71074-6A060B0 |
RZJ125,TRJ125;KDJ120,KZJ120,LJ12#,RZJ120,TRJ120..GX..(ARL,GEN) SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN,MEDIUM GRAY,TRIM1# |
1 | ||
| 71200S - SEAT ASSY, FRONT LH | ||||
| 71200-6C130B4 |
KDJ120,KZJ120,LJ120,RZJ120,TRJ120..RHD..GX SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN,GRAY,TRIM1# |
1 | ||
| 71200-6C130A4 |
KDJ120,KZJ120,LJ120,RZJ120,TRJ120..RHD..GX SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN,IVORY,TRIM0# |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71502-60140 |
RZJ120..RHD..GEN REAR SEAT-PARALLEL&SRS AIR BAG-DRIVER & PASSENGER |
1 | ||
| 71502-60140 |
RZJ120..RHD..GEN REAR SEAT-PARALLEL |
1 | ||
| 71502-60140 |
RZJ120..RHD..GEN WORKHORTH PACKAGE&REAR SEAT-PARALLEL |
1 | ||
| 71501-60210 |
GRJ120,KDJ120,KZJ120,LJ120,RZJ120,TRJ120..RHD |
1 | ||
| 71537A - PROTECTOR, FRONT SEAT CUSHION | ||||
| 71537-26010 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN |
4 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71552-60260 |
RZJ120..RHD..GEN REAR SEAT-PARALLEL&SRS AIR BAG-DRIVER & PASSENGER |
1 | ||
| 71552-60260 |
RZJ120..RHD..GEN REAR SEAT-PARALLEL |
1 | ||
| 71552-60260 |
RZJ120..RHD..GEN WORKHORTH PACKAGE&REAR SEAT-PARALLEL |
1 | ||
| 71551-60400 |
GRJ120,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..GX..(ARL,GCC,GEN) |
1 | ||
| 71552-60290 |
RZJ125,TRJ125;KDJ120,KZJ120,LJ12#,RZJ120,TRJ120..GX..(ARL,GEN) SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN |
1 | ||
| 71766B - PROTECTOR, FRONT SEAT BACK, LH | ||||
| 71765-60060 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-60200B1 |
LJ12#,RZJ12#,TRJ12#;GRJ120,KDJ120,KZJ120..ARL MD.GRAY,TRIM1# |
1 | ||
| 71812-60200A0 |
LJ12#,RZJ12#,TRJ12#;GRJ120,KDJ120,KZJ120..ARL IVORY,TRIM0# |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-60200B1 |
LJ12#,RZJ12#,TRJ12#;GRJ120,KDJ120,KZJ120..ARL MD.GRAY,TRIM1# |
1 | ||
| 71812-60200A0 |
LJ12#,RZJ12#,TRJ12#;GRJ120,KDJ120,KZJ120..ARL IVORY,TRIM0# |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-60120B1 |
RZJ120..RHD..GEN REAR SEAT-PARALLEL,MD.GRAY,TRIM1# |
1 | ||
| 71862-60120A0 |
RZJ120..RHD..GEN REAR SEAT-PARALLEL&SRS AIR BAG-DRIVER & PASSENGER,IVORY,TRIM0# |
1 | ||
| 71862-60120B1 |
RZJ120..RHD..GEN REAR SEAT-PARALLEL&SRS AIR BAG-DRIVER & PASSENGER,MD.GRAY,TRIM1# |
1 | ||
| 71862-60120A0 |
RZJ120..RHD..GEN REAR SEAT-PARALLEL,IVORY,TRIM0# |
1 | ||
| 71862-60120A0 |
RZJ120..RHD..GEN WORKHORTH PACKAGE&REAR SEAT-PARALLEL,IVORY,TRIM0# |
1 | ||
| 71862-60110A0 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN IVORY,TRIM0# |
1 | ||
| 71862-60120B1 |
RZJ120..RHD..GEN WORKHORTH PACKAGE&REAR SEAT-PARALLEL,MD.GRAY,TRIM1# |
1 | ||
| 71862-60110B1 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN MD.GRAY,TRIM1# |
1 | ||
| 71875C - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-60160B1 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN MD.GRAY,TRIM1# |
1 | ||
| 71875-60160A0 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN IVORY,TRIM0# |
1 | ||
| 71875D - COVER, RECLINING ADJUSTER OUTSIDE, RH | ||||
| 71875-58060C0 |
KZJ120;GRJ12#..LHD..VX;LJ120,RZJ120..RHD SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN,BLACK |
1 | ||
| 71875-58060 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN |
1 | ||
| 71876B - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-60160A0 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN IVORY,TRIM0# |
1 | ||
| 71876-60160B1 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN MD.GRAY,TRIM1# |
1 | ||
| 71876C - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-58060C0 |
KZJ120;GRJ12#..LHD..VX;LJ120,RZJ120..RHD SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN,BLACK |
1 | ||
| 71876-58060 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-60580B0 |
RZJ120..RHD..GEN WORKHORTH PACKAGE&REAR SEAT-PARALLEL,MD.GRAY,TRIM1# |
2 | ||
| 71910-60590A0 |
GRJ120,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..GX..(ARL,GCC,GEN) IVORY,TRIM0# |
2 | ||
| 71910-60590B0 |
GRJ120,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..GX..(ARL,GCC,GEN) MEDIUM GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-42020A0 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN W(LOCK)&W(BUTTON),IVORY,TRIM0# |
2 | ||
| 71931-42020A0 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN W(LOCK)&W/O(BUTTON),IVORY,TRIM0# |
2 | ||
| 71930-42020B6 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN W(LOCK)&W(BUTTON),MD.GRAY,TRIM1# |
2 | ||
| 71931-42020B6 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN W(LOCK)&W/O(BUTTON),MD.GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-42020A0 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN W(LOCK)&W(BUTTON),IVORY,TRIM0# |
2 | ||
| 71931-42020A0 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN W(LOCK)&W/O(BUTTON),IVORY,TRIM0# |
2 | ||
| 71930-42020B6 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN W(LOCK)&W(BUTTON),MD.GRAY,TRIM1# |
2 | ||
| 71931-42020B6 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN W(LOCK)&W/O(BUTTON),MD.GRAY,TRIM1# |
2 | ||
| 72012C - ADJUSTER SUB-ASSY, FRONT SEAT, LH | ||||
| 71120-60110 |
RZJ120..RHD..GEN REAR SEAT-PARALLEL |
1 | ||
| 71120-60110 |
RZJ120..RHD..GEN WORKHORTH PACKAGE&REAR SEAT-PARALLEL |
1 | ||
| 71120-60110 |
RZJ120..RHD..GEN REAR SEAT-PARALLEL&SRS AIR BAG-DRIVER & PASSENGER |
1 | ||
| 71120-60300 |
GRJ120,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..GX..(ARL,GCC,GEN) |
1 | ||
| 71120-60320 |
KDJ120,KZJ120,LJ120,RZJ120,TRJ120..RHD..GX SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN |
1 | ||
| 72124 - COVER, SEAT TRACK BRACKET, OUTER FRONT LH | ||||
| 72124-60060A0 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN IVORY,TRIM0# |
1 | ||
| 72124-60060B0 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN MD.GRAY,TRIM1# |
1 | ||
| 72128A - COVER, SEAT TRACK BRACKET, INNER FRONT LH | ||||
| 72128-60040A0 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN IVORY,TRIM0# |
1 | ||
| 72128-60040B0 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN MD.GRAY,TRIM1# |
1 | ||
| 72137B - COVER, SEAT TRACK, RH | ||||
| 72137-60100A0 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN IVORY,TRIM0# |
2 | ||
| 72137-60100B0 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN MD.GRAY,TRIM1# |
2 | ||
| 72157 - COVER, SEAT TRACK BRACKET, INNER | ||||
| 72157-60120A0 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN IVORY,TRIM0# |
2 | ||
| 72157-60120B0 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN MD.GRAY,TRIM1# |
2 | ||
| 72211B - HANDLE, SEAT TRACK ADJUSTING | ||||
| 72212-60120 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN |
1 | ||
| 72498 - COVER, VERTICAL ADJUSTER BRACKET | ||||
| 72498-60020 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN |
1 | ||
| 72526A - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-60070B1 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN MD.GRAY,TRIM1# |
1 | ||
| 72526-60070A0 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN IVORY,TRIM0# |
1 | ||
| 73920A - AIR BAG ASSY, FRONT SEAT, LH | ||||
| 73920-58010 |
GRJ12#,LJ12#,RZJ125,TRJ125..GCC,GEN;KDJ120,KZJ120,RZJ120,TRJ120..ARL,GEN SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN |
1 | ||
| 76519B - CLIP, FRONT SEAT CUSHION COVER | ||||
| 76519-42010 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN |
4 | ||
| 76519-42010 |
RZJ120..RHD..GEN WORKHORTH PACKAGE&REAR SEAT-PARALLEL |
3 | ||
| 76519-42010 |
RZJ120..RHD..GEN REAR SEAT-PARALLEL&SRS AIR BAG-DRIVER & PASSENGER |
3 | ||
| 76519-42010 |
RZJ120..RHD..GEN REAR SEAT-PARALLEL |
3 | ||
| 76519B - CLIP, FRONT SEAT CUSHION COVER | ||||
| 76519-42010 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN |
4 | ||
| 76519-42010 |
RZJ120..RHD..GEN WORKHORTH PACKAGE&REAR SEAT-PARALLEL |
3 | ||
| 76519-42010 |
RZJ120..RHD..GEN REAR SEAT-PARALLEL&SRS AIR BAG-DRIVER & PASSENGER |
3 | ||
| 76519-42010 |
RZJ120..RHD..GEN REAR SEAT-PARALLEL |
3 | ||
| Common parts | ||||
| 90119-10921 | ||||
| 90167-40044 | ||||
| 90179-11010 | ||||
| 90389-10041 | ||||
| 90467-09118 | ||||
| 90468-16019 | ||||
| 90468-18071 | ||||
| 93269-55008 | ||||
| 93560-54012 | ||||
| 93568-55016 | ||||
| 94170-60600 | ||||
| 94185-60600 | ||||
| Linked diagrams | ||||
| 7152 | ||||
| 8202 | ||||
| 8401 | ||||
| 8421 | ||||
| 8513 | ||||
ILLUST NO. 1 OF 3(0209- )ARL,GCC,GEN
FRONT SEAT LH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-6A040A0 |
RZJ120..RHD..GEN REAR SEAT-PARALLEL,IVORY,TRIM0# |
1 | ||
| 71072-6A040B0 |
RZJ120..RHD..GEN REAR SEAT-PARALLEL&SRS AIR BAG-DRIVER & PASSENGER,MEDIUM GRAY,TRIM1# |
1 | ||
| 71072-6A040A0 |
RZJ120..RHD..GEN REAR SEAT-PARALLEL&SRS AIR BAG-DRIVER & PASSENGER,IVORY,TRIM0# |
1 | ||
| 71072-6A040B0 |
RZJ120..RHD..GEN REAR SEAT-PARALLEL,MEDIUM GRAY,TRIM1# |
1 | ||
| 71072-6A030B0 |
RZJ120..RHD..GEN WORKHORTH PACKAGE&REAR SEAT-PARALLEL,MD GRAY,TRIM1# |
1 | ||
| 71072-60870B0 |
GRJ120,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..GX..(ARL,GCC,GEN) MEDIUM GRAY,TRIM1# |
1 | ||
| 71072-60870A0 |
GRJ120,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..GX..(ARL,GCC,GEN) IVORY,TRIM0# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-6A120B0 |
RZJ120..RHD..GEN REAR SEAT-PARALLEL&SRS AIR BAG-DRIVER & PASSENGER,MEDIUM GRAY,TRIM1# |
1 | ||
| 71074-6A110B0 |
RZJ120..RHD..GEN WORKHORTH PACKAGE&REAR SEAT-PARALLEL,MD GRAY,TRIM1# |
1 | ||
| 71074-6A120A0 |
RZJ120..RHD..GEN REAR SEAT-PARALLEL&SRS AIR BAG-DRIVER & PASSENGER,IVORY,TRIM0# |
1 | ||
| 71074-6A120B0 |
RZJ120..RHD..GEN REAR SEAT-PARALLEL,MEDIUM GRAY,TRIM1# |
1 | ||
| 71074-6A120A0 |
RZJ120..RHD..GEN REAR SEAT-PARALLEL,IVORY,TRIM0# |
1 | ||
| 71073-6A610B0 |
GRJ120,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..GX..(ARL,GCC,GEN) MEDIUM GRAY,TRIM1# |
1 | ||
| 71074-6A060A0 |
RZJ125,TRJ125;KDJ120,KZJ120,LJ12#,RZJ120,TRJ120..GX..(ARL,GEN) SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN,IVORY,TRIM0# |
1 | ||
| 71073-6A610A0 |
GRJ120,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..GX..(ARL,GCC,GEN) IVORY,TRIM0# |
1 | ||
| 71074-6A060B0 |
RZJ125,TRJ125;KDJ120,KZJ120,LJ12#,RZJ120,TRJ120..GX..(ARL,GEN) SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN,MEDIUM GRAY,TRIM1# |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71502-60140 |
RZJ120..RHD..GEN REAR SEAT-PARALLEL&SRS AIR BAG-DRIVER & PASSENGER |
1 | ||
| 71502-60140 |
RZJ120..RHD..GEN REAR SEAT-PARALLEL |
1 | ||
| 71502-60140 |
RZJ120..RHD..GEN WORKHORTH PACKAGE&REAR SEAT-PARALLEL |
1 | ||
| 71501-60210 |
GRJ120,KDJ120,KZJ120,LJ120,RZJ120,TRJ120..RHD |
1 | ||
| 71537A - PROTECTOR, FRONT SEAT CUSHION | ||||
| 71537-26010 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN |
4 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71552-60260 |
RZJ120..RHD..GEN REAR SEAT-PARALLEL&SRS AIR BAG-DRIVER & PASSENGER |
1 | ||
| 71552-60260 |
RZJ120..RHD..GEN REAR SEAT-PARALLEL |
1 | ||
| 71552-60260 |
RZJ120..RHD..GEN WORKHORTH PACKAGE&REAR SEAT-PARALLEL |
1 | ||
| 71551-60400 |
GRJ120,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..GX..(ARL,GCC,GEN) |
1 | ||
| 71552-60290 |
RZJ125,TRJ125;KDJ120,KZJ120,LJ12#,RZJ120,TRJ120..GX..(ARL,GEN) SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN |
1 | ||
| 71766B - PROTECTOR, FRONT SEAT BACK, LH | ||||
| 71765-60060 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-60200B1 |
LJ12#,RZJ12#,TRJ12#;GRJ120,KDJ120,KZJ120..ARL MD.GRAY,TRIM1# |
1 | ||
| 71812-60200A0 |
LJ12#,RZJ12#,TRJ12#;GRJ120,KDJ120,KZJ120..ARL IVORY,TRIM0# |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-60200B1 |
LJ12#,RZJ12#,TRJ12#;GRJ120,KDJ120,KZJ120..ARL MD.GRAY,TRIM1# |
1 | ||
| 71812-60200A0 |
LJ12#,RZJ12#,TRJ12#;GRJ120,KDJ120,KZJ120..ARL IVORY,TRIM0# |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-60120B1 |
RZJ120..RHD..GEN REAR SEAT-PARALLEL,MD.GRAY,TRIM1# |
1 | ||
| 71862-60120A0 |
RZJ120..RHD..GEN REAR SEAT-PARALLEL&SRS AIR BAG-DRIVER & PASSENGER,IVORY,TRIM0# |
1 | ||
| 71862-60120B1 |
RZJ120..RHD..GEN REAR SEAT-PARALLEL&SRS AIR BAG-DRIVER & PASSENGER,MD.GRAY,TRIM1# |
1 | ||
| 71862-60120A0 |
RZJ120..RHD..GEN REAR SEAT-PARALLEL,IVORY,TRIM0# |
1 | ||
| 71862-60120A0 |
RZJ120..RHD..GEN WORKHORTH PACKAGE&REAR SEAT-PARALLEL,IVORY,TRIM0# |
1 | ||
| 71862-60110A0 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN IVORY,TRIM0# |
1 | ||
| 71862-60120B1 |
RZJ120..RHD..GEN WORKHORTH PACKAGE&REAR SEAT-PARALLEL,MD.GRAY,TRIM1# |
1 | ||
| 71862-60110B1 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN MD.GRAY,TRIM1# |
1 | ||
| 71875C - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-60160B1 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN MD.GRAY,TRIM1# |
1 | ||
| 71875-60160A0 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN IVORY,TRIM0# |
1 | ||
| 71875D - COVER, RECLINING ADJUSTER OUTSIDE, RH | ||||
| 71875-58060C0 |
KZJ120;GRJ12#..LHD..VX;LJ120,RZJ120..RHD SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN,BLACK |
1 | ||
| 71875-58060 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN |
1 | ||
| 71876B - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-60160A0 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN IVORY,TRIM0# |
1 | ||
| 71876-60160B1 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN MD.GRAY,TRIM1# |
1 | ||
| 71876C - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-58060C0 |
KZJ120;GRJ12#..LHD..VX;LJ120,RZJ120..RHD SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN,BLACK |
1 | ||
| 71876-58060 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-60580B0 |
RZJ120..RHD..GEN WORKHORTH PACKAGE&REAR SEAT-PARALLEL,MD.GRAY,TRIM1# |
2 | ||
| 71910-60590A0 |
GRJ120,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..GX..(ARL,GCC,GEN) IVORY,TRIM0# |
2 | ||
| 71910-60590B0 |
GRJ120,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..GX..(ARL,GCC,GEN) MEDIUM GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-42020A0 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN W(LOCK)&W(BUTTON),IVORY,TRIM0# |
2 | ||
| 71931-42020A0 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN W(LOCK)&W/O(BUTTON),IVORY,TRIM0# |
2 | ||
| 71930-42020B6 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN W(LOCK)&W(BUTTON),MD.GRAY,TRIM1# |
2 | ||
| 71931-42020B6 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN W(LOCK)&W/O(BUTTON),MD.GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-42020A0 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN W(LOCK)&W(BUTTON),IVORY,TRIM0# |
2 | ||
| 71931-42020A0 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN W(LOCK)&W/O(BUTTON),IVORY,TRIM0# |
2 | ||
| 71930-42020B6 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN W(LOCK)&W(BUTTON),MD.GRAY,TRIM1# |
2 | ||
| 71931-42020B6 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN W(LOCK)&W/O(BUTTON),MD.GRAY,TRIM1# |
2 | ||
| 72012C - ADJUSTER SUB-ASSY, FRONT SEAT, LH | ||||
| 71120-60110 |
RZJ120..RHD..GEN REAR SEAT-PARALLEL |
1 | ||
| 71120-60110 |
RZJ120..RHD..GEN WORKHORTH PACKAGE&REAR SEAT-PARALLEL |
1 | ||
| 71120-60110 |
RZJ120..RHD..GEN REAR SEAT-PARALLEL&SRS AIR BAG-DRIVER & PASSENGER |
1 | ||
| 71120-60300 |
GRJ120,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..GX..(ARL,GCC,GEN) |
1 | ||
| 71120-60320 |
KDJ120,KZJ120,LJ120,RZJ120,TRJ120..RHD..GX SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN |
1 | ||
| 72124 - COVER, SEAT TRACK BRACKET, OUTER FRONT LH | ||||
| 72124-60060A0 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN IVORY,TRIM0# |
1 | ||
| 72124-60060B0 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN MD.GRAY,TRIM1# |
1 | ||
| 72128A - COVER, SEAT TRACK BRACKET, INNER FRONT LH | ||||
| 72128-60040A0 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN IVORY,TRIM0# |
1 | ||
| 72128-60040B0 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN MD.GRAY,TRIM1# |
1 | ||
| 72137B - COVER, SEAT TRACK, RH | ||||
| 72137-60100A0 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN IVORY,TRIM0# |
2 | ||
| 72137-60100B0 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN MD.GRAY,TRIM1# |
2 | ||
| 72157 - COVER, SEAT TRACK BRACKET, INNER | ||||
| 72157-60120A0 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN IVORY,TRIM0# |
2 | ||
| 72157-60120B0 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN MD.GRAY,TRIM1# |
2 | ||
| 72211B - HANDLE, SEAT TRACK ADJUSTING | ||||
| 72212-60120 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN |
1 | ||
| 72498 - COVER, VERTICAL ADJUSTER BRACKET | ||||
| 72498-60020 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN |
1 | ||
| 72526A - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-60070B1 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN MD.GRAY,TRIM1# |
1 | ||
| 72526-60070A0 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN IVORY,TRIM0# |
1 | ||
| 76519B - CLIP, FRONT SEAT CUSHION COVER | ||||
| 76519-42010 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN |
4 | ||
| 76519-42010 |
RZJ120..RHD..GEN WORKHORTH PACKAGE&REAR SEAT-PARALLEL |
3 | ||
| 76519-42010 |
RZJ120..RHD..GEN REAR SEAT-PARALLEL&SRS AIR BAG-DRIVER & PASSENGER |
3 | ||
| 76519-42010 |
RZJ120..RHD..GEN REAR SEAT-PARALLEL |
3 | ||
| 76519B - CLIP, FRONT SEAT CUSHION COVER | ||||
| 76519-42010 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN |
4 | ||
| 76519-42010 |
RZJ120..RHD..GEN WORKHORTH PACKAGE&REAR SEAT-PARALLEL |
3 | ||
| 76519-42010 |
RZJ120..RHD..GEN REAR SEAT-PARALLEL&SRS AIR BAG-DRIVER & PASSENGER |
3 | ||
| 76519-42010 |
RZJ120..RHD..GEN REAR SEAT-PARALLEL |
3 | ||
| Common parts | ||||
| 90119-10921 | ||||
| 90167-40044 | ||||
| 90179-11010 | ||||
| 90389-10041 | ||||
| 90467-09118 | ||||
| 90468-16019 | ||||
| 90468-18071 | ||||
| 93269-55008 | ||||
| 93560-54012 | ||||
| 93568-55016 | ||||
| Linked diagrams | ||||
| 7152 | ||||
| 8202 | ||||
| 8401 | ||||
| 8421 | ||||
| 8513 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
