Toyota Land cruiser prado RZJ120 BRAKE TUBE & CLAMP

RZJ120R-GKMEK (2002)

Toyota Land Cruiser Prado

Production Sep 2002 - Aug 2004

Engine 3RZFE

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

(0209- )RHD

Click highlighted areas on diagram

Part #	Description	Period	Qty
47311 - TUBE, FRONT BRAKE, NO.1
47311-60620	GRJ120,KDJ120,KZJ120,LJ120,RZJ120,TRJ120..RHD	09/2002 - 12/2999	1
47311G - HOSE, FLEXIBLE(FOR BRAKE TUBE)
90947-02D40	GRJ120,KDJ120,KZJ120,RZJ120,TRJ120..ARL,GCC,GEN ABS-WITH	09/2002 - 02/2007	2
90947-02D39	GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN	09/2002 - 12/2999	1
47313 - TUBE, FRONT BRAKE, NO.3
47313-60361	GRJ120,KDJ120,KZJ120,LJ120,RZJ120,TRJ120..RHD	09/2002 - 12/2999	1
47313-3D161	GRJ120,KDJ120,KZJ120,RZJ120,TRJ120..RHD ABS-WITH	09/2002 - 12/2999	1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02D35	GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN	09/2002 - 02/2007	2
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02D35	GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN	09/2002 - 02/2007	2
47314 - TUBE, FRONT BRAKE, NO.4
47314-35320	GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN NO.2	09/2002 - 12/2999	1
47314-35310	GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN NO.1	09/2002 - 12/2999	1
47314 - TUBE, FRONT BRAKE, NO.4
47314-35320	GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN NO.2	09/2002 - 12/2999	1
47314-35310	GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN NO.1	09/2002 - 12/2999	1
47315 - TUBE, FRONT BRAKE, NO.5
47315-35441	GRJ120,KDJ120,KZJ120,RZJ120,TRJ120..RHD ABS-WITH	09/2002 - 12/2999	1
47315-60481	GRJ120,KDJ120,KZJ120,LJ120,RZJ120,TRJ120..RHD	09/2002 - 12/2999	1
47316 - TUBE, FRONT BRAKE, NO.6
47316-35270	GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN NO.1	09/2002 - 12/2999	1
47316-35280	GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN NO.2	09/2002 - 12/2999	1
47316 - TUBE, FRONT BRAKE, NO.6
47316-35270	GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN NO.1	09/2002 - 12/2999	1
47316-35280	GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN NO.2	09/2002 - 12/2999	1
47317 - TUBE, FRONT BRAKE, NO.7
47317-60110	GRJ120,KDJ120,KZJ120,LJ120,RZJ120,TRJ120..RHD	09/2002 - 12/2999	1
47318 - TUBE, FRONT BRAKE, NO.8
47318-60140	GRJ120,KDJ120,KZJ120,LJ120,RZJ120,TRJ120..ARL,GCC,GEN	09/2002 - 12/2999	1
47318 - TUBE, FRONT BRAKE, NO.8
47318-60140	GRJ120,KDJ120,KZJ120,LJ120,RZJ120,TRJ120..ARL,GCC,GEN	09/2002 - 12/2999	1
47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE)
90401-10058	GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN	09/2002 - 08/2009	2
47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE)
90401-10058	GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN	09/2002 - 08/2009	2
47318E - GASKET(FOR REAR FLEXIBLE HOSE)
47389-50020	GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN	09/2002 - 08/2009	2
47318E - GASKET(FOR REAR FLEXIBLE HOSE)
47389-50020	GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN	09/2002 - 08/2009	2
47318F - HOSE, FLEXIBLE(FOR REAR RH)
90947-02D31	GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN	09/2002 - 01/2007	1
47319F - HOSE, FLEXIBLE(FOR REAR LH)
90947-02D32	GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN	09/2002 - 01/2007	1
47321 - TUBE, REAR BRAKE, NO.1
47321-35840	GRJ120,KDJ120,KZJ120,RZJ120,TRJ120..RHD ABS-WITH	09/2002 - 12/2999	1
47321-60290	GRJ120,KDJ120,KZJ120,LJ120,RZJ120,TRJ120..RHD	09/2002 - 12/2999	1
47324 - TUBE, REAR BRAKE, NO.4
47324-35310	GRJ120,KDJ120,KZJ120,RZJ120,TRJ120..ARL,GCC,GEN ABS-WITH	09/2002 - 12/2999	1
47324-60340	GRJ120,KDJ120,KZJ120,LJ120,RZJ120,TRJ120..ARL,GCC,GEN	09/2002 - 12/2999	1
47324 - TUBE, REAR BRAKE, NO.4
47324-35310	GRJ120,KDJ120,KZJ120,RZJ120,TRJ120..ARL,GCC,GEN ABS-WITH	09/2002 - 12/2999	1
47324-60340	GRJ120,KDJ120,KZJ120,LJ120,RZJ120,TRJ120..ARL,GCC,GEN	09/2002 - 12/2999	1
47325 - TUBE, REAR BRAKE, NO.5
47325-60300	GRJ120,KDJ120,KZJ120,LJ120,RZJ120,TRJ120..ARL,GCC,GEN	09/2002 - 12/2999	1
47325-35390	GRJ120,KDJ120,KZJ120,RZJ120,TRJ120..ARL,GCC,GEN ABS-WITH	09/2002 - 12/2999	1
47325 - TUBE, REAR BRAKE, NO.5
47325-60300	GRJ120,KDJ120,KZJ120,LJ120,RZJ120,TRJ120..ARL,GCC,GEN	09/2002 - 12/2999	1
47325-35390	GRJ120,KDJ120,KZJ120,RZJ120,TRJ120..ARL,GCC,GEN ABS-WITH	09/2002 - 12/2999	1
47326 - TUBE, REAR BRAKE, NO.6
47326-35120	GRJ12#,KZJ120,RZJ12# ABS-WITH	09/2002 - 08/2003	1
47326-60320	GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN	09/2002 - 12/2999	1
47326-35130	GRJ12#,KDJ120,KZJ120,RZJ12#,TRJ12#..ARL,GCC,GEN ABS-WITH	08/2003 - 12/2999	1
47327 - TUBE, REAR BRAKE, NO.7
47327-35090	GRJ12#,KZJ120,RZJ12# ABS-WITH	09/2002 - 08/2003	1
47327-35100	GRJ12#,KDJ120,KZJ120,RZJ12#,TRJ12#..ARL,GCC,GEN ABS-WITH	08/2003 - 12/2999	1
47327-60150	GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN	09/2002 - 12/2999	1
47351 - BRACKET, FLEXIBLE HOSE(FOR FRONT RH)
47351-35350	GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN	09/2002 - 12/2999	1
47352 - BRACKET, FLEXIBLE HOSE(FOR FRONT LH)
47352-35390	GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN	09/2002 - 12/2999	1
47353 - BRACKET, FLEXIBLE HOSE(FOR REAR)
47353-35140	GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN	09/2002 - 12/2999	1
47354 - BRACKET, FRONT FLEXIBLE HOSE
47354-35120	GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN	09/2002 - 12/2999	1
47355 - BRACKET, FLEXIBLE HOSE, NO.2(FOR FRONT)
47355-60170	GRJ120,KDJ120,KZJ120,LJ120,RZJ120,TRJ120..ARL,GCC,GEN	09/2002 - 12/2999	1
47355-35130	GRJ120,KDJ120,KZJ120,RZJ120,TRJ120..ARL,GCC,GEN ABS-WITH	09/2002 - 12/2999	1
47355 - BRACKET, FLEXIBLE HOSE, NO.2(FOR FRONT)
47355-60170	GRJ120,KDJ120,KZJ120,LJ120,RZJ120,TRJ120..ARL,GCC,GEN	09/2002 - 12/2999	1
47355-35130	GRJ120,KDJ120,KZJ120,RZJ120,TRJ120..ARL,GCC,GEN ABS-WITH	09/2002 - 12/2999	1
47371A - CLAMP, BRAKE TUBE, NO.1
47371-60150	GRJ12#,KZJ120,LJ12#,RZJ12#..ARL,GCC,GEN	09/2002 - 08/2004	1
47371A - CLAMP, BRAKE TUBE, NO.1
47371-60150	GRJ12#,KZJ120,LJ12#,RZJ12#..ARL,GCC,GEN	09/2002 - 08/2004	1
47371A - CLAMP, BRAKE TUBE, NO.1
47371-60150	GRJ12#,KZJ120,LJ12#,RZJ12#..ARL,GCC,GEN	09/2002 - 08/2004	1
47371B - CLAMP, BRAKE TUBE, NO.6
77299-32030	GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN NO.2	09/2002 - 12/2999	1
47371-60160	GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN NO.1	09/2002 - 12/2999	1
47371B - CLAMP, BRAKE TUBE, NO.6
77299-32030	GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN NO.2	09/2002 - 12/2999	1
47371-60160	GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN NO.1	09/2002 - 12/2999	1
47900 - VALVE ASSY, LOAD SENSING W/SPRING
47900-60340	GRJ120,KDJ120,KZJ120,LJ120,RZJ120,TRJ120..ARL,GCC,GEN	09/2002 - 12/2999	1
47900-60340	GRJ120,KDJ120,KZJ120,RZJ120,TRJ120..ARL,GCC,GEN ABS-WITH	09/2002 - 12/2999	1
Common parts
90119-08C06
90179-08025
90412-10232
90412-10243
90412-10245
90412-10258
90413-10300
90414-10054
90461-08690
90468-08035
90949-01C06
90949-01C33
90949-01C95
90949-01C96
91611-60814
91611-G0612
91616-60616
91641-H0820
Linked diagrams
3102
4702
7751

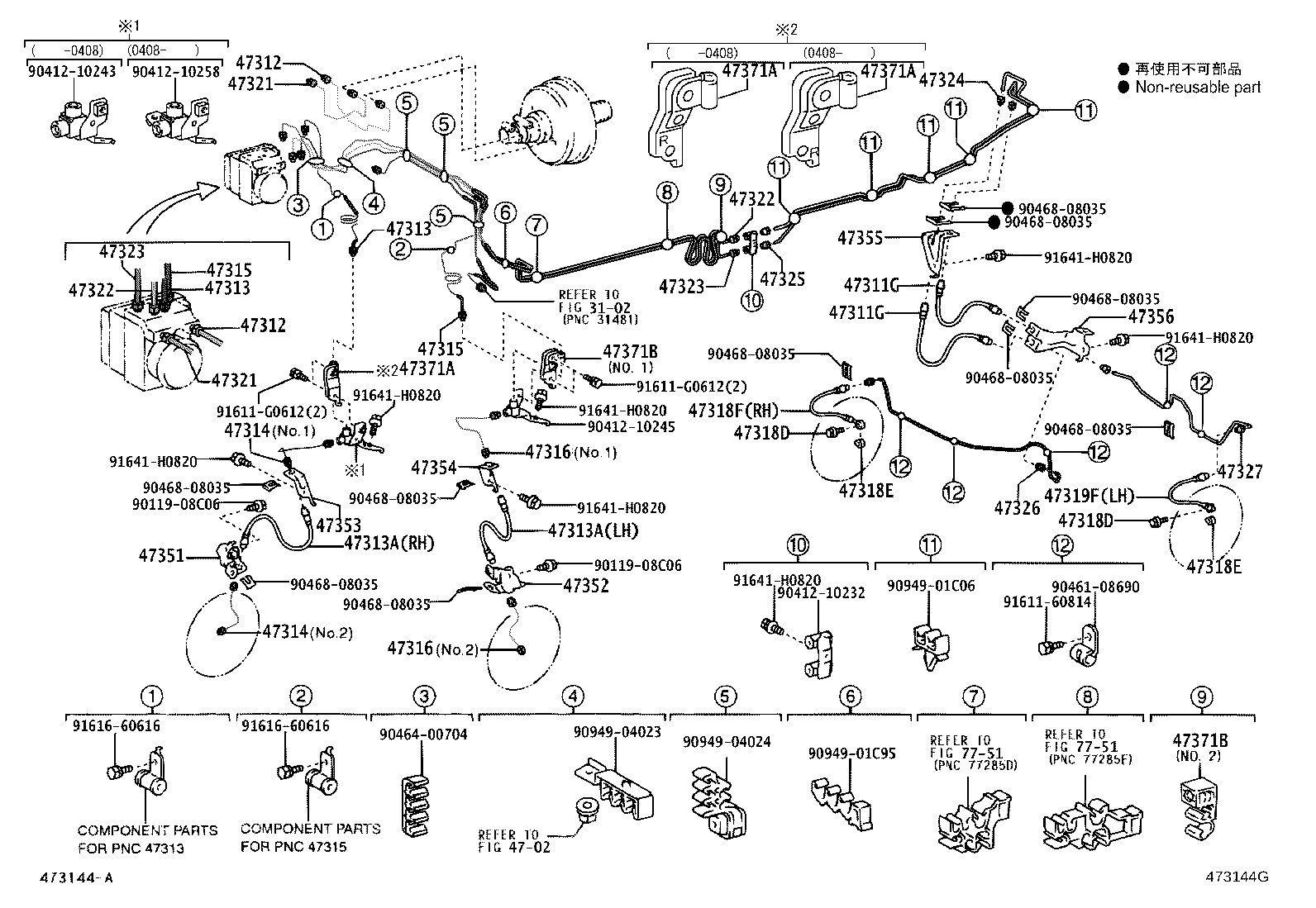

ILLUST NO. 1 OF 2(0209- )GRJ120,KDJ120,KZJ120,RZJ120,TRJ120..RHD

Click highlighted areas on diagram

W(ABS)

Part #	Description	Period	Qty
47311G - HOSE, FLEXIBLE(FOR BRAKE TUBE)
90947-02D40	GRJ120,KDJ120,KZJ120,RZJ120,TRJ120..ARL,GCC,GEN ABS-WITH	09/2002 - 02/2007	2
90947-02D39	GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN	09/2002 - 12/2999	1
47311G - HOSE, FLEXIBLE(FOR BRAKE TUBE)
90947-02D40	GRJ120,KDJ120,KZJ120,RZJ120,TRJ120..ARL,GCC,GEN ABS-WITH	09/2002 - 02/2007	2
90947-02D39	GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN	09/2002 - 12/2999	1
47312 - TUBE, FRONT BRAKE, NO.2
47312-3D420	GRJ120,KDJ120,KZJ120,RZJ120,TRJ120..RHD ABS-WITH	09/2002 - 12/2999	1
47312 - TUBE, FRONT BRAKE, NO.2
47312-3D420	GRJ120,KDJ120,KZJ120,RZJ120,TRJ120..RHD ABS-WITH	09/2002 - 12/2999	1
47313 - TUBE, FRONT BRAKE, NO.3
47313-60361	GRJ120,KDJ120,KZJ120,LJ120,RZJ120,TRJ120..RHD	09/2002 - 12/2999	1
47313-3D161	GRJ120,KDJ120,KZJ120,RZJ120,TRJ120..RHD ABS-WITH	09/2002 - 12/2999	1
47313 - TUBE, FRONT BRAKE, NO.3
47313-60361	GRJ120,KDJ120,KZJ120,LJ120,RZJ120,TRJ120..RHD	09/2002 - 12/2999	1
47313-3D161	GRJ120,KDJ120,KZJ120,RZJ120,TRJ120..RHD ABS-WITH	09/2002 - 12/2999	1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02D35	GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN	09/2002 - 02/2007	2
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02D35	GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN	09/2002 - 02/2007	2
47314 - TUBE, FRONT BRAKE, NO.4
47314-35320	GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN NO.2	09/2002 - 12/2999	1
47314-35310	GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN NO.1	09/2002 - 12/2999	1
47314 - TUBE, FRONT BRAKE, NO.4
47314-35320	GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN NO.2	09/2002 - 12/2999	1
47314-35310	GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN NO.1	09/2002 - 12/2999	1
47315 - TUBE, FRONT BRAKE, NO.5
47315-35441	GRJ120,KDJ120,KZJ120,RZJ120,TRJ120..RHD ABS-WITH	09/2002 - 12/2999	1
47315-60481	GRJ120,KDJ120,KZJ120,LJ120,RZJ120,TRJ120..RHD	09/2002 - 12/2999	1
47315 - TUBE, FRONT BRAKE, NO.5
47315-35441	GRJ120,KDJ120,KZJ120,RZJ120,TRJ120..RHD ABS-WITH	09/2002 - 12/2999	1
47315-60481	GRJ120,KDJ120,KZJ120,LJ120,RZJ120,TRJ120..RHD	09/2002 - 12/2999	1
47316 - TUBE, FRONT BRAKE, NO.6
47316-35270	GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN NO.1	09/2002 - 12/2999	1
47316-35280	GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN NO.2	09/2002 - 12/2999	1
47316 - TUBE, FRONT BRAKE, NO.6
47316-35270	GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN NO.1	09/2002 - 12/2999	1
47316-35280	GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN NO.2	09/2002 - 12/2999	1
47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE)
90401-10058	GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN	09/2002 - 08/2009	2
47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE)
90401-10058	GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN	09/2002 - 08/2009	2
47318E - GASKET(FOR REAR FLEXIBLE HOSE)
47389-50020	GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN	09/2002 - 08/2009	2
47318E - GASKET(FOR REAR FLEXIBLE HOSE)
47389-50020	GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN	09/2002 - 08/2009	2
47318F - HOSE, FLEXIBLE(FOR REAR RH)
90947-02D31	GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN	09/2002 - 01/2007	1
47319F - HOSE, FLEXIBLE(FOR REAR LH)
90947-02D32	GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN	09/2002 - 01/2007	1
47321 - TUBE, REAR BRAKE, NO.1
47321-35840	GRJ120,KDJ120,KZJ120,RZJ120,TRJ120..RHD ABS-WITH	09/2002 - 12/2999	1
47321-60290	GRJ120,KDJ120,KZJ120,LJ120,RZJ120,TRJ120..RHD	09/2002 - 12/2999	1
47321 - TUBE, REAR BRAKE, NO.1
47321-35840	GRJ120,KDJ120,KZJ120,RZJ120,TRJ120..RHD ABS-WITH	09/2002 - 12/2999	1
47321-60290	GRJ120,KDJ120,KZJ120,LJ120,RZJ120,TRJ120..RHD	09/2002 - 12/2999	1
47322 - TUBE, REAR BRAKE, NO.2
47322-3D060	GRJ120,KDJ120,KZJ120,RZJ120,TRJ120..RHD ABS-WITH	09/2002 - 12/2999	1
47322 - TUBE, REAR BRAKE, NO.2
47322-3D060	GRJ120,KDJ120,KZJ120,RZJ120,TRJ120..RHD ABS-WITH	09/2002 - 12/2999	1
47323 - TUBE, REAR BRAKE, NO.3
47323-35250	GRJ120,KDJ120,KZJ120,RZJ120,TRJ120..RHD ABS-WITH	09/2002 - 12/2999	1
47323 - TUBE, REAR BRAKE, NO.3
47323-35250	GRJ120,KDJ120,KZJ120,RZJ120,TRJ120..RHD ABS-WITH	09/2002 - 12/2999	1
47324 - TUBE, REAR BRAKE, NO.4
47324-35310	GRJ120,KDJ120,KZJ120,RZJ120,TRJ120..ARL,GCC,GEN ABS-WITH	09/2002 - 12/2999	1
47324-60340	GRJ120,KDJ120,KZJ120,LJ120,RZJ120,TRJ120..ARL,GCC,GEN	09/2002 - 12/2999	1
47325 - TUBE, REAR BRAKE, NO.5
47325-60300	GRJ120,KDJ120,KZJ120,LJ120,RZJ120,TRJ120..ARL,GCC,GEN	09/2002 - 12/2999	1
47325-35390	GRJ120,KDJ120,KZJ120,RZJ120,TRJ120..ARL,GCC,GEN ABS-WITH	09/2002 - 12/2999	1
47326 - TUBE, REAR BRAKE, NO.6
47326-35120	GRJ12#,KZJ120,RZJ12# ABS-WITH	09/2002 - 08/2003	1
47326-60320	GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN	09/2002 - 12/2999	1
47326-35130	GRJ12#,KDJ120,KZJ120,RZJ12#,TRJ12#..ARL,GCC,GEN ABS-WITH	08/2003 - 12/2999	1
47327 - TUBE, REAR BRAKE, NO.7
47327-35090	GRJ12#,KZJ120,RZJ12# ABS-WITH	09/2002 - 08/2003	1
47327-35100	GRJ12#,KDJ120,KZJ120,RZJ12#,TRJ12#..ARL,GCC,GEN ABS-WITH	08/2003 - 12/2999	1
47327-60150	GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN	09/2002 - 12/2999	1
47351 - BRACKET, FLEXIBLE HOSE(FOR FRONT RH)
47351-35350	GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN	09/2002 - 12/2999	1
47352 - BRACKET, FLEXIBLE HOSE(FOR FRONT LH)
47352-35390	GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN	09/2002 - 12/2999	1
47353 - BRACKET, FLEXIBLE HOSE(FOR REAR)
47353-35140	GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN	09/2002 - 12/2999	1
47354 - BRACKET, FRONT FLEXIBLE HOSE
47354-35120	GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN	09/2002 - 12/2999	1
47355 - BRACKET, FLEXIBLE HOSE, NO.2(FOR FRONT)
47355-60170	GRJ120,KDJ120,KZJ120,LJ120,RZJ120,TRJ120..ARL,GCC,GEN	09/2002 - 12/2999	1
47355-35130	GRJ120,KDJ120,KZJ120,RZJ120,TRJ120..ARL,GCC,GEN ABS-WITH	09/2002 - 12/2999	1
47356 - BRACKET, FLEXIBLE HOSE, NO.6
47356-35010	GRJ12#,KDJ120,KZJ120,RZJ12#,TRJ12#..ARL,GCC,GEN ABS-WITH	09/2002 - 12/2999	1
47371A - CLAMP, BRAKE TUBE, NO.1
47371-60150	GRJ12#,KZJ120,LJ12#,RZJ12#..ARL,GCC,GEN	09/2002 - 08/2004	1
47371A - CLAMP, BRAKE TUBE, NO.1
47371-60150	GRJ12#,KZJ120,LJ12#,RZJ12#..ARL,GCC,GEN	09/2002 - 08/2004	1
47371A - CLAMP, BRAKE TUBE, NO.1
47371-60150	GRJ12#,KZJ120,LJ12#,RZJ12#..ARL,GCC,GEN	09/2002 - 08/2004	1
47371B - CLAMP, BRAKE TUBE, NO.6
77299-32030	GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN NO.2	09/2002 - 12/2999	1
47371-60160	GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN NO.1	09/2002 - 12/2999	1
47371B - CLAMP, BRAKE TUBE, NO.6
77299-32030	GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN NO.2	09/2002 - 12/2999	1
47371-60160	GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN NO.1	09/2002 - 12/2999	1
Common parts
90119-08C06
90412-10232
90412-10243
90412-10245
90412-10258
90461-08690
90464-00704
90468-08035
90949-01C06
90949-01C95
90949-04023
90949-04024
91611-60814
91611-G0612
91616-60616
91641-H0820
Linked diagrams
3102
4702
7751

RZJ120R-GKMEK (2002)

(0209- )RHD

ILLUST NO. 1 OF 2(0209- )GRJ120,KDJ120,KZJ120,RZJ120,TRJ120..RHD

Part Price Details
