RZJ120L-GKPEKV (2002)

Toyota Land Cruiser Prado

Production Sep 2002 - Aug 2004
Engine 3RZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(0209-0311)KZJ120..ARL ; (0301-0311)GRJ12#..ARL,GCC,GEN ; (0311- )KZJ120..ARL ;

Click highlighted areas on diagram

W(ABS & VSC & ACTIVE TRC)

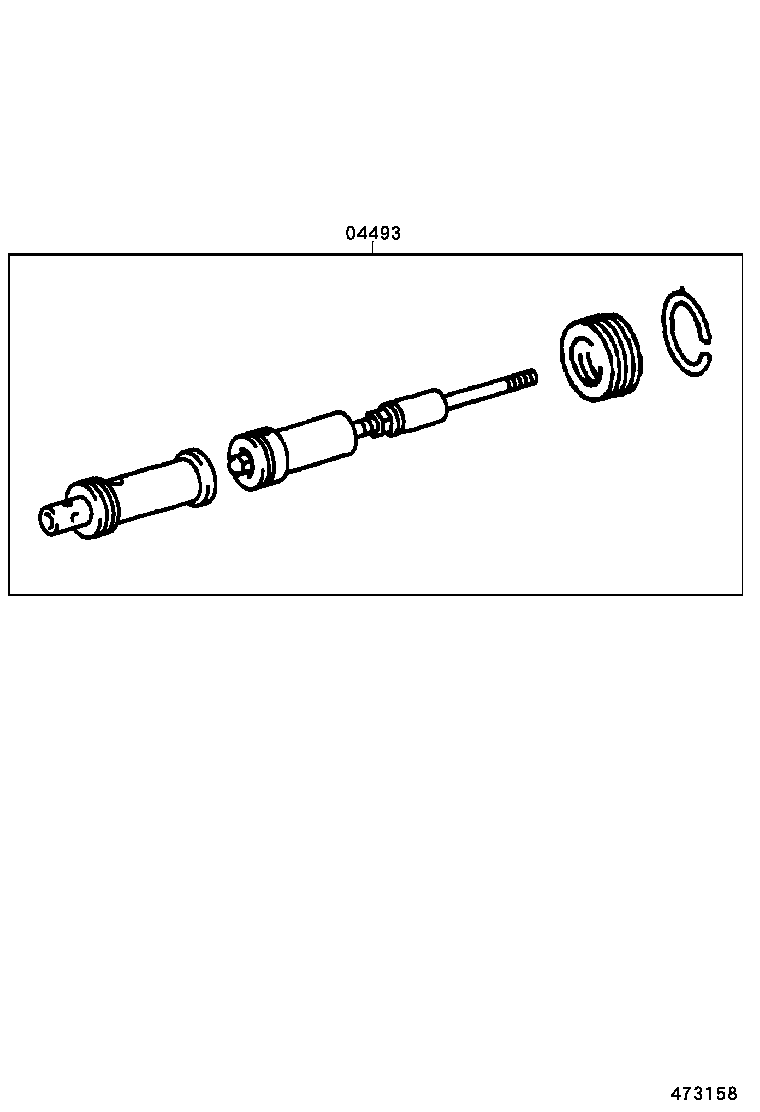

diagram 04493
Part # Description Qty Price

(0209- )GX..CHI ; (0209- )ARL,GCC,GEN

Click highlighted areas on diagram

diagram 47028 4703 4703 4708 4708 4708 4708 4708 47230 47264 47287 47299 9017908204 9412041000
Part # Description Qty Price
47028 - CYLINDER SUB-ASSY, BRAKE MASTER W/PLATE
47028-60010

GRJ12#,KZJ120,RZJ12#,TRJ12#..ATM..(GCC,GEN)

 1
47230 - CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER
47230-20140

GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN

 1
47264 - CLEVIS, MASTER CYLINDER PUSH ROD
47264-60020

GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN

 1
47287 - LABEL, BRAKE FLUID INFORMATION
47287-20010

GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN

 1
47299 - STRAINER, BRAKE MASTER CYLINDER RESERVOIR
47299-20060

GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN

 1
Common parts
90179-08204
94120-41000
Linked diagrams
4703
4708
