RZJ120L-GKPEK (2002)

Toyota Land Cruiser Prado

Production Sep 2002 - Aug 2004
Engine 3RZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0209- )GRJ120,KDJ120,KZJ120,LJ120,RZJ120,TRJ120

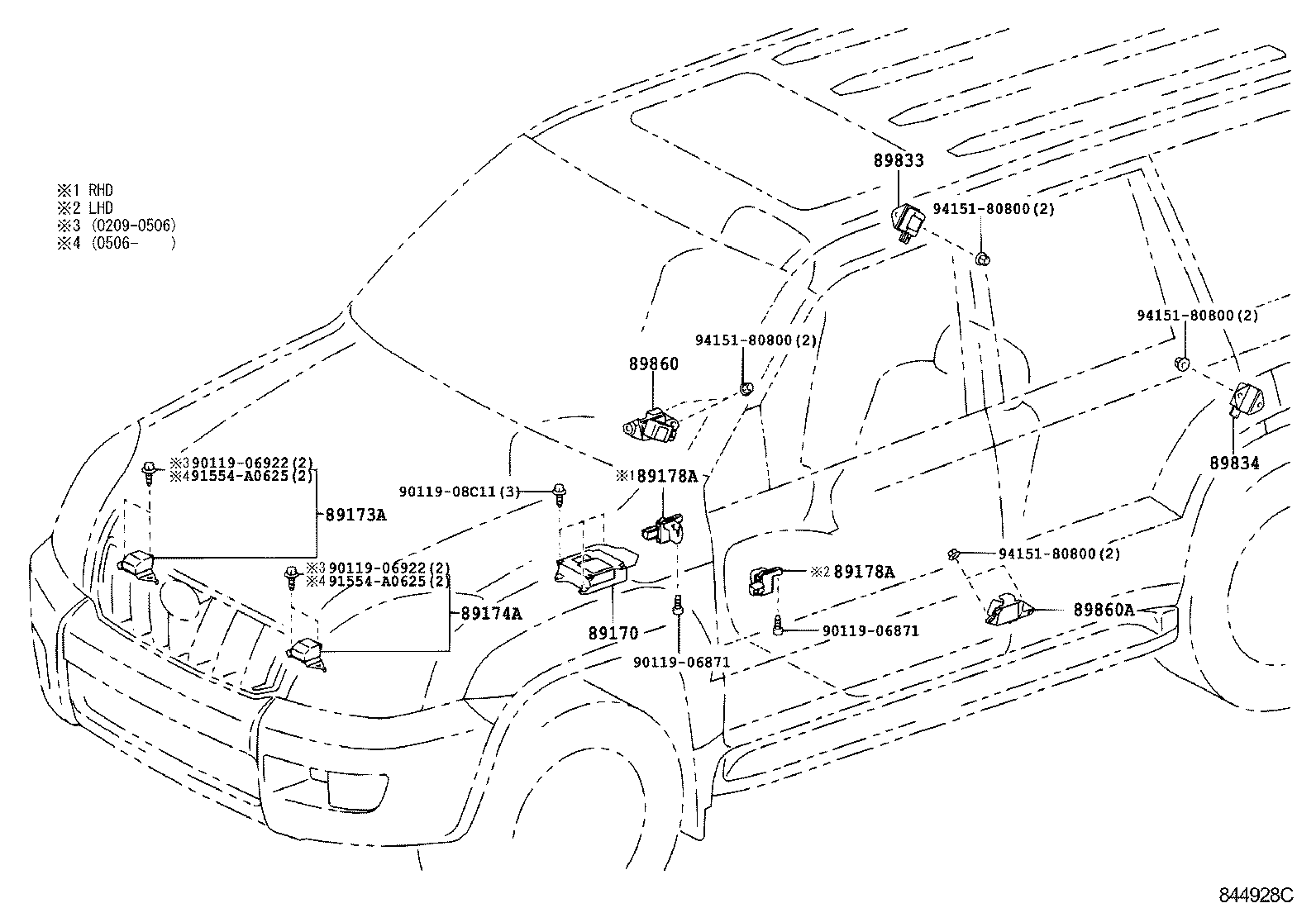

Click highlighted areas on diagram

diagram 89170 89173A 89174A 89178A 89178A 89833 89834 89860 89860A 9011906871 9011906871 9011906922 9011906922 9011908C11 91554A0625 91554A0625 9415180800 9415180800 9415180800 9415180800
Part # Description Qty Price
89170 - SENSOR ASSY, AIR BAG
89170-60110

GRJ12#,KZJ120,LJ12#,RZJ12#,TRJ12#..LHD..(GCC,GEN)

SRS AIR BAG-DRIVER & PASSENGER

 1
89170-60130

RZJ120,TRJ120..LHD..GEN;GRJ12#,KZJ120,LJ12#,RZJ125,TRJ125..LHD..(GCC,GEN)

SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN

 1
89173A - SENSOR, AIR BAG, FRONT RH
89173-39335

RZJ120,TRJ120..GEN;GRJ12#,KZJ120,LJ12#,RZJ125,TRJ125..GCC,GEN

SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN,MARK=89173-35060

 1
89173-39335

GRJ12#,KZJ120,LJ12#,RZJ12#,TRJ12#..GCC,GEN

SRS AIR BAG-DRIVER & PASSENGER,MARK=89173-35060

 1
89174A - SENSOR, AIR BAG, FRONT LH
89173-39335

GRJ12#,KZJ120,LJ12#,RZJ12#,TRJ12#..GCC,GEN

SRS AIR BAG-DRIVER & PASSENGER,MARK=89173-35060

 1
89173-39335

RZJ120,TRJ120..GEN;GRJ12#,KZJ120,LJ12#,RZJ125,TRJ125..GCC,GEN

SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN,MARK=89173-35060

 1
89178A - SENSOR, SEAT POSITION AIR BAG
89178-06020

RZJ120,TRJ120..LHD..GEN;GRJ12#,KZJ120,LJ12#,RZJ125,TRJ125..LHD..(GCC,GEN)

SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN

 1
89178-06020

GRJ12#,KZJ120,LJ12#,RZJ12#,TRJ12#..LHD..(GCC,GEN)

SRS AIR BAG-DRIVER & PASSENGER

 1
89178A - SENSOR, SEAT POSITION AIR BAG
89178-06020

RZJ120,TRJ120..LHD..GEN;GRJ12#,KZJ120,LJ12#,RZJ125,TRJ125..LHD..(GCC,GEN)

SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN

 1
89178-06020

GRJ12#,KZJ120,LJ12#,RZJ12#,TRJ12#..LHD..(GCC,GEN)

SRS AIR BAG-DRIVER & PASSENGER

 1
89833 - SENSOR, AIR BAG, REAR RH
89833-60010

GRJ120,LJ120..GCC,GEN;KDJ120,KZJ120,RZJ120,TRJ120..ARL,GEN

SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN

 1
89834 - SENSOR, AIR BAG, REAR LH
89833-60010

GRJ120,LJ120..GCC,GEN;KDJ120,KZJ120,RZJ120,TRJ120..ARL,GEN

SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN

 1
89860 - SENSOR ASSY, SIDE AIR BAG, RH
89860-60020

GRJ12#,LJ12#,RZJ125,TRJ125..GCC,GEN;KDJ120,KZJ120,RZJ120,TRJ120..ARL,GEN

SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN

 1
89860A - SENSOR ASSY, SIDE AIR BAG, LH
89830-60020

GRJ12#,LJ12#,RZJ125,TRJ125..GCC,GEN;KDJ120,KZJ120,RZJ120,TRJ120..ARL,GEN

SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN

 1
Common parts
90119-06871
90119-06922
90119-08C11
91554-A0625
94151-80800
