LJ150R-GKMEE (2017)

Toyota Land Cruiser Prado

Production Aug 2017 - Sep 9999
Engine 5LE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1708- )5LE

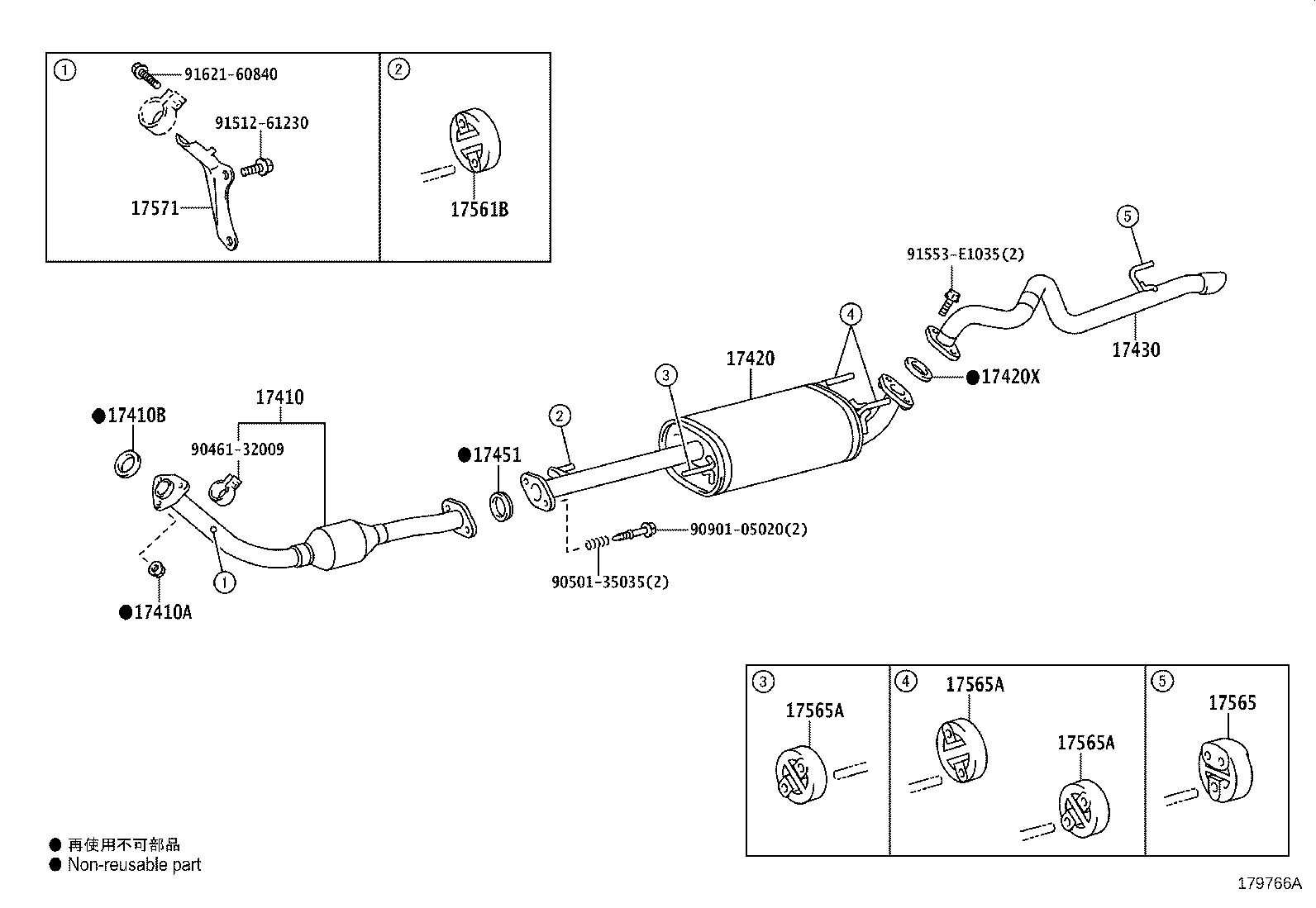

Click highlighted areas on diagram

diagram 17410 17410A 17410B 17420 17420X 17430 17451 17561B 17565 17565A 17565A 17565A 17571 9046132009 9050135035 9090105020 9151261230 91553E1035 9162160840
Part # Description Qty Price
17410 - PIPE ASSY, EXHAUST, FRONT
17410-54A30

5LE..LJ150

 1
17410A - NUT, EXHAUST PIPE SET STUD BOLT
90179-10070

5LE..LJ150

 3
17410B - GASKET, EXHAUST PIPE
90917-06089

5LE..LJ150

 1
17420 - PIPE ASSY, EXHAUST, CENTER
17420-54250

5LE..LJ150

 1
17420X - GASKET, EXHAUST PIPE, CENTER
90917-06090

1GDFTV..GDJ150..6FC;1GDFTV..GDJ150..6F..GEN;1GRFE,5LE,2TRFE..GRJ150,LJ150,TRJ15#

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-31870

1GDFTV..GDJ150..6FC;1GDFTV..GDJ150..6F..GEN;1GRFE,5LE,2TRFE..GRJ150,LJ150,TRJ150

 1
17451 - GASKET, EXHAUST PIPE
17451-31020

1GRFE,5LE..GRJ150,LJ150

 1
17561B - SUPPORT, EXHAUST PIPE, NO.1
17565-22040

1GDFTV..GDJ150..6F..GEN;1GDFTV,5LE,2TRFE..GDJ150,LJ150,TRJ15#..5F,6FC

 1
17565 - SUPPORT, EXHAUST PIPE, NO.5
17565-74320

1GDFTV..GDJ150..6F..GEN;1GDFTV,5LE..GDJ150,LJ150..5F,6FC

 1
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-22040

1G#,1KDFTV,5LE..GDJ150,GRJ150,KDJ150,LJ150

 3
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-22040

1G#,1KDFTV,5LE..GDJ150,GRJ150,KDJ150,LJ150

 3
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-22040

1G#,1KDFTV,5LE..GDJ150,GRJ150,KDJ150,LJ150

 3
17571 - BRACKET, EXHAUST PIPE SUPPORT, NO.1
17571-54500

5LE..LJ150

 1
Common parts
90461-32009
90501-35035
90901-05020
91512-61230
91553-E1035
91621-60840
