LJ150R-GKMEE (2017)

Toyota Land Cruiser Prado

Production Aug 2017 - Sep 9999
Engine 5LE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1708- )5LE

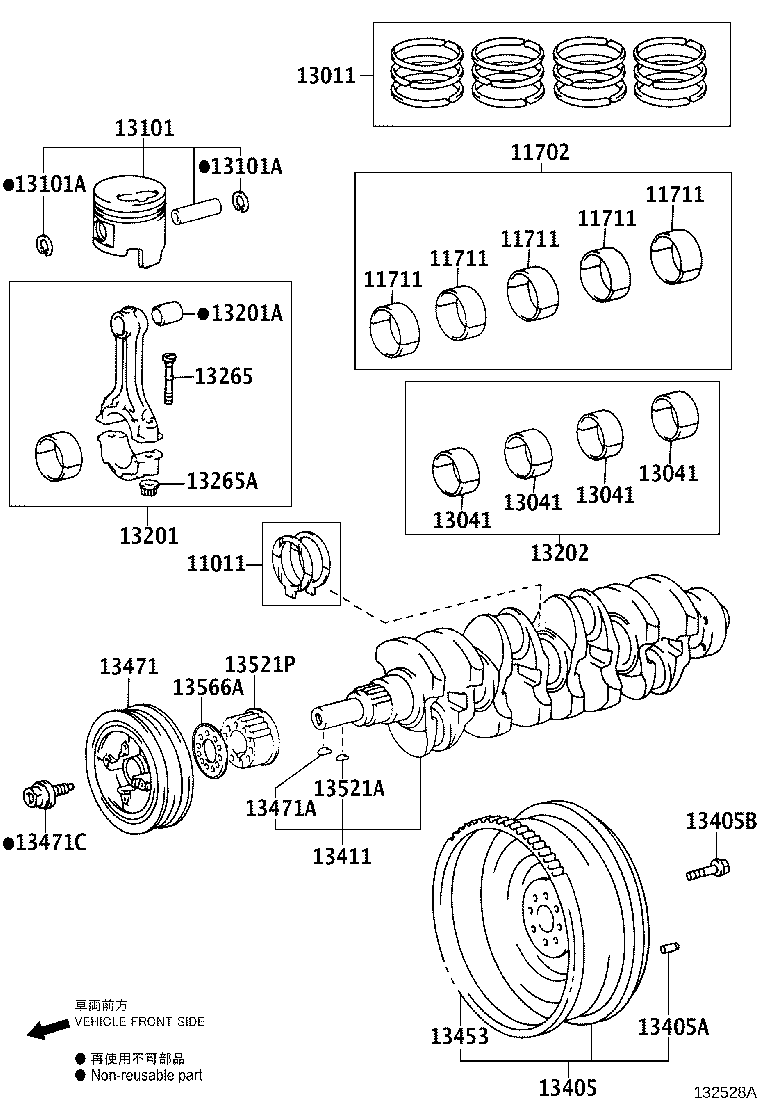

Click highlighted areas on diagram

diagram 11011 11702 11711 11711 11711 11711 11711 13011 13041 13041 13041 13041 13101 13101A 13101A 13201 13201A 13202 13265 13265A 13405 13405A 13405B 13411 13453 13471 13471A 13471C 13521A 13521P 13566A
Part # Description Qty Price
11011 - WASHER SET, CRANKSHAFT THRUST
11012-54020

5LE..LJ150

O/S 0.125

 1
11011-54020

5LE..LJ150

STD

 1
11013-54020

5LE..LJ150

O/S 0.250

 1
11702 - BEARING SET, CRANKSHAFT
11704-54081

5LE..LJ150

U/S 0.25

 1
11705-54081

5LE..LJ150

U/S 0.50

 1
11711 - BEARING, CRANKSHAFT
11701-5408101

5LE..LJ150

MARK1,REFER REPAIR MANUAL

 5
11701-5408102

5LE..LJ150

MARK2,REFER REPAIR MANUAL

 5
11701-5408103

5LE..LJ150

MARK3,REFER REPAIR MANUAL

 5
11711 - BEARING, CRANKSHAFT
11701-5408101

5LE..LJ150

MARK1,REFER REPAIR MANUAL

 5
11701-5408102

5LE..LJ150

MARK2,REFER REPAIR MANUAL

 5
11701-5408103

5LE..LJ150

MARK3,REFER REPAIR MANUAL

 5
11711 - BEARING, CRANKSHAFT
11701-5408101

5LE..LJ150

MARK1,REFER REPAIR MANUAL

 5
11701-5408102

5LE..LJ150

MARK2,REFER REPAIR MANUAL

 5
11701-5408103

5LE..LJ150

MARK3,REFER REPAIR MANUAL

 5
11711 - BEARING, CRANKSHAFT
11701-5408101

5LE..LJ150

MARK1,REFER REPAIR MANUAL

 5
11701-5408102

5LE..LJ150

MARK2,REFER REPAIR MANUAL

 5
11701-5408103

5LE..LJ150

MARK3,REFER REPAIR MANUAL

 5
11711 - BEARING, CRANKSHAFT
11701-5408101

5LE..LJ150

MARK1,REFER REPAIR MANUAL

 5
11701-5408102

5LE..LJ150

MARK2,REFER REPAIR MANUAL

 5
11701-5408103

5LE..LJ150

MARK3,REFER REPAIR MANUAL

 5
13011 - RING SET, PISTON
13011-54130

5LE..LJ150

STD

 1
13013-54130

5LE..LJ150

O/S 0.50

 1
13041 - BEARING, CONNECTING ROD
13041-5404202

5LE..LJ150

MARK2,REFER REPAIR MANUAL

 4
13041-5404201

5LE..LJ150

MARK1,REFER REPAIR MANUAL

 4
13041-5404203

5LE..LJ150

MARK3,REFER REPAIR MANUAL

 4
13041 - BEARING, CONNECTING ROD
13041-5404202

5LE..LJ150

MARK2,REFER REPAIR MANUAL

 4
13041-5404201

5LE..LJ150

MARK1,REFER REPAIR MANUAL

 4
13041-5404203

5LE..LJ150

MARK3,REFER REPAIR MANUAL

 4
13041 - BEARING, CONNECTING ROD
13041-5404202

5LE..LJ150

MARK2,REFER REPAIR MANUAL

 4
13041-5404201

5LE..LJ150

MARK1,REFER REPAIR MANUAL

 4
13041-5404203

5LE..LJ150

MARK3,REFER REPAIR MANUAL

 4
13041 - BEARING, CONNECTING ROD
13041-5404202

5LE..LJ150

MARK2,REFER REPAIR MANUAL

 4
13041-5404201

5LE..LJ150

MARK1,REFER REPAIR MANUAL

 4
13041-5404203

5LE..LJ150

MARK3,REFER REPAIR MANUAL

 4
13101 - PISTON SUB-ASSY, W/PIN
13101-5412003

5LE..LJ150

STD,MARK 3,REFER REPAIR MANUAL

 4
13101-5412002

5LE..LJ150

STD,MARK 2,REFER REPAIR MANUAL

 4
13103-54120

5LE..LJ150

O/S 0.50

 4
13101-5412001

5LE..LJ150

STD,MARK 1,REFER REPAIR MANUAL

 4
13101A - RING, HOLE SNAP(FOR PISTON PIN)
90521-31001

5LE..LJ150

 8
13101A - RING, HOLE SNAP(FOR PISTON PIN)
90521-31001

5LE..LJ150

 8
13201 - ROD SUB-ASSY, CONNECTING
13201-59216

5LE..LJ150

 4
13201A - BUSH(FOR CONNECTING ROD SMALL END)
90999-73115

5LE..LJ150

 4
13202 - BEARING SET, CONNECTING ROD
13204-54042

5LE..LJ150

U/S 0.25

 1
13205-54042

5LE..LJ150

U/S 0.50

 1
13265 - BOLT, CONNECTING ROD
13265-54021

5LE..LJ150

 8
13265A - NUT, HEXAGON(FOR CONNECTING ROD BOLT)
90179-10123

5LE..LJ150

 8
13405 - FLYWHEEL SUB-ASSY
13405-54080

5LE..LJ150

 1
13405A - PIN, STRAIGHT(FOR FLYWHEEL)
90250-08054

5LE..LJ150

L=23,OD=8

 3
13405B - BOLT, FLYWHEEL SETTING
90105-12109

5LE..LJ150

 8
13411 - CRANKSHAFT
13401-54100

5LE..LJ150

 1
13453 - GEAR, FLYWHEEL RING
13453-54010

5LE..LJ150

(J)

 1
13453-05010

5LE..LJ150

(L)

 1
13471 - PULLEY, CRANKSHAFT
13408-54090

5LE..LJ150

 1
13471A - KEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET)
95161-30622

5LE..LJ150

 1
13471C - BOLT(FOR CRANKSHAFT PULLEY SET)
90901-19028

5LE..LJ150

 1
13521A - KEY(FOR CRANKSHAFT TIMING GEAR)
95161-30622

5LE..LJ150

 1
13521P - PULLEY, CRANKSHAFT TIMING
13521-54030

5LE..LJ150

 1
13566A - GUIDE, TIMING BELT
13566-54040

5LE..LJ150

 1
