LJ150R-GKMEE (2009)
Toyota Land Cruiser Prado
ILLUST NO. 8 OF10(0908- )
SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84920 - SWITCH ASSY, POWER SEAT | ||||
| 84920-60040A0 |
GRJ150,KDJ150,LJ150..RHD IVORY,TRIM0# |
1 | ||
| 84920-60040C0 |
GRJ150,KDJ150,LJ150..RHD BLACK,TRIM11 |
1 | ||
| 84920-60040B1 |
GRJ150,KDJ150,LJ150..RHD MD.GRAY,TRIM10 |
1 | ||
| 84920 - SWITCH ASSY, POWER SEAT | ||||
| 84920-60040A0 |
GRJ150,KDJ150,LJ150..RHD IVORY,TRIM0# |
1 | ||
| 84920-60040C0 |
GRJ150,KDJ150,LJ150..RHD BLACK,TRIM11 |
1 | ||
| 84920-60040B1 |
GRJ150,KDJ150,LJ150..RHD MD.GRAY,TRIM10 |
1 | ||
| 84920 - SWITCH ASSY, POWER SEAT | ||||
| 84920-60040A0 |
GRJ150,KDJ150,LJ150..RHD IVORY,TRIM0# |
1 | ||
| 84920-60040C0 |
GRJ150,KDJ150,LJ150..RHD BLACK,TRIM11 |
1 | ||
| 84920-60040B1 |
GRJ150,KDJ150,LJ150..RHD MD.GRAY,TRIM10 |
1 | ||
| 84920 - SWITCH ASSY, POWER SEAT | ||||
| 84920-60040A0 |
GRJ150,KDJ150,LJ150..RHD IVORY,TRIM0# |
1 | ||
| 84920-60040C0 |
GRJ150,KDJ150,LJ150..RHD BLACK,TRIM11 |
1 | ||
| 84920-60040B1 |
GRJ150,KDJ150,LJ150..RHD MD.GRAY,TRIM10 |
1 | ||
| Common parts | ||||
| 94185-60600 | ||||
| Linked diagrams | ||||
| 7151 | ||||
ILLUST NO. 7 OF10(0908- )
STEERING
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84052 - SWITCH ASSY, UN-LOCK WARNING | ||||
| 84052-71010 |
TRJ150..LHD;LJ150,TRJ155 |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-60220 |
GRJ150,KDJ150,LJ150..RHD FRONT FOG LAMP-WITH |
1 | ||
| 84140-60240 |
KDJ150..RHD..GEN;GRJ150,LJ150..RHD FRONT FOG LAMP-WITH&REAR FOG LAMP-WITH |
1 | ||
| 84140-60260 |
GRJ150,KDJ150,LJ150..RHD |
1 | ||
| 84140-60280 |
KDJ150..RHD..GEN;GRJ150,LJ150..RHD REAR FOG LAMP-WITH |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-60220 |
GRJ150,KDJ150,LJ150..RHD FRONT FOG LAMP-WITH |
1 | ||
| 84140-60240 |
KDJ150..RHD..GEN;GRJ150,LJ150..RHD FRONT FOG LAMP-WITH&REAR FOG LAMP-WITH |
1 | ||
| 84140-60260 |
GRJ150,KDJ150,LJ150..RHD |
1 | ||
| 84140-60280 |
KDJ150..RHD..GEN;GRJ150,LJ150..RHD REAR FOG LAMP-WITH |
1 | ||
| 84250A - SWITCH ASSY, STEERING PAD | ||||
| 84250-60180B0 |
TRJ150..LHD;KDJ150..GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155..GCC,GEN AUDIO(FOR OVERSEAS MARKET)-CD+BLUETOOTH+MULTI+6SPEAKER,GRAY,TRIM0#,1# |
1 | ||
| 84250-60180B0 |
LJ150;TRJ150..LHD AUDIO(FOR OVERSEAS MARKET)-CD CHANGER+BLUETOOTH+MULTI+9SPEAKER,GRAY,TRIM0#,1# |
1 | ||
| 84306 - CABLE SUB-ASSY, SPIRAL | ||||
| 84306-48030 |
LJ150 AUDIO(FOR OVERSEAS MARKET)-CD CHANGER+BLUETOOTH+MULTI+9SPEAKER |
1 | ||
| 84306-48030 |
LJ150 AUDIO(FOR OVERSEAS MARKET)-CD+BLUETOOTH+MULTI+6SPEAKER |
1 | ||
| 84306-60130 |
LJ150 AUDIO(FOR OVERSEAS MARKET)-CD CHANGER+BLUETOOTH+MULTI+9SPEAKER |
1 | ||
| 84306-60130 |
LJ150 AUDIO(FOR OVERSEAS MARKET)-CD+BLUETOOTH+MULTI+6SPEAKER |
1 | ||
| 84306-48030 |
LJ150 AUDIO(FOR OVERSEAS MARKET)-CD CHANGER+BLUETOOTH+MULTI+9SPEAKER |
1 | ||
| 84306-48030 |
LJ150 AUDIO(FOR OVERSEAS MARKET)-CD+BLUETOOTH+MULTI+6SPEAKER |
1 | ||
| 84306-22010 |
LJ150 |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-12200 |
TRJ150..LHD;LJ150,TRJ155 |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-42130 |
GRJ150,KDJ150,LJ150..RHD |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-42130 |
GRJ150,KDJ150,LJ150..RHD |
1 | ||
| Common parts | ||||
| 90159-50199 | ||||
| 90168-40129 | ||||
| Linked diagrams | ||||
| 4501 | ||||
| 4504 | ||||
ILLUST NO. 2 OF10(0908- )
ENGINE ROOM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83390 - SWITCH ASSY, VACUUM WARNING | ||||
| 83390-30100 |
LJ150 |
1 | ||
| 85942 - RELAY, HEADLAMP CLEANER CONTROL | ||||
| 85942-58010 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 HEAD LAMP CLEANER-WITH |
1 | ||
| 85942-48020 |
GRJ150,KDJ150,LJ150,TRJ15# HEAD LAMP CLEANER-WITH |
1 | ||
| Common parts | ||||
| 90159-50386 | ||||
| 94150-80600 | ||||

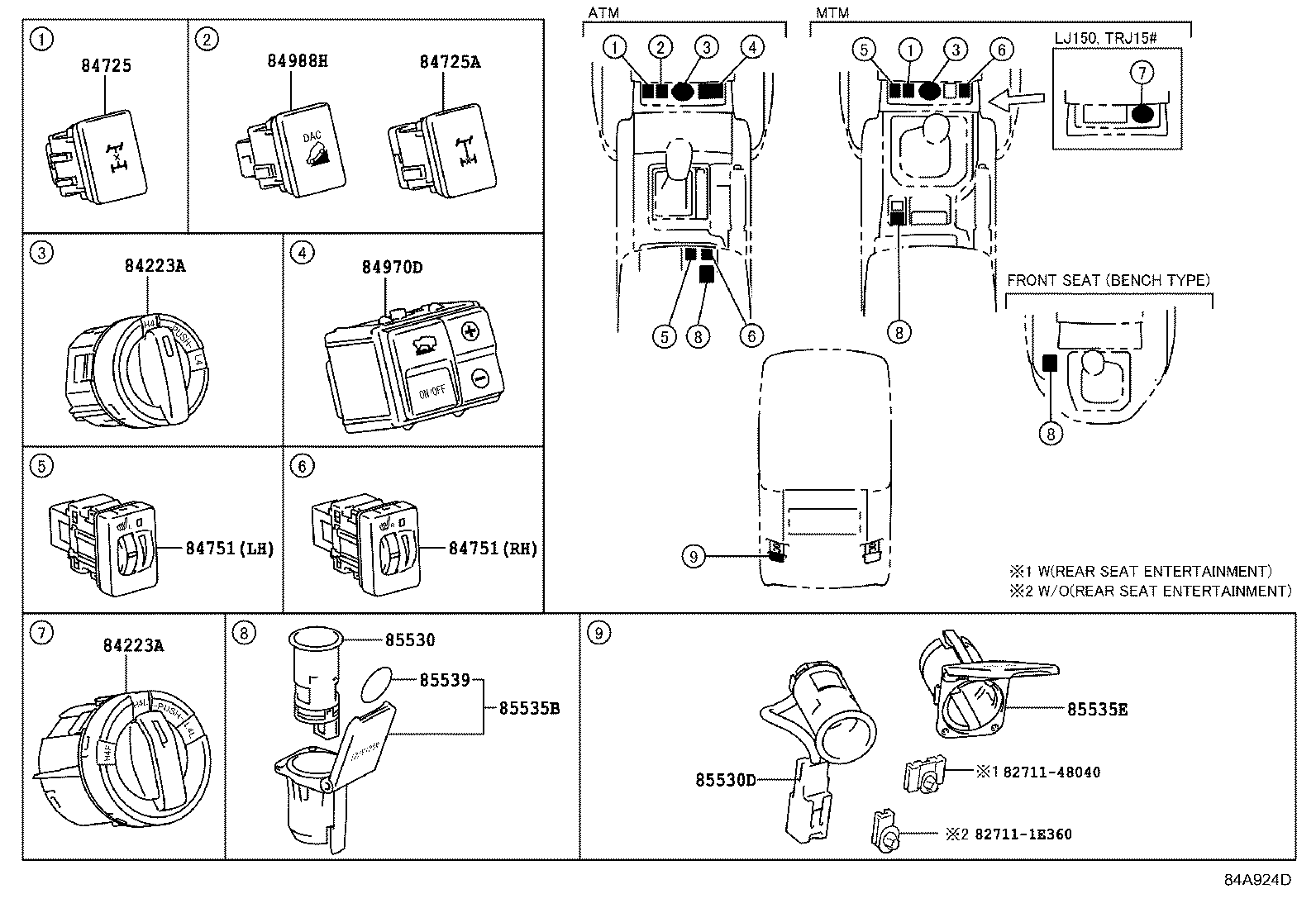

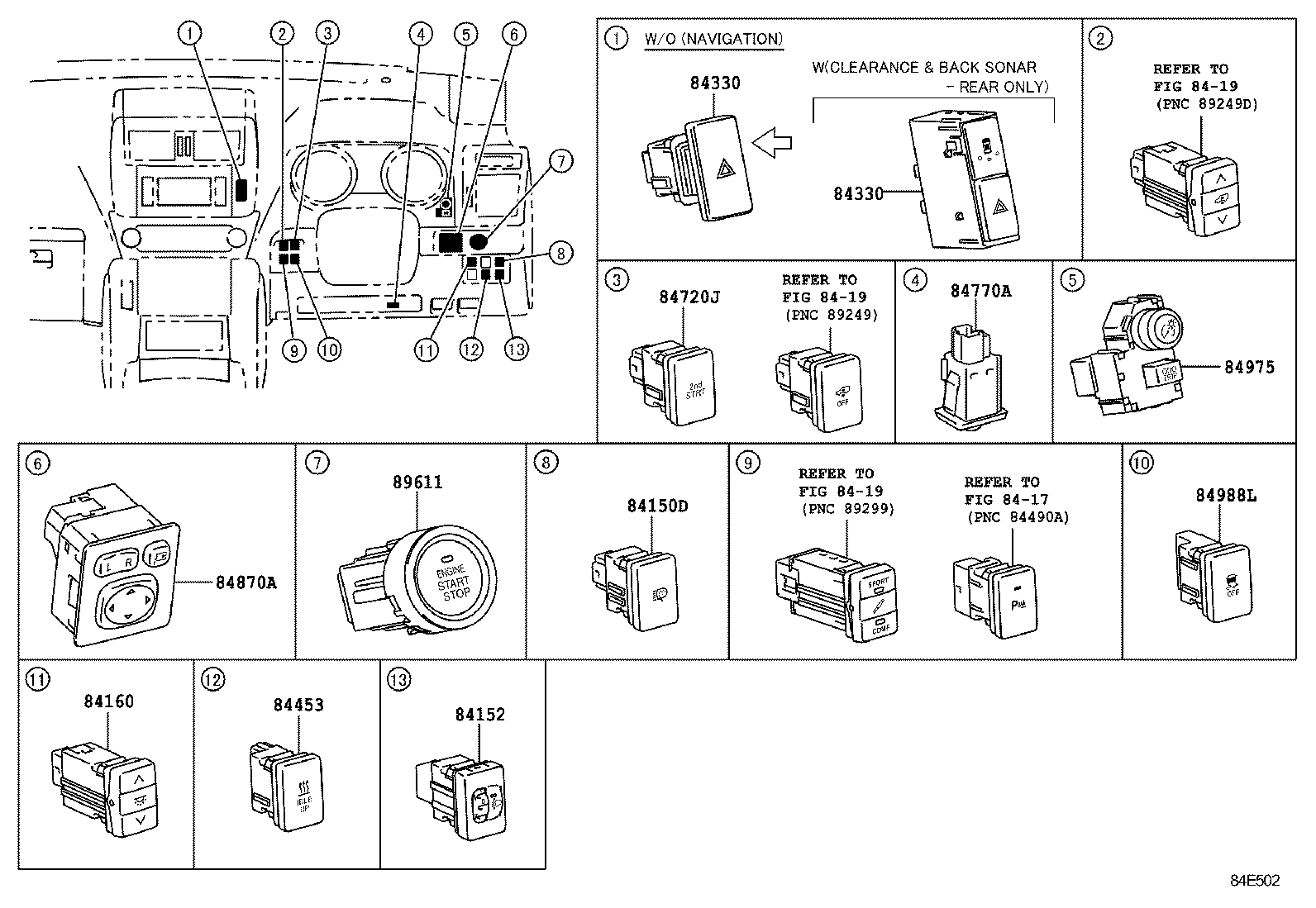

ILLUST NO. 6 OF10(0908-1308)RHD
INSTRUMENT PANEL 2/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84223A - SWITCH, TRANSFER POSITION | ||||
| 84223-60030 |
TRJ150..LHD;LJ150,TRJ155 |
1 | ||
| 84223A - SWITCH, TRANSFER POSITION | ||||
| 84223-60030 |
TRJ150..LHD;LJ150,TRJ155 |
1 | ||
| 85530 - SOCKET ASSY, POWER OUTLET, NO.1 | ||||
| 85530-42010 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 |
1 | ||
| 85530D - SOCKET ASSY, POWER OUTLET, NO.2 | ||||
| 85530-60140 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 |
1 | ||
| 85530-60140 |
LJ150 REAR SEAT-DOUBLE FOLD&PARALLEL SEAT,10PERSONS SEAT |
1 | ||
| 85535B - COVER, POWER OUTLET SOCKET, NO.1 | ||||
| 85535-33060 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 |
1 | ||
| 85535E - COVER, POWER OUTLET SOCKET, NO.2 | ||||
| 85535-50020 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 |
1 | ||
| 85539 - LABEL, POWER OUTLET NOTICE | ||||
| 85539-60020 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 |
1 | ||
| Common parts | ||||
| 82711-1E360 | ||||
| 82711-48040 | ||||

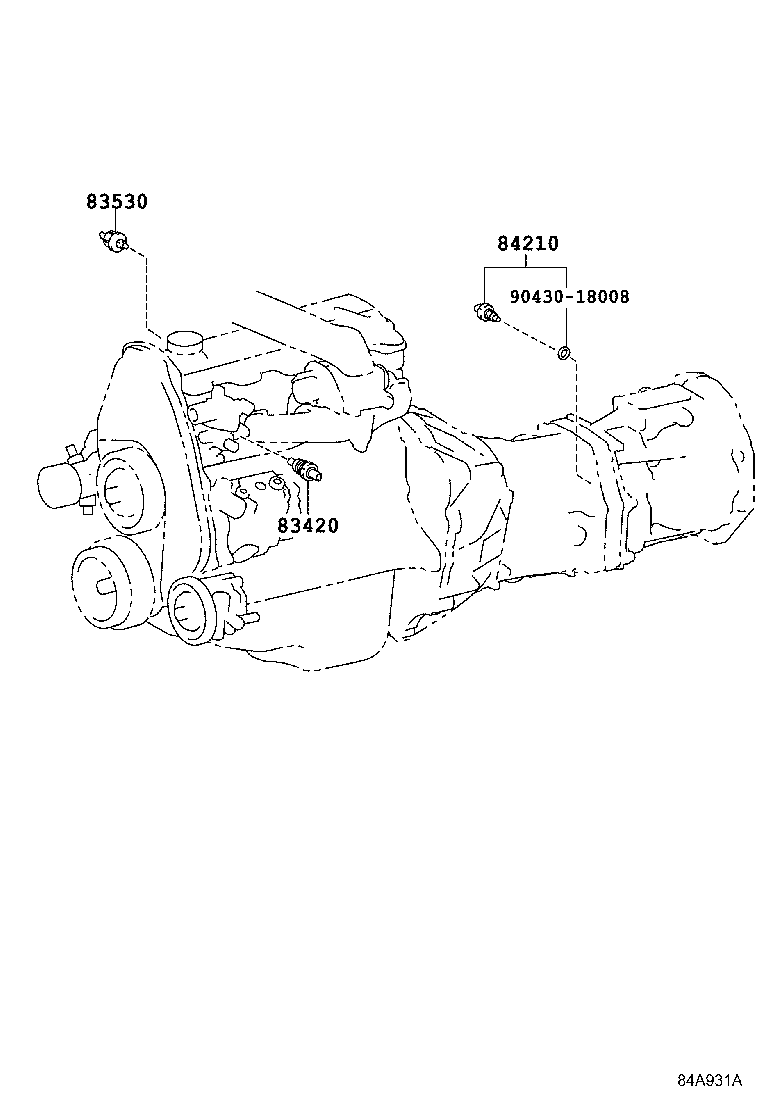

ILLUST NO. 1 OF10(0908- )LJ150
ENGINE & TRANSMISSION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83420 - GAGE ASSY, WATER TEMPERATURE SENDER | ||||
| 83420-16040 |
LJ150 |
1 | ||
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-60030 |
LJ150 |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-52050 |
GRJ150,KDJ150,LJ150,TRJ150..MTM |
1 | ||
| 84210-12040 |
TRJ150..LHD..5F;GRJ150,LJ150..MTM;KDJ150..6F..(ARL,GEN) |
1 | ||
| Common parts | ||||
| 90430-18008 | ||||
ILLUST NO.10 OF10(0908- )GDJ150,GRJ150,KDJ150,LJ150,TRJ150
FLOOR & BACK DOOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-60520 |
TRJ150..LHD;GRJ150,LJ150;KDJ150..ARL,GEN;KDJ150..5FC..GCC |
1 | ||
| 83320-60530 |
GRJ150,LJ150;KDJ150..ARL,GEN;KDJ150..5FC..GCC;TRJ150..LHD..GEN FUEL TANK-WITH(SUB TANK) |
1 | ||
| 83320B - GAGE ASSY, FUEL SENDER, NO.2 | ||||
| 83320-60540 |
GRJ150,LJ150;KDJ150..ARL,GEN;KDJ150..5FC..GCC;TRJ150..LHD..GEN FUEL TANK-WITH(SUB TANK) |
1 | ||
| 84840F - SWITCH ASSY, GLASS HATCH OPENER | ||||
| 84840-60010 |
KDJ150,LJ150..GEN;GRJ150..5FC..(ARL,GEN);GRJ150,TRJ150..LHD..(4FC,5F,6F)..GEN SPARE TIRE-WITH(UNDER FRAME) |
1 | ||
| 84947B - COVER, SWITCH | ||||
| 84947-60020 |
KDJ150,LJ150..GEN;GRJ150..5FC..(ARL,GEN);GRJ150,TRJ150..LHD..(4FC,5F,6F)..GEN SPARE TIRE-WITH(UNDER FRAME) |
1 | ||
| Common parts | ||||
| 90178-06012 | ||||
| 90430-18008 | ||||
| Linked diagrams | ||||
| 6761 | ||||
ILLUST NO. 9 OF10(0908- )GDJ150,GRJ150,KDJ150,LJ150,TRJ150
DOOR & ROOF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84040 - MASTER SWITCH ASSY,MULTIPLEX NETWORK | ||||
| 84040-33080 |
GRJ150,KDJ150,LJ150..RHD |
1 | ||
| 84040-60200 |
GRJ150,KDJ150,LJ150..RHD |
1 | ||
| 84040 - MASTER SWITCH ASSY,MULTIPLEX NETWORK | ||||
| 84040-33080 |
GRJ150,KDJ150,LJ150..RHD |
1 | ||
| 84040-60200 |
GRJ150,KDJ150,LJ150..RHD |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-60070 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 |
2 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-60070 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-53010 |
TRJ150..LHD;GRJ150,LJ150;KDJ150..ARL,GEN;KDJ150..5FC..GCC |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-53010 |
TRJ150..LHD;GRJ150,LJ150;KDJ150..ARL,GEN;KDJ150..5FC..GCC |
2 | ||
| 84235 - SWITCH ASSY, COURTESY LAMP(FOR BACK DOOR) | ||||
| 84231-60070 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 |
1 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-33120 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 |
1 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-33120 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 |
1 | ||
| 84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR | ||||
| 84810-33120 |
TRJ150..LHD;GRJ150,LJ150;KDJ150..ARL,GEN;KDJ150..5FC..GCC |
2 | ||
| 84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR | ||||
| 84810-33120 |
TRJ150..LHD;GRJ150,LJ150;KDJ150..ARL,GEN;KDJ150..5FC..GCC |
2 | ||
| 85530B - SOCKET ASSY, POWER OUTLET, REAR NO.1 | ||||
| 85530-42010 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 |
1 | ||
| 85535F - COVER, POWER OUTLET SOCKET, REAR | ||||
| 85535-35080A0 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 IVORY,TRIM0# |
1 | ||
| 85535-35080B2 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 MD.GRAY,TRIM1# |
1 | ||
| 85536 - BEZEL, POWER OUTLET SOCKET | ||||
| 85536-60040B0 |
TRJ150..LHD;GRJ150,LJ150;KDJ150..ARL,GEN;KDJ150..5FC..GCC MD.GRAY,TRIM1# |
1 | ||
| 85536-60040A0 |
TRJ150..LHD;GRJ150,LJ150;KDJ150..ARL,GEN;KDJ150..5FC..GCC IVORY,TRIM0# |
1 | ||
| 85536 - BEZEL, POWER OUTLET SOCKET | ||||
| 85536-60040B0 |
TRJ150..LHD;GRJ150,LJ150;KDJ150..ARL,GEN;KDJ150..5FC..GCC MD.GRAY,TRIM1# |
1 | ||
| 85536-60040A0 |
TRJ150..LHD;GRJ150,LJ150;KDJ150..ARL,GEN;KDJ150..5FC..GCC IVORY,TRIM0# |
1 | ||
| 85539A - LABEL, POWER OUTLET NOTICE, REAR | ||||
| 85539-60020 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 90901-48003 | ||||
ILLUST NO. 3 OF10(0908-1308)
ENGINE ROOM RELAY BLOCK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28300 - RELAY ASSY, STARTER | ||||
| 90987-02025 |
1KDFTV..KDJ150..5FC..GCC;1KDFTV,5LE..KDJ150,LJ150..ARL,GEN |
1 | ||
| 28300 - RELAY ASSY, STARTER | ||||
| 90987-02025 |
1KDFTV..KDJ150..5FC..GCC;1KDFTV,5LE..KDJ150,LJ150..ARL,GEN |
1 | ||
| 28610 - RELAY ASSY, INTAKE HEATER OR GLOW PLUG | ||||
| 28610-27010 |
1KDFTV..KDJ150..5FC..GCC;1KDFTV,5LE..KDJ150,LJ150..ARL,GEN |
1 | ||
| 82210J - FUSIBLE LINK | ||||
| 90982-08306 |
GRJ150,KDJ150,LJ150,TRJ15# 30A,TERM.:FEMALE,PNK,DRIVER SIDE J/B |
1 | ||
| 90982-08301 |
GRJ150,KDJ150,LJ150,TRJ15# 50A-30A-40A,FEMALE |
1 | ||
| 90982-08286 |
GRJ150,KDJ150,LJ150,TRJ15# 140A,TERM.:MALE,RBR |
1 | ||
| 90982-08302 |
GRJ150,KDJ150,LJ150,TRJ15# 50A-30A-50A,FEMALE |
1 | ||
| 90982-08300 |
GRJ150,KDJ150,LJ150,TRJ15# 50A-30A-30A,FEMALE |
1 | ||
| 90982-08294 |
GRJ150,KDJ150,LJ150,TRJ15# 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08295 |
GRJ150,KDJ150,LJ150,TRJ15# 30A,TERM.:FEMALE,PNK,ENGINE ROOM R/B |
1 | ||
| 90982-08274 |
GRJ150,KDJ150,LJ150,TRJ15# 120A,TERM.:MALE,WHT |
1 | ||
| 90982-08305 |
GRJ150,KDJ150,LJ150,TRJ15# 80A,TERM.:FEMALE,BLK |
1 | ||
| 90982-08307 |
GRJ150,KDJ150,LJ150,TRJ15# 50A,TERM.:FEMALE,RED |
1 | ||
| 82210J - FUSIBLE LINK | ||||
| 90982-08306 |
GRJ150,KDJ150,LJ150,TRJ15# 30A,TERM.:FEMALE,PNK,DRIVER SIDE J/B |
1 | ||
| 90982-08301 |
GRJ150,KDJ150,LJ150,TRJ15# 50A-30A-40A,FEMALE |
1 | ||
| 90982-08286 |
GRJ150,KDJ150,LJ150,TRJ15# 140A,TERM.:MALE,RBR |
1 | ||
| 90982-08302 |
GRJ150,KDJ150,LJ150,TRJ15# 50A-30A-50A,FEMALE |
1 | ||
| 90982-08300 |
GRJ150,KDJ150,LJ150,TRJ15# 50A-30A-30A,FEMALE |
1 | ||
| 90982-08294 |
GRJ150,KDJ150,LJ150,TRJ15# 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08295 |
GRJ150,KDJ150,LJ150,TRJ15# 30A,TERM.:FEMALE,PNK,ENGINE ROOM R/B |
1 | ||
| 90982-08274 |
GRJ150,KDJ150,LJ150,TRJ15# 120A,TERM.:MALE,WHT |
1 | ||
| 90982-08305 |
GRJ150,KDJ150,LJ150,TRJ15# 80A,TERM.:FEMALE,BLK |
1 | ||
| 90982-08307 |
GRJ150,KDJ150,LJ150,TRJ15# 50A,TERM.:FEMALE,RED |
1 | ||
| 82210J - FUSIBLE LINK | ||||
| 90982-08306 |
GRJ150,KDJ150,LJ150,TRJ15# 30A,TERM.:FEMALE,PNK,DRIVER SIDE J/B |
1 | ||
| 90982-08301 |
GRJ150,KDJ150,LJ150,TRJ15# 50A-30A-40A,FEMALE |
1 | ||
| 90982-08286 |
GRJ150,KDJ150,LJ150,TRJ15# 140A,TERM.:MALE,RBR |
1 | ||
| 90982-08302 |
GRJ150,KDJ150,LJ150,TRJ15# 50A-30A-50A,FEMALE |
1 | ||
| 90982-08300 |
GRJ150,KDJ150,LJ150,TRJ15# 50A-30A-30A,FEMALE |
1 | ||
| 90982-08294 |
GRJ150,KDJ150,LJ150,TRJ15# 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08295 |
GRJ150,KDJ150,LJ150,TRJ15# 30A,TERM.:FEMALE,PNK,ENGINE ROOM R/B |
1 | ||
| 90982-08274 |
GRJ150,KDJ150,LJ150,TRJ15# 120A,TERM.:MALE,WHT |
1 | ||
| 90982-08305 |
GRJ150,KDJ150,LJ150,TRJ15# 80A,TERM.:FEMALE,BLK |
1 | ||
| 90982-08307 |
GRJ150,KDJ150,LJ150,TRJ15# 50A,TERM.:FEMALE,RED |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09020 |
GRJ150,KDJ150,LJ150,TRJ15# 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09022 |
GRJ150,KDJ150,LJ150,TRJ15# 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09023 |
GRJ150,KDJ150,LJ150,TRJ15# 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09024 |
GRJ150,KDJ150,LJ150,TRJ15# 25A,MINI FUSE |
1 | ||
| 90982-09025 |
GRJ150,KDJ150,LJ150,TRJ15# 30A,MINI FUSE,GRN |
1 | ||
| 90982-09021 |
GRJ150,KDJ150,LJ150,TRJ15# 10A,MINI FUSE,RED |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09020 |
GRJ150,KDJ150,LJ150,TRJ15# 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09022 |
GRJ150,KDJ150,LJ150,TRJ15# 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09023 |
GRJ150,KDJ150,LJ150,TRJ15# 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09024 |
GRJ150,KDJ150,LJ150,TRJ15# 25A,MINI FUSE |
1 | ||
| 90982-09025 |
GRJ150,KDJ150,LJ150,TRJ15# 30A,MINI FUSE,GRN |
1 | ||
| 90982-09021 |
GRJ150,KDJ150,LJ150,TRJ15# 10A,MINI FUSE,RED |
1 | ||
| 82602 - BLOCK SUB-ASSY, RELAY | ||||
| 82602-60090 |
TRJ150..GEN;GRJ150,KDJ150,LJ150,TRJ155 |
1 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-58010 |
TRJ150..GEN;GRJ150,KDJ150,LJ150,TRJ155 |
1 | ||
| 82620A - BLOCK ASSY, FUSIBLE LINK | ||||
| 82620-60060 |
TRJ150..GEN;GRJ150,KDJ150,LJ150,TRJ155 |
1 | ||
| 82620B - BLOCK ASSY, FUSIBLE LINK | ||||
| 82620-60070 |
TRJ150..GEN;GRJ150,KDJ150,LJ150,TRJ155 |
1 | ||
| 82641 - RELAY, INTEGRATION NO.1 | ||||
| 82641-60070 |
KDJ150,LJ150 |
1 | ||
| 82660B - BLOCK ASSY, RELAY | ||||
| 82660-0H070 |
TRJ150..GEN;GRJ150,KDJ150,LJ150,TRJ155 |
1 | ||
| 82662A - COVER, RELAY BLOCK, UPPER, NO.1 | ||||
| 82662-60370 |
LJ150;KDJ150..RHD |
1 | ||
| 82662-60550 |
KDJ150,LJ150 |
1 | ||
| 82663 - COVER, RELAY BLOCK, LOWER | ||||
| 82663-60080 |
TRJ150..GEN;GRJ150,KDJ150,LJ150,TRJ155 |
1 | ||
| 82741 - BLOCK, ENGINE ROOM RELAY | ||||
| 82741-60040 |
TRJ150..GEN;GRJ150,KDJ150,LJ150,TRJ155 |
1 | ||
| 82824L - PIN, SHORT | ||||
| 82824-41010 |
TRJ150..GEN;GRJ150,KDJ150,LJ150,TRJ155 |
1 | ||
| 85912 - RELAY, DEFOGGER | ||||
| 90987-02027 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 |
1 | ||
| 85916C - RELAY, BACK UP LAMP | ||||
| 90987-02027 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 |
1 | ||
| 85916L - RELAY, REAR FOG LAMP | ||||
| 90987-02027 |
KDJ150..GEN;TRJ150..LHD..GEN;GRJ150,LJ150..ARL,GEN REAR FOG LAMP-WITH |
1 | ||
| 85916P - RELAY, HEADLAMP | ||||
| 90987-02025 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 |
2 | ||
| 85916P - RELAY, HEADLAMP | ||||
| 90987-02025 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 |
2 | ||
| 85934 - RELAY, MAGNET-CLUTCH | ||||
| 90987-02028 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 |
1 | ||
| 85934A - RELAY CONDENSER FAN | ||||
| 90987-02027 |
LJ150;TRJ150..LHD;GRJ150..ARL,GCC AIR CONDITIONER-DUAL(MANUAL) |
1 | ||
| 85941 - RELAY, WINDSHIELD WASHER | ||||
| 90987-02027 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 |
1 | ||
| 86530A - RELAY, HORN | ||||
| 90987-02027 |
TRJ150..LHD;KDJ150..GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 ANTI-THEFT SYSTEM-IMMOBILIZER&SECURITY HORN |
1 | ||
| Common parts | ||||
| 82712-60850 | ||||
| 90119-06830 | ||||
| Linked diagrams | ||||
| 8404 | ||||
| 8419 | ||||
ILLUST NO. 4 OF10(0908- )RHD
COWL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-60140 |
GRJ150,KDJ150,LJ150..RHD |
1 | ||
| 82210J - FUSIBLE LINK | ||||
| 90982-08306 |
GRJ150,KDJ150,LJ150,TRJ15# 30A,TERM.:FEMALE,PNK,DRIVER SIDE J/B |
1 | ||
| 90982-08301 |
GRJ150,KDJ150,LJ150,TRJ15# 50A-30A-40A,FEMALE |
1 | ||
| 90982-08286 |
GRJ150,KDJ150,LJ150,TRJ15# 140A,TERM.:MALE,RBR |
1 | ||
| 90982-08302 |
GRJ150,KDJ150,LJ150,TRJ15# 50A-30A-50A,FEMALE |
1 | ||
| 90982-08300 |
GRJ150,KDJ150,LJ150,TRJ15# 50A-30A-30A,FEMALE |
1 | ||
| 90982-08294 |
GRJ150,KDJ150,LJ150,TRJ15# 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08295 |
GRJ150,KDJ150,LJ150,TRJ15# 30A,TERM.:FEMALE,PNK,ENGINE ROOM R/B |
1 | ||
| 90982-08274 |
GRJ150,KDJ150,LJ150,TRJ15# 120A,TERM.:MALE,WHT |
1 | ||
| 90982-08305 |
GRJ150,KDJ150,LJ150,TRJ15# 80A,TERM.:FEMALE,BLK |
1 | ||
| 90982-08307 |
GRJ150,KDJ150,LJ150,TRJ15# 50A,TERM.:FEMALE,RED |
1 | ||
| 82210J - FUSIBLE LINK | ||||
| 90982-08306 |
GRJ150,KDJ150,LJ150,TRJ15# 30A,TERM.:FEMALE,PNK,DRIVER SIDE J/B |
1 | ||
| 90982-08301 |
GRJ150,KDJ150,LJ150,TRJ15# 50A-30A-40A,FEMALE |
1 | ||
| 90982-08286 |
GRJ150,KDJ150,LJ150,TRJ15# 140A,TERM.:MALE,RBR |
1 | ||
| 90982-08302 |
GRJ150,KDJ150,LJ150,TRJ15# 50A-30A-50A,FEMALE |
1 | ||
| 90982-08300 |
GRJ150,KDJ150,LJ150,TRJ15# 50A-30A-30A,FEMALE |
1 | ||
| 90982-08294 |
GRJ150,KDJ150,LJ150,TRJ15# 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08295 |
GRJ150,KDJ150,LJ150,TRJ15# 30A,TERM.:FEMALE,PNK,ENGINE ROOM R/B |
1 | ||
| 90982-08274 |
GRJ150,KDJ150,LJ150,TRJ15# 120A,TERM.:MALE,WHT |
1 | ||
| 90982-08305 |
GRJ150,KDJ150,LJ150,TRJ15# 80A,TERM.:FEMALE,BLK |
1 | ||
| 90982-08307 |
GRJ150,KDJ150,LJ150,TRJ15# 50A,TERM.:FEMALE,RED |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09020 |
GRJ150,KDJ150,LJ150,TRJ15# 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09022 |
GRJ150,KDJ150,LJ150,TRJ15# 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09023 |
GRJ150,KDJ150,LJ150,TRJ15# 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09024 |
GRJ150,KDJ150,LJ150,TRJ15# 25A,MINI FUSE |
1 | ||
| 90982-09025 |
GRJ150,KDJ150,LJ150,TRJ15# 30A,MINI FUSE,GRN |
1 | ||
| 90982-09021 |
GRJ150,KDJ150,LJ150,TRJ15# 10A,MINI FUSE,RED |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09020 |
GRJ150,KDJ150,LJ150,TRJ15# 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09022 |
GRJ150,KDJ150,LJ150,TRJ15# 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09023 |
GRJ150,KDJ150,LJ150,TRJ15# 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09024 |
GRJ150,KDJ150,LJ150,TRJ15# 25A,MINI FUSE |
1 | ||
| 90982-09025 |
GRJ150,KDJ150,LJ150,TRJ15# 30A,MINI FUSE,GRN |
1 | ||
| 90982-09021 |
GRJ150,KDJ150,LJ150,TRJ15# 10A,MINI FUSE,RED |
1 | ||
| 82673A - BRACKET, JUNCTION BLOCK | ||||
| 82673-48030 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 |
1 | ||
| 82673B - BRACKET, JUNCTION BLOCK | ||||
| 82673-60070 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 |
1 | ||
| 82715 - BRACKET,WIRING HARNESS CLAMP | ||||
| 82715-60M40 |
GRJ150,KDJ150,LJ150..RHD |
1 | ||
| 82730A - BLOCK ASSY, DRIVER SIDE JUNCTION | ||||
| 82730-60160 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 |
1 | ||
| 82730-60170 |
GRJ150,KDJ150,LJ150,TRJ15# |
1 | ||
| 82878 - BOX, COMPUTER INTEGRATION, LH | ||||
| 82878-60010 |
GRJ150,KDJ150,LJ150..RHD |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-69075 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 |
1 | ||
| 84345 - ADJUSTER, STOP LAMP SWITCH MOUNTING | ||||
| 84345-51010 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 |
1 | ||
| 84520 - SWITCH ASSY, CLUTCH START | ||||
| 84520-42010 |
TRJ150..LHD..5F;GRJ150,LJ150..MTM;KDJ150..6F..(ARL,GEN) |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-33010 |
GRJ150,KDJ150,LJ150..RHD |
1 | ||
| 89221 - COMPUTER, MULTIPLEX NETWORK BODY | ||||
| 89220-60720 |
LJ150..RHD BLUNEI SPEC&ANTI-THEFT SYSTEM-IMMOBILIZER&SECURITY HORN |
1 | ||
| 89220-60720 |
LJ150..RHD MOZANBEEK SPEC&ANTI-THEFT SYSTEM-IMMOBILIZER&SECURITY HORN |
1 | ||
| 89220-60730 |
LJ150..RHD MOZANBEEK SPEC&ANTI-THEFT SYSTEM-IMMOBILIZER&SECURITY HORN |
1 | ||
| 89220-60730 |
LJ150..RHD BLUNEI SPEC&ANTI-THEFT SYSTEM-IMMOBILIZER&SECURITY HORN |
1 | ||
| 89220-60660 |
LJ150..RHD MOZANBEEK SPEC |
1 | ||
| 89220-60660 |
LJ150..RHD BLUNEI SPEC |
1 | ||
| 89220-60C60 |
LJ150..RHD SOUTH AMERICA SPEC(EURO 3 CONFORMITY) |
1 | ||
| 89220-60E30 |
LJ150..RHD SOUTH AMERICA SPEC(EURO 3 CONFORMITY)&ANTI-THEFT SYSTEM-IMMOBILIZER&SECURITY HORN |
1 | ||
| 89220-60T60 |
LJ150..RHD |
1 | ||
| 89220-60W60 |
LJ150..RHD ANTI-THEFT SYSTEM-IMMOBILIZER&SECURITY HORN |
1 | ||
| 89220-60720 |
LJ150..RHD MOZANBEEK SPEC&ANTI-THEFT SYSTEM-IMMOBILIZER&SECURITY HORN |
1 | ||
| 89220-60720 |
LJ150..RHD BLUNEI SPEC&ANTI-THEFT SYSTEM-IMMOBILIZER&SECURITY HORN |
1 | ||
| 89220-60661 |
LJ150..RHD BLUNEI SPEC |
1 | ||
| 89220-60661 |
LJ150..RHD MOZANBEEK SPEC |
1 | ||
| 89220-60721 |
LJ150..RHD MOZANBEEK SPEC&ANTI-THEFT SYSTEM-IMMOBILIZER&SECURITY HORN |
1 | ||
| 89220-60721 |
LJ150..RHD BLUNEI SPEC&ANTI-THEFT SYSTEM-IMMOBILIZER&SECURITY HORN |
1 | ||
| 89220-60C61 |
LJ150..RHD SOUTH AMERICA SPEC(EURO 3 CONFORMITY) |
1 | ||
| 89220-60E31 |
LJ150..RHD SOUTH AMERICA SPEC(EURO 3 CONFORMITY)&ANTI-THEFT SYSTEM-IMMOBILIZER&SECURITY HORN |
1 | ||
| 89220-60T61 |
LJ150..RHD |
1 | ||
| 89220-60W61 |
LJ150..RHD ANTI-THEFT SYSTEM-IMMOBILIZER&SECURITY HORN |
1 | ||
| 89533 - COMPUTER, 4 WHEEL DRIVE CONTROL | ||||
| 89533-60271 |
GRJ150,KDJ150,LJ150,TRJ15# |
1 | ||
| 89533-60270 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 |
1 | ||
| 895A0A - COMPUTER ASSY, STOP LAMP CONTROL | ||||
| 895A0-20020 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 |
1 | ||
| Common parts | ||||
| 90179-06274 | ||||
| 91631-B0616 | ||||
| 91673-80616 | ||||
| 93315-14012 | ||||
| 93381-15008 | ||||
| 94120-41000 | ||||
| 94150-80600 | ||||
ILLUST NO. 5 OF10(0908-1308)RHD
INSTRUMENT PANEL 1/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84150D - SWITCH ASSY, HEADLAMP CLEANER | ||||
| 84150-33050 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 HEAD LAMP CLEANER-WITH |
1 | ||
| 84152 - SWITCH, HEADLAMP LEVELING | ||||
| 84152-52100 |
TRJ150..LHD..GEN;GRJ150,KDJ150,LJ150..GEN HEAD LAMP LEVELING DEVICE-WITH(MANUAL) |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-60290 |
GRJ150,KDJ150,LJ150,TRJ150..RHD |
1 | ||
| 83160-60010 |
GRJ150,KDJ150,LJ150,TRJ150..RHD CLEARANCE & BACK SONAR-WITH(REAR ONLY) |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-60290 |
GRJ150,KDJ150,LJ150,TRJ150..RHD |
1 | ||
| 83160-60010 |
GRJ150,KDJ150,LJ150,TRJ150..RHD CLEARANCE & BACK SONAR-WITH(REAR ONLY) |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84870-60160 |
KDJ150..GEN;KDJ150..5FC..GCC;TRJ150..LHD..GEN;GRJ150,LJ150..GCC,GEN TX-L PACKAGE |
1 | ||
| 84870-60170 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 |
1 | ||
| 84975 - SWITCH, TRIP | ||||
| 84975-60030 |
GRJ150,KDJ150,LJ150..RHD |
1 | ||
| Linked diagrams | ||||
| 8417 | ||||
| 8419 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
