LJ150R-GKMEE (2009)

Toyota Land Cruiser Prado

Production Aug 2009 - Aug 2013
Engine 5LE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0908- )5LE

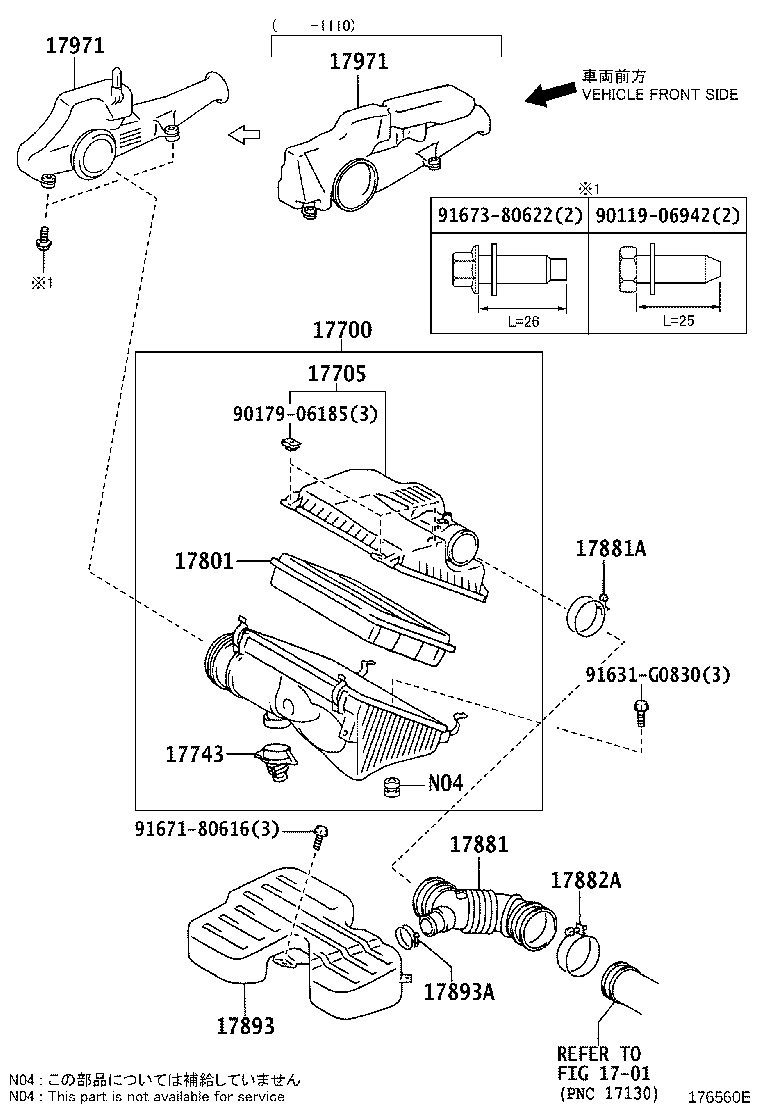

Click highlighted areas on diagram

diagram 1701 17700 17705 17743 17801 17881 17881A 17882A 17893 17893A 17971 17971 9011906942 9017906185 91631G0830 9167180616 9167380622
Part # Description Qty Price
17700 - CLEANER ASSY, AIR
17700-67222

5LE..LJ150

 1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-67190

5LE..LJ150

 1
17743 - VALVE, DUST RELIEF
17743-75010

5LE..LJ150

 1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-30040

5LE..LJ150

 1
17881 - HOSE, AIR CLEANER, NO.1
17881-75220

5LE..LJ150

 1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-30900

5LE..LJ150

 1
17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2)
96111-30800

5LE..LJ150

 1
17893 - RESONATOR, INTAKE AIR
17893-54250

5LE..LJ150

 1
17893A - CLAMP, HOSE
96111-10480

5LE..LJ150

 1
17971 - INLET, COOL AIR, NO.1
17971-54070

5LE..LJ150

 1
17971-54071

5LE..LJ150

 1
17971 - INLET, COOL AIR, NO.1
17971-54070

5LE..LJ150

 1
17971-54071

5LE..LJ150

 1
Common parts
90119-06942
90179-06185
91631-G0830
91671-80616
91673-80622
Linked diagrams
1701
