LJ150L-GKMEE (2017)
Toyota Land Cruiser Prado
Production
Aug 2017
-
Sep 9999
Engine
5LE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(1708- )LJ150

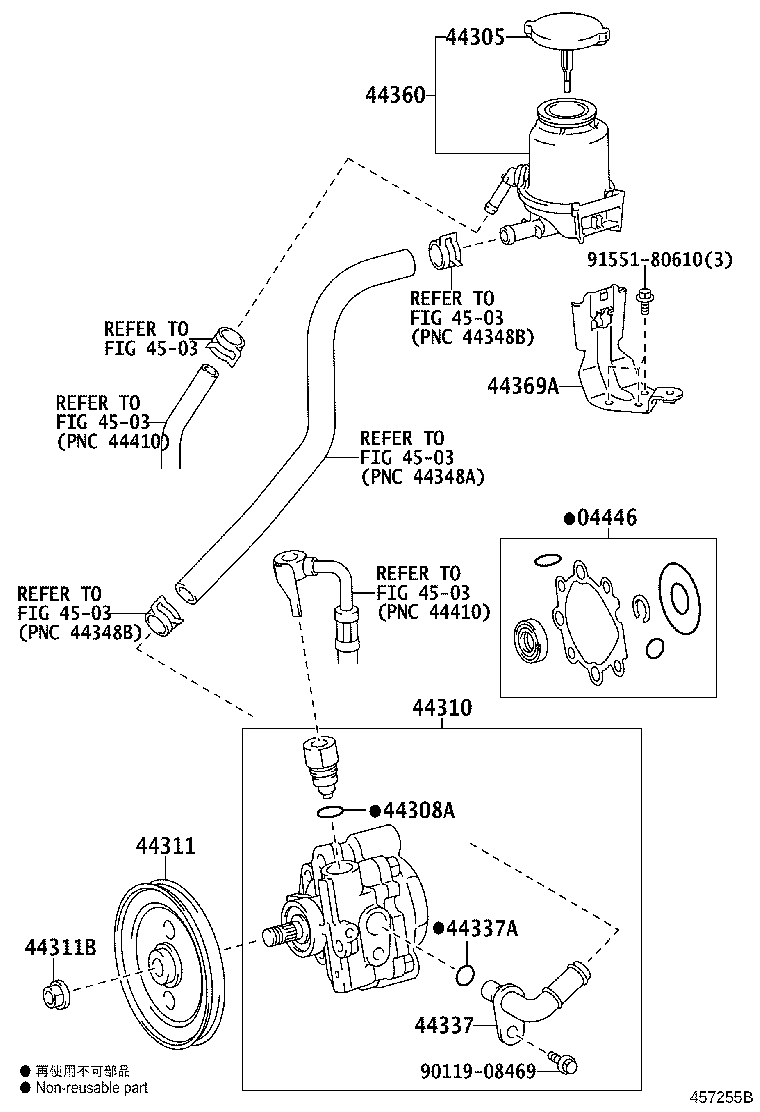

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04446 - GASKET KIT, POWER STEERING PUMP | ||||
| 04446-53030 |
LJ150 |
1 | ||
| 44305 - CAP SUB-ASSY, VANE PUMP OIL RESERVOIR | ||||
| 44305-28061 |
GDJ150,GRJ150,KDJ150,LJ150 |
1 | ||
| 44308A - RING, O(FOR PRESSURE PORT UNION) | ||||
| 90301-19018 |
LJ150 |
1 | ||
| 44310 - PUMP ASSY, VANE | ||||
| 44320-60360 |
LJ150 |
1 | ||
| 44311 - PULLEY, VANE PUMP | ||||
| 44311-26060 |
LJ150 |
1 | ||
| 44311B - NUT(FOR VANE PUMP PULLEY) | ||||
| 90178-12003 |
LJ150 |
1 | ||
| 44337 - UNION, POWER STEERING SUCTION PORT | ||||
| 44337-35070 |
LJ150 |
1 | ||
| 44337A - RING, O(FOR POWER STEERING SUCTION PORT) | ||||
| 90301-11016 |
LJ150 |
1 | ||
| 44360 - RESERVOIR ASSY, VANE PUMP OIL | ||||
| 44360-60331 |
KDJ150,LJ150 |
1 | ||
| 44369A - BRACKET, OIL RESERVOIR, NO.1 | ||||
| 44369-60090 |
KDJ150,LJ150 |
1 | ||
| Common parts | ||||
| 90119-08469 | ||||
| 91551-80610 | ||||
| Linked diagrams | ||||
| 4503 | ||||
