LJ150L-GKMEE (2017)

Toyota Land Cruiser Prado

Production Aug 2017 - Sep 9999
Engine 5LE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1708- )LJ150

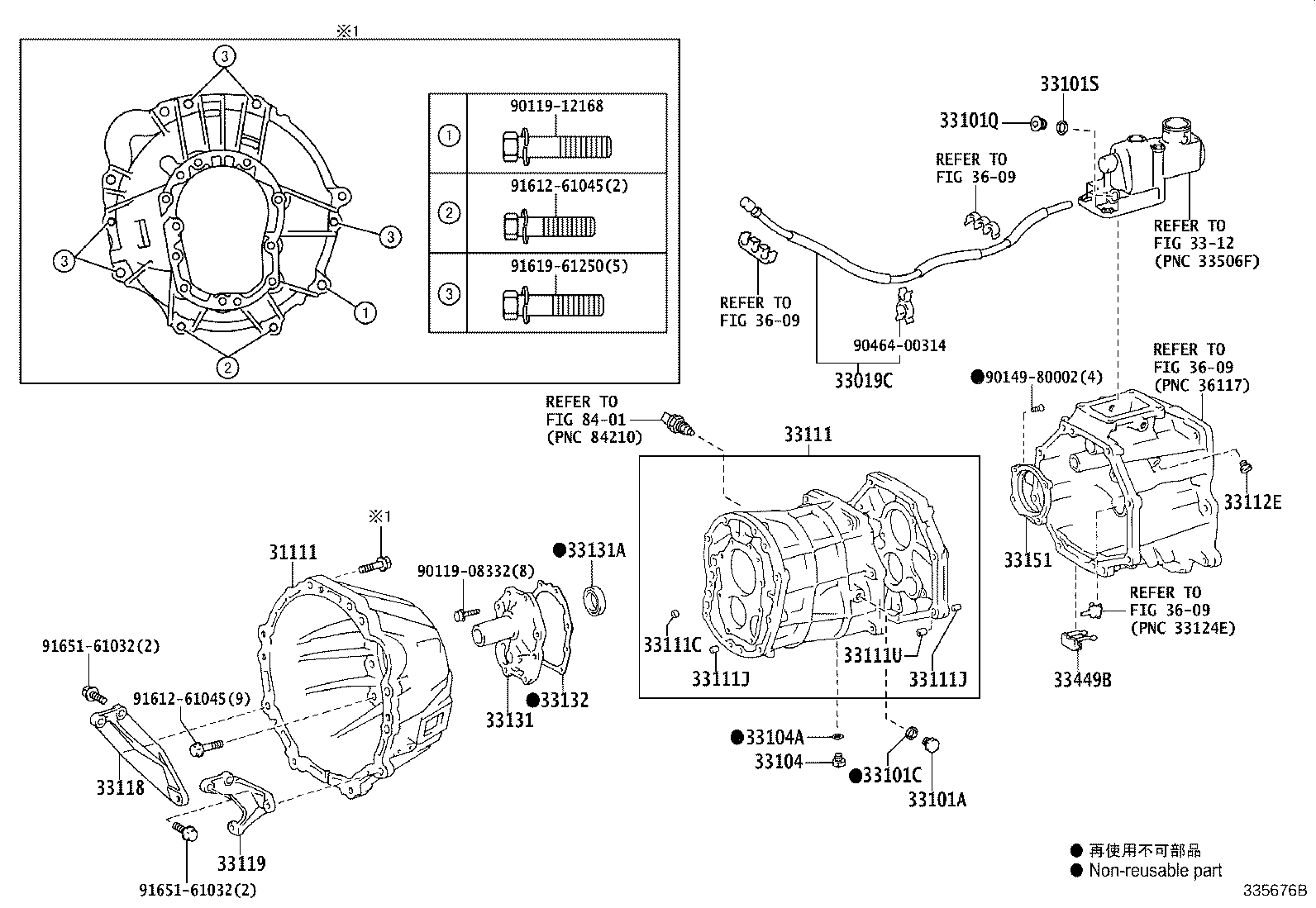

Click highlighted areas on diagram

G52F

diagram 31111 33019C 33101A 33101C 33101Q 33101S 33104 33104A 33111 33111C 33111J 33111J 33111U 33112E 33118 33119 3312 33131 33131A 33132 33151 33449B 3609 3609 3609 3609 8401 9011908332 9011912168 9014980002 9046400314 9161261045 9161261045 9161961250 9165161032 9165161032
Part # Description Qty Price
31111 - HOUSING, CLUTCH
31111-60281

LJ150

 1
33019C - BREATHER SUB-ASSY, TRANSMISSION
33019-60120

LJ150

 1
33101A - PLUG(FOR MANUAL TRANSMISSION FILLER)
90341-18006

LJ150,TRJ150..5F

 1
33101C - GASKET(FOR MANUAL TRANSMISSION FILLER PLUG)
90430-18008

GDJ150,GRJ150,LJ150,TRJ150..MTM..(GCC,GEN)

 1
33101Q - PLUG, NO.1(FOR TRANSMISSION CASE)
90341-18032

GDJ150,GRJ150,LJ150,TRJ150..MTM..(GCC,GEN)

 1
33101S - GASKET(FOR TRANSMISSION CASE PLUG NO.1)
90430-18008

GRJ150,LJ150,TRJ150..MTM

 1
33104 - PLUG SUB-ASSY, DRAIN(MTM)
90341-18057

GDJ150,GRJ150,LJ150..MTM..(GCC,GEN)

 1
33104A - GASKET, DRAIN PLUG(MTM)
90430-18008

GDJ150,GRJ150,LJ150,TRJ150..MTM..(GCC,GEN)

 1
33111 - CASE, MANUAL TRANSMISSION
33101-71020

LJ150

 1
33111C - PLUG(FOR TRANSMISSION CASE)
90331-14004

LJ150

OD=14

 4
33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)
90250-12002

LJ150

L=16,OD=12

 4
33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)
90250-12002

LJ150

L=16,OD=12

 4
33111U - PIN, RING(FOR MANUAL TRANSMISSION CASE)
90253-15001

LJ150

L=14,OD=15

 2
33112E - PLUG, W/HEAD STRAIGHT SCREW(FOR TRANSFER ADAPTER)
90341-12008

LJ150

 1
33118 - PLATE, STIFFENER, RH(MTM)
33118-25020

LJ150

 1
33119 - PLATE, STIFFENER, LH(MTM)
33119-60060

LJ150

 1
33131 - RETAINER, BEARING, FRONT(MTM)
33131-26020

LJ150

 1
33131A - SEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER)
90311-30014

LJ150

 1
33132 - GASKET, FRONT BEARING RETAINER(MTM)
33132-28010

LJ150

 1
33151 - RETAINER, OUTPUT SHAFT REAR BEARING(MTM)
33151-35030

LJ150

 1
33449B - MAGNET, TRANSMISSION
33449-26010

LJ150

 1
Common parts
90119-08332
90119-12168
90149-80002
90464-00314
91612-61045
91619-61250
91651-61032
Linked diagrams
3312
3609
8401
