LJ125L-GJMEE (2002)
Toyota Land Cruiser Prado
(0209- )LJ12#,RZJ12#..GEN
W(PART TIME 4WD)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 36264 - PIN OR ROLLER, SHIFT INTER-LOCK | ||||
| 90250-10020 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN L=25.7,OD=9.53 |
1 | ||
| 36275 - PLUG, SHIFT DETENT BALL SPRING | ||||
| 90341-12014 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN |
2 | ||
| 36275 - PLUG, SHIFT DETENT BALL SPRING | ||||
| 90341-12014 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN |
2 | ||
| 36275A - SPRING, COMPRESSION (FOR SHIFT DETENT BALL) | ||||
| 90501-16116 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN L=23 |
2 | ||
| 36275A - SPRING, COMPRESSION (FOR SHIFT DETENT BALL) | ||||
| 90501-16116 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN L=23 |
2 | ||
| 36303 - KNOB SUB-ASSY, SHIFT LEVER | ||||
| 36303-60280C0 |
LJ12# BLACK,TRIM0#,1# |
1 | ||
| 36304 - RETAINER SUB-ASSY, TRANSFER CONTROL SHIFT LEVER | ||||
| 36304-35061 |
LJ12# |
1 | ||
| 36311B - PIN, SLOTTED SPRING (FOR TRANSFER SHIFT FORK) | ||||
| 90254-05001 |
LJ12# L=22 |
2 | ||
| 36311B - PIN, SLOTTED SPRING (FOR TRANSFER SHIFT FORK) | ||||
| 90254-05001 |
LJ12# L=22 |
2 | ||
| 36311C - SPRING, COMPRESION (FOR SHIFT FORK) | ||||
| 90501-20088 |
LJ12# |
1 | ||
| 36311F - FORK, TRANSFER GEAR SHIFT, NO.1 | ||||
| 36311-35020 |
LJ12# |
1 | ||
| 36312F - FORK, TRANSFER GEAR SHIFT, NO.2 | ||||
| 36312-35040 |
LJ12# |
1 | ||
| 36313F - SHAFT, TRANSFER FRONT DRIVE SHIFT FORK | ||||
| 36313-35070 |
LJ12# |
1 | ||
| 36314 - SHAFT, TRANSFER HIGH AND LOW SHIFT FORK | ||||
| 36314-35140 |
LJ12# |
1 | ||
| 36317D - STOPPER, NO.2, TRANSFER SHIFT SHAFT | ||||
| 36317-35030 |
LJ12# |
1 | ||
| 36318 - BOOT, TRANSFER FRONT DRIVE SHIFT | ||||
| 33555-35190 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN |
1 | ||
| 36321B - RING, HOLE SNAP (FOR TRANSFER FRONT DRIVE SHIFT LEVER) | ||||
| 90521-49003 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN |
1 | ||
| 36349 - SPRING, TRANSFER SELECT RETURN | ||||
| 36349-35010 |
LJ12# |
1 | ||
| 36360G - LEVER ASSY, TRANSFER HIGH & LOW SHIFT | ||||
| 36360-6A010 |
LJ12#..LHD |
1 | ||
| Common parts | ||||
| 90119-08336 | ||||
(0301-0311)GRJ12#..ARL,GCC,GEN ; (0311- )GRJ120,TRJ12#..5F..GCC,GEN ; (0311-
W(ABS & VSC & ACTIVE TRC)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 36275 - PLUG, SHIFT DETENT BALL SPRING | ||||
| 90341-12014 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN |
2 | ||
| 36275A - SPRING, COMPRESSION (FOR SHIFT DETENT BALL) | ||||
| 90501-16116 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN L=23 |
2 | ||
| 36303 - KNOB SUB-ASSY, SHIFT LEVER | ||||
| 36303-60280C0 |
LJ12# BLACK,TRIM0#,1# |
1 | ||
| 36304 - RETAINER SUB-ASSY, TRANSFER CONTROL SHIFT LEVER | ||||
| 36304-35061 |
LJ12# |
1 | ||
| 36311B - PIN, SLOTTED SPRING (FOR TRANSFER SHIFT FORK) | ||||
| 90254-05001 |
LJ12# L=22 |
2 | ||
| 36312F - FORK, TRANSFER GEAR SHIFT, NO.2 | ||||
| 36312-35040 |
LJ12# |
1 | ||
| 36314 - SHAFT, TRANSFER HIGH AND LOW SHIFT FORK | ||||
| 36314-35140 |
LJ12# |
1 | ||
| 36318 - BOOT, TRANSFER FRONT DRIVE SHIFT | ||||
| 33555-35190 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN |
1 | ||
| 36321B - RING, HOLE SNAP (FOR TRANSFER FRONT DRIVE SHIFT LEVER) | ||||
| 90521-49003 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN |
1 | ||
| 36360G - LEVER ASSY, TRANSFER HIGH & LOW SHIFT | ||||
| 36360-6A010 |
LJ12#..LHD |
1 | ||
| Common parts | ||||
| 90105-07002 | ||||
| 90119-08336 | ||||
| 90447-08170 | ||||
| 90447-08176 | ||||
| 91511-C0828 | ||||

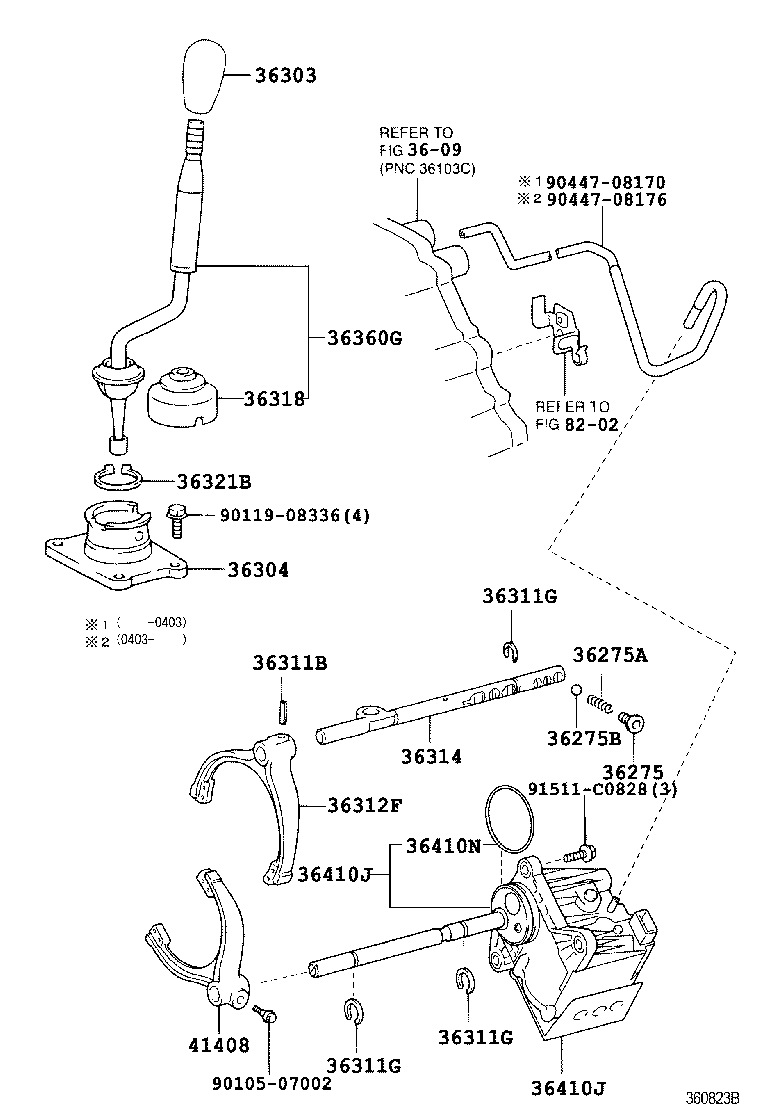

| Linked diagrams | ||||
| 3609 | ||||
| 8202 | ||||
