LJ120R-GKMEE (2002)

Toyota Land Cruiser Prado

Production Sep 2002 - Aug 2009
Engine 5LE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 3(0209- )LJ120..RHD

Click highlighted areas on diagram

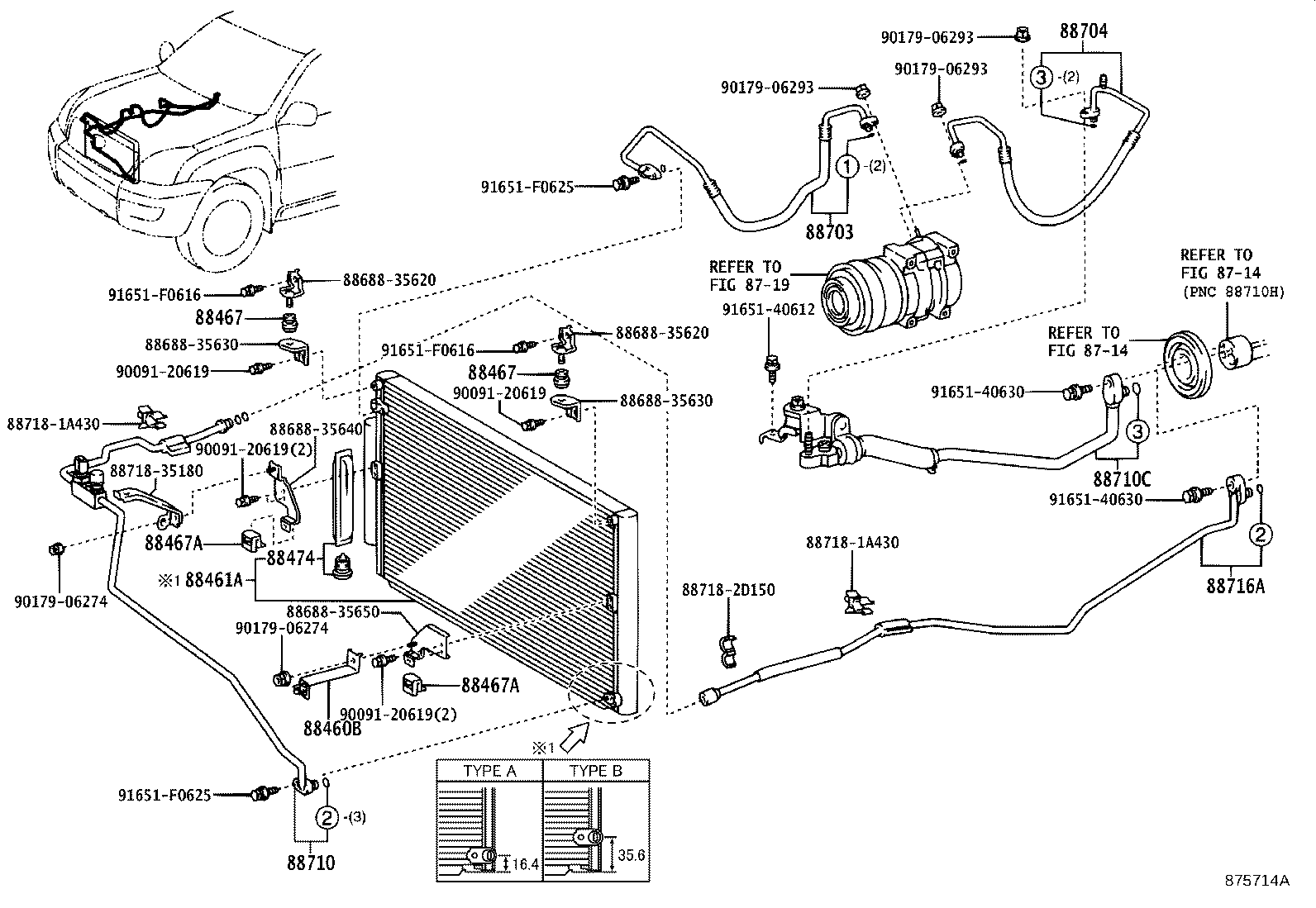

FRONT-SINGLE AIR CONDITIONER

diagram 8714 8714 8719 88460B 88461A 88467 88467 88467A 88467A 88474 8868835620 8868835620 8868835630 8868835630 8868835640 8868835650 88703 88704 88710 88710C 88716A 887181A430 887181A430 887182D150 8871835180 9009120619 9009120619 9009120619 9009120619 9017906274 9017906274 9017906293 9017906293 9017906293 9165140612 9165140630 9165140630 91651F0616 91651F0616 91651F0625 91651F0625
Part # Description Qty Price
88460B - BRACKET, COOLER CONDENSER, NO.1
88688-35570

LJ12#;GRJ12#,KDJ120,KZJ120..VX..(ARL,GCC,GEN)

 1
88461A - CORE, COOLER CONDENSER
88461-35160

KZJ120,LJ12#..GEN

TYPE A:REFER ILLUST.

 1
88461-60100

LJ120

AIR CONDITIONER-DUAL MANUAL

 1
88461-60100

LJ12#;KDJ120,KZJ120..VX

TYPE B:REFER ILLUST.

 1
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-28050

KZJ120,LJ12#..GEN;GRJ12#,KDJ120..VX..(5FC,6F)..(ARL,GCC,GEN)

 2
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-28050

KZJ120,LJ12#..GEN;GRJ12#,KDJ120..VX..(5FC,6F)..(ARL,GCC,GEN)

 2
88467A - CUSHION, COOLER CONDENSER, NO.2
88467-35080

KZJ120,LJ12#..GEN;GRJ12#,KDJ120..VX..(5FC,6F)..(ARL,GCC,GEN)

 2
88467A - CUSHION, COOLER CONDENSER, NO.2
88467-35080

KZJ120,LJ12#..GEN;GRJ12#,KDJ120..VX..(5FC,6F)..(ARL,GCC,GEN)

 2
88474 - DRYER, COOLER
88474-17010

KZJ120,LJ12#..GEN;GRJ12#,KDJ120..VX..(5FC,6F)..(ARL,GCC,GEN)

 1
88703 - HOSE SUB-ASSY, DISCHARGE
88711-60660

LJ12#

 1
88704 - HOSE SUB-ASSY, SUCTION
88712-6A180

LJ120..RHD

 1
88710 - TUBE ASSY, AIR CONDITIONER
88710-6A770

TRJ120..GEN;LJ120,RZJ120..GCC,GEN

AIR CONDITIONER-DUAL MANUAL,MARK : GREEN TAPE

 1
88710-35540

LJ12#;GRJ12#,KDJ120,KZJ120..VX..(ARL,GEN)

 1
88710-6B230

LJ120,TRJ120..GEN

AIR CONDITIONER-DUAL MANUAL,MARK : RED TAPE

 1
88710C - TUBE ASSY, AIR CONDITIONER
88707-60160

LJ120..RHD

 1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-35630

LJ120..RHD

 1
Common parts
88688-35620
88688-35630
88688-35640
88688-35650
88718-1A430
88718-2D150
88718-35180
90091-20619
90179-06274
90179-06293
91651-40612
91651-40630
91651-F0616
91651-F0625
Linked diagrams
8714
8719

ILLUST NO. 1 OF 3(0209- )LJ12#

Click highlighted areas on diagram

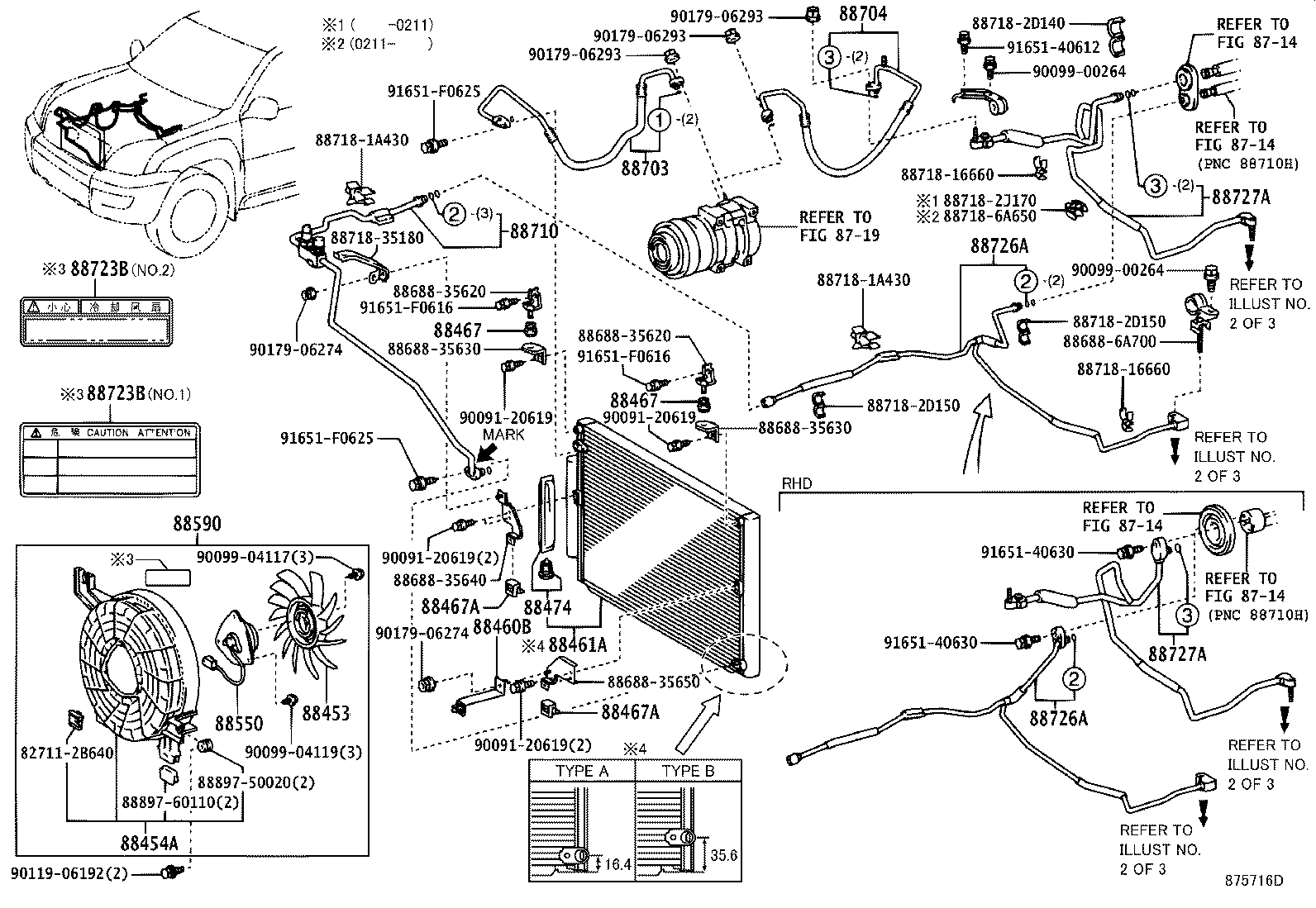

FRONT-DUAL AIR CONDITIONER

diagram 827112B640 8714 8714 8714 8714 8719 88453 88454A 88460B 88461A 88467 88467 88467A 88467A 88474 88550 88590 8868835620 8868835620 8868835630 8868835630 8868835640 8868835650 886886A700 88703 88704 88710 8871816660 8871816660 887181A430 887181A430 887182D140 887182D150 887182D150 887182J170 8871835180 887186A650 88723B 88723B 88726A 88726A 88727A 88727A 8889750020 8889760110 9009120619 9009120619 9009120619 9009120619 9009900264 9009900264 9009904117 9009904119 9011906192 9017906274 9017906274 9017906293 9017906293 9017906293 9165140612 9165140630 9165140630 91651F0616 91651F0616 91651F0625 91651F0625
Part # Description Qty Price
88453 - FAN, COOLING (FOR CONDENSER)
88453-60010

LJ120,RZJ120,TRJ120..GCC,GEN

AIR CONDITIONER-DUAL MANUAL

 1
88454A - SHROUD, FAN
88454-60030

LJ120,RZJ120,TRJ120..GCC,GEN

AIR CONDITIONER-DUAL MANUAL

 1
88454-60040

LJ120,TRJ120

AIR CONDITIONER-DUAL MANUAL

 1
88460B - BRACKET, COOLER CONDENSER, NO.1
88688-35570

LJ12#;GRJ12#,KDJ120,KZJ120..VX..(ARL,GCC,GEN)

 1
88461A - CORE, COOLER CONDENSER
88461-35160

KZJ120,LJ12#..GEN

TYPE A:REFER ILLUST.

 1
88461-60100

LJ120

AIR CONDITIONER-DUAL MANUAL

 1
88461-60100

LJ12#;KDJ120,KZJ120..VX

TYPE B:REFER ILLUST.

 1
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-28050

KZJ120,LJ12#..GEN;GRJ12#,KDJ120..VX..(5FC,6F)..(ARL,GCC,GEN)

 2
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-28050

KZJ120,LJ12#..GEN;GRJ12#,KDJ120..VX..(5FC,6F)..(ARL,GCC,GEN)

 2
88467A - CUSHION, COOLER CONDENSER, NO.2
88467-35080

KZJ120,LJ12#..GEN;GRJ12#,KDJ120..VX..(5FC,6F)..(ARL,GCC,GEN)

 2
88467A - CUSHION, COOLER CONDENSER, NO.2
88467-35080

KZJ120,LJ12#..GEN;GRJ12#,KDJ120..VX..(5FC,6F)..(ARL,GCC,GEN)

 2
88474 - DRYER, COOLER
88474-17010

KZJ120,LJ12#..GEN;GRJ12#,KDJ120..VX..(5FC,6F)..(ARL,GCC,GEN)

 1
88550 - MOTOR ASSY, BLOWER (FOR CONDENSER)
88550-12160

LJ120,RZJ120,TRJ120..GCC,GEN

AIR CONDITIONER-DUAL MANUAL

 1
88590 - BLOWER ASSY, W/SHROUD
88590-60040

LJ120,RZJ120,TRJ120..GCC,GEN

AIR CONDITIONER-DUAL MANUAL

 1
88590-60051

LJ120,TRJ120

AIR CONDITIONER-DUAL MANUAL

 1
88590-60050

LJ120,TRJ120

AIR CONDITIONER-DUAL MANUAL

 1
88590-60060

LJ120,TRJ120

AIR CONDITIONER-DUAL MANUAL

 1
88703 - HOSE SUB-ASSY, DISCHARGE
88711-60660

LJ12#

 1
88704 - HOSE SUB-ASSY, SUCTION
88712-6A180

LJ120..RHD

 1
88710 - TUBE ASSY, AIR CONDITIONER
88710-6A770

TRJ120..GEN;LJ120,RZJ120..GCC,GEN

AIR CONDITIONER-DUAL MANUAL,MARK : GREEN TAPE

 1
88710-35540

LJ12#;GRJ12#,KDJ120,KZJ120..VX..(ARL,GEN)

 1
88710-6B230

LJ120,TRJ120..GEN

AIR CONDITIONER-DUAL MANUAL,MARK : RED TAPE

 1
88723B - LABEL, COOLER SERVICE CAUTION
88723-20081

LJ120,RZJ120,TRJ120..GCC,GEN

AIR CONDITIONER-DUAL MANUAL

 1
16793-15020

LJ120,TRJ120

AIR CONDITIONER-DUAL MANUAL,NO.2

 1
88723-20081

LJ120,TRJ120

AIR CONDITIONER-DUAL MANUAL,NO.1

 1
88723B - LABEL, COOLER SERVICE CAUTION
88723-20081

LJ120,RZJ120,TRJ120..GCC,GEN

AIR CONDITIONER-DUAL MANUAL

 1
16793-15020

LJ120,TRJ120

AIR CONDITIONER-DUAL MANUAL,NO.2

 1
88723-20081

LJ120,TRJ120

AIR CONDITIONER-DUAL MANUAL,NO.1

 1
88726A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-6B490

LJ120,RZJ120..RHD..GEN

AIR CONDITIONER-DUAL MANUAL

 1
88716-6B491

LJ120..RHD

AIR CONDITIONER-DUAL MANUAL

 1
88726A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-6B490

LJ120,RZJ120..RHD..GEN

AIR CONDITIONER-DUAL MANUAL

 1
88716-6B491

LJ120..RHD

AIR CONDITIONER-DUAL MANUAL

 1
88727A - PIPE, COOLER REFRIGERANT SUCTION, A
88717-6A580

LJ120..RHD

AIR CONDITIONER-DUAL MANUAL

 1
88717-6A581

LJ120..RHD

AIR CONDITIONER-DUAL MANUAL

 1
88727A - PIPE, COOLER REFRIGERANT SUCTION, A
88717-6A580

LJ120..RHD

AIR CONDITIONER-DUAL MANUAL

 1
88717-6A581

LJ120..RHD

AIR CONDITIONER-DUAL MANUAL

 1
Common parts
82711-2B640
88688-35620
88688-35630
88688-35640
88688-35650
88688-6A700
88718-16660
88718-1A430
88718-2D140
88718-2D150
88718-2J170
88718-35180
88718-6A650
88897-50020
88897-60110
90091-20619
90099-00264
90099-04117
90099-04119
90119-06192
90179-06274
90179-06293
91651-40612
91651-40630
91651-F0616
91651-F0625
Linked diagrams
8714
8719

ILLUST NO. 2 OF 3(0209- )

Click highlighted areas on diagram

REAR

diagram 8714 887182J230 887182J230 887186A600 887186A640 887186A720 887186A730 887186A730 887186A740 887186A770 88726C 88726D 88727C 88727D 9017906161 9017906161 9017906161 9017906161 9017906161 9017906161 9017906161 9017906161 9017906161 9017906161
Part # Description Qty Price
88726C - PIPE, COOLER REFRIGERANT LIQUID, C
88716-6B460

LJ120,RZJ120..GCC,GEN

AIR CONDITIONER-DUAL MANUAL

 1
88716-6B460

LJ120,RZJ120..GCC,GEN

AIR CONDITIONER-DUAL MANUAL

 2
88716-6B620

LJ120,RZJ120..GCC,GEN

AIR CONDITIONER-DUAL MANUAL

 1
88716-6B620

LJ120,RZJ120,TRJ120..GCC,GEN

AIR CONDITIONER-DUAL MANUAL

 1
88726D - PIPE, COOLER REFRIGERANT LIQUID, D
88716-6B420

LJ120,RZJ120,TRJ120..GCC,GEN

AIR CONDITIONER-DUAL MANUAL

 1
88727C - PIPE, COOLER REFRIGERANT SUCTION, C
88712-6A240

LJ120,RZJ120..GCC,GEN

AIR CONDITIONER-DUAL MANUAL

 1
88712-6A260

LJ120,RZJ120,TRJ120..GCC,GEN

AIR CONDITIONER-DUAL MANUAL

 1
88711-60730

LJ120,TRJ120

AIR CONDITIONER-DUAL MANUAL

 1
88727D - PIPE, COOLER REFRIGERANT SUCTION, D
88717-6A550

LJ120,RZJ120..GCC,GEN

AIR CONDITIONER-DUAL MANUAL

 1
88717-6A550

LJ120,RZJ120..GCC,GEN

AIR CONDITIONER-DUAL MANUAL

 2
88717-6A690

LJ120,RZJ120..GCC,GEN

AIR CONDITIONER-DUAL MANUAL

 1
88717-6A750

LJ120,RZJ120,TRJ120..GCC,GEN

AIR CONDITIONER-DUAL MANUAL

 1
88715-60190

LJ120,TRJ120

AIR CONDITIONER-DUAL MANUAL

 1
Common parts
88718-2J230
88718-6A600
88718-6A640
88718-6A720
88718-6A730
88718-6A740
88718-6A770
90179-06161
Linked diagrams
8714

ILLUST NO. 2 OF 3(0209- )

Click highlighted areas on diagram

REAR-W(COOL BOX)

diagram 8714 8714 8714 8857860260 886886A680 886886A690 88699A 88715G 887182J230 887182J230 887186A600 887186A630 887186A730 887186A730 887186A740 887186A770 88726C 88726D 88727C 88727D 9017906161 9017906161 9017906161 9017906161 9017906161 9017906161 9017906161 9017906161 9017906161 9017906161 9017906161 9331914012
Part # Description Qty Price
88726C - PIPE, COOLER REFRIGERANT LIQUID, C
88716-6B460

LJ120,RZJ120..GCC,GEN

AIR CONDITIONER-DUAL MANUAL

 1
88716-6B460

LJ120,RZJ120..GCC,GEN

AIR CONDITIONER-DUAL MANUAL

 2
88716-6B620

LJ120,RZJ120..GCC,GEN

AIR CONDITIONER-DUAL MANUAL

 1
88716-6B620

LJ120,RZJ120,TRJ120..GCC,GEN

AIR CONDITIONER-DUAL MANUAL

 1
88726D - PIPE, COOLER REFRIGERANT LIQUID, D
88716-6B420

LJ120,RZJ120,TRJ120..GCC,GEN

AIR CONDITIONER-DUAL MANUAL

 1
88727C - PIPE, COOLER REFRIGERANT SUCTION, C
88712-6A240

LJ120,RZJ120..GCC,GEN

AIR CONDITIONER-DUAL MANUAL

 1
88712-6A260

LJ120,RZJ120,TRJ120..GCC,GEN

AIR CONDITIONER-DUAL MANUAL

 1
88711-60730

LJ120,TRJ120

AIR CONDITIONER-DUAL MANUAL

 1
88727D - PIPE, COOLER REFRIGERANT SUCTION, D
88717-6A550

LJ120,RZJ120..GCC,GEN

AIR CONDITIONER-DUAL MANUAL

 1
88717-6A550

LJ120,RZJ120..GCC,GEN

AIR CONDITIONER-DUAL MANUAL

 2
88717-6A690

LJ120,RZJ120..GCC,GEN

AIR CONDITIONER-DUAL MANUAL

 1
88717-6A750

LJ120,RZJ120,TRJ120..GCC,GEN

AIR CONDITIONER-DUAL MANUAL

 1
88715-60190

LJ120,TRJ120

AIR CONDITIONER-DUAL MANUAL

 1
Common parts
88578-60260
88688-6A680
88688-6A690
88718-2J230
88718-6A600
88718-6A630
88718-6A730
88718-6A740
88718-6A770
90179-06161
93319-14012
Linked diagrams
8714

ILLUST NO. 3 OF 3(0209- )

Click highlighted areas on diagram

O-RING

diagram 9009914119 9009914120 9009914121 9009914122
Part # Description Qty Price
Common parts
90099-14119
90099-14120
90099-14121
90099-14122
