LJ120R-GKMEE (2002)

Toyota Land Cruiser Prado

Production Sep 2002 - Aug 2009
Engine 5LE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0209- )LJ12#

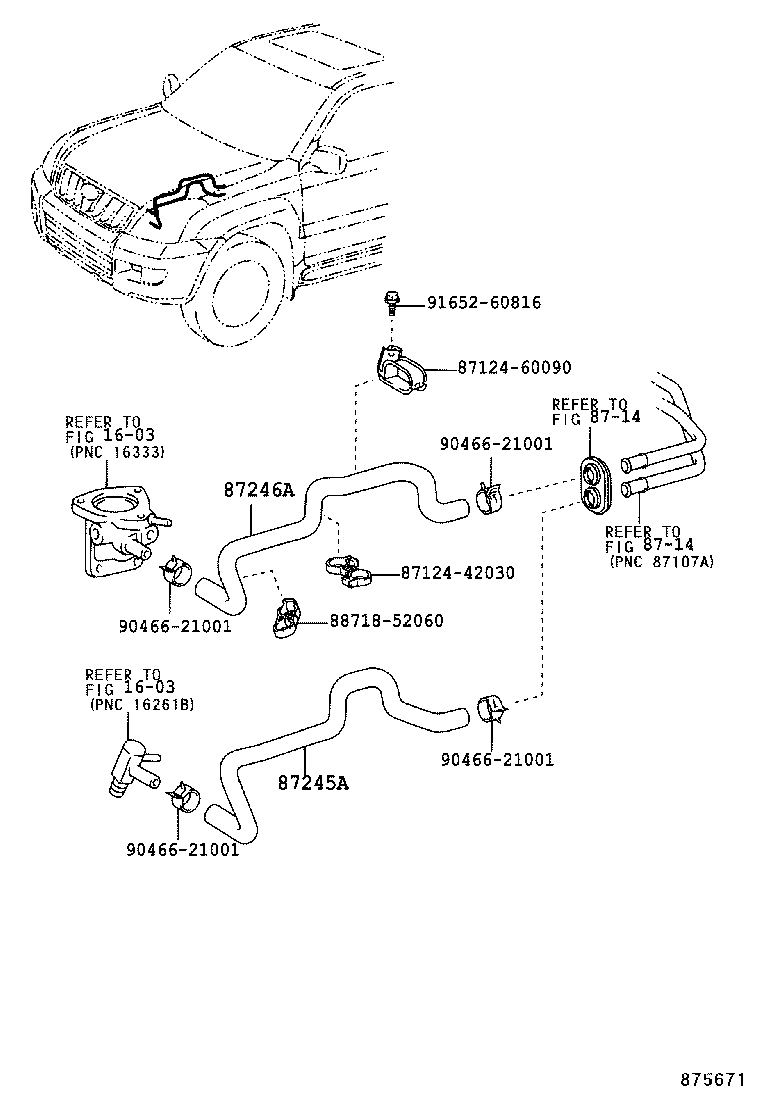

Click highlighted areas on diagram

diagram 1603 1603 8712442030 8712460090 8714 8714 87245A 87246A 8871852060 9046621001 9046621001 9046621001 9046621001 9165260816
Part # Description Qty Price
87245A - HOSE, HEATER WATER, INLET A
87245-6A830

LJ12#

 1
87246A - HOSE, HEATER WATER, OUTLET A
87245-6A840

LJ12#

 1
Common parts
87124-42030
87124-60090
88718-52060
90466-21001
91652-60816
Linked diagrams
1603
8714
