LJ120R-GKMEE (2002)
Toyota Land Cruiser Prado
ILLUST NO. 1 OF 9(0209- )

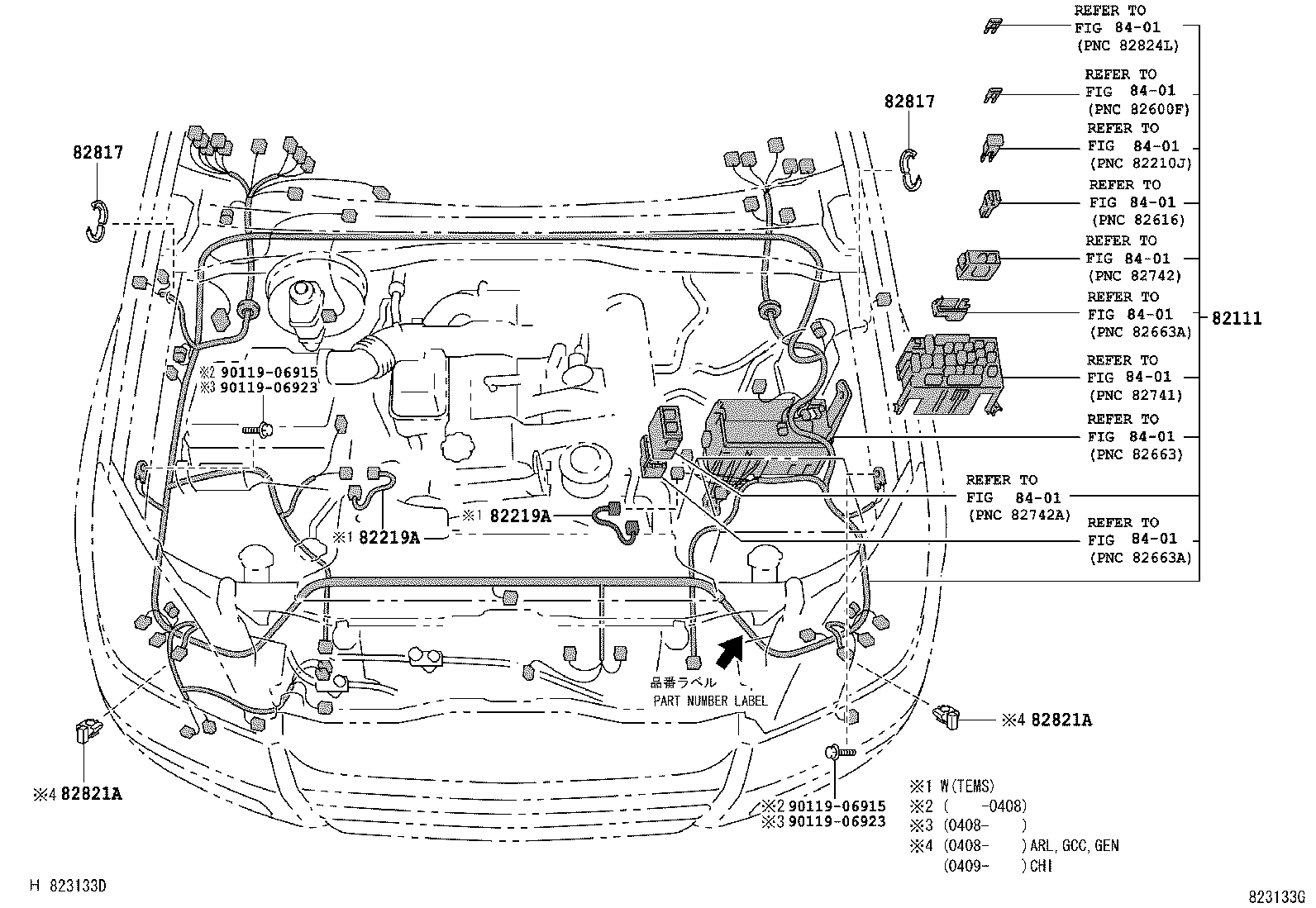

ENGINE ROOM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82111-6A260 |
LJ120..RHD |
1 | ||
| 82111-6A261 |
LJ120..RHD |
1 | ||
| 82111-6A262 |
LJ120..RHD |
1 | ||
| 82111-6A260 |
LJ120..RHD PART NUMBER LABEL=82111-6A260 |
1 | ||
| 82111-6A261 |
LJ120..RHD PART NUMBER LABEL=82111-6A261 |
1 | ||
| 82111-6A262 |
LJ120..RHD PART NUMBER LABEL=82111-6A262 |
1 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-32840 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN |
2 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-32840 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN |
2 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 90119-06923 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 2 OF 9(0209- )LJ12#
ENGINE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82121 - WIRE, ENGINE | ||||
| 82121-6A800 |
LJ120..RHD |
1 | ||
| 82121-6A790 |
LJ120..RHD ANTI-THEFT SYSTEM-IMMOBILIZER |
1 | ||
| 82121-6A790 |
LJ120..RHD ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM |
1 | ||
| 82121-6A791 |
LJ120..RHD ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM |
1 | ||
| 82121-6A791 |
LJ120..RHD ANTI-THEFT SYSTEM-IMMOBILIZER |
1 | ||
| 82121-6A801 |
LJ120..RHD |
1 | ||
| 82122 - WIRE, ENGINE, NO.2 | ||||
| 82122-60450 |
LJ12# |
1 | ||
| 82823S - CAP, STARTER TERMINAL | ||||
| 82823-35060 |
KDJ120,KZJ120,LJ12#..MTM |
1 | ||
| 82823T - CAP, ALTERNATOR TERMINAL | ||||
| 82823-22050 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN |
1 | ||
| Common parts | ||||
| 82712-35560 | ||||
| 90119-06915 | ||||
| 90119-08826 | ||||
| 91612-B1014 | ||||
| 91621-40814 | ||||
| Linked diagrams | ||||
| 1901 | ||||
ILLUST NO. 3 OF 9(0209- )RHD

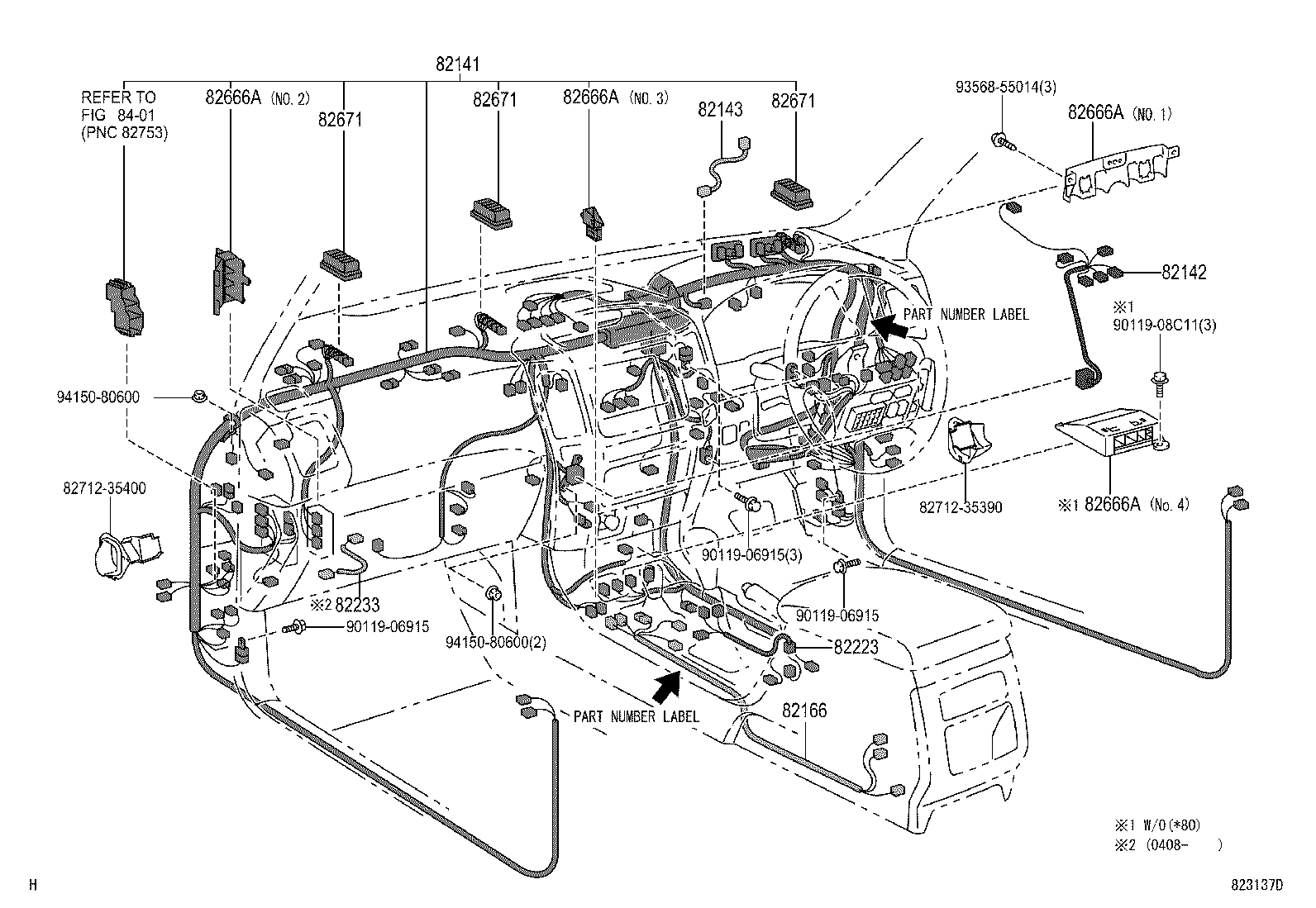

INSTRUMENT PANEL & CONSOLE BOX
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82141 - WIRE, INSTRUMENT PANEL | ||||
| 82141-6A040 |
LJ120..RHD |
1 | ||
| 82141-6A030 |
LJ120..RHD REAR SEAT-PARALLEL |
1 | ||
| 82141-6A041 |
LJ120..RHD |
1 | ||
| 82141-6A031 |
LJ120..RHD REAR SEAT-PARALLEL |
1 | ||
| 82141-6A042 |
LJ120..RHD |
1 | ||
| 82141-6A032 |
LJ120..RHD REAR SEAT-PARALLEL |
1 | ||
| 82141-6A043 |
LJ120..RHD |
1 | ||
| 82141-6A033 |
LJ120..RHD REAR SEAT-PARALLEL |
1 | ||
| 82141-6A040 |
LJ120..RHD PART NUMBER LABEL=82141-6A040 |
1 | ||
| 82141-6A030 |
LJ120..RHD PART NUMBER LABEL=82141-6A030 |
1 | ||
| 82141-6A041 |
LJ120..RHD PART NUMBER LABEL=82141-6A041 |
1 | ||
| 82141-6A031 |
LJ120..RHD PART NUMBER LABEL=82141-6A031 |
1 | ||
| 82141-6A042 |
LJ120..RHD PART NUMBER LABEL=82141-6A042 |
1 | ||
| 82141-6A032 |
LJ120..RHD PART NUMBER LABEL=82141-6A032 |
1 | ||
| 82141-6A033 |
LJ120..RHD PART NUMBER LABEL=82141-6A033 |
1 | ||
| 82141-6A043 |
LJ120..RHD PART NUMBER LABEL=82141-6A043 |
1 | ||
| 82142 - WIRE, INSTRUMENT PANEL, NO.2 | ||||
| 82142-60100 |
GRJ12#,KZJ120,LJ12#,RZJ12#,TRJ12#..GEN AUDIO(FOR OVERSEAS MARKET)-AM/FM/MW/CDCHANGER 6SP |
1 | ||
| 82142-60100 |
GRJ120,KDJ120,KZJ120,LJ120,RZJ120,TRJ120..RHD AUDIO(FOR OVERSEAS MARKET)-AM/FM/CASETTE/CDCHANGER 6SP |
1 | ||
| 82142-60101 |
GRJ120,KDJ120,KZJ120,LJ120,TRJ120..RHD AUDIO(FOR OVERSEAS MARKET)-AM/FM/CASETTE/CDCHANGER 6SP |
1 | ||
| 82142-60110 |
GRJ120..(5FC,6F)..(GCC,GEN);GRJ120..(4FC,5F)..(ARL,GCC,GEN);GRJ125,KZJ120,LJ12#,RZJ12#,TRJ12# |
1 | ||
| 82142-60101 |
GRJ120,KZJ120,LJ12#,TRJ12#..GEN AUDIO(FOR OVERSEAS MARKET)-AM/FM/MW/CDCHANGER 6SP |
1 | ||
| 82166 - WIRE, CONSOLE BOX | ||||
| 82166-60310 |
LJ120,RZJ120,TRJ120..GCC,GEN AIR CONDITIONER-DUAL MANUAL |
1 | ||
| 82233 - WIRE, COMPUTER | ||||
| 82233-60030 |
KDJ120..6F;GRJ120,KZJ120,LJ12#,TRJ12#..ARL,GEN DIFFERENTIAL LOCK-WITH |
1 | ||
| 82233-60050 |
GRJ12#,KDJ120,KZJ120,LJ12#,TRJ12#..ARL,GCC,GEN |
1 | ||
| 82666A - HOLDER, CONNECTOR NO.2 | ||||
| 82666-35420 |
LJ120..RHD REAR SEAT-PARALLEL,NO.2 |
1 | ||
| 82666-60320 |
GRJ12#,KZJ120,LJ12#,RZJ12#,TRJ12#..GCC,GEN NO.4 |
1 | ||
| 82666-60320 |
GRJ12#,KZJ120,LJ12#,RZJ12#,TRJ12#..GCC,GEN SRS AIR BAG-DRIVER & PASSENGER,NO.4 |
1 | ||
| 82666-35420 |
KZJ120,LJ120..RHD..5F NO.2 |
1 | ||
| 82666-60320 |
RZJ120,TRJ120..GEN;GRJ12#,KZJ120,LJ12#,RZJ125,TRJ125..GCC,GEN SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN,NO.4 |
1 | ||
| 82666-60330 |
KZJ120..4FC;KZJ120..5F..GEN;GRJ12#,KDJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN NO.1 |
1 | ||
| 82666A - HOLDER, CONNECTOR NO.2 | ||||
| 82666-35420 |
LJ120..RHD REAR SEAT-PARALLEL,NO.2 |
1 | ||
| 82666-60320 |
GRJ12#,KZJ120,LJ12#,RZJ12#,TRJ12#..GCC,GEN NO.4 |
1 | ||
| 82666-60320 |
GRJ12#,KZJ120,LJ12#,RZJ12#,TRJ12#..GCC,GEN SRS AIR BAG-DRIVER & PASSENGER,NO.4 |
1 | ||
| 82666-35420 |
KZJ120,LJ120..RHD..5F NO.2 |
1 | ||
| 82666-60320 |
RZJ120,TRJ120..GEN;GRJ12#,KZJ120,LJ12#,RZJ125,TRJ125..GCC,GEN SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN,NO.4 |
1 | ||
| 82666-60330 |
KZJ120..4FC;KZJ120..5F..GEN;GRJ12#,KDJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN NO.1 |
1 | ||
| 82666A - HOLDER, CONNECTOR NO.2 | ||||
| 82666-35420 |
LJ120..RHD REAR SEAT-PARALLEL,NO.2 |
1 | ||
| 82666-60320 |
GRJ12#,KZJ120,LJ12#,RZJ12#,TRJ12#..GCC,GEN NO.4 |
1 | ||
| 82666-60320 |
GRJ12#,KZJ120,LJ12#,RZJ12#,TRJ12#..GCC,GEN SRS AIR BAG-DRIVER & PASSENGER,NO.4 |
1 | ||
| 82666-35420 |
KZJ120,LJ120..RHD..5F NO.2 |
1 | ||
| 82666-60320 |
RZJ120,TRJ120..GEN;GRJ12#,KZJ120,LJ12#,RZJ125,TRJ125..GCC,GEN SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN,NO.4 |
1 | ||
| 82666-60330 |
KZJ120..4FC;KZJ120..5F..GEN;GRJ12#,KDJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN NO.1 |
1 | ||
| 82666A - HOLDER, CONNECTOR NO.2 | ||||
| 82666-35420 |
LJ120..RHD REAR SEAT-PARALLEL,NO.2 |
1 | ||
| 82666-60320 |
GRJ12#,KZJ120,LJ12#,RZJ12#,TRJ12#..GCC,GEN NO.4 |
1 | ||
| 82666-60320 |
GRJ12#,KZJ120,LJ12#,RZJ12#,TRJ12#..GCC,GEN SRS AIR BAG-DRIVER & PASSENGER,NO.4 |
1 | ||
| 82666-35420 |
KZJ120,LJ120..RHD..5F NO.2 |
1 | ||
| 82666-60320 |
RZJ120,TRJ120..GEN;GRJ12#,KZJ120,LJ12#,RZJ125,TRJ125..GCC,GEN SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN,NO.4 |
1 | ||
| 82666-60330 |
KZJ120..4FC;KZJ120..5F..GEN;GRJ12#,KDJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN NO.1 |
1 | ||
| 82671 - BLOCK, JUNCTION | ||||
| 82671-60010 |
KZJ120..4FC;KZJ120..5F..GEN;GRJ12#,KDJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN |
3 | ||
| 82671 - BLOCK, JUNCTION | ||||
| 82671-60010 |
KZJ120..4FC;KZJ120..5F..GEN;GRJ12#,KDJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN |
3 | ||
| 82671 - BLOCK, JUNCTION | ||||
| 82671-60010 |
KZJ120..4FC;KZJ120..5F..GEN;GRJ12#,KDJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN |
3 | ||
| Common parts | ||||
| 82712-35390 | ||||
| 82712-35400 | ||||
| 90119-06915 | ||||
| 90119-08C11 | ||||
| 93568-55014 | ||||
| 94150-80600 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 4 OF 9(0209- )

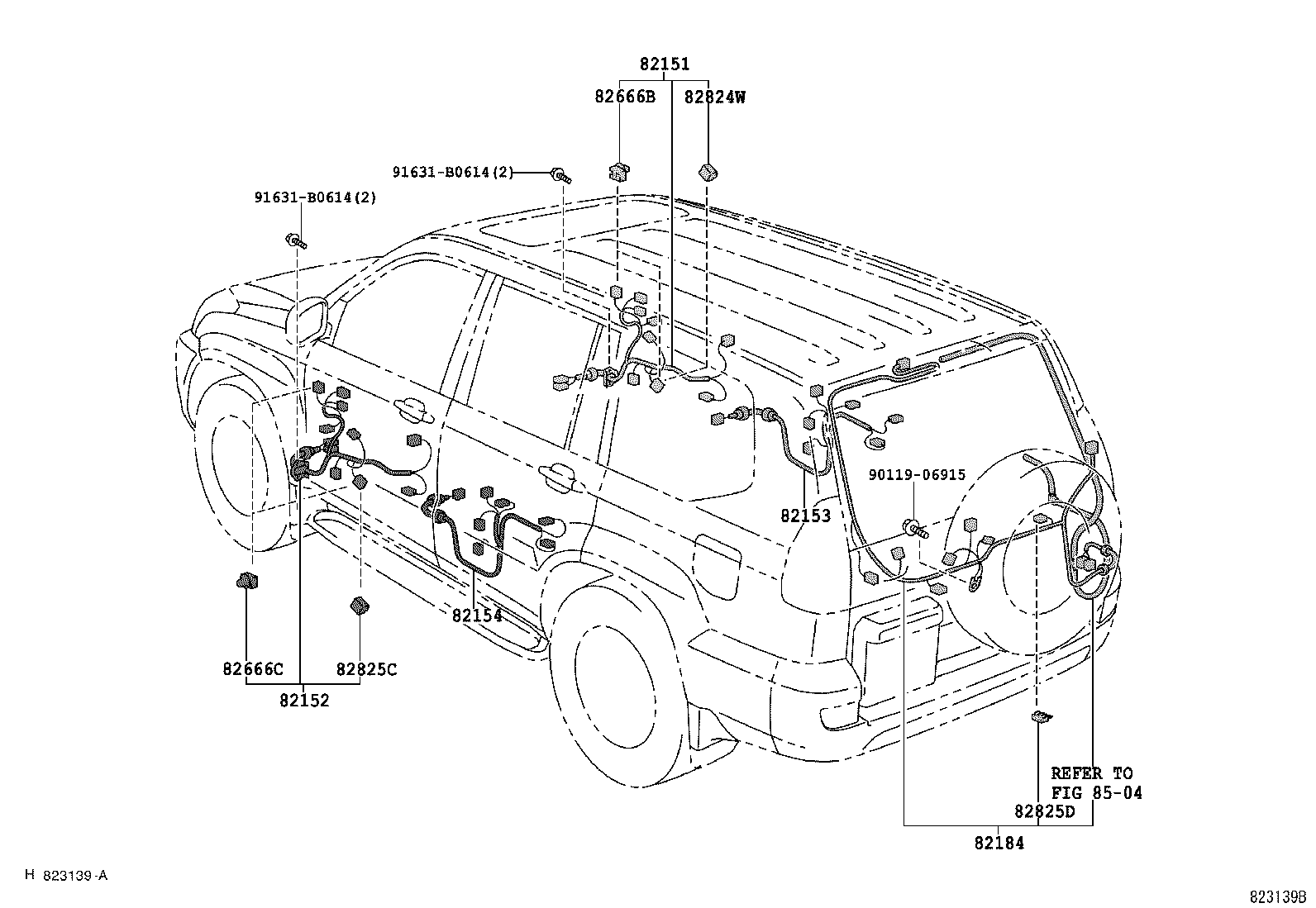

DOOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82151 - WIRE, FRONT DOOR, RH | ||||
| 82151-60450 |
LJ120,RZJ120,TRJ120..RHD..GEN |
1 | ||
| 82152 - WIRE, FRONT DOOR, LH | ||||
| 82152-60380 |
LJ120,RZJ120,TRJ120..RHD..GEN |
1 | ||
| 82153 - WIRE, REAR DOOR, NO.1 | ||||
| 82153-60160 |
GRJ120,KZJ120,LJ120,RZJ120,TRJ120..GEN |
1 | ||
| 82154 - WIRE, REAR DOOR, NO.2 | ||||
| 82154-60010 |
GRJ120,KZJ120,LJ120,RZJ120,TRJ120..GEN |
1 | ||
| 82184 - WIRE, BACK DOOR, NO.1 | ||||
| 82184-60220 |
LJ12#,RZJ12#..GEN |
1 | ||
| 82184-60230 |
LJ12#,RZJ12#..GEN REAR WIPER-WITH |
1 | ||
| 82184-60250 |
LJ120,RZJ120..GEN SPARE WHEEL CARRIER-UNDER FLOOR CHAIN TYPE&REAR WIPER-WITH |
1 | ||
| 82184-60230 |
LJ12# |
1 | ||
| 82184-60250 |
LJ120 SPARE WHEEL CARRIER-UNDER FLOOR CHAIN TYPE |
1 | ||
| 82666B - HOLDER, CONNECTOR NO.3 | ||||
| 82666-22080 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN |
2 | ||
| 82666C - HOLDER, CONNECTOR NO.4 | ||||
| 82666-22080 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN |
2 | ||
| 82824W - CONNECTOR, WIRING HARNESS | ||||
| 82824-22070 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN |
1 | ||
| 82825C - CONNECTOR, WIRING HARNESS | ||||
| 82824-22070 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN |
1 | ||
| 82825D - CONNECTOR, WIRING HARNESS | ||||
| 82824-30130 |
LJ120,RZJ120..GEN SPARE WHEEL CARRIER-UNDER FLOOR CHAIN TYPE&REAR WIPER-WITH |
1 | ||
| 82824-30130 |
LJ120 SPARE WHEEL CARRIER-UNDER FLOOR CHAIN TYPE |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 91631-B0614 | ||||
| Linked diagrams | ||||
| 8504 | ||||
ILLUST NO. 5 OF 9(0209- )GRJ120,KDJ120,KZJ120,LJ120,RZJ120,TRJ120
FLOOR,FRAME & ROOF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82127 - WIRE, DIFFERENTIAL | ||||
| 82127-60040 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GEN DIFFERENTIAL LOCK-WITH |
1 | ||
| 82161 - WIRE, FLOOR | ||||
| 82161-6A030 |
KZJ120,LJ120..RHD..5F |
1 | ||
| 82161-6A040 |
KZJ120,LJ120..RHD..5F |
1 | ||
| 82161-6A040 |
LJ120,TRJ120..RHD LEATHER SEAT PACKAGE&REAR SEAT-REMOVABLE |
1 | ||
| 82161-6A060 |
LJ120,TRJ120..RHD LEATHER SEAT PACKAGE&REAR SEAT-REMOVABLE&SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN |
1 | ||
| 82161-6A080 |
LJ120,TRJ120..RHD LEATHER SEAT PACKAGE&AIR CONDITIONER-DUAL MANUAL&REAR SEAT-REMOVABLE |
1 | ||
| 82161-6A090 |
LJ120,TRJ120..RHD LEATHER SEAT PACKAGE&AIR CONDITIONER-DUAL MANUAL&REAR SEAT-REMOVABLE&SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN |
1 | ||
| 82161-6A090 |
LJ120,TRJ120..RHD AIR CONDITIONER-DUAL MANUAL&REAR SEAT-REMOVABLE&SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN |
1 | ||
| 82161-6A020 |
LJ120..RHD REAR SEAT-PARALLEL |
1 | ||
| 82161-6A080 |
LJ120,TRJ120..RHD AIR CONDITIONER-DUAL MANUAL&REAR SEAT-REMOVABLE |
1 | ||
| 82161-6A060 |
KZJ120,LJ120,RZJ120,TRJ120..RHD SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN |
1 | ||
| 82161-6A040 |
KZJ120,LJ120,TRJ120..RHD |
1 | ||
| 82161-6A040 |
KZJ120,LJ120..RHD..5F PART NUMBER LABEL=82161-6A040 |
1 | ||
| 82161-6A030 |
KZJ120,LJ120..RHD..5F PART NUMBER LABEL=82161-6A030 |
1 | ||
| 82161-6A090 |
LJ120,TRJ120..RHD PART NUMBER LABEL=82161-6A090 |
1 | ||
| 82161-6A080 |
LJ120,TRJ120..RHD PART NUMBER LABEL=82161-6A080 |
1 | ||
| 82161-6A040 |
LJ120,TRJ120..RHD PART NUMBER LABEL=82161-6A040 |
1 | ||
| 82161-6A060 |
LJ120,TRJ120..RHD PART NUMBER LABEL=82161-6A060 |
1 | ||
| 82161-6A090 |
LJ120,TRJ120..RHD PART NUMBER LABEL=82161-6A090 |
1 | ||
| 82161-6A060 |
KZJ120,LJ120,RZJ120,TRJ120..RHD PART NUMBER LABEL=82161-6A060 |
1 | ||
| 82161-6A020 |
LJ120..RHD PART NUMBER LABEL=82161-6A020 |
1 | ||
| 82161-6A080 |
LJ120,TRJ120..RHD PART NUMBER LABEL=82161-6A080 |
1 | ||
| 82161-6A040 |
KZJ120,LJ120,TRJ120..RHD PART NUMBER LABEL=82161-6A040 |
1 | ||
| 82162 - WIRE, FLOOR, NO.2 | ||||
| 82162-6A040 |
GRJ120,KZJ120,LJ120,RZJ120,TRJ120..RHD |
1 | ||
| 82162-6A050 |
GRJ120,KZJ120,LJ120,RZJ120,TRJ120..RHD TRAILER WIRING HARNESS-WITH |
1 | ||
| 82162-6A050 |
LJ120..RHD DIFFERENTIAL LOCK-WITH&REAR SEAT-PARALLEL&TRAILER WIRING HARNESS-WITH |
1 | ||
| 82162-6A050 |
LJ120..RHD REAR SEAT-PARALLEL |
1 | ||
| 82162-6A050 |
GRJ120,KZJ120,LJ120,RZJ120,TRJ120..RHD DIFFERENTIAL LOCK-WITH |
1 | ||
| 82162-6A070 |
KZJ120,LJ120,RZJ120,TRJ120..RHD SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN&TRAILER WIRING HARNESS-WITH |
1 | ||
| 82162-6A050 |
GRJ120,KZJ120,LJ120,RZJ120,TRJ120..RHD DIFFERENTIAL LOCK-WITH&TRAILER WIRING HARNESS-WITH |
1 | ||
| 82162-6A050 |
LJ120..RHD REAR SEAT-PARALLEL&TRAILER WIRING HARNESS-WITH |
1 | ||
| 82162-6A050 |
LJ120..RHD DIFFERENTIAL LOCK-WITH&REAR SEAT-PARALLEL |
1 | ||
| 82162-6A070 |
KZJ120,LJ120,RZJ120,TRJ120..RHD DIFFERENTIAL LOCK-WITH&SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN |
1 | ||
| 82162-6A070 |
KZJ120,LJ120,RZJ120,TRJ120..RHD DIFFERENTIAL LOCK-WITH&SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN&TRAILER WIRING HARNESS-WITH |
1 | ||
| 82162-6A070 |
KDJ120,KZJ120,LJ120,RZJ120,TRJ120..RHD SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN |
1 | ||
| 82162-6A050 |
GRJ120,KDJ120,KZJ120,LJ120,TRJ120..RHD |
1 | ||
| 82162-6A050 |
GRJ120,KZJ120,LJ120,RZJ120,TRJ120..RHD PART NUMBER LABEL=82162-6A050 |
1 | ||
| 82162-6A040 |
GRJ120,KZJ120,LJ120,RZJ120,TRJ120..RHD PART NUMBER LABEL=82162-6A040 |
1 | ||
| 82162-6A050 |
LJ120..RHD PART NUMBER LABEL=82162-6A050 |
1 | ||
| 82162-6A070 |
KZJ120,LJ120,RZJ120,TRJ120..RHD PART NUMBER LABEL=82162-6A070 |
1 | ||
| 82162-6A070 |
KDJ120,KZJ120,LJ120,RZJ120,TRJ120..RHD PART NUMBER LABEL=82162-6A070 |
1 | ||
| 82162-6A050 |
GRJ120,KDJ120,KZJ120,LJ120,TRJ120..RHD PART NUMBER LABEL=82162-6A050 |
1 | ||
| 82164 - WIRE, FRAME | ||||
| 82164-60340 |
GRJ120..(5FC,6F)..(ARL,GEN);KZJ120,LJ120,TRJ120..ARL,GEN DIFFERENTIAL LOCK-WITH |
1 | ||
| 82165 - WIRE, FRAME, NO.2 | ||||
| 82165-60180 |
GRJ120,KDJ120,KZJ120,LJ120,RZJ120,TRJ120..ARL,GCC,GEN |
1 | ||
| 82165-60170 |
GRJ120..(5FC,6F)..(ARL,GCC,GEN);KDJ120,KZJ120,LJ120,TRJ120..ARL,GEN FUEL TANK-W(FUEL SUB TANK) 180L |
1 | ||
| 82165 - WIRE, FRAME, NO.2 | ||||
| 82165-60180 |
GRJ120,KDJ120,KZJ120,LJ120,RZJ120,TRJ120..ARL,GCC,GEN |
1 | ||
| 82165-60170 |
GRJ120..(5FC,6F)..(ARL,GCC,GEN);KDJ120,KZJ120,LJ120,TRJ120..ARL,GEN FUEL TANK-W(FUEL SUB TANK) 180L |
1 | ||
| 82171 - WIRE, ROOF, NO.1 | ||||
| 82171-6A061 |
GRJ120,KDJ120,KZJ120,LJ120,TRJ120..RHD |
1 | ||
| 82171-6A160 |
LJ120,TRJ120..RHD W/MOON ROOF |
1 | ||
| 82171-6A161 |
LJ120,TRJ120..RHD W/MOON ROOF |
1 | ||
| 82171-6A060 |
GRJ120..(5FC,6F)..ARL;KZJ120,LJ120,TRJ120..RHD |
1 | ||
| 82171-6A061 |
GRJ120,KDJ120,KZJ120,LJ120,TRJ120..RHD PART NUMBER LABEL=82171-6A061 |
1 | ||
| 82171-6A160 |
LJ120,TRJ120..RHD PART NUMBER LABEL=82171-6A160 |
1 | ||
| 82171-6A161 |
LJ120,TRJ120..RHD PART NUMBER LABEL=82171-6A161 |
1 | ||
| 82171-6A060 |
GRJ120..(5FC,6F)..ARL;KZJ120,LJ120,TRJ120..RHD PART NUMBER LABEL=82171-6A060 |
1 | ||
| 82666D - HOLDER, CONNECTOR NO.5 | ||||
| 82666-60220 |
GRJ120,KDJ120,KZJ120,LJ120,RZJ120,TRJ120..ARL,GCC,GEN NO.2 |
1 | ||
| 82666-35430 |
GRJ120,KDJ120,KZJ120,LJ120,RZJ120,TRJ120..ARL,GCC,GEN NO.1 |
1 | ||
| 82666D - HOLDER, CONNECTOR NO.5 | ||||
| 82666-60220 |
GRJ120,KDJ120,KZJ120,LJ120,RZJ120,TRJ120..ARL,GCC,GEN NO.2 |
1 | ||
| 82666-35430 |
GRJ120,KDJ120,KZJ120,LJ120,RZJ120,TRJ120..ARL,GCC,GEN NO.1 |
1 | ||
| 82666E - HOLDER, CONNECTOR NO.6 | ||||
| 82666-60340 |
GRJ120,KDJ120,KZJ120,LJ120,RZJ120,TRJ120..ARL,GCC,GEN NO.2 |
1 | ||
| 82666-35440 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN NO.1 |
1 | ||
| 82666E - HOLDER, CONNECTOR NO.6 | ||||
| 82666-60340 |
GRJ120,KDJ120,KZJ120,LJ120,RZJ120,TRJ120..ARL,GCC,GEN NO.2 |
1 | ||
| 82666-35440 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN NO.1 |
1 | ||
| 82819C - GROMMET, WIRING HARNESS | ||||
| 82819-60240 |
GRJ120,KDJ120,KZJ120,LJ120,RZJ120,TRJ120..ARL,GCC,GEN NO.2 |
1 | ||
| 82819-60250 |
GRJ120,KDJ120,KZJ120,LJ120,RZJ120,TRJ120..ARL,GCC,GEN NO.1 |
1 | ||
| 82819C - GROMMET, WIRING HARNESS | ||||
| 82819-60240 |
GRJ120,KDJ120,KZJ120,LJ120,RZJ120,TRJ120..ARL,GCC,GEN NO.2 |
1 | ||
| 82819-60250 |
GRJ120,KDJ120,KZJ120,LJ120,RZJ120,TRJ120..ARL,GCC,GEN NO.1 |
1 | ||
| 82824F - CONNECTOR, WIRING HARNESS | ||||
| 82824-52080 |
GRJ120,KDJ120,KZJ120,LJ120,RZJ120,TRJ120..ARL,GCC,GEN |
1 | ||
| 82824G - CONNECTOR, WIRING HARNESS | ||||
| 82824-12180 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN NO.1 |
2 | ||
| 82824-48010 |
GRJ120,KDJ120,KZJ120,LJ120,RZJ120,TRJ120..ARL,GCC,GEN NO.2 |
1 | ||
| 82824G - CONNECTOR, WIRING HARNESS | ||||
| 82824-12180 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN NO.1 |
2 | ||
| 82824-48010 |
GRJ120,KDJ120,KZJ120,LJ120,RZJ120,TRJ120..ARL,GCC,GEN NO.2 |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 90119-08826 | ||||
| 90179-06178 | ||||
| 91621-J0614 | ||||
| 91631-J0612 | ||||
| Linked diagrams | ||||
| 4101 | ||||
ILLUST NO. 7 OF 9(0209- )
CLAMP & BRACKET
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-16790 | ||||
| 82711-1E340 | ||||
| 82711-1E350 | ||||
| 82711-35420 | ||||
| 82711-35690 | ||||
| 82711-3F040 | ||||
| 82711-3F230 | ||||
| 82711-60600 | ||||
| 82712-60310 | ||||
| 82712-60360 | ||||
| 82715-35A80 | ||||
| 82715-35A90 | ||||
| 82715-37270 | ||||
| 82715-3D720 | ||||
| 82715-3D730 | ||||
| 82715-3D760 | ||||
| 82715-3D800 | ||||
| 82715-3D810 | ||||
| 82715-6A080 | ||||
| 82715-6A440 | ||||
| 82715-6A450 | ||||
| 82715-6A470 | ||||
| 82715-6A520 | ||||
| 82715-6A530 | ||||
| 82715-6A540 | ||||
| 82715-6A570 | ||||
| 90119-06922 | ||||
| 90170-08042 | ||||
| 91511-60612 | ||||
| 91511-B0610 | ||||
| 91616-60616 | ||||
| 91621-40814 | ||||
| 91621-J0612 | ||||
| 91621-J0614 | ||||
| 91631-J0612 | ||||
| 91641-H0820 | ||||
| 94150-80600 | ||||
ILLUST NO. 7 OF 9(0209- )
CLAMP & BRACKET
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82710-60060 | ||||
| 82711-95J26 | ||||
| 82715-26390 | ||||
| 82715-30500 | ||||
| 82715-34120 | ||||
| 82715-34130 | ||||
| 82715-34150 | ||||
| 82715-34210 | ||||
| 82715-34290 | ||||
| 82715-35230 | ||||
| 82715-35430 | ||||
| 82715-35600 | ||||
| 82715-35610 | ||||
| 82715-35630 | ||||
| 82715-35700 | ||||
| 82715-35710 | ||||
| 82715-35770 | ||||
| 82715-35810 | ||||
| 82715-35830 | ||||
| 82715-35870 | ||||
| 82715-37230 | ||||
| 82715-38110 | ||||
| 82715-3D470 | ||||
| 82715-3D520 | ||||
| 82715-3D620 | ||||
| 82715-42060 | ||||
| 82715-60190 | ||||
| 82715-60350 | ||||
| 82715-6A200 | ||||
| 82715-6A240 | ||||
| 82715-6A250 | ||||
| 82715-6A480 | ||||
| 90119-10550 | ||||
| 90179-06178 | ||||
| 91162-61216 | ||||
| 91511-60612 | ||||
| 91511-B0610 | ||||
| 91511-B0812 | ||||
| 91611-G0612 | ||||
| 91612-61025 | ||||
| 91612-B1014 | ||||
| 91621-J0814 | ||||
| 91641-C0612 | ||||
| 91641-C0814 | ||||
| 91651-41016 | ||||
ILLUST NO. 7 OF 9(0209- )

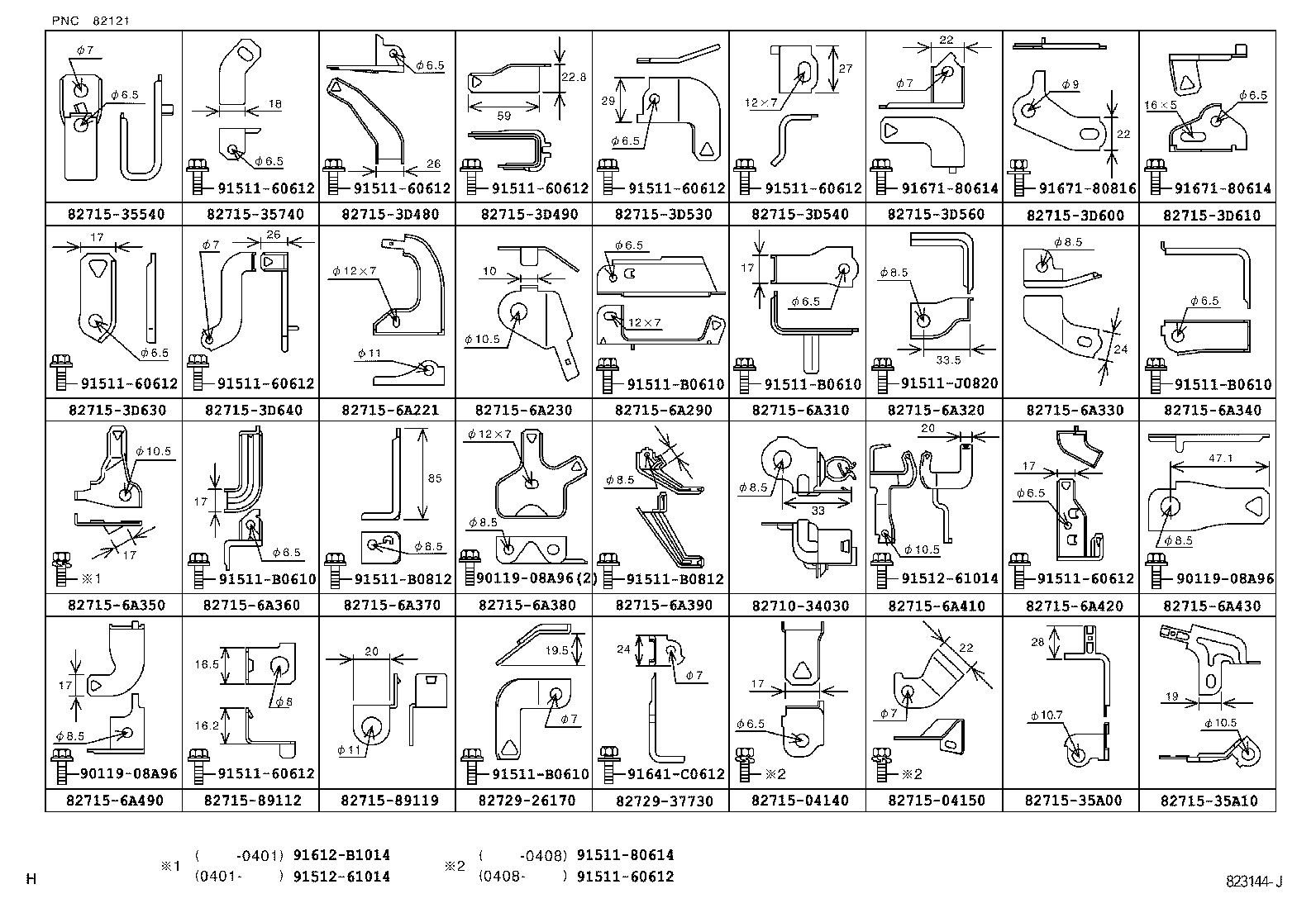

CLAMP & BRACKET
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82710-34030 | ||||
| 82715-04140 | ||||
| 82715-04150 | ||||
| 82715-35540 | ||||
| 82715-35740 | ||||
| 82715-35A00 | ||||
| 82715-35A10 | ||||
| 82715-3D480 | ||||
| 82715-3D490 | ||||
| 82715-3D530 | ||||
| 82715-3D540 | ||||
| 82715-3D560 | ||||
| 82715-3D600 | ||||
| 82715-3D610 | ||||
| 82715-3D630 | ||||
| 82715-3D640 | ||||
| 82715-6A221 | ||||
| 82715-6A230 | ||||
| 82715-6A290 | ||||
| 82715-6A310 | ||||
| 82715-6A320 | ||||
| 82715-6A330 | ||||
| 82715-6A340 | ||||
| 82715-6A350 | ||||
| 82715-6A360 | ||||
| 82715-6A370 | ||||
| 82715-6A380 | ||||
| 82715-6A390 | ||||
| 82715-6A410 | ||||
| 82715-6A420 | ||||
| 82715-6A430 | ||||
| 82715-6A490 | ||||
| 82715-89112 | ||||
| 82715-89119 | ||||
| 82729-26170 | ||||
| 82729-37730 | ||||
| 90119-08A96 | ||||
| 91511-60612 | ||||
| 91511-80614 | ||||
| 91511-B0610 | ||||
| 91511-B0812 | ||||
| 91511-J0820 | ||||
| 91512-61014 | ||||
| 91612-B1014 | ||||
| 91641-C0612 | ||||
| 91671-80614 | ||||
| 91671-80816 | ||||
ILLUST NO. 9 OF 9(0209- )

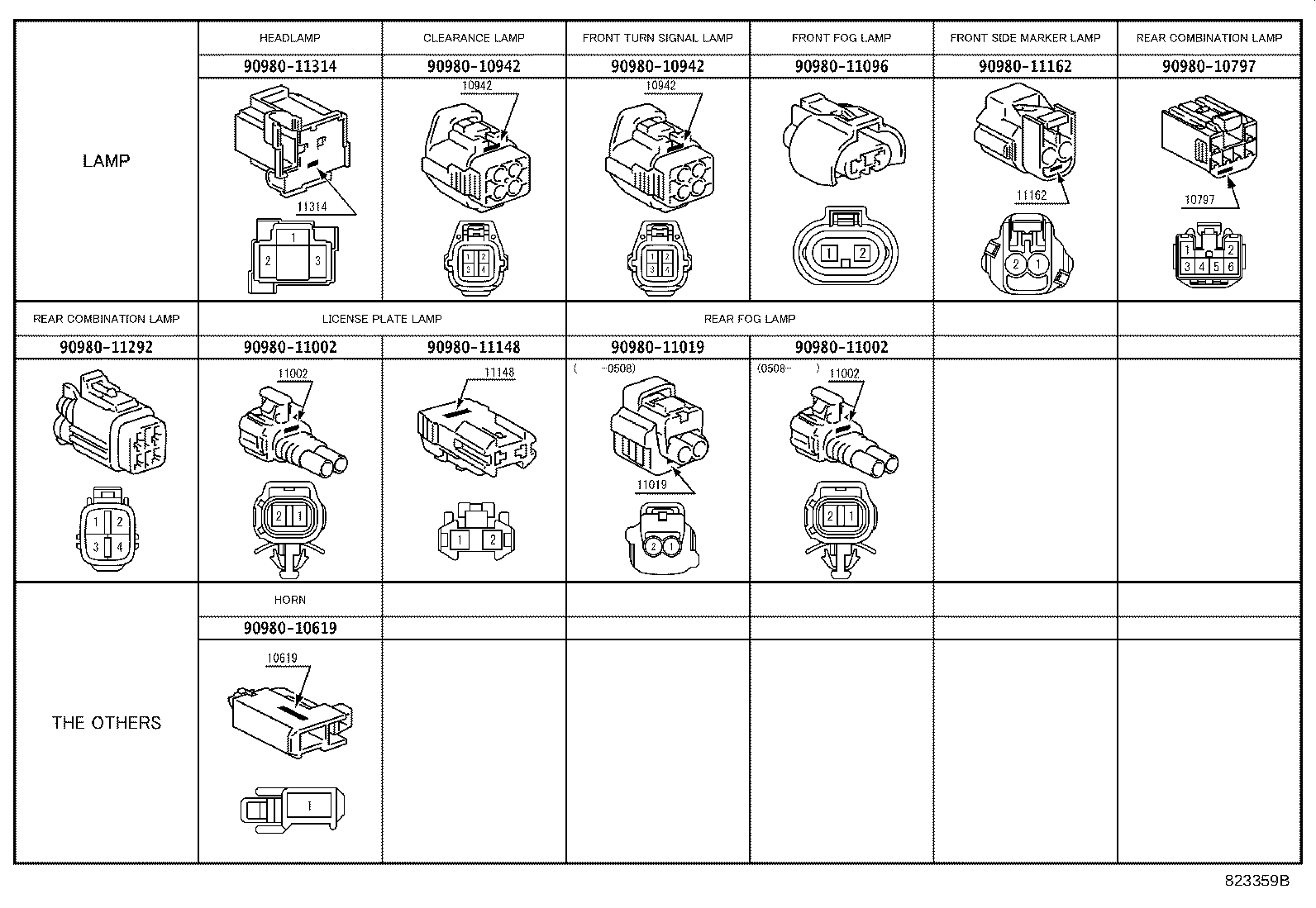

CONNECTOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90980-10619 | ||||
| 90980-10797 | ||||
| 90980-10942 | ||||
| 90980-11002 | ||||
| 90980-11019 | ||||
| 90980-11096 | ||||
| 90980-11148 | ||||
| 90980-11162 | ||||
| 90980-11292 | ||||
| 90980-11314 | ||||
ILLUST NO. 7 OF 9(0209- )
CLAMP & BRACKET
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82710-34030 | ||||
| 82715-25850 | ||||
| 82715-35780 | ||||
| 82715-35A20 | ||||
| 82715-35A50 | ||||
| 82715-35A60 | ||||
| 82715-35A70 | ||||
| 82715-35B10 | ||||
| 82715-35B20 | ||||
| 82715-3D471 | ||||
| 82715-3D500 | ||||
| 82715-3D580 | ||||
| 82715-3D590 | ||||
| 82715-60C90 | ||||
| 82715-6A040 | ||||
| 82715-6A090 | ||||
| 82715-6A120 | ||||
| 82715-6A130 | ||||
| 82715-6A150 | ||||
| 82715-6A210 | ||||
| 82715-6A260 | ||||
| 82715-6A590 | ||||
| 90119-06375 | ||||
| 90179-06178 | ||||
| 91511-60612 | ||||
| 91511-B0610 | ||||
| 91511-B0812 | ||||
| 91512-61014 | ||||
| 91551-80814 | ||||
| 91621-40814 | ||||
| 91621-J0612 | ||||
| 91671-A0612 | ||||

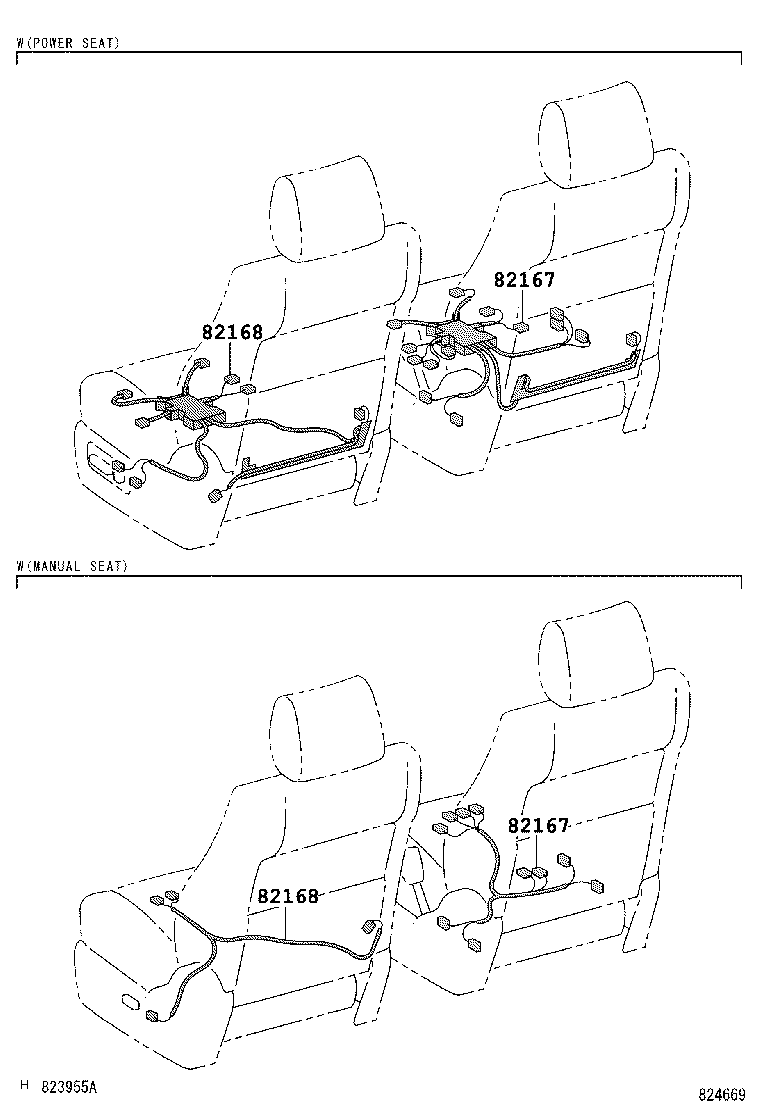

ILLUST NO. 6 OF 9(0209- ) ; (0309- )GX..CHI
SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82167 - WIRE, SEAT, NO.1 | ||||
| 82167-60250 |
LJ120,TRJ120..RHD LEATHER SEAT PACKAGE&REAR SEAT-REMOVABLE |
1 | ||
| 82167 - WIRE, SEAT, NO.1 | ||||
| 82167-60250 |
LJ120,TRJ120..RHD LEATHER SEAT PACKAGE&REAR SEAT-REMOVABLE |
1 | ||
Part Price Details
Loading price information...
Part Number:
Price:
