Toyota Land cruiser prado LJ120 HEATING & AIR CONDITIONING - COOLER PIPING

Manufacturers Home
Toyota
GR
LAND CRUISER PRADO
LJ120L-GKMEE (2002)
8718 - HEATING & AIR CONDITIONING - COOLER PIPING

LJ120L-GKMEE (2002)

Toyota Land Cruiser Prado

Production Sep 2002 - Aug 2009

Engine 5LE

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

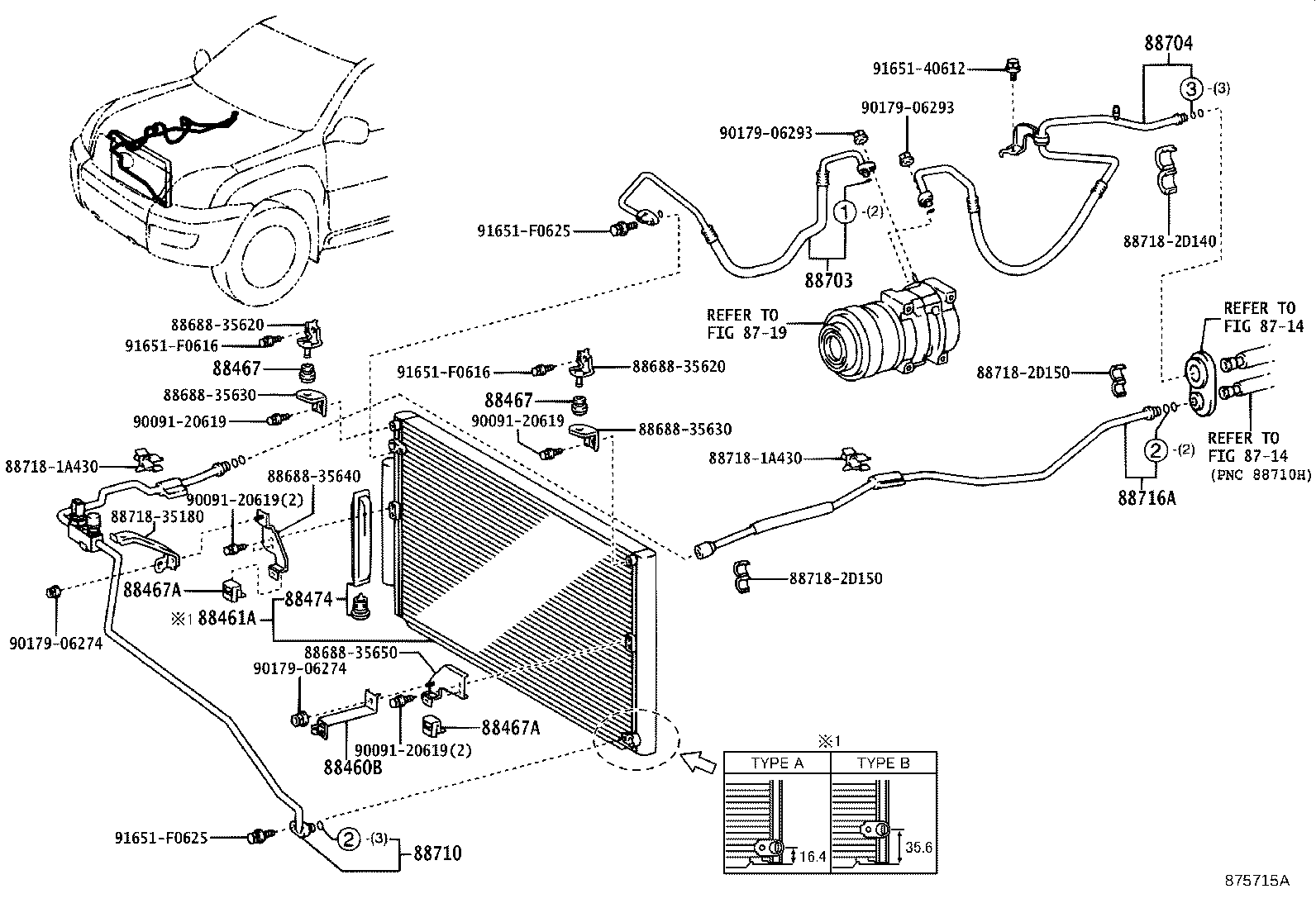

ILLUST NO. 1 OF 3(0209- )LJ12#..LHD

Click highlighted areas on diagram

FRONT-SINGLE AIR CONDITIONER

Part #	Description	Period	Qty
88460B - BRACKET, COOLER CONDENSER, NO.1
88688-35570	LJ12#;GRJ12#,KDJ120,KZJ120..VX..(ARL,GCC,GEN)	09/2002 - 08/2009	1
88461A - CORE, COOLER CONDENSER
88461-35160	KZJ120,LJ12#..GEN TYPE A:REFER ILLUST.	09/2002 - 07/2003	1
88461-60100	LJ120 AIR CONDITIONER-DUAL MANUAL	09/2002 - 07/2003	1
88461-60100	LJ12#;KDJ120,KZJ120..VX TYPE B:REFER ILLUST.	07/2003 - 08/2009	1
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-28050	KZJ120,LJ12#..GEN;GRJ12#,KDJ120..VX..(5FC,6F)..(ARL,GCC,GEN)	09/2002 - 08/2009	2
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-28050	KZJ120,LJ12#..GEN;GRJ12#,KDJ120..VX..(5FC,6F)..(ARL,GCC,GEN)	09/2002 - 08/2009	2
88467A - CUSHION, COOLER CONDENSER, NO.2
88467-35080	KZJ120,LJ12#..GEN;GRJ12#,KDJ120..VX..(5FC,6F)..(ARL,GCC,GEN)	09/2002 - 08/2009	2
88467A - CUSHION, COOLER CONDENSER, NO.2
88467-35080	KZJ120,LJ12#..GEN;GRJ12#,KDJ120..VX..(5FC,6F)..(ARL,GCC,GEN)	09/2002 - 08/2009	2
88474 - DRYER, COOLER
88474-17010	KZJ120,LJ12#..GEN;GRJ12#,KDJ120..VX..(5FC,6F)..(ARL,GCC,GEN)	09/2002 - 08/2009	1
88703 - HOSE SUB-ASSY, DISCHARGE
88711-60660	LJ12#	09/2002 - 08/2009	1
88704 - HOSE SUB-ASSY, SUCTION
88704-60320	LJ12#..LHD	09/2002 - 08/2009	1
88712-6A180	LJ120..LHD AIR CONDITIONER-DUAL MANUAL	09/2002 - 08/2009	1
88710 - TUBE ASSY, AIR CONDITIONER
88710-6A770	TRJ120..GEN;LJ120,RZJ120..GCC,GEN AIR CONDITIONER-DUAL MANUAL,MARK : GREEN TAPE	09/2002 - 01/2006	1
88710-35540	LJ12#;GRJ12#,KDJ120,KZJ120..VX..(ARL,GEN)	09/2002 - 08/2009	1
88710-6B230	LJ120,TRJ120..GEN AIR CONDITIONER-DUAL MANUAL,MARK : RED TAPE	01/2006 - 08/2009	1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-35620	LJ12#..LHD;GRJ120..VX..(4FC,5F)..(ARL,GEN);GRJ125,KDJ120,KZJ120..VX..(ARL,GEN)	09/2002 - 12/2999	1
Common parts
88688-35620
88688-35630
88688-35640
88688-35650
88718-1A430
88718-2D140
88718-2D150
88718-35180
90091-20619
90179-06274
90179-06293
91651-40612
91651-F0616
91651-F0625
Linked diagrams
8714
8719

ILLUST NO. 1 OF 3(0209- )LJ12#

Click highlighted areas on diagram

FRONT-DUAL AIR CONDITIONER

Part #	Description	Period	Qty
88453 - FAN, COOLING (FOR CONDENSER)
88453-60010	LJ120,RZJ120,TRJ120..GCC,GEN AIR CONDITIONER-DUAL MANUAL	09/2002 - 12/2999	1
88454A - SHROUD, FAN
88454-60030	LJ120,RZJ120,TRJ120..GCC,GEN AIR CONDITIONER-DUAL MANUAL	09/2002 - 09/2005	1
88454-60040	LJ120,TRJ120 AIR CONDITIONER-DUAL MANUAL	09/2005 - 12/2999	1
88460B - BRACKET, COOLER CONDENSER, NO.1
88688-35570	LJ12#;GRJ12#,KDJ120,KZJ120..VX..(ARL,GCC,GEN)	09/2002 - 08/2009	1
88461A - CORE, COOLER CONDENSER
88461-35160	KZJ120,LJ12#..GEN TYPE A:REFER ILLUST.	09/2002 - 07/2003	1
88461-60100	LJ120 AIR CONDITIONER-DUAL MANUAL	09/2002 - 07/2003	1
88461-60100	LJ12#;KDJ120,KZJ120..VX TYPE B:REFER ILLUST.	07/2003 - 08/2009	1
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-28050	KZJ120,LJ12#..GEN;GRJ12#,KDJ120..VX..(5FC,6F)..(ARL,GCC,GEN)	09/2002 - 08/2009	2
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-28050	KZJ120,LJ12#..GEN;GRJ12#,KDJ120..VX..(5FC,6F)..(ARL,GCC,GEN)	09/2002 - 08/2009	2
88467A - CUSHION, COOLER CONDENSER, NO.2
88467-35080	KZJ120,LJ12#..GEN;GRJ12#,KDJ120..VX..(5FC,6F)..(ARL,GCC,GEN)	09/2002 - 08/2009	2
88467A - CUSHION, COOLER CONDENSER, NO.2
88467-35080	KZJ120,LJ12#..GEN;GRJ12#,KDJ120..VX..(5FC,6F)..(ARL,GCC,GEN)	09/2002 - 08/2009	2
88474 - DRYER, COOLER
88474-17010	KZJ120,LJ12#..GEN;GRJ12#,KDJ120..VX..(5FC,6F)..(ARL,GCC,GEN)	09/2002 - 08/2009	1
88550 - MOTOR ASSY, BLOWER (FOR CONDENSER)
88550-12160	LJ120,RZJ120,TRJ120..GCC,GEN AIR CONDITIONER-DUAL MANUAL	09/2002 - 12/2999	1
88590 - BLOWER ASSY, W/SHROUD
88590-60040	LJ120,RZJ120,TRJ120..GCC,GEN AIR CONDITIONER-DUAL MANUAL	09/2002 - 10/2004	1
88590-60051	LJ120,TRJ120 AIR CONDITIONER-DUAL MANUAL	03/2005 - 08/2005	1
88590-60050	LJ120,TRJ120 AIR CONDITIONER-DUAL MANUAL	11/2004 - 02/2005	1
88590-60060	LJ120,TRJ120 AIR CONDITIONER-DUAL MANUAL	09/2005 - 12/2999	1
88703 - HOSE SUB-ASSY, DISCHARGE
88711-60660	LJ12#	09/2002 - 08/2009	1
88704 - HOSE SUB-ASSY, SUCTION
88704-60320	LJ12#..LHD	09/2002 - 08/2009	1
88712-6A180	LJ120..LHD AIR CONDITIONER-DUAL MANUAL	09/2002 - 08/2009	1
88710 - TUBE ASSY, AIR CONDITIONER
88710-6A770	TRJ120..GEN;LJ120,RZJ120..GCC,GEN AIR CONDITIONER-DUAL MANUAL,MARK : GREEN TAPE	09/2002 - 01/2006	1
88710-35540	LJ12#;GRJ12#,KDJ120,KZJ120..VX..(ARL,GEN)	09/2002 - 08/2009	1
88710-6B230	LJ120,TRJ120..GEN AIR CONDITIONER-DUAL MANUAL,MARK : RED TAPE	01/2006 - 08/2009	1
88723B - LABEL, COOLER SERVICE CAUTION
88723-20081	LJ120,RZJ120,TRJ120..GCC,GEN AIR CONDITIONER-DUAL MANUAL	09/2002 - 11/2004	1
16793-15020	LJ120,TRJ120 AIR CONDITIONER-DUAL MANUAL,NO.2	11/2004 - 12/2999	1
88723-20081	LJ120,TRJ120 AIR CONDITIONER-DUAL MANUAL,NO.1	11/2004 - 12/2999	1
88723B - LABEL, COOLER SERVICE CAUTION
88723-20081	LJ120,RZJ120,TRJ120..GCC,GEN AIR CONDITIONER-DUAL MANUAL	09/2002 - 11/2004	1
16793-15020	LJ120,TRJ120 AIR CONDITIONER-DUAL MANUAL,NO.2	11/2004 - 12/2999	1
88723-20081	LJ120,TRJ120 AIR CONDITIONER-DUAL MANUAL,NO.1	11/2004 - 12/2999	1
88726A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-6B500	LJ120..LHD AIR CONDITIONER-DUAL MANUAL	09/2002 - 09/2007	1
88716-6B501	LJ120..LHD AIR CONDITIONER-DUAL MANUAL	10/2007 - 08/2009	1
88726A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-6B500	LJ120..LHD AIR CONDITIONER-DUAL MANUAL	09/2002 - 09/2007	1
88716-6B501	LJ120..LHD AIR CONDITIONER-DUAL MANUAL	10/2007 - 08/2009	1
88727A - PIPE, COOLER REFRIGERANT SUCTION, A
88717-6A590	LJ120..LHD AIR CONDITIONER-DUAL MANUAL	09/2002 - 09/2007	1
88717-6A591	LJ120..LHD AIR CONDITIONER-DUAL MANUAL	10/2007 - 08/2009	1
88727A - PIPE, COOLER REFRIGERANT SUCTION, A
88717-6A590	LJ120..LHD AIR CONDITIONER-DUAL MANUAL	09/2002 - 09/2007	1
88717-6A591	LJ120..LHD AIR CONDITIONER-DUAL MANUAL	10/2007 - 08/2009	1
Common parts
82711-2B640
88688-35620
88688-35630
88688-35640
88688-35650
88688-6A700
88718-16660
88718-1A430
88718-2D140
88718-2D150
88718-2J170
88718-35180
88718-6A650
88897-50020
88897-60110
90091-20619
90099-00264
90099-04117
90099-04119
90119-06192
90179-06274
90179-06293
91651-40612
91651-40630
91651-F0616
91651-F0625
Linked diagrams
8714
8719

ILLUST NO. 2 OF 3(0209- )

Click highlighted areas on diagram

REAR

Part #	Description	Period	Qty
88726C - PIPE, COOLER REFRIGERANT LIQUID, C
88716-6B460	LJ120,RZJ120..GCC,GEN AIR CONDITIONER-DUAL MANUAL	09/2002 - 11/2002	1
88716-6B460	LJ120,RZJ120..GCC,GEN AIR CONDITIONER-DUAL MANUAL	11/2002 - 06/2003	2
88716-6B620	LJ120,RZJ120..GCC,GEN AIR CONDITIONER-DUAL MANUAL	06/2003 - 07/2003	1
88716-6B620	LJ120,RZJ120,TRJ120..GCC,GEN AIR CONDITIONER-DUAL MANUAL	07/2003 - 08/2009	1
88726D - PIPE, COOLER REFRIGERANT LIQUID, D
88716-6B420	LJ120,RZJ120,TRJ120..GCC,GEN AIR CONDITIONER-DUAL MANUAL	09/2002 - 08/2009	1
88727C - PIPE, COOLER REFRIGERANT SUCTION, C
88712-6A240	LJ120,RZJ120..GCC,GEN AIR CONDITIONER-DUAL MANUAL	09/2002 - 06/2003	1
88712-6A260	LJ120,RZJ120,TRJ120..GCC,GEN AIR CONDITIONER-DUAL MANUAL	07/2003 - 01/2006	1
88711-60730	LJ120,TRJ120 AIR CONDITIONER-DUAL MANUAL	01/2006 - 08/2009	1
88727D - PIPE, COOLER REFRIGERANT SUCTION, D
88717-6A550	LJ120,RZJ120..GCC,GEN AIR CONDITIONER-DUAL MANUAL	09/2002 - 11/2002	1
88717-6A550	LJ120,RZJ120..GCC,GEN AIR CONDITIONER-DUAL MANUAL	11/2002 - 06/2003	2
88717-6A690	LJ120,RZJ120..GCC,GEN AIR CONDITIONER-DUAL MANUAL	06/2003 - 07/2003	1
88717-6A750	LJ120,RZJ120,TRJ120..GCC,GEN AIR CONDITIONER-DUAL MANUAL	07/2003 - 01/2006	1
88715-60190	LJ120,TRJ120 AIR CONDITIONER-DUAL MANUAL	01/2006 - 08/2009	1
Common parts
88718-2J230
88718-6A600
88718-6A640
88718-6A720
88718-6A730
88718-6A740
88718-6A770
90179-06161
Linked diagrams
8714

ILLUST NO. 2 OF 3(0209- )

Click highlighted areas on diagram

REAR-W(COOL BOX)

Part #	Description	Period	Qty
88726C - PIPE, COOLER REFRIGERANT LIQUID, C
88716-6B460	LJ120,RZJ120..GCC,GEN AIR CONDITIONER-DUAL MANUAL	09/2002 - 11/2002	1
88716-6B460	LJ120,RZJ120..GCC,GEN AIR CONDITIONER-DUAL MANUAL	11/2002 - 06/2003	2
88716-6B620	LJ120,RZJ120..GCC,GEN AIR CONDITIONER-DUAL MANUAL	06/2003 - 07/2003	1
88716-6B620	LJ120,RZJ120,TRJ120..GCC,GEN AIR CONDITIONER-DUAL MANUAL	07/2003 - 08/2009	1
88726D - PIPE, COOLER REFRIGERANT LIQUID, D
88716-6B420	LJ120,RZJ120,TRJ120..GCC,GEN AIR CONDITIONER-DUAL MANUAL	09/2002 - 08/2009	1
88727C - PIPE, COOLER REFRIGERANT SUCTION, C
88712-6A240	LJ120,RZJ120..GCC,GEN AIR CONDITIONER-DUAL MANUAL	09/2002 - 06/2003	1
88712-6A260	LJ120,RZJ120,TRJ120..GCC,GEN AIR CONDITIONER-DUAL MANUAL	07/2003 - 01/2006	1
88711-60730	LJ120,TRJ120 AIR CONDITIONER-DUAL MANUAL	01/2006 - 08/2009	1
88727D - PIPE, COOLER REFRIGERANT SUCTION, D
88717-6A550	LJ120,RZJ120..GCC,GEN AIR CONDITIONER-DUAL MANUAL	09/2002 - 11/2002	1
88717-6A550	LJ120,RZJ120..GCC,GEN AIR CONDITIONER-DUAL MANUAL	11/2002 - 06/2003	2
88717-6A690	LJ120,RZJ120..GCC,GEN AIR CONDITIONER-DUAL MANUAL	06/2003 - 07/2003	1
88717-6A750	LJ120,RZJ120,TRJ120..GCC,GEN AIR CONDITIONER-DUAL MANUAL	07/2003 - 01/2006	1
88715-60190	LJ120,TRJ120 AIR CONDITIONER-DUAL MANUAL	01/2006 - 08/2009	1
Common parts
88578-60260
88688-6A680
88688-6A690
88718-2J230
88718-6A600
88718-6A630
88718-6A730
88718-6A740
88718-6A770
90179-06161
93319-14012
Linked diagrams
8714

ILLUST NO. 3 OF 3(0209- )

Click highlighted areas on diagram

O-RING

Part #	Description	Period	Qty	Price
Common parts
90099-14119
90099-14120
90099-14121
90099-14122

LJ120L-GKMEE (2002)

ILLUST NO. 1 OF 3(0209- )LJ12#..LHD

ILLUST NO. 1 OF 3(0209- )LJ12#

ILLUST NO. 2 OF 3(0209- )

ILLUST NO. 2 OF 3(0209- )

ILLUST NO. 3 OF 3(0209- )
