KZJ120R-GKPETQ (2002)

Toyota Land Cruiser Prado

Production Sep 2002 - Aug 2009
Engine 1KZTE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0209- )KZJ120..ARL

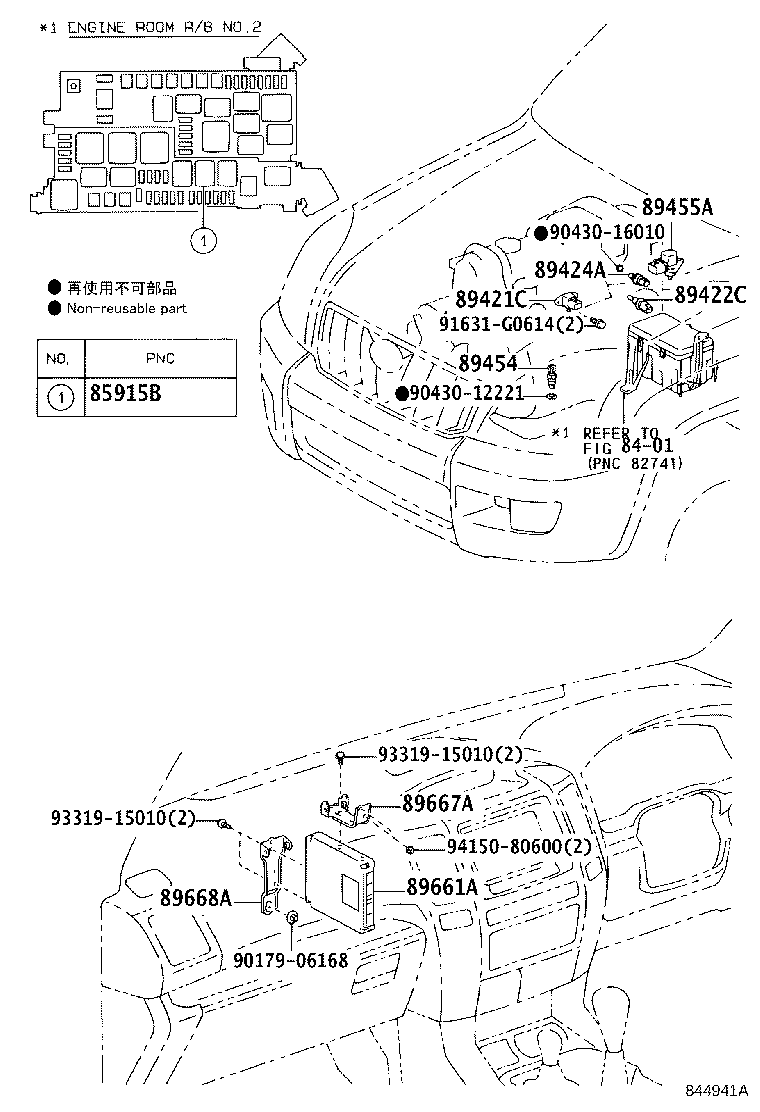

Click highlighted areas on diagram

diagram 8401 85915B 89421C 89422C 89424A 89454 89455A 89661A 89667A 89668A 9017906168 9043012221 9043016010 91631G0614 9331915010 9331915010 9415080600
Part # Description Qty Price
85915B - RELAY, MAIN (FOR DIESEL TURBO)
90987-02027

KZJ120

 1
90987-02022

KZJ120

 1
89421C - SENSOR, TURBO PRESSURE (FOR DIESEL TURBO)
89421-60030

KZJ120

 1
89422C - SENSOR, DIESEL ENGINE WATER TEMPERATURE
89422-35010

KZJ120,LJ12#

 1
89424A - SENSOR, INLET AIR TEMPERATURE (FOR DIESEL TURBO)
89424-60010

KDJ120,KZJ120

 1
89454 - SENSOR, FUEL TEMPERATURE
89454-60010

KZJ120,LJ12#

 1
89455A - SENSOR, EGR VALVE POSITION
89455-35020

KDJ120,KZJ120..ARL

 1
89661A - COMPUTER, ENGINE CONTROL
89661-6A030

KZJ120..4FC..ARL

 1
89666-60880

KZJ120..4FC..ARL

SOUTH AFRICA SPEC

 1
89666-60880

KZJ120..4FC..ARL

MOZANBEEK SPEC

 1
89667A - BRACKET, ENGINE CONTROL COMPUTER, NO.1
89667-60240

KZJ120,LJ12#

 1
89668A - BRACKET, ENGINE CONTROL COMPUTER, NO.2
89668-60240

KZJ120,LJ12#

 1
Common parts
90179-06168
90430-12221
90430-16010
91631-G0614
93319-15010
94150-80600
Linked diagrams
8401
