KZJ120R-GKPETQ (2002)

Toyota Land Cruiser Prado

Production Sep 2002 - Aug 2009
Engine 1KZTE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0209- )1KZTE

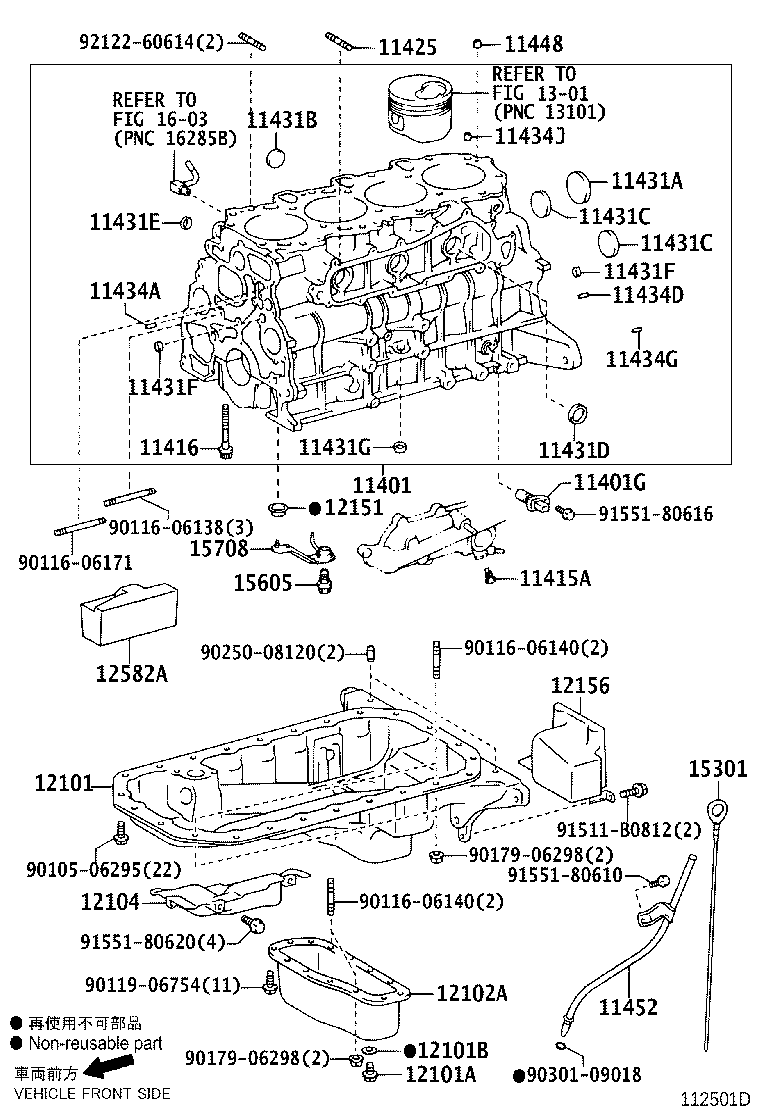

Click highlighted areas on diagram

diagram 11401 11401G 11415A 11416 11425 11431A 11431B 11431C 11431C 11431D 11431E 11431F 11431F 11431G 11434A 11434D 11434G 11434J 11448 11452 12101 12101A 12101B 12102A 12104 12151 12156 12582A 1301 15301 15605 15708 1603 9010506295 9011606138 9011606140 9011606140 9011606171 9011906754 9017906298 9017906298 9025008120 9030109018 91511B0812 9155180610 9155180616 9155180620 9212260614
Part # Description Qty Price
11401 - BLOCK SUB-ASSY, CYLINDER
11401-69839

1KZTE..KZJ120

 1
11401-80737

1KZTE..KZJ120

 1
11401-80766

1KZTE..KZJ120

 1
11401G - SENSOR, CRANK POSITION
90919-05005

1KZTE..KZJ120

 1
11415A - PLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)
90910-09087

1KZTE..KZJ120

 1
11416 - BOLT(FOR CRANKSHAFT BEARING CAP SET)
90910-02113

1K#..KDJ120,KZJ120

 10
11425 - BOLT, STUD(FOR OIL FILTER)
90116-06171

1K#..KDJ120,KZJ120

 2
11431A - PLUG, TIGHT, NO.1(FOR CYLINDER BLOCK)
96411-64500

1K#..KDJ120,KZJ120

 1
11431B - PLUG, TIGHT, NO.2(FOR CYLINDER BLOCK)
96411-63500

1K#..KDJ120,KZJ120

 3
11431C - PLUG, TIGHT, NO.3(FOR CYLINDER BLOCK)
96411-64000

1K#..KDJ120,KZJ120

 2
11431C - PLUG, TIGHT, NO.3(FOR CYLINDER BLOCK)
96411-64000

1K#..KDJ120,KZJ120

 2
11431D - PLUG, TIGHT, NO.4(FOR CYLINDER BLOCK)
90331-35004

1K#..KDJ120,KZJ120

 3
11431E - PLUG, TIGHT, NO.5(FOR CYLINDER BLOCK)
96411-62000

1K#..KDJ120,KZJ120

 1
11431F - PLUG, TIGHT, NO.6(FOR CYLINDER BLOCK)
96411-61800

1K#..KDJ120,KZJ120

 2
11431F - PLUG, TIGHT, NO.6(FOR CYLINDER BLOCK)
96411-61800

1K#..KDJ120,KZJ120

 2
11431G - PLUG, TIGHT
90331-14006

1K#..KDJ120,KZJ120

 1
11434A - PIN, STRAIGHT(FOR TIMING GEAR COVER SET)
90250-08120

1K#..KDJ120,KZJ120

L=18,OD=8

 2
11434D - PIN, STRAIGHT(FOR ENGINE REAR OIL SEAL)
90250-06068

1K#..KDJ120,KZJ120

L=11,OD=6

 2
11434G - PIN, STRAIGHT(FOR END PLATE)
90250-10192

1K#..KDJ120,KZJ120

 2
11434J - PIN, RING (FOR CYLINDER HEAD SET)
90253-15016

1K#..KDJ120,KZJ120

 2
11448 - ORIFICE, CYLINDER BLOCK OIL
11448-67010

1K#..KDJ120,KZJ120

 1
11452 - GUIDE, OIL LEVEL GAGE
11452-67050

1KZTE..KZJ120

 1
12101 - PAN SUB-ASSY, OIL
12101-30080

1K#..KDJ120,KZJ120

 1
12101A - PLUG(FOR OIL PAN DRAIN)
90341-12012

1K#..KDJ120,KZJ120

 1
12101B - GASKET(FOR OIL PAN DRAIN PLUG)
90430-12031

1K#..KDJ120,KZJ120

 1
12102A - PAN SUB-ASSY, OIL, NO.2
12102-30020

1K#..KDJ120,KZJ120

 1
12104 - COVER SUB-ASSY, OIL PAN, NO.1
12104-30010

1K#..KDJ120,KZJ120

 1
12151 - GASKET, OIL PAN
12151-30020

1K#..KDJ120,KZJ120

 1
12156 - INSULATOR, OIL PAN
12156-30010

1K#..KDJ120,KZJ120

 1
12582A - INSULATOR, CYLINDER BLOCK, NO.2
12582-67010

1KZTE..KZJ120

 1
15301 - GAGE SUB-ASSY, OIL LEVEL
15301-67031

1K#..KDJ120,KZJ120

 1
15605 - VALVE SUB-ASSY, OIL CHECK
15605-54010

1KZTE..KZJ120

 4
15708 - NOZZLE SUB-ASSY, OIL, NO.1
15708-30011

1K#..KDJ120,KZJ120

 4
15708-30010

1KZTE..KZJ120

 4
Common parts
90105-06295
90116-06138
90116-06140
90116-06171
90119-06754
90179-06298
90250-08120
90301-09018
91511-B0812
91551-80610
91551-80616
91551-80620
92122-60614
