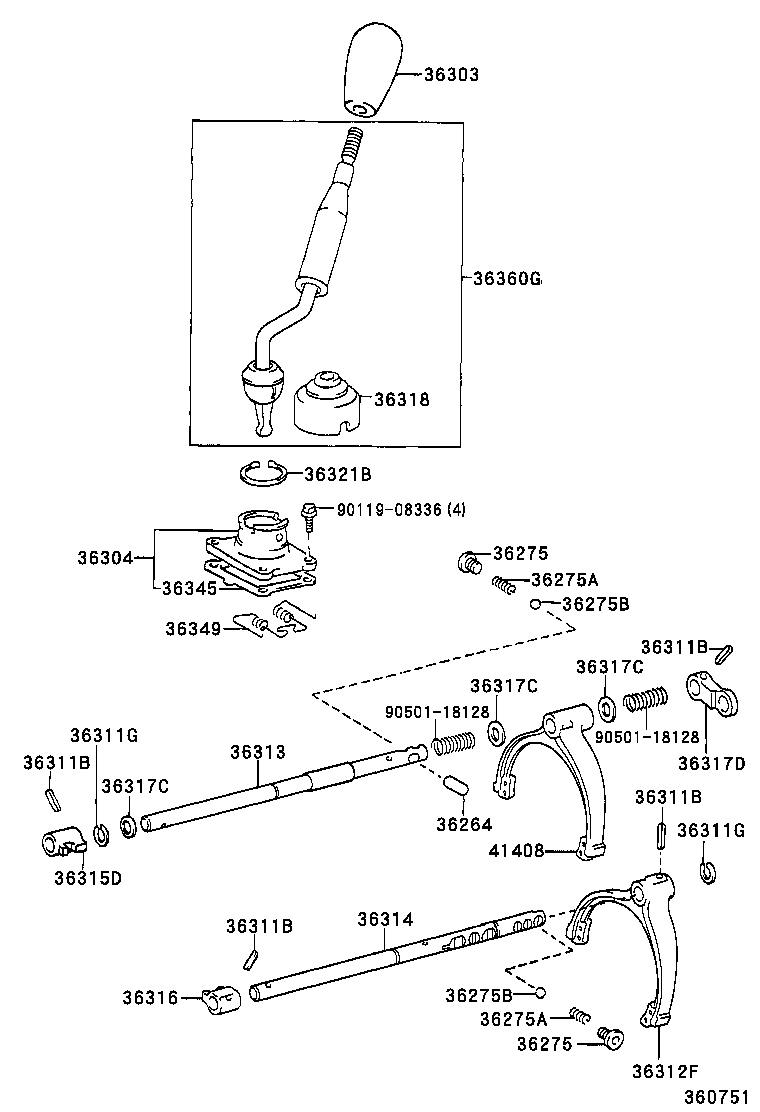

KZJ120L-GKPGT (2002)
Toyota Land Cruiser Prado
(0209- )KDJ120,KZJ120 ; (0209- )RZJ12#,TRJ12#..4FC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 36264 - PIN OR ROLLER, SHIFT INTER-LOCK | ||||
| 90250-10020 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN L=25.7,OD=9.53 |
1 | ||
| 36275 - PLUG, SHIFT DETENT BALL SPRING | ||||
| 90341-12014 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN |
2 | ||
| 36275 - PLUG, SHIFT DETENT BALL SPRING | ||||
| 90341-12014 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN |
2 | ||
| 36275A - SPRING, COMPRESSION (FOR SHIFT DETENT BALL) | ||||
| 90501-16116 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN L=23 |
2 | ||
| 36275A - SPRING, COMPRESSION (FOR SHIFT DETENT BALL) | ||||
| 90501-16116 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN L=23 |
2 | ||
| 36303 - KNOB SUB-ASSY, SHIFT LEVER | ||||
| 36303-60290C0 |
GRJ12#,KDJ120,KZJ120..VX..(ARL,GCC,GEN) BLACK,TRIM0#,1# |
1 | ||
| 36304 - RETAINER SUB-ASSY, TRANSFER CONTROL SHIFT LEVER | ||||
| 36304-60040 |
KDJ120,KZJ120;RZJ12#,TRJ12#..4FC |
1 | ||
| 36311B - PIN, SLOTTED SPRING (FOR TRANSFER SHIFT FORK) | ||||
| 90254-05001 |
KDJ120,KZJ120;RZJ12#,TRJ12#..4FC L=22 |
4 | ||
| 36311B - PIN, SLOTTED SPRING (FOR TRANSFER SHIFT FORK) | ||||
| 90254-05001 |
KDJ120,KZJ120;RZJ12#,TRJ12#..4FC L=22 |
4 | ||
| 36311B - PIN, SLOTTED SPRING (FOR TRANSFER SHIFT FORK) | ||||
| 90254-05001 |
KDJ120,KZJ120;RZJ12#,TRJ12#..4FC L=22 |
4 | ||
| 36311B - PIN, SLOTTED SPRING (FOR TRANSFER SHIFT FORK) | ||||
| 90254-05001 |
KDJ120,KZJ120;RZJ12#,TRJ12#..4FC L=22 |
4 | ||
| 36311G - RING, SHAFT SNAP (FOR TRANSFER GEAR SHIFT FORK) | ||||
| 90520-13002 |
GRJ12#,KDJ120,KZJ120,RZJ12#,TRJ12#..ARL,GCC,GEN |
2 | ||
| 36311G - RING, SHAFT SNAP (FOR TRANSFER GEAR SHIFT FORK) | ||||
| 90520-13002 |
GRJ12#,KDJ120,KZJ120,RZJ12#,TRJ12#..ARL,GCC,GEN |
2 | ||
| 36312F - FORK, TRANSFER GEAR SHIFT, NO.2 | ||||
| 36302-60190 |
GRJ12#,KDJ120,KZJ120,RZJ12#,TRJ12#..ARL,GCC,GEN |
1 | ||
| 36313 - SHAFT, TRANSFER FRONT DRIVE SHIFT | ||||
| 36313-60150 |
RZJ12#,TRJ12#..4FC;KDJ120,KZJ120..4FC,5F,6F |
1 | ||
| 36314 - SHAFT, TRANSFER HIGH AND LOW SHIFT FORK | ||||
| 36314-60130 |
RZJ12#,TRJ12#..4FC;KDJ120,KZJ120..4FC,5F,6F |
1 | ||
| 36315D - HEAD, TRANSFER GEAR SHIFT, NO.1 | ||||
| 36315-60030 |
GRJ12#,KDJ120,KZJ120,RZJ12#,TRJ12#..ARL,GCC,GEN |
1 | ||
| 36316 - HEAD, TRANSFER GEAR SHIFT, NO.2 | ||||
| 36316-60010 |
KDJ120,KZJ120;RZJ12#,TRJ12#..4FC |
1 | ||
| 36317C - STOPPER, TRANSFER SHIFT SHAFT | ||||
| 36317-35020 |
GRJ12#,KDJ120,KZJ120,RZJ12#,TRJ12#..ARL,GCC,GEN |
3 | ||
| 36317C - STOPPER, TRANSFER SHIFT SHAFT | ||||
| 36317-35020 |
GRJ12#,KDJ120,KZJ120,RZJ12#,TRJ12#..ARL,GCC,GEN |
3 | ||
| 36317C - STOPPER, TRANSFER SHIFT SHAFT | ||||
| 36317-35020 |
GRJ12#,KDJ120,KZJ120,RZJ12#,TRJ12#..ARL,GCC,GEN |
3 | ||
| 36317D - STOPPER, NO.2, TRANSFER SHIFT SHAFT | ||||
| 36317-60020 |
GRJ12#,KDJ120,KZJ120,RZJ12#,TRJ12#..ARL,GCC,GEN |
1 | ||
| 36318 - BOOT, TRANSFER FRONT DRIVE SHIFT | ||||
| 33555-35190 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN |
1 | ||
| 36321B - RING, HOLE SNAP (FOR TRANSFER FRONT DRIVE SHIFT LEVER) | ||||
| 90521-49003 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN |
1 | ||
| 36345 - GASKET, TRANSFER CONTROL SHIFT LEVER RETAINER | ||||
| 36345-35040 |
KDJ120,KZJ120;RZJ12#,TRJ12#..4FC |
1 | ||
| 36349 - SPRING, TRANSFER SELECT RETURN | ||||
| 36349-60020 |
KDJ120,KZJ120;RZJ12#,TRJ12#..4FC |
1 | ||
| 36360G - LEVER ASSY, TRANSFER HIGH & LOW SHIFT | ||||
| 36360-60780 |
GRJ12#,KZJ120..ATM..(GCC,GEN) |
1 | ||
| 41408 - FORK SUB-ASSY, CENTER DIFFERENTIAL LOCK | ||||
| 41408-60030 |
GRJ12#,KDJ120,KZJ120,RZJ12#,TRJ12#..ARL,GCC,GEN |
1 | ||
| Common parts | ||||
| 90119-08336 | ||||
| 90501-18128 | ||||
(0301-0311)GRJ12#..ARL,GCC,GEN ; (0311- )GRJ120,TRJ12#..5F..GCC,GEN ; (0311-
W(ABS & VSC & ACTIVE TRC)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 36275 - PLUG, SHIFT DETENT BALL SPRING | ||||
| 90341-12014 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN |
2 | ||
| 36275A - SPRING, COMPRESSION (FOR SHIFT DETENT BALL) | ||||
| 90501-16116 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN L=23 |
2 | ||
| 36303 - KNOB SUB-ASSY, SHIFT LEVER | ||||
| 36303-60290C0 |
GRJ12#,KDJ120,KZJ120..VX..(ARL,GCC,GEN) BLACK,TRIM0#,1# |
1 | ||
| 36304 - RETAINER SUB-ASSY, TRANSFER CONTROL SHIFT LEVER | ||||
| 36304-60040 |
KDJ120,KZJ120;RZJ12#,TRJ12#..4FC |
1 | ||
| 36311B - PIN, SLOTTED SPRING (FOR TRANSFER SHIFT FORK) | ||||
| 90254-05001 |
KDJ120,KZJ120;RZJ12#,TRJ12#..4FC L=22 |
4 | ||
| 36311G - RING, SHAFT SNAP (FOR TRANSFER GEAR SHIFT FORK) | ||||
| 90520-13002 |
GRJ12#,KDJ120,KZJ120,RZJ12#,TRJ12#..ARL,GCC,GEN |
2 | ||
| 36311G - RING, SHAFT SNAP (FOR TRANSFER GEAR SHIFT FORK) | ||||
| 90520-13002 |
GRJ12#,KDJ120,KZJ120,RZJ12#,TRJ12#..ARL,GCC,GEN |
2 | ||
| 36311G - RING, SHAFT SNAP (FOR TRANSFER GEAR SHIFT FORK) | ||||
| 90520-13002 |
GRJ12#,KDJ120,KZJ120,RZJ12#,TRJ12#..ARL,GCC,GEN |
2 | ||
| 36312F - FORK, TRANSFER GEAR SHIFT, NO.2 | ||||
| 36302-60190 |
GRJ12#,KDJ120,KZJ120,RZJ12#,TRJ12#..ARL,GCC,GEN |
1 | ||
| 36314 - SHAFT, TRANSFER HIGH AND LOW SHIFT FORK | ||||
| 36314-60130 |
RZJ12#,TRJ12#..4FC;KDJ120,KZJ120..4FC,5F,6F |
1 | ||
| 36318 - BOOT, TRANSFER FRONT DRIVE SHIFT | ||||
| 33555-35190 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN |
1 | ||
| 36321B - RING, HOLE SNAP (FOR TRANSFER FRONT DRIVE SHIFT LEVER) | ||||
| 90521-49003 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN |
1 | ||
| 36360G - LEVER ASSY, TRANSFER HIGH & LOW SHIFT | ||||
| 36360-60780 |
GRJ12#,KZJ120..ATM..(GCC,GEN) |
1 | ||
| 41408 - FORK SUB-ASSY, CENTER DIFFERENTIAL LOCK | ||||
| 41408-60030 |
GRJ12#,KDJ120,KZJ120,RZJ12#,TRJ12#..ARL,GCC,GEN |
1 | ||
| Common parts | ||||
| 90105-07002 | ||||
| 90119-08336 | ||||
| 90447-08170 | ||||
| 90447-08176 | ||||
| 91511-C0828 | ||||
| Linked diagrams | ||||
| 3609 | ||||
| 8202 | ||||
