KZJ120L-GKPGT (2002)

Toyota Land Cruiser Prado

Production Sep 2002 - Aug 2009
Engine 1KZTE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0209- )KZJ120..4FC

Click highlighted areas on diagram

A343F

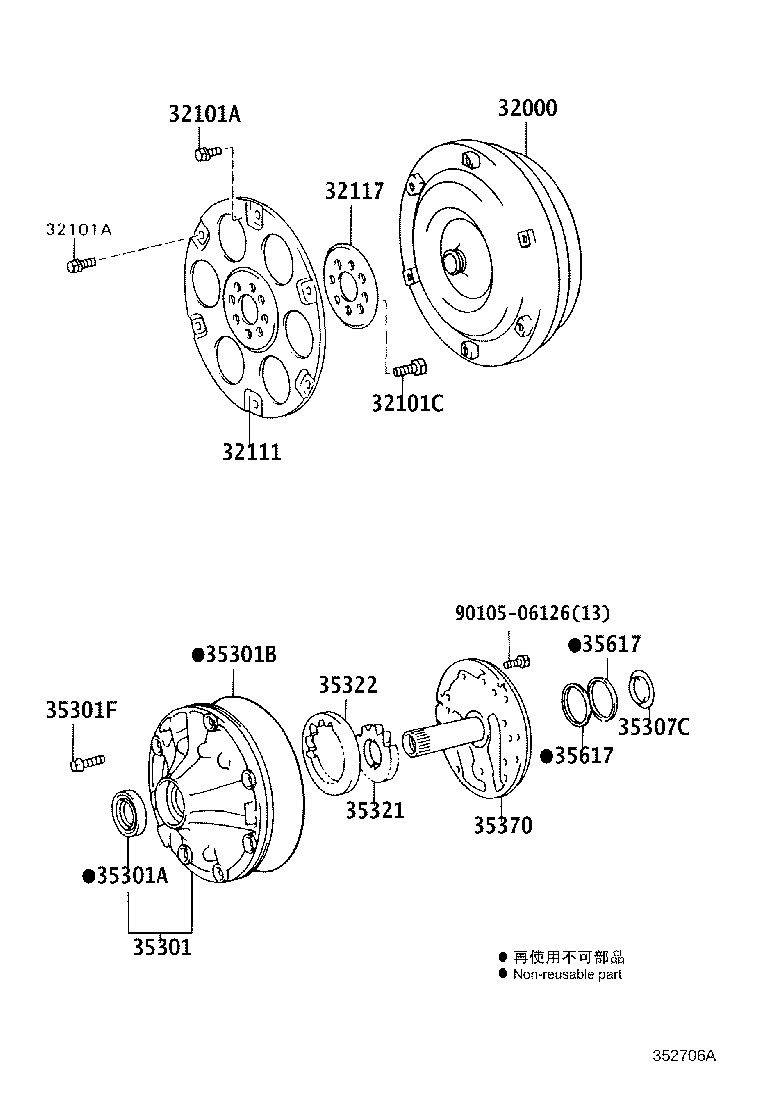

diagram 32000 32101A 32101C 32111 32117 35301 35301A 35301B 35301F 35307C 35321 35322 35370 35617 35617 9010506126
Part # Description Qty Price
32000 - CONVERTER ASSY, TORQUE
32000-35240

KZJ120..4FC

 1
32101A - BOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)
90105-10546

KDJ120,KZJ120..ATM

*10-1.5PX11-8,BLACK

 1
90105-10414

KZJ120..4FC

*10-1.5PX11-7.9,BLACK

 1
90105-10413

KDJ120,KZJ120..ATM

*10-1.5PX11-8,SILVER WHITE

 5
32101C - BOLT, HEXAGON(FOR DRIVE PLATE SETTING)
90105-13010

KDJ120,KZJ120..ATM

*13-1.5PX43.5-23.5

 8
32111 - PLATE, PUMP IMPELLER DRIVE
32111-35030

KDJ120,KZJ120..ATM

 1
32117 - SPACER, DRIVE PLATE, REAR
32117-60050

KDJ120,KZJ120..ATM

 1
35301 - BODY SUB-ASSY, FRONT OIL PUMP
35301-35010

KZJ120,RZJ12#..4FC

 1
35301A - SEAL, OIL (FOR FRONT OIL PUMP)
90311-38029

KZJ120,RZJ12#..4FC

 1
90311-38087

GRJ12#,KZJ120,RZJ12#,TRJ12#..4FC..(ARL,GCC,GEN)

 1
35301B - RING, O (FOR FRONT OIL PUMP BODY)
90301-99033

GRJ12#,KZJ120,RZJ12#,TRJ12#..4FC..(ARL,GCC,GEN)

 1
35301F - BOLT (FOR FRONT OIL PUMP SETTING)
90105-08091

GRJ12#,KZJ120,RZJ12#,TRJ12#..4FC..(ARL,GCC,GEN)

*8-1.25PX35-35

 7
35307C - RACE, THRUST BEARING (FOR STATOR SHAFT)
35789-30340

GRJ12#,KZJ120,RZJ12#,TRJ12#..4FC..(ARL,GCC,GEN)

T=3.7

 1
35321 - GEAR, FRONT OIL PUMP DRIVE
35321-12050

KZJ120,RZJ12#..4FC

T=10.721-10.730

 1
35321-12020

KZJ120,RZJ12#..4FC

T=10.690-10.699

 1
35321-12040

KZJ120,RZJ12#..4FC

T=10.710-10.720

 1
35321-12030

KZJ120,RZJ12#..4FC

T=10.700-10.709

 1
35321-12060

KZJ120,RZJ12#..4FC

T=10.731-10.740

 1
35322 - GEAR, FRONT OIL PUMP DRIVEN
35322-12020

KZJ120,RZJ12#..4FC

T=10.700-10.709

 1
35322-12010

KZJ120,RZJ12#..4FC

T=10.690-10.699

 1
35322-12030

KZJ120,RZJ12#..4FC

T=10.710-10.720

 1
35322-12040

KZJ120,RZJ12#..4FC

T=10.721-10.730

 1
35322-12050

KZJ120,RZJ12#..4FC

T=10.731-10.740

 1
35370 - SHAFT ASSY, STATOR
35370-30031

KZJ120,RZJ12#..4FC

 1
35617 - RING, CLUTCH DRUM OIL SEAL
35617-30020

GRJ12#,KZJ120,RZJ12#,TRJ12#..4FC..(ARL,GCC,GEN)

 2
35617 - RING, CLUTCH DRUM OIL SEAL
35617-30020

GRJ12#,KZJ120,RZJ12#,TRJ12#..4FC..(ARL,GCC,GEN)

 2
Common parts
90105-06126
