KDJ150R-GKFEY (2015)

Toyota Land Cruiser Prado

Production Jun 2015 - Aug 2017
Engine 1KDFTV
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

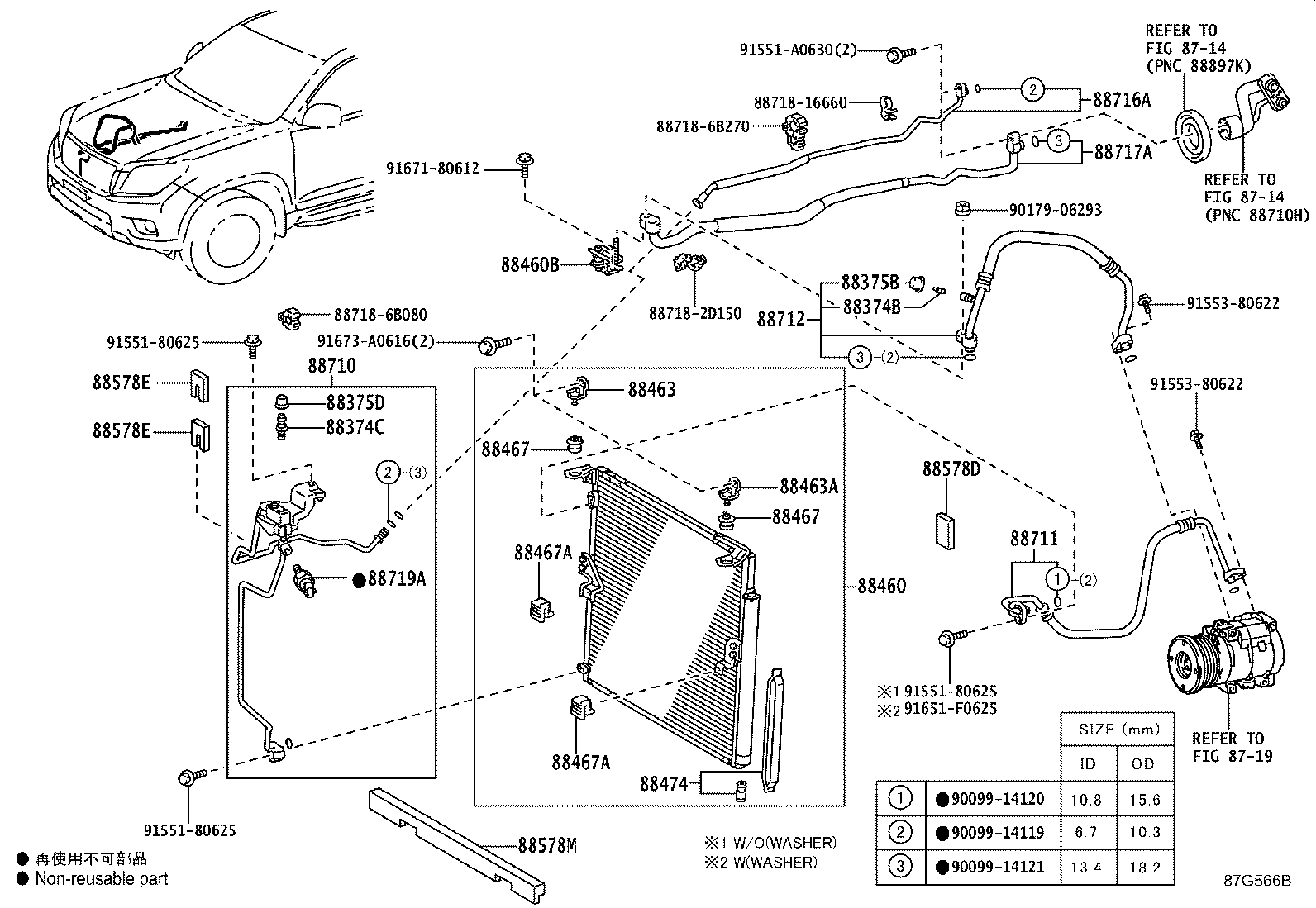

ILLUST NO. 2 OF 3(0908- )KDJ150..GEN

Click highlighted areas on diagram

FRONT(Q/J & *COS)

diagram 8714 8714 8719 88374B 88374C 88375B 88375D 88460 88463 88463A 88467 88467 88467A 88467A 88474 88578D 88578E 88578E 88578M 886886B070 88707 88710 88711 88712 88716A 887182D140 887182D150 887182D150 887186B080 887186B080 88719A 9009914119 9009914120 9009914121 9017906293 9017908249 9155180625 9155180625 9155180625 9155380622 9155380622 91651F0625 91673A0616
Part # Description Qty Price
88374B - VALVE, SERVICE, NO.1
88374-30010

GDJ150,GRJ150,KDJ150,LJ150,TRJ15#

 1
88374-30010

TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155

 1
88374C - VALVE, SERVICE, NO.2
88374-30010

GDJ150,GRJ150,KDJ150,LJ150,TRJ15#

 1
88374-30010

TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155

 1
88375B - CAP, SERVICE VALVE, NO.1
88375-30290

GDJ150,GRJ150,KDJ150,LJ150,TRJ15#

 1
88375-30290

TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155

 1
88375D - CAP, SERVICE VALVE, NO.2
88375-30280

TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155

 1
88375-30280

GDJ150,GRJ150,KDJ150,LJ150,TRJ15#

 1
88460 - CONDENSER ASSY, COOLER
88460-60420

KDJ150..5FC..GCC;KDJ150,LJ150..ARL,GEN

 1
88460-60420

KDJ150,LJ150

 1
88463 - BRACKET, COOLER CONDENSER, NO.1
88463-60010

GDJ150,GRJ150,KDJ150,LJ150,TRJ15#

 1
88463-60010

TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155

 1
88463A - BRACKET, COOLER CONDENSER, NO.2
88463-60020

TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155

 1
88463-60020

GDJ150,GRJ150,KDJ150,LJ150,TRJ15#

 1
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-28050

TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155

 2
88467-28050

GDJ150,GRJ150,KDJ150,LJ150,TRJ15#

 2
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-28050

TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155

 2
88467-28050

GDJ150,GRJ150,KDJ150,LJ150,TRJ15#

 2
88467A - CUSHION, COOLER CONDENSER, NO.2
88467-35080

GDJ150,GRJ150,KDJ150,LJ150,TRJ15#

 2
88467-35080

TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155

 2
88467A - CUSHION, COOLER CONDENSER, NO.2
88467-35080

GDJ150,GRJ150,KDJ150,LJ150,TRJ15#

 2
88467-35080

TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155

 2
88474 - DRYER, COOLER
88474-17010

GDJ150,GRJ150,KDJ150,LJ150,TRJ15#

 1
88474-17010

TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155

 1
88578D - PACKING, COOLER PIPE, NO.1
88578-60460

GRJ150,KDJ150,LJ150,TRJ15#

 1
88578-60550

GRJ150,KDJ150,LJ150,TRJ15#

 1
88578E - PACKING, COOLER PIPE, NO.2
88578-60470

GRJ150,KDJ150,LJ150,TRJ15#

 2
88578-60540

GRJ150,KDJ150,LJ150,TRJ15#

 2
88578E - PACKING, COOLER PIPE, NO.2
88578-60470

GRJ150,KDJ150,LJ150,TRJ15#

 2
88578-60540

GRJ150,KDJ150,LJ150,TRJ15#

 2
88578M - PACKING, COOLING PIPE, NO.3
88578-60480

TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155

 1
88578-60480

GDJ150,GRJ150,KDJ150,LJ150,TRJ15#

 1
88710 - TUBE ASSY, AIR CONDITIONER
88710-60A60

KDJ150..ARL,GEN;KDJ150..5FC..GCC

 1
88710-60A60

KDJ150;GRJ150..ARL

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-60890

KDJ150

 1
88711-60890

KDJ150..ARL,GEN

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-6A450

KDJ150..ARL,GEN;KDJ150..5FC..GCC

 1
88712-6A450

KDJ150

 1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-6C540

GRJ150,KDJ150,LJ150..RHD..MTM

 1
88716-60B10

KDJ150,LJ150..RHD

 1
88719A - SENSOR, AIR CONDITIONER PRESSURE
88719-33020

KDJ150;GDJ150,GRJ150..ARL

 1
88719-33020

KDJ150..ARL,GEN;KDJ150..5FC..GCC

 1
Common parts
88688-6B070
88718-2D140
88718-2D150
88718-6B080
90099-14119
90099-14120
90099-14121
90179-06293
90179-08249
91551-80625
91553-80622
91651-F0625
91673-A0616
Linked diagrams
8714
8719

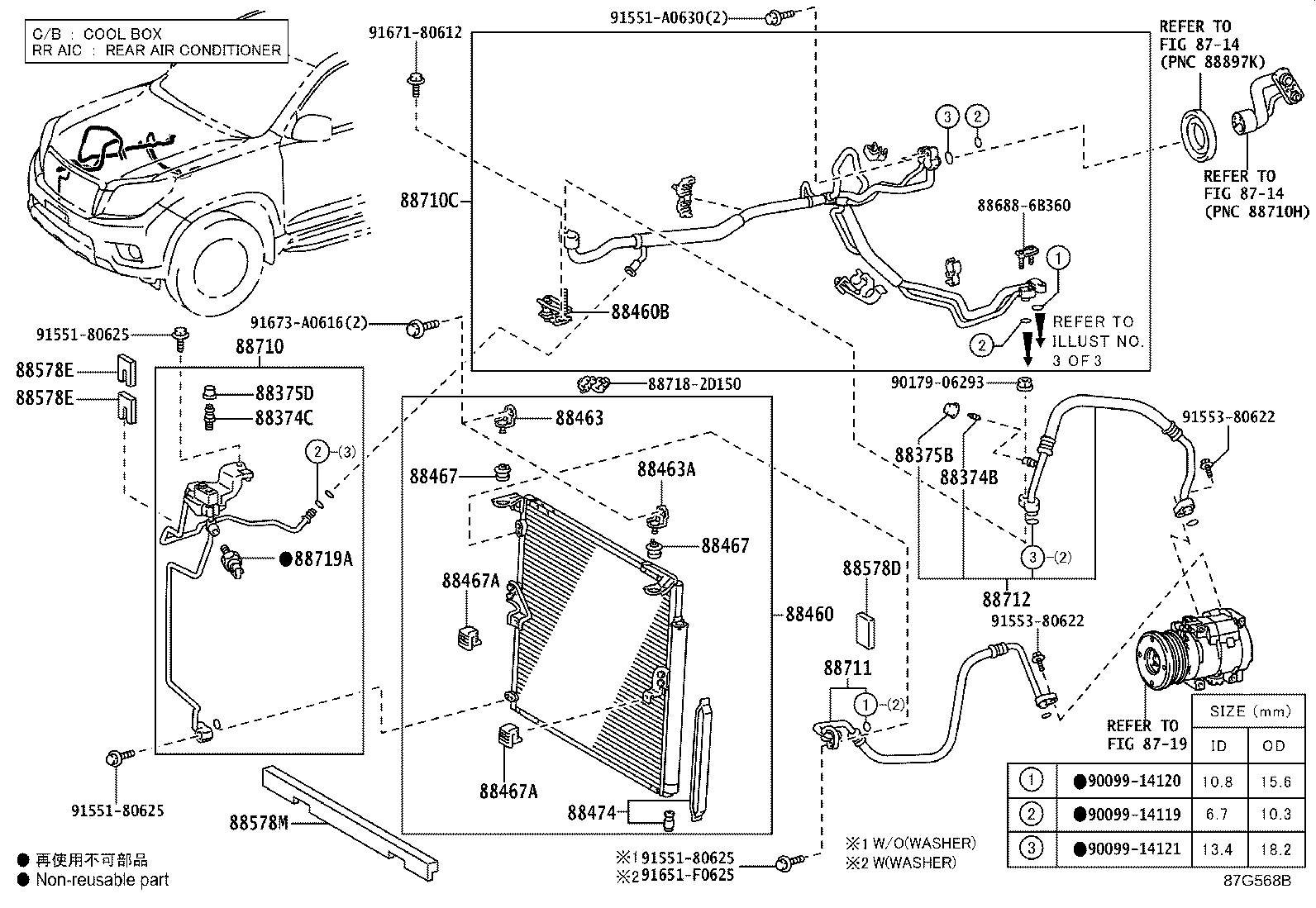

ILLUST NO. 2 OF 3(0908- )KDJ150..GEN

Click highlighted areas on diagram

FRONT(Q/J & *COS & W(C/B))

diagram 8714 8714 8719 88374B 88374C 88375B 88375D 88460 88463 88463A 88467 88467 88467A 88467A 88474 88578D 88578E 88578E 88578M 886886B070 886886B360 88710 88711 88712 88716A 88717A 8871816660 887182D140 887182D150 887182D150 887182J230 887186B080 887186B080 887186B140 887186B150 88719A 9009914119 9009914120 9009914121 9017906293 9017908249 9155180625 9155180625 9155180625 9155380622 9155380622 91651F0625 91673A0616
Part # Description Qty Price
88374B - VALVE, SERVICE, NO.1
88374-30010

GDJ150,GRJ150,KDJ150,LJ150,TRJ15#

 1
88374-30010

TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155

 1
88374C - VALVE, SERVICE, NO.2
88374-30010

GDJ150,GRJ150,KDJ150,LJ150,TRJ15#

 1
88374-30010

TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155

 1
88375B - CAP, SERVICE VALVE, NO.1
88375-30290

GDJ150,GRJ150,KDJ150,LJ150,TRJ15#

 1
88375-30290

TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155

 1
88375D - CAP, SERVICE VALVE, NO.2
88375-30280

TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155

 1
88375-30280

GDJ150,GRJ150,KDJ150,LJ150,TRJ15#

 1
88460 - CONDENSER ASSY, COOLER
88460-60420

KDJ150..5FC..GCC;KDJ150,LJ150..ARL,GEN

 1
88460-60420

KDJ150,LJ150

 1
88463 - BRACKET, COOLER CONDENSER, NO.1
88463-60010

GDJ150,GRJ150,KDJ150,LJ150,TRJ15#

 1
88463-60010

TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155

 1
88463A - BRACKET, COOLER CONDENSER, NO.2
88463-60020

TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155

 1
88463-60020

GDJ150,GRJ150,KDJ150,LJ150,TRJ15#

 1
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-28050

TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155

 2
88467-28050

GDJ150,GRJ150,KDJ150,LJ150,TRJ15#

 2
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-28050

TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155

 2
88467-28050

GDJ150,GRJ150,KDJ150,LJ150,TRJ15#

 2
88467A - CUSHION, COOLER CONDENSER, NO.2
88467-35080

GDJ150,GRJ150,KDJ150,LJ150,TRJ15#

 2
88467-35080

TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155

 2
88467A - CUSHION, COOLER CONDENSER, NO.2
88467-35080

GDJ150,GRJ150,KDJ150,LJ150,TRJ15#

 2
88467-35080

TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155

 2
88474 - DRYER, COOLER
88474-17010

GDJ150,GRJ150,KDJ150,LJ150,TRJ15#

 1
88474-17010

TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155

 1
88578D - PACKING, COOLER PIPE, NO.1
88578-60460

GRJ150,KDJ150,LJ150,TRJ15#

 1
88578-60550

GRJ150,KDJ150,LJ150,TRJ15#

 1
88578E - PACKING, COOLER PIPE, NO.2
88578-60470

GRJ150,KDJ150,LJ150,TRJ15#

 2
88578-60540

GRJ150,KDJ150,LJ150,TRJ15#

 2
88578E - PACKING, COOLER PIPE, NO.2
88578-60470

GRJ150,KDJ150,LJ150,TRJ15#

 2
88578-60540

GRJ150,KDJ150,LJ150,TRJ15#

 2
88578M - PACKING, COOLING PIPE, NO.3
88578-60480

TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155

 1
88578-60480

GDJ150,GRJ150,KDJ150,LJ150,TRJ15#

 1
88710 - TUBE ASSY, AIR CONDITIONER
88710-60A60

KDJ150..ARL,GEN;KDJ150..5FC..GCC

 1
88710-60A60

KDJ150;GRJ150..ARL

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-60890

KDJ150

 1
88711-60890

KDJ150..ARL,GEN

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-6A450

KDJ150..ARL,GEN;KDJ150..5FC..GCC

 1
88712-6A450

KDJ150

 1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-6C540

GRJ150,KDJ150,LJ150..RHD..MTM

 1
88716-60B10

KDJ150,LJ150..RHD

 1
88717A - PIPE, COOLER REFRIGERANT SUCTION, A
88717-6B190

GRJ150,KDJ150..GEN

AIR CONDITIONER-SINGLE(AUTO)&COOL BOX-WITH

 1
88717-6B230

GRJ150,KDJ150,LJ150..RHD..MTM

 1
88717-6B190

GRJ150,KDJ150,LJ150,TRJ15#..GCC,GEN

COOL BOX-WITH

 1
88717-60B20

KDJ150,LJ150..RHD

 1
88719A - SENSOR, AIR CONDITIONER PRESSURE
88719-33020

KDJ150;GDJ150,GRJ150..ARL

 1
88719-33020

KDJ150..ARL,GEN;KDJ150..5FC..GCC

 1
Common parts
88688-6B070
88688-6B360
88718-16660
88718-2D140
88718-2D150
88718-2J230
88718-6B080
88718-6B140
88718-6B150
90099-14119
90099-14120
90099-14121
90179-06293
90179-08249
91551-80625
91553-80622
91651-F0625
91673-A0616
Linked diagrams
8714
8719

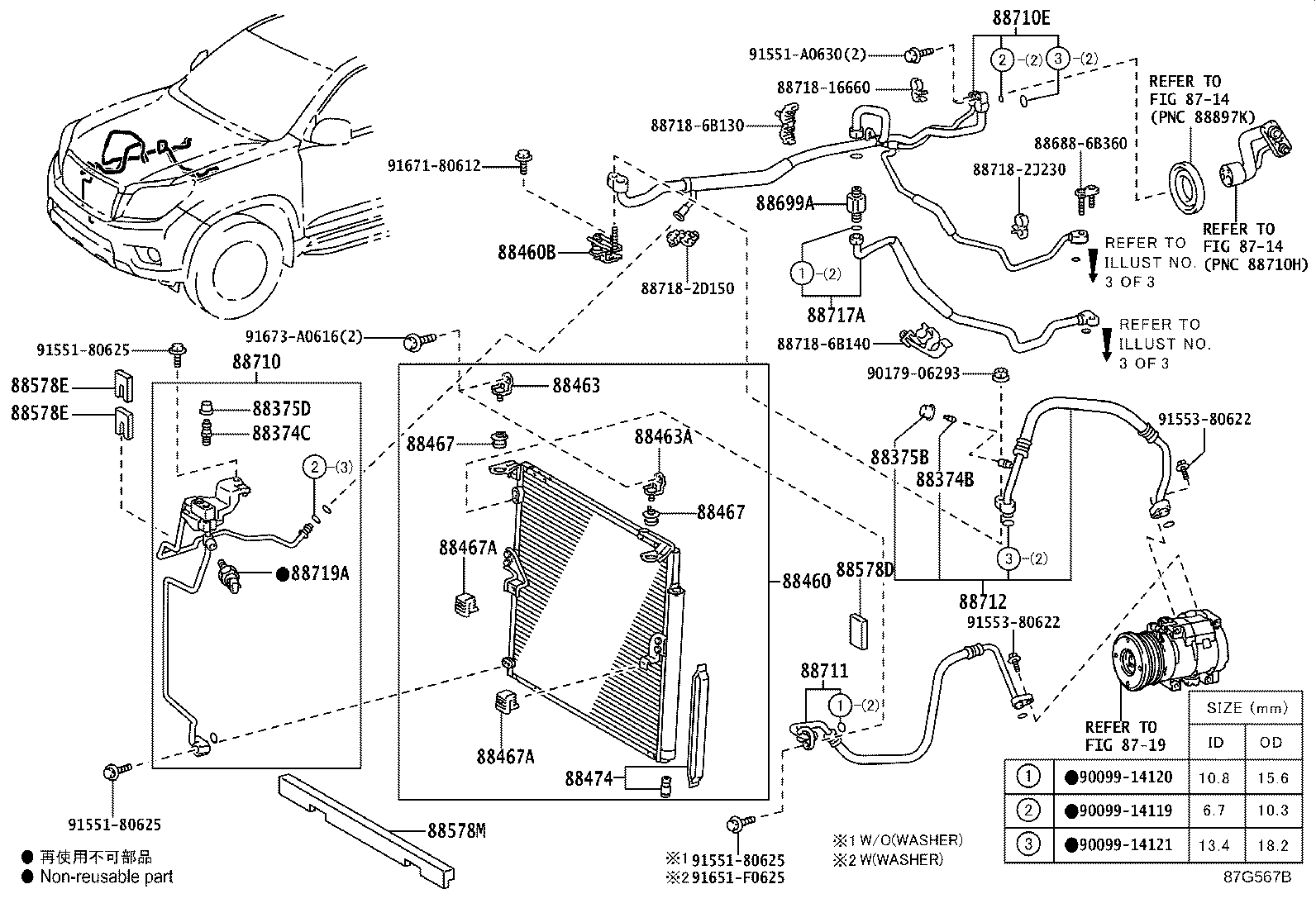

ILLUST NO. 3 OF 3(0908- )

Click highlighted areas on diagram

REAR(W(REAR *AIC) & W(COOL BOX))

diagram 8714 8714 8714 8857860260 886886A680 886886A690 886886B220 88712C 88716C 88716D 88717B 887182J230 887186B280 887186B280 887186B290 887186B300 887186B310 887186B400 887186B400 9009914119 9009914120 9009914121 91551A0630 9331914012 9415180641 9415180641 9415180641 9415180641 9415180641 9415180641 9415180641
Part # Description Qty Price
88712C - HOSE, SUCTION
88712-6A500

GRJ150;TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC

AIR CONDITIONER-DUAL(AUTO)

 1
88712-6A500

GRJ150;TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC

AIR CONDITIONER-DUAL(AUTO)&COOL BOX-WITH

 1
88712-6A500

GRJ150..LHD;GDJ150,KDJ150,TRJ150

AIR CONDITIONER-DUAL(AUTO)&COOL BOX-WITH

 1
88712-6A500

GRJ150..LHD;GDJ150,KDJ150,TRJ150

AIR CONDITIONER-DUAL(AUTO)

 1
88712-6A500

KDJ150..RHD;GRJ150,KDJ150..GCC;GDJ150,LJ150,TRJ150

AIR CONDITIONER-DUAL(MANUAL)

 1
88716C - PIPE, COOLER REFRIGERANT LIQUID, C
88716-6C570

GRJ150;TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC

AIR CONDITIONER-DUAL(AUTO)

 1
88716-6C580

GRJ150;TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC

AIR CONDITIONER-DUAL(AUTO)&COOL BOX-WITH

 1
88716-6C560

GRJ150,KDJ150..GEN

AIR CONDITIONER-SINGLE(AUTO)&COOL BOX-WITH

 1
88716-6C560

GRJ150,KDJ150,LJ150,TRJ15#..GCC,GEN

COOL BOX-WITH

 1
88716-6C580

GRJ150..LHD;GDJ150,KDJ150,TRJ150

AIR CONDITIONER-DUAL(AUTO)&COOL BOX-WITH

 1
88716-6C570

KDJ150..RHD;GRJ150,KDJ150..GCC;GDJ150,LJ150,TRJ150

AIR CONDITIONER-DUAL(MANUAL)

 1
88716-6C570

GRJ150..LHD;GDJ150,KDJ150,TRJ150

AIR CONDITIONER-DUAL(AUTO)

 1
88716D - PIPE, COOLER REFRIGERANT LIQUID, D
88716-6C550

GRJ150;TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC

AIR CONDITIONER-DUAL(AUTO)&COOL BOX-WITH

 1
88716-6C550

KDJ150..RHD;GRJ150,KDJ150..GCC;GDJ150,LJ150,TRJ150

AIR CONDITIONER-DUAL(MANUAL)

 1
88716-6C550

GRJ150;TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC

AIR CONDITIONER-DUAL(AUTO)

 1
88716-6C550

GRJ150..LHD;GDJ150,KDJ150,TRJ150

AIR CONDITIONER-DUAL(AUTO)&COOL BOX-WITH

 1
88716-6C550

GRJ150..LHD;GDJ150,KDJ150,TRJ150

AIR CONDITIONER-DUAL(AUTO)

 1
88717B - PIPE, COOLER REFRIGERANT SUCTION, B
88717-6B240

GRJ150,KDJ150..GEN

AIR CONDITIONER-SINGLE(AUTO)&COOL BOX-WITH

 1
88717-6B250

GRJ150;TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC

AIR CONDITIONER-DUAL(AUTO)

 1
88717-6B260

GRJ150;TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC

AIR CONDITIONER-DUAL(AUTO)&COOL BOX-WITH

 1
88717-6B240

GRJ150,KDJ150,LJ150,TRJ15#..GCC,GEN

COOL BOX-WITH

 1
88717-6B260

GRJ150..LHD;GDJ150,KDJ150,TRJ150

AIR CONDITIONER-DUAL(AUTO)&COOL BOX-WITH

 1
88717-6B250

GRJ150..LHD;GDJ150,KDJ150,TRJ150

AIR CONDITIONER-DUAL(AUTO)

 1
88717-6B250

KDJ150..RHD;GRJ150,KDJ150..GCC;GDJ150,LJ150,TRJ150

AIR CONDITIONER-DUAL(MANUAL)

 1
Common parts
88578-60260
88688-6A680
88688-6A690
88688-6B220
88718-2J230
88718-6B280
88718-6B290
88718-6B300
88718-6B310
88718-6B400
90099-14119
90099-14120
90099-14121
91551-A0630
93319-14012
94151-80641
Linked diagrams
8714

ILLUST NO. 3 OF 3(0908- )

Click highlighted areas on diagram

REAR(W(REAR *AIC) & W/O(COOL BOX))

diagram 8714 886886B220 88712C 88716C 88716D 88717B 887182J230 887186B280 887186B280 887186B290 887186B300 887186B310 887186B400 887186B400 9009914119 9009914120 9009914121 91551A0630 9415180641 9415180641 9415180641 9415180641 9415180641 9415180641
Part # Description Qty Price
88712C - HOSE, SUCTION
88712-6A500

GRJ150;TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC

AIR CONDITIONER-DUAL(AUTO)

 1
88712-6A500

GRJ150;TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC

AIR CONDITIONER-DUAL(AUTO)&COOL BOX-WITH

 1
88712-6A500

GRJ150..LHD;GDJ150,KDJ150,TRJ150

AIR CONDITIONER-DUAL(AUTO)&COOL BOX-WITH

 1
88712-6A500

GRJ150..LHD;GDJ150,KDJ150,TRJ150

AIR CONDITIONER-DUAL(AUTO)

 1
88712-6A500

KDJ150..RHD;GRJ150,KDJ150..GCC;GDJ150,LJ150,TRJ150

AIR CONDITIONER-DUAL(MANUAL)

 1
88716C - PIPE, COOLER REFRIGERANT LIQUID, C
88716-6C570

GRJ150;TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC

AIR CONDITIONER-DUAL(AUTO)

 1
88716-6C580

GRJ150;TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC

AIR CONDITIONER-DUAL(AUTO)&COOL BOX-WITH

 1
88716-6C560

GRJ150,KDJ150..GEN

AIR CONDITIONER-SINGLE(AUTO)&COOL BOX-WITH

 1
88716-6C560

GRJ150,KDJ150,LJ150,TRJ15#..GCC,GEN

COOL BOX-WITH

 1
88716-6C580

GRJ150..LHD;GDJ150,KDJ150,TRJ150

AIR CONDITIONER-DUAL(AUTO)&COOL BOX-WITH

 1
88716-6C570

KDJ150..RHD;GRJ150,KDJ150..GCC;GDJ150,LJ150,TRJ150

AIR CONDITIONER-DUAL(MANUAL)

 1
88716-6C570

GRJ150..LHD;GDJ150,KDJ150,TRJ150

AIR CONDITIONER-DUAL(AUTO)

 1
88716D - PIPE, COOLER REFRIGERANT LIQUID, D
88716-6C550

GRJ150;TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC

AIR CONDITIONER-DUAL(AUTO)&COOL BOX-WITH

 1
88716-6C550

KDJ150..RHD;GRJ150,KDJ150..GCC;GDJ150,LJ150,TRJ150

AIR CONDITIONER-DUAL(MANUAL)

 1
88716-6C550

GRJ150;TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC

AIR CONDITIONER-DUAL(AUTO)

 1
88716-6C550

GRJ150..LHD;GDJ150,KDJ150,TRJ150

AIR CONDITIONER-DUAL(AUTO)&COOL BOX-WITH

 1
88716-6C550

GRJ150..LHD;GDJ150,KDJ150,TRJ150

AIR CONDITIONER-DUAL(AUTO)

 1
88717B - PIPE, COOLER REFRIGERANT SUCTION, B
88717-6B240

GRJ150,KDJ150..GEN

AIR CONDITIONER-SINGLE(AUTO)&COOL BOX-WITH

 1
88717-6B250

GRJ150;TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC

AIR CONDITIONER-DUAL(AUTO)

 1
88717-6B260

GRJ150;TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC

AIR CONDITIONER-DUAL(AUTO)&COOL BOX-WITH

 1
88717-6B240

GRJ150,KDJ150,LJ150,TRJ15#..GCC,GEN

COOL BOX-WITH

 1
88717-6B260

GRJ150..LHD;GDJ150,KDJ150,TRJ150

AIR CONDITIONER-DUAL(AUTO)&COOL BOX-WITH

 1
88717-6B250

GRJ150..LHD;GDJ150,KDJ150,TRJ150

AIR CONDITIONER-DUAL(AUTO)

 1
88717-6B250

KDJ150..RHD;GRJ150,KDJ150..GCC;GDJ150,LJ150,TRJ150

AIR CONDITIONER-DUAL(MANUAL)

 1
Common parts
88688-6B220
88718-2J230
88718-6B280
88718-6B290
88718-6B300
88718-6B310
88718-6B400
90099-14119
90099-14120
90099-14121
91551-A0630
94151-80641
Linked diagrams
8714

ILLUST NO. 1 OF 3(0908- )

Click highlighted areas on diagram

W(CONDENSER FAN)

diagram 16793C 827112B640 88453 88454A 88550 88590 8889760170 8889760180 8889760200 9009904117 9009904119 9009904119 9011906192
Part # Description Qty Price
16793C - LABEL, COOLING FAN CAUTION
16793-38010

1KDFTV..KDJ150;1G#..GDJ150,GRJ150..ARL

 1
16793-28020

1KDFTV..KDJ150..ARL,GEN;1KDFTV..KDJ150..5FC..GCC

 1
16793-31070

1KDFTV..KDJ150;1G#..GDJ150,GRJ150..ARL

 1
88453 - FAN, COOLING (FOR CONDENSER)
88453-60030

KDJ150..ARL,GEN;KDJ150..5FC..GCC

 1
88453-60030

KDJ150;GDJ150,GRJ150..ARL

 1
88454A - SHROUD, FAN
88454-60070

KDJ150..ARL,GEN;KDJ150..5FC..GCC

 1
88454-60071

KDJ150;GDJ150,GRJ150..ARL

 1
88550 - MOTOR ASSY, BLOWER (FOR CONDENSER)
88550-34010

KDJ150..ARL,GEN;KDJ150..5FC..GCC

 1
88550-34010

KDJ150;GDJ150,GRJ150..ARL

 1
88590 - BLOWER ASSY, W/SHROUD
88590-60100

KDJ150..ARL,GEN;KDJ150..5FC..GCC

 1
88590-60101

KDJ150;GDJ150,GRJ150..ARL

 1
Common parts
82711-2B640
88897-60170
88897-60180
88897-60200
90099-04117
90099-04119
90119-06192

ILLUST NO. 3 OF 3(0908- )

Click highlighted areas on diagram

REAR(W/O(REAR *AIC) & W(COOL BOX))

diagram 8714 8714 8857860260 886886A680 886886A690 88716C 88717B 887186B280 887186B290 9331914012 9415180641 9415180641 9415180641 9415180641
Part # Description Qty Price
88716C - PIPE, COOLER REFRIGERANT LIQUID, C
88716-6C570

GRJ150;TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC

AIR CONDITIONER-DUAL(AUTO)

 1
88716-6C580

GRJ150;TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC

AIR CONDITIONER-DUAL(AUTO)&COOL BOX-WITH

 1
88716-6C560

GRJ150,KDJ150..GEN

AIR CONDITIONER-SINGLE(AUTO)&COOL BOX-WITH

 1
88716-6C560

GRJ150,KDJ150,LJ150,TRJ15#..GCC,GEN

COOL BOX-WITH

 1
88716-6C580

GRJ150..LHD;GDJ150,KDJ150,TRJ150

AIR CONDITIONER-DUAL(AUTO)&COOL BOX-WITH

 1
88716-6C570

KDJ150..RHD;GRJ150,KDJ150..GCC;GDJ150,LJ150,TRJ150

AIR CONDITIONER-DUAL(MANUAL)

 1
88716-6C570

GRJ150..LHD;GDJ150,KDJ150,TRJ150

AIR CONDITIONER-DUAL(AUTO)

 1
88717B - PIPE, COOLER REFRIGERANT SUCTION, B
88717-6B240

GRJ150,KDJ150..GEN

AIR CONDITIONER-SINGLE(AUTO)&COOL BOX-WITH

 1
88717-6B250

GRJ150;TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC

AIR CONDITIONER-DUAL(AUTO)

 1
88717-6B260

GRJ150;TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC

AIR CONDITIONER-DUAL(AUTO)&COOL BOX-WITH

 1
88717-6B240

GRJ150,KDJ150,LJ150,TRJ15#..GCC,GEN

COOL BOX-WITH

 1
88717-6B260

GRJ150..LHD;GDJ150,KDJ150,TRJ150

AIR CONDITIONER-DUAL(AUTO)&COOL BOX-WITH

 1
88717-6B250

GRJ150..LHD;GDJ150,KDJ150,TRJ150

AIR CONDITIONER-DUAL(AUTO)

 1
88717-6B250

KDJ150..RHD;GRJ150,KDJ150..GCC;GDJ150,LJ150,TRJ150

AIR CONDITIONER-DUAL(MANUAL)

 1
Common parts
88578-60260
88688-6A680
88688-6A690
88718-6B280
88718-6B290
93319-14012
94151-80641
Linked diagrams
8714

ILLUST NO. 1 OF 3(1708- )

Click highlighted areas on diagram

CONDENSER FAN

diagram 16793C 827112B640 88453 88454A 88550 88590 8889760170 8889760180 8889760200 9009904117 9009904119 9009904119 9011906192
Part # Description Qty Price
Common parts
82711-2B640
88897-60170
88897-60180
88897-60200
90099-04117
90099-04119
90119-06192

ILLUST NO. 2 OF 3(1708- )KDJ150..RHD

Click highlighted areas on diagram

FRONT,W/O(REAR)

diagram 8714 8714 8719 88374B 88374C 88375B 88375D 88460 88460B 88463 88463A 88467 88467 88467A 88467A 88474 88578D 88578E 88578E 88578M 88710 88711 88712 88716A 88717A 8871816660 887182D150 887186B080 887186B270 88719A 9009914119 9009914120 9009914121 9017906293 9155180625 9155180625 9155180625 91551A0630 9155380622 9155380622 91651F0625 9167180612 91673A0616
Part # Description Qty Price
Common parts
88718-16660
88718-2D150
88718-6B080
88718-6B270
90099-14119
90099-14120
90099-14121
90179-06293
91551-80625
91551-A0630
91553-80622
91651-F0625
91671-80612
91673-A0616
Linked diagrams
8714
8719

ILLUST NO. 2 OF 3(1708- )KDJ150..RHD

Click highlighted areas on diagram

FRONT,W(COOL BOX)

diagram 8714 8714 8719 88374B 88374C 88375B 88375D 88460 88460B 88463 88463A 88467 88467 88467A 88467A 88474 88578D 88578E 88578E 88578M 886886B360 88699A 88710 88710E 88711 88712 88717A 8871816660 887182D150 887182J230 887186B130 887186B140 88719A 9009914119 9009914120 9009914121 9017906293 9155180625 9155180625 9155180625 91551A0630 9155380622 9155380622 91651F0625 9167180612 91673A0616
Part # Description Qty Price
Common parts
88688-6B360
88718-16660
88718-2D150
88718-2J230
88718-6B130
88718-6B140
90099-14119
90099-14120
90099-14121
90179-06293
91551-80625
91551-A0630
91553-80622
91651-F0625
91671-80612
91673-A0616
Linked diagrams
8714
8719

ILLUST NO. 2 OF 3(1708- )KDJ150..RHD

Click highlighted areas on diagram

FRONT,W(RR AIC) OR W(C/B & RR AIC)

diagram 8714 8714 8719 88374B 88374C 88375B 88375D 88460 88460B 88463 88463A 88467 88467 88467A 88467A 88474 88578D 88578E 88578E 88578M 886886B360 88710 88710C 88711 88712 887182D150 88719A 9009914119 9009914120 9009914121 9017906293 9155180625 9155180625 9155180625 91551A0630 9155380622 9155380622 91651F0625 9167180612 91673A0616
Part # Description Qty Price
Common parts
88688-6B360
88718-2D150
90099-14119
90099-14120
90099-14121
90179-06293
91551-80625
91551-A0630
91553-80622
91651-F0625
91671-80612
91673-A0616
Linked diagrams
8714
8719

ILLUST NO. 3 OF 3(1708- )

Click highlighted areas on diagram

REAR,W/O(REAR *AIC) & W(COOL BOX))

diagram 8714 8714 8857860260 886886A680 886886A690 88716C 88717B 887186B280 887186B290 9331914012 9415180641 9415180641 9415180641 9415180641
Part # Description Qty Price
Common parts
88578-60260
88688-6A680
88688-6A690
88718-6B280
88718-6B290
93319-14012
94151-80641
Linked diagrams
8714

ILLUST NO. 3 OF 3(1708- )

Click highlighted areas on diagram

REAR,W(REAR *AIC & COOL BOX)

diagram 8714 8714 8714 8857860260 886886A680 886886A690 886886B220 88712C 88716C 88716D 88717B 887182J230 887186B280 887186B280 887186B290 887186B300 887186B310 887186B400 887186B400 9009914119 9009914120 9009914121 91551A0630 9331914012 9415180641 9415180641 9415180641 9415180641 9415180641 9415180641 9415180641
Part # Description Qty Price
Common parts
88578-60260
88688-6A680
88688-6A690
88688-6B220
88718-2J230
88718-6B280
88718-6B290
88718-6B300
88718-6B310
88718-6B400
90099-14119
90099-14120
90099-14121
91551-A0630
93319-14012
94151-80641
Linked diagrams
8714

ILLUST NO. 3 OF 3(1708- )

Click highlighted areas on diagram

REAR,W(REAR *AIC) & W/O(COOL BOX)

diagram 8714 886886B220 88712C 88716C 88716D 88717B 887182J230 887186B280 887186B280 887186B290 887186B300 887186B310 887186B400 887186B400 9009914119 9009914120 9009914121 91551A0630 9415180641 9415180641 9415180641 9415180641 9415180641 9415180641
Part # Description Qty Price
Common parts
88688-6B220
88718-2J230
88718-6B280
88718-6B290
88718-6B300
88718-6B310
88718-6B400
90099-14119
90099-14120
90099-14121
91551-A0630
94151-80641
Linked diagrams
8714
