KDJ150R-GKFEY (2015)

Toyota Land Cruiser Prado

Production Jun 2015 - Aug 2017
Engine 1KDFTV
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 3(0908- )RHD

Click highlighted areas on diagram

diagram 55315A 55330B 55347A 55347A 55349A 55374C 55375B 55394B 55394C 55401E 55458A 55458A 55981 5752 73900 73960A 8202 9010508120 9010508460 9011906951 9017906278 9018305033 9167380616 9356855014 9415080600 9415180800
Part # Description Qty Price
55315A - SPACER, INSTRUMENT PANEL, NO.1
55315-53040

GDJ150,GRJ150,KDJ150,LJ150,TRJ15#

 2
55315-53040

TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155

 2
55330B - REINFORCEMENT ASSY, INSTRUMENT PANEL
55330-60260

KDJ150..RHD..6F..GEN;GRJ150,KDJ150..RHD..5FC

VX PACKAGE

 1
55330-60260

KDJ150..RHD..6F..GEN;GRJ150,KDJ150..RHD..5FC

VX-L PACKAGE

 1
55330-60300

GRJ150,KDJ150..RHD

 1
55330-60261

KDJ150..RHD;GDJ150,GRJ150..6FC..ARL

VX PACKAGE

 1
55330-60301

GDJ150,GRJ150,KDJ150..RHD

 1
55347A - BRACKET, INSTRUMENT PANEL BRACE MOUNTING, NO.1
55347-60110

TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155

LH

 1
55347-60110

GDJ150,GRJ150,KDJ150,LJ150,TRJ15#

LH

 1
55348-60120

GDJ150,GRJ150,KDJ150,LJ150,TRJ15#

RH

 1
55348-60120

TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155

RH

 1
55347A - BRACKET, INSTRUMENT PANEL BRACE MOUNTING, NO.1
55347-60110

TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155

LH

 1
55347-60110

GDJ150,GRJ150,KDJ150,LJ150,TRJ15#

LH

 1
55348-60120

GDJ150,GRJ150,KDJ150,LJ150,TRJ15#

RH

 1
55348-60120

TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155

RH

 1
55349A - CUSHION, INSTRUMENT PANEL
55349-60100

TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155

 1
55349-60100

GDJ150,GRJ150,KDJ150,LJ150,TRJ15#

 1
55374C - BRACKET, INSTRUMENT PANEL LOWER MOUNTING, NO.1
55374-60110

TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155

 1
55374-60110

GDJ150,GRJ150,KDJ150,LJ150,TRJ15#

 1
55375B - BRACKET, INSTRUMENT PANEL LOWER MOUNTING, NO.2
55375-60110

GDJ150,GRJ150,KDJ150,LJ150,TRJ15#

 1
55375-60110

TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155

 1
55394B - BOLT, INSTRUMENT PANEL
55394-48050

TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155

 3
55394-48050

GDJ150,GRJ150,KDJ150,LJ150,TRJ15#

 3
55394C - BOLT, INSTRUMENT PANEL
55394-48060

TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155

 2
55394-48060

GDJ150,GRJ150,KDJ150,LJ150,TRJ15#

 2
55401E - PAD SUB-ASSY, INSTRUMENT PANEL SAFETY
55401-60450E0

GRJ150,KDJ150,LJ150..RHD

DK. BROWN,TRIM0#

 1
55401-60450C0

GRJ150,KDJ150,LJ150..RHD

BLACK,TRIM1#

 1
55401-60451E1

GDJ150,GRJ150,KDJ150,LJ150..RHD

ORCHID BROWN,TRIM0#

 1
55401-60451C0

GDJ150,GRJ150,KDJ150,LJ150..RHD

BLACK,TRIM2#

 1
55458A - CAP, INSTRUMENT PANEL SAFETY PAD
55458-50100

TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155

 5
55458-50100

GDJ150,GRJ150,KDJ150,LJ150,TRJ15#

 5
55458A - CAP, INSTRUMENT PANEL SAFETY PAD
55458-50100

TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155

 5
55458-50100

GDJ150,GRJ150,KDJ150,LJ150,TRJ15#

 5
55981 - GARNISH, DEFROSTER NOZZLE, NO.1
55981-60030C0

TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155

BLACK,TRIM1#

 1
55981-60030E0

TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155

DK. BROWN,TRIM0#

 1
55981-60030E2

GDJ150,GRJ150,KDJ150,LJ150,TRJ15#

ORCHID BROWN,TRIM0#

 1
55981-60030C0

GDJ150,GRJ150,KDJ150,LJ150,TRJ15#

BLACK,TRIM2#

 1
73900 - AIR BAG ASSY, INSTRUMENT PANEL, LOWER NO.1
73900-60040C0

GRJ150,KDJ150,LJ150..RHD

SRS AIR BAG-W(*DRP&KNEE&CURTAIN(RR NO.1&NO.2 SEAT)),BLACK,TRIM1#

 1
73900-60040E0

GRJ150,KDJ150,LJ150..RHD

SRS AIR BAG-W(*DRP&KNEE&CURTAIN(RR NO.1&NO.2 SEAT)),DK. BROWN,TRIM0#

 1
73900-60040E0

GRJ150,KDJ150,LJ150..RHD

SRS AIR BAG-WITH(*DRP&KNEE&CURTAIN(REAR NO.1 SEAT)),DK. BROWN,TRIM0#

 1
73900-60040C0

GRJ150,KDJ150,LJ150..RHD

SRS AIR BAG-WITH(*DRP&KNEE&CURTAIN(REAR NO.1 SEAT)),BLACK,TRIM1#

 1
73900-60040A0

GDJ150,KDJ150,LJ150..RHD

SRS AIR BAG-WITH(*DRP&KNEE&CURTAIN(REAR NO.1 SEAT)),FLAXEN,TRIM0#

 1
73900-60040A0

GDJ150,KDJ150,LJ150..RHD

SRS AIR BAG-W(*DRP&KNEE&CURTAIN(RR NO.1&NO.2 SEAT)),FLAXEN,TRIM0#

 1
73900-60040C0

GDJ150,KDJ150,LJ150..RHD

SRS AIR BAG-W(*DRP&KNEE&CURTAIN(RR NO.1&NO.2 SEAT)),BLACK,TRIM2#

 1
73900-60040C0

GDJ150,KDJ150,LJ150..RHD

SRS AIR BAG-WITH(*DRP&KNEE&CURTAIN(REAR NO.1 SEAT)),BLACK,TRIM2#

 1
73960A - AIR BAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR
73960-60210

GRJ150,KDJ150,LJ150..RHD

 1
73960-60210

GDJ150,GRJ150,KDJ150,LJ150..RHD

 1
Common parts
90105-08120
90105-08460
90119-06951
90179-06278
90183-05033
91673-80616
93568-55014
94150-80600
94151-80800
Linked diagrams
5752
8202

ILLUST NO. 1 OF 4(1708- )RHD

Click highlighted areas on diagram

diagram 55315A 55330B 55347A 55347A 55349A 55374C 55375B 55394B 55394C 55401E 55458A 55458A 55538D 55981 5752 73900 73960A 8202 9010508120 9010508460 9011906951 9017906278 9018305033 9167380616 9356855014 9415080600 9415180800
Part # Description Qty Price
Common parts
90105-08120
90105-08460
90119-06951
90179-06278
90183-05033
91673-80616
93568-55014
94150-80600
94151-80800
Linked diagrams
5752
8202

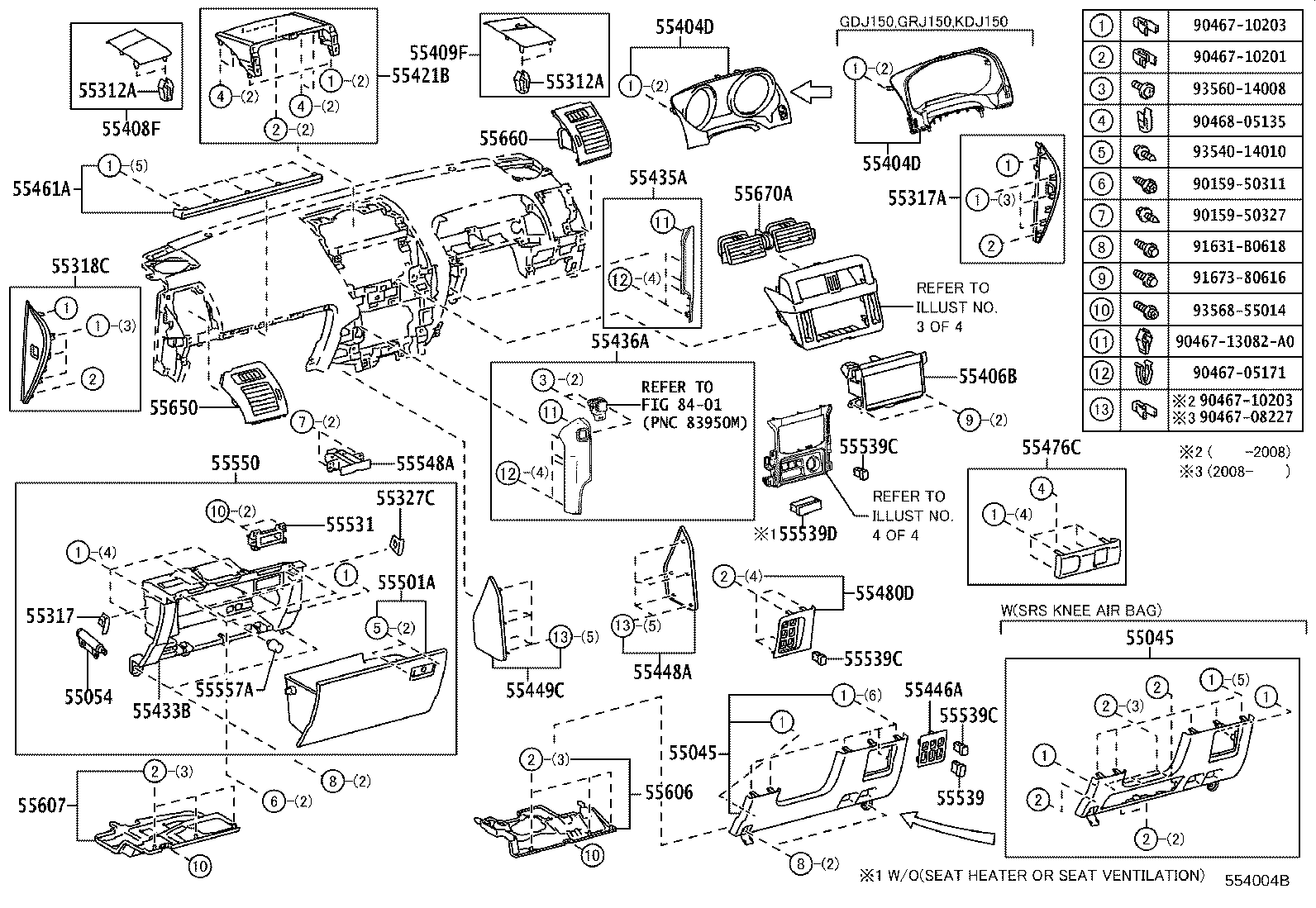

ILLUST NO. 2 OF 4(1708- )RHD

Click highlighted areas on diagram

diagram 55045 55045 55054 55312A 55312A 55317 55317A 55318C 55327C 55404D 55404D 55406B 55408F 55409F 55421B 55433B 55435A 55436A 55446A 55448A 55449C 55461A 55476C 55480D 55501A 55531 55539 55539C 55539C 55539C 55539D 55548A 55550 55557A 55606 55607 55650 55660 55670A 8401 9015950311 9015950327 9046705171 9046708227 9046710201 9046710203 9046710203 9046713082A0 9046805135 91631B0618 9167380616 9354014010 9356014008 9356855014
Part # Description Qty Price
Common parts
90159-50311
90159-50327
90467-05171
90467-08227
90467-10201
90467-10203
90467-13082A0
90468-05135
91631-B0618
91673-80616
93540-14010
93560-14008
93568-55014
Linked diagrams
8401

ILLUST NO. 3 OF 4(1708- )

Click highlighted areas on diagram

diagram 55420A 55522B 55539E 55539F 55670A 55670A 8603 9015950327 9015950327 9046705171 9046710203 9046710203 9356054012 9356054012 9356054012 9356054012
Part # Description Qty Price
Common parts
90159-50327
90467-05171
90467-10203
93560-54012
Linked diagrams
8603

ILLUST NO. 4 OF 4(1708- )

Click highlighted areas on diagram

diagram 55405B 58805E 58805E 8401 8401 9046705171 9046705171 9046713082A0 9046713082A0 9046713082A0 9046713082A0
Part # Description Qty Price
Common parts
90467-05171
90467-13082A0
Linked diagrams
8401
