KDJ150R-GKFEY (2015)
Toyota Land Cruiser Prado
Production
Jun 2015
-
Aug 2017
Engine
1KDFTV
Transmission
6F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(0908- )KDJ150

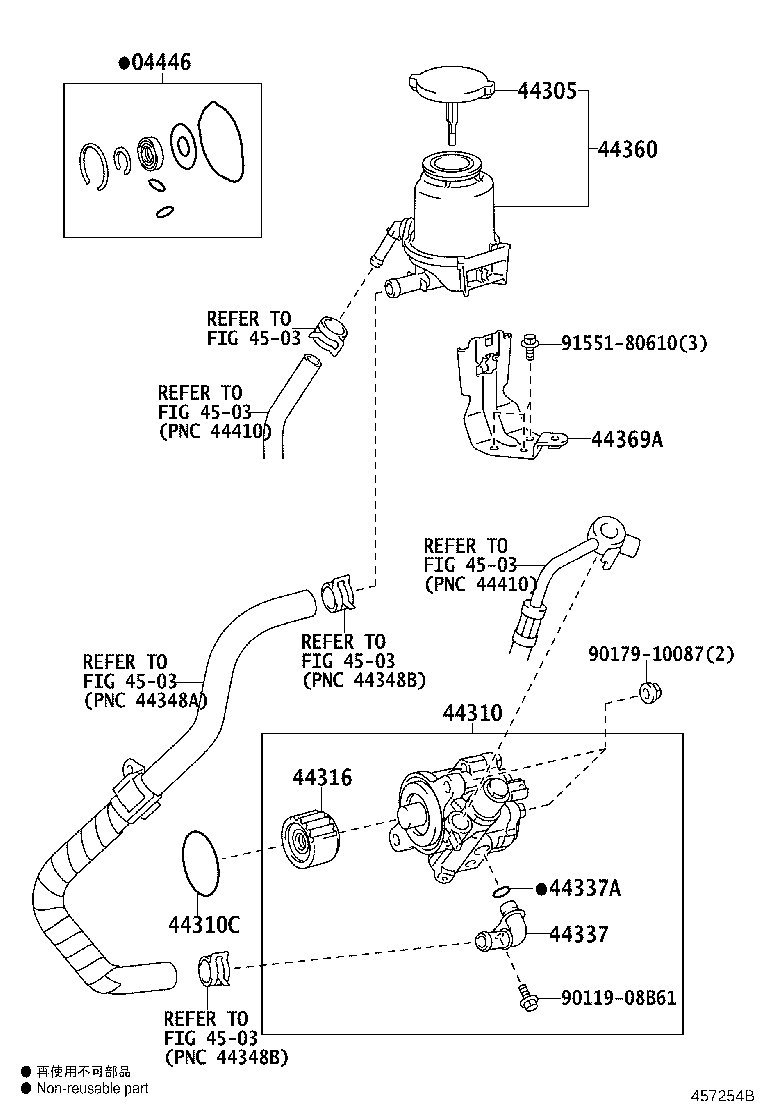

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04446 - GASKET KIT, POWER STEERING PUMP | ||||
| 04446-35070 |
KDJ150..ARL,GEN;KDJ150..5FC..GCC |
1 | ||
| 04446-35070 |
KDJ150 |
1 | ||
| 44305 - CAP SUB-ASSY, VANE PUMP OIL RESERVOIR | ||||
| 44305-28061 |
GDJ150,GRJ150,KDJ150,LJ150 |
1 | ||
| 44305-28060 |
GRJ150,LJ150;KDJ150..ARL,GEN;KDJ150..5FC..GCC |
1 | ||
| 44310 - PUMP ASSY, VANE | ||||
| 44310-60550 |
KDJ150..ARL,GEN;KDJ150..5FC..GCC |
1 | ||
| 44310-60551 |
KDJ150 |
1 | ||
| 44310C - RING, O(FOR VANE PUMP) | ||||
| 90301-60002 |
KDJ150..ARL,GEN;KDJ150..5FC..GCC |
1 | ||
| 90301-60002 |
KDJ150 |
1 | ||
| 44316 - GEAR, VANE PUMP | ||||
| 44316-60030 |
KDJ150..ARL,GEN;KDJ150..5FC..GCC |
1 | ||
| 44316-60030 |
KDJ150 |
1 | ||
| 44337 - UNION, POWER STEERING SUCTION PORT | ||||
| 44337-60240 |
KDJ150..ARL,GEN;KDJ150..5FC..GCC |
1 | ||
| 44337-60240 |
KDJ150 |
1 | ||
| 44337A - RING, O(FOR POWER STEERING SUCTION PORT) | ||||
| 90301-11020 |
KDJ150..ARL,GEN;KDJ150..5FC..GCC |
1 | ||
| 90301-11020 |
GDJ150,KDJ150 |
1 | ||
| 44360 - RESERVOIR ASSY, VANE PUMP OIL | ||||
| 44360-60330 |
KDJ150..5FC..GCC;KDJ150,LJ150..ARL,GEN |
1 | ||
| 44360-60331 |
KDJ150,LJ150 |
1 | ||
| 44369A - BRACKET, OIL RESERVOIR, NO.1 | ||||
| 44369-60090 |
KDJ150,LJ150 |
1 | ||
| 44369-60090 |
KDJ150..5FC..GCC;KDJ150,LJ150..ARL,GEN |
1 | ||
| Common parts | ||||
| 90119-08B61 | ||||
| 90179-10087 | ||||
| 91551-80610 | ||||
| Linked diagrams | ||||
| 4503 | ||||
(1708- )KDJ150
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-08B61 | ||||
| 90179-10087 | ||||
| 91551-80610 | ||||
| Linked diagrams | ||||
| 4503 | ||||
