KDJ150R-GKFEY (2015)
Toyota Land Cruiser Prado
(0908- )1KDFTV
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

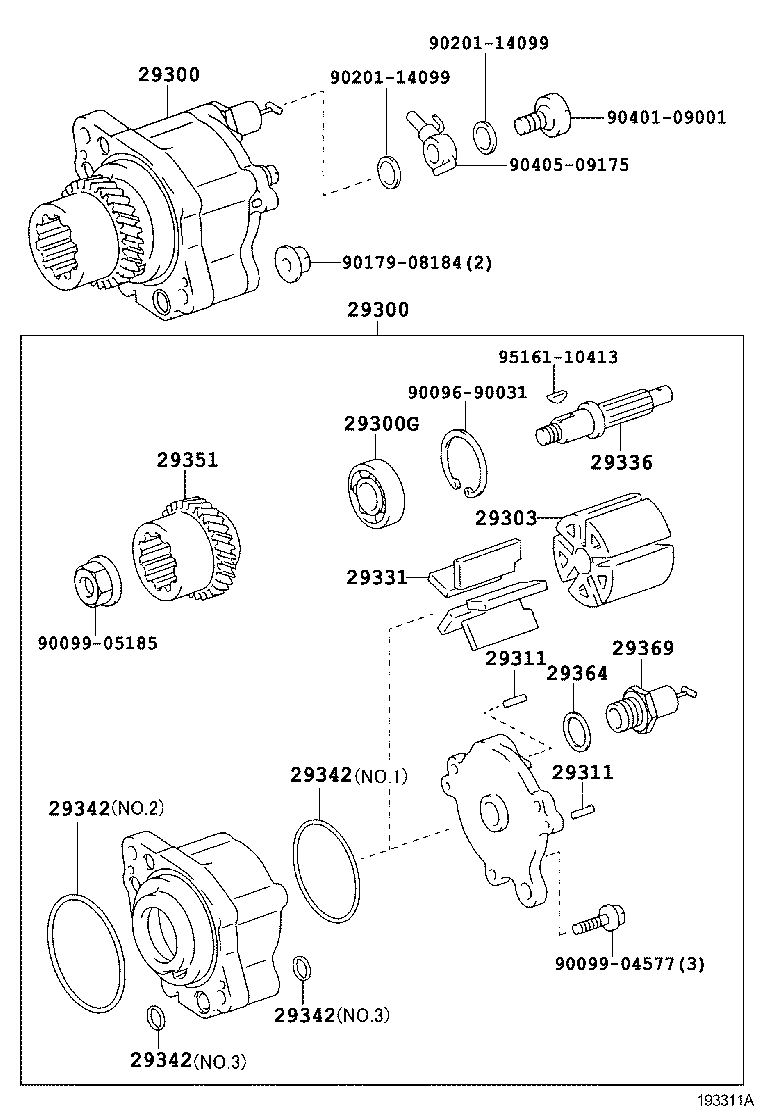

| 29300 - PUMP ASSY, VACUUM | ||||
| 29300-67020 |
1KDFTV..KDJ150 |
1 | ||
| 29300-30020 |
1KDFTV..KDJ150 |
1 | ||
| 29300 - PUMP ASSY, VACUUM | ||||
| 29300-67020 |
1KDFTV..KDJ150 |
1 | ||
| 29300-30020 |
1KDFTV..KDJ150 |
1 | ||
| 29300G - BEARING, BALL | ||||
| 90099-10185 |
1KDFTV..KDJ150 |
1 | ||
| 90099-10185 |
1KDFTV..KDJ150..ARL,GEN;1KDFTV..KDJ150..5FC..GCC |
1 | ||
| 29303 - ROTOR SUB-ASSY, VACUUM PUMP | ||||
| 29303-67020 |
1KDFTV..KDJ150 |
1 | ||
| 29303-67020 |
1KDFTV..KDJ150..ARL,GEN;1KDFTV..KDJ150..5FC..GCC |
1 | ||
| 29311 - PIN, VACUUM PUMP DOWEL, NO.1 | ||||
| 29311-76010 |
1KDFTV..KDJ150 |
2 | ||
| 29311-76010 |
1KDFTV..KDJ150..ARL,GEN;1KDFTV..KDJ150..5FC..GCC |
2 | ||
| 29311 - PIN, VACUUM PUMP DOWEL, NO.1 | ||||
| 29311-76010 |
1KDFTV..KDJ150 |
2 | ||
| 29311-76010 |
1KDFTV..KDJ150..ARL,GEN;1KDFTV..KDJ150..5FC..GCC |
2 | ||
| 29331 - BLADE, VACUUM PUMP, A | ||||
| 29331-67020 |
1KDFTV..KDJ150..ARL,GEN;1KDFTV..KDJ150..5FC..GCC |
5 | ||
| 29331-67020 |
1KDFTV..KDJ150 |
5 | ||
| 29336 - SHAFT, VACUUM PUMP | ||||
| 29336-58050 |
1KDFTV..KDJ150..ARL,GEN;1KDFTV..KDJ150..5FC..GCC |
1 | ||
| 29336-58050 |
1KDFTV..KDJ150 |
1 | ||
| 29342 - PACKING, VACUUM PUMP | ||||
| 29342-67020 |
1KDFTV..KDJ150 NO.2 |
1 | ||
| 29342-58010 |
1KDFTV..KDJ150 NO.1 |
1 | ||
| 29342-68010 |
1KDFTV..KDJ150 NO.3 |
2 | ||
| 29342-58070 |
1KDFTV..KDJ150 NO.2 |
1 | ||
| 29342-58060 |
1KDFTV..KDJ150 NO.3 |
2 | ||
| 29342-58040 |
1KDFTV..KDJ150 NO.1 |
1 | ||
| 29342 - PACKING, VACUUM PUMP | ||||
| 29342-67020 |
1KDFTV..KDJ150 NO.2 |
1 | ||
| 29342-58010 |
1KDFTV..KDJ150 NO.1 |
1 | ||
| 29342-68010 |
1KDFTV..KDJ150 NO.3 |
2 | ||
| 29342-58070 |
1KDFTV..KDJ150 NO.2 |
1 | ||
| 29342-58060 |
1KDFTV..KDJ150 NO.3 |
2 | ||
| 29342-58040 |
1KDFTV..KDJ150 NO.1 |
1 | ||
| 29342 - PACKING, VACUUM PUMP | ||||
| 29342-67020 |
1KDFTV..KDJ150 NO.2 |
1 | ||
| 29342-58010 |
1KDFTV..KDJ150 NO.1 |
1 | ||
| 29342-68010 |
1KDFTV..KDJ150 NO.3 |
2 | ||
| 29342-58070 |
1KDFTV..KDJ150 NO.2 |
1 | ||
| 29342-58060 |
1KDFTV..KDJ150 NO.3 |
2 | ||
| 29342-58040 |
1KDFTV..KDJ150 NO.1 |
1 | ||
| 29342 - PACKING, VACUUM PUMP | ||||
| 29342-67020 |
1KDFTV..KDJ150 NO.2 |
1 | ||
| 29342-58010 |
1KDFTV..KDJ150 NO.1 |
1 | ||
| 29342-68010 |
1KDFTV..KDJ150 NO.3 |
2 | ||
| 29342-58070 |
1KDFTV..KDJ150 NO.2 |
1 | ||
| 29342-58060 |
1KDFTV..KDJ150 NO.3 |
2 | ||
| 29342-58040 |
1KDFTV..KDJ150 NO.1 |
1 | ||
| 29351 - GEAR, VACUUM PUMP | ||||
| 29351-67020 |
1KDFTV..KDJ150..ARL,GEN;1KDFTV..KDJ150..5FC..GCC |
1 | ||
| 29351-67020 |
1KDFTV..KDJ150 |
1 | ||
| 29364 - WASHER, VACUUM PUMP | ||||
| 29364-66010 |
1KDFTV,5LE..KDJ150,LJ150 |
1 | ||
| 29364-66010 |
1KDFTV..KDJ150..5FC..GCC;1KDFTV,5LE..KDJ150,LJ150..ARL,GEN |
1 | ||
| 29369 - VALVE SUB-ASSY, CHECK | ||||
| 29369-64030 |
1KDFTV..KDJ150..5FC..GCC;1KDFTV,5LE..KDJ150,LJ150..ARL,GEN |
1 | ||
| 29369-64030 |
1KDFTV,5LE..KDJ150,LJ150 |
1 | ||
| Common parts | ||||
| 90096-90031 | ||||
| 90099-04577 | ||||
| 90099-05185 | ||||
| 90179-08184 | ||||
| 90201-14099 | ||||
| 90401-09001 | ||||
| 90405-09175 | ||||
| 95161-10413 | ||||
(1708- )1KDFTV
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90096-90031 | ||||
| 90099-04577 | ||||
| 90099-05185 | ||||
| 90179-08184 | ||||
| 90201-14099 | ||||
| 90401-09001 | ||||
| 90405-09175 | ||||
| 95161-10413 | ||||
