KDJ150R-GKFEY (2009)
Toyota Land Cruiser Prado
ILLUST NO. 1 OF 3(0908- )RHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55315A - SPACER, INSTRUMENT PANEL, NO.1 | ||||
| 55315-53040 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 |
2 | ||
| 55330B - REINFORCEMENT ASSY, INSTRUMENT PANEL | ||||
| 55330-60260 |
KDJ150..RHD..6F..GEN;GRJ150,KDJ150..RHD..5FC VX PACKAGE |
1 | ||
| 55330-60260 |
KDJ150..RHD..6F..GEN;GRJ150,KDJ150..RHD..5FC VX-L PACKAGE |
1 | ||
| 55330-60300 |
GRJ150,KDJ150..RHD |
1 | ||
| 55347A - BRACKET, INSTRUMENT PANEL BRACE MOUNTING, NO.1 | ||||
| 55347-60110 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 LH |
1 | ||
| 55348-60120 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 RH |
1 | ||
| 55347A - BRACKET, INSTRUMENT PANEL BRACE MOUNTING, NO.1 | ||||
| 55347-60110 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 LH |
1 | ||
| 55348-60120 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 RH |
1 | ||
| 55349A - CUSHION, INSTRUMENT PANEL | ||||
| 55349-60100 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 |
1 | ||
| 55374C - BRACKET, INSTRUMENT PANEL LOWER MOUNTING, NO.1 | ||||
| 55374-60110 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 |
1 | ||
| 55375B - BRACKET, INSTRUMENT PANEL LOWER MOUNTING, NO.2 | ||||
| 55375-60110 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 |
1 | ||
| 55394B - BOLT, INSTRUMENT PANEL | ||||
| 55394-48050 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 |
3 | ||
| 55394C - BOLT, INSTRUMENT PANEL | ||||
| 55394-48060 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 |
2 | ||
| 55401E - PAD SUB-ASSY, INSTRUMENT PANEL SAFETY | ||||
| 55401-60450E0 |
GRJ150,KDJ150,LJ150..RHD DK. BROWN,TRIM0# |
1 | ||
| 55401-60450C0 |
GRJ150,KDJ150,LJ150..RHD BLACK,TRIM1# |
1 | ||
| 55458A - CAP, INSTRUMENT PANEL SAFETY PAD | ||||
| 55458-50100 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 |
5 | ||
| 55458A - CAP, INSTRUMENT PANEL SAFETY PAD | ||||
| 55458-50100 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 |
5 | ||
| 55981 - GARNISH, DEFROSTER NOZZLE, NO.1 | ||||
| 55981-60030C0 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 BLACK,TRIM1# |
1 | ||
| 55981-60030E0 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 DK. BROWN,TRIM0# |
1 | ||
| 73900 - AIR BAG ASSY, INSTRUMENT PANEL, LOWER NO.1 | ||||
| 73900-60040C0 |
GRJ150,KDJ150,LJ150..RHD SRS AIR BAG-W(*DRP&KNEE&CURTAIN(RR NO.1&NO.2 SEAT)),BLACK,TRIM1# |
1 | ||
| 73900-60040E0 |
GRJ150,KDJ150,LJ150..RHD SRS AIR BAG-W(*DRP&KNEE&CURTAIN(RR NO.1&NO.2 SEAT)),DK. BROWN,TRIM0# |
1 | ||
| 73900-60040E0 |
GRJ150,KDJ150,LJ150..RHD SRS AIR BAG-WITH(*DRP&KNEE&CURTAIN(REAR NO.1 SEAT)),DK. BROWN,TRIM0# |
1 | ||
| 73900-60040C0 |
GRJ150,KDJ150,LJ150..RHD SRS AIR BAG-WITH(*DRP&KNEE&CURTAIN(REAR NO.1 SEAT)),BLACK,TRIM1# |
1 | ||
| 73960A - AIR BAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR | ||||
| 73960-60210 |
GRJ150,KDJ150,LJ150..RHD |
1 | ||
| Common parts | ||||
| 90105-08120 | ||||
| 90105-08460 | ||||
| 90119-06951 | ||||
| 90179-06278 | ||||
| 90183-05033 | ||||
| 91673-80616 | ||||
| 93568-55014 | ||||
| 94150-80600 | ||||
| 94151-80800 | ||||
| Linked diagrams | ||||
| 5752 | ||||
| 8202 | ||||

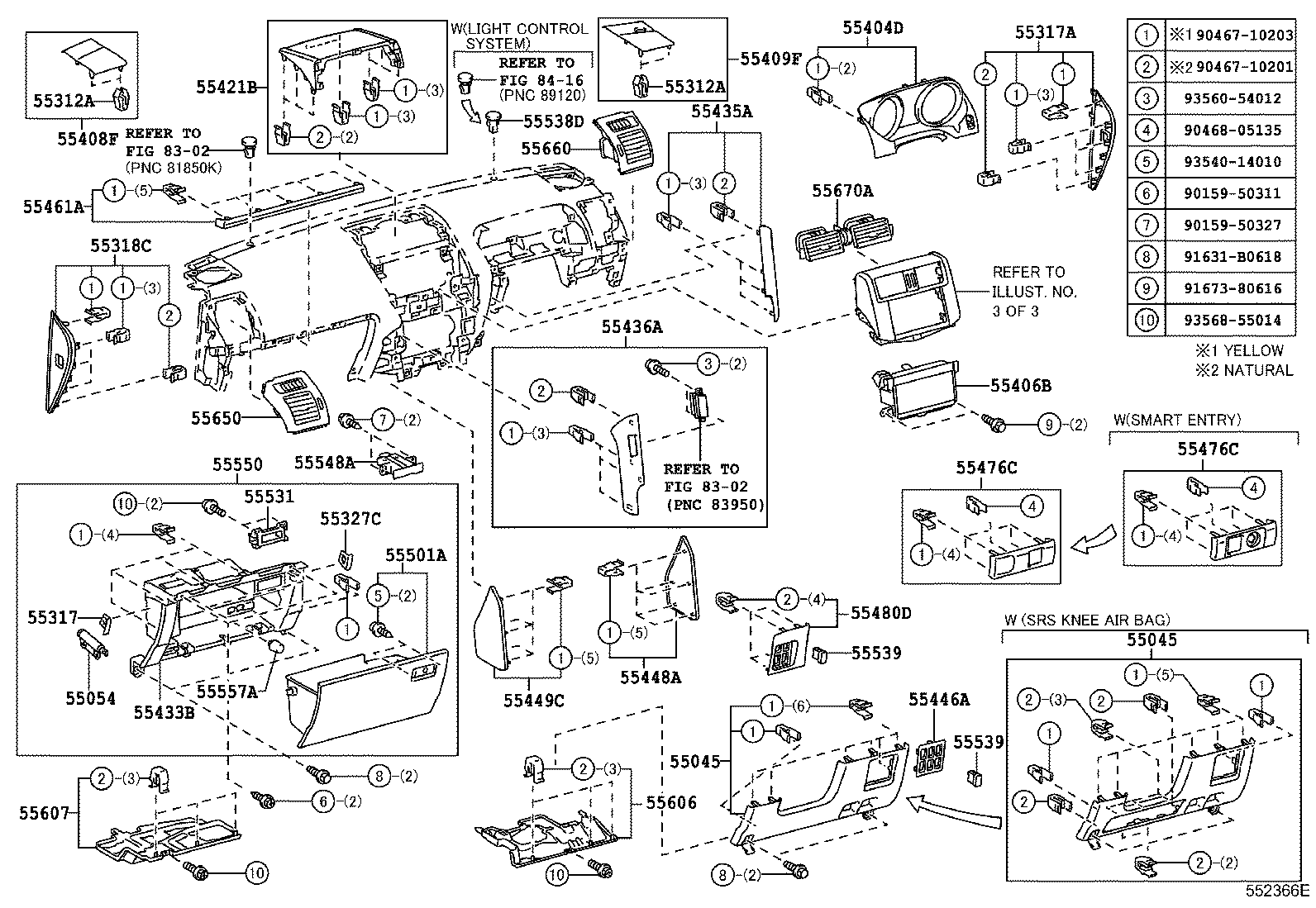

ILLUST NO. 2 OF 3(0908-1308)RHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55045 - PANEL SUB-ASSY, INSTRUMENT PANEL FINISH, LOWER | ||||
| 55045-60040E0 |
GRJ150,KDJ150,LJ150..RHD DK. BROWN,TRIM0# |
1 | ||
| 55045-60030C0 |
GRJ150,KDJ150,LJ150..RHD SRS AIR BAG-WITH(*DRP&KNEE&CURTAIN(REAR NO.1 SEAT)),BLACK,TRIM1# |
1 | ||
| 55045-60030C0 |
GRJ150,KDJ150,LJ150..RHD SRS AIR BAG-W(*DRP&KNEE&CURTAIN(RR NO.1&NO.2 SEAT)),BLACK,TRIM1# |
1 | ||
| 55045-60030E0 |
GRJ150,KDJ150,LJ150..RHD SRS AIR BAG-WITH(*DRP&KNEE&CURTAIN(REAR NO.1 SEAT)),DK. BROWN,TRIM0# |
1 | ||
| 55045-60040C0 |
GRJ150,KDJ150,LJ150..RHD BLACK,TRIM1# |
1 | ||
| 55045-60030C0 |
GRJ150,KDJ150..RHD WIRELESS DOOR LOCK-WITH(LESS SMART ENTRY)&SRS AIR BAG-W(*DRP&KNEE&CURTAIN(RR NO.1&NO.2 SEAT)),BLACK,TRIM1# |
1 | ||
| 55045-60030E0 |
GRJ150,KDJ150..RHD WIRELESS DOOR LOCK-WITH(LESS SMART ENTRY)&SRS AIR BAG-WITH(*DRP&KNEE&CURTAIN(REARNO.1 SEAT)),DK. BROWN,TRIM0# |
1 | ||
| 55045-60030E0 |
GRJ150,KDJ150,LJ150..RHD SRS AIR BAG-W(*DRP&KNEE&CURTAIN(RR NO.1&NO.2 SEAT)),DK. BROWN,TRIM0# |
1 | ||
| 55045-60030C0 |
GRJ150,KDJ150..RHD WIRELESS DOOR LOCK-WITH(LESS SMART ENTRY)&SRS AIR BAG-WITH(*DRP&KNEE&CURTAIN(REARNO.1 SEAT)),BLACK,TRIM1# |
1 | ||
| 55045-60030E0 |
GRJ150,KDJ150..RHD WIRELESS DOOR LOCK-WITH(LESS SMART ENTRY)&SRS AIR BAG-W(*DRP&KNEE&CURTAIN(RR NO.1&NO.2 SEAT)),DK. BROWN,TRIM0# |
1 | ||
| 55045 - PANEL SUB-ASSY, INSTRUMENT PANEL FINISH, LOWER | ||||
| 55045-60040E0 |
GRJ150,KDJ150,LJ150..RHD DK. BROWN,TRIM0# |
1 | ||
| 55045-60030C0 |
GRJ150,KDJ150,LJ150..RHD SRS AIR BAG-WITH(*DRP&KNEE&CURTAIN(REAR NO.1 SEAT)),BLACK,TRIM1# |
1 | ||
| 55045-60030C0 |
GRJ150,KDJ150,LJ150..RHD SRS AIR BAG-W(*DRP&KNEE&CURTAIN(RR NO.1&NO.2 SEAT)),BLACK,TRIM1# |
1 | ||
| 55045-60030E0 |
GRJ150,KDJ150,LJ150..RHD SRS AIR BAG-WITH(*DRP&KNEE&CURTAIN(REAR NO.1 SEAT)),DK. BROWN,TRIM0# |
1 | ||
| 55045-60040C0 |
GRJ150,KDJ150,LJ150..RHD BLACK,TRIM1# |
1 | ||
| 55045-60030C0 |
GRJ150,KDJ150..RHD WIRELESS DOOR LOCK-WITH(LESS SMART ENTRY)&SRS AIR BAG-W(*DRP&KNEE&CURTAIN(RR NO.1&NO.2 SEAT)),BLACK,TRIM1# |
1 | ||
| 55045-60030E0 |
GRJ150,KDJ150..RHD WIRELESS DOOR LOCK-WITH(LESS SMART ENTRY)&SRS AIR BAG-WITH(*DRP&KNEE&CURTAIN(REARNO.1 SEAT)),DK. BROWN,TRIM0# |
1 | ||
| 55045-60030E0 |
GRJ150,KDJ150,LJ150..RHD SRS AIR BAG-W(*DRP&KNEE&CURTAIN(RR NO.1&NO.2 SEAT)),DK. BROWN,TRIM0# |
1 | ||
| 55045-60030C0 |
GRJ150,KDJ150..RHD WIRELESS DOOR LOCK-WITH(LESS SMART ENTRY)&SRS AIR BAG-WITH(*DRP&KNEE&CURTAIN(REARNO.1 SEAT)),BLACK,TRIM1# |
1 | ||
| 55045-60030E0 |
GRJ150,KDJ150..RHD WIRELESS DOOR LOCK-WITH(LESS SMART ENTRY)&SRS AIR BAG-W(*DRP&KNEE&CURTAIN(RR NO.1&NO.2 SEAT)),DK. BROWN,TRIM0# |
1 | ||
| 55054 - STOPPER SUB-ASSY, GLOVE COMPARTMENT DOOR | ||||
| 55054-33060 |
GRJ150,KDJ150,LJ150,TRJ15# CAP COLLER = YELLOW |
1 | ||
| 55054-22030 |
GRJ150,KDJ150,LJ150,TRJ15# CAP COLLER = GRAY |
1 | ||
| 55312A - CLIP, INSTRUMENT PANEL | ||||
| 90467-13082A0 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 MELLOW WHITE |
4 | ||
| 55312A - CLIP, INSTRUMENT PANEL | ||||
| 90467-13082A0 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 MELLOW WHITE |
4 | ||
| 55317 - PATCH, INSTRUMENT PANEL | ||||
| 55316-60050 |
GRJ150,KDJ150,LJ150,TRJ15# |
1 | ||
| 55317A - PANEL, INSTRUMENT SIDE, RH | ||||
| 55317-60040E0 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 DK. BROWN,TRIM0# |
1 | ||
| 55317-60040C0 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 BLACK,TRIM1# |
1 | ||
| 55318C - PANEL, INSTRUMENT SIDE, LH | ||||
| 55318-60130C0 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 BLACK,TRIM1# |
1 | ||
| 55318-60140C0 |
GRJ150..ARL;KDJ150..RHD..GEN SOUTH AFRICA SPEC,BLACK,TRIM1# |
1 | ||
| 55318-60130E0 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 DK. BROWN,TRIM0# |
1 | ||
| 55318-60140E0 |
GRJ150..ARL;KDJ150..RHD..GEN SOUTH AFRICA SPEC,DK. BROWN,TRIM0# |
1 | ||
| 55327C - PATCH, INSTRUMENT PANEL, UPPER RH | ||||
| 55315-60120 |
GRJ150,KDJ150,LJ150,TRJ15# |
1 | ||
| 55404D - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH | ||||
| 55404-60280C0 |
KDJ150..RHD..6F..GEN;GRJ150,KDJ150..RHD..5FC VX PACKAGE,BLACK,TRIM1# |
1 | ||
| 55404-60270E0 |
GRJ150,KDJ150,LJ150..RHD DK. BROWN,TRIM0# |
1 | ||
| 55404-60280E0 |
KDJ150..RHD..6F..GEN;GRJ150,KDJ150..RHD..5FC VX-L PACKAGE,DK. BROWN,TRIM0# |
1 | ||
| 55404-60280E0 |
KDJ150..RHD..6F..GEN;GRJ150,KDJ150..RHD..5FC VX PACKAGE,DK. BROWN,TRIM0# |
1 | ||
| 55404-60280C0 |
KDJ150..RHD..6F..GEN;GRJ150,KDJ150..RHD..5FC VX-L PACKAGE,BLACK,TRIM1# |
1 | ||
| 55404-60270C0 |
GRJ150,KDJ150,LJ150..RHD BLACK,TRIM1# |
1 | ||
| 55406B - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, LOWER CENTER | ||||
| 55406-60360 |
GRJ150,KDJ150,LJ150,TRJ15# |
1 | ||
| 55406-60190 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 |
1 | ||
| 55408F - PANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.1 | ||||
| 55408-60190E0 |
GRJ150,KDJ150,LJ150,TRJ15# DK. BROWN,TRIM0# |
1 | ||
| 55408-60190C0 |
GRJ150,KDJ150,LJ150,TRJ15# BLACK,TRIM1# |
1 | ||
| 55408-60190E0 |
KDJ150..GEN;TRJ150..GCC;GRJ150..6F..GEN;GRJ150..5FC..(ARL,GEN) AUDIO(FOR OVERSEAS MARKET)-NAVIGATION+DVD CHANGER+BLUETOOTH+14SP,DK. BROWN,TRIM0# |
1 | ||
| 55408-60190C0 |
KDJ150..GEN;TRJ150..GCC;GRJ150..6F..GEN;GRJ150..5FC..(ARL,GEN) AUDIO(FOR OVERSEAS MARKET)-NAVIGATION+DVD CHANGER+BLUETOOTH+14SP,BLACK,TRIM1# |
1 | ||
| 55472-60180E0 |
GRJ150,KDJ150,LJ150,TRJ15# DK. BROWN,TRIM0# |
1 | ||
| 55408-60190E0 |
KDJ150..GEN;GRJ150..6F..GEN;GRJ150..5FC..(ARL,GEN) AUDIO(FOR OVERSEAS MARKET)-HDD NAVIGATION+DVD-CH+BLUETOOTH+14SP,DK. BROWN,TRIM0# |
1 | ||
| 55408-60190C0 |
KDJ150..GEN;GRJ150..6F..GEN;GRJ150..5FC..(ARL,GEN) AUDIO(FOR OVERSEAS MARKET)-HDD NAVIGATION+DVD-CH+BLUETOOTH+14SP,BLACK,TRIM1# |
1 | ||
| 55472-60180C0 |
GRJ150,KDJ150,LJ150,TRJ15# BLACK,TRIM1# |
1 | ||
| 55409F - PANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.2 | ||||
| 55409-60070C0 |
GRJ150,KDJ150,LJ150,TRJ15# BLACK,TRIM1# |
1 | ||
| 55409-60070E0 |
GRJ150,KDJ150,LJ150,TRJ15# DK. BROWN,TRIM0# |
1 | ||
| 55409-60070C0 |
KDJ150..GEN;TRJ150..GCC;GRJ150..6F..GEN;GRJ150..5FC..(ARL,GEN) AUDIO(FOR OVERSEAS MARKET)-NAVIGATION+DVD CHANGER+BLUETOOTH+14SP,BLACK,TRIM1# |
1 | ||
| 55409-60070E0 |
KDJ150..GEN;TRJ150..GCC;GRJ150..6F..GEN;GRJ150..5FC..(ARL,GEN) AUDIO(FOR OVERSEAS MARKET)-NAVIGATION+DVD CHANGER+BLUETOOTH+14SP,DK. BROWN,TRIM0# |
1 | ||
| 55473-60130C0 |
GRJ150,KDJ150,LJ150,TRJ15# BLACK,TRIM1# |
1 | ||
| 55409-60070C0 |
KDJ150..GEN;GRJ150..6F..GEN;GRJ150..5FC..(ARL,GEN) AUDIO(FOR OVERSEAS MARKET)-HDD NAVIGATION+DVD-CH+BLUETOOTH+14SP,BLACK,TRIM1# |
1 | ||
| 55473-60130E0 |
GRJ150,KDJ150,LJ150,TRJ15# DK. BROWN,TRIM0# |
1 | ||
| 55409-60070E0 |
KDJ150..GEN;GRJ150..6F..GEN;GRJ150..5FC..(ARL,GEN) AUDIO(FOR OVERSEAS MARKET)-HDD NAVIGATION+DVD-CH+BLUETOOTH+14SP,DK. BROWN,TRIM0# |
1 | ||
| 55421B - PANEL, INSTRUMENT CLUSTER FINISH, UPPER | ||||
| 55421-60100C0 |
TRJ150..LHD;KDJ150..GEN;KDJ150..5FC..GCC;GRJ150,LJ150..GCC,GEN AUDIO(FOR OVERSEAS MARKET)-CD CHANGER+BLUETOOTH+MULTI+9SPEAKER,BLACK,TRIM1# |
1 | ||
| 55421-60100C0 |
GRJ150..LHD..6F;KDJ150..6F..GEN;GRJ150,KDJ150..5FC AUDIO(FOR OVERSEAS MARKET)-CD CHANGER+BLUETOOTH+EXTRA+9SPEAKER,BLACK,TRIM1# |
1 | ||
| 55421-60100E0 |
KDJ150..GEN;TRJ150..GCC;GRJ150..6F..GEN;GRJ150..5FC..(ARL,GEN) AUDIO(FOR OVERSEAS MARKET)-NAVIGATION+DVD CHANGER+BLUETOOTH+14SP,DK. BROWN,TRIM0# |
1 | ||
| 55421-60100C0 |
GRJ150..6F..GEN;KDJ150..RHD..GEN;GRJ150..5FC..(ARL,GEN) AUDIO(FOR OVERSEAS MARKET)-HDD NAVIGATION+DVD-CH+BLUETOOTH+14SP,BLACK,TRIM1# |
1 | ||
| 55421-60110E0 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 DK. BROWN,TRIM0# |
1 | ||
| 55421-60100E0 |
GRJ150..LHD..6F;KDJ150..6F..GEN;GRJ150,KDJ150..5FC AUDIO(FOR OVERSEAS MARKET)-CD CHANGER+BLUETOOTH+EXTRA+9SPEAKER,DK. BROWN,TRIM0# |
1 | ||
| 55421-60100C0 |
KDJ150..GEN;TRJ150..GCC;GRJ150..6F..GEN;GRJ150..5FC..(ARL,GEN) AUDIO(FOR OVERSEAS MARKET)-NAVIGATION+DVD CHANGER+BLUETOOTH+14SP,BLACK,TRIM1# |
1 | ||
| 55421-60110C0 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 BLACK,TRIM1# |
1 | ||
| 55421-60100E0 |
TRJ150..LHD;KDJ150..GEN;KDJ150..5FC..GCC;GRJ150,LJ150..GCC,GEN AUDIO(FOR OVERSEAS MARKET)-CD CHANGER+BLUETOOTH+MULTI+9SPEAKER,DK. BROWN,TRIM0# |
1 | ||
| 55421-60100E0 |
GRJ150..6F..GEN;KDJ150..RHD..GEN;GRJ150..5FC..(ARL,GEN) AUDIO(FOR OVERSEAS MARKET)-HDD NAVIGATION+DVD-CH+BLUETOOTH+14SP,DK. BROWN,TRIM0# |
1 | ||
| 55433B - PANEL, INSTRUMENT PANEL FINISH, LOWER NO.2 | ||||
| 55433-60140C0 |
GRJ150,KDJ150,LJ150,TRJ150..RHD BLACK,TRIM1# |
1 | ||
| 55433-60140E0 |
GRJ150,KDJ150,LJ150,TRJ150..RHD DK. BROWN,TRIM0# |
1 | ||
| 55435A - PANEL, INSTRUMENT PANEL FINISH, END RH | ||||
| 55435-60190 |
GRJ150..ARL;KDJ150..RHD..GEN SOUTH AFRICA SPEC&VX PACKAGE |
1 | ||
| 55435-60190 |
GRJ150,KDJ150..RHD VX PACKAGE |
1 | ||
| 55435-60190 |
GRJ150..ARL;KDJ150..RHD..GEN SOUTH AFRICA SPEC&VX-L PACKAGE |
1 | ||
| 55435-60190 |
GRJ150,KDJ150..RHD VX-L PACKAGE |
1 | ||
| 55435-60180 |
GRJ150,KDJ150,LJ150..RHD |
1 | ||
| 55435-60190 |
KDJ150..RHD..GEN SOUTH AFRICA SPEC&VX PACKAGE&LEATHER SEAT PACKAGE |
1 | ||
| 55435-60190 |
KDJ150..RHD..GEN SOUTH AFRICA SPEC&VX PACKAGE&LEATHER PACKAGE (STEERING & SHIFT KNOB) |
1 | ||
| 55435-60190 |
GRJ150..5FC..ARL;KDJ150..RHD..GEN SOUTH AFRICA SPEC&VX-L PACKAGE&LEATHER SEAT PACKAGE&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER |
1 | ||
| 55435-60190 |
KDJ150..RHD..GEN VX PACKAGE&LEATHER SEAT PACKAGE |
1 | ||
| 55435-60190 |
KDJ150..RHD..GEN VX PACKAGE&LEATHER PACKAGE (STEERING & SHIFT KNOB) |
1 | ||
| 55435-60190 |
KDJ150..RHD..6F..GEN;GRJ150,KDJ150..RHD..5FC VX-L PACKAGE&LEATHER SEAT PACKAGE&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER |
1 | ||
| 55436A - PANEL, INSTRUMENT PANEL FINISH, END LH | ||||
| 55436-60230 |
GRJ150..5FC..ARL;KDJ150..RHD..GEN SOUTH AFRICA SPEC |
1 | ||
| 55436-60210 |
GRJ150,KDJ150..RHD VX-L PACKAGE |
1 | ||
| 55436-60240 |
GRJ150..ARL;KDJ150..RHD..GEN SOUTH AFRICA SPEC&VX-L PACKAGE |
1 | ||
| 55436-60240 |
GRJ150..ARL;KDJ150..RHD..GEN SOUTH AFRICA SPEC&VX PACKAGE |
1 | ||
| 55436-60200 |
GRJ150,KDJ150,LJ150..RHD |
1 | ||
| 55436-60210 |
GRJ150,KDJ150..RHD VX PACKAGE |
1 | ||
| 55436-60230 |
GRJ150..5FC..ARL;KDJ150..RHD..GEN SOUTH AFRICA SPEC&WIRELESS DOOR LOCK-WITH(LESS SMART ENTRY) |
1 | ||
| 55436-60210 |
KDJ150..RHD..GEN VX PACKAGE&LEATHER PACKAGE (STEERING & SHIFT KNOB) |
1 | ||
| 55436-60210 |
KDJ150..RHD..GEN VX PACKAGE&LEATHER SEAT PACKAGE |
1 | ||
| 55436-60210 |
KDJ150..RHD..6F..GEN;GRJ150,KDJ150..RHD..5FC VX-L PACKAGE&LEATHER SEAT PACKAGE&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER |
1 | ||
| 55436-60230 |
KDJ150..RHD..GEN SOUTH AFRICA SPEC&TX-L PACKAGE |
1 | ||
| 55436-60240 |
KDJ150..RHD..GEN SOUTH AFRICA SPEC&VX PACKAGE&LEATHER PACKAGE (STEERING & SHIFT KNOB) |
1 | ||
| 55436-60240 |
KDJ150..RHD..GEN SOUTH AFRICA SPEC&VX PACKAGE&LEATHER SEAT PACKAGE |
1 | ||
| 55436-60240 |
GRJ150..5FC..ARL;KDJ150..RHD..GEN SOUTH AFRICA SPEC&VX-L PACKAGE&LEATHER SEAT PACKAGE&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER |
1 | ||
| 55446A - BASE, SWITCH HOLE, NO.1 | ||||
| 55446-60130C0 |
GRJ150,KDJ150,LJ150..RHD BLACK,TRIM1# |
1 | ||
| 55446-60130E0 |
GRJ150,KDJ150,LJ150..RHD DK. BROWN,TRIM0# |
1 | ||
| 55448A - CUSHION, INSTRUMENT PANEL FINISH, NO.1 | ||||
| 55448-60040C0 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 BLACK,TRIM1# |
1 | ||
| 55448-60040E0 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 DK. BROWN,TRIM0# |
1 | ||
| 55449C - CUSHION, INSTRUMENT PANEL FINISH PANEL, NO.2 | ||||
| 55449-60050E0 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 DK. BROWN,TRIM0# |
1 | ||
| 55449-60050C0 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 BLACK,TRIM1# |
1 | ||
| 55461A - ORNAMENT, INSTRUMENT PANEL | ||||
| 55461-60230 |
KDJ150..RHD..6F..GEN;GRJ150,KDJ150..RHD..5FC VX PACKAGE |
1 | ||
| 55461-60220 |
KDJ150..RHD..6F..GEN;GRJ150,KDJ150..RHD..5FC VX-L PACKAGE |
1 | ||
| 55461-60240 |
GRJ150,KDJ150,LJ150..RHD |
1 | ||
| 55476C - GARNISH, INSTRUMENT PANEL FINISH PLATE | ||||
| 55476-60090C0 |
GRJ150,KDJ150..RHD WIRELESS DOOR LOCK-WITH(LESS SMART ENTRY)&SRS AIR BAG-W(*DRP&KNEE&CURTAIN(RR NO.1&NO.2 SEAT)),BLACK,TRIM1# |
1 | ||
| 55476-60100C0 |
GRJ150,KDJ150..RHD BLACK,TRIM1# |
1 | ||
| 55476-60100E0 |
GRJ150,KDJ150..RHD DK. BROWN,TRIM0# |
1 | ||
| 55476-60090E0 |
GRJ150,KDJ150..RHD WIRELESS DOOR LOCK-WITH(LESS SMART ENTRY),DK. BROWN,TRIM0# |
1 | ||
| 55476-60090C0 |
GRJ150,KDJ150..RHD WIRELESS DOOR LOCK-WITH(LESS SMART ENTRY),BLACK,TRIM1# |
1 | ||
| 55476-60090E0 |
GRJ150,KDJ150..RHD WIRELESS DOOR LOCK-WITH(LESS SMART ENTRY)&SRS AIR BAG-WITH(*DRP&KNEE&CURTAIN(REARNO.1 SEAT)),DK. BROWN,TRIM0# |
1 | ||
| 55476-60090C0 |
GRJ150,KDJ150..RHD WIRELESS DOOR LOCK-WITH(LESS SMART ENTRY)&SRS AIR BAG-WITH(*DRP&KNEE&CURTAIN(REARNO.1 SEAT)),BLACK,TRIM1# |
1 | ||
| 55476-60090E0 |
GRJ150,KDJ150..RHD WIRELESS DOOR LOCK-WITH(LESS SMART ENTRY)&SRS AIR BAG-W(*DRP&KNEE&CURTAIN(RR NO.1&NO.2 SEAT)),DK. BROWN,TRIM0# |
1 | ||
| 55476C - GARNISH, INSTRUMENT PANEL FINISH PLATE | ||||
| 55476-60090C0 |
GRJ150,KDJ150..RHD WIRELESS DOOR LOCK-WITH(LESS SMART ENTRY)&SRS AIR BAG-W(*DRP&KNEE&CURTAIN(RR NO.1&NO.2 SEAT)),BLACK,TRIM1# |
1 | ||
| 55476-60100C0 |
GRJ150,KDJ150..RHD BLACK,TRIM1# |
1 | ||
| 55476-60100E0 |
GRJ150,KDJ150..RHD DK. BROWN,TRIM0# |
1 | ||
| 55476-60090E0 |
GRJ150,KDJ150..RHD WIRELESS DOOR LOCK-WITH(LESS SMART ENTRY),DK. BROWN,TRIM0# |
1 | ||
| 55476-60090C0 |
GRJ150,KDJ150..RHD WIRELESS DOOR LOCK-WITH(LESS SMART ENTRY),BLACK,TRIM1# |
1 | ||
| 55476-60090E0 |
GRJ150,KDJ150..RHD WIRELESS DOOR LOCK-WITH(LESS SMART ENTRY)&SRS AIR BAG-WITH(*DRP&KNEE&CURTAIN(REARNO.1 SEAT)),DK. BROWN,TRIM0# |
1 | ||
| 55476-60090C0 |
GRJ150,KDJ150..RHD WIRELESS DOOR LOCK-WITH(LESS SMART ENTRY)&SRS AIR BAG-WITH(*DRP&KNEE&CURTAIN(REARNO.1 SEAT)),BLACK,TRIM1# |
1 | ||
| 55476-60090E0 |
GRJ150,KDJ150..RHD WIRELESS DOOR LOCK-WITH(LESS SMART ENTRY)&SRS AIR BAG-W(*DRP&KNEE&CURTAIN(RR NO.1&NO.2 SEAT)),DK. BROWN,TRIM0# |
1 | ||
| 55480D - PANEL ASSY, INSTRUMENT PANEL FINISH, LWR | ||||
| 55480-60270E0 |
GRJ150,KDJ150,LJ150..RHD DK. BROWN,TRIM0# |
1 | ||
| 55480-60270C0 |
GRJ150,KDJ150,LJ150..RHD BLACK,TRIM1# |
1 | ||
| 55501A - DOOR SUB-ASSY, GLOVE COMPARTMENT | ||||
| 55501-60240C0 |
GRJ150,KDJ150,LJ150,TRJ150..RHD BLACK,TRIM1# |
1 | ||
| 55501-60240E0 |
GRJ150,KDJ150,LJ150,TRJ150..RHD DK. BROWN,TRIM0# |
1 | ||
| 55531 - PANEL, GLOVE COMPARTMENT | ||||
| 55531-60050C0 |
GRJ150,KDJ150,LJ150,TRJ150..RHD BLACK,TRIM1# |
1 | ||
| 55531-60050 |
GRJ150,KDJ150,LJ150,TRJ150..RHD |
1 | ||
| 55531-60050E0 |
GRJ150,KDJ150,LJ150,TRJ150..RHD DK. BROWN,TRIM0# |
1 | ||
| 55538D - COVER, SUNSHINE SENSOR HOLE | ||||
| 55538-48010 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 |
1 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-58060C0 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 BLACK |
1 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-58060C0 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 BLACK |
1 | ||
| 55548A - COVER, INSTRUMENT PANEL HOLE | ||||
| 55548-47020E0 |
GRJ150,KDJ150,LJ150,TRJ150..RHD DK. BROWN,TRIM0# |
1 | ||
| 55548-47020C0 |
GRJ150,KDJ150,LJ150,TRJ150..RHD BLACK,TRIM1# |
1 | ||
| 55550 - DOOR ASSY, GLOVE COMPARTMENT | ||||
| 55550-60220C0 |
GRJ150,KDJ150,LJ150,TRJ150..RHD BLACK,TRIM1# |
1 | ||
| 55550-60220E0 |
GRJ150,KDJ150,LJ150,TRJ150..RHD DK. BROWN,TRIM0# |
1 | ||
| 55557A - CUSHION, GLOVE COMPARTMENT DOOR CHECK | ||||
| 55557-60050 |
GRJ150,KDJ150,LJ150,TRJ15# |
2 | ||
| 55606 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.1 | ||||
| 55606-60110 |
GRJ150,KDJ150,LJ150..RHD |
1 | ||
| 55607 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.2 | ||||
| 55607-60140 |
GRJ150,KDJ150,LJ150..RHD |
1 | ||
| 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55650-60180E0 |
GRJ150,KDJ150,LJ150,TRJ15# DK. BROWN,TRIM0# |
1 | ||
| 55650-60181E0 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 DK. BROWN,TRIM0# |
1 | ||
| 55650-60181C0 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 BLACK,TRIM1# |
1 | ||
| 55650-60180C0 |
GRJ150,KDJ150,LJ150,TRJ15# BLACK,TRIM1# |
1 | ||
| 55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55660-60290C0 |
GRJ150,KDJ150,LJ150,TRJ15# BLACK,TRIM1# |
1 | ||
| 55660-60291C0 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 BLACK,TRIM1# |
1 | ||
| 55660-60290E0 |
GRJ150,KDJ150,LJ150,TRJ15# DK. BROWN,TRIM0# |
1 | ||
| 55660-60291E0 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 DK. BROWN,TRIM0# |
1 | ||
| 55670A - REGISTER ASSY, INSTRUMENT PANEL, CENTER | ||||
| 55670-60220 |
GRJ150,KDJ150,LJ150,TRJ15# |
1 | ||
| 55670-60221 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 |
1 | ||
| Common parts | ||||
| 90159-50311 | ||||
| 90159-50327 | ||||
| 90467-10201 | ||||
| 90467-10203 | ||||
| 90468-05135 | ||||
| 91631-B0618 | ||||
| 91673-80616 | ||||
| 93540-14010 | ||||
| 93560-54012 | ||||
| 93568-55014 | ||||
| Linked diagrams | ||||
| 8302 | ||||
| 8416 | ||||
ILLUST NO. 3 OF 3(0908-1308)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55420A - PANEL ASSY, INSTRUMENT CLUSTER FINISH, CENTER | ||||
| 55420-60070 |
GRJ150,KDJ150,LJ150..RHD CLEARANCE & BACK SONAR-WITH(REAR ONLY) |
1 | ||
| 55420-60100 |
GRJ150,KDJ150,LJ150..RHD |
1 | ||
| 55422C - PANEL, INSTRUMENT CLUSTER FINISH, CENTER UPPER | ||||
| 55422-60050 |
KDJ150..RHD..6F..GEN;GRJ150,KDJ150..RHD..5FC TX-L PACKAGE&AUDIO(FOR OVERSEAS MARKET)-CD+BLUETOOTH+EXTRA+6SPEAKER&CLEARANCE & BACK SONAR-WITH(REAR ONLY),RH |
1 | ||
| 55422-60070 |
KDJ150..RHD..6F..GEN;GRJ150,KDJ150..RHD..5FC TX-L PACKAGE&AUDIO(FOR OVERSEAS MARKET)-CD+BLUETOOTH+EXTRA+6SPEAKER,LH |
1 | ||
| 55422-60080 |
KDJ150..RHD..6F..GEN;GRJ150,KDJ150..RHD..5FC VX-L PACKAGE&AUDIO(FOR OVERSEAS MARKET)-CD CHANGER+BLUETOOTH+EXTRA+9SPEAKER&CLEARANCE & BACK SONAR-WITH(FRONT & REAR),RH |
1 | ||
| 55422-60070 |
KDJ150..RHD..GEN TX-L PACKAGE&AUDIO(FOR OVERSEAS MARKET)-CD CHANGER+BLUETOOTH+EXTRA+9SPEAKER,LH |
1 | ||
| 55422-60090 |
KDJ150..RHD..GEN VX PACKAGE&AUDIO(FOR OVERSEAS MARKET)-CD+BLUETOOTH+EXTRA+6SPEAKER&CLEARANCE & BACK SONAR-WITH(FRONT & REAR),LH |
1 | ||
| 55422-60050 |
KDJ150..RHD..GEN TX-L PACKAGE&AUDIO(FOR OVERSEAS MARKET)-CD CHANGER+BLUETOOTH+EXTRA+9SPEAKER&CLEARANCE & BACK SONAR-WITH(REAR ONLY),RH |
1 | ||
| 55422-60080 |
KDJ150..RHD..6F..GEN;GRJ150,KDJ150..RHD..5FC VX PACKAGE&AUDIO(FOR OVERSEAS MARKET)-CD CHANGER+BLUETOOTH+EXTRA+9SPEAKER&CLEARANCE & BACK SONAR-WITH(FRONT & REAR),RH |
1 | ||
| 55422-60070 |
KDJ150..RHD..6F..GEN;GRJ150,KDJ150..RHD..5FC TX-L PACKAGE&AUDIO(FOR OVERSEAS MARKET)-CD+BLUETOOTH+EXTRA+6SPEAKER&CLEARANCE & BACK SONAR-WITH(REAR ONLY),LH |
1 | ||
| 55422-60090 |
KDJ150..RHD..6F..GEN;GRJ150,KDJ150..RHD..5FC VX PACKAGE&AUDIO(FOR OVERSEAS MARKET)-CD CHANGER+BLUETOOTH+EXTRA+9SPEAKER&CLEARANCE & BACK SONAR-WITH(FRONT & REAR),LH |
1 | ||
| 55422-60070 |
KDJ150..RHD..GEN TX-L PACKAGE&AUDIO(FOR OVERSEAS MARKET)-CD CHANGER+BLUETOOTH+EXTRA+9SPEAKER&CLEARANCE & BACK SONAR-WITH(REAR ONLY),LH |
1 | ||
| 55422-60080 |
KDJ150..RHD..GEN VX PACKAGE&AUDIO(FOR OVERSEAS MARKET)-CD+BLUETOOTH+EXTRA+6SPEAKER&CLEARANCE & BACK SONAR-WITH(FRONT & REAR),RH |
1 | ||
| 55422-60080 |
KDJ150..RHD..GEN VX-L PACKAGE&AUDIO(FOR OVERSEAS MARKET)-CD+BLUETOOTH+EXTRA+6SPEAKER&CLEARANCE & BACK SONAR-WITH(FRONT & REAR),RH |
1 | ||
| 55422-60110 |
KDJ150..RHD..GEN TX-L PACKAGE&AUDIO(FOR OVERSEAS MARKET)-CD CHANGER+BLUETOOTH+EXTRA+9SPEAKER,RH |
1 | ||
| 55422-60090 |
KDJ150..RHD..6F..GEN;GRJ150,KDJ150..RHD..5FC VX-L PACKAGE&AUDIO(FOR OVERSEAS MARKET)-CD CHANGER+BLUETOOTH+EXTRA+9SPEAKER&CLEARANCE & BACK SONAR-WITH(FRONT & REAR),LH |
1 | ||
| 55422-60090 |
KDJ150..RHD..GEN VX-L PACKAGE&AUDIO(FOR OVERSEAS MARKET)-CD+BLUETOOTH+EXTRA+6SPEAKER&CLEARANCE & BACK SONAR-WITH(FRONT & REAR),LH |
1 | ||
| 55422-60110 |
KDJ150..RHD..6F..GEN;GRJ150,KDJ150..RHD..5FC TX-L PACKAGE&AUDIO(FOR OVERSEAS MARKET)-CD+BLUETOOTH+EXTRA+6SPEAKER,RH |
1 | ||
| 55422C - PANEL, INSTRUMENT CLUSTER FINISH, CENTER UPPER | ||||
| 55422-60050 |
KDJ150..RHD..6F..GEN;GRJ150,KDJ150..RHD..5FC TX-L PACKAGE&AUDIO(FOR OVERSEAS MARKET)-CD+BLUETOOTH+EXTRA+6SPEAKER&CLEARANCE & BACK SONAR-WITH(REAR ONLY),RH |
1 | ||
| 55422-60070 |
KDJ150..RHD..6F..GEN;GRJ150,KDJ150..RHD..5FC TX-L PACKAGE&AUDIO(FOR OVERSEAS MARKET)-CD+BLUETOOTH+EXTRA+6SPEAKER,LH |
1 | ||
| 55422-60080 |
KDJ150..RHD..6F..GEN;GRJ150,KDJ150..RHD..5FC VX-L PACKAGE&AUDIO(FOR OVERSEAS MARKET)-CD CHANGER+BLUETOOTH+EXTRA+9SPEAKER&CLEARANCE & BACK SONAR-WITH(FRONT & REAR),RH |
1 | ||
| 55422-60070 |
KDJ150..RHD..GEN TX-L PACKAGE&AUDIO(FOR OVERSEAS MARKET)-CD CHANGER+BLUETOOTH+EXTRA+9SPEAKER,LH |
1 | ||
| 55422-60090 |
KDJ150..RHD..GEN VX PACKAGE&AUDIO(FOR OVERSEAS MARKET)-CD+BLUETOOTH+EXTRA+6SPEAKER&CLEARANCE & BACK SONAR-WITH(FRONT & REAR),LH |
1 | ||
| 55422-60050 |
KDJ150..RHD..GEN TX-L PACKAGE&AUDIO(FOR OVERSEAS MARKET)-CD CHANGER+BLUETOOTH+EXTRA+9SPEAKER&CLEARANCE & BACK SONAR-WITH(REAR ONLY),RH |
1 | ||
| 55422-60080 |
KDJ150..RHD..6F..GEN;GRJ150,KDJ150..RHD..5FC VX PACKAGE&AUDIO(FOR OVERSEAS MARKET)-CD CHANGER+BLUETOOTH+EXTRA+9SPEAKER&CLEARANCE & BACK SONAR-WITH(FRONT & REAR),RH |
1 | ||
| 55422-60070 |
KDJ150..RHD..6F..GEN;GRJ150,KDJ150..RHD..5FC TX-L PACKAGE&AUDIO(FOR OVERSEAS MARKET)-CD+BLUETOOTH+EXTRA+6SPEAKER&CLEARANCE & BACK SONAR-WITH(REAR ONLY),LH |
1 | ||
| 55422-60090 |
KDJ150..RHD..6F..GEN;GRJ150,KDJ150..RHD..5FC VX PACKAGE&AUDIO(FOR OVERSEAS MARKET)-CD CHANGER+BLUETOOTH+EXTRA+9SPEAKER&CLEARANCE & BACK SONAR-WITH(FRONT & REAR),LH |
1 | ||
| 55422-60070 |
KDJ150..RHD..GEN TX-L PACKAGE&AUDIO(FOR OVERSEAS MARKET)-CD CHANGER+BLUETOOTH+EXTRA+9SPEAKER&CLEARANCE & BACK SONAR-WITH(REAR ONLY),LH |
1 | ||
| 55422-60080 |
KDJ150..RHD..GEN VX PACKAGE&AUDIO(FOR OVERSEAS MARKET)-CD+BLUETOOTH+EXTRA+6SPEAKER&CLEARANCE & BACK SONAR-WITH(FRONT & REAR),RH |
1 | ||
| 55422-60080 |
KDJ150..RHD..GEN VX-L PACKAGE&AUDIO(FOR OVERSEAS MARKET)-CD+BLUETOOTH+EXTRA+6SPEAKER&CLEARANCE & BACK SONAR-WITH(FRONT & REAR),RH |
1 | ||
| 55422-60110 |
KDJ150..RHD..GEN TX-L PACKAGE&AUDIO(FOR OVERSEAS MARKET)-CD CHANGER+BLUETOOTH+EXTRA+9SPEAKER,RH |
1 | ||
| 55422-60090 |
KDJ150..RHD..6F..GEN;GRJ150,KDJ150..RHD..5FC VX-L PACKAGE&AUDIO(FOR OVERSEAS MARKET)-CD CHANGER+BLUETOOTH+EXTRA+9SPEAKER&CLEARANCE & BACK SONAR-WITH(FRONT & REAR),LH |
1 | ||
| 55422-60090 |
KDJ150..RHD..GEN VX-L PACKAGE&AUDIO(FOR OVERSEAS MARKET)-CD+BLUETOOTH+EXTRA+6SPEAKER&CLEARANCE & BACK SONAR-WITH(FRONT & REAR),LH |
1 | ||
| 55422-60110 |
KDJ150..RHD..6F..GEN;GRJ150,KDJ150..RHD..5FC TX-L PACKAGE&AUDIO(FOR OVERSEAS MARKET)-CD+BLUETOOTH+EXTRA+6SPEAKER,RH |
1 | ||
| 55522B - COVER, RADIO TUNER OPENING | ||||
| 55522-52020 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 |
1 | ||
| Common parts | ||||
| 90159-50327 | ||||
| 90467-10203 | ||||
| 93560-54012 | ||||
| Linked diagrams | ||||
| 8301 | ||||
| 8603 | ||||
ILLUST NO. 1 OF 4(1708- )RHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90105-08120 | ||||
| 90105-08460 | ||||
| 90119-06951 | ||||
| 90179-06278 | ||||
| 90183-05033 | ||||
| 91673-80616 | ||||
| 93568-55014 | ||||
| 94150-80600 | ||||
| 94151-80800 | ||||
| Linked diagrams | ||||
| 5752 | ||||
| 8202 | ||||
ILLUST NO. 2 OF 4(1708- )RHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90159-50311 | ||||
| 90159-50327 | ||||
| 90467-05171 | ||||
| 90467-08227 | ||||
| 90467-10201 | ||||
| 90467-10203 | ||||
| 90467-13082A0 | ||||
| 90468-05135 | ||||
| 91631-B0618 | ||||
| 91673-80616 | ||||
| 93540-14010 | ||||
| 93560-14008 | ||||
| 93568-55014 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 3 OF 4(1708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90159-50327 | ||||
| 90467-05171 | ||||
| 90467-10203 | ||||
| 93560-54012 | ||||
| Linked diagrams | ||||
| 8603 | ||||
ILLUST NO. 4 OF 4(1708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90467-05171 | ||||
| 90467-13082A0 | ||||
| Linked diagrams | ||||
| 8401 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
